USER MANUAL IAN 282650 AURIOL

Operation and Safety Notes

NL BE

RADIOWERSTATION

Included items . Page 47

Safety

General Safety Information.. Page 48

Safety Instructions for Batteries.. Page 48

Before use.. Page 49

Setting up the devices.. Page 49

Preparing to use the outdoor sensor.. Page 50

Preparing the weather station for use.. Page 51

Operation

Receiving the DCF radio time signal.. Page 53

Setting the 12/24 hour mode/°C/°F/hPa/inHg/

time zone/time/date/language manually.. Page 54

Setting the alarm time.. Page 56

Activating/deactivating the alarm function.. Page 57

Switching off the alarm signal.. Page 58

SNOOZE function . Page 58

Preparing to use the weather forecasting function.. Page 58

Selecting the location.. Page 60

Selecting the location manually.. Page 61

Lunar phases.. Page 65

Reading the barometric pressure for the last 12 hours . Page 65

Adjusting the air pressure indication.. Page 66

Setting the channel.. Page 67

Displaying temperature and temperature trend.. Page 68

Displaying the humidity and humidity trend.. Page 68

Displaying the maximum/ minimum temperature/humidity.. Page 69

Temperature and frost alarm.. Page 70

Activating/deactivating the the temperature and frost alarm.. Page 70

Background lighting.. Page 71

Battery state display.. Page 71

Changing the batteries . Page 71

Troubleshooting

Cleaning and care.. Page 73

Disposal

Warranty.. Page 75

Information

Declaration of Conformity.. Page 76

Radio-controlled weather station

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The weather station displays the indoor and outdoor temperatures in Celsius (^) or Fahrenheit (^) and their maximum and minimum values. It also displays the indoor and outdoor humidity (%) RH as well as their maximum and minimum values. Additional display values of weather station include the weather forecast, the time in 12/24-hour clock modes and the date. The weather station displays the sunrise and sunset times for that day and the lunar phase as well. In addition, the weather station has two different alarm functions. The product is only suitable for use in private households and is not intended for commercial use.

- Partsdescription

Weather station:

1 Datedisplay
2 Monthdisplay
3 |Alarm|
4SNOOZEdisplay
5 Radio tower symbol
6 DST display (summer time)
7 Timedisplay
8 |Alarm2
Day of week display
10Sunrise/time of sunrise
Tidal range display
12 Location
13Lunarphase
14 Sundown/time of sundown
15 Temperature trend (indoor)
Humidity trend (indoor)
Humidity(indoor)
18 Comfort indicator (maximum / minimum)
19 Inside temperature (^ / ^)
20 Battery state display

21 Humidity trend (outdoor)
22 Humidity(outdoor)
23 Temperature and frost alarm (maximum / minimum)
24 Temperature trend (outdoor)
25 Outdoor temperature (^ / ^)
26 Battery state display (outdoor sensor)
27 Selectedchannel
28 Barometric pressure bar display
29 Barometric pressure display of the last hour
30 Absolute/relative barometric pressure
31 Barometric pressure trend
32Weatherforecast
33 SNOOZE/LIGHT button
34MODEbutton
35+button
36)-button
37 Channel button (CH)

38 HISTORY ABS/REL button
39 CITYbutton

40 Batterycompartment

Outdoor sensor:

41ControlLED
42Mount
43RESETbutton

44 Channel selector switch
45 Batterycompartment

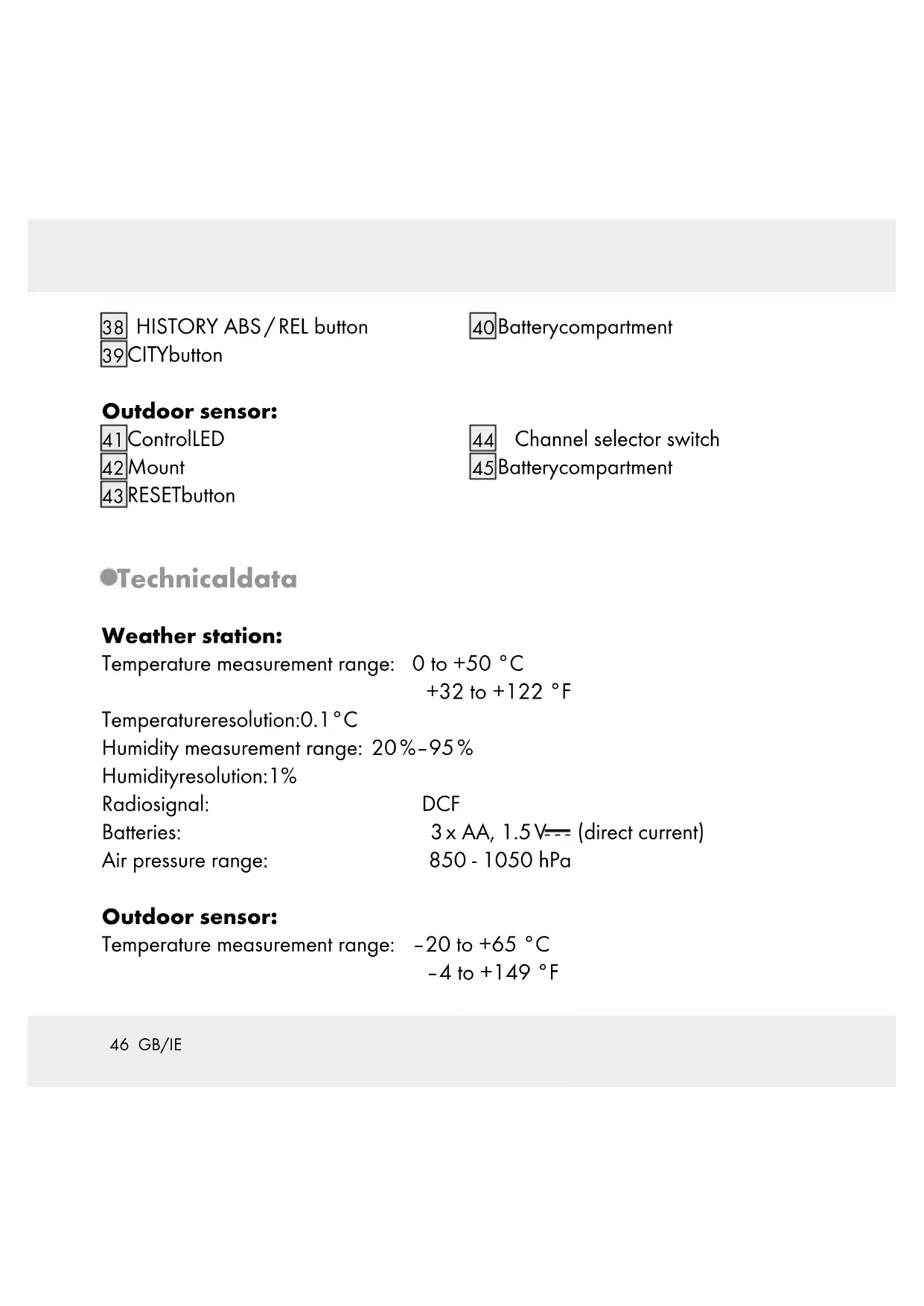

-Technicaldata

Weather station:

Temperature measurement range: 0 to +50^

$$ + 3 2 \mathrm {t o} + 1 2 2 ^ {\circ} \mathrm {F} $$

Temperatureresolution:0.1°C

Humidity measurement range: 20% - 95%

Humidityresolution: 1 %

Radiosignal: DCF

Batteries: 3 × AA, 1.5 ~V = (direct current)

Air pressure range: 850 - 1050 hPa

Outdoor sensor:

Temperature measurement range: -20 to +65 °C

$$ - 4 \text {t o} + 1 4 9 ^ {\circ} F $$

Humidity measurement range: 20% - 95%

Humidityresolution: 1 %

HF transmission signal: 433 MHz

HF transmission range: max. 30 metres (in open area)

Batteries: 2 × AA, 1.5 ~V (direct current)

Degree of protection: IPX4 (splash-proof)

- Included items

1 Weather station
1 Outdoor sensor
3 Batteries AA, 1.5 V (pre-installed)
2 Batteries AA, 1.5 V (pre-installed)
1 Operating instructions

Safety

Please read all safety information and instructions. Failure to comply with the safety information and instructions may result in an electric shock, fire and / or severe injuries.

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

- General Safety Information

Children are underestimates the dangers.

Children should be kept away from the product at all times.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
Do not use the product if it is damaged.

Safety Instructions for Batteries

DANGER TO LIFE! Batteries can be swallowed, which may represent a danger to life. If a battery has been swallowed, medical help is required immediately.
Remove the batteries from the product if they have not been used for a long period.
CAUTION! DANGER OF EXPLOSION! The batteries must never be recharged!
- When inserting the battery, ensure the correct polarity! This is shown in the battery compartments.
If necessary, clean the contacts on the batteries and on the product before inserting them.

• Remove spent batteries from the device immediately. There is an increased danger of leaks!
  Batteries must not be disposed of in the normal domestic waste!
• Every consumer is obliged to dispose of batteries properly in accordance with the regulations!
• Keep batteries away from children. Do not throw batteries into a fire. Never short-circuit them or take them apart.
  Always replace all the batteries at the same time.
  Use only batteries of the same type.
  If the batteries in your product have leaked, remove them immediately to prevent damage to the product!
• Avoid contact with the skin, eyes and mucous membranes. In the event of contact with fluid leaking from a battery, thoroughly flush the affected area with water and / or seek the advice of a doctor!

Beforeuse

- Setting up the devices

Put the batteries first into the outdoor sensor.

CAUTION! When choosing where to position the weather station, make sure that it is not exposed to direct sunlight, vibrations, dust, heat, cold or moisture. Do

not place the devices close to sources of heat, e.g. radiators. Otherwise they may be damaged.

Do not place the devices on valuable or sensitive surfaces unless these are appropriately protected. Otherwise they may be damaged.
Please ensure that neighbouring devices are not operated at the same frequency of 433MHz . Such devices may cause interference to the radio connection.
Do not place the devices next to or on metal plates. Otherwise the quality of radio wave transmission may be reduced.
Do not install the devices in buildings made of reinforced concrete, e.g. airports, high-rise buildings, factories or cellars. Otherwise the transmission of the radio waves between the devices may be severely impaired.

Preparing to use the outdoor sensor

Remove the battery compartment cover from the back of the outdoor sensor.
Remove the battery safety strip. The outdoor sensor is now ready for operation and the control LED 41 lights up briefly.
Close the battery compartment cover.

Installing the Outdoor Sensor:

Note: You will need an electric drill for this step.

Find an appropriate place for the outdoor sensor.

Note: Please ensure that you install the outdoor sensor within a radius of 30m from the weather station. Check that there are no obstacles between the outdoor sensor and the weather station. Otherwise there may be interference of the transmission of data.

For wall mounting:

Hang the outdoor sensor with the mount 42 on one screw.

Preparing the weather station for use

Removing the battery safety strip:

Open the battery compartment 40 on the back of the weather station.
Pull out the battery safety strip.
Then close the battery compartment.

As soon as the battery safety strip has been removed, the weather station starts to receive the radio signal.

Note: Do not move the weather station while it is receiving the signal. This may disrupt reception.

Connecting the weather station with the outdoor sensor and the DCF radio signal:

After removal of the battery safety strip the weather station attempts to establish a connection with the outdoor sensor. This process can take a few minutes. The symbol will keep flashing for few minutes. On successful connection with the outdoor sensor, the selected channel symbol appears in the LC display with the channel of the outdoor sensor (if necessary you can change the channel of the outdoor sensor as shown in the section "Setting the channel"). If the connection with the outdoor sensor is not established automatically, this can be done manually as follows:

1. Press the channel button (CH)37. The icon of the selected channel 27 will flash in the LC-display.
2. Then press the RESET button 43 of the sensor.

As soon as the weather station has established a connection with the outdoor sensor it automatically begins to receive the DCF radio signal. This process takes several minutes and is indicated in the LC display by a flashing radio tower symbol 5.

When the DCF radio signal is being successfully received, the radio tower symbol is shown permanently in the display. If at the time of putting the device into operation it is not possible to synchronise with the atomic clock, you can also carry out the clock adjustments manually ("Setting the 12/24 hour mode / °C / °F/hPa/inHg/time zone/time/date/language manually").

Radio signal (DCF):

The DCF signal (time signal transmitter) consists of time pulses emitted by one of the most accurate clocks in the world close to Frankfurt / Main, Germany.

In ideal conditions, your weather station can pick up this signal over a distance of up to approx. 2000 km around Frankfurt / Main. Reception of the radio signal generally takes approx. 3-10 minutes.

Reception can be considerably impaired by obstacles (e.g. concrete walls) or sources of interference (e.g. other electrical devices). In the event of reception problems, change the position of the weather station (e.g. to somewhere near a window).

Operation

Receiving the DCF radio time signal

After a connection with the outdoor sensor is established or 3 minutes after the battery safety strip is removed, the weather station automatically begins to search for the DCF radio signal. The search is shown in the LC display by the radio tower symbol flashing.

Note: In buildings made of reinforced concrete the reception of the radio signal may be severely impaired (see "Setting up the devices").

In order to correct any deviations from the exact time, the clock is automatically synchronised with the DCF radio signal every day at 1:00, 2:00 and 3:00. Reception of the DCF radio signal can also be started manually on the weather station.

Press the + and - button 35, 36 at the same time. The weather station attempts to receive the DCF radio signal. This process takes several minutes and is indicated in the LC display by a flashing radio tower symbol.

If the connection with the DCF radio signal cannot be established, the search is stopped. Note: If the clock of the weather station cannot receive the DCF radio signal due to errors, too great a distance from the transmitter or similar reasons, it is possible to set the time manually. If reception of the DCF signal is successful, the manual settings are overwritten.

- Setting the 12/24 hour mode/°C/°F/hPa/inHg/time zone/time/date/language manually

The reception of DCF radio signal where the weather station has been positioned may become degraded or interrupted. If this happens you can set the device manually.

Follow these steps:

1. Press and hold down the MODE button 34 for about 3 seconds. "12 Hr" or "24 Hr" blinks in the display. Press the + or - button 35, 36 to choose the desired hour format.

Note: The AM symbol in the time display 7 stands for before noon in the 12 hour mode. The PM symbol in the time display stands for after noon in 12 hour mode.

1. Confirm your setting by pressing the MODE button. The temperature unit "°C" or "°F" flashes in the display. Press the + or - button to choose the desired temperature unit.

2. Confirm your setting by pressing the MODE button. The barometric pressure's unit flashes in the display. Press the + or - button to set the desired unit (hPa / inHg).

3. Confirm your setting by pressing the MODE button. The time zone indicator flashes in the display. Press the + or - button to set the desired value (-2 to +2). Note: Should you be in a country in which the DCF signal can be received but the time is different to your current local time, you can use the time zone setting to have the product display your current local time. If you find yourself in a country in which, for example, the local time is an hour ahead of Central European Time (CET), you set the time zone to +01. The product is now still controlled by DCF but shows the time as one hour ahead of CET.

4. Confirm your setting by pressing the MODE button. The hour value of the time display flashes. Press the + or - button to set the desired value.

Note: The time and date settings will be done automatically if the weather station receives the DCF signal. You should manually adjust the time and date if you have no reception of DCF.

Tip: Hold the + or - button pressed down. This will speed up the process of setting the values. You can also use this fast setting option for subsequent settings.

If you do not press any button for 20 seconds, the LCD automatically reverts to the standard display.

1. Confirm your setting by pressing the MODE button. The minute indicator of the time display blinks. Press the + or - button to set the desired value.
2. Confirm your setting by pressing the MODE button. The year indicator flashes in the time display. Press the + or - button to set the desired value.
3. Confirm your setting by pressing the MODE button. The month indicator flashes in the date display 1. Press the + or - button to set the desired value.
4. Confirm your setting by pressing the MODE button. The day indicator flashes in the date display. Press the + or - button to set the desired value.
5. Confirm your setting by pressing the MODE button. At the place of the day of the week display 9 , the language indicator of this display flashes. Press the + or - button to choose the desired language.

Note: You have the choice of German (GE), English (EN), Italian (IT), French (FR) and Spanish (SP) (German is set as the standard language).

1. Confirm your setting by pressing the MODE button.

- Setting the alarm time

1. Press the MODE button 34 briefly in order to get to alarm mode. The currently set waking time appears in the LC display.

2. Press and hold down the MODE button for about 2 seconds. The hours display flashes.

3. Press the + or - button 35, 36 to set the desired value.

4. Confirm your setting by pressing the MODE button. The minutes display flashes. Repeat step 3 to set the minutes.
5. Confirm your setting by pressing the MODE button.

Tip: Hold the + or - button pressed down. This will speed up the process of setting the values. You can also use this fast setting option for subsequent settings. If you do not press any button for 20 seconds, the LCD automatically reverts to the standard display.

Note: You can set two different alarms separately.

1. Press the MODE button twice briefly if the weather station is in time display mode. Press the MODE button once briefly if the weather station is in ALARM 1 mode. This brings you now to ALARM 2 mode.
2. Repeat steps 2-5 to set the value for ALARM 2.

- Activating / deactivating the alarm function

1. Briefly press the MODE button 34 briefly once or twice to reach ALARM 1 or ALARM 2 mode.
2. Press the + button 35. The ALARM 1 symbol 3 or ALARM 2 symbol 8 appears in the LC display. The alarm has been activated.
3. Press the button + again. The ALARM 1 or ALARM 2 symbol in the LC display goes out. The alarm has been deactivated.

- Switching off the alarm signal

Press any button except the SNOOZE- / LIGHT button 33 to stop the alarm signal. It is not necessary to reactivate the alarm. It switches itself automatically to the alarm time which has already been set.

Note: The alarm signal sounds for approx. 2 minutes.

SNOOZefunction

Press the SNOOZE- / LIGHT button 33 as the alarm signal sounds to get to SNOOZE mode. The alarm signal sounds again after approx. 5 minutes.

Preparing to use the weather forecasting function

Note: Please take the weather forecast from your local weather forecasting service into account as well as the forecast from your weather station. If there are discrepancies between the information from your product and from the local weather forecasting service, please take the advice of the latter as authoritative.

The weather forecast is calculated from evaluation of fluctuations in the barometric pressure and may deviate from the actual weather conditions.

The weather station displays the following weather symbols:

+

+

+

+

The weather symbols indicate the weather fluctuation over the next eight hours and not the current weather.

The weather station can display the barometric pressure trend 31.

You may see the following displays:

The barometric pressure will rise.

The barometric pressure will remain constant.

The barometric pressure will fall.

Selecting the location

Press the CITY button 39. The location display 12 blinks and the longitude and latitude are displayed.

60 GB/IE

Press the + or - button 35, 36 to select your location.
Press the CITY button to confirm your entry. If the abbreviation for your location does not appear in the display, you may enter a user-defined location (see "Selecting the location manually").

After a brief moment, the weather station displays the times for sunrise and sundown, the lunar phases as well as the tidal range - low (TIDE LO), medium (TIDE MID) and high (TIDE TH).

- Selecting the location manually

Press the CITY button 39 down for approx. 2 seconds and keep it pressed. Press the + or - button 35, 36 to select the beginning letters of your location.
Press the CITY button to confirm your entry. Enter the 2nd and 3rd letters in the same fashion.

GMT appears in the LC display and the time zone indicator blinks.

Press the + or - button to set the difference from your time zone to GMT.
Press the CITY button to confirm your entry. Set the longitude and latitude of your location in the same fashion.

After a brief moment, the weather station displays the times for sunrise and sundown, the lunar phases as well as the tidal range - low (TIDE LO), medium (TIDE MID) and high (TIDE TH).

You can choose from the following countries and cities:

The weather station has a display which automatically displays the current lunar phase 13.

New moon Waxing half-moon	Half-moon Waxing full-moon
Full moon Waniang full-moon	Half-moon Wanjing half-moon

- Reading the barometric pressure for the last 12 hours

Press the HISTORY ABS / REL button 38 repeatedly to read the barometric pressure values for the last 12 hours.

OHR = present barometric pressure

-1HR = barometric pressure an hour earlier
-2HR = barometric pressure two hours earlier, etc.

65 GB/IE

Adjusting the air pressure indication

The forecast of this weather station is basing on an analysis of the change of the air pressure.

The barometric pressure 30 is factory provided adjusted to the absolute air pressure. As the air pressure generally decreases with the height beyond sea level, the public weather service always announces the so-called relative air pressure. This relative air pressure is adjusted to the topography of the country in order to get comparable values.

You can adjust the air-pressure of your weather station to the proportion of its place. For that you have to adjust your weather station uniquely the current air pressure. Ask your local weather forecast service for the barometric pressure at sea level or get the current value from the Internet.

You can adjust the weather station like this:

Press and hold the HISTORY ABS / REL button 38 for approx. 3 seconds. After that press the + or - button 35, 36, to interchange between the absolute or relative air pressure.
- Chose "Rel" and press the HISTORY ABS/REL button for confirmation. The air pressure indication blinks. Now you can chose the correct value by pressing the + or - button.
- Confirm your choice by pressing the HISTORY ABS / REL button. Your weather station now shows the relative air pressure.

If you want your weather station to announce the absolute air pressure, proceed like this:

Press and hold the HISTORY ABS / REL button for approx. 3 seconds. Afterwards press the + or - button, to change to the absolute air pressure. Confirm by pressing the HISTORY ABS / REL button.

- Setting the channel

The weather station receives the outdoor sensor signal automatically after you have made all the settings.

Note: In the event of interference from nearby equipment transmitting radio signals, the symbol for humidity (outdoor) 22 and outdoor temperature 25 flashes during this time. Please select a different channel for the outdoor sensor by pressing the CH button 37 on the weather station or the channel selector switch 44 on the outdoor sensor. The relevant data is shown in the LC display.

-1: Outdoor sensor channel 1
-2: Outdoor sensor channel 2
-3: Outdoor sensor channel 3
- c: automatic channel change

- Displaying temperature and temperature trend

The current indoor temperature 19 and the temperature trend (indoors) 15 are shown in the LC display.

After successfully connecting with the outdoor sensor, the weather station can display the outdoor temperature [25] and the temperature trend (outdoor) [24]. You may see the following displays:

The temperature is rising.

The temperature is remaining constant.

The temperature is falling.

- Displaying the humidity and humidity trend

The current humidity trend (indoors) 16 and the current humidity (indoors) 17 are shown in the LC display.

The COMFORT indicator 18 displays the humidity in three categories.

The following categories are available:

DRY = Humidity < 40 %

COMFORT = Humidity 40-70%, indoor temperature 20 °C-28 °C

WET = Humidity > 70%

After a successful connection has been made with the outdoor sensor, the weather station shows the humidity trend (outdoors) 21 and the humidity (outdoors) 22 in the LC display.

- Displaying the maximum/minimum temperature/humidity

The minimum / maximum temperature / humidity is measured for the first time after the batteries have been inserted and stored in the weather station.

The maximum and minimum values for temperature, hygrometer and barometric pressure are automatically saved.

□ If the weather station is in time display 7, press the + button 35 to display the maximum values.
Press the ^+ button twice to display the minimum values.
Hold the + button down for approx. 3 seconds to erase the stored maximum and minimum values.

- Temperature and frost alarm

The temperature alarm is a short beep, which sounds as soon as the outdoor temperature exceeds or falls below the preset temperature range. Follow the below procedures to set the desired temperature range.

Press the - button 36 to get top the temperature alarm mode.

Hold the - button down for 3 seconds. The maximum temperature display blinks. Press the + or - button to set the values.

Press the MODE button 34 to confirm your setting. The minimum temperature display blinks. Press the + or - button to set the values.

Press the MODE button to confirm your setting.

- Activating / deactivating the the temperature and frost alarm

□ If more than one outdoor sensor is activated, press the channel button 37 to select one.
Press the - button 36 repeatedly to activate the temperature and frost alarms.

If the frost alarm alarm is activated, the corresponding symbol 23 appears next to the outdoor temperature. The alarm signal sounds at -1^ to +3^ .

If the temperature alarm is activated, the corresponding symbol appears next to the outdoor temperature. The alarm signal sounds at the set values.

If the temperature and frost alarm are activated, both symbols appear in the display.

- Backgroundlighting

Press the SNOOZE / LIGHT button 33. The backlight illuminates for 5 seconds.

Battery state display

The battery state display 20, 26 appears in the weather station's LC display if the batteries are weak. Make sure you replace the batteries at the earliest opportunity (see "Changing the batteries").

- Changing the batteries

Weather station:

Replace the batteries if the LC display becomes illegible or if the battery display [20] is shown.

Remove the battery compartment cover on the back of the weather station.
Remove the used batteries.
Insert 3 new batteries type AA, 1.5V

Note: Make sure that the polarity is correct when you insert the battery. The correct polarity is shown inside the battery compartment [40].

Close the battery compartment.

Outdoor sensor:

Replace the batteries if battery display 26 is shown.

Remove the battery compartment cover from the back of the outdoor sensor.
Remove the used batteries.
Insert 2 new batteries type AA, 1.5V

Note: Make sure you insert the batteries with the correct polarity. The correct polarity is shown inside the battery compartment [45].

Close the battery compartment.

- Troubleshooting

Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference.

□ If the display indicates a problem, move such objects away from the weather station or outdoor sensor or remove the batteries from the weather station or outdoor sensor for a short while and then replace them.

Obstacles such as concrete walls can also cause that the reception is disturbed. In this case, change the location (eg near a window). Please take note that the external sensor should always be set up within max. 30 meters (open space) from the base station. The specified range is the free-field range and means that no obstacle should be between the remote sensor and the base station. A "visual contact" between remote sensor and base station often improves the transmission.

Cold (outdoor temperatures below 0^ C) can reduce the battery power of the outdoor sensor and thereby negatively impair the radio transmission. Another factor that may cause harmful interference, are dead or weak batteries in the outdoor sensor. Replace them by new ones.

- Cleaning and care

Under no circumstances should you use liquids or detergents, as these will damage the product.
Clean only the outside of the product with a soft, dry cloth.
Under no circumstances should you spray the outdoor sensor, e.g. with a garden hose. The outdoor sensor is only protected against rain from above.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/CE and its amendments. Return the batteries and / or the product through the appropriate collection facilities.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Information

Declaration of Conformity

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Radio-controlled weather station, Model No.: Z31915, Version: 02 / 2017, to which this declaration refers, complies with the standards / normative documents of 1999/5/EC. You can download these conformance documents if required from www.owim.com.

C

Introduction 80

Fourniture.. Page 83

Sécurité Page 84

Signal radio (DCF) :

replaces the piles whilst the symbol does not.

SNOOZE-function Page 134

40 Batterijcompartment

Buitensor:

41Controle-LED
42 Ophanginrichting
43RESET-toets

44Kanaal-keuzeschakelaar
45Batterijcompartment

-Technischegegevens

Weerstation:

Greece (GR)	Athens	AHN
Hungary (HU)	Budapest BU	D
Ireland (IE)	Dublin	DUB
Italy (IT)	Ancona ANC
	Bari	BAR
	Bolzano	BOZ
	Cagliari CAG
	Florence	FIR
	Foggia FOG
	Genua GEN
	Lecce	LEC
	Messina	MES
	Milan	MIL
	Naples NAP
	Palermo	PAL
	Parma	PAR
	Perugia PER
	Rome	ROM
	San Remo SRE
	Triest TRI
	Turin	TOR
	Venice	VEN
	Verona VER

Liechtenstein (LI)	Vaduz	VDZ
Luxemburg (LU)	Lucembur-sko	LUX
Monaco (MC)	Monte Carlo	MCM
Netherlands (NL)	Amsterdam	AMS
	Arnhem ARN
	Eindhoven	EIN
	Groningen	GRO
	Rotterdam ROT
	The Hague	DHA
New Zea-land (NZ)	Wellington	WLG
Norway (NO)	Bergen	BGN
	Lilleham-mer	LIL
	Oslo OSL
Poland (PL)	Cracow KRA
	Gdansk	GDA
	Poznan POZ
	Warsaw	WAR
Portugal (PT)	Faro FAR
	Lisbon LIS
	Porto POR
Russian Federation (RU)	St. Peter-sburg	PET
Serbia (RS)	Belgrade BEO
Slovakia (SK)	Bratislava BV
	Kosice KOS
Slovenia (SI)	Ljubljana LUB
Spain (ES)	Alicante ALI
	Andorra AND
	Badajoz BAD
	Barcelona BAR
	Bilbao BIL
	Cordova COR
	Eivissa Ibiza	IBZ
	La Coruna LCO
	Las Palmas LPA
	Leon LEO
	Madrid	MAD
	Malaga MAL

	Palma de Mallorca	PAL
	Sala- manca	SAL
	Sevilla SEV
	Valencia	VAL
	Zaragoza	ZAR
Sweden (SE)	Gothen- burg	GOT
	Karlstad KAR
	Stockholm STO
Switzer- land (CH)	Basel	BAS
	Berne	BRN
	Chur	CHU
	Geneva GEN
	Lucerne	LUC
	Lugano	LUG
	Sion	SIO
	St. Gallen	SGL
	Zurich ZUR
United Kingdom (GB)	Aberdeen	ABD
	Belfast BEL
	Birming- ham	BIR

	Cardiff	CAR
	Glasgow Glaw
	Londyln	LON
	Manchester	MAN
	Newcastle upon Tyne	NEC
	Plymouth PLY
United States (US)	Los Angeles	LAX
	New York	NYC
	Washington	WAS

Fazemësice

United States (US)	Los Angeles	LAX
	Nova Iorque	NYC
	Washington	WAS

Fases dalua
