USER MANUAL MG 2251 CB BOMANN

Reiniging WAARSCHUWING:

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for com- mercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

• The device and the mains lead have to be checked regu- larly for signs of damage. If damage is found the device must not be used.

• Use only original spare parts.

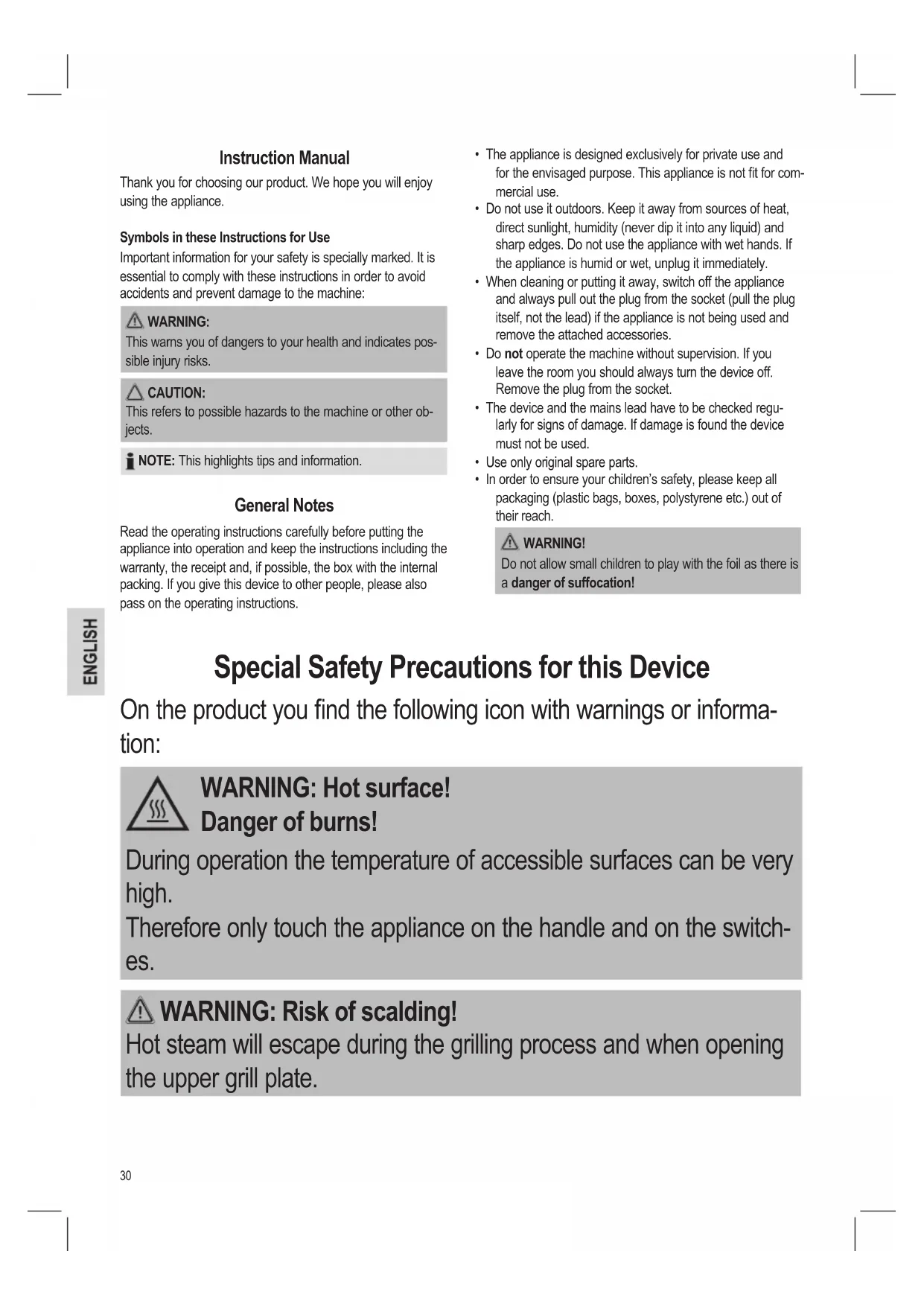

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Do not allow small children to play with the foil as there is a danger of suffocation! Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates pos- sible injury risks. CAUTION: This refers to possible hazards to the machine or other ob- jects. NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions. Special Safety Precautions for this Device On the product you nd the following icon with warnings or informa- tion:

WARNING: Hot surface!

Danger of burns! During operation the temperature of accessible surfaces can be very high. Therefore only touch the appliance on the handle and on the switch- es.

WARNING: Risk of scalding!

Hot steam will escape during the grilling process and when opening the upper grill plate.31 CAUTION: Fire hazard! Oil and fat can burn when overheated. Keep sufcient safe distance (30 cm) to inammable objects such as furniture, curtains, etc. CAUTION: This appliance must not be immersed in water for cleaning. Please refer to the instructions provided in the chapter, “Cleaning”.

• Place the appliance on a level, water and heat-resistant surface. The surface should be easy to clean as spattering is unavoidable. If resting on a sensitive surface, place a heat-resistant plate beneath it.

• Due to rising heat and vapors do not place the appliance under wall cupboards.

• Do not move the appliance during operation.

• Ensure that the mains cord does not touch hot parts of the appli- ance during operation.

• Do not touch hot parts of the appliance.

• Do not operate the appliance with an external timer or separate remote control system.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualied person and with a cable of the same type.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capa- bilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

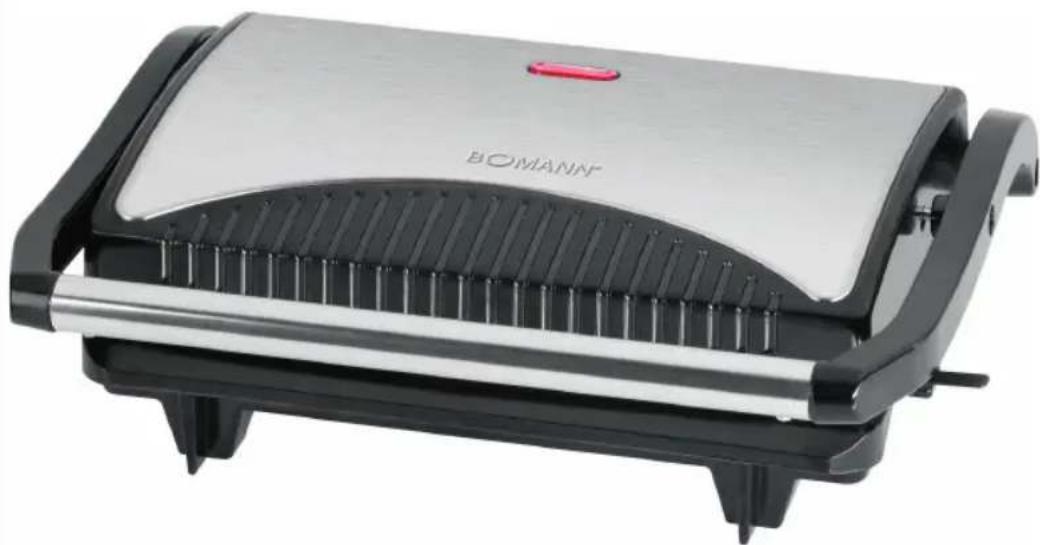

• Children shall not play with the appliance.32 Intended Use This appliance is intended for indoor barbecues. It is intended for the use in private households and similar ap- plications. The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries. The manufacturer assumes no liability for damages caused by improper use. Description of parts 1 Handle 2 Top grill plate 3 Temperature indicator lamp 4 Locking mechanism 5 Lower grill plate Unpacking the appliance

• Remove the appliance from its packaging.

• Remove all packaging materials such as lms, ller mate- rial, cable clips and carton.

• Check the contents for completeness.

• Check the appliance for possible transport damage to prevent hazards.

• In case of incomplete delivery or damage, do not operate the device. Return it to your dealer immediately. NOTE: Production residue or dust may have collected on the appli- ance. We recommend cleaning the appliance according to chapter “Cleaning”. Instructions CAUTION: Avoid damage to the non-stick coated grill surfaces!

• Only use wooden or Teon spatula.

• Do not use pointed objects (e.g. knife, fork) on the grill surface.

• Do not use plastic utensils. They can melt.

• The top grill plate is tted with a compensating joint. This enables the optimal contact of the top grill plate with the food.

• The non-stick coated grill surfaces enable dishes to be prepared without the use of fat.

• If you want to use oil ensure that it is highly heatable, such as sunower oil. Do not use olive oil or butter, since they start smoking already at low temperatures. Electrical connection

• Before you plug the power plug into the power outlet, ensure that the mains voltage corresponds with that of the appliance. You can nd information about this on the rating plate.

• Only connect the appliance to a properly installed earthed socket. Before initial use

1. Clean the grill plates as described under “Cleaning”.

2. Close the contact grill.

3. Operate the appliance with the closed grill plates for about

10 minutes without any food (see “Operation”). NOTE: This process normally produces a small amount of smoke. Ensure adequate ventilation.

4. Disconnect the mains plug from the wall socket.

5. Let the appliance cool down completely.

6. Wipe the grill surfaces with a damp cloth.

Your appliance is now ready to use. Operation

1. Connect the mains plug to the wall socket. The tempera-

ture indicator lamp lights up.

2. The appliance is being heated up.

• The heating time is about 5 minutes.

• Once the appliance has been pre-heated, the tem- perature indicator lamp turns off. It turns on and off during operation. This is normal and shows that the temperature is thermostat-controlled and maintained.

3. Open the appliance with the handle. Position the top grill

5. Slowly close the top grill plate. You do not have to ip the

6. When your food is ready according to your taste, open the

device with the handle.

• Cleaning and user maintenance shall not be made by children un- less they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.33

WARNING: Risk of scalding!

Hot steam will escape.

7. Remove the grilled food with a spatula or a turner made

from wood or Teon. Grilling duration The grilling duration depends on the consistency and the thick- ness of the food. Two examples are listed here as a guideline: Meat Grilling duration Chicken breast llet approx. 5 minutes Pork chop approx. 7 minutes NOTE: The core temperature of the food will indicate when it is done. We recommend the use of a roasting thermometer. The core temperature of the meat can be monitored with it. You therefore do not need to cut open the food. Guideline values for the core temperature of various foods Food Consistency Core tempera- ture Beef Beef llet, roast beef rare 45 – 50°C medium 50 – 55°C well done 60 – 65°C Veal Veal loin light pink 60 – 65°C Leg of veal, topside, roast 78°C Pork Pork llet 65°C Pork neck 70 – 75°C Pork chop 75 – 80°C Smoked pork juicy 60 – 68°C Lamb Saddle of lamb 65°C Leg of lamb 80°C Game Fillet of wild boar light pink 60 – 62°C Poultry Chicken breast 70°C Turkey breast /duck breast well done 80°C Duck breast pink 62 – 65°C Ostrich, llet steak 58°C Fish Salmon 60°C Red snapper 55°C Zander 62°C End Of Operation

1. Disconnect from mains power supply. The temperature

indicator lamp turns off.

2. Allow the appliance to cool before you clean it.

• Disconnect from mains power supply before cleaning.

• Do not submerge the appliance in water! This may lead to electric shock or re.

• Ensure that no liquid gets inside the appliance! CAUTION:

• Do not use a wire brush or other abrasive utensils for cleaning.

• Do not use aggressive or abrasive cleaning agents. Grill plates The grill plates are xed.

1. Clean the grill plates with a slightly damp sponge or cloth

2. Dry the grill plates with a cloth.

Casing Clean the casing after use with a slightly damp cloth. Storage

• Only store the appliance clean and after it has cooled down.

• If you want to store the appliance in an upright position, rst secure the grill plates with lateral lock.

• Wind the mains cable around the cable storage on the bottom of the device.

• During longer periods of non-use we recommend storing the appliance in its original packaging.

• Always store the appliance in a well-ventilated and dry place out of reach of children. Troubleshooting The appliance does not work Possible cause: The appliance is not connected to mains power. Remedy:

• Check the wall outlet with a different appliance.

• Insert the plug properly in the wall outlet.

• Check the fuse. Possible cause: The appliance is defective. Remedy:

• Contact our service or a repair center.34 Technical Specications Model: ..................................................................... MG 2251 CB Power supply: ............................................220-240 V~, 50/60 Hz Power consumption: .......................................................... 700 W Protection class: .......................................................................... I Net weight: .......................................................... approx. 1.39 kg The right to make technical and design modications in the course of continuous product development remains reserved. This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Take care of our environment; do not dispose of electrical appli- ances via the household waste. Dispose of obsolete or defective electrical appliances via municipal collection points. Please help to avoid potential environmental and health impacts through improper waste disposal. You contribute to recycling and other forms of utilization of old electric and electronic appliances. Your municipality provides you with information about collecting points.35 to nie zostało przewidziane do użytku w ramach działalno- ści gospodarczej.
