KG 1293 CB - Grill plate BOMANN - Free user manual and instructions

Product type	Grill plate
Brand	Bomann
Model	KG 1293 CB
Power supply	230 V, 50 Hz
Indicator light	Green (power on) and red (temperature reached)
Preheating time	Approximately 5 minutes
Cooking time	8 to 10 minutes depending on food thickness
Cooking surface	Non-stick
Grease drip tray	Yes, removable
Number of cooking surfaces	2 (lid and plate)
Material	Metal with non-stick coating
Handle	Yes, for the lid
Safety	Do not pour water into hot grease; keep a safety distance of 30 cm
Plate maintenance	Clean with damp sponge and soapy water, rinse, dry, oil
Cleaning the tray	Simple rinse bath
Cleaning the chassis	Slightly damp cloth
Recommended utensils	Wooden fork; do not use sharp or pointed objects
Warranty	24 months
Usage	Indoor use only
Precautions	Heat-resistant surface; do not immerse; unplug before cleaning

Frequently Asked Questions - KG 1293 CB BOMANN

How to use the grill plate for the first time?

Before first use, lightly grease the non-stick surface. Heat the appliance closed for about 10 minutes without food, then clean with a damp cloth.

How to clean the grill plate?

Unplug the appliance and let it cool. Clean the plate with a damp sponge and soapy water. Never use a metal brush or abrasive cleaner. Rinse, dry, and apply a few drops of cooking oil.

What to do if the indicator light does not turn on?

Check that the appliance is properly plugged into a 230 V, 50 Hz outlet. If the green light does not turn on, the power cord or socket may be defective. Contact a qualified technician.

How to empty the grease drip tray?

Remove the grease drip tray by sliding it out of the appliance. Empty its contents and clean it in a simple rinse bath. Let it dry before putting it back.

Can the appliance be immersed in water?

No, never immerse the appliance in water. Only the plate and removable tray can be cleaned with a damp cloth or sponge. The chassis is cleaned with a slightly damp cloth.

What is the warranty period of the appliance?

The warranty is 24 months from the date of purchase. Keep your receipt as proof. The warranty covers material and manufacturing defects, but not normal wear or accidental damage.

Which utensils to use to avoid damaging the surface?

Use a wooden fork to turn food. Avoid sharp or pointed objects that could damage the non-stick coating.

How long does it take to cook food?

The cooking time is approximately 8 to 10 minutes depending on food thickness. For optimal cooking, close the lid during cooking.

How to know when the cooking temperature is reached?

The red light turns on when the grilling temperature is reached, after about 5 minutes of preheating. You can then open the lid and place the food.

Can I use frozen food on the plate?

Yes, you can cook frozen food. Increase the cooking time by a few minutes and ensure the food is cooked through. Check the internal temperature if necessary.

USER MANUAL KG 1293 CB BOMANN

Consommation: 1400 W

Classe de protection: I

- Klebefri overfl ate

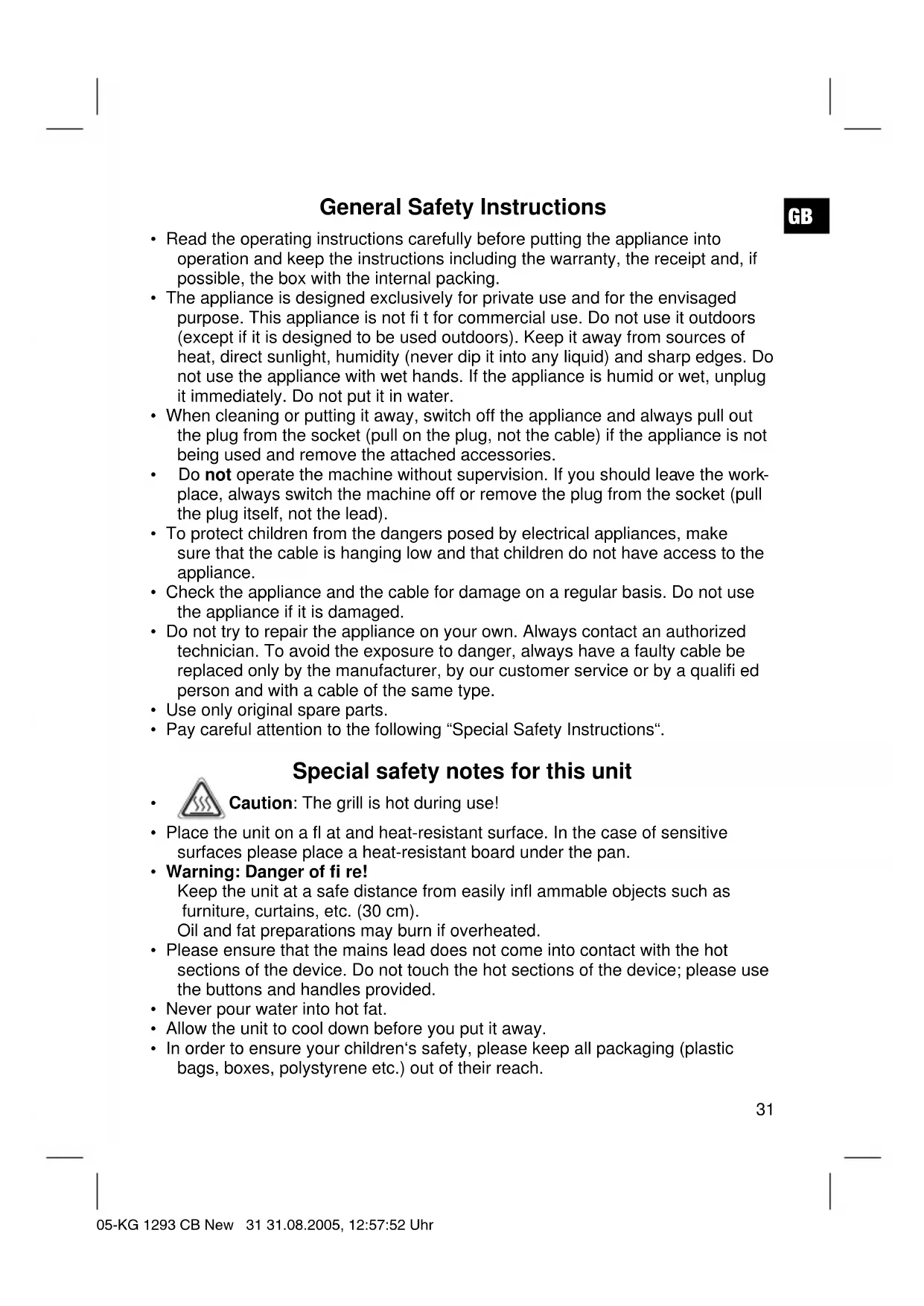

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety notes for this unit

Caution: The grill is hot during use!
- Place the unit on a fl at and heat-resistant surface. In the case of sensitive surfaces please place a heat-resistant board under the pan.
- Warning: Danger of fire!

Keep the unit at a safe distance from easily infl ammable objects such as furniture, curtains, etc. (30 cm).

Oil and fat preparations may burn if overheated.

• Please ensure that the mains lead does not come into contact with the hot sections of the device. Do not touch the hot sections of the device; please use the buttons and handles provided.
• Never pour water into hot fat.
• Allow the unit to cool down before you put it away.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

GB

Starting-up the unit

Non-stick coating

Grease the grill plates slightly before using for the first time. Use the appliance for 10 minutes with the grill plates closed and without food (see use of the appliance). Then wipe them clean with a moist cloth.

Using the unit

1. Insert the fat collection tray in the front opening. Put the plug into an earthed 230V , 50Hz mains socket.

Mains control lamp

As soon as you have inserted the plug the green mains control lamp lights up and indicates that the device is connected to the mains.

Warm-up time

The warm-up time is approx. 5 min. During this time you should keep the grilling surfaces closed.

1. When the red control lamp lights up the grilling temperature has been reached.
2. Open the cover and place the food to be grilled. Then close the lid gently.
3. Grilling is fi nished after 8 to 10 minutes (depending on the thickness of the food being grilled).
4. Open the cover and remove the cooked food with a wooden fork or similar kitchen utensil. Do not use any sharp or cutting objects as they may damage the coating of the grill plates.
5. When food is not being grilled the grill surfaces should always be kept closed.

Switching off

In order to stop the cooking process remove the mains plug from the socket.

Cleaning

• Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.
• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
• Under no circumstances should the device be immersed in water for cleaning.

Heating Plate

• Please remove any food residues while they are still warm with a damp cloth or paper towel.
• Clean the heating plate with a soft sponge and soapy water. Then wipe off with clear water and dry thoroughly with a soft cloth. After drying please apply a thin film of edible oil to the surface.

Fat Collecting Pan

• Pull out of the fat collecting pan. Shake the contents out and clean the drawer in soapy water.

Housing

• Clean the housing after use with a slightly damp cloth.

Technical Data

Model: KG 1293 CB

Power supply: 230 V, 50 Hz

Power consumption: 1400 W

Protection class: I

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

GB

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on. In Germany from March 23, 2006 on.

3JIeKtpoNTaHHe: 230B,50T

Iotpe6nemar MoHoctb: 1400 BaTT

Klacc 3aunrbl:

3TO n3deneHne npoJIO BCE Heo6xOaHmblie n aKTyalhblte npOBepKn, npedncaHHbIe dpeKTHBOE CE, K npM. Ha 3JeKtpomarHHTHyO COBMeCTHMOCtB IN COOTBeTCTBHe Tpe6oBaHnM K Hn3KOBoThOH TeXnKe, OHO 6blno TaKKe CKOHCTpyHPOBaHO I NOcTpoEHO C yYeToM NocNeDHnx Tpe6oBaHnN IO TexHnke 6e30NaChOCTn.

Mbl octabnem 3a co6oI npaBO Ha texHnueckne n3MeHeHHa!

TapaHTnHoe 6aTeJIbCTBO

TapaHTnHbI cpoK Ha TeppHTOpH N PocChNcKo Fedepaun yCTaHaBnBaETCn NOHOMOHyIMN ppeCTaBnTeJrMn.

KaccobbyuekraBnErcraPapHTnHbIM TaHOHm.Be3 Hero HeBO3MOKeH 6ecnNaTHbI pemOHr Hnn 3aMeHa N3dEInr.

B clyuae BO3HKnHOBxHn npnteH3n no rapaHTn, npeIbBAte H3dEne B NOJHOKOMNKeTauH, C oprrnHaBHO ynaKOBKO n KaccOBbIM YekOM ToproBOI TOUKe, npoDAwEe 3TO n3dEne.

*) Depekti npnaadJeKHOte He cnykaT npuHOn dIa ABToMaTHueCKo 3aMeHb BCero n3dEINB. B 3tOM cnyae no3BOHnTe Ham, noKaynCTa, no ropaye IHH! Pa3bIbe cTeKJIHHbIe nNoLOMaHbIe nlaCTMaCCOBbIe DeTaJIb BO3MeUaOTcra Toblko 3a DOnONHInTeJbHyO ONLaty!

DeΦeKtBi n3HaUHbAembIX npHnAdJIeKHOCTe NII TpyuXcR DeTanei (HaPmep KOHTaKTbIe 5eTKMOTOpOB, CMeCInTeBHbIE KpIOKN, PnpBOdHbIe peMHN, 3aNaChbIe NylbTbi ynpabLeHHN, 3aNaChbIe 3y6HbIe 5eTKN, NIIbHbIe NOIoTHa I.T.D.), a TaKHe YnCTKa, TexO6cJyKbAHne NII 3aMeHa TpyuXcR DeTanei He NOnaDaIOT NOr rapaHTHIO, INo3ToMу npoBOdTcR 3a OTdeJIbHyO onnATy!

TapaHTn TepaETc npN BCKpbITn N3dEINr NOCTOPOHHMn IINaMn.

Pocne rapaHTn

Iocne OKOHuaHnca cpoKa rapaHTnn, peMOHT n3deenn npOn3BOoNTc 3a OnlaTy, COOTBETCTByUOuMMN MaCTepCKMn nnnyHKtAmn CepBnCHOrO 06CnyXNBaHH.

BOMANN®

C. Bomann GmbH

Heinrich-Horten-Str. 17·47906 Kempen

Tel.: [phone] · Fax: [phone]

e-mail: [e-mail] · Internet: www.bomann.de
