Product Type	Child bike trailer
Brand	Prophete
Model	2812
Capacity	1 or 2 children
Recommended age	18 months to 4 years
Total permitted weight	34 kg
Maximum speed	16 km/h
Tire pressure	1.7 – 2.0 bars
Maximum seat height	Approximately 50 cm
Main features	2-in-1 system (bike trailer and stroller/jogger), canopy with roll-up windows and mosquito net, 5-point safety harness, quick-release wheels, signal flag, battery-powered lighting, parking brake
Intended use	Transporting children on public roads and stable paths, during the day; possible luggage transport
Care and cleaning	Cleaning parts with a damp cloth; textiles with delicate detergent in cold water; regular checking of fastenings
Safety	Seat belts mandatory, wear helmet, do not leave children unsupervised, close canopy when driving, turn on lights at dusk
Spare parts and repairability	Parts list provided; after-sales service and authorized repairer available; tire repair kit recommended
General information	Certified TÜV/GS; packaging to be disposed of according to local regulations; manufactured for 33378 Rheda-Wiedenbrück, Germany

Frequently Asked Questions - 2812 Prophete

What is the maximum weight the Prophete 2812 trailer can carry?

The maximum total weight is 34 kg, including children and luggage. Never exceed this limit.

What is the minimum and maximum age for children?

The minimum age is 18 months and the maximum age is 4 years. Children must be able to sit without assistance and wear a helmet.

How to attach the trailer to the bike?

Use the provided coupling arm. Attach the coupling piece to the rear wheel axle of the bike, then connect it to the coupling arm and secure with a pin. Wrap the safety strap around the wheel mount.

Can the trailer be used as a stroller or jogger?

Yes, the trailer is designed as a 2-in-1 system. Mount the front jogging wheel and the stroller handlebar to use it in jogging or stroller mode.

How to maintain the trailer?

Clean the rigid parts with a damp cloth and the textiles with a delicate detergent in cold water. Regularly check screws, rivets, and nuts and replace damaged parts.

What is the recommended maximum speed?

The maximum speed is 16 km/h. Respect this limit for the safety of the children.

What tire pressure is recommended?

The tire pressure must be between 1.7 and 2.0 bars. Check it before each trip.

How to install the safety harnesses for two children?

Hook each upper strap into the corresponding lower strap. Thread the end of the lap belt through the loop of the lower strap and close. Then tighten the straps.

Is it mandatory to use the lighting?

Yes, at dusk and in poor visibility, turn on the supplied battery-powered headlight and taillight. The trailer is equipped with white front reflectors, red rear reflectors, and yellow spoke reflectors.

Can I transport luggage in addition to children?

Yes, there is a luggage compartment. However, make sure not to exceed the total weight of 34 kg and not to endanger the children.

USER MANUAL 2812 Prophete

Your new child trailer is characterised by outstanding quality, operating compatibility, a high safety standard and great variability.

The 2 in 1-system enables you to go for walks with your children, to take them jogging or cycling without buying an entire fleet.

PERFORMANCE FEATURES

Admissible total weight 34kg

Max. age of the children 4 years

Min. age of the children 18 months

Max. seat height approx. 50~cm

Maximum speed 16 km/h

Tyre pressure 1.7 - 2.0 bar

PURPOSE

Intended use

The vehicle is intended for transporting children within the above specifications in the private area and during the day on public streets and paved paths.

Additional transport of luggage is possible in the intended luggage compartments if the children are not endangered by this.

If the vehicle is to be used as a bicycle trailer in bad visual conditions, at twilight or in darkness, switch on the light-technical equipment.

Non-intended use

Any use exceeding this is deemed non-intended.

Non-intended use is mainly transport of persons together with animals, use of the trailer on unpaved paths, commercial use, overload, too high speed and improper removal of defects.

The user shall bear the risk for damage from non-intended use and shall not assume any liability.

ASSEMBLY & OPERATING INSTRUCTIONS AND SAFETY NOTES

• Instruction and notes 62
• Spare parts list 68
  Assembly of the side parts and the frame 70
  Assembly of the connection rod and the seat cover. 70
  Assembly of the wheels 71
• Removal of the wheels 71
  Use notes for the seat belts 72
  Installation of the cover 72
  Installation of the lighting 73
  Installation of the safety flag 73
  Installation of the connection between the trailer and the bike at the axle 74
  Assembly of jogger wheel 75
  Assembly of pushing bracket. 75
• Attach the parking brake 76

Please read the operating instructions attentively and observe the notes listed. This warrants reliable operating and a long service life of the trailer. Keep the packaging and operating instructions safely so that you can pass them on to the new owner if you sell the trailer.

• Quick and simple assembly, handling and space-saving storage
• Stable pipe frame with roll bar, side protection and cover with fly mesh
  Cover with window that can be rolled open
  Space for 1 or 2 children
• Sitting direction in riding direction
• Five-point safety belts
  Quick-release wheels
  TUV/GS-tested

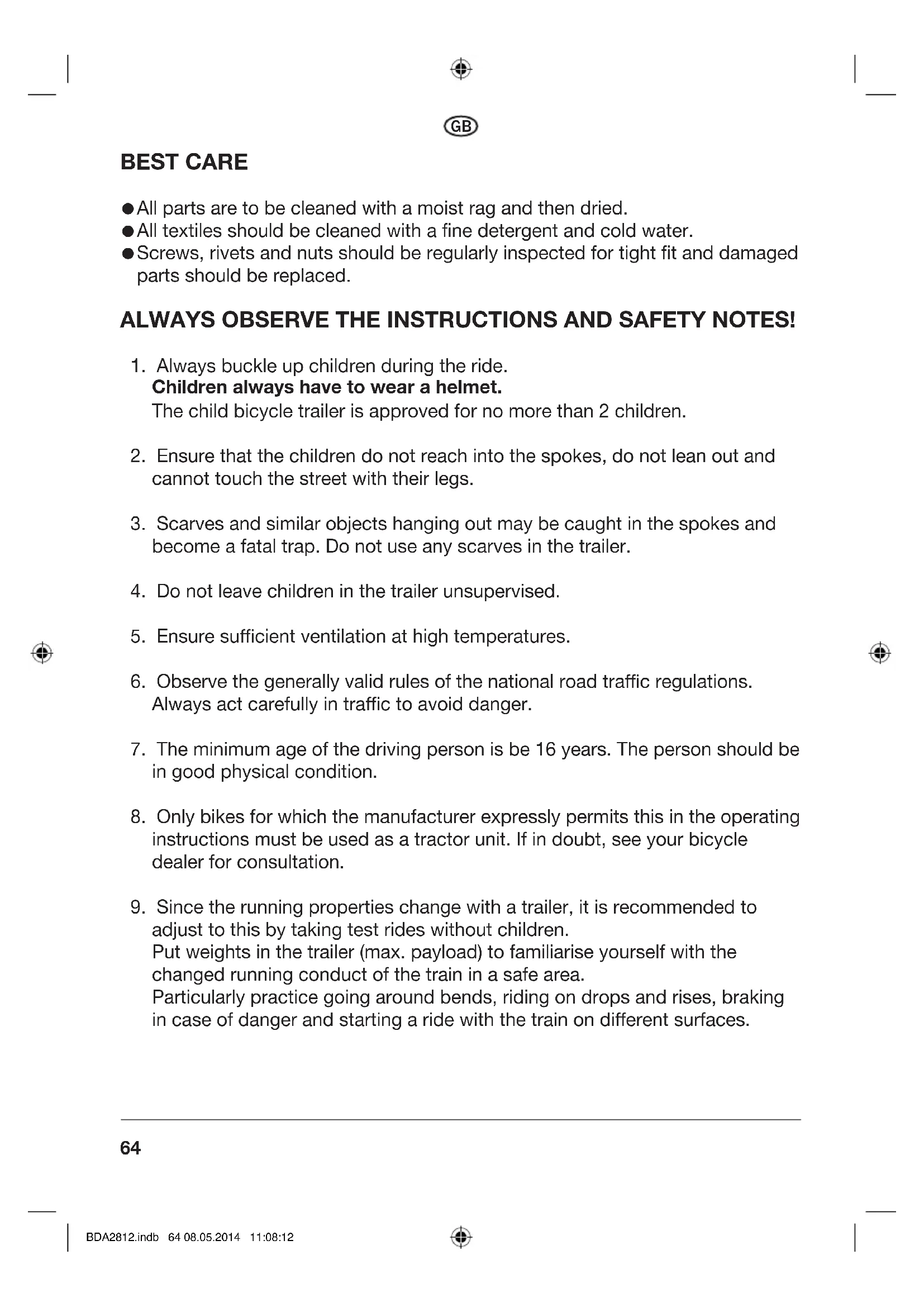

BEST CARE

All parts are to be cleaned with a moist rag and then dried.
All textiles should be cleaned with a fine detergent and cold water.
- Screws, rivets and nuts should be regularly inspected for tight fit and damaged parts should be replaced.

ALWAYS OBSERVE THE INSTRUCTIONS AND SAFETY NOTES!

Children always have to wear a helmet.

1. Always buckle up children during the ride.
   The child bicycle trailer is approved for no more than 2 children.
2. Ensure that the children do not reach into the spokes, do not lean out and cannot touch the street with their legs.
3. Scarves and similar objects hanging out may be caught in the spokes and become a fatal trap. Do not use any scarves in the trailer.
4. Do not leave children in the trailer unsupervised.
5. Ensure sufficient ventilation at high temperatures.
6. Observe the generally valid rules of the national road traffic regulations. Always act carefully in traffic to avoid danger.
7. The minimum age of the driving person is be 16 years. The person should be in good physical condition.
8. Only bikes for which the manufacturer expressly permits this in the operating instructions must be used as a tractor unit. If in doubt, see your bicycle dealer for consultation.
9. Since the running properties change with a trailer, it is recommended to adjust to this by taking test rides without children.

Put weights in the trailer (max. payload) to familiarise yourself with the changed running conduct of the train in a safe area.

Particularly practice going around bends, riding on drops and rises, braking in case of danger and starting a ride with the train on different surfaces.

Observe the following items as well:

I) The bake path of the vehicle extends.

The specialist dealer should check the deceleration of the train to ensure compliance with the following values.

Deceleration of the train (with full deceleration) with a total mass of 140kg .

Front-wheel braking: a 3.4m / s 2 (dry) a 2.2m / s^2 (wet).

Rear wheel brake: a 2.2m / s (dry) a 1.4m / s^2 (wet).

II) Observe balanced weight distribution.

To ensure the safety of the children, as well as the product's longevity, perform the following inspections at regular intervals:

I) Visual inspection
II) Function inspection

1. No children must be in the trailer when converting the vehicle from a bicycle trailer to jogging mode or vice versa, as well as during maintenance and repair work.
2. Make no changes to the child trailer and the coupling. No liability can be assumed for third-party accessories.
3. No additional loads must be attached to the child trailer or the tow bar.
4. If possible, attach a rearview mirror to the towing bike.
5. Do not use the trailer on rocky or otherwise dangerous roads. Do not park the trailer near trenches or dangerous roads.
6. The cover must be closed at all times during a ride to protect the children from injury by road dirt and small stones.
7. The light always must be switched on in twilight.
8. Check whether the batteries still have enough energy before each drive with your child trailer.
9. The packaging must be kept away from children. There is a danger of suffocation.
10. Observe the operating instructions of the tyre patching kit in case of tyre damage.

To facilitate routine with daily handling of the trailer, observe the following check list before each start:

1. Are the children buckled up?
2. Is the total weight no more than 34kg ?
3. Do the children with helmets not exceed the limit line on the seat cover?
4. Is the trailer coupling firmly engaged?
5. Do the children not touch the tyres?
6. Is the light system fully functional? (rechargeable batteries charged?)
7. Are the wheels firmly latched?
8. Is there enough air in the tyres?
9. Is the weight distributed evenly?
10. Are no more than 2 children in the trailer?
11. Are all parts of the trailer firmly connected?

If you have any questions about this product, contact our service centre:

Or contact the closest bicycle dealer.

SPARE PARTS LIST

No.	Designation Number
1	Base frame with side parts and seat	1
2	Connection rod	1
3	Plastic angle for connection rod	1
4	Wheel	2
5	Wheel protection	2
6	Tow bar	1
7	Trailer coupling	1
8	Cover	1
9	Front reflector (white)	2
10	Rear reflector (red)	2
11	Spoke reflector (yellow)	4
No. Designation Number
12	Battery headlight	1
13	Battery rear light	1
14	Safety flag	1
15	Safety pin (small)	6
16	Safety pin (large)	1
17	Jogger wheel with axle	1
18	Wheel boom	1
19	Attachment screw for wheel boom	1
20	Pushing bracket	1
21	Bracket clamp	2
22	Attachment screw for bracket clamp	2

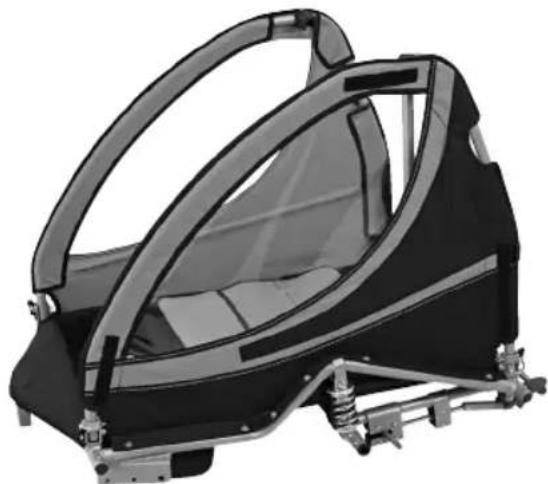

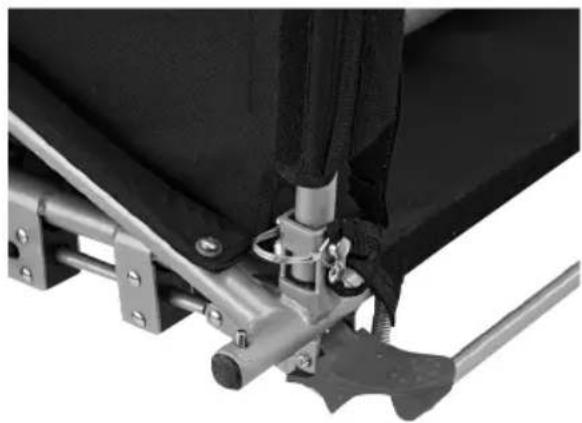

ASSEMBLY OF THE SIDE PARTS AND THE FRAME

• Fold open the side covers and push the safety pins into the holders at the bottom of the side parts. Close them.

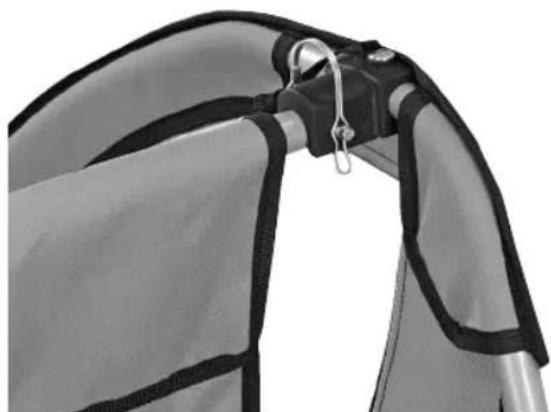

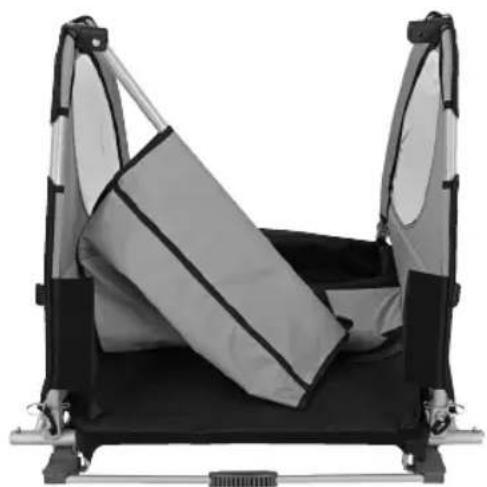

ASSEMBLY OF THE CONNECTION ROD AND THE SEAT COVER

• Pull the connection rod through the loop of the backrest.
• Secure the connection rod with the safety pin as shown in the figure.

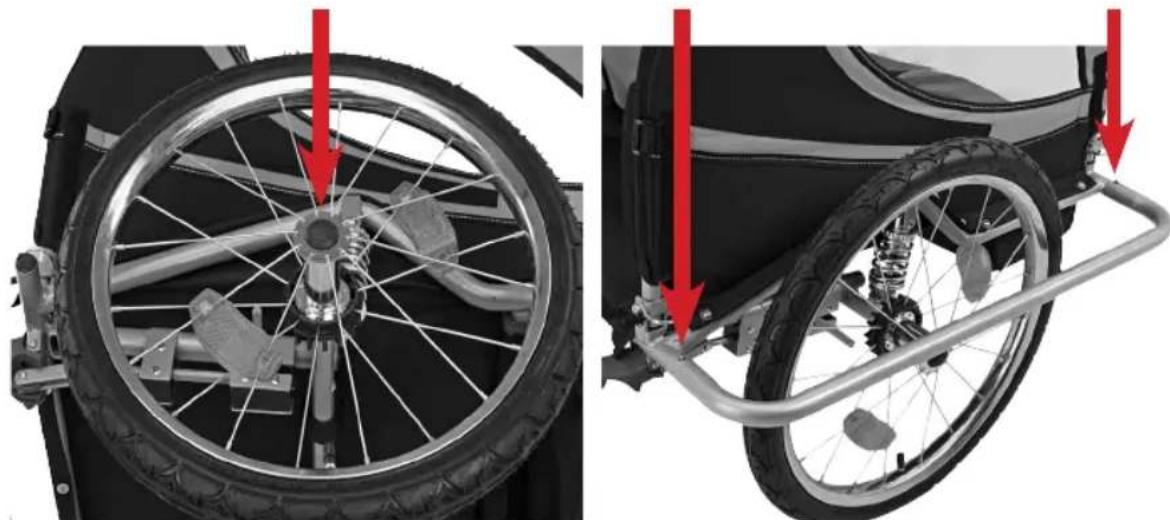

ASSEMBLY OF THE WHEELS

• Insert the wheels into the axles and latch them. Push the wheel latch for this. Insert the wheel protection into the holder by pushing the spring buttons and latch it.

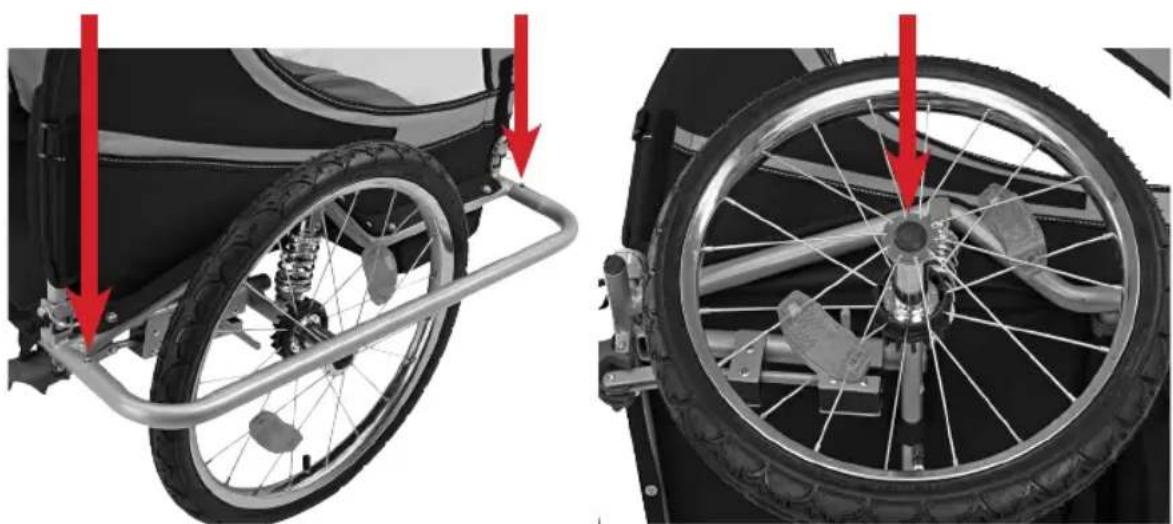

REMOVAL OF THE WHEELS

• Pull the wheel protection from the holders by pushing the spring buttons.
• Pull the wheels from the axle by loosening the wheel latch.
• Check the tyre pressure before every run.

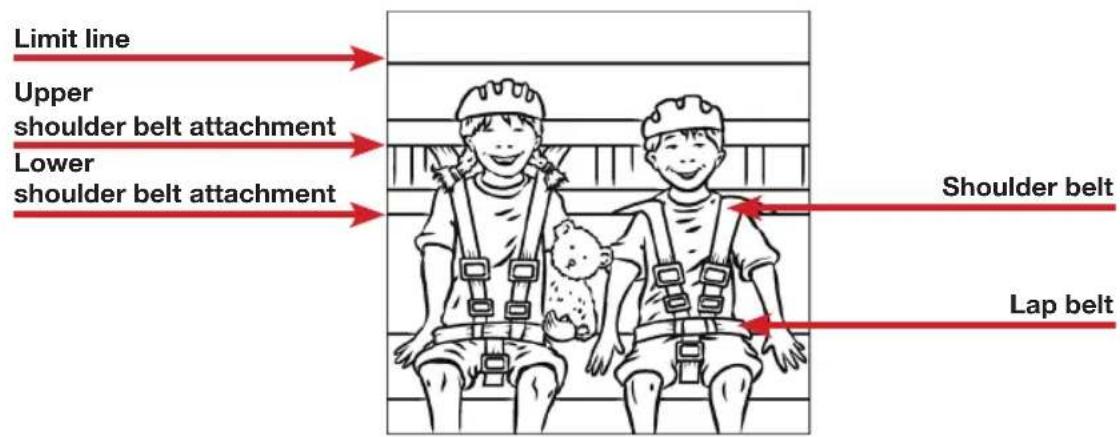

USE NOTES FOR THE SEAT BELTS

When using with 1 child:

• Connect the two upper middle belts to the lower middle belt.
• Pull one end of the lap belt through the loop of the lower belt and close it.
• Then tighten the belts.

When using with 2 children:

• Connect the two outer upper belts to the lower belts.
• Pull one end of the lap belt through the loops of the lower belt and close it.
• Then tighten the belts.
  The children with helmets must not exceed the limit line.

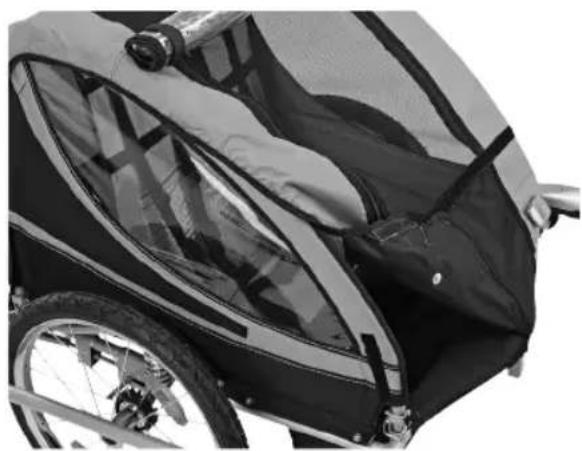

INSTALLATION OF THE COVER

• Put on the cover and attach it safely with hook-and-loop tape at the attachment points.
• Never use the trailer with the cover open.

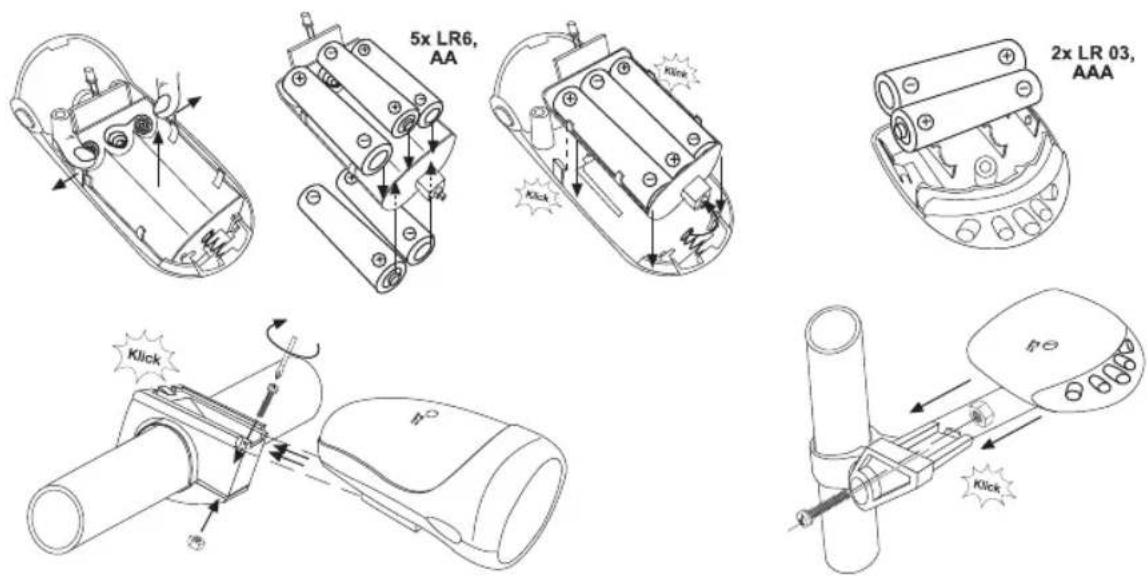

INSTALLATION OF THE LIGHTING

The cover has 2 white reflectors in front and 2 red ones at the rear.
The wheel spokes have 2 yellow reflectors each.
- Attach the battery headlight and the battery rear light to the left wheel protection (observe installation instructions).

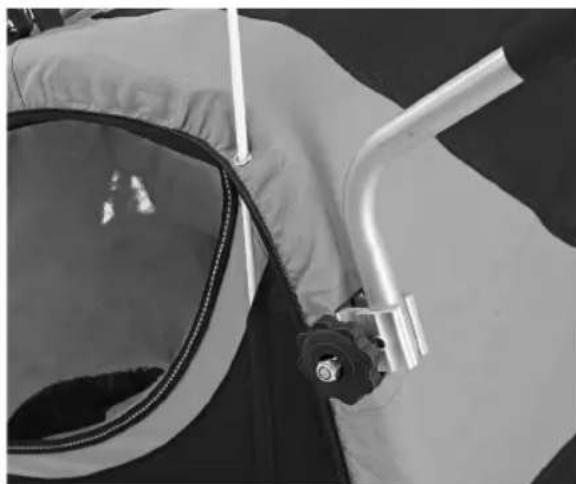

INSTALLATION OF THE SAFETY FLAG

• Connect the safety flag to the extension rod and insert it into the flag pocket through the eyelet at the cover.

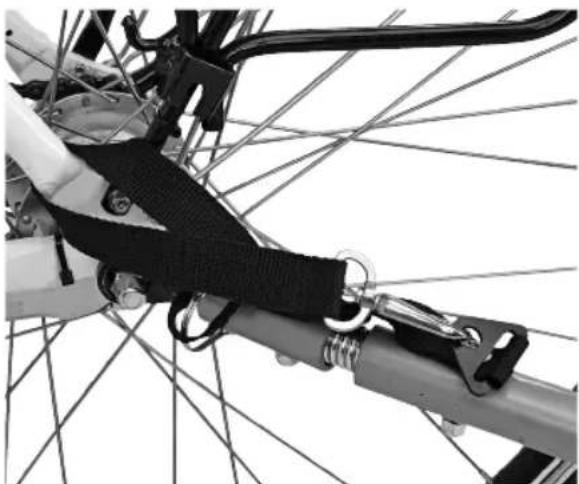

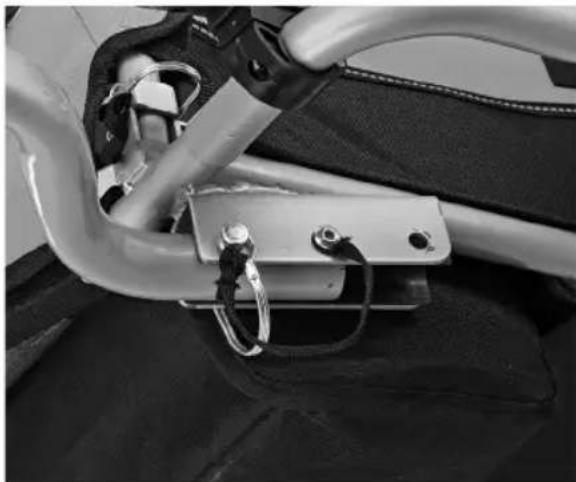

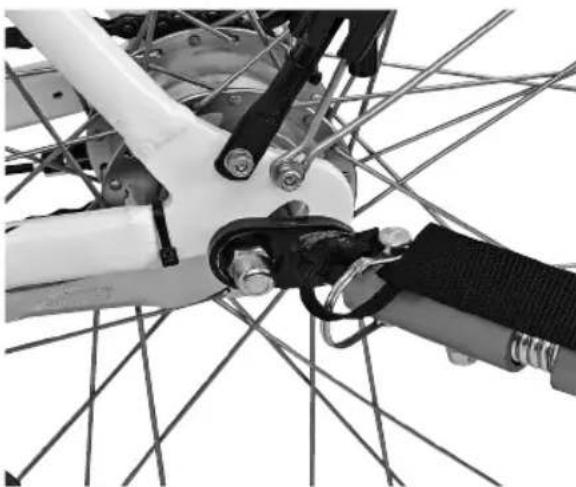

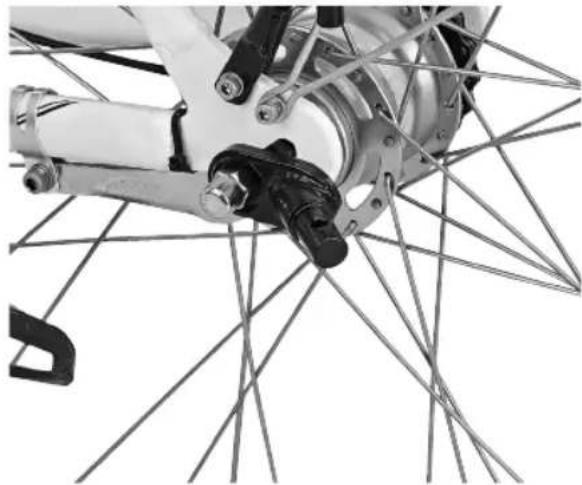

INSTALLATION OF THE CONNECTION BETWEEN THE TRAILER AND THE BIKE AT THE AXLE

• Screw the towbar to the middle hole of the towbar holder with its rear hole. Put the towbar in the movement position and insert and attach the safety pin through the front holes.
• Unlock the front coupling part by pulling out the safety pin and attach it to the left side of the rear wheel axle. Before starting your ride, connect the coupling part of the tow bar to that of the bike and secure it with the safety pin. Guide the safety belt around the strut of the rear wheel and attach it to the safety eyelet of the towbar.

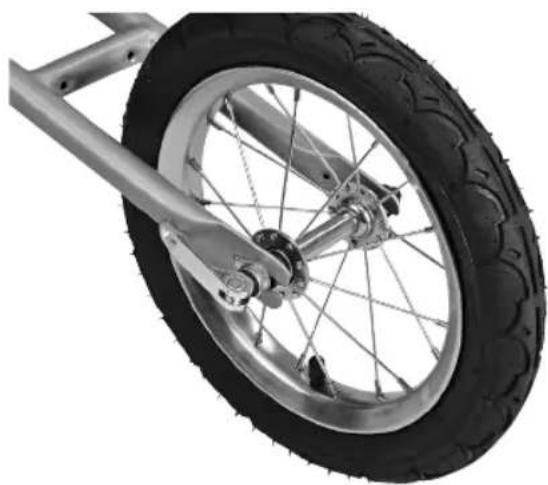

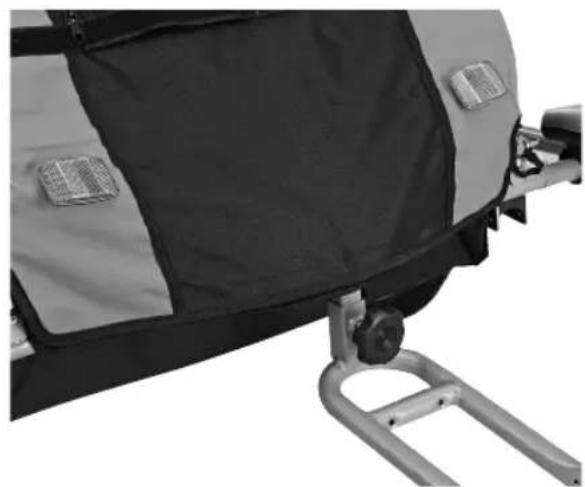

ASSEMBLY OF JOGGER WHEEL

• Insert the jogger wheel into the wheel holder and tighten it with the quick clamp. Push the wheel boom into the holder at the frame and tighten it with the attachment screw.

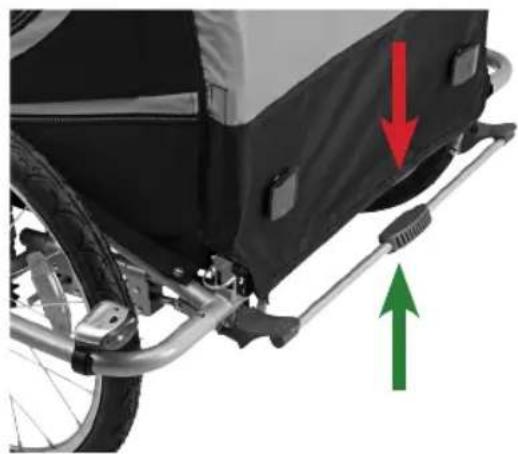

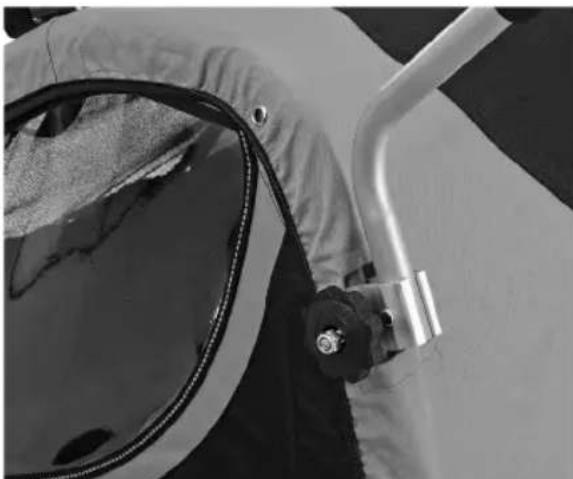

ASSEMBLY OF PUSHING BRACKET

• Attach the pushing bracket with the bracket clamps at the rear frame inside the cut-outs of the fabric.

• To fasten the wheels, push the bracket down. To loosen them, pull it up again.

Disposal of packaging:

Dispose of the packaging of the child trailer according to the current provisions.

For information on this, contact the municipal collection point.
