USER MANUAL Tx07 Prophete

Operating Instructions

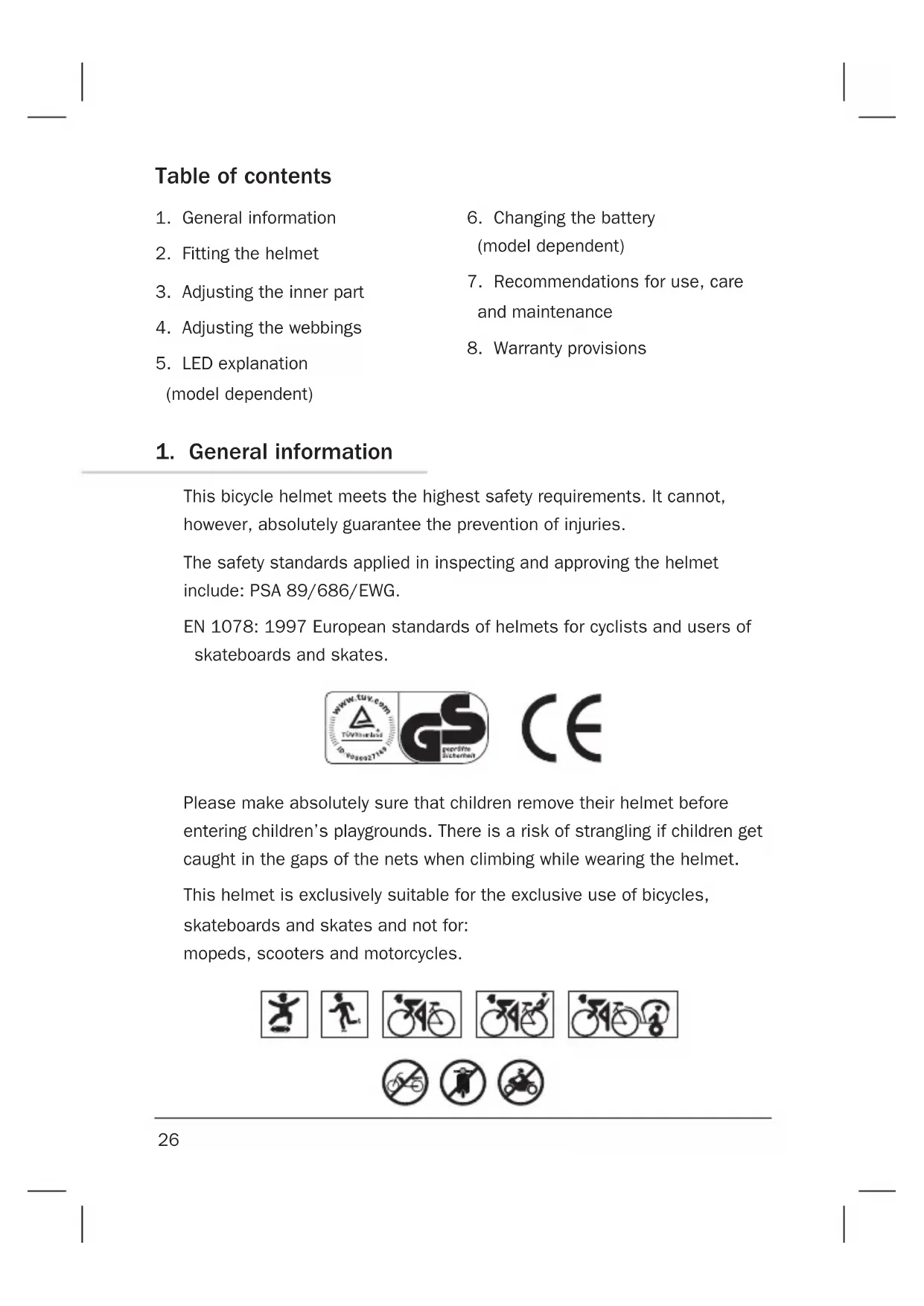

This bicycle helmet meets the highest safety requirements. It cannot, however, absolutely guarantee the prevention of injuries. The safety standards applied in inspecting and approving the helmet include: PSA 89/686/EWG. EN 1078: 1997 European standards of helmets for cyclists and users of skateboards and skates. Please make absolutely sure that children remove their helmet before entering children’s playgrounds. There is a risk of strangling if children get caught in the gaps of the nets when climbing while wearing the helmet. This helmet is exclusively suitable for the exclusive use of bicycles, skateboards and skates and not for: mopeds, scooters and motorcycles.

1. General information

2. Fitting the helmet

3. Adjusting the inner part

6. Changing the battery

7. Recommendations for use, care

2. Fitting the helmet

Optimal protection is only provided if the helmet ts securely. The helmet should enclose the head properly and be worn in a horizontal position; it should not sit on the back of the head, and should not be tilted down towards the forehead or to one side.

3. Adjusting the inner part

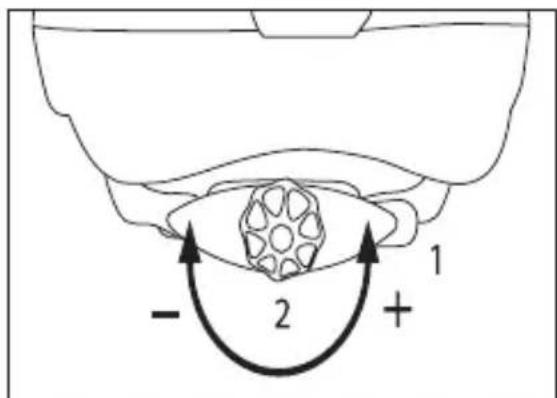

Check that helmet is rmly tted by a light shake of the head with the chin strap open. If the helmet slips about at all, then you must set the adjusting ring (1) more tightly. This is done using the rotary knob (2). Turning it to the right will tighten it, and turning it to the left will loosen it.28 Setting the webbings (Figures 1 + 2)

1. Push strap holder D up to the left ear.

2. Tighten nape strap B.

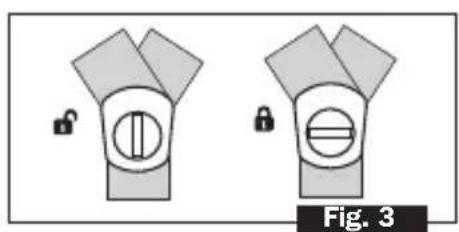

3. Push strap holder C up to the right ear and lock.

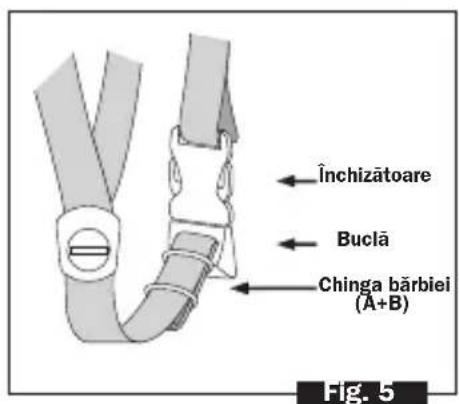

5. Tighten strap by pulling the two ends of the strap A + B.

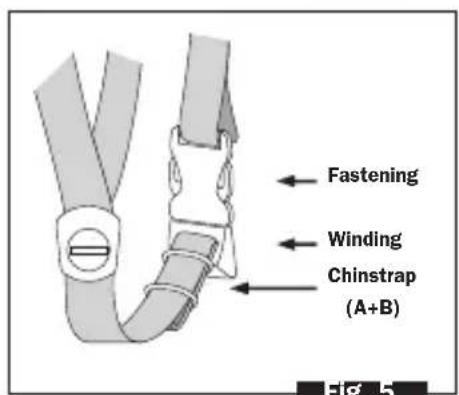

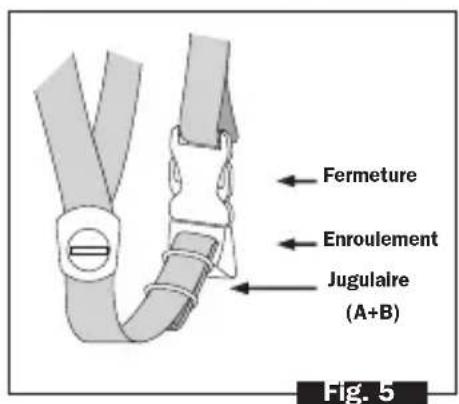

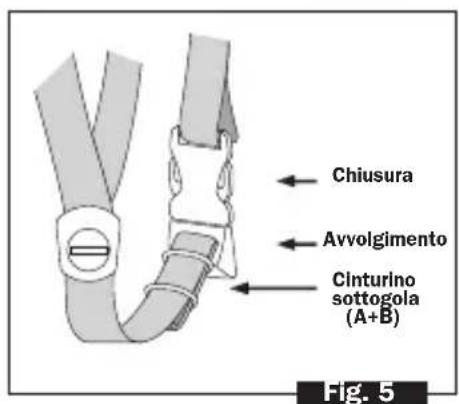

Fig. 5 Check the setting at regular intervals to make sure that the strap has not become loose and that the helmet ts securely.

4. Adjusting the webbings

In the event of an accident, the helmet will only optimally protect your head if the webbings are properly set and tightly closed. Fig. 1 Fig. 5 Fig. 3 Fig. 4 Fig. 2 Press Fastening Winding Chinstrap (A+B) Press29

6. Changing the battery (model dependent)

5. LED explanation (model dependent)

2 x 3 x Blink 1x 2 x 3 x 3 x press OFF Battery: 3V Lithium, CR 2032 Change the battery as shown in the illustrations below:30

7. Recommendations for use, care and maintenance

• The helmet should be checked for any visible damage at regular intervals.

• Following a heavy fall, the helmet must be replaced, even if there is no visible damage to it.

• Only ride with strap closed.

• Do not paint or attach stickers to the helmet. Paint and stickers may contain components that reduce the stability of the helmet and therefore the protective effect.

• Do not make any modications to the helmet. Only use original parts for repair.

• Do not expose the helmet to temperatures above 60 °C; this may result in the loss of its protective properties. Please do not leave the helmet near radiators or in the sun behind glass (e.g. in a car).

• The helmet shell, the detachable pads, the adjusting ring as well as the strap can be cleaned with lukewarm water using a mild soap solution. For this purpose, remove the pads and adjusting ring from the helmet. When putting the inner parts back in place afterwards, check for secure t of the helmet. Do not use any solvent (e.g. thinner or similar) to clean the helmet.

• The bicycle helmet should be replaced after 5 - 6 years by a new one, as the optimal protection can then no longer be guaranteed due to the deterioration of the material properties.

• Dispose of the helmet with household waste (residual waste).31

8. Warranty provisions

We provide a 2-year warranty for this bicycle helmet. The warranty period begins with the date of purchase (purchase receipt, proof of purchase). During the warranty period, please address any complaints concerning defective bicycle helmets to your dealer or the service address specied. In this period, we will repair all defects due to faulty operation free of charge. Batteries, defects caused by improper handling, a fall, impact and the like are excluded from the warranty. Please note that the warranty period is not affected by any repair or replacement. The 2-year warranty period starting from the purchase date shall remain in effect. – Please keep the instruction manual in a safe place –32 Spistreści
