IAN 289629 - Binoculars AURIOL - Free user manual and instructions

Product type	Zoom binoculars
Brand	Auriol
Model	IAN 289629
Category	Binoculars
Magnification	10 – 30x
Objective lens diameter	60 mm
Focusing	Central focusing wheel
Diopter adjustment	Yes, diopter correction ring on the right eyepiece
Zoom control	Rotating zoom lever
Tripod adapter	Yes, threaded mount (standard thread, adapter not included)
Weight	Approx. 800 g
Dimensions (L × W × H)	Approx. 200 × 150 × 60 mm
Material	Plastic and metal
Color	Black (typical)
Included accessories	Shoulder bag, neck strap, cleaning cloth, lens caps, eyepiece cap
Power supply	None (manual operation)
Usage	Nature, animal, and landscape observation; amateur outdoor use
Maintenance and cleaning	Clean lenses with the provided cloth or a soft cloth; add a little pure alcohol for stubborn stains; store in a dry place
Safety	NEVER look directly at the sun – risk of eye damage; do not use in heavy rain; keep out of reach of children
Spare parts and repairability	Spare parts available during the warranty period; contact customer service for repairs
Warranty	5 years from date of purchase (see conditions)
After-sales service	Tel. [phone] (France); 080071011 (Belgium); email [e-mail]

Frequently Asked Questions - IAN 289629 AURIOL

How to adjust sharpness on the Auriol IAN 289629 binoculars?

Close your right eye and turn the central focusing wheel to get a sharp image for the left eye. Then, open your right eye and close your left eye, and turn the diopter adjustment ring until the object is sharp.

How to use the zoom function?

Turn the zoom lever located on the tube to change the magnification between 10× and 30×. Read the magnification factor on the display provided for this purpose.

Can I use the binoculars with glasses?

Yes. Raise the plastic eyecups to enlarge the field of view, making it easier for glasses wearers to observe.

How to mount the binoculars on a tripod?

Remove the cap of the threaded mount by turning counterclockwise. Screw a tripod adapter (not included) into the thread, then attach the tripod. After use, unscrew the adapter and replace the cap.

How to clean the binocular lenses?

Use the cleaning cloth provided or a soft non-lint cloth. Do not press hard. For stubborn dust, moisten the cloth with a little pure alcohol. Always replace the lens caps after use.

What is the warranty for the Auriol IAN 289629 binoculars?

The product has a 5-year warranty from the date of purchase. The warranty covers material and manufacturing defects, but not normal wear and tear nor fragile parts such as glass. Keep the receipt.

What to do if the image remains blurry?

First check the adjustment of the central focusing wheel. If one eye sees blurry, adjust the diopter ring. Make sure the lenses are clean and the distance between the two tubes is correct (align the two circles into one).

How to adjust the distance between the two tubes?

Hold the binoculars with both hands and bend the binocular body around the central hinge until the two circles seen in the eyepieces merge into one circle.

What are the important safety precautions?

Never look directly at the sun – serious risk of eye damage. Do not use in heavy rain and store in a dry place below 60°C. Keep children away due to choking hazard from small parts.

Where can I find spare parts or get repairs?

Essential spare parts are available during the warranty period. For any repairs, contact the after-sales service by phone [phone] in France) or by email ([e-mail]) before returning the product.

USER MANUAL IAN 289629 AURIOL

Operation and safety notes

NL BE

ZOOMVERREKIJKER 10-30 X 60

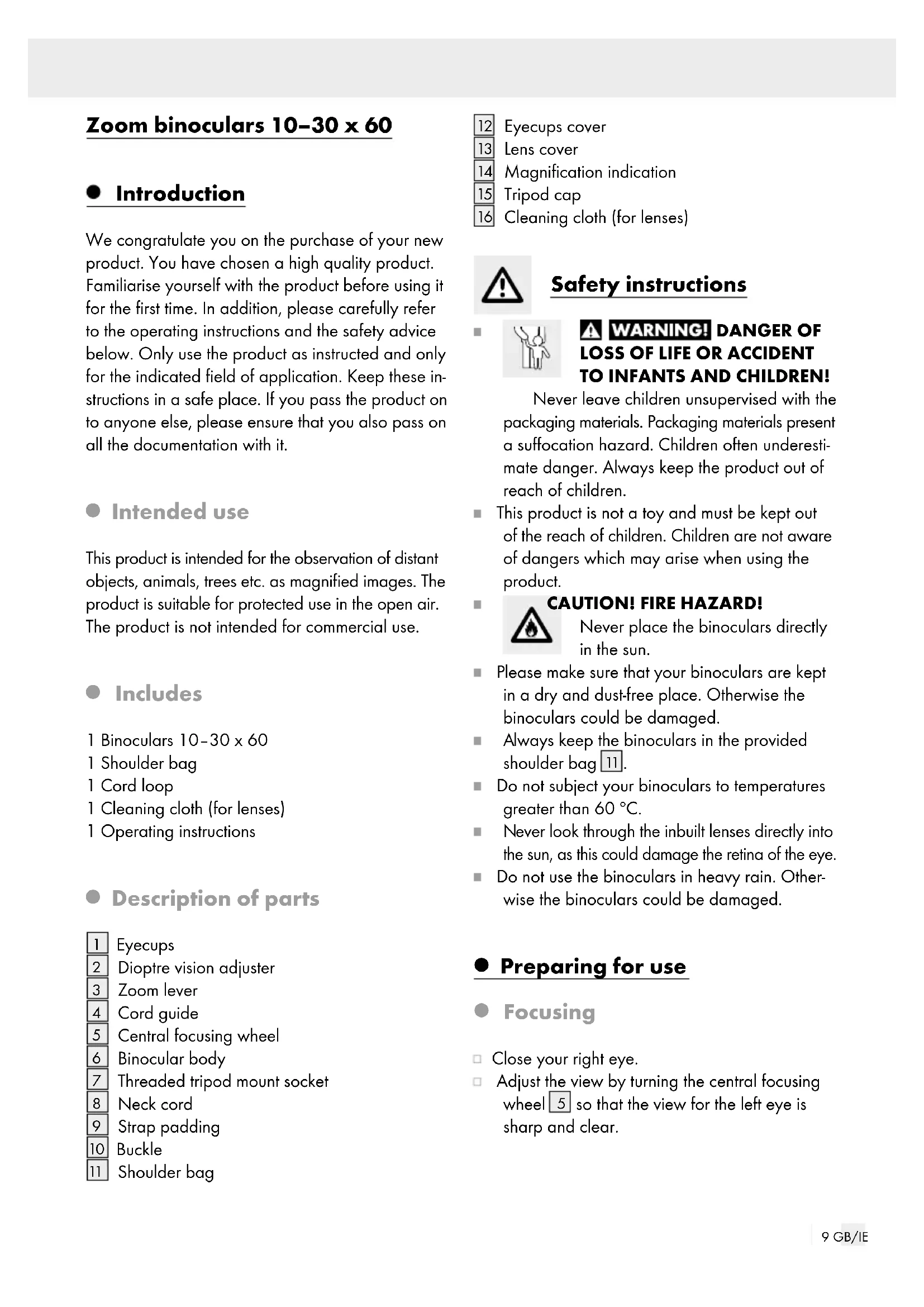

GB/IE Operation and safety notes Page 9

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is intended for the observation of distant objects, animals, trees etc. as magnified images. The product is suitable for protected use in the open air. The product is not intended for commercial use.

- Includes

1 Binoculars 10-30 x 60
1 Shoulder bag
1 Cord loop
1 Cleaning cloth (for lenses)
1 Operating instructions

Description of parts

Eyecups
2 DiopTre vision adjuster
3 Zoom lever
4 Cord guide
5 Central focusing wheel
6 Binocular body
7 Threaded tripod mount socket
8 Neck cord
9 Strap padding
10Buckle
11 Shoulder bag

12 Eyecups cover
13 Lens cover
14 Magnification indication
15 Tripod cap
16 Cleaning cloth (for lenses)

Safety instructions

WARNING! DANGER OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Packaging materials present a suffocation hazard. Children often underestimate danger. Always keep the product out of reach of children.

This product is not a toy and must be kept out of the reach of children. Children are not aware of dangers which may arise when using the product.

CAUTION! FIRE HAZARD!

Never place the binoculars directly in the sun.

Please make sure that your binoculars are kept in a dry and dust-free place. Otherwise the binoculars could be damaged.
Always keep the binoculars in the provided shoulder bag [11].
Do not subject your binoculars to temperatures greater than 60^ .
Never look through the inbuilt lenses directly into the sun, as this could damage the retina of the eye.
Do not use the binoculars in heavy rain. Otherwise the binoculars could be damaged.

Preparing for use

- Focusing

Close your right eye.
Adjust the view by turning the central focusing wheel so that the view for the left eye is sharp and clear.

- Diopetre vision adjuster

Open your right eye and close your left eye.
Turn the dioptre vision adjuster 2 until the object is sharp and clear. Retain this position for later use.

+ Focus on a closer object

-Focus on a more distant object

0 No adjustment

- Adjustment for eye positions

Hold your binoculars with both hands and move the binocular body (see Fig. B) until the two circles are superimposed to form one full circle (see Fig. C).

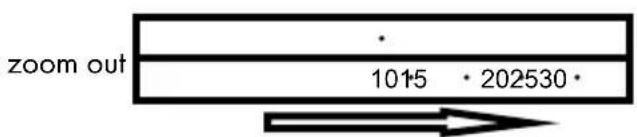

Adjusting the zoom

Turn the zoom lever 3 to adjust the zoom factor.
The zoomfactor (10-30) is indicated by the magnification indication 14.

- Plasticeyecups (for spectacle wearers)

Fold back the eyepiece cups 1. This enlarges the field of vision and makes using the binoculars easier for spectacle wearers.

Adjusting the neck cord

Thread the ends of the neck cord through the buckles 10.
Thread the ends of the neck cord through

the cord guides 4 (see Fig. E).

Then thread the ends of the neck cord through the buckles 10 as shown in figures F and G.
Pull the neck cord 8 tight on both sides of the buckle 10. This fixes the neck cord 8 on the buckles 10 (see Fig. G).

Use with a tripod

Note:The tripod and the tripod adapter are not included with the product. They can be purchased separately from your specialist dealer.

Observe the operating instructions supplied with your tripod during its assembly and use.
Take out the tripod cap 15 from the threaded tripod mount socket 7 by turning it anti-clockwise.
Screw the threaded connector of the tripod adapter clockwise into the threaded tripod mount socket 7 on the binoculars. Then connect the tripod to the attached tripod adapter.
After use, separate the tripod from the tripod adapter. Then unscrew the threaded connector of the tripod adapter anticlockwise out of the threaded tripod mount socket 7 on the binoculars.
Put the tripod cap [15] back on the threaded tripod mount socket [7] by turning the cap [15] clockwise.

Note: Turn anti-clockwise to unscrew the protective cap for tripod adapter.

- Cleaning and care

Never take your binoculars apart for cleaning.
Use the cleaning cloth [16] provided or a soft cloth without threads to clean the binoculars lenses.
Do not press hard when cleaning the delicate lens surface.
If the lenses are still dirty, dampen the cloth with a little clear alcohol (methylated spirit).
Always cover the eyecups 1 and lens by the eyecups cover 12 and lens cover 13 while the binoculars is not in use to avoid scratch on the lens.
Clean the binoculars body 6 with a dry, lint-free cloth.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts

subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]
