SJSC680VBE - Fridge SHARP - Free user manual and instructions

Technical Features	Combined refrigerator, total capacity 340 liters, energy class A++
Dimensions	Height: 185 cm, Width: 60 cm, Depth: 65 cm
Cooling Type	Ventilated cooling (No Frost)
Refrigerator Capacity	Refrigerator: 230 liters
Freezer Capacity	Freezer: 110 liters
Additional Features	LED display, LED interior lighting, vegetable drawer, egg compartment
Usage	Temperature adjustment, vacation mode, door open alarm
Maintenance	Automatic defrosting, recommended regular interior cleaning
Safety	Door locking system, BPA-free materials
General Information	Weight: 70 kg, 2-year warranty

Frequently Asked Questions - SJSC680VBE SHARP

The refrigerator does not turn on. What should I do?

Check that the appliance is properly plugged into a working electrical outlet. Make sure the fuse is not blown and the outlet switch is turned on.

The refrigerator makes unusual noise. Is this normal?

Operating noises can be normal, but if the noise is excessive, check that the appliance is level and that nothing is vibrating against it.

The temperature inside the refrigerator is not cold. What should I do?

Make sure the temperature settings are correct. Also check that the doors close properly and that there are no obstructions inside.

There is condensation inside the refrigerator. Is this normal?

Some condensation can occur, but if it is excessive, check the door seals and the set temperature. Avoid opening the door too often.

How do I clean the inside of the refrigerator?

Unplug the refrigerator, then clean the interior with a mixture of warm water and baking soda. Avoid abrasive products that could scratch surfaces.

The lights inside the refrigerator do not work. What should I do?

Check if the bulb is burnt out and replace it if necessary. Also make sure the door is properly closed, as some lights turn off automatically.

There are unpleasant odors coming from the refrigerator. How do I eliminate them?

Check if any food is expired or spilled. Clean the interior and place an open box of baking soda to neutralize odors.

The freezer is covered with ice. What should I do?

Defrost the freezer if the ice is excessive. Check that the door closes properly and that the seal is in good condition to prevent future buildup.

USER MANUAL SJSC680VBE SHARP

Device of this mark is a trademark of Sharp Corporation. Plasmacluster is a registered trademark or a trademark of Sharp Corporation.

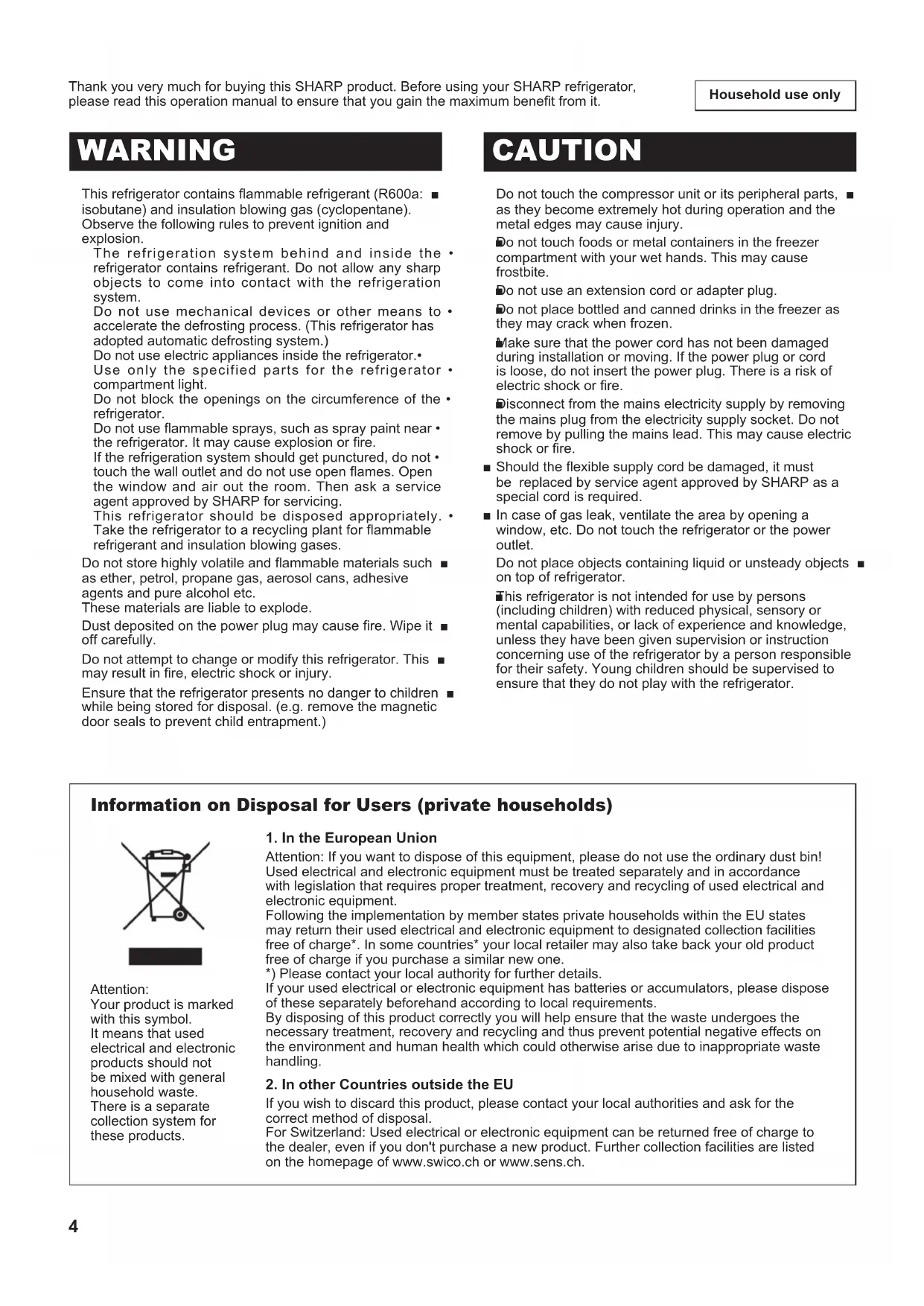

This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane).

Observe the following rules to prevent ignition and explosion.

The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)

Do not use electric appliances inside the refrigerator.

Use only the specified parts for the refrigerator - compartment light.

Do not block the openings on the circumference of the refrigerator.

Do not use flammable sprays, such as spray paint near the refrigerator. It may cause explosion or fire.

If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.

This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases.

Do not store highly volatile and flammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc.

These materials are liable to explode.

Dust deposited on the power plug may cause fire. Wipe it off carefully.

Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

CAUTION

Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.

Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.

Do not use an extension cord or adapter plug.

Do not place bottled and canned drinks in the freezer as they may crack when frozen.

Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.

Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.
In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.

Do not place objects containing liquid or unsteady objects on top of refrigerator.

This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

Information on Disposal for Users (private households)

Attention:

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste.

There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

INSTALLATION

GB

WARNING

Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leakage. Condensation may also build on the outer cabinet and cause rust.

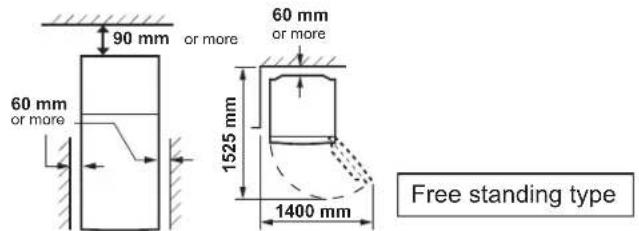

1 Keep adequate ventilation space around the refrigerator. The figure shows the minimum required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension.

By keeping greater space, the refrigerator may be operated under a less amount of power consumption. If using the refrigerator in the smaller space dimension than the below figure, it may cause the temperature rise in the unit, loud noise and failure.

2 Use the two front adjustable feet, to ensure that the refrigerator is positioned firmly and flat on the floor.

3 Remove the 2 screws of the cabinet lower part, and then set the foot cover (supplied inside the refrigerator compartment) with removed 2 screws.

NOTE

Position your refrigerator so that the plug is accessible.
- Keep your refrigerator out of direct sunlight.
- Do not place next to heat generating appliance.
- Do not place directly on the ground. Provide suitable stand.

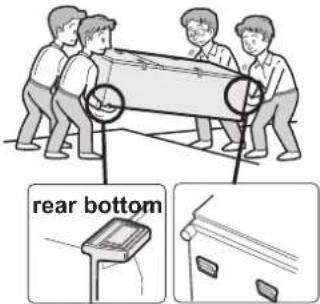

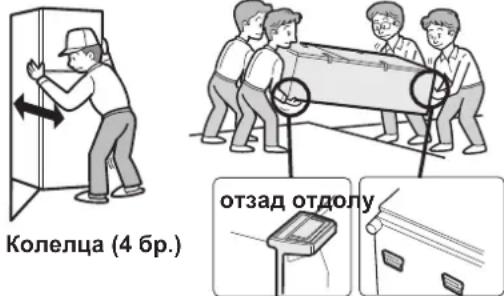

When transporting

The casters allow the refrigerator to move back and forth. Carry the refrigerator by holding the handles located on the rear and the bottom.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

INDICATOR OF TEMPERATURE

This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment. (The door pocket positioned at the same height isn't the coldest zone.)

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control.
To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

Correct setting Temperature too high, adjust the refrigerator temp. control.

NOTE

The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

2 star section 水水 for storing frozen foods only.

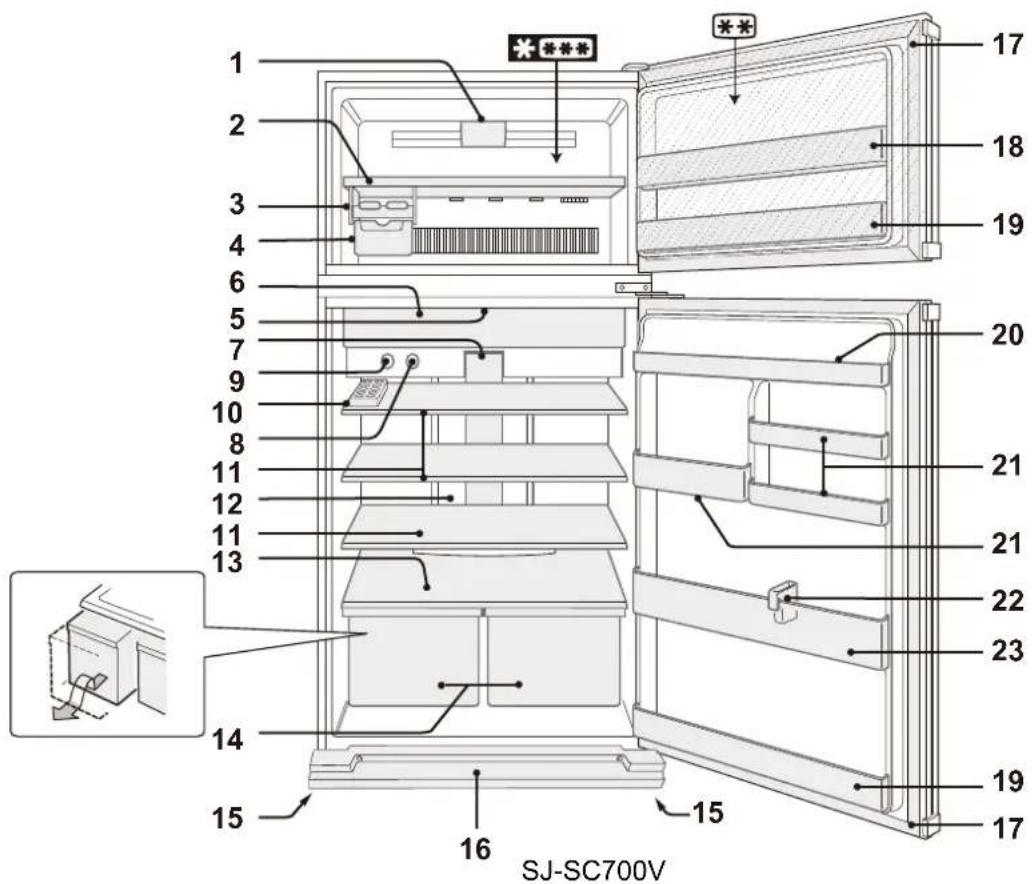

Freezer LED light1.

Freezer shelf2.

Ice cube maker3.

Ice cube box4.

Deodorizing unit5.

No operation and cleaning are required.

Fresh case & door6.

Refrigerator LED light7(Blue & white)

Freezer temp. control knob8.

Refrigerator temp. control knob9.

Egg holder & stopper10.

How to take out the stopper

Pull the refrigerator shelf 1) slightly toward you.

Move the stopper to the center 2) of the shelf and tilt it upward.

Refrigerator shelves 11.

(SJ-SC680V:2 pcs./ SJ-SC700V:3 pcs.)

Hybrid cooling panel (Aluminum panel)12.

The panel is cooled from the rear, thus indirectly cools the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

Fruit and vegetable shelf13. Fruit and vegetable crisper14. Adjustable feet15.

1. Foot cover
2. Magnetic door seals (2 pcs.)
3. Flexible pocket

Tall food items (e.g. pizza box) can be stored by lifting the partition from the bottom of the pocket.

1. Door pockets (2 pcs.)
2. Refrigerator pocket
3. Utility pockets

NOTE (Only for SJ-SC700V)

Do not replace the right utility pocket with that of the left, and vice versa.

1. Bottle stopper / Tube stand

Prevents bottles etc. from falling.

Stick-type food products stored inside.

1. Bottle pocket

OPERATION

GB

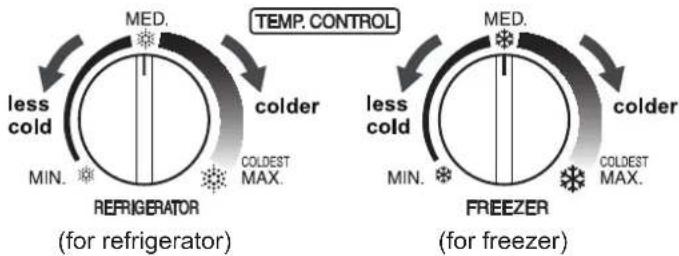

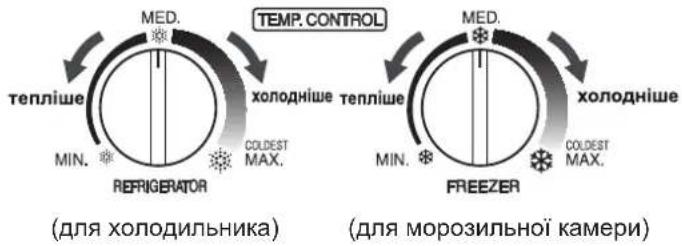

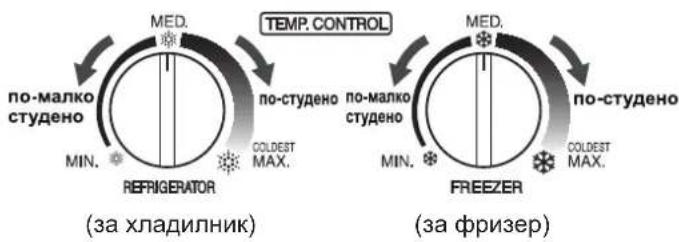

Controlling temperature

Adjustable by turning each knob.

Door Alarm

When the refrigerator or freezer door is left open, the door alarm will sound.

The door alarm will sound in 1 minute after opening the door and again after 1 minute (once in each case). If the door is left open for approx. 3 minutes, the alarm will sound continuously.

Hints when making ice

1 Do not over fill the ice cube trays; otherwise the ice cubes will be joined together when frozen.
2 When the ice cubes are made, turn the lever clockwise to empty the ice into the Ice cube box.

NOTE

To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.

Plasmacluster

The Plasmacluster automatically starts operating when the refrigerator is powered on.

Notes about Plasmacluster operation

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the refrigerator compartment. These ion clusters inactivate airborne mold fungus.

There may be a slight odor in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.

Tips for saving energy

Keep the ventilation space as much as possible around the refrigerator.

Keep your refrigerator out of direct sunlight, and do not place next to heat generating appliance.

Open your refrigerator door as briefly as possible.

Hot foods should be cooled before storing.

Place the food evenly on the shelves to allow the cooling air to circulate efficiently.

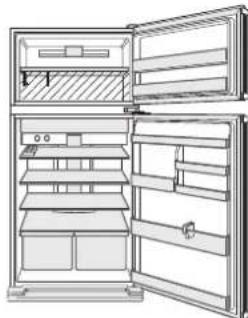

The amount of power consumption of this model is measured according to the international standard of the refrigerator performance.

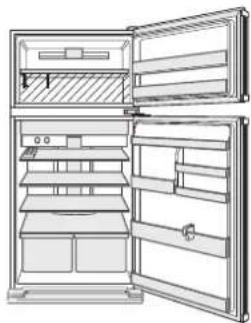

If the refrigerator is operated with these accessories[Ice cube maker, Ice cube box] taken out, it works under the most energy-efficient condition.

The amount of power consumption of this model is measured with these accessories taken out as indicated on the right figure.

The amount of power consumption - of this model is measured under the space dimensions on the right figure.

STORING FOOD

Refrigeration reduces the rate of food spoilage.

To maximize the shelf life of perishable food products,

ensure that the food is of the freshest possible quality.

The following is a general guide to help promote longer food storage.

Ensure all cooked food is wrapped securely or placed in an airtight container.

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the fruit and vegetable crisper.

Eggs should be stored in the Egg holder.

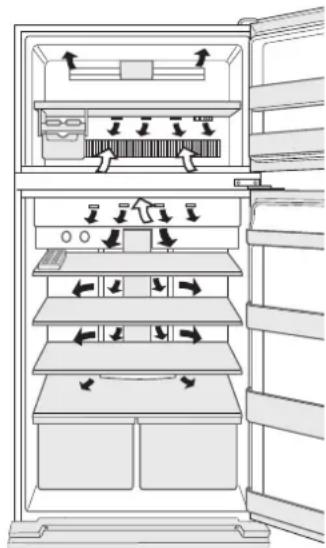

Evenly place the food on the shelves to allow the cooling air to circulate efficiently.

Hot foods should be cooled before storing. Storing hot - foods increases the temperature in the unit and increases the risk of food spoilage.

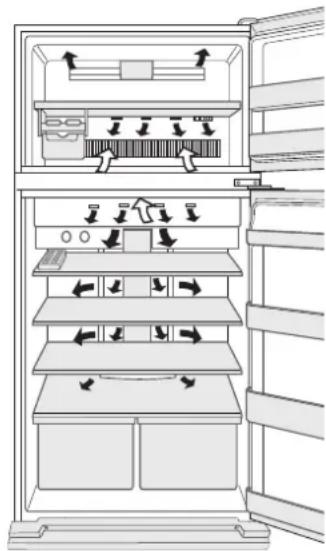

Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.

Keep the door securely closed.

For best freezing

Quality of foods should be fresh.

Freeze small quantities of food at a time to freeze them quickly.

Food should be properly sealed, sealed tightly or covered.

Evenly place the food in the freezer.

Label bags or containers to keep an inventory of freezing food.

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

CARE AND CLEANING

WARNING

Unplug the refrigerator first to prevent electric shock.

Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT

To prevent cracking on inside surfaces and plastic components, follow these tips.

Wipe any food oils adhered to plastic components. Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).

• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

1 Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry. (Only fruit and vegetable shelf is not removable.)
2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.
3 Wipe the exterior with a soft cloth each time it is soiled.
4 Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water.

NOTE

• To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.).
  If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.
• The glass shelves weigh approximately 3kg each. Hold firmly when removing from the cabinet or carrying.
• Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

Defrosting

Defrosting is fully automatic due to a unique energy saving system.

When the compartment light is blown

Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

GB

Problem Solution
The outside of the cabinet is hot when touched.	It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise. It is	normal for the refrigerator to produce the following sounds.Loud noise produced by the compressor when operation starts ·---Sound becomes quieter after a while.Loud noise produced once a day by the compressor ·---Operating sound produced immediately after automatic defrost operation.Sound of flowing fluid (gurgling sound, fizzling sound)---Sound of refrigerant flowing in pipes (sound may become louder from time to time).Cracking or crunching sound, squeaking sound---Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs inside or outside the refrigerator.	This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.·When the door is frequently opened and closed.·When foods containing plenty of moisture are stored. (Wrapping is required.)·
The foods in the refrigerator compartment freeze.	Is the refrigerator operated for a long time with temp. control set at MAX?Low ambient temperature may cause placed foods to freeze even if refrigerator temp. control is set to MIN.
It smells in the compartment.	Wrapping is required for the foods with strong smell.Deodorizing unit cannot remove all of the smell.·
Door alarm does not stop.	If the door alarm does not stop after closing all doors, it is a defect.Contact the SHARP service center for service.Method of stopping the door alarm temporarily.Adjust both temp. control knobs at the same time as following steps.(Adjust ① ~ ③ within 20 seconds)1 Adjust to MIN2 Adjust to MAX3 Return to MEDThe door alarm will sound again after approximately 2 days.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

ADVERTENCIA

Plasati alimentete in mod uniform in congelator.

Police chladnicky 11.

(SJ-SC680V:2ks/SJ-SC700V:3ks)

Hybridny chladiaci panel (hlinikovy panel)12.

He BnKOpncToBnyTe nooOByBaY nu aanTOp.

He KnaIbTy b MOpO3nIbHy KaMepy piDHy y PnJwKax Ch 6bnAaHkax, OckIbKn BOH MoKyTb Tpichytn pni 3aMeP3aHHi.

IapekoHaTecb, 0o eKeTpHn Hhyp He 6yno
PNOKoJKeHO nID cA TpAHCnOpyBaHHa i yCTaHOBKn
XIOIOJIbHnka. He BMNKaIte WHyp B po3eTKy, kAIO OHyp
uWtENCeJIb NOKoJKeHo, OCKInbKn icHyc He6e3NeKa ydApy
eNEKTpHnHM CTpyMOM NIOXeKi.

BID'EnHyOnnPnucTpiB BID MepeXJKNBHeHNA,TPMaIteC3a RONIBKBy BnDekN,HE TaRHiTB 3a WHyp KMBHeHHN-CE MOKe npNBecTN Do ydapy eNeKTpuHNM cTpyMOM a6o noKexi.

Pn noKoJxHnI rHyKOrO uHpya KnBJIeHHN 3BepHiTbcn Do aBtOpn3oBaHOrO dInepa SHARP nIry Ioro 3amHn.

Pn BuTikahHr rasy BiKpnTe BIKHO ta iH. Ta npoBipitb npmiueHHe He doTopkaTecra xonodnbHnka a6o do pO3ETKn.

He CTaBTe Ha XOIOINbHnK NocyI i3 pINHOU YN HeCTiKi IpeMeTn.

JeiXOJODINbHnK He np3HaueHm IINBnKOpNCTAHN Oc6aMn (y TomYHCNI DIbMn) 3OBMeKeHMn F3NHMM, NCxHcHMMn a6o p03yMOBnMn 3di6HOCTaMn, a6o TAKMM, 10 He MaTb DOCTaTHbOro DOCBiNy Ta 3HaHb, OKpim Tnx BnnaKIB, KOni OC6a, BiNoBdaNbHa 3a IXHIO 6e3Neky, 3abe3neuHa Harnla 3a HmMn a6o HadaNa IHCTpyKui II zoDo KOpNCtByBaHHXOJODINbHKnOM. DOrnJaIte 3a DIbMn i He D03BOJnTe im rpaTnc 3 XOJODINbHKnOM.

Inopmaia ydo ytni3aui (Ara BnaChnKIB)

ybara:

Baw npnana n03haeHn daHIM CMBONOM. LMM CMBONOM N03HaacTbcra eJektpnue Ta

eJIeKTpOHe 06NaIHaHHa,
JKe He MoXHa yTnIi3YBaTu
Ha 3BvuaHnx CMITHNKax.

IaBIOIcHIOb CneiaJIbHi NyHKn 360py.

1.YEbponecBkomyCto3i

Ybara: He BnKndaTe Dahe ObaHaHHa Ha 3BnuaHi CMITHNK!

BnKOpncTaHe eNektpnue He Ta eNektpoHHe oBnaHaHH NoBNHe yTnIi3yBaTncb OkpEmo Ta y BiINOBiHocTi 3aKHOHaBcTBOM ODo yTnIi3aui, BiHNobJIeHH Ta nepepOKn eNektpnHoro Ta eNektpoHOrO oBnaHaHH.

3rIHO 3aKoHOaBCTBOM BnachHKXoONbHKnIB, Aki MeuKaHOy kpaIHax EC, MoKyTb NOBepTaTN BkOpNCtahi eNeKTpUHHi Ta eNeKTPOHHi npuaHn Ha CneuaJIbHI 36ipHi nyHKnTb 6eKoHTOBHO. Y DeaKnx KpaIHax MicueBi npOaBuMi MOKytB TAKOX Be3KOHTOBHO 3aBnpATN BkOpNCtahi npuaHn, RaIO Bu npDiBaCeY hNX HOBI npuaHn.

*) 3a deTaNbHIWO iHOpMaJIeIO 3BepHITbcra Do npEcdTabNikib MicceBOI BlaJn.

Akuo BnKOpncTahi eNektpuHHi afo eNektpoHHi npuaNi MiCTaTB baTapeKn afo akymyIaTOPn, ytni3yIte ix OKpEMO, BiIOBIDHO DO BmOR MlCueBOr 3aKOHOdABCTBA.

Ytni3yUOuN daHn Bnpi6 y HanexKnn cnoc6, Bn Bhece TcBKnad y npabnIbHe BiHOJIeHH Ta nepepo6ky daHoro Bnpo6y, i Tm camM y 36epexeHHaBKOJNUHbOro cepeoBnua Ta 3doop' JIOJe BID HeraTnBHORo BNInBy, kN BnHnKaE BhacnIOK HnipabnIbHOi YtNi3aui.

2.YKpaHax,IO He BXoJrTb Do cKnady EC

KaO Bn 6baxaTe yTnI3yBAtn daHn Bnpi6, 3BepHiTbcra Do npedctabHnKIB MicceBOI BnaN 3a IHopmaucio o do npabnblhoYtni3aui.

Дяшьевцapi: Викорпостане сеелктугше abo сеелктугше обладаннaya можна 6e3koштobho nobephytn диеру, habiTBякю Ви He 3bupaTecB npindbaTn y HbOrO HObe oblaanHH. lHsii nyHKTN 360py Викорпстаноrol oblaanHHne nepeniiueHi Ha domaunH b6-ctopinl: www.swico.ch abo www.sens.ch.

NONEPEJXEHN

He BCTaHOBnHOte XoIOuINbHnK B CnpOMy a6O BOIOrOMY npMiuEHHI, ce MOxE npN3BeCTn Do Ioro N0wKOJKeHHra NiTikAnHr. Ha NobepXHi xoIOuINbHnKa MoxeyTBOpOBaTHcB KOHDeHCAT, kIn CNpUHNRe Kopo3IO.

1 3a6e3neyte Heo6xidHy BeHTnlaio HABKOIO XOJNOHbHnka.

Ha manohky Bka3aHO MihimalbHn Heo6xidHn · npoctip npBCTAHOBJehHi XOIOJNbHnKa. CnoKuBaHH eJEKTpoeHeprii 3aneKHTb BiD yMOB BnKOpNCtAHH Ta BiD npomixkIB, 3aIIneHnx dJa BEHTNJLJIi.

36iNbweHnB BInbHoro npocTopy HABKONo . XOIOINbHnka MOKe 3MeHNHTeHEpROcNOXBHaHHa. RaOp npEekNpyatauXOIOINbHnka HABKONo . HbOro BNKOpNCTOBycTcMHeWSe npocTopy, HIX BKa3aHO Ha MaIIOHKy, Ze MOKe npu3BeCTn Do NiIBNuueHHr TEMpepaTyR B XOIOINbHnky, BHNKHeHHr WMy Ta NOnKOJxEHnR.

2 Hanautyte Dbi nepeHn HixK, 10 peryIOHObCra, TAKM CHHOM, 106 xonodnbHnK HadiiHO Ta pIBHO CToB Ha niDno3i.

PerynmoHa Hixka

3 Bnkyitb 2 rBnHTn 3 HnKHOJ qaCTuHn JaUkka,notIM BcTaHObitb DeKopatNBHy naHeJIb (noCTaayetbcra BCEpeDHI XoIoDnIbHoI KaMepn) Ta npKnpiiB Tb I nonepdHbo BnKpyeHmN 2 rBnHTamN.

ПРИМITKA

IocTabe XoJOnOuNbHnK TaK, 306 3a6e3neuHTn DoCTyn Do po3eTKn. IocTabe XoJOnOuNbHnK B MICTi, De BIn He 3haxOuNTmEbCra NiD iIcIO nprMOrO COHrHOro npOMIHnR. He CTABe npicTpiip Nopd 3 HarpBaIbHnMn npnlaamn. He CTABe npicTpiip npMo Ha 3emllo. PldroTyBaTu BiIDnoBIDHy nIdctabky.

Pn nepeBe3eHHi

3a donomoro poNkIB XOJOnIbHnK MoXHa nepeCyBaTn Ha3aTa Bnepei.
Ppi nepheceHHI TpMaTe pncptpi 3a pyKn Ha 3aHi n CtiHci i DnHsi.

Ponkn(4wT.)

3aDnA CTIHKA

Ipeed nowatkom ekcnnyatauii XoJOnHbHnka

PpTb BHTpiHIO uactHy TkaHHOIO, 3MOeHO B TeNIII BOJI. RaIO BVKOpNCTOBycR MInbHn PO3uH, peTeNbHO 3MnTE NOrO YnCToIO BOHO.

IHДИКATOP TEMПЕPATYPN

DAnHxONoIbNtKOBnlaHaHnIHdNkAToPOM TeMnepaTpy, AKn 3NaXoNtBcB OCHOBHMy BIDIneHHi I Do3BOJIpe peryIOBaTN CepeNDIO TEMepaTy y HauXoNDoHsiI dInHci.

HaixoJoiHwa dIjHka

DAnHn CmB0J No3Haaye HaiXoOnOHiu dyIiHky B XOIOJIbHi Kamepi. (BBepe BIDiJeHHy, 10 3HaxODiTbCra Ha Tc cami Bucoti, He HanexKntb Do HaiXoONOHiOoi DiIaHNK.)

Cnmbon

IpeBipka TemnepaTypu y HauXoNoiHii i dInHci

Bn mokepepernyapno nepebiprtn temnepatypy y
haixoNODHIiDINHci, i kkuo Heo6XiHo, HanaWTOByBaTn 3a donomorOIO perynlTopa Temnepatypn.
Ioka3HkOM npabNBHOITemnpaTpyB XoNODHBHKy e
CNIHII konip iNDKATopA Te mnpaTpy. RaKIO iNDKATop
Temnepatypa 3MIHOe KOp IA BILN, ue O3Nauec, zo
temnepatpaTy xoNODNbHKu NaTo Bucoka. Y TAKOMy Bnpanky
3iNbHTb HanaWTbAHNArepeyraTopa Temnepatypn Ta
3auekaTe np6JI3Ho 6 roDIn NepeD nobTOPHO nepeBipkoio
iNDKaTopa Temnepatypn.

CNHI
PpabnIbHe HanaaStyBa

BINN
HAnTo BnCoka
TemnepaTpa, HanaTuYtepepyJrTop TemnepaTpyn.

ПРИМТКА

BHytpiHnTemnepaTpy MOp03nIbHOi KaMepn 3aIeKInb BiD·6araTbOx pKaTOpIB, HApNkIaN, TemnepaTpyn PpIMIeHNH, KIbKocti npOyKTbY Hi Ta cactOnb BIDkpBaHNb DBePcT. Picna po3TaWsyBaHHB XoJIoNDnHKy CBIXN npOyKTb a6o· BiIKKnBaHHa Na HeBn Yac DBePcT IHINKaTOp TEmnpaTpyn 3mHIoo CbI KoIp Ha BIINI -Ce HopMaIbHo.

2-3ipkoBe ** BiDineHH TIIbKn DnI 36epiraHn 3amopoxeHnx npodykTrib.

CbitnoiojnaJammaMopo3nIbHoi kamepn1.

PoiuMop03NbHOi kamepn2.

PiDOn DnBnroTOBnHnNbOdy3.

KoHTeHep dnn Ky6nKiB IbOdy4.

De3oOpuyouca nCTema5.

He nontpe6ye o6cnyrobyBaHHra Ta OunuHnH.

BiDJIeHHI DBepHNI BiCik IIN CBIXNX 6.

pykTB

CbitnoioHaJamnaXoJIoNJIbHnka7.

(Cnhi i 6iin)

Pyka peryIIOBaHHa TempepaTypn 8. Mopo3HbHO KaMepn

Pyka perynobHHa TemnepaTyp9. XoNoIbHO KaMepn

(SJ-SC680V:2wT./SJ-SC700V:3wT.)

I6pndha oxonoJyUOa naHeIb 12. (AIIHOMiHcBa naHeIb)

PanaHb oxoJOnOxkyETbc 33aNy, n 3a6e3neyE oxoJOnJKeHHA OCHOBHO KamepN XoJOnINbHnKa. TaKIM HINOM PPOyKTIn OXoJOnOxyTbCn NOCTynOBO, He NOTpanJIyOnH NiD DIO XoJOnHOr NOtOKy NobITpr.

PonuA dna 6pykTb Ta Oboyib13. KOHTeHep dna 6pykTb Ta Oboyei14. HixK, uO perynIOb8cra15.

1. DeKopatNBHa naHeJIb

2. Marhitni yuinbnoBaui DBepuT (2 wT.)

3. Bicik, po3mp koro moxha per

Bucoki Bupobn (kopobky 3 niuO) moxHa 36epiratn, nIHHaBn neperopokny 3 dHa BiDckiy.

19.Дверни Biicikn(2 wT.)
20.OchOBHe BiDineHHXoNoHnBuHnka
21. DdaKobi BidaHn

BeNIke

IMITKA (Tinbkn dJa SJ-SC700V)

He 3mHOnTe po3aUyBaHH npabOrO doaTkoBOro BIDIneHH Ha nibe i HabnKn.

1. CtonopДЯ nЯwoK /ПiDnopaДЯ BEPTUKaJIbHnx EMHOCTeN

Tpmae nIrauKToOo.BNKOpNCTOByETbCnIa36epirahnn npodykTIB,aki Tpeba3aqiKcyBatN.

1. Bicik nna nnaowk

EKCπЛyATAUJIY

KoHTpoJIb 3a TeMnepaTypopo

PeryHoeTbca NOBepTaHHaM KOxHoI 3 pyuK.

CnHnIbepuT

KaOIO DBepeTa XoJIoOnIbHnKa QN MOpO3nJIbHOI KaMepn 3aJIINHTB BIDKpNTUMN, IpOJIyHaE 3ByKOBI CNrHaI.

3BykOBn CnHnA nBepaT npOyHae Chepe3 1 XBnHy nicna BiDunHeHHa, a Notim 3HOB Chepe3 XBnHy (y KOKHOMy BnNaDKy 1 CnHn).

CunHan6yndeTrpBaJIIM,kaIO DBepuTa BiDkpNTI npOTaROM · npu6Jn3HO 3XbUJIINH.

Iopadn no 3amopoxkybaHHIO Ibody

1 He haJIbBaIte B nIDOnn DnI npriroTyBaHHa bOdy 3a6aRaTO BOu; npn 3amOpOxyBaHHi Ky6nKn 3Mep3aIOTBcpa3OM.
2 KOnn Ky6nKn IbOy rotobi, NOBOpOTom pyKn 3a RoDHHNKOBIO CTpiIKoTO BnRpy3tB NID B KOHTeHep DnA Ky6nKIB IbOy.

ПРИМITKA

Ioo6 He noWkoJNTN KOHTeHep IJIy KByNKIBNbOy,He rOtYuTE B HbOMy IiD i He 3aJIbBaTN B HbOrO MaCNo.

Cnctema iOni3aui i ouHneHH noBITpPlasmacluster

CnCTema Plasmacluster BKHouaTbCa ABOMaTHNO npBKNIOeHHI XOJIOJIbHnka.

Ppimitkn npo po60ty cnctemn Plasmacluster

IohiaTOp B xOIoNJIbHnky Bnpo6Ie IOHH KnaCTepn, 0IO ABJIOtB co6oIO HAKONUeHHN NO3NTNBHX N HeraTNBHX IOHIB, I BNyCKAc B OCHOBHe BiDIneHHN XoOnDiNbHnKa. Li IOHHI KnaCTepn pyHyOTb rP6Kn nnichRn, 0o MICTaTB Cn Nobitpi.

B xoNoDnIbHnky MoKe BiDyBaTncr He3HaHn 3anax. Lc - 3anax 03OHy, IIO reHepCyTbc iOHi3aTOpOM. KInbKiCTb O3OHy MIHimaJIbHa, BIn WbNDKO pO3KnJaAeTbCer B XoNoDnJIbHnky.

Iopadn zodo ehepro36epexeHHa

3aIiMaTe YKOMoRa 6JIbWe BJIbHOrO npocTopy HABKOLO XONODINbHnKa DnI NOKpaueHHy yMOB BEHTnlaui.

BctaHOBIOHTe XOJOnIbHnK TaKIM YHOM, 106Ha HbOr He NotpanJaNo npRME COHrHe CBITNO, Ta noDani BiD npCtpoIB, Ioo rEhepyoTb TENO.

HamaraiTeCCKOPOTNINO MIMMYaC,KOIN DBepiXONODINbHnKa3aNNsAHTBCB BIDKpTUMM.

OxonoJkyTe rapyH npOdykTN nepeT Nm, JK NOMICTHTN IX B XoNoDnBHK.

PIBHOMiHO PO3MIuYIe IPOdyKTn Ha nonuX, 106 DaTm MoxJNtBicTh XONoHOMy NOBITHO UPKyIbATn 6e3 nepeWkoD.

EfeKTHBHCb ehepro36pepeXeHHaHOI Moeni BiINOBiAc MxHapOHNm CTahApTam 0do noka3nKIB XoNoJbHnKa.

K3Hn nepeJiueHe npJia
[IIIOH nI BROTOBNEHn IbOy,
KoHTeHep nn KybKnIB NbOdy],XONIOJIbHk
6yJe npauOBaN B peKmIMaKcMaJIbHo
eFekTBHO ehePrcNOxINBaHH.

EheprocnoxnBaHH daHOI moJIeBmipHOCTcK, KOJI DaHE npNJaDg BNIHrTO3XoJIoNtBuHka, JIK NOKa3aHO Ha MaJIohKy npabopyu.

Ehepro36epeXeHHaHOI MoJeni BmipHcTbC, KOJI XOJOINJBNHK PO3MIueHO Ha BiCTaHx BiD OTOyUOnx NOBepxOHb, 3a3HaueHnx Ha MaHIOHNy npabopyu.

3БЕРIGАння ПОДУKTIB

OxioJXeHHyynobInbHIOE npouec ncyBaHHn npoDyKTtB.

IIOOBKNTn Tepmin 36epiragHH npOyKTIB, kki UBNKO nCNYoTbCa Ha noNlci XONOJbHnKa, MoXHa ODNHM CNOcoBOM -KnadITb npOyKTn Ha 36epirAHHH y HauCBIXIWOMy CTaHI.

HnKHe HABoTbC3aRaIbHi peKOMeHaZiI 0do 36epiraHH npOyKTIB.

Yci roTobi npOyKtn do6pe 3anaKoByte a6o KnaIb, 10 He - nponyckae nobitpr.

Uo6 3MeHunB TpaTy BOnr, pkyTn i OOuy MaOTb 6yTu 3anaKobahi B nactnk, Hanpknad, B cenoopaHOBy ynaKOBky, nakETn (ane He repeMtnuHO 3anaKobahi) Npo3MiueHi B KOHTeHep dny pkyTIB i OBOYIB.

Ryura 36epiraaTe Ha niDctabui dna rae.

PIBHomipno po3miuye npodykTu Ha noiuex, uo6 3a6e3neuHTN MOKInBicTb cnpkyIauii xOIOHOrO NOBITp8 6e3 nepeuKO.

Tapy npdyktn oxonodkyte neped 36epirannm.

36epirahnra rapaHx npOyktT 36ilbUye Tempeatpy B kamepi i pnsik ncyBaHHn npOyktT.

He 6noknyte Bnyckhi i Bnnyckhi OTbOpn XoJIoHoro NObitpy, -IIO npKynIOe y BiDIIeHHx Ta KOHTeHepax, IHaKWe npOdyKTIn He 6ydyTb pIBHomipHO OXoJIOkKyBaTNCB XoJIOuNtBHNky.

TpmaTe DBepuTa HadiNo 3aMKHeHMM.

Длн haикрацоуЗamopoхуbaHHN

IpoNyKT NOBInHc6yTu CBIXIM.

Ioo6 wBnKO 3amOpO3NTn I npOyKT, 3amOpOxyJTe HeBeJIHKIM NcAChNHaMn. I npOyKTIOBNHHi 6bTN HAnEHHM YNHOM 3aNaKOBaHI, ⅢInbHO 3anaKOBaHI a6o NaKpNTi.

PIBHOMIPHO po3miuynTe · npOyKTN B MOp03nIbHi kamepi.

1063HaTn,DeIooJeKNTb，HakneHOte Ha ynaKOBKn iKOHTeHepn HAcNeKn.

He KnaiTiB npOdykTn 63nocepeHbO nepeBunyckHm OTbOpom XoNoHoro nobitpy. LcMOxke npN3BeCTn Do IX 3amOpoxBaHHa

ДОГЛЯД I ПРИБИРАНХЯ

PONEPEIXEHH

Pepw 3a BCE BiKIOHcyb XOJNOINbHNK, Oo6 yHKnHyTN ypaXeHH eNEKTPnHm CTpyMOM.
He NnTe BDO npraMo BCEpeDHy xOIOuNlBHOi KamepN. Lc MoKe npn3BeCTn Do NOoKoJKeHHa Hn ipXaBInHn i30JIIOUOrO MaTePiany.

BAKJIINBO

Uo yHnKHyTN TpiuH Ha BHyTpiuHix NOBepxHax nnactknobux qactnHex, doTpmyTecb nxpad.

BntnpaTe xapObi knpn 3 ycix nlaactNKOBHX qactH
- OckiNbKn DeaKi OunuIyOHi XiMiHi 3acObN MoKoTyb NooKOJNTn NOBepxHIO, BnKOpNCTOByTe NIIe po36abJIeHI OUnuIyOHi pIDHH (MnIbHy BOdy).
- y pa3i BnKOpNCTaHH HePo36abNeHOro MmOHoro 3ac06y a6o HeHaJIeXHOro BNTnpaHH MaIbHOI BOIN, PJIaCTNK MOKe po3TpPickatncr.

1 BnMItb DonomKhi eJeMeHTn Ta noJIu3 kAmepn i DBepaT. Iicra MTTa peteBHO npOMnTe BOHO Bci nlaactNKoI deTani.

(He BnTgraIbCra IJNSe IONUci IJN PpykTiB i OOch.)

2 PpOtpiB BHyTpIshNI NOBepXHi TKaHINHO, 3MOeHOIO B TeNII MmJIbHi BOi. NotIM NpOTpiTb TKAHNHO, 3MOeHOIO B YnCTiXoNODHI BOi.
3a6pydHeHH 3OBHuiHix NOBepxHei XoNoDnIbHnKa BuaJrTe 3a DOnOMOrHO M'RAKOITKAHIN.
4 MarhiThi yuihHOBaI DBePcT OuNuyTe 3a DonOMoTOO 3y6HOJ uITKn, 3MOeHOB B TeTIJI MmblHi BOJI.

PIMITKA

Uo6 yHnKHyTN noUKoJKeHb XONoDnBnHnKa, He BnKOpNCToByTe CnIbHOiOuNX MIOuHX 3ac06IB uP03uHHNKIB (NaK, pa6y, nIpIpyouHn NopoWok, 6eH3nH, KIn'aeHy BOvY Ta iH.)
KUIO BIDKNIOUeHO EHePOONOCaHNN,6yNbJaCKA 3aueKaIte 0HaOHMeHHe 5 XBUNINpePnHm NiIKNIOUeHHM XoNDJIbHNka.
- CkJIaHi nOJIuCi BaKaTb npIbIbIcHIO NO 3 Kr. Ipn IX BnMaHHI i nepeHeceHHi 6yTu ObepeXHMn i MiUHO TpIMaTH.
- He KIaTn npedMeTN BCEpeDHHi XonoDInbHnka i He HaHoCHTn yAdn no BHYTpIHm CTiHKam -Le MoKe npBecTe N do TpiuHN H bHyTpIHm NOEbpXHi.

Po3MopoxyBaHH

3aBdAny hikaihni CnCTem i ehepro36epexehn po3MPOOxyBaHH NOBHCtIO aBTOMaTH3OBaHO.

Kkuo 3Hnkae niDCbiyuBaHHa

Ioo3amHnTn lamnny BiDinax xonodnbHnka, 3BepTaNTecb do aBtOpn3OBaHnx dJnepiB SHARP. 3amHy lamn MoKe 3diChOBaTu Nlue KBaJIiPikOBaHn nepcoHan cepBicnXu CEHTpiB.

BidknIOueHnXoIOnIbHNka

Ku Bo Bn BiKnHouaTe XoNoDnBnHK Ha TpNbaNN nepioD, 3BInbHtB NOro BiD yCix npOdyKTiB i peTebHO NOMnTE. BiEeHaIte WHyp XnBnEnHn BiMpeXi i ZanWte Bci DBepuTa BiKnPHTMN.

ПЕДТИМЯК3ATEЛЕФОHYBATNdo

CEPBICHOTO ΚEHTPY

Ipeed TmM, k3BepHytncrao cepBnchoi cyjkb, npebipTe hactynHe:

ПюбLEMа Пишиныя

Ha зовниώnotьхнихолдуньнда с行政处罚.

Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларын. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. СларITY. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Сларity. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性的. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性和. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар性. Слар 性. Слар 性. Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слар 性 Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слages Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слage Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слags Слugs C-1 C-2 C-3 C-4 C-5 C-6 C-7 C-8 C-9 C-10 C-11 C-12 C-13 C-14 C-15 C-16 C-17 C-18 C-19 C-20 C-21 C-22 C-23 C-24 C-25 C-26 C-27 C-28 C-29 C-30 C-31 C-32 C-33 C-34 C-35 C-36 C-37 C-38 C-39 C-40 C-41 C-42 C-43 C-44 C-45 C-46 C-47 C-48 C-49 C-50 C-51 C-52 C-53 C-54 C-55 C-56 C-57 C-58 C-59 C-60 C-61 C-62 C-63 C-64 C-65 C-66 C-67 C-68 C-69 C-70 C-71 C-72 C-73 C-74 C-75 C-76 C-77 C-78 C-79 C-80 C-81 C-82 C-83 C-84 C-85 C-86 C-87 C-88 C-89 C-90 C-91 C-92 C-93 C-94 C-95 C-96 C-97 C-98 C-99 C-100 C-101 C-102 C-103 C-104 C-105 C-106 C-107 C-108 C-109 C-110 C-111 C-112 C-113 C-114 C-115 C-116 C-117 C-118 C-119 C-120 C-121 C-122 C-123 C-124 C-125 C-126 C-127 C-128 C-129 C-130 C-131 C-132 C-133 C-134 C-135 C-136 C-137 C-138 C-139 C-140 C-141 C-142 C-143 C-144 C-145 C-146 C-147 C-148 C-149 C-150 C-151 C-152 C-153 C-154 C-155 C-156 C-157 C-158 C-159 C-160 C-161 C-162 C-163 C-164 C-165 C-166 C-167 C-168 C-169 C-170 C-171 C-172 C-173 C-174 C-175 C-176 C-177 C-178 C-179 C-180 C-181 C-182 C-183 C-184 C-185 C-186 C-187 C-188 C-189 C-190 C-191 C-192 C-193 C-194 C-195 C-196 C-197 C-198 C-199 C-200 C-201 C-202 C-203 C-204 C-205 C-206 C-207 C-208 C-209 C-210 C-211 C-212 C-213 C-214 C-215 C-216 C-217 C-218 C-219 C-220 C-221 C-222 C-223 C-224 C-225 C-226 C-227 C-228 C-229 C-230 C-231 C-232 C-233 C-234 C-235 C-236 C-237 C-238 C-239 C-240 C-241 C-242 C-243 C-244 C-245 C-246 C-247 C-248 C-249 C-250 C-251 C-252 C-253 C-254 C-255 C-256 C-257 C-258 C-259 C-260 C-261 C-262 C-263 C-264 C-265 C-266 C-267 C-268 C-269 C-270 C-271 C-272 C-273 C-274 C-275 C-276 C-277 C-278 C-279 C-280 C-281 C-282 C-283 C-284 C-285 C-286 C-287 C-288 C-289 C-290 C-291 C-292 C-293 C-294 C-295 C-296 C-297 C-298 C-299 C-300 C-301 C-302 C-303 C-304 C-305 C-306 C-307 C-308 C-309 C-310 C-311 C-312 C-313 C-314 C-315 C-316 C-317 C-318 C-319 C-320 C-321 C-322 C-323 C-324 C-325 C-326 C-327 C-328 C-329 C-330 C-331 C-332 C-333 C-334 C-335 C-336 C-337 C-338 C-339 C-340 C-341 C-342 C-343 C-344 C-345 C-346 C-347 C-348 C-349 C-350 C-351 C-352 C-353 C-354 C-355 C-356 C-357 C-358 C-359 C-360 C-361 C-362 C-363 C-364 C-365 C-366 C-367 C-368 C-369 C-370 C-371 C-372 C-373 C-374 C-375 C-376 C-377 C-378 C-379 C-380 C-381 C-382 C-383 C-384 C-385 C-386 C-387 C-388 C-389 C-390 C-391 C-392 C-393 C-394 C-395 C-396 C-397 C-398 C-399 C-400 C-401 C-402 C-403 C-404 C-405 C-406 C-407 C-408 C-409 C-410 C-411 C-412 C-413 C-414 C-415 C-416 C-417 C-418 C-419 C-420 C-421 C-422 C-423 C-424 C-425 C-426 C-427 C-428 C-429 C-430 C-431 C-432 C-433 C-434 C-435 C-436 C-437 C-438 C-439 C-440 C-441 C-442 C-443 C-444 C-445 C-446 C-447 C-448 C-449 C-450 C-451 C-452 C-453 C-454 C-455 C-456 C-457 C-458 C-459 C-460 C-461 C-462 C-463 C-464 C-465 C-466 C-467 C-468 C-469 C-470 C-471 C-472 C-473 C-474 C-475 C-476 C-477 C-478 C-479 C-480 C-481 C-482 C-483 C-484 C-485 C-486 C-487 C-488 C-489 C-490 C-491 C-492 C-493 C-494 C-495 C-496 C-497 C-498 C-499 C-500 C-501 C-502 C-503 C-504 C-505 C-506 C-507 C-508 C-509 C-510 C-511 C-512 C-513 C-514 C-515 C-516 C-517 C-518 C-519 C-520 C-521 C-522 C-523 C-524 C-525 C-526 C-527 C-528 C-529 C-530 C-531 C-532 C-533 C-534 C-535 C-536 C-537 C-538 C-539 C-540 C-541 C-542 C-543 C-544 C-545 C-546 C-547 C-548 C-549 C-550 C-551 C-552 C-553 C-554 C-555 C-556 C-557 C-558 C-559 C-560 C-561 C-562 C-563 C-564 C-565 C-566 C-567 C-568 C-569 C-570 C-571 C-572 C-573 C-574 C-575 C-576 C-577 C-578 C-579 C-580 C-581 C-582 C-583 C-584 C-585 C-586 C-587 C-588 C-589 C-590 C-591 C-592 C-593 C-594 C-595 C-596 C-597 C-598 C-599 C-600 C-601 C-602 C-603 C-604 C-605 C-606 C-607 C-608 C-609 C-610 C-611 C-612 C-613 C-614 C-615 C-616 C-617 C-618 C-619 C-620 C-621 C-622 C-623 C-624 C-625 C-626 C-627 C-628 C-629 C-630 C-631 C-632 C-633 C-634 C-635 C-636 C-637 C-638 C-639 C-640 C-641 C-642 C-643 C-644 C-645 C-646 C-647 C-648 C-649 C-650 C-651 C-652 C-653 C-654 C-655 C-656 C-657 C-658 C-659 C-660 C-661 C-662 C-663 C-664 C-665 C-666 C-667 C-668 C-669 C-670 C-671 C-672 C-673 C-674 C-675 C-676 C-677 C-678 C-679 C-680 C-681 C-682 C-683 C-684 C-685 C-686 C-687 C-688 C-689 C-690 C-691 C-692 C-693 C-694 C-695 C-696 C-697 C-698 C-699 C-700 C-701 C-702 C-703 C-704 C-705 C-706 C-707 C-708 C-709 C-710 C-711 C-712 C-713 C-714 C-715 C-716 C-717 C-718 C-719 C-720 C-721 C-722 C-723 C-724 C-725 C-726 C-727 C-728 C-729 C-730 C-731 C-732 C-733 C-734 C-735 C-736 C-737 C-738 C-739 C-740 C-741 C-742 C-743 C-744 C-745 C-746 C-747 C-748 C-749 C-750 C-751 C-752 C-753 C-754 C-755 C-756 C-757 C-758 C-759 C-760 C-761 C-762 C-763 C-764 C-765 C-766 C-767 C-768 C-769 C-770 C-771 C-772 C-773 C-774 C-775 C-776 C-777 C-778 C-779 C-780 C-781 C-782 C-783 C-784 C-785 C-786 C-787 C-788 C-789 C-790 C-791 C-792 C-793 C-794 C-795 C-796 C-797 C-798 C-799 C-800 C-801 C-802 C-803 C-804 C-805 C-806 C-807 C-808 C-809 C-810 C-811 C-812 C-813 C-814 C-815 C-816 C-817 C-818 C-819 C-820 C-821 C-822 C-823 C-824 C-825 C-826 C-827 C-828 C-829 C-830 C-831 C-832 C-833 C-834 C-835 C-836 C-837 C-838 C-839 C-840 C-841 C-842 C-843 C-844 C-845 C-846 C-847 C-848 C-849 C-850 C-851 C-852 C-853 C-854 C-855 C-856 C-857 C-858 C-859 C-860 C-861 C-862 C-863 C-864 C-865 C-866 C-867 C-868 C-869 C-870 C-871 C-872 C-873 C-874 C-875 C-876 C-877 C-878 C-879 C-880 C-881 C-882 C-883 C-884 C-885 C-886 C-887 C-888 C-889 C-890 C-891 C-892 C-893 C-894 C-895 C-896 C-897 C-898 C-899 C-900 C-901 C-902 C-903 C-904 C-905 C-906 C-907 C-908 C-909 C-910 C-911 C-912 C-913 C-914 C-915 C-916 C-917 C-918 C-919 C-920 C-921 C-922 C-923 C-924 C-925 C-926 C-927 C-928 C-929 C-930 C-931 C-932 C-933 C-934 C-935 C-936 C-937 C-938 C-939 C-940 C-941 C-942 C-943 C-944 C-945 C-946 C-947 C-948 C-949 C-950 C-951 C-952 C-953 C-954 C-955 C-956 C-957 C-958 C-959 C-960 C-961 C-962 C-963 C-964 C-965 C-966 C-967 C-968 C-969 C-970 C-971 C-972 C-973 C-974 C-975 C-976 C-977 C-978 C-979 C-980 C-981 C-982 C-983 C-984 C-985 C-986 C-987 C-988 C-989 C-990 C-991 C-992 C-993 C-994 C-995 C-996 C-997 C-998 C-999

JAKUO BAM BCE J TAKI NOTPIBHI NOCJYTN 3 CEPBICHOTO OBCJYROBYAHN

3BepHItbcIaNoHaibnKyOroABTOpn3ObaHOroDnIepaSHARP.

UA

PPEdUnpeKdEHN

XnaHnKbT cbBpKx 3anaNIM XnaHnEn areHT (R600a: n3oByTaH) npa3neHbAu areHT (UKNloneHTaH). Cna3BaTe cNeHNTE npaBnla, 3a da npedOTbPaTnte 3anaJbHe n ekcnlonpahe.

OxnaIteJIHaTcNCTeMaOT3aI N BbTpBe XnaIINHnKa CbIbPkaXnaIIneH areHT. Na3eTe OxnaIteJIHaTa CNTeMa OT KOHTaKT C OCTpN PpeDMtN.

He n3non3baIte MexaHnHn nn npytn cpeIcTba, 3a da yckopnte pa3mpa3raBaHeTo. (XnaHnHnkbT pa3noIara cbc cnCTema 3a aBTOMaTHHO pa3mpa3raBaHe)

He n3non3BaIte eIeKtpnueckn ypeDn BbTpRe B xnaIINHka.
I3noJ3BaIte cMo cneuaHNO nocOeHnte 3a XnaIINHO oTJeJIeHne JAMNI.

He 6IokpaIte OTBOpTe No nepupepeyTa Ha XnaDnHnKa. He n3no3BaIte 3anaNIMn CnpeIOBE, Hapmep 6oR, B 6bn3OCT Do XnaDnHnKa. Toba MoKe da npuHHn ekCnNo3nA nn noKap.

Ako ce nonyu np6nB B OXJaNTeHnHaTa CnCTema, He nnaIte eJekTpueckn KOHTN Hne H3NoJI3BaIte OTKpNT nnambK. OTbOpTe npO3opeua n npoBeTppe TomeJeHHeTo. Cbbpxete Ce cbc cepBn3, oOobpeH ot SHARP.

XnaJnHKnbT Tp8Ba Da ce N3XBbpNIO CboTBeTHnHa. NaH. 3aHeceTe XnaJnHnKa B 3aBOD 3a peuKnIpaHe Ha 3anaHmXnaDnHnAreHTn pa3neHbAunareHTn.

He cbxpanhaBte CnHNo JTeTnBn 3anaNIMMaTePnAn KaTo eTp,6eH3nH, npOnan (ra3), aXe3NB, uNCT cNInr T.H. Te3n MaTePnAnCa B3pNUOONaChn.

Cbpaannr ce no zencena npax moke da npnHn noxap. N36bpweTe ro BnMaTeNoHO.

He ce onntBaIte Da MoiNphiuPate XnaDnHnKa. Toba MoKe da npuHnHn NoKap, TOKOB ydap nHn HapaHaBaHe.

VBepe Ce, Ye XnAaHnHKbT He npEcdTabra BA onaCHOCT 3a Deua, KOrato CbUaTt Ce CbXpaHbA, npEn Da 6bTe N3BO3e KaTO OTnAbK. (HaNP. CBaIeTe MaHHTHO To yNtBTHHe Hn Bpata, 3a Da npEDoTbPaTnte 3akNeuBaHe Ha Deua)

BHIMAHNE

He NnnaTe KOMnPecopa HnN Yactnte OKOJNO Hero, TbN KaTO Ce HaropeaBaT MHO NO BpeMe Ha pa6ota N MOKe da ce HapaHNTe Ha MetaHNTe pbo6oe.

He nnpaTe XpaHnTe UIN MeTaNHTe CbIOBe BvB φpN3epa C MOKPn Pbue. Toba MoKe Da npuHn N3Mp3BaHe.

He n3no3BaIte ydIJIKITeIN uIeNcENI-aIaNTepn.

He cnaaiTe HAnNTKN B6yTNJIKN IN B KyTmNBbB FpN3epa, TbN, KATO TE MOrAT Da CE ChyIANT, KORAto 3ampb3HaT.

YBepete ce, ye 3axpaHbAunrT hHyp He e NOBpeDen H Bpeme Ha MONTAK NIN PEmecTBaHe. AKO UeNCenbT NIN 3axpaHbAunrT hHyp ca pa3xna6EHn, He BKNoBaTe uencena B KOHTa. IMa pNCK OT TOKOB yap!

13KIOUeTe ypea OT eNEKtpnueckata Mpeka, KaTO n3BaJnte ⅢeCena ot KOHTaKa. He n3BaXdAte uencena, dbpnaKn Ka6eHa. Toba MoKe Da npuHnTOKOB yap nnnoxap.

Ko 3axpaHbauT Ka6eI Ce NOBpeI, ToI Tpr6Ba Da CE CMeHN OTe cepBn3, Odo6peH OT SHARP, TbI KaTO Ce I3NCKBa CneuaJen Ka6eI.

Pn n3Tnue Hn ra3 OTbOpTe np03opeua, 3a da npOBETpnte. He nnnaTe xnaJInHnka nnu ence na.

Ie noctabraIte npedmetn,cbdbpkaun TeuhoCTnn HectabnHn npedmetn Bbpxy xnaunnHa.

JaHnKbT He e npHa3NaueH 3a n3non3BaHe OT
NMa (BKn. Deca) C HamaIeHN Fn3NuYeCKn, CEH3OpHN IIN
ymCTBeHN CNOCo6HOCTn, INn C HeIOCTaTBHo ONIT N 3HaHnR,
OCBeH aKO bDaT NOd HabIoJeHne N IOJyCat CBOTBeHTNe
HHCTpyKcHn.

Hhopmaun3a n3XBbPnHeTo 3a notpe6nteJN (yactHn domaknHctBa)

BHMaHHe:

Ha BaWTo n3dJIne
IMa MapKnpaH To3N
cMbON. Toba 03HaUaBa,
ye ynoTpe6BaHnte
eNEKtpueckn
eNEKtpoHNn n3dJIInr He
Tpr6Ba Da ce CmecBaT
C oBUnTe 6HTOBu
OTNaDbu. CbIeCTByBa
OTDeJIHa CnCTema 3a
Cb6nPaHe Ha Te3n
n3dJIInr.

1.BEbponeckncab03

BHHMaHHe: Ako Jenaete Da n3XbPnTe TOBa o6OpyDbaHe, MoJr He n3NoJI3BaIe O6NKHOBeHInTe KOHTeHepn 3a CmT!

YnOTpe6BaHNTe ENEKTPuEeCKn yPeDNi N ENEKTPoHNO O6OpyDBAHe Tp8Ba Da ce TpeTnpaT OTDeHNO H B CbOTBeTCTBnE CbC 3aKOHOaTeNCTBOTo, KOEt N3NcKBa IpaBUNHa IpepaOka, pereHepaun i peuNKnIpaHe Ha YnOTpe6BaHNTe ENEKTPuEeCKn yPeDNi N ENEKTPoHNO O6OpyDBAHe.

CneBbBexKaHToOTCTpaHnTe-HeKHaactHTeDOMaKnHCTBaHaTePHTOpnTaHa EbponecknBaHO3MoratDaBbPhaTynOTpeBaHnTe eNEKTPoypEn nENEKTPoHNOobopyDbaHe HaonpeDeJeHnTe 3aTOBaMeCTa6e3nNaTHo*.BHKONCTpaHnMecTHNtTBpROBeU,OTKOROTO cTe 3akynnnOBopdyDbaHeto,MOKe Da B3eme 6e3nNaTHO CTapna ypeI,AKO KYNITE NOdoBEN HOB.

*) MoJIa CbIpxKeTe Ce C MeCTHIne Bnactn 3a NOBuepe NpOp6HOCTn.

Ako eeneKtpooypeiTe iIN eeneKtpoHHTo o6OpyDbaHe iMaT 6aTePNu iINn akyMynatOpN,MOJ npeBapHTeHNO I IN3XBpIeTe OTDeHNO B CbOTBETCTBNE C MECTHNTe N3NCKBAHNI.

C npabHnHOTo n3XbPnIe Ha ToBa n3dennne Bne rapaHTnpaTe, ye OTNaDbUte Ie npemHaT Heo6xOIMATA npepa60ka, perehepaunr H peuKnnpaHe n IO To3n HauHn PpeD0TbaTaBte NOTEHuaHnTE OtpuataeHH B3dEICTBna Bbpx OkONHATA CpeDa N OBeWkoTO 3dpabe, KOnTO 6bxa B3NkHaHn Hnue B pe3yNTat Ha HnepaBnHnTO TpeTpnaHe Ha OTNaDbUte.

2.BdpyrntpaHn n3BbH EC

Ako XeNaete Da n3XbPnTe ToBa n3DeIne, MoNA CBpKeTe Ce C MeCTHHe Blaactu N NonTaTe KaKbB e npabNJHrT hauHH Ha n3XBbPnHe.

3a Ⅲeuiapnra: YnoTpeBaHnte eIekTpoyei n eIekTPOHO o6OpyDbaHe MOrat da ce BbPnatHO B maraHa,OT KOTo ca 3akynHe, DOpn I Da He 3akynTe HOBo N3dne. Ose dena 3a OTnBcN Ca 36poehn Ha qnpMeHata Ctpanuca Ha www.swico.ch nnww.Sens.ch.

MOHTAX

PPEyPExKDeHne

He cnaarTe XnadnHnKa Ha BnJxHO Nm MOKpo MRCTO, TbKATO TOBa MoKe Da NoBpeDu N3OJaunrTa N da npuHH TeU. OTbH Ha KopnyCa MoKe Da ce o6pa3yBa KOHN3, KOIT Da npuHHn Pbkda.

1 OctaBeTe DoCTaTbUHO npocTpaHCTBO 3a BeHTnlaucna OKONo XJaDnIHHka.

Ha npypata e nocoeyHO MNHmamHnHOTIO npoctpaHCTBO, KOET Tp8Ba Da ce cna3Ba npn HCTaHnpane Ha xnaDnHnka. Ehepronotpe6neHneto ce n3uCnBa CbTnacHo dpyr pa3Mepn.

Ako octabNTe NO-roJMO npoctpaHCTBO, XnaIINHKbT • Ⅲe KOHCympa No-MaIKO TOK.

Ako xnaiHnKbT ce n3noJI3Ba B npoctpaHCTBO C pa3mepn, no-MankN OT nocoyeHnte Ha qnrypata, TOBa MOKe da DoBeDe do nperepaBHe Ha arperaTa, BnCOKO HnBO Ha Wym n Nobpeda.

2 HnBeInpaTe XnaIINHka Ype3 DBeTe npeHN perynpyemn kpaeta.

PerynipyeMo kpaue

3 OTBnIe 2 BnHTa OT DoJHaTa Yact Ha KOpnyca n Cnei TOBa MOHTpaIte C TReX Kanaka Ha KpaYeTaT (KoITo Ue HamePInTe B XNaDnHOTO OTDeJeHne).

3ABEJIEXKA

NocTabete XnaDnHnKa Taka, Ye cencbT da 6bde Doctbne.
PaseTe XnaDnHnKA OT npraKa CbHYeBa CBETnHa.
He cnaraTe ypeDa Do n3Toynu Ha ToTnHa.
He cnaraTe ypeDa HnPaBo Ha 3emrTa. OcnrypeTe noxDoxoJa.
OCHOBA.

Pn TpaHcnpTnpaHe

KoJIeJIaTaNo3BOJRABat Da IDBXkITe XnaIINHnKa HAnpei N Ha3aI.
Ppi npEhaCraHe XBaHete XlaIINHnKa 3a dpbXkITe OT3aN I OToDony.

PpeIN BKNIOUcBaHe Ha XnaIINHnKa

NoCTe BtpseHnTe qactn C Kbpna, Hanoena C Tonna BODA. Ako n30n3BaTe canyHeHa BOda, n36bpweTe aaTeJHO C BODa.

TEMNEPATYPEH NHДNKATOP

XnaHnHbT pa3noIara c Tempepatye HnDnKaTO B XnaDnIHOTO OTDeHeHne, KOHTPOJnPaTe CpeHaTa TEMepaTpa Hau-CTydeHata 30Ha.

Ha-CTydeHa 30Ha

CIMBOJbT yka3Ba Ha-CTyDeHaTa 30Ha B XJaIJIHOTO OTJeHeHne. (IOCTaBkata Ha BpaTaTa, KOrTO Ce HAMnpa Ha CbUaTa BnCOUnHa, He BnIn3a B Ha-CTyDeHaTa 30Ha.)

Cnmbon

(SJ-SC680V:26p./SJ-SC700V:36p.)

Xn6pnnden oxjaxkaa npHe1 12. (AynmHneB naHeI)

PanaJIbT ce OxnaJa ot3ad n taKa INHnIpeKTHO OxnaJda XlaIINHOTo OTdeJeHne. ITO3n HauHH OxnaKDaHETo Ha xpaHaTa cTaba JeKO, 6e3 Ta da Ce n3nara Ha CTyDeH Bb3dyuWeH NOTOK.

PaT 3a nIIOJOBe n 3eJIeHcyu13.

1. OTeJeHne 3a nnOBoe n 3eNeHuyn
2. PerynnpemykpayeTa
3. Kanak Ha kpayeTata
4. MarHHTn ynnbTHEHna 3a BpaTata (26p.)
5. _BKBaBa noCTaKa

BnCOKIne npEIMETn, (Hanp. KyTm 3a Nua) MORAT Da ce CbXpaHBAr, KATO BmHHeTe npepaDATA DonHata YAcT Ha NoCTabkata.

1. NocTabKn Ha BpaTaTa (2 6p.)
2. Xnaunna noctabka
3. NocTabkn 3a pa3Hn Heza

TOMM

3ABEJIEXKA (Camo 3a SJ-SC700V)

He pa3MeHnTe CtpaHnTe Ha JnBaTa N IyChATA NOCTABKn 3a pa3Hn Heua nn O6paTHo.

1. OrpaHnHTeJ 3a 6yttnkN / Tpb6Ha cToKa

P3n6bTnKn nDp.OT naDaHe. B Hero moKe Da IbpxNte Dblr N TbHKn noΦopMa npOdykTN.

1. NocTabka 3a 6yTnJkn

PABOTA

TemnepaTypeh KOHTpoJI

Perynpa ce ue3 3aBbptBaHe Ha pBcKeTe.

AJaPMa 3a OTBopeHa BpaTa

Korato BpataHa Ha XlaDnHnKa Nn Ha 0pnsepa octaHe OTBopeHa, aIapMaTa 3a OTBopeHa Bpata Ce BkNIOuBa.

Anapmata 3a OTbopeHa Bpata npo3Byuaba 1 MNHyTa cnei OTBaprHe Ha BpataTn OTHOBO CneI OSe 1 MNHyTa (NDbata nBTn NO BeHbX).

Ako BpataOCTaHe OTBopeHa OKONo 3 MNHyTn, aIapMaTa· 3anOyBa Da 3BbHn PPOdblKInTeJIHO.

CbBent 3a npabeHe Ha JeI

1 He npenbIbaIte fOpMITE 3a nei; B npOTnBEH cIyauI rOToBITE Ky6yeTa neIe 6bDat cIeHen.
2 Korato ky6yeta Ta Jed cTaHaT roTOBn,3aBbptete NoCTyeTo no YacOBHKnOBaTa CTpeNka,3a Da n3CInTe Jeda B KyTuRa 3a Nei.

3ABEJIENKKA

3a Da He NoBpeDInTe KytTnTa 3a Nei, He npabete IeB HcN He cnaarTe MacNo B He.

Honn3atop "Plasmacluster"

Функцята loHn3atop "Plasmacluster" ceakTbupa aBTOMaTHUHO npN BKNIOUBAhe Ha XnaDINHnka.

Бeilekkn 3a ФункцутЯ loHn3atop "Plasmacluster" HOnH3atOpbT B xJaIINHka OCBO6OxDaba NOJOKHTeHN I OTPuataENH IOHO B XJaIINHOTO OTDeJeHne. Te3n rpynn JOnH npemaxBAT nIeCEHTA BB Bb3dyxa.

B xnaDnHnKa moKe da ce yceHa neKa mnp3Ma. Toba e Mnp3MaTa Ha 03OHa, rHeepnP aH OT NOnH3aTopa. KoJInuEcTBOTO O3OH e MmHmAnHO n 6bP3O ce pa3rpaKda B XnaDnHnKa.

CbBent 3a eHeprocnectBahe

OctaBeTe Bb3MOxHO Ha-ronMo npocTpaHCTBO 3a BEHTnlaucn OKONo XnaDnHnka.

PaseTe XnaDnHnKa OT npKa CtBHeBa CBETnHa n He rO cnaraIte Do n3TOHnHa H TOJIHa.

3aTbapnTe BpaTaBb3MOxHO Ha-6bp30.

IopeuHTe xpaHn Tp6Ba Da n3CTnHaT, npedn da ce np6epaT.

Pa3npedeene paBHomepHo xpaHata no paTOBeTe C cen eKacHa cnpkynaHa CTyDEHn Bb3dyX.

Ehepronotpe6JeHneTo Ha To3n MoJen e H3MepeHo CbINaCHO cbOTBeTHm EMeKdyHapOeH CTaHdApT 3a XnaDnHnU.

Be3 Te3n npctabKn [JeDorehepaTOp, Kytna 3a Je], xnaHnHKbT ue nMa Hau-BuCoka eHeprnHa eKacHOCT.

KoJIuYeCTBOTO Ha KOHcymupaHa eHeprn3a To3N MoJeI e N3MepeHO C Te3N akCecoapn, KOnTO Ca I3BaDeHN, KaKTo e NOKa3aHo Ha fHypata OTJrCHO.

Ehepronotpe6nneHnToHaTo3n Moen e n3mepeno npa3mepnte, daehn Ha dacnata fnpypa.

CbXPAHEHNE HA XPAHN

CbxaHbAHeTO B XlaDnHnK HamaIbBa ckOpocTt Ha pa3BaJIaHE Ha xpaHnTE. 3a Da yDbIaNKe MAKcMAnHO roJHOCTTa HA HeTpauHnTe npOyKTn, Te TpRbBa Da 6bDat Bb3MOxHO Ha-tpeChn. CneBbAT o6uHn HanbTCTBn 3a noDbIro CbxaHHeHn Ha xpaHn.

CroTBeHaTa XpHa TpRbBa Da ce yBVe DoIbe Nn da ce CIOKIn B XepMeTuHcBd.

3a da ce HamaJIIO MNHmMym 3aYbata Ha Bnara, nIOOBete · n 3eIeHuNTe Tpr6Ba Da 6bDaT JNeO yBtN HAnpIMep B nIacTMACOBn ONAKOBKn, nIKyTe (He 3aneYatBaIte) n np6paHn B OTdJeHneTo 3a nIOObE n 3eIeHuZn.

Ryata Tp6Ba da ce dbpxaT BbB fopMaTa 3a Rnca. Pa3npedeIeTe paBHOMepHO xpaHATA no paTOBeTe c eFHKACHa CIPKyaCaH Ha CTyDeHRA B3dyX.

IopeuTe XpaHn Tp6Ba Da n3CTnHaT, npEi Da ce npnbepaT. PnpBpaHeTo Ha ropeuXpaHn NobuShaBa TempeaTpata Bypea H yBeJIuYabA pncKa OT pa3BaJrHe Ha xpaHaTa.

He 6nokpaTne noToKa h zuipkyinpauncaSydenb3dyxc Xpana nn CbdoBe;B npotnbEN cnuyaXpaHNTe Hma da Ce n3CTyIaBAT paBHOMepHO BcENNAHNHK.

Дрьхтеврараздобpeзворна.

3a ha- do6po 3ampa3yahe

XpaHnTe Tp86Ba Da 6bDaT · npecn.

3aMPa3BaIeMaNKn· KONUYeCTBaXpHa3aeDHo 3a no-6bp3o 3aMPa3BaHe.

XpaHATA TpA6Ba Da e .doBe 3aTbOpeHa - NtBTHo3aneYataHa nnNn NOKPNTa.

Pa3npedeenepepaBHomepHo XpaHATA BbB cpu3epa.

0603NaYe CbIbPkaHneTo Ha IINKOBeTe N CbIOBete BBpN3epa C eTNKETN.

HABbTPE

HABbH

He cnaarTe xpaHa Ha nbTg Ha n3xoJaunn CtydH B3dyx. Toba moKe da npuHH 3ampa3raBaHe Ha xpaHaTa.

ГРNXИ NGOYNCTBAHE

PPEyPPEKDEHNE

IbpoN3KJIOUeTe XnaDnHnKa OKTaKTa, 3a Da IpeDoTbPaTHTe TOKOB yAp.
He n3nBaIte BOa BbTpne IIN OTBbN NO KOpnyca. ToBa MoKeJa npEiIN3BnKa NOBa Ha PbXka N NobpeDa Ha eNeKtpnueckata N3Olaunr.

BAKHO

3a da npedotbpatnte HanykBaHTo Ha BtpeHNTe NOBbpxHOCTn INJactMacOBNTe DeTaJIIn, CneDBeTc Te3N yKa3AHn.

-36bpcBaTe paCTeJIHHTe Ma3HHN, 3aJIeHNHaJIN NO IJIaCTMACOBITE DetaiJIN.
HЯкоДOMaKINcN npenapatMOraT da npuHnT NOBpeXdAHe, 3aTOBa nIOn3BaIte cAmO pa3peDeHa MneUa TeuHOCT (canyHeHa BODa).
Ako ce n3non3Ba Hepa3TBopeH dTePreHT nnCanyHeHaTa BOda He 6bJe n3MnTA HAnbJHo,PiactMaOBITE YactN MOKe da Ce HanyKaT.

1 N3BaIeTe npIcTaBKeTe (HanpIMep paftobete) ot BbTpewHocCTTaN BPaTata. 3MnIte T C TOnla BOda n canyH; 3NJIakHeTe T C YIcTA BOda n TIOcCyWeTe. (Camo paftbT 3a IIOdoBe n 3eJeHcyu He ce N3BaXka).
2 Nocntete BbtpueHOCCTa cKbpna, HanoeHa c TOnla canyHeHa BOda. Cnei TOBa noCtete canyHeHaTa BOda cbc CTydeHa BOda.
3 NocTbaTe BCnKn BbHn 3aMbpcBaHn C MeKa Kbpna.
4 NOnCTeMaHHTHOTo yNtBTHHeHHe Ha BpaTaTa C YeTKa 3a 3b6n n TOnna canyHeHa BOda.

3ABEJIEXKA

• 3a Na npedotpaTne NOBpeXdaHe Ha Baunx XnadinHnK, He n0n3BaJIte arpeCUBHN npenapatru 3a noocCTBAHe n pa3peDnteN (pa3peDnteN 3a naKObE, bOn, npax 3a nnaifpeAe, BeH3oN, Bpura BOa N dp.).
• Ako n3KnIOHTe ypeDa, n3aKaIte noHe 5 MNHyTn, npEi Da ro BKIOHTe OTHOBO.
  CTbKHeHHTe paTObTe TeKaT OKoI O Kr BCEKn. DpbXTe 3npaBO, KOrato rBaNTe OT ypeDa Hn n npehacare.
  He n3nyckaTe npedMeTn B xnaDnHnka u He ydpnTe BbTpewHaTa cTeHa. ToBa MoKe da npuHn HanykBaHe Ha BbTpewHaToNobbpxHOCT.

Pa3mpa3YBaHe

Pa3mpa3raBaHTo e HnBbNHO ABOtOMaTHNo 6NaIroJapeHne Ha yHnKaHnHaTcNCTeMa 3a NecTeHe Ha eHepn.

Korato kpyskata B otdeleHneTo n3ropn

Cbpxe Ce cbc CepBn3Hna ceHTbp Ha SHARP, 3a da nopbyate HOBA Kpyuka 3a BbTpewHO ocBeTneHne. KpyuKaTa 3a BbTpewHO OCBeTneHne MOKe Da ce CMeHN CaMO OT KBaINΦNupaH cepBn3EH TexHrk.

N3KJIIOUyBaHe Ha XJaIINHnKa

Ako 0TcBCTBaTe bIIO uNCKaTe da N3KJIIOHTe XJaDINHnKa, N3BaTe BCNUKaTa XpaHa I NOHCTe TE N3CJIO BbTpEWHOCCTTA. N3BaTe 5eNCEJa OT KOHTAKTa N OCTaBeTe BCNUKn BpaTn OTBOpEH.

ПРЕДИ ДА ПОВИКATE TEXHнK

Ipei Da IOBnKaTe TexHnK, IpoBepeTe CneHTo.

ПюбLEM Рецениe
Овьн корпуньт e ropeц priдопир.	Това e hopмално. Нагятata trьба e в корпуca с ceл prideotвраяне на kondeнза.
Хладиникьт Издава shum. Hopмално	e xlaadinihkbl da nizdaba cneiHite 3buyu. Сиелен shum OT komпесора priri zanochahe Ha pa6ota · --- 3bykbl OTcna6ba cnei Bpeme. Сиелen shum OT komпесорa BeDnBx dHeBHO · --- 3byk, noCneiDaUO onepaunra TByAMTmHNO pa3mpa3BaHaBe. 3byk OT teuaa TceHocT (6bIbukane, CBnCTeHe) · --- 3bykbl OT xlaadinihia areHT, koiTo Teue B trpb6ite (3bykbl Moke Ja ce yCnilBa OT Bpeme Ha Bpeme). Пуканe писckpuzane · --- 3byk, pridezBHKAH OT pa3wipRyBaHTo N CBVBAHTo Ha BtpeShHInTe CTehn i Chactn no Bpeme Ha OXJaxJaHe.
Вътpe и OTьн на xlaadinilnka ce образува скрж пий конден3.	Това мосяда сclуч В edha OT cneiHite cintyaци. ИБьршete ckpeka C mokpa Kbpna и конден3a sbc cyxa Kbpna. Korato okonnata bIaknoct e Bucoka· Korato bparata ce OTbapri H 3aTbapri YecTo· Korato Ima xpaHn C BscOKO sbdprjxahne Ha Blara. (ИЗИСКВа ce onakobaine.)·
ХранITE в xlaadinIHOTO OTdenenHime ЗамрьзВAT.	Дълг Врeme li pa6otn XlaadinHkbl T perugalopr 3a TempepaTpya, NaCTpoEN Ha MAX?? HuskATA OKOLNA TEmpepaTpya Moke Ja priuchny 3ampa3raBaHne Ha xpaHnite, dopri akO· ТерmoctaTbT Ha XlaadinHkRa e NaCTpoEN Ha MIN.
В OTdenenHneto Мриш. XpaHnte sbc cnilen Мрinc Trp6Ba Da ce yBvBAt· Аpopatn3aTOp8T He мосяда прemaxne BCWKn Mprin3Mn·
Алармatura за OTborepena Врatura не спURA.	Ako anapmata za OTborepena Врatura He спURA сеiod 3aTbapYHTo Ha BCWKn BpArn, Hablue e DepeKT. Cbpxte Me CbS cepBn3eH ueNTbP ha SHARP 3a TECHnuecko obCnJyBaHne. Метод за ВрemonHo спраhane Ha anapmata Za OTborepena Врatura. Peruginai Te ednobPemEnho and BaTa TepMoCTaTka Kato cneiBaTe CTbPknte. (PerylnaiRte B no3niu 1~3 B pamKInTe Ha 20 cekyndi) 1 Harlacete Ha MIN 2 Harlacete Ha MAX 3 BpHete KbM MED NEIGERATOR Aлармatura за OTborepena Врatura поce сеakTbVipa OTHOBO cnei pri6n3nTeJIHO 2 din.

AKO BCE OUCE CE HXKAETE OT TEXHNIK

CbpxkTe ce c Hn-5nn3kn cepBn3, Odo6peH ot SHARP.

BG

ПАРэджаннE

TbI xana3iNbHik 3MwUae JereKa-3rapaJIbHbI axanadkaJbHK (R600a: i3a6yTaH) i3anLbHbRa3 (BknaeHbAue HactynHbI npabIbI npaYxinenHH y3rapaHH i Bb6xy.

CicTMa axanadK3Hn 33aNyHyTpbl xanaIbHika 3Ma7uae axanadkaIbHik.He danyckaue kaHTakTay IIO6bIX BOCtpbIX npamTeay 3 xanaIaIbHaia CICtMaJ.

He BbikapbictoyBaue mexaHHyBn npblnabI a60 iHbIcpoKdI nAcap3HH npaucy pa3MapoKBaHH.

(TaXana3iNbHk Mae ayTaMaTbIHyIO ciCTMy pa3mapoKBaHHa.

He BbikapbictoyBaue 3neKtpbIHybI npbl6Opbl yHyTpbl xanaa3inbHika.

BbikapbictoyBauncToJIbKi cneuibHyIO JAMNpy dnnxana3inbHaKamepbl.

He 3akpbBaIe aIaTynHbI na 6kaX xaIaIa3InbHika.

He BbikapbictoyBaune JERkaay3rapaHbHpaCnblIbHki, Hanpbkna, paCnblIyBnHK 3 qap6a nobau 3 xana3inbHikam, T.K. rTa moKa npBecu da BbIbxy a6o nakapy.

Kani xana3inbna cicTMa naWKo3iNaCra, He DaKpaHauce da pa3eTki I He 3anaJbBaunce aroHb.

Aduhiie akho i npabetpbie nakoi, 3aTbIM 3BpaHicce da ynayhabaxhara areHTa SHARP 3a danamorai.

T3tbi xanaad3iibnhiK Tp6a yTbni3abaç haneXhim YbHaam y cneuibnbHix ycTaHOBax na nepanpaOoybl dna Ierka- y3rapalnbHix axanaedkanaHikai i3anaubnHix r3ay.

JIpybI i Ierka3rapaIbHbI p3yIBbl, Taikr, Ra3 oip, 6eH3iH ra3 npaan, Knei, YbcIb CnIPT, a3pa3oJIbHbI 6aONHybIKi I r.. MOryub Bbl6xHyCb, Tamy He 3axOyBaIe rTbI pybbl bY xana3ilbHIky.

BpydHa pa3etbI iTtncJI MoKa BblknaPnKap. Ybcuiue ix 3 acporaai.

He cnpa6yue 3mHicb a6o MaIbΦiKaBaUc r3TbI xana3inbHK. TAta MoKa npBBeCui da naxapy, naWKoJxAHHa 3JIeKTPbIHbIM TOkAm a6o TpaMbl.

Iepakahauceca,TO naPbixTabaHbI dna tybliau bI xana3iNbHk He yayIne He6cneki DnA 3auei (HanpbknaD, 3dbIMe MaHITbIy d3BapHbI yWbIbHki Dn npadyxineHH TpaMipabAHHa D3auei.)

YBAGA

He daKpaHaueca Da Kamnp3capHn yctaHoYki a6o Re nepbIepbIHBIX YacTak, NaKOBKi RaHbI cTAHOBraCa BeJIbMi rapaybIMi naHAc 3KcNlyatau, i MeTaIiHbI KpaM MoKa npbIEcui Da Tpaym.

He yanaue npadykTBa 60 MeTaniHbI KaHTaHepbIy Mapa3iNbHaKamepbMOKpbIMpykami.ΓaMOKa BbIKnIkaCb a6MapoXBaHHe.

He Bbikapbictoybaue naaykaibHik a6o anaTap nnaqknqu3HH xaIa3iBnika da 3neKtpuHaC cTeKi.

He Knaa3iue 6yTbki i KaHcePbaBaHbI Hanoi y JnAoYHIO, NaKoNbKi 3amapOkaHbIM Ctahe RaHb MoryCb NaTp3ckAua.

IepakaHauecra, wTo shHyp cInKaBaHH He 6bly naWKoJXAhl NaUac yctaHOyki a6o nepamw3HH. Kani wT3ncenb Whypa cInKaBaanHx iXCTaeu, He YcTaaynue IRO y paTeKy: r3Ta MoKApNpBBeCci Da naWKoJXAHH 3NEKtpbYHbIM TOKAm abO y3rapaHH.

KIOHae Xana3nbHK a3eKtpaceTk TpbMaOcbc 3a WtncB. Hikoni He yraHicce 3a ceKaBbI uHyp: rTa MOka npbBecci da naWKoJKAHH 3eKTPbUHbIM Tokam ab0 yy3rapaHH.

Aani rhytki whp ciKabAHn naKKoJXaHbI, Eh Myciu6 bili 3ameHeb TOnkHa aMbcIOBbl PpdaTHbI WHypynayHabaxahim areHTam SHARP.

BbInaKy yueKryazy, npabeTpbcn naMwKaHHe, aKnpyuBokhbi i.， He daKpaHaOybcra da xanaD3iNbHika afo paTeKti.

He 3MaWauHne Hix npaDMeTaY, kKia 3MaWuaOcb BaDkacu a6o iHbI HeTpblbIa 6'ekTbHa naBepxHi xana3inbHika.

3TbI Xana3iBnHKe H npbl3Haayhbl DnB BkapbCTaHH ac6ami (y TbIM NIKy d3eUbMI) 3 abMexabahbMI pizihbIMc3HCapbIMi a60 nCIXIHbMI 3doNbHaCzMI, a6o npbl aCyTHacu Bonby I Beay, 3a BkJIOHHeM BInaKaY, KaJI rHb aTpbiAmi anBanEbnHirctpyKcui adHOCHA KapbcTaHH Xana3iBnHAM a60 KApbCTaOua im Na KaHTpOnEM ac6bl, aJa3Haa 3i Ax 6cNeKy. Manbl d3eui naBHnBu 3hAxohO3iua naHarrdAm i He YkbBaCbX anaad3iNbHK qauKy.

InhapmaucbIy dIy KapbcTaIbHikay (npbIBaTHbIy xaTHia racnaapki)

ybara:

T3tI npaKyT MapkipabaHbI da3eHbIM cimbanam.Γ3a a3naueae, wTO 3NEKtpbUHbI i 3NEKTPoHHbI bIpa6bI He naBHbI YbIi3aBaUca ca 3BbUaHbMI bITabbMI aXdoami. lChye acObHa cICTMa 360py da3eHbIX npaPyKaTay.

1.YEynaneckimCa03e

Ybara:Дяутbi3aqui xana3iNbHika, kani nacka, He BbikapbictoyBaue 3BbuaHbI CMeUeBBI yonbl!

CkapbCTaHae 3neKtpbUHae i 3neKtpoHae abctanBaHHe naBHHa 6bIb ytbIi3abaH aco6Ha i aynabedHacu 3akaHaadaYCTBAM, kOe ntpa6ye HaleXHa anpaoyki, aHaayenHn i nepanpaOyki Takora abctanBaHHa.

Y aDnabEbnacci 3 npbHrTbIM d3rpxkabami-yeHami 3aKaHaDaayCTBAM, npbBaTHbIxAthir
racnapaki y d3rpxkabax EC morycb BpHpycb ckapbCTaHae 3NeKtpbUHae i 3neKTPoHHae
abctanraBaHne y aMbcIOBA npbi3Haayhbi Dnra rTaRa Mecbu 6cNlaTHa*. Y heKaTopbIX kpaiaHax*
mrcuOba npadctaHiTuBA BBtBOPcu MoKa npbHauCb CKapbICTaHb IpaNyKT 6cNlaTHa, kaJI Bbl
ha6bbaee ananarHb HObl.

*) Kani lacka, 38kxbicce 3 mrcobbim opraHam ynaDbI nlaBn daKlnaHaH iHpaMaCbI. KaJI BaWa ckapbcTaHae 3JektpbUHae a6o 3JekTpOHae abcTajBaHHe Mae 6aTap3i a60 akMyIantapbl, kaJI lacka, ytblizyue ix acO6Ha 3ara3ry aDnBeHacu 3 mrcOBbIM naTpa6abAHnmi.

PpabInbHa Ytbni3yOchI r3Tb Bbip6, Bbl danamoxaue 3abcxnebyu Hea6xOnHy anpaoyky, aHnaylenHe i nepaanpaoyky aXoay i TbIM cMbim npayxiniub naTHcuiHae aMoyHae y33eHNHe Ha HabakolbHae acroD3e i 3dapoye IIO3ei, kir Marli 6 y3HikHyCb 3-3a HnpabinbHar a6bIXoJkaHHa 3 aXoAmi.

2. Y kpaiahax 3a Mexami EC

Kani Bby Jxadaeue Ytbniz3aaba rTb npadyk, Kani nacka, 3B8kbicecr 3 mrcobmi ynaam i 3anbtauec a6 npabibhbx cnocabaxytbniz3aibi.

Дяшевицары:Сакбітаянae эл ektpьчнae afo эл ektpонae a6ctanЯвпe Можа 6blc 3berpyta 6rcnlaTha дilepy, habat kani Bby He ha6bibaeue HOBb npaIyKT.Пункту 3bopy nepauihaHb Ha www.swico.ch abo www.sens.ch.

YCTAHOYKA

PANP3DXAHHE

He yctaneBauue xana3inbHik y BInbrotHBIm a6o MOKpbIM Mecu, naKoNkri r3Ta MoKa npbIBecu i da naWKoJxKAnHn 3anraui npaunKaHH. TaKcMa Ha 3NeWHim Kopnyce MoKa YTbapBuCa KaHd3Hcat I BBkNlkaucb ipKy.

1 3a6acneue HaayHacuB BeHTbIyucuHaN npactOpbl BaKoJ xanaD3ijbHika.

3a6cneue HanyHacB BeHTbIyIbHnHa npaTOpbl BAKoI xanaIzIbHika. yMObI BbIMAp3HHcNaXbIBaHHa MaryTHacci npabO3raCa npbl po3HbIX naMepax npactopbl.

Ppb60nbwai npactopbixana3inbHK MoKa CnaxkbBaCb MEH MARYTHacu.

Kani npbl 3kCnnyataubli xanaad3inbHika BbikapbcIcToyBaeuca MeHwaI npactopa, rTa MoKa npblBeCuI da naBbUshHnTAmpepatpybI y xanaad3iNbHiKy, y3hIKHeHHn Wymy i nepabOry y pa6oue.

2 3 danamorai D8B3B0X npaDHHIX p3rnyIHOeMbIX HOJAK, ycTaHABIe XaIaN3iNbHik Ha naIIO3e Y TpbBaIaN i poYHaI rapb3aHTaNbHaN a3iui.

PnyBaHaHOxKa

3 3dbimie2 wpy6by y Hixhny qactcby kopnyca, a 3aTbmy ctaHnoue hakpbky dny HOxak (nactayJreua yHytpbxaJad3ijbna Kamepb) 3 danamorai 2 3nrtbix wpy6ay.

YBAGA

Panaac yctaneyki xanaad3iibHK, caybue, ka6 pa3etka - 3actabaanacnKaadacTynha.

Pa3muae xaia3inbHik daNeKa aI npambIX coHeHybIX · npamHey.

He cyaue aro nobac 3 ennarehebipyoublim npblanaam. He yctanayibaiue xana3iNbHik Henapc3dHa Ha 3mli. 3a6cnneue myy CtoOniBHy anopy.

TpaHcnapTaBaHHe

3aKyoHbHaHyacci Kanecay Xana3iNbHK MoXHa · nepamuua.

Pepamayuane xana3iNbHik, TpbmaohyIrao 3a pyKki, pa3MeuahbIa 33ady iYHi3e.

Poniki (4 wt.)

3aHdH

NepaBbIkapbcTaHHem XaJa3iNbHika

Ybcicuie yHytpaHbIy cactki CMOUHaH y cennaBnBa3e TkaHIna. IpbblbikapbictaHH MblNaBnBaDbI 3MbInCeRe BJIKA KoJbKacCuO YbCTaBnBdI.

IHdBiKATAP TəMnEPATypbl

T3bI xana3iNbHk Mae iNdbikatap TmpepaTybl y xana3iNbHn KaMepbl, kI da3BaJre KaHTpaJIBaCb cAp3HIO TmpepaTyPy camai xanoDnai 30He.

Cama xalodna 3oHa

T3bI cIMBaI yKa3Bae Ha camyO xaIoNDHyO 3OHy XaNaJ3iNbHa KamepbI. (J3BpaHaa naniuka, pa3MeuHaHa Ha Toi CamaBbIbHi, He 3'aynreua caMaXaIoDHa 3oHa.)

CimBaJ

IpaBepka TAmpepaTypbI y camaa XaIOHaH 30He

Bb mokae p3rylaepha npabrapaib i, npbi Hea6xohacci,
kap3kipabaucb Tmnepatypy y camai xanoHaH 30He.
Ka6 naTbpimlbaucb npabIbHyTO mnepatypy yHytpbl
xaJad3IbHika, caBuIe, ka6 IHdbKaTap Tmnepatypb 6by
3aycEdi CIHI. Kani iHdbKaTap Tmnepatypb CTahOBiUa
BElbIM, rta naka3Bae Ha 3aHaTa BAICOKyTO Tmnepatypy.
YrTbIM BbInaKy nabnue 3HaayHHe Tmnepatypb 3
danamorai cic3Mb TmnepatypHara KaHTpOIO xaJa3iNbHika
i naqakae 6 radin da naTyTopHa n paBepki IHdbKaTapa
Tmnepatypbl.

Ppabinbna yctaneyka

Tmnepatya 3aHaTa BbICOKa, 3MaHlCe HanaKti Tmnepatypbl.

YBATA

VHytpaHaa TmNepaTy xana3iIbHiKa 3aNeJbUb aD po3HbIX qakTapay, taKix, kT MtnpeAtpy YnamLaKhHi, KOnbKaCb 3axabaHbX npadykTay i ChactBaI aDhyHeHH d3Bpy3.

Kani Bbl naknani y xana3iNbHik CBexbIy xapObIy npaYkTbI a60 3Bepb3acTabanicraAdkpbITbIMHa npaury HeKaTopara Yacy, 3BbHaHa iNbkaTap TmNepaTypbCTahOBiua 6enblm.

BY

Cekb2 30pi ** nIa3axaBaHH TOnbKO 3aMapoKaHbIX npaDyKtaY.

CBeTaIbIeI Mpa3IbHaKamepbl1.

Paniua Mapa3iNbHaKamepb2.ΦOpMa JnJNe3HbIX Ky6ikay3

Kapobka dnnI ne3aHbIX ky6ikay4.

Дэзадаральбик5.

My He natapeyeuca kipabaHHe iYbICTka.

KaHTənHep-axaJadkaJbHik i3Bep6.

CBeTaIbIeXanaIa3IbHika CIni I6nbl)

P3rnyTap TmnepatypbI Mapa3iNbH8. KaMepbl

P3rnyIap TAmpepatypbI xana3iJbHa9. KaMepbl

Paniua i pfikcatap dna nek10. Paniua dna nek

JaK dactaub pfikcatap

PaaarHnue 3nEry naniuy 1) xanaad3inbHika Ha c6e.

Nacyhbcpe fikcatap y hakipyHy 2) da cHTpa naiu i naBIMie reybepx.

Paniqa xanaad3inbHa Kamepb11.

(SJ-SC680V:2wT./SJ-SC700V:3wT.)

I6pbHna naH3nb axaJNOxBaHHn 12. (aHOMHIEBa naH3nlb)

PAnHJIb acTydxJaeeuca 3 Tblny, TbIM cMbIM yckOcHa axanodkBAIOyb xanaIa3IbHyIO kamepy. Takim YbIHAM, npadyKtBx xpUaBaAHn axanodjBaIOuca akypaTHa, 6e3 npamora KaHTakTy 3 NbIHn XANODHara nabeTpTa.

Paniua dna caaabihbi rapoDHinb13. KaHT3Hep dna caabihbi rapoDHinb14.

1. Hoxk3 maxjIbacsuo p3ryJyBaHHa
2. Hakpbiyka dnia HOxak
3. Marhitthbia 3aicckanbHiki dna 3Bpa(2 wt.)
4. Hnytka Jy3nKa

BbCOKi npadykTbI (Hnbpkiad, niuca yckpbiHcbl) Morycb pa3meciuca, kani naDHnub DOHua rayKi.

1. 3BpaHbI naIiy (2 wT.)
   20.Ячзкixana3iNbHika
   21.3akpbITbIy3nKi

YBAG(Tonbki dna MaDAny SJ-SC700V)

He namauayane 3akpbyto yauky i Banykiyto 3akpbyto yauky npabbim 6okam yneba i HaaDbapot.

22.ФikcatapДЯ 6yTəJIeK/ CToIkaДЯ zuO6iKaY

He da3BaIaIe 6byTbKam ynacu; yHyTpbl TaKcama 3axOyBaHOUca npadyKTbI y uO6iKaX i By3kix ynakoYkax.

Ynakyuie yce 3rataBaHbI CTpaBbI yyepMeTbUHbI KaHTaHep a6o nnEHy.

Ka6 3Becui da MiHIMy CTpaTbI Binbraui, caaabiHa i rapoHHa naBHHb3axoyBaua y nactbKaBaayynakoYbI, HanpbklaI, nHeu, MxKax (He3anayTaHHbIX) Ha aDnabeHbIX naIIaX daaabaHbI rapOHIbI.

YiKi nabiHHb 3axooyBaUa Ha naniua dnraek.
PaHamepHa pa3mRpKOyBaIe npadykTbHa na naniua, Ka5 axanaJXaOuea nabeTppa pacnaYCHKBaIacr 3peKtBuHa.
Rapayea eka nabiHn haanad3iuca da naamuHn Hny Xana3iBnHK. 3MaUHHe rapaBix a6'ekTay naBbIwae T3MnepaTyry xana3InbHIky i nabnIbAe pb3bky xyTkara ncabaHH npadykTay.

He danucanue 6bnakipooyk Bbixayny i ybaxoody KOHTypaaIIOHara naBeTpnpadykTami ki KaHTnHEpaMI, IHaKU npadykTb6dyu b axanoDxBaua HepaYHamepHa. CaBtue, kaD3Bepbl 3aycEdb 3actablanic 3akpbTbMI.

Дляlenшайзамарозкi

PpaDyKtbl naBHHb 6blc CBexb.

3amapoxkBaIe npadyktbl HeBraikimi nOpzbiMi.

PapkyTbI naBHHbI 6bItb ·do6pa 3anaKOBaHbI ci repMetbHa 3akpbItb1. PaYhamepHa

pa3mRpKoyBaHne npaDyKTbI y Mapa3JIbHaN KaMepbl.

Pabie HnnciHa KaHTaHepax ab 3axabaHbIx y ix npadykTx.

He pa3mJUaIe npadyKbI HacynpaBbIXaIy xiaoHara naBeTpRa: rTa MoKa npbIBeCuI da ix 3aMapo3Ki.

ДОГЛЯД IЧВICTKA

PANP3JXAHHE

Aknnoybe xana3inbHK y nepuyu npary, ka6 na36erHyubnapaKHHJ 3neKTpbHbIM TOkAM.

He nieckaue BaNy Henacp3dHa Ha 3neuhi a6o I yHytpaHb Kopnycbl xanaad3inbHika. T3a MoKa npBecci da y3HikHeHHI ipXbl i narapwHnHcTahy 3JeKtpbUHai i3anuBl.

BAKHA

Ka6 na36erHyuCb CTBap3HHa packoHn Ha naBepxHi i IyHTpbI nnaCTbIKaBBIX KAMNaHEHTay, BBIOHbaue HAcTynHBia napaBl.

• BbIaIae IIO6bI paCNIHHbI ane, wTO TpaniY ha nlaactbikabBIA dTani.
  HeKaToPbIb6bITaBbIXiMHybI p3yIBbMoYb npbHiUb 1KoDy XanaD3iNbHiky, TaMy BblkApbcTOyBaune Dnry YbICTKI TOJIbKiMbIbHyIOBaNy.
• YKbBaHHe Hepa36ayIeHbIX BaD0 np3y1BaY a6o Hn46aHa CcpeTaeMbIbHaa Bada MoXa npBBeCuJa paCTp3ckBaHHr PJIactMacABxI dTaIaRy.

1 Dactaue yce akc3cyapbI, HanpbknaI, naniiK kamepbI i Hnd3BpyhIy naiYki. Bblmbuix cennn BaD03 BaKaCIO IJN MbUzno Nocdy; npananaackauy u bictaB aD3e I BbICyBbIb.
(Tonbki KaHTnHep Dnna caabihb I rapoDnHb He 3'ayIaeua 3dbIMhbim.)
2 AhytpaHk Kopnyc xana3iNbHika TkaHHa, 3MoUHaH y cIeNn MaJIbHaB BaD3e. 3aTbIM, BblKapbICToyBaOuBy XaIOdHyIO BAdy, BblPbIe MblHyIO BAdy.
3 Ppaipaiue 3HeuHi KOpnyc MAnKkai TKaHIna Koxhbi pa3, KaJI eH 3a6pydkBaueua.
4 ybcuiie MarHITbIa3BpHbIyUybIbHIki 3y6HOuOTKa i cennaMblbHaBaOn.

YBATA

Ka6 npadyxiniu b naKoJxHHe XaIa3iInbHika, He BapTa BbIkapbIcTOyBaIb MoUHbI yIcIcYbI cPoIki I pactBapAInbHI (naki, fap5bI, uIiPabAnbHbI napaWki, 6eH3iN, kineHj r.d.).
- Paclra aKKnHcyHHcInKaBaBaHHa, Kani NaCKa, NaYaKaIe MiHiMm 5 XbiniH da naTOpHa raNaKlOuHHH.
- Knnai baxka kana 3 Kr. Tpbmae ix MoHa npbl BidaeneHHI 3 xana3ilbHika a6o nepaamuHHi. He kaane HiaKIA a6'ekTbI yHytp xaanda3ilbHika i He cTykaune na -yHypanahcuihe. Ta MoKa npbBecui da packony HyHpahai naBepxhi.

Pa3MapoXBaHHe

Ipaac pa3mapoxbaHHxaJana3iNbHika 3'raJeua caJkam ayTamaTbUHbIM d3aKyIObI yHikAnbHaC iCTMe 3hepra3bepaxKHH.

3aMeHa yHyTpaHaH JAmMbI

Дязамны neparapэлай lammaqui 3berpHiuecda ca3рсIHara areHtAsHARP.Замналammaqui naBiHa axbIuzyIyIaToJIki KBaJIidiKabAbHIM CneUbiNICTa.

BbIKnIOUO3HHe xaJau3iNbHika

Kani Bby 3'3dxkaeue Ha npaarnbipb i aadknioaeue xana3iibHK, dactaHbue yce npaykTBi i ctpaHa Bbyicuie yytpaHbI Kopnyc. BbiarHtice wTncenb hHypa cinkabaHn 3 pa3eTKi i nakihbeye ce d3Bepcbi adhhehimi.

NEPш,ЧыIM 3ВЯPTALAУ CэPBIC

Ipeap 3bapoTam y caspic, kaJI Iaca, npaBepue hactynhae.

Праблema Рашэнne
Зншни корпунс xаладзийнika rapачы habобмацak.	Гэта нармальна. Гарая trуба размешucha на унуtrь корпунca xаладзийнika деля радухиня кандэнcaцы.
Чтны чу мадчас равOTы xаладзийнika.	Гэта нармальна. Дэтani xаладзийнika 3вычайна ры рабоче CTвараюцьшum.Шу, як CTвараецka kamрэ capam, у nachату бolyш Гуны - --- Гу STановицua сизи празн Некаторы чac. Гуны чу mordвацua kamnpса capam ad3iH pas y cytki - --- Пася anepaць ai'tamatbivнara pa3mapoxвань CTвараюцua anepaцьйнь ryк. Гу Stякчay вадкаси (бүлбаннe, крапаннe) - --- Гу Stякчага na trубе axanadжалнika (гу К моза CTанавицua мaufнew чac adчacy). Гухусту, Trэckу --- Гу STвараеццma ры пашьрэнi i 3byxkэнi GуHTPANBIX SCEN i -Дэталу ры actydжэнhi.
Унтуры i заду xаладзийнika утварецua под i кандэнсат.	Гэта моза adбыцua щадны m 3 NaCTUньix BvInadkaay. Вькарыстоуваице мokрую anuchу деля Bvyiparhny leuvi -Дэнвурдяньia nuko-нсу. П ры ВьICOKAи bInIroTHACUsi HabakONbHara acrypoD3Я. П ры чавtm aduhyнeHi i zachinienHi i zachinienHi d3berpcay. Kani zaxabaHry xapovbry praduykTu 3MjaWauOuCBy Banyikkyo KolbKacSb BILbrazi (natpa6yeuca унakоуka).
Прадукты щхаладзийныmudenceялеленhi замарожвагцua.	Li уstanoулених тampepartpyrhы kaHTPoJna IPAzuYUcara ha npaury doyra cumy xanaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiae
Нерсыемны пад ву hyнтуним корпuce xаладзийнika.	Для радуктуггггггггггггггггггггггггггггггггггггггггg.Дэзадаральнik He моза blydaniüb yce naxi.
Сиганадуненьх дзвоггөдөз сүлбн.	Kani sirhan aulyhenbixдзвоггөн de cunha zakpbicuigdзвоггөн de 3zavprnToTdoEAPRДЯ pamoHTy. Метд кабчаба adknupчьссirhan aldhyinньдзвоггөн. Hactpoiuь adnauacoba TAmpepartpuHa hactynbIM BO6pa3am. (Hanaadziiue ①~③нanpaugry 20 cyaHynd) ① Hanaadziiue da MIN ② Hanaadziiue da MAX ③ Baryuцda med MED REPRIGERATOR Cigrhan aulyhenbixdзвоггөдөдөс budydze rughaizhoупрblizna praz 2 dihi.

KAJI BAM RAUH3 NATP36HA DANAMORA

3Bparhiuecry6nixk3uibc3pBichblaHTP SHARP.

BY

SHARP

SHARP CORPORATION

SHARP ELECTRONICS (EUROPE) GMBH.

Sonninstrasse 3, 20097 Hamburg

Federal Republic of Germany

Printed in Thailand
