USER MANUAL eVOLUTION Compact 200 Ecowater

• English eVOLUTION Series Water Conditioner / Refiner p. 2
• Español Descalcificador/Filtro de agua serie eVOLUTION p. 10
• Français Adoucisseur/purificateur d’eau, série eVOLUTION p. 18
• Italiano Addolcitore/filtro d’acqua serie eVOLUTION p. 26
• Deutsch Wasserenthärter/Wasserenthärter mit Aktivkohlefilter der eVOLUTION Serie p. 36
• Nederlands eVOLUTION-serie waterontharder/-refiner p. 44
• Polski Urządzenia do zmiękczania i uzdatniania wody serii eVOLUTION p. 52
• Русский Умягчитель/очиститель воды серии eVOLUTION p. 60
• Română Dedurizator/refiner de apă seria eVOLUTION p. 68
• 7354743 (Rev. B 12/12/16) EcoWater Systems Europe www.ecowater-europe.com2 INSTRUCTIONS eVOLUTION Series Water Conditioner / Refiner English SAFETY GUIDES = Before beginning installation, read the manual and obtain tools and materials needed. = The installation must conform to local plumbing and electrical codes. = Use only lead-free solder and flux for all sweat solder connections. = Handle the conditioner/refiner with care. Do not turn upside down, drop, or set on sharp protrusions. = Do not locate the conditioner/refiner: - where freezing temperatures may occur. - in direct sunlight. - where it may be exposed to wet weather. = Do not attempt to treat water over 49°C.= The conditioner/refiner requires a minimum water flow of 11 liters per minute at the inlet. = Maximum allowable inlet water pressure is 8.6 bar. If daytime pressure is over 5.5 bar, nighttime pressure may exceed the maximum. Use a pressure reducing valve if necessary. = This system works on 28 volt DC electrical power. Be sure to use the included power supply and plug it into a nominal 220-240V, 50 Hz household outlet that is in a dry location only, grounded and properly protected by an over current device such as a circuit breaker or fuse. = This system is not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. European Directive 2002/96/EC requires all electrical and electronic equipment to be disposed of according to Waste Electrical and Electronic Equipment (WEEE) requirements. This directive or similar laws are in place nationally and can vary from region to region. Please refer to your state and local laws for proper disposal of the equipment. INSTALLATION REQUIREMENTS = Installation should only be performed by a trained professional. = Make sure that the main water supply is shut off before starting installation. = Always install either an EcoWater Systems bypass valve or a 3-valve bypass system. Bypass valves allow you to turn off water to the conditioner/refiner for repairs if needed, but still have water in house pipes. = A drain is needed for recharge discharge water. A floor drain is preferred, close to the EcoWater Systems conditioner/refiner. A laundry tub, standpipe, etc., are other options. = A 220-240V, 50 Hz, grounded, continuously “live” electrical outlet is needed, in a dry location within 2 meters of the EcoWater Systems conditioner/refiner. = After completing installation of the system, perform a pressure test to detect any leaks. = After completing pressure test, perform a manual recharge. TABLE OF CONTENTS Page Installation Requirements p. 2
• Safety Guides p. 2

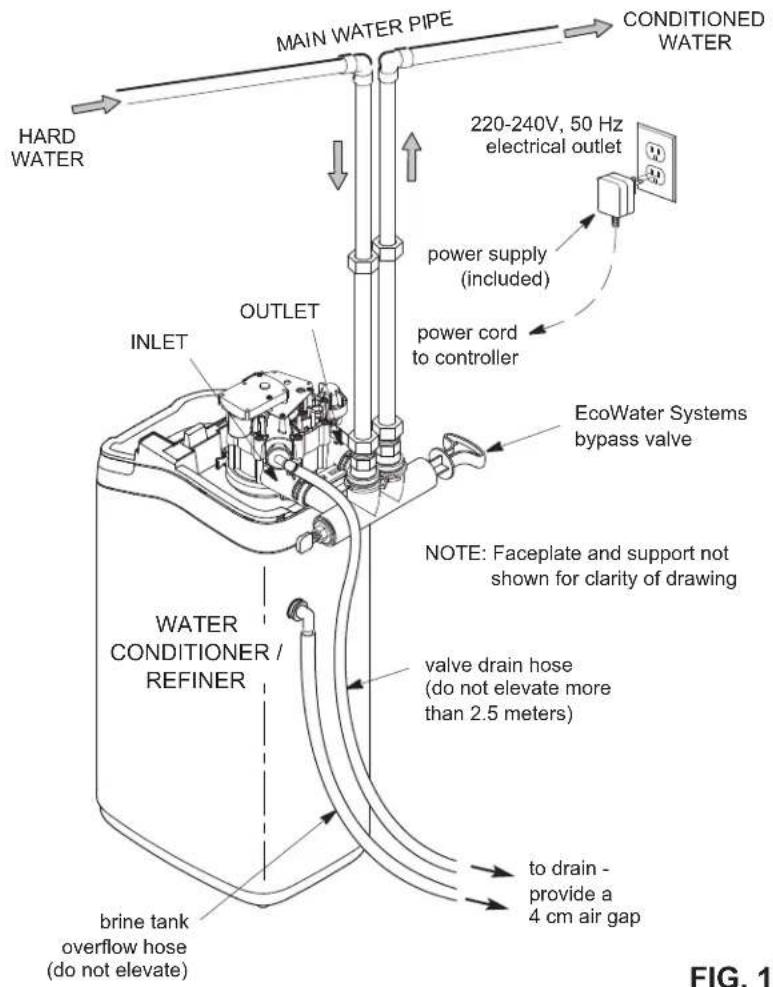

• Installation Illustrations p. 3
• Conditioner/Refiner Programming p. 4
• -8 Adding Salt p. 9
• Sanitizing p. 9
• Troubleshooting EcoWater Systems Europe = www.ecowater-europe.com A detailed manual can be obtained from your local dealer or from the EcoWater website in your country. Models eVOLUTION Compact 100, eVOLUTION Compact 200, eVOLUTION Boost 300, eVOLUTION Boost 400, eVOLUTION Power 500, eVOLUTION Power 600, eVOLUTION Refiner Boost, eVOLUTION Refiner Power3/4” Clip StyleBypass ValveClips1” BSPFlexible Hoses FIG. 3C p. 9

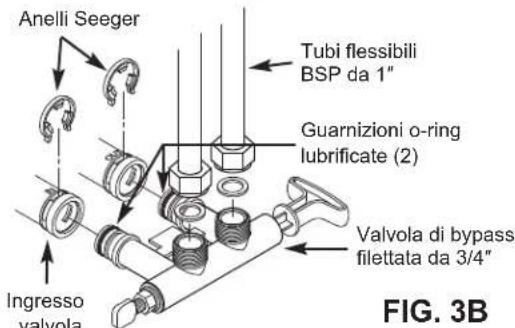

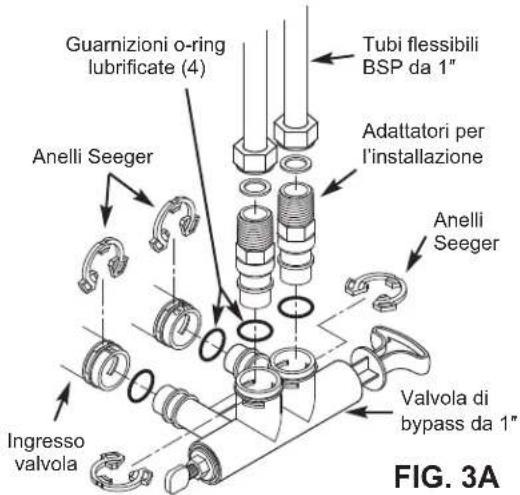

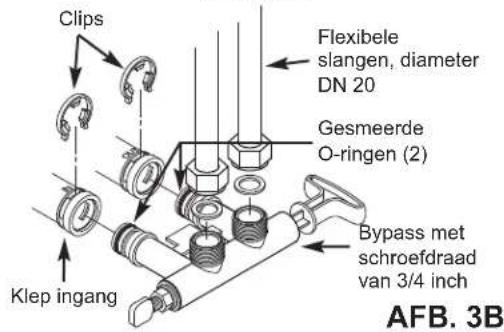

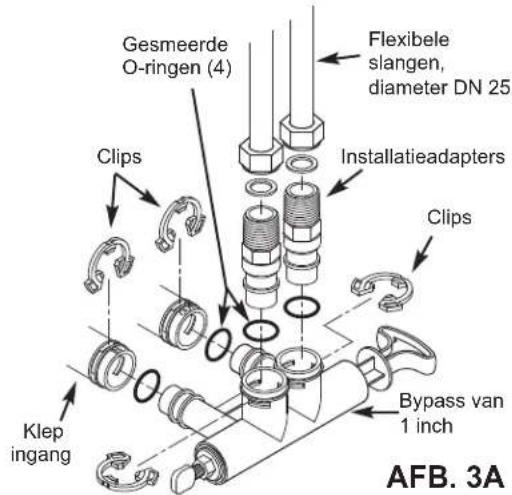

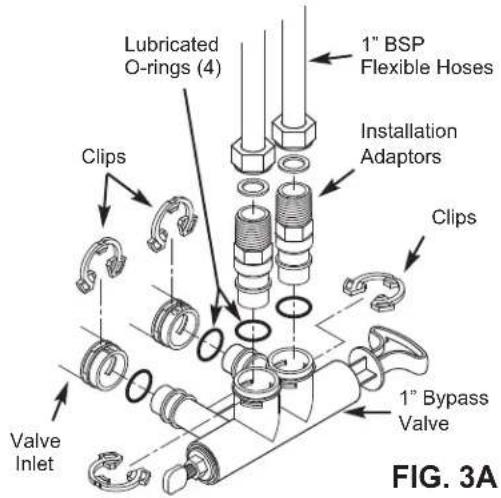

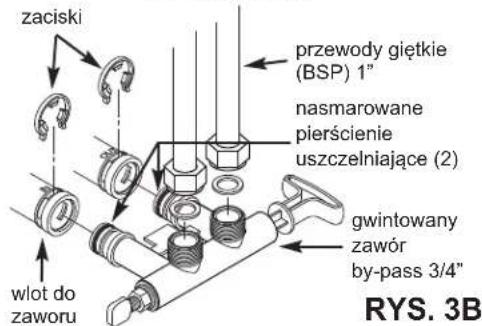

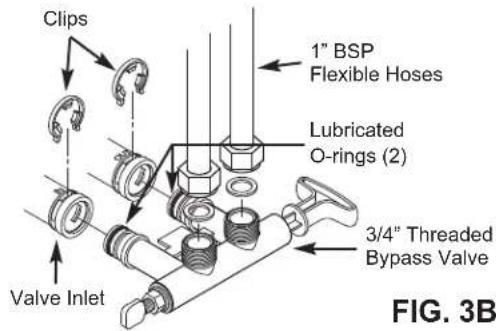

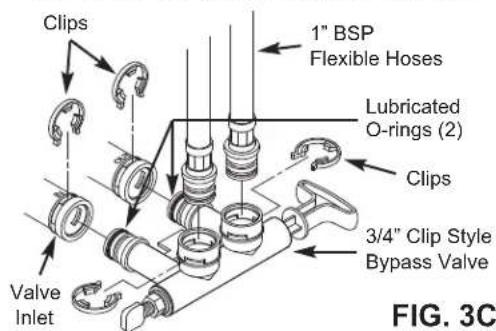

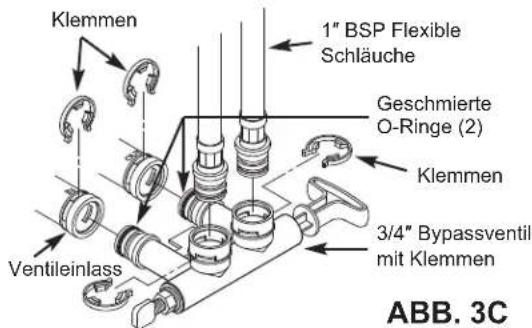

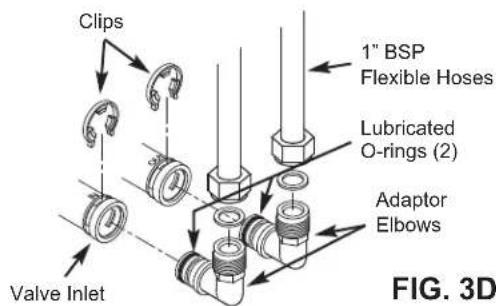

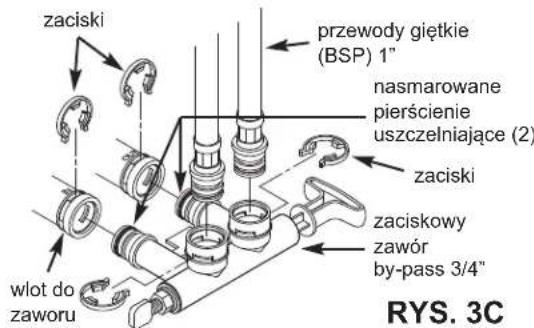

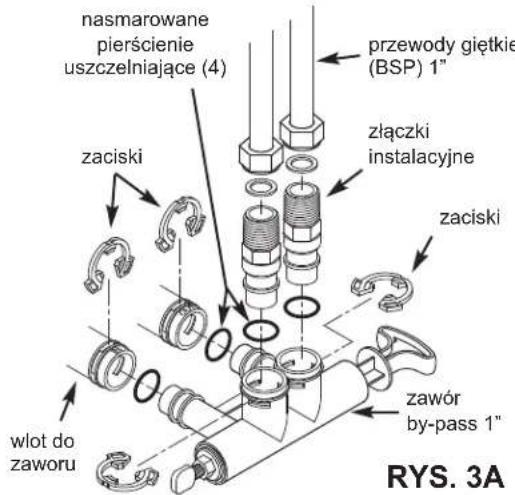

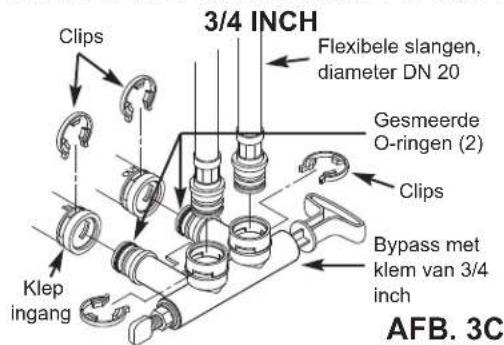

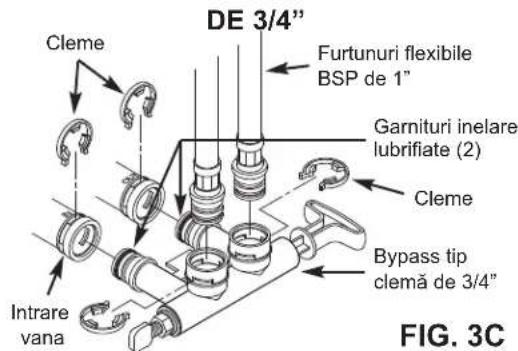

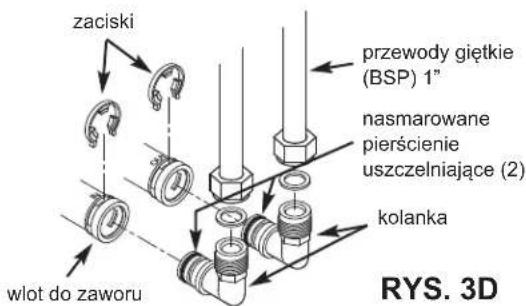

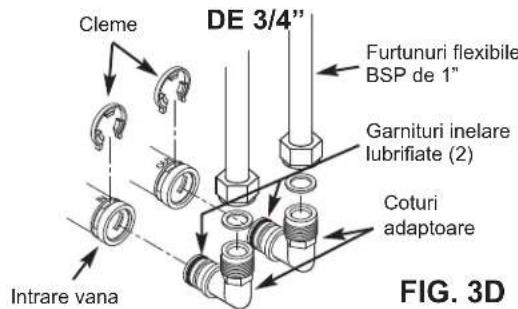

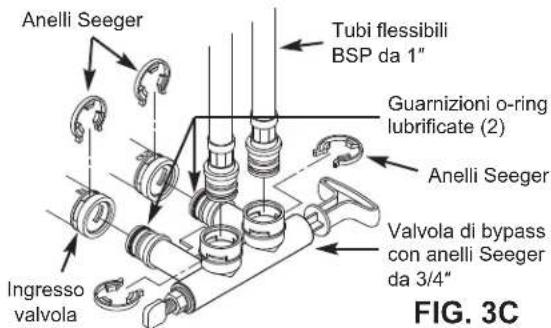

3/4” CLIP STYLE BYPASS VALVE

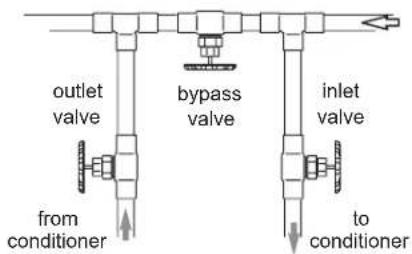

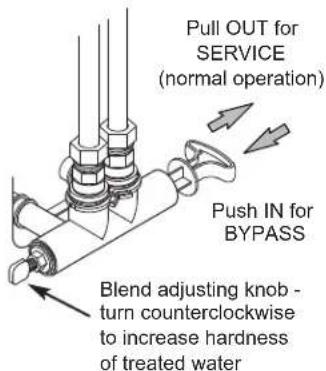

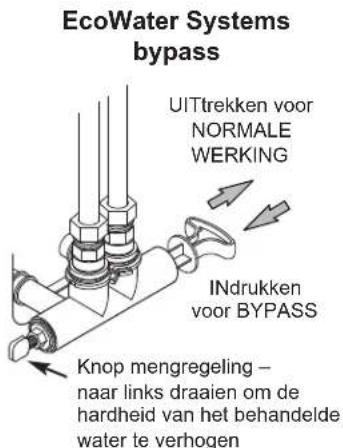

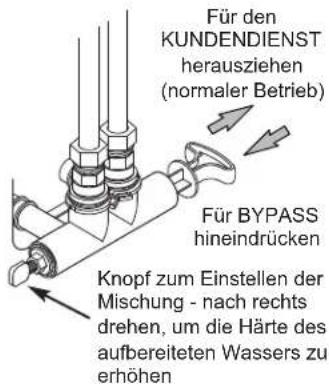

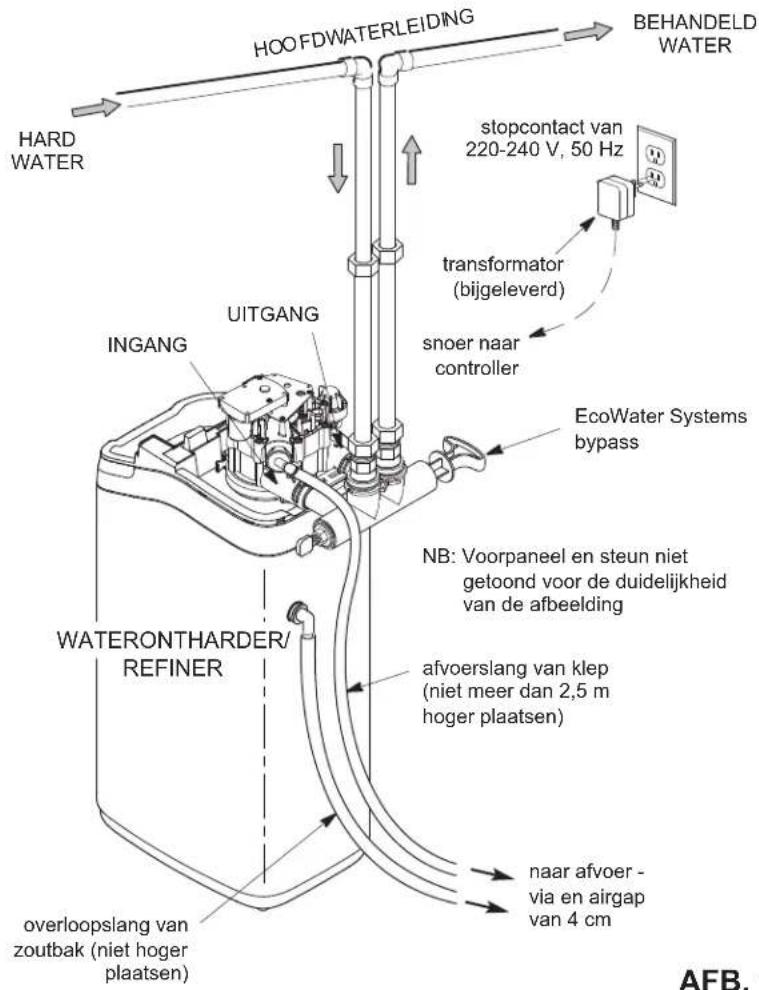

Installation Illustrations ECOWATER S Y S T E M S English FIG. 2B BYPASS OPTIONS 3-Valve Bypass FIG. 2A bypassvalveoutletvalveinletvalve from conditioner conditioner= for SERVICE: - open input and output valves - close bypass valve= for BYPASS: - close input and output valves - open bypass valve EcoWater Systems Bypass Valve Pull OUT forSERVICE(normal operation)Push IN forBYPASSBlend adjusting knob -turn counterclockwiseto increase hardnessof treated water TYPICAL INSTALLATION 220-240V, 50 Hzelectrical outletbrine tankoverflow hose(do not elevate)valve drain hose(do not elevate morethan 2.5 meters)NOTE: Faceplate and support notshown for clarity of drawingEcoWater Systemsbypass valveOUTLETINLETpower supply(included)power cordto controller HARD WATERCONDITIONEDWATER

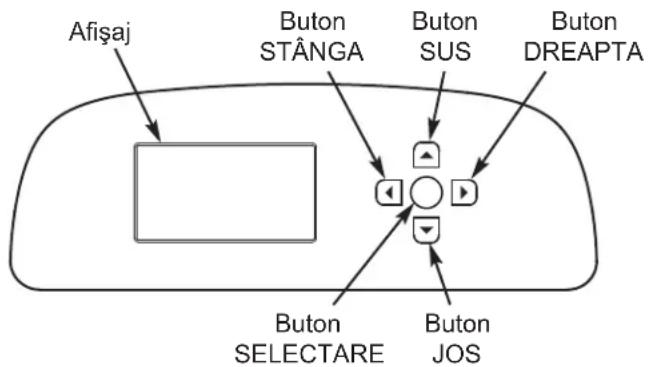

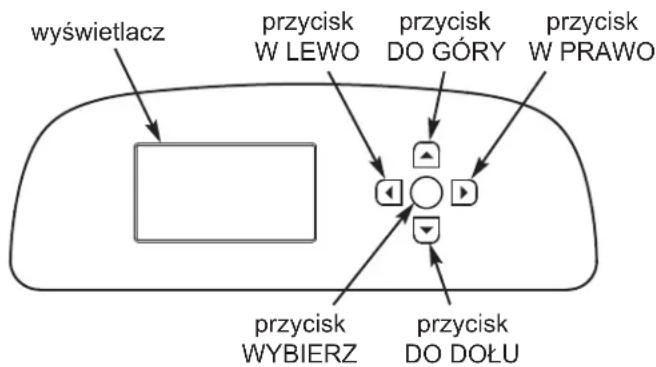

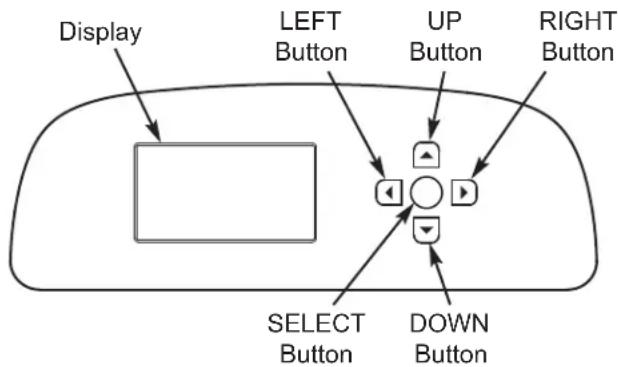

Button DOWN Button SELECT Button SETUP PROCEDURE When the unit is plugged in for the first time, you will be prompted to enter basic operating information.

1. LANGUAGE Press the

DOWN (6) or UP (5) buttons to go to the desired language, then press SELECT (¡) twice. NOTE: You can also skip Wireless Setup and do it after completing Setup Procedure Steps 6-11. From Main menu, go down to Advanced settings and select Wireless setup.

2. WIRELESS SETUP Choose how you will connect

the softener to your home’s wireless network: Browser: You can connect using the browser on your laptop, tablet or phone. Skip to Step 4.

Pushbutton: If your wireless router has a WPS (Wi- Fi Protected Setup) or Push to Con - nect button, you can proceed to Step 3.

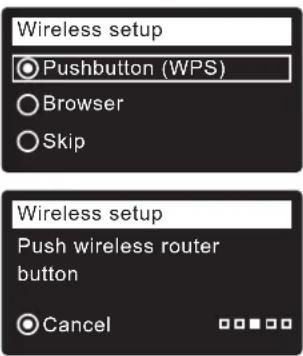

3. PUSHBUTTON (WPS) OPTION

a. Use SELECT (¡) to choose Pushbutton (WPS). The softener display will show “Push wireless router button”. b. Press WPS or Push to Connect button on your router and wait to see if display changes to “Connected”. If not, cancel and use the browser option. c. Write down the key code. You need it to register your system on the Eco Water web site. Proceed to Step

English Español Français Language Pushbutton (WPS) Browser Skip Wireless setup Push wireless router button Wireless setup Cancel Connected! Key: abc123 Wireless setup Continue NOTE: If the “Connected” message shows “- - - - - -” (dashes) instead of a key code, your router may not be connected to the internet. Verify that the

outer’s internet connection works with your laptop or other device.

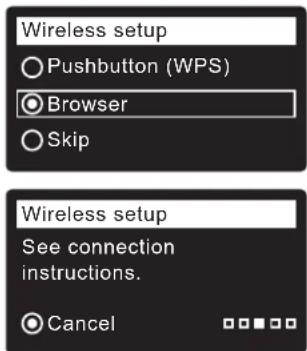

a. Press the DOWN (6) button to scroll to Browser. b. Press SELECT (¡) twice. The softener display will show “See connection instructions”. c. On your laptop, tablet or phone, activate the view of wireless networks in range. For example, on a laptop, click on the wireless icon along the lower right edge of the screen. On a phone, go into “Settings” and look for “Wi-Fi”. d. You should see a network named “H2O-” followed by 12 characters. Select this network to connect your device with it. e. Once your device is connected to the H2O network, go to your internet browser and type in this URL:

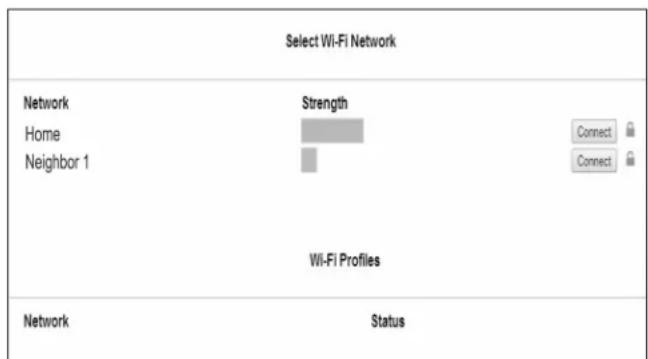

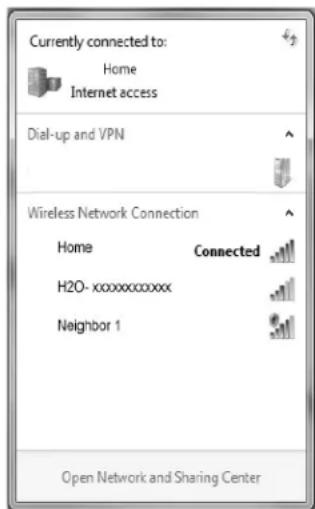

ee connection instructions. Wireless setup Cancel f. After a screen like the one shown above appears, select your in-home wireless network and enter the correct password. continued5 Conditioner/Refiner Programming ECOWATER S Y S T E M S English g. The softener display should change to “Connected” and give

. Write down the key code. You need it to register your system on the Eco Water web site. NOTE: If the “Connected” message shows “- - - - - -” (dashes) instead of a key code, your router may not be connected to the internet. Verify that the router’s internet connection works with your laptop or other device.

i. On your laptop, tablet or phone, go back to the view

of networks in range, and make sure that your device is connected back to your local network.

5. FINISH SETTING UP THE SOFTENER Once you

have connected Wi-Fi and written down your key code, press SELECT (¡) to continue setup.

6. SYSTEM UNITS Press

SELECT (¡) for metric or use the UP (5) button to go to English units and press SELECT (¡).

7. CURRENT TIME Press

the DOWN (6) or UP (5) buttons to set the current time. Hold button to go faster.

8. HARDNESS Press the

UP (5) or DOWN (6) buttons to set the value of your water’s hardness.

9. SALT LEVEL (only on

2-Tank units without a salt level sensor) Press the UP (5) or DOWN (6) buttons to set the salt level to match the lowest number visible on the brinewell above the salt.

10. IRON LEVEL Press the

UP (5) or DOWN (6) buttons to set the value for iron in your water.

complete!” appears, press SELECT (¡) and the unit begins normal operation. Connected! Key: abc123 Wireless setup

1. In your internet browser, type in this URL:

http://wifi.ecowater.com

2. If you are a dealer, and have an account, log in to

your account. If you are a customer, you will need to create a new account.

3. Follow the screens on the website. You will need to

enter the key code that you wrote down earlier. If you wait too long before registering, the code may change. This is a security feature. Look up the new key code, as described in the following note. NOTE: You can look up the current key code on your softener’s controller by going down to the System information menu and selecting Wireless information. Wireless information

Any time after your customer account has been created and system registered, you can visit your account to see your softener “dashboard”, change settings, etc. Direct your browser to http://wifi.ecowater.com and log in using the e-mail and password that were specified when setting up the account. HOW TO SHARE A SYSTEM BETWEEN A

NOTE: A system can only be shared from a customer’s account, not a dealer’s. Systems can be “shared” between a dealer and customer. If a system is shared, the dealer has full access to the displays and settings for that system on the EcoWater Wi-Fi web site. If a system is not shared, the dealer only has access to the “Manage Dealer Alerts” screen for that system. Once a customer account has been created by a dealer, a customer can grant access to the dealer who sold that system. With permission, a dealer could also grant it for the customer. To do so, a dealer must log in as a customer rather than as a dealer, using the customer’s e-mail and password entered when the account was created.

1. Go to http://wifi.ecowater.com and log in

(customer’s e-mail and password, not dealer’s).

2. Click on the “Support” tab along the top of the

3. On the Support screen, click the “Allow” button. It

should change to read “Deny”.

4. The system is now shared.MAIN MENU

uring normal operation, press SELECT (¡) to display the Main menu. This leads to the following: =Recharge (See Page 7) =Salt settings =Salt level

(See Page 7) =Low salt alarm =Salt type (See Page 7) =Basic settings =Current time (See Page 8) =Hardness (See Page 8) =Iron level (See Page 8) =Recharge time (See Page 7) =Rolling screens =User preferences =Language (See Page 8) =Time format =Volume units =Hardness units =Weight units =System information =Model information =Wireless information =Water available =Daily avg. water used =Water used today =Total water used =Current water flow =Days powered up =Last recharge =Total recharges =Advanced settings =Cycle times =Backwash time

=2nd backwash (On/Off) =2nd backwash time =Fast rinse time

=Special features =Efficiency mode =Max. days between recharges =Auxiliary control =Chemical feed volume

=Chemical feed timer

=97% feature =Service reminder =Troubleshooting =Diagnostics =Setup changes =SLS calibration

=Wireless setup (See Pages 4-5)

Only on two-tank models without a salt level sensor. Only on refiners. Only on conditioners. Only displayed if Auxiliary control is set to Chemical feed. Only on cabinet models with a salt level sensor.

Recharge Salt settings Basic settings Main menu Conditioner/Refiner Programming ECOWATER S Y S T E M S English *Water remaining before the next recharge.

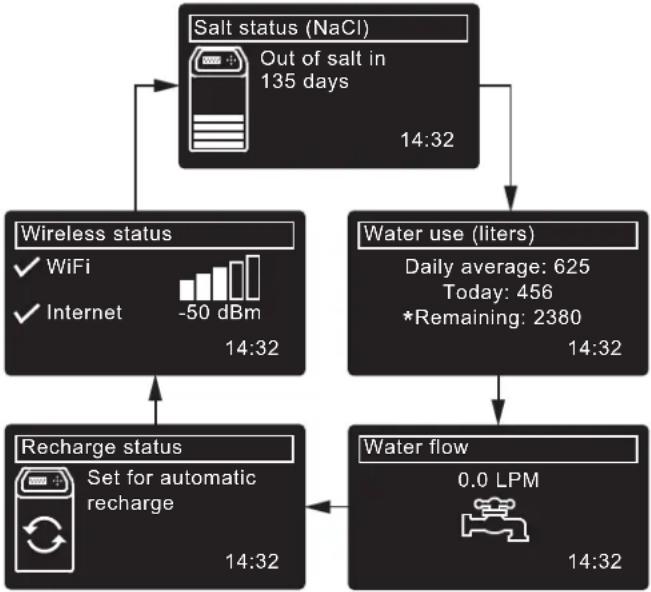

NORMAL OPERATION / STATUS SCREENS

During normal operation, the unit displays status screens in an automatic sequence. In the “Wireless status” screen, the check marks indicate the following: P WiFi - The softener is connected to a Wi-Fi router. P Internet - The softener is connected to a Wi-Fi router which is connected to the internet.

The status screens described above will not be displayed when one of the following items is displayed: =Recharge status (Displayed during recharges, showing valve position and time remaining) =Add salt or Out of salt indicates salt needs to be added (Page 9). =Current time setting screen instead of status screens indicates time needs to be set (Page 8). =Service reminder (Contact your dealer) =Error detected (Contact your dealer) FLASHING DISPLAY The display will flash on and off when one or more of the following conditions occurs: =Salt needs to be added =Time needs to be set (Time has been lost) =Service is overdue (Service reminder) =Error condition The flashing will stop after any key is pressed. However, it will start again at Midnight if the underlying condition (e.g. low salt level) has not been addressed.

1. Press SELECT (¡) to go

2. Go to Basic settings

3. Go to Recharge time

(5) to set the recharge start time. Hold button to go faster.

5. Press SELECT (¡), then

press LEFT (3) several times to return to the status screens. MANUALLY RECHARGING This may be done to assure an adequate supply of conditioned water at times of unusually high water use. For example, if you have guests, you could deplete

onditioned water capacity before the next automatic recharge. A manual recharge will restore 100% conditioned water capacity after complete. After long periods of no water use (vacations, etc.) it is recommended to start a recharge.

1. Press SELECT (¡) to go

2. Go to Recharge screen.

3. Go to Recharge Now

and press SELECT (¡) to begin an immediate recharge. Recharge status screen appears until recharge is complete, or press LEFT (3) twice to return to status screens. Other recharge options: =Automatic cancels a manually scheduled recharge (if it has not already begun) and lets the electronic control determine when to recharge next. =Schedule sets a recharge to begin at the preset recharge start time (see below)

Default is NaCl (Sodium Chloride). Selecting KCl (Potassium Chloride) increases fill and brine/slow rinse times. To change it:

1. Press SELECT (¡) to

go to the Main menu.

2. Go to Salt settings

3. Go to Salt type screen.

4. Press DOWN (6) or UP

(5) to scroll to the other salt type.

5. Press SELECT (¡), then

press LEFT (3) several times to return to the status screens.

MANUALLY SETTING SALT LEVEL

(Two-Tank Model 600 Power only) This feature is active only on units without a salt level

ensor connected to the electronic controller. Cabinet models (no separate brine tank) have an internal

ensor that automatically measures the level of salt in the tank. The salt level is displayed on the salt status rolling screen and is used by the electronic control to calculate the number of days before empty. On two-tank Model 600 Power, you must manually enter the salt level number each time you add salt:

1. Press SELECT (¡) to go

2. Go to Salt settings

3. Go to Salt level screen.

4. Add and level salt, then

observe the numbered scale on the brinewell. Press UP (5) or DOWN (6) to match the lowest number visible above the salt.

5. Press SELECT (¡), then

press LEFT (3) several times to return to the status screens. Recharge Salt settings Basic settings Main menu Salt level Low salt alarm Salt type Salt settings Salt level

Automatic Recharge now

Normally done during setup. To change it:

1. Press SELECT (¡) to go

2. Go to Basic settings

3. Go to Iron level screen.

4. Press DOWN (6) or UP

(5) to set the value for iron in your water.

5. Press SELECT (¡), then

press LEFT (3) several times to return to the status screens. SETTING HARDNESS

ormally done during setup. To change it:

2. Go to Basic settings

(5) to set your water’s hardness. Conversions: 1 grain = 1°dH 10 ppm = 1°f

5. Press SELECT (¡), then

press LEFT (3) several times to return to the status screens.

SETTING THE LANGUAGE

Normally done during setup. To change it:

1. Press SELECT (¡) to go

2. Go to User preferences

3. Go to Language screen.

4. Press DOWN (6) or UP

(5) to scroll to the desired language. The choices are: English, Spanish, French, Italian, German, Dutch, Polish, Russian, Hungarian, Turk - ish, Lithuanian, Greek, Romanian, Czech, Slovak, Bulgarian, Serbian or Croatian.

5. Press SELECT (¡) twice, then press LEFT (3)

several times to return to the status screens.

ormally done during setup. To change it:

2. Go to Basic settings

3. Go to Current time

(5) to set the current time. Hold button to go faster.

5. Press SELECT (¡), then

press LEFT (3) several times to return to the status screens. Recharge Salt settings

urrent time 18:45 Current time Hardness Iron level Basic settings Hardness 430 PPM NOTE: Do not increase the hardness setting to compensate for iron in your water. The electronic control compensates automatically after you set the iron level (see below). Recharge Salt settings Basic settings Main menu Current time Hardness Iron level Basic settings Iron level

IF ANOTHER LANGUAGE IS DISPLAYED: From the status screens, press SELECT (¡). Press the DOWN (6) button three times, then press SELECT (¡) twice. Press DOWN (6) or UP (5) to scroll to your native language (see list below), then press SELECT (¡) twice. Press LEFT (3) twice to exit all menus. Languages are listed in this order: English, Spanish, French, Italian, German, Dutch, Polish, Russian, Hungarian, Turkish, Lithuanian, Greek, Romanian, Czech, Slovak, Bulgarian, Serbian, Croatian. Conditioner/Refiner Programming ECOWATER S Y S T E M S English9

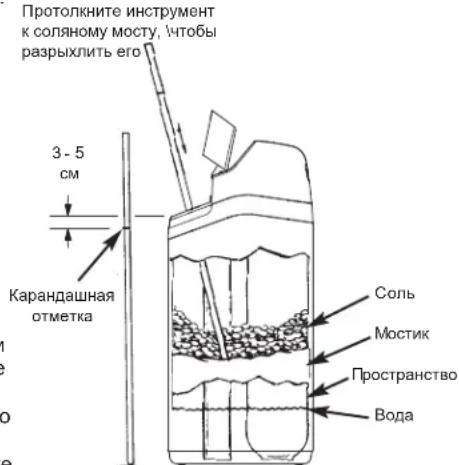

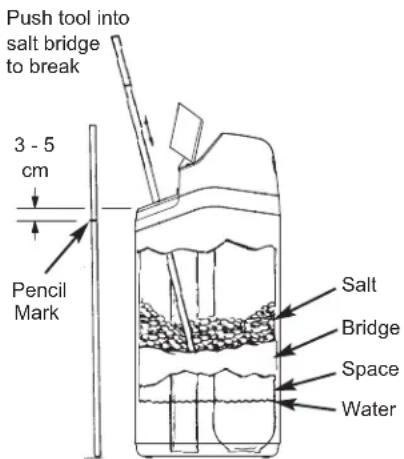

BREAKING A SALT BRIDGE

Sometimes a hard crust or salt “bridge” forms in the brinetank. This is usually caused by high humidity or the wrongkind of salt. When this happens, an empty space formsbetween the water and the salt. Then salt will not dissolvein the water, the resin bed will not be recharged, and hardwater will result.A bridge may beunderneath loosesalt. Use a broomhandle or like toolto check, as shownin Figure 4.Carefully push itstraight down intothe salt. If a hardobject is felt, it ismost likely a saltbridge. Carefullypush into the bridgein several places tobreak it. Do not tryto break the saltbridge by poundingon the salt tank. TROUBLESHOOTING GUIDE

PROBLEM CAUSE CORRECTION

No soft water No salt in the storage tank. Add salt and then initiate a “Recharge now”.Salt is “bridged.” Break salt bridge (See above) and then initiate a “Recharge now”.Power supply unplugged, power cableleads disconnected from electronic controlboard, fuse blown, circuit breaker off.Check for power loss due to any of these and correct. When poweris restored, set the time if the display shows “Current Time” screen(See Page 8).Bypass valve(s) in bypass position. Place bypass valve(s) in service position (See Page 3).Valve drain hose plugged or restricted. Drain hose must not have kinks, sharp bends, or be raised too high. Water hard sometimes Bypassed hard water being used duringrecharge, due to current time or rechargetime settings being incorrect.Check the current time displayed. If not correct, refer to “SetCurrent Time” on Page 8. Check the recharge time, as described on Page 7.Hardness number setting is too low. Referring to “Setting Hardness” on Page 8, check the currenthardness setting and increase if needed. Have hardness of watersupply tested, if necessary.Hot water being used when conditioner/refiner is recharging.Avoid using hot water during recharges, because water heater refillswith hard water. Error code displayed Fault in wiring, position switch, valve,motor or electronic control board.Contact your dealer for service. ADDING SALT If the conditioner/refiner uses all the salt before more isadded, hard water will result. Cabinet models have auto -matic salt level sensing. On two-tank Model 600 Power,lift the brine tank lid and check the salt level frequently.Your Wi-Fi account can also be used to monitor salt. Besure that the brinewell cover is on when adding salt.TWO-TANK MODEL 600 POWER: After adding andleveling salt, always set the salt level number on theelectronic controller, as described on Page 7.NOTE: In humid areas it is best to keep the salt level lessthan half full and add salt more often.RECOMMENDED SALT: Cube, pellet, coarse solar, etc.,water conditioner salt with less than 1% insolubleimpurities. This type of salt is high purity evaporatedcrystals, sometimes formed into briquets.POTASSIUM CHLORIDE (KCl): If you choose KCl salt:= Set “Salt type” on the electronic control to “KCl”, asshown on Page 7.= Place only one bag of potassium chloride (KCl) intoyour conditioner/refiner at a time.SALT NOT RECOMMENDED: Rock salt high in impurities,block, granulated, table, ice melting, or ice cream makingsalts, etc., are not recommended. FIG. 4 WaterSpaceBridge Salt

Pencil Mark Push tool intosalt bridgeto break SANITIZING INSTRUCTIONS Care is taken at the factory to keep your EcoWater Systems conditioner/refiner sanitary. However, during shipping, storage, installing and operating, bacteria could get into the unit. For this reason, sanitizing is suggested* when installing:

1. Remove the brinewell cover and pour about 40 ml (2 to 3 tablespoons) of common household bleach into the

conditioner/refiner brinewell. Clorox and other brand names of bleach are readily available. Replace the brinewell cover.

2. Initiate a “Recharge now” (See Page 7). This recharge draws the bleach into and through the conditioner/refiner.
