USER MANUAL eVOLUTION Boost 400 Ecowater

English eVOLUTION Series Water Conditioner/Refiner 2

Espanol Descalcificador/Filtro de agua série eVOLUTION 10

Installation Requirements 2

Safety Guides 2

Installation Illustrations 3

Conditioner/Refiner Programming 4-8

Adding Salt 9

Sanitizing 9

Troubleshooting 9

INSTALLATION REQUIREMENTS

• Installation should only be performed by a trained professional.
  Make sure that the main water supply is shut off before starting installation.
  Always install either an EcoWater Systems bypass valve or a 3-valve bypass system. Bypass valves allow you to turn off water to the conditioner/refiner for repairs if needed, but still have water in house pipes.
• A drain is needed for recharge discharge water. A floor drain is preferred, close to the EcoWater Systems conditioner/refiner. A laundry tub, standpipe, etc., are other options.
  A 220-240V, 50Hz grounded, continuously "live" electrical outlet is needed, in a dry location within 2 meters of the EcoWater Systems conditioner/refiner.
  After completing installation of the system, perform a pressure test to detect any leaks.
  After completing pressure test, perform a manual recharge.

SAFETYGUIDES

• Before beginning installation, read the manual and obtain tools and materials needed.
• The installation must conform to local plumbing and electrical codes.
• Use only lead-free solder and flux for all sweat solder connections.
• Handle the conditioner/refiner with care. Do not turn upside down, drop, or set on sharp protrusions.

• Do not locate the conditioner/refiner:

• where freezing temperatures may occur.

• in direct sunlight.

• where it may be exposed to wet weather.

• Do not attempt to treat water over 49^ .

The conditioner/refiner requires a minimum water flow of 11 liters per minute at the inlet.
Maximum allowable inlet water pressure is 8.6 bar. If daytime pressure is over 5.5 bar, nighttime pressure may exceed the maximum. Use a pressure reducing valve if necessary.
- This system works on 28 volt DC electrical power. Be sure to use the included power supply and plug it into a nominal 220-240V, 50 Hz household outlet that is in a dry location only, grounded and properly protected by an over current device such as a circuit breaker or fuse.
- This system is not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

European Directive 2002/96/EC requires all electrical and electronic equipment to be disposed of according to Waste Electrical and Electronic Equipment (WEEE) requirements. This directive or similar laws are in place nationally and can vary from region to region. Please refer to your state and local laws for proper disposal of the equipment.

EcoWater Systems Europe www.ecowater-europe.com

A detailed manual can be obtained from your local dealer or from the EcoWater website in your country.

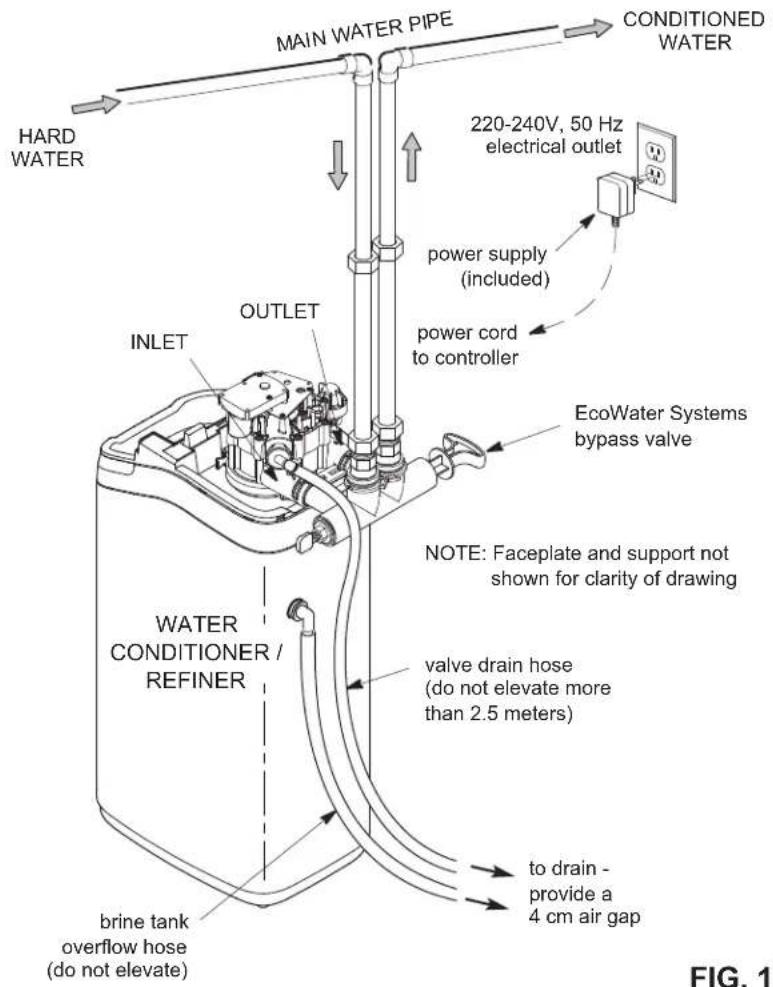

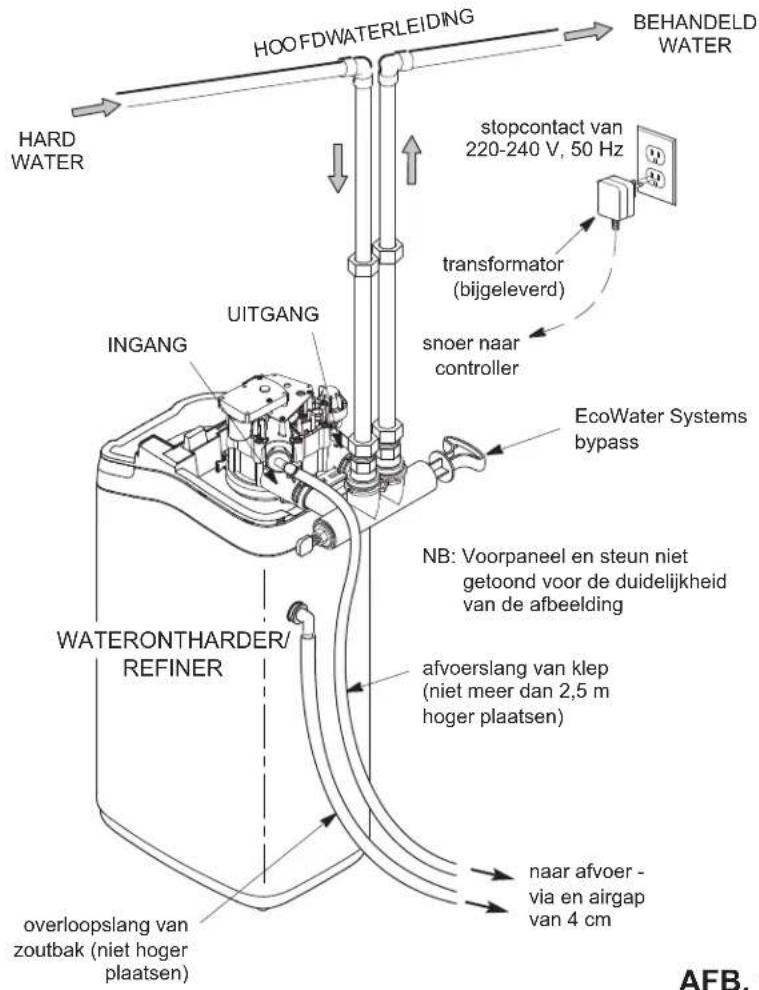

TYPICAL INSTALLATION
FIG.1

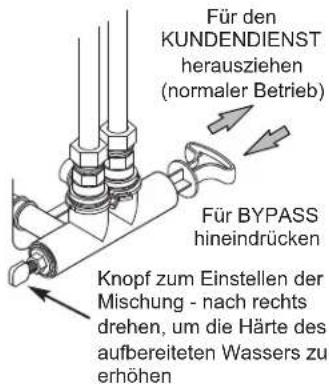

BYPASS OPTIONS

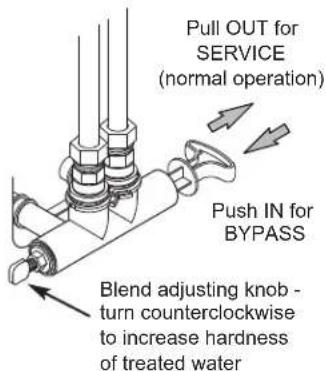

EcoWater Systems Bypass Valve

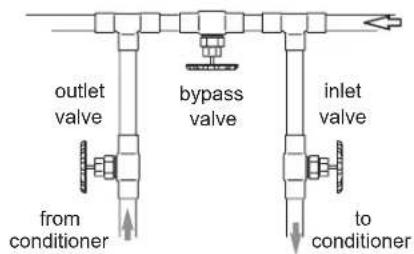

3-Valve Bypass

for SERVICE:
- open input and output valves
- close bypass valve
for BYPASS:
- close input and output valves
open bypass valve

FIG. 2A

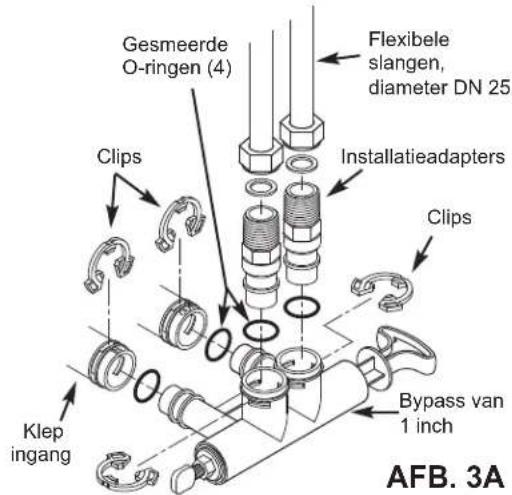

FIG. 2B

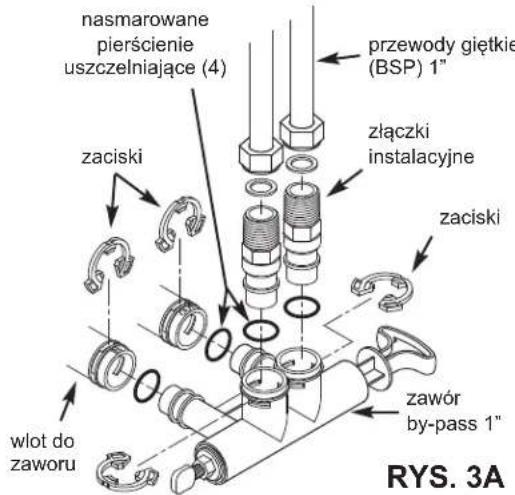

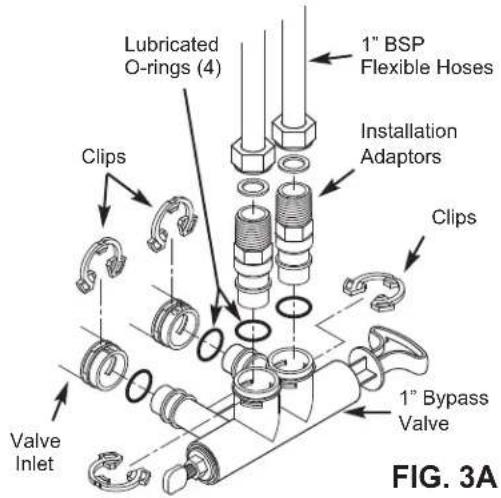

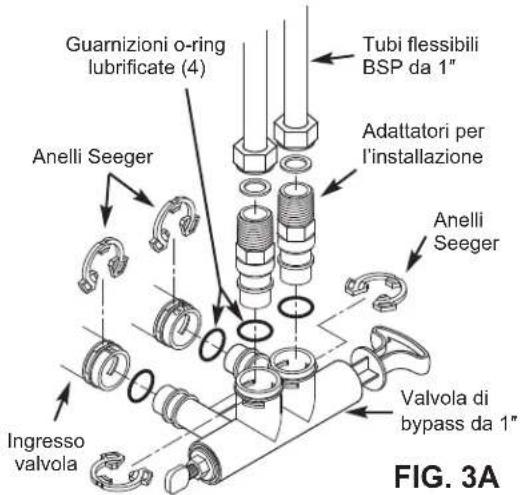

1" BYPASS VALVE

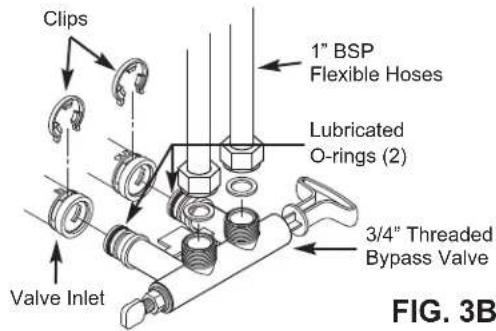

FIG. 3A

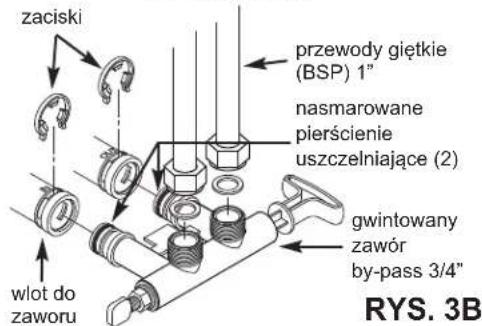

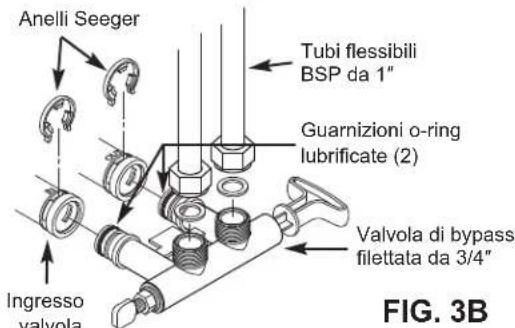

3/4" THREADED BYPASS VALVE

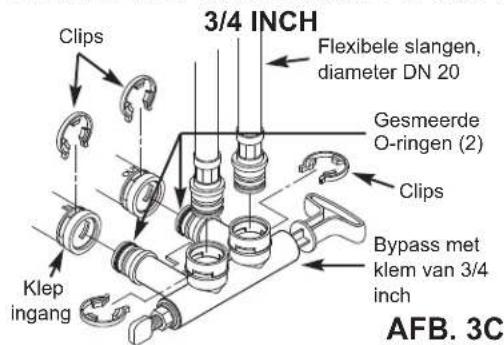

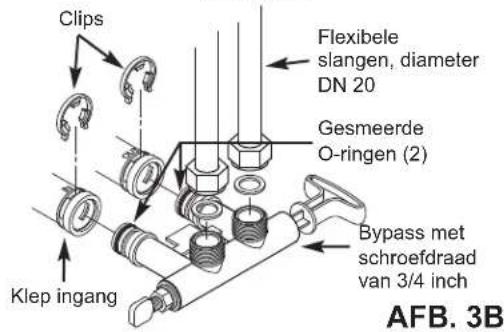

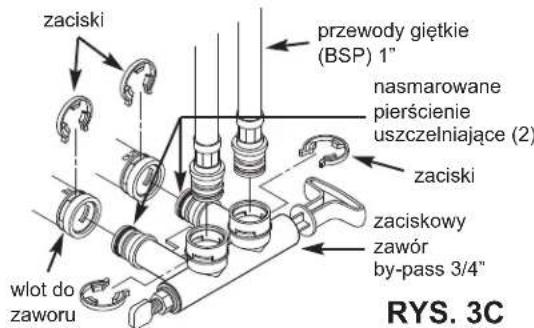

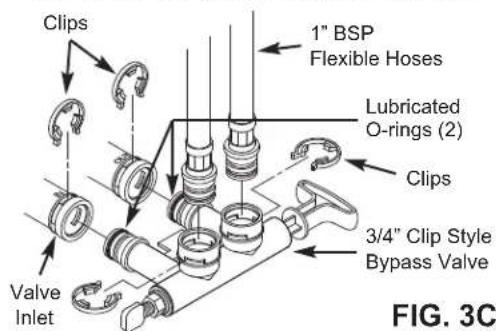

FIG. 3B

3/4" CLIP STYLE BYPASS VALVE

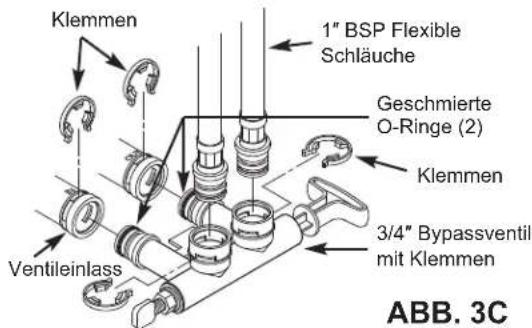

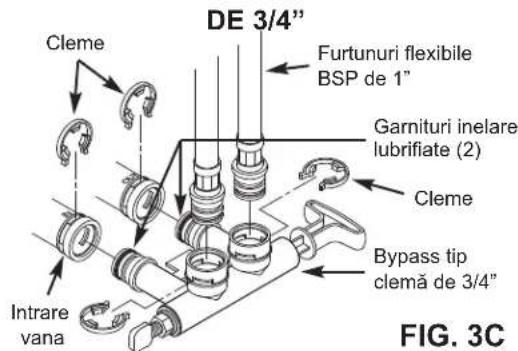

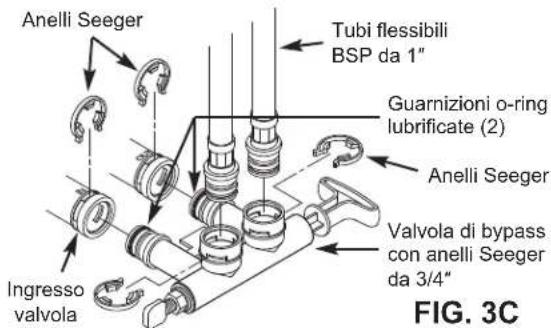

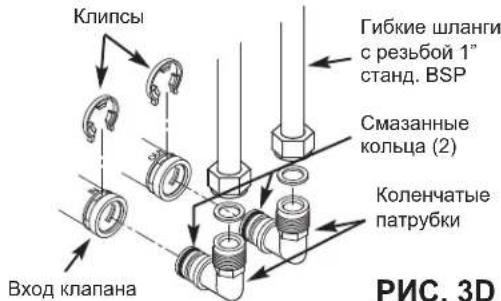

FIG. 3C

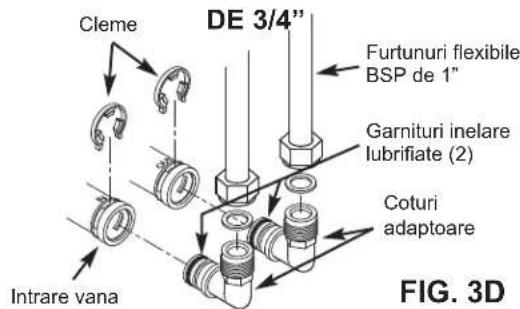

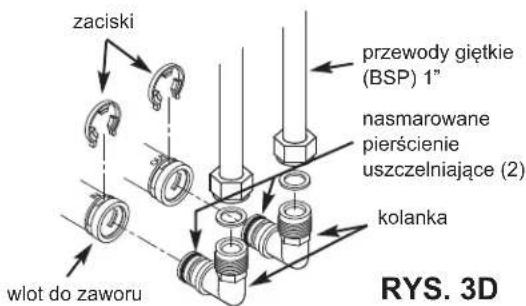

3/4" ADAPTOR ELBOWS

SETUP PROCEDURE

When the unit is plugged in for the first time, you will be prompted to enter basic operating information.

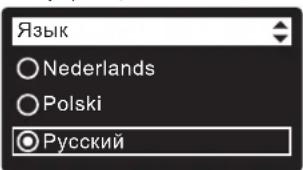

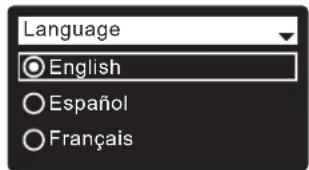

1. LANGUAGE Press the DOWN (▶) or UP (▲) buttons to go to the desired language, then press SELECT (○) twice.

NOTE: You can also skip Wireless Setup and do it after completing Setup Procedure Steps 6-11. From Main menu, go down to Advanced settings and select Wireless setup.

1. WIRELESS SETUP Choose how you will connect the softener to your home's wireless network:

Browser: You can connect using the browser on your laptop, tablet or phone. Skip to Step 4. OR

Pushbutton: If your wireless router has a WPS (Wi-Fi Protected Setup) or Push to Connect button, you can proceed to Step 3.

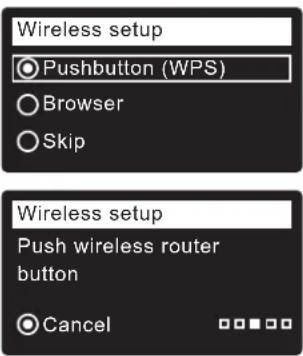

3. PUSHBUTTON (WPS) OPTION

a. Use SELECT (O) to choose Pushbutton (WPS). The softener display will show "Push wireless router button".
b. Press WPS or Push to Connect button on your router and wait to see if display changes to "Connected". If not, cancel and use the browser option.
c. Write down the key code. You need it to register your system on the Eco Water web site. Proceed to Step 5.

NOTE: If the "Connected" message shows "- - - - - - (dashes) instead of a key code, your router may not be connected to the internet. Verify that the router's internet connection works with your laptop or other device.

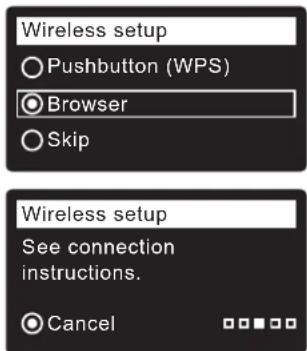

4. BROWSER OPTION

a. Press the DOWN (▶) button to scroll to Browser.
b. Press SELECT (O) twice. The softener display will show "See connection instructions".

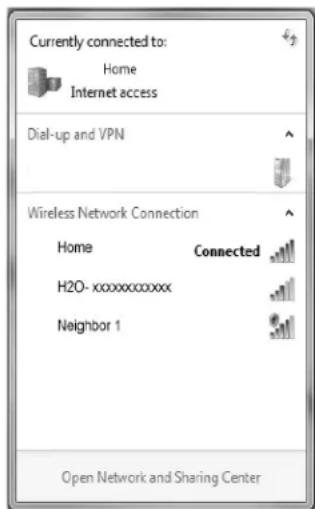

c. On your laptop, tablet or phone, activate the view of wireless networks in range. For example, on a laptop, click on the wireless icon along the lower right edge of the screen. On a phone, go into "Settings" and look for "Wi-Fi".
d. You should see a network named "H2O-" followed by 12 characters. Select this network to connect your device with it.
e. Once your device is connected to the H2O network, go to your internet browser and type in this URL:

192.168.0.1

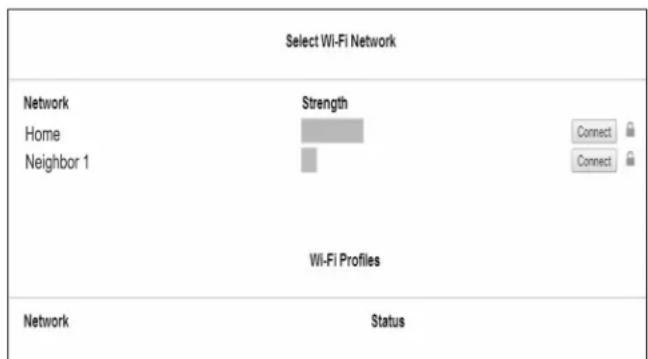

f. After a screen like the one shown above appears, select your in-home wireless network and enter the correct password.

continued

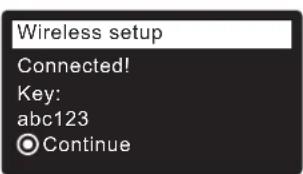

g. The softener display should change to "Connected" and give you a key code.
h. Write down the key code. You need it to

Wireless setup

Connected!
Key:
abc123
Continue

NOTE: If the "Connected" message shows "- - - - - " (dashes) instead of a key code, your router may not be connected to the internet. Verify that the router's internet connection works with your laptop or other device.

i. On your laptop, tablet or phone, go back to the view of networks in range, and make sure that your device is connected back to your local network.

1. FINISH SETTING UP THE SOFTENER Once you have connected Wi-Fi and written down your key code, press SELECT (O) to continue setup.

2. SYSTEM UNITS Press SELECT (O) for metric or use the UP () button to go to English units and press SELECT (O).

3. CURRENT TIME Press the DOWN (▶) or UP (▲) buttons to set the current time. Hold button to go faster.
4. HARDNESS Press the UP () or DOWN () buttons to set the value of your water's hardness.
5. SALT LEVEL (only on 2-Tank units without a salt level sensor) Press the UP () or DOWN () buttons to set the salt level to match the lowest number visible on the brinewell above the salt.
6. IRON LEVEL Press the UP () or DOWN () buttons to set the value for iron in your water.

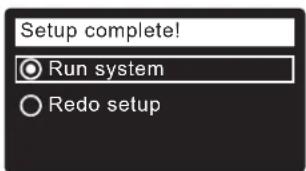

7. When "Setup complete!" appears, press SELECT (O) and the unit begins normal operation.

1. In your internet browser, type in this URL: http://wifi.ecowater.com

2. If you are a dealer, and have an account, log in to your account. If you are a customer, you will need to create a new account.

3. Follow the screens on the website. You will need to enter the key code that you wrote down earlier. If you wait too long before registering, the code may change. This is a security feature. Look up the new key code, as described in the following note.

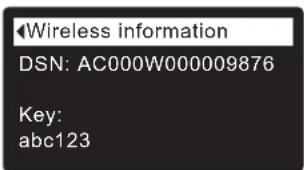

NOTE: You can look up the current key code on your softener's controller by going down to the System information menu and selecting Wireless information.

VISITING YOUR CUSTOMER ACCOUNT

Any time after your customer account has been created and system registered, you can visit your account to see your softener "dashboard", change settings, etc. Direct your browser to http://wifi.ecowater.com and log in using the e-mail and password that were specified when setting up the account.

HOW TO SHARE A SYSTEM BETWEEN A DEALER AND CUSTOMER

NOTE: A system can only be shared from a customer's account, not a dealer's.

Systems can be "shared" between a dealer and customer. If a system is shared, the dealer has full access to the displays and settings for that system on the EcoWater Wi-Fi web site. If a system is not shared, the dealer only has access to the "Manage Dealer Alerts" screen for that system.

Once a customer account has been created by a dealer, a customer can grant access to the dealer who sold that system.

With permission, a dealer could also grant it for the customer. To do so, a dealer must log in as a customer rather than as a dealer, using the customer's e-mail and password entered when the account was created.

1. Go to http://wifi.ecowater.com and log in (customer's e-mail and password, not dealer's).
2. Click on the "Support" tab along the top of the customer Home page.
3. On the Support screen, click the "Allow" button. It should change to read "Deny".
4. The system is now shared.

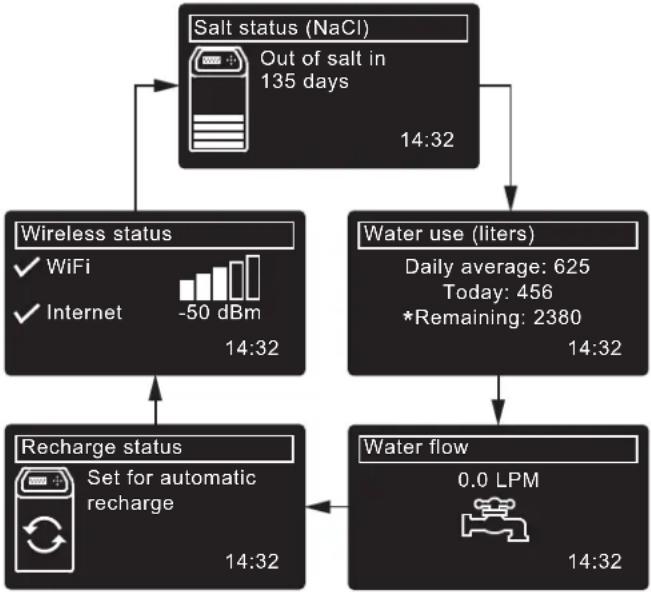

NORMAL OPERATION / STATUS SCREENS

During normal operation, the unit displays status screens in an automatic sequence.

In the "Wireless status" screen, the check marks indicate the following:

WiFi - The softener is connected to a Wi-Fi router.
- Internet - The softener is connected to a Wi-Fi router which is connected to the internet.

*Water remaining before the next recharge.

OTHER MESSAGES, ALERTS & REMINDERS

The status screens described above will not be displayed when one of the following items is displayed:

• Recharge status (Displayed during recharges, showing valve position and time remaining)
• Add salt or Out of salt indicates salt needs to be added (Page 9).
• Current time setting screen instead of status screens indicates time needs to be set (Page 8).
  Service reminder (Contact your dealer)
• Error detected (Contact your dealer)

FLASHING DISPLAY

The display will flash on and off when one or more of the following conditions occurs:

Salt needs to be added
- Time needs to be set (Time has been lost)
- Service is overdue (Service reminder)
- Error condition

The flashing will stop after any key is pressed.

However, it will start again at Midnight if the underlying condition (e.g. low salt level) has not been addressed.

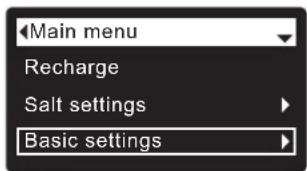

MAIN MENU

During normal operation, press SELECT (O) to display the Main menu.

This leads to the following:

• Recharge (See Page 7)

Salt settings

Salt level ^( 1) (See Page 7)
- Low salt alarm
Salt type (See Page 7)

Basic settings

Current time (See Page 8)
Hardness (See Page 8)
- Iron level (See Page 8)
Recharge time (See Page 7)
- Rolling screens

-User preferences

Language (See Page 8)
Time format
Volume units
Hardness units
Weight units

System information

Model information
Wireless information
Water available
Daily avg. water used
Water used today
Total water used
Current water flow
Days powered up
Last recharge
Total recharges

Advanced settings

Cycle times

Backwash time
- Extra backwash time ^③
- 2nd backwash (On/Off)
2nd backwash time
Fast rinse time
- Extra fast rinse time ^③

Special features

Efficiency mode
Max. days between recharges
Auxiliary control
Chemical feed volume
Chemical feed timer
97% feature
Service reminder

• Troubleshooting

Diagnostics
- Setup changes
- SLS calibration

Wireless setup (See Pages 4-5)

① Only on two-tank models without a salt level sensor.
② Only on refiners.
③ Only on conditioners.
④ Only displayed if Auxiliary control is set to Chemical feed.
⑤ Only on cabinet models with a salt level sensor.

MANUALLY SETTING SALT LEVEL (Two-Tank Model 600 Power only)

This feature is active only on units without a salt level sensor connected to the electronic controller. Cabinet models (no separate brine tank) have an internal sensor that automatically measures the level of salt in the tank. The salt level is displayed on the salt status rolling screen and is used by the electronic control to calculate the number of days before empty.

On two-tank Model 600 Power, you must manually enter the salt level number each time you add salt:

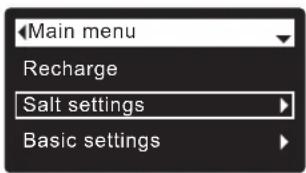

1. Press SELECT (O) to go to the Main menu.
2. Go to Salt settings screen.

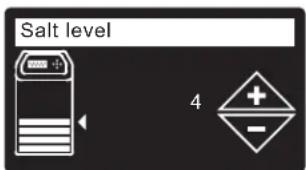

3. Go to Salt level screen.
4. Add and level salt, then observe the numbered scale on the brinewell. Press UP (▲) or DOWN (▼) to match the lowest number visible above the salt.
5. Press SELECT (O), then press LEFT ( ) several times to return to the status screens.

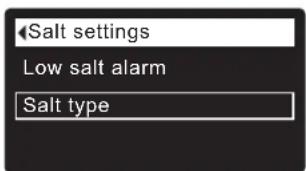

SETTING SALT TYPE

Default is NaCl (Sodium Chloride). Selecting KCl (Potassium Chloride) increases fill and brine/slow rinse times. To change it:

1. Press SELECT (O) to go to the Main menu.
2. Go to Salt settings screen.

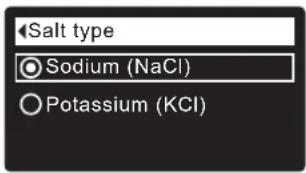

3. Go to Salt type screen.
4. Press DOWN (▶) or UP (▲) to scroll to the other salt type.
5. Press SELECT (O), then press LEFT (↑) several times to return to the status screens.

MANUALLY RECHARGING

This may be done to assure an adequate supply of conditioned water at times of unusually high water use. For example, if you have guests, you could deplete conditioned water capacity before the next automatic

recharge. A manual recharge will restore 100% conditioned water capacity after complete. After long periods of no water use (vacations, etc.) it is recommended to start a recharge.

1. Press SELECT (O) to go to the Main menu.
2. Go to Recharge screen.
3. Go to Recharge Now and press SELECT (O) to begin an immediate recharge. Recharge status screen appears until recharge is complete, or press LEFT

(4) twice to return to status screens.

Other recharge options:

Automatic cancels a manually scheduled recharge (if it has not already begun) and lets the electronic control determine when to recharge next.
- Schedule sets a recharge to begin at the preset recharge start time (see below)

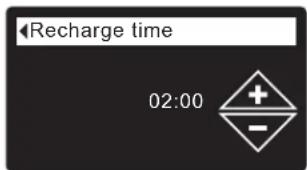

SETTING RECHARGE START TIME

Default is 02:00 (2:00 a.m.). To change it:

1. Press SELECT (O) to go to the Main menu.
2. Go to Basic settings screen.
3. Go to Recharge time screen.
4. Press DOWN (▼) or UP (▲) to set the recharge start time. Hold button to go faster.
5. Press SELECT (O), then press LEFT (1) several times to return to the status screens.

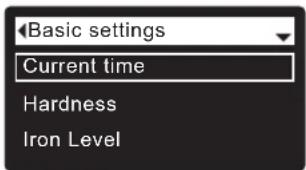

SETTING THE CURRENT TIME

Normally done during setup. To change it:

1. Press SELECT (O) to go to the Main menu.

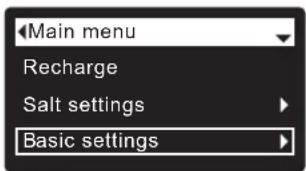

2. Go to Basic settings screen.

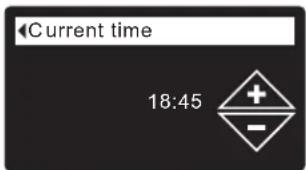

3. Go to Current time screen.
4. Press DOWN (▶) or UP (▲) to set the current time. Hold button to go faster.
5. Press SELECT (O), then press LEFT ( ) several times to return to the status screens.

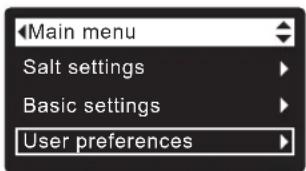

SETTING THE LANGUAGE

Normally done during setup. To change it:

1. Press SELECT (O) twice, then press LEFT (1) several times to return to the status screens.

2. Press SELECT (O) to go to the Main menu.

3. Go to User preferences screen.
4. Go to Language screen.
5. Press DOWN (▶) or UP (▲) to scroll to the desired language. The choices are: English, Spanish, French, Italian, German, Dutch, Polish, Russian, Hungarian, Turkish, Lithuanian, Greek, Romanian, Czech, Slovak, Bulgarian, Serbian or Croatian.

TO RESET TO YOUR NATIVE LANGUAGE IF ANOTHER LANGUAGE IS DISPLAYED:

From the status screens, press SELECT (O). Press the DOWN () button three times, then press SELECT (O) twice. Press DOWN () or UP () to scroll to your native language (see list below), then press SELECT (O) twice. Press LEFT () twice to exit all menus.

Languages are listed in this order: English, Spanish, French, Italian, German, Dutch, Polish, Russian, Hungarian, Turkish, Lithuanian, Greek, Romanian, Czech, Slovak, Bulgarian, Serbian, Croatian.

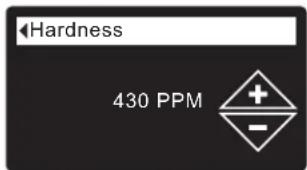

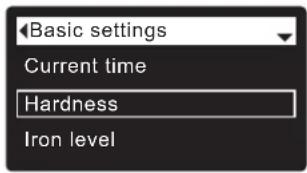

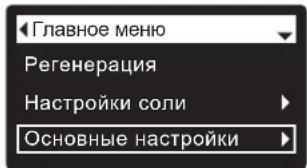

SETTING HARDNESS

Normally done during setup. To change it:

1. Press SELECT (O) to go to the Main menu.
2. Go to Basic settings screen.
3. Go to Hardness screen.
4. Press DOWN (▶) or UP (▲) to set your water's hardness.

Conversions: 1 grain = 1^ 10 ppm = 1^

1. Press SELECT (O), then press LEFT (↓) several times to return to the status screens.

NOTE: Do not increase the hardness setting to compensate for iron in your water. The electronic control compensates automatically after you set the iron level (see below).

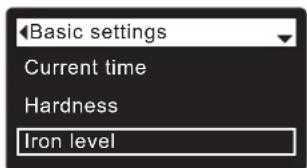

SETTING IRON LEVEL

Normally done during setup. To change it:

1. Press SELECT (O) to go to the Main menu.
2. Go to Basic settings screen.
3. Go to Iron level screen.
4. Press DOWN ( ) or UP () to set the value for iron in your water.
5. Press SELECT (O), then press LEFT (4) several times to return to the status screens.

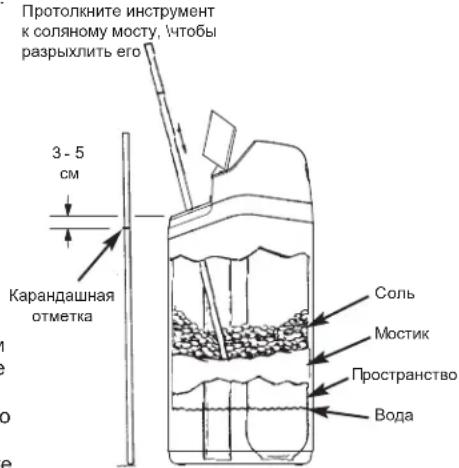

ADDING SALT

If the conditioner/refiner uses all the salt before more is added, hard water will result. Cabinet models have automatic salt level sensing. On two-tank Model 600 Power, lift the brine tank lid and check the salt level frequently. Your Wi-Fi account can also be used to monitor salt. Be sure that the brinewell cover is on when adding salt.

TWO-TANK MODEL 600 POWER: After adding and leveling salt, always set the salt level number on the electronic controller, as described on Page 7.

NOTE: In humid areas it is best to keep the salt level less than half full and add salt more often.

RECOMMENDED SALT: Cube, pellet, coarse solar, etc., water conditioner salt with less than 1% insoluble impurities. This type of salt is high purity evaporated crystals, sometimes formed into briquets.

POTASSIUM CHLORIDE (KCI): If you choose KCl salt:

• Set "Salt type" on the electronic control to "KCl", as shown on Page 7.
• Place only one bag of potassium chloride (KCl) into your conditioner/refiner at a time.

SALT NOT RECOMMENDED: Rock salt high in impurities, block, granulated, table, ice melting, or ice cream making salts, etc., are not recommended.

BREAKING A SALT BRIDGE

Sometimes a hard crust or salt "bridge" forms in the brine tank. This is usually caused by high humidity or the wrong kind of salt. When this happens, an empty space forms between the water and the salt. Then salt will not dissolve in the water, the resin bed will not be recharged, and hard water will result.

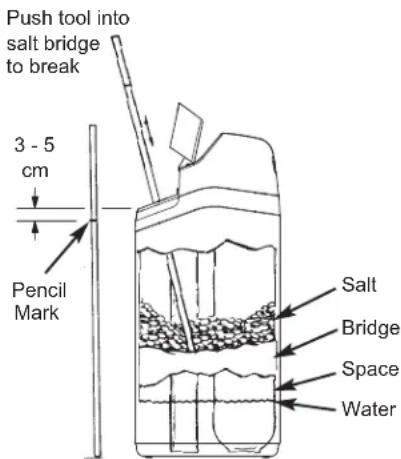

A bridge may be underneath loose salt. Use a broom handle or like tool to check, as shown in Figure 4. Carefully push it straight down into the salt. If a hard object is felt, it is most likely a salt bridge. Carefully push into the bridge in several places to break it. Do not try to break the salt bridge by pounding on the salt tank.

FIG. 4

SANITIZING INSTRUCTIONS

Care is taken at the factory to keep your EcoWater Systems conditioner/refiner sanitary. However, during shipping, storage, installing and operating, bacteria could get into the unit. For this reason, sanitizing is suggested* when installing:

1. Remove the brinewell cover and pour about 40ml (2 to 3 tablespoons) of common household bleach into the conditioner/refiner brinewell. Clorox and other brand names of bleach are readily available. Replace the brinewell cover.
2. Initiate a "Recharge now" (See Page 7). This recharge draws the bleach into and through the conditioner/refiner.

*Recommended by the Water Quality Association. On some water supplies, the EcoWater Systems unit may need periodic disinfecting.

NOTE: We recommend that you have the conditioner/refiner serviced annually.

TROUBLESHOOTING GUIDE

PROBLEM CAUSE CORRECTION
No soft water	No salt in the storage tank. Add salt and then initiate a "Recharge now".
	Salt is "bridged." Break salt bridge (See above) and then initiate a "Recharge now".
	Power supply unplugged, power cable leads disconnected from electronic control board, fuse blown, circuit breaker off.	Check for power loss due to any of these and correct. When power is restored, set the time if the display shows "Current Time" screen (See Page 8).
	Bypass valve(s) in bypass position. Place bypass valve(s) in service position (See Page 3).
	Valve drain hose plugged or restricted. Drain hose must not have kinks, sharp bends, or be raised too high.
Water hard sometimes	Bypassed hard water being used during recharge, due to current time or recharge time settings being incorrect.	Check the current time displayed. If not correct, refer to "Set Current Time" on Page 8. Check the recharge time, as described on Page 7.
	Hardness number setting is too low. Referring to "Setting Hardness" on Page 8, check the current hardness setting and increase if needed. Have hardness of water supply tested, if necessary.
	Hot water being used when conditioner/refiner is recharging.	Avoid using hot water during recharges, because water heater refills with hard water.
Error code displayed	Fault in wiring, position switch, valve, motor or electronic control board.	Contact your dealer for service.

Modelos

eVOLU TION Compact 100, eVOLU TION Compact 200, eVOLU TION Boost 300, eVOLU TION Boost 400, eVOLU TION Power 500, eVOLU TION Power 600, eVOLU TION Refiner Boost, eVOLU TION Refiner Power

CONTENIDO

Pagina

Conversions: 1 grain = 1°dH 10 ppm = 1°f

FIG. 2B
VALVOLA DI BYPASS DA 1"

VALVOLA DI BYPASS FILETTATA DA 3/4"

VALVOLA DI BYPASS CON ANELLI SEEGER DA 3/4"

ACCEDERE AL PROPRIO ACCOUNT CLIENTE

3/4" BYPASSVENTIL MIT KLEMMEN

BYPASSOPTIONEN
EcoWater Systems Bypassventil
ABB.2A

TYPISCHE INSTALLATIE

AFB.1

BYPASS VAN 1 INCH

BYPASS MET SCHROEFDRAAD VAN 3/4 INCH

BYPASS MET INSTEKKOPPELING VAN

BYPASSMOGELIJKHEDEN

UW KLANTACCOUNT OPENEN

ANDERE BERICHTEN, WAARSCHUWINGEN EN HERINNERINGEN

RYS.2B
ZAWOR BY-PASS 1"

GWINTOWANY ZAWOR BY-PASS 3/4"
KLIPSOWY ZAWOR BY-PASS 3/4"

KOLANKA 3/4"

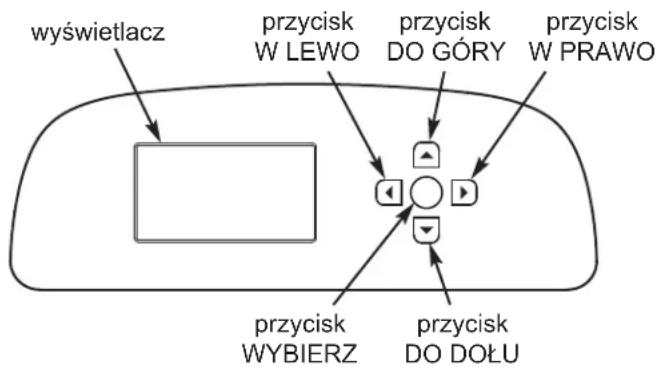

PROCEDURE USTAWIENIA

ZMIANA JEZYKA NA INNY:

PNC.2B
KOJIeHcATbIe IATPy6Kn 3/4"

ПОUCEДУРА HACTPOДКИ

Korda 6nok nOdkIouaeTc K NITaHIO BnepBbIe, Bbl yBnIDTe HAnOMINAHne O BBeDeEHN Ba3OBoI INHΦOpMaunno 3KcNpTaTuN.

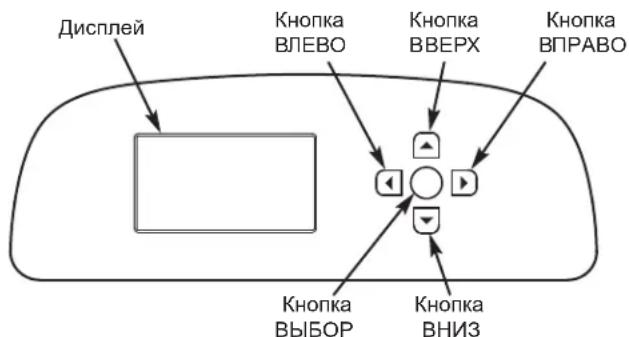

1. LANGUAGE (ЯзбИК)
   Hakimam KhoNky BHIN3 (↓)
   nii BBEPX (▲), nepeiДиTe K hyxHOMy Ra3bIky; 3aTeM DBaKdIb HaxMITE KhoNky BbIBOP (O).

IPIMMEAHNE: Moxno nponyctntb HactpoKy 6ecnpobDHoro CoednHeHnN N BblOInHtB ee nocTe 3aBepWeHn IarOB 6-11 npoeDpybH HAcTpoK. N3 MeHo Main menu (TnaBHOe MeHIO) nepeiDNTe BHN3 K NyHKTy Advanced settings (DoonHHTeJbHbIe HAcTpoK) N Bbl6epNTe NyHKT Wireless setup (HaCtpoKa 6ecnpobDHoro coednHeHn).

2.WIRELESSSETUP（HACTPOIKA BECNPOBOHO COEINHEHNA）Bb6epTe cnooc noKIOUeHn yMraHTeJ KDOMaHne 6ecnpoBDHO CE:

C nomoub6pay3epa: MoXHO IIOKJIIOHOTBCs C nOMOUb6pay3epa, yctahOBnEHORo Ha BaWem HoYTOyKe, PnaHwTe NNI TepeOHe. IpeeJnte K wary 4. NII

C nomooubho KhoNkn Ha MapuTytnaTope: Ecnn Ha BaWem 6ecnpoBODHom MapuTytnaTope ectb KhoNka WPS (CTaHdapt 6eOanChOH hactpoKn BcecpoBDOHOcTn) Hn Push to Connect, moXHo nepeiTu K wary 3.

3. BAPNAHT HACTPOI KI C IOMOJIbIO KHONK WPS

a.C NOMOJIbKOHNI BBIOP(O)BbIePnte BapnAHT Pushbutton (WPS)(KHOJa WPS). Ha DnCnIeeyMgRHTeYr OTO6pa3NTcHaDnCb «Push wireless router button》（《HaxmTe KHOJky HaBeCnpOBDoHm MapuTyN3aTope>）.
b. HaKmIte Ha MapuTn3aTope KhoNky WPS (CTaHdapt 6eOAnch HAcTpoKn 6ecnpoBDoHcTei) nIn Push to Connect (CoEHNHeHne HAcKaTneM) nNoOxJdt, Noka Ha DcNpIee yMaTneTJe OTO6pa3ntc HAdnCb «Connected» («CoeHNHeHne yctAHOBNeHO»). Ecn3 TOrO He npOn3oJed, oTMehnTe DeINCTBNE iNCOnJb3yIe BapnaHT HAcTpoKN C NOMU
c. 3aunnte KoJ KInOua. OH noHaOnobuTc npn pernctpaun CnCTembl Ha Be6-caIte KOMpaHIn EcoWater. IpeenDnTe K Wary 5.
HactpoikaWiFi-coeinn
Khonka WPS
05pay3ep
Oponyctntb
HactpoikKaWiFi-coeIN
IЯ coeHHeHn HaxMnte KHOKNy Ha 6ecnpoBOHOM MapuPyTu3aTope.
OTMeHa
HactpoKaWiFi-coeINH.
CoeHHeHo!
Klouy:
abc123
IpoOnJnKtB

Currently connected to:

Home

Internet access

Dial-up and VPN

Wireless Network Connection

Home

H2O-xxxxxx

Neighbor 1

Open Network and Sharing Center

Network

Home

Neighbor 1

Strength

Select Wi-Fi Network

Wi-Fi Profiles

Network

Status

f. Nocne TOrO OTo6pa3nTcraKpHa, KaN NOKa3aHO BbIe, BbIepnte 6ecnpoBOHyO DomauHIO Cetb N BBeDInTe npabNbHbIK KAKnapOB.

npoOnJxHne

g. Ha dincnnee ymraHTeTnI DOnJXHO OTo6pa3ITbC8 coo6ueHne «Connected» («CoEINHeHne yctahOBNeHo»), a taKke KOD KInOva.
h.3aunnte KOD KIOUa OH noHaOobntc npn

HactpoikaWiFi-coeMH

CoedHeo!
Kniou:
abc123
PpOdoONJXnTb

J3bIK npBBeDeHb B cNcke B cNeIyIOeM nopAKe: aHnIMCKN, nCnAHCKN, pFaHcy3CKN, nTaJIbHckN, HMeUcKNI, HNDepJIaHdCKN, NOJIbCKN, pycckN, BeHrepCKN, TpeUckNI, NITOBCKN, rpeueckN, pyMbIHckN, UeIckN, CNoBaICKn, 6oJIrApckN, cep6ckN, xOpBaTckN.

YCTAHOBKA JECTKOCTN

Kak npabnno, BbINOHReTcB XOHe HAcToPouKn.

ДЯиЗМeHeHЯ:

1. Haxab KhoNky BbIbOP (O), nepeiDnte B MeHIO Main menu (TnaBHOe MeHIO).
   2.IpeuDHTeBOKHO OCHOBHbIE HAcTPOKn.
   3.ПлелейдenteКЗкрану Hardness（KecTeKocTb）
   4.Haximma KhoNky BHIN3 (） INB BBEPX（），yctaHOBNITE Tpe6yeMy JOeCTKoCTb BObl. Ipeo6pa3ObaHne: 1MR-3KB./J=50 MR/
   5.HaKMTe KhoNky BbIbOP (O), 3aTEM HeCKoJIbKO pa3 HauKMTe KhoNky BJIeBO (1) ДЯ BO3BpaUeHЯ N K ekpHaM COCTOHNIA.

IPIMMEUAHNE:He yBENHnBaHTe 3NaueHne JcckTkoCTn, YTO6bI KOMNehCnpoBaTB coJepXaHnE Je9e3a B BoJe.3NeKToPOnHbI 6JIOK ynpaBHeHnA abTomatNuYeCKn BblOpHnReT KOMNHeCAuHNo NocJe yCTaHOBVn UPOBncoJepXaHnJKeJIe3a (CM.HNXe).

YCTAHOBKA CODEPKAHNA KEJI3A

Kak npabnno, BbINOHReTcB XOe HAcToPouK.
Ira n3MeHeHHa:

1. Haxab KhoNky BbIbOP (O), nepeiDnte B MeHIO Main menu (TnaBHOe MeHIO).
   2.ПepeiTeBOKO OCHOBHbIe HAcTpOKn.

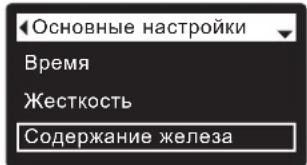

   3.Перейдпг ВОКН Содахангxeялеса.
   4.Haximma KhoNky BHIN3（） INI BBEPX（），yctaHOBnTe 3NaueHne CoepKahnHa JKeJea B BOJe.
   5.HaXMMTe KhoNky BbIBOP (O),3aTEM HeCKoJIbKO pa3 HaXMMTe KhoNky BJIeBO (1) DnI Bo3BpaUeHnK 3KpaHaM COCTOHN.

IOBABNEHNE COIN

EcInB yMraTne/ouCTne NcNoIb3ObaHa Bc8 coBdo ee
DobABnEHn, 6ydt PnOu3BOUITbc JxecKtaaBoJa. B moJIeX c
OdHM bokom yPOBeH coIN OnpeJeETcA BtOMaTuYeckn. B
MoJIeN 600 Power cOTDehBM coNEbbIM bakOM perynpHO
noHNMaTe KpbIbky CoNEBOrO 6aKa nPpOBepReYte yPOBeH coIN.
TaKeK KOHTponIOBaTb yPOBeH coIN MoJHo B yChTHo3aNNi,
NOkIIIOvHB YcTPOCTBO K 6ecnpoBOHOMy CoEIMHeHIO. KpbIbKa
NCToCHNka coIN o83aTeBHO DoJnxHa 6bItb Ha MeTe npn
DoabAEHH coIN.

ДЛЯ MODEЛ 600 POWER C OTeJIbHbIM COJIeBbIM 6aKOM: ПОсne Добалени И ВьравиВани ComN OБRAteIbHo BVEdITe YICNO, COOTBeTCTByIOUeey yPoBHO CoN, B 3JIeKtpoHHbI 6JOK UynpaBENHЯ, KAK ONICAO HAp CTp.65.

IPIMECAHME: B MeCTa C NOBbIeHHoN CBIOcTbIO LyuHHe NOpDcpeKINBaTb yPOBeHb CoNMeHbIe NIOJOBnHi KoNTeHepa NDo6abnTb ee qaue.

PEKOMEHdyEMAR COJb:BpKKeTnpoBaHHa,TabneTpOBAHHa, KpynHO3epHnCTa COJb N.T.D.,COJB DIAYMgHTNeB BObl C coOpExKaHmEH PAcTbOPmBxPnIMCei MeHee 1% DaHHbI TIN CONI-3TO BbICOKOCHtBe KpCTAaNbI NOcNE HcnapeHn, INHOda NOCTABnREMbIE BΦOpme BpKKeTob.

XIOPND KAJNRA (KCI): Ecni BbIbpaH Tm cOni KCI:

• YCTaHOBtE IJN PYNHtA 《TIN CONN》Ha 3eNEKtpoHnO M6IKe OynpaBHeHn3HaueHHe N «XNoPnD KAnr (KCI)》，KaK noka3aHo Ha ctp.65.
  -HomeaTeToIbKO OIN NAKET CoN XInopua KaJIINa (KCI) ByyMnTEnb/OuNCTnteB npn DoabBHeHn.

HEPEKOMEHJYEMAR CONb:KaMeHHaR cOBc BbICOKIM COepejXAHmE pIIMecEn,ueJIbHa, rpaHyNIpOBAHnA, NIIeBaJ, TaJIa HJI cONM dJI pIroTOBJIeHn MOpOKeHOrO - He peKOMeHJyOTcR dJI INCOnb3OBAHn.

YCTPAHEHNE COJARHO MOCTA

HOrda B coJraHoro MocTa obpa3yeTc TBepdbIO cOaOK INIIN COJAHOH «MOCT'. KaN npaBnIO, 3TO Bb3BaHO BbICOKBnAaXHOCTbIO INI INCNoJIb3OBaHNEM HENpabUInbHOrBO BIDa CoII. Ppi Oba3OBaHNIO MoCTa MeKdy BOIo N COnbIO NOBnE TcRyCToe npocTpaHCTBO. B TAKOM CnYae CoNb He bSyET pACTBOpArBcB BODe, CNOHNT He 6yDet pereHepePPOBaTbcA, a nPOn3BOImaR BOJa 6yDet XeCTKO.

MocT MoKet
HaxOINbCra NOd
pbIXNo coJIbU.ДЯ
npOBepKn
BOcIOJIb3yIteCb
pyKoN O T WbA6pbI
nII IN DpyHM
NOIOb6HIM
NHCTpymeHTOM, KaK
NOKa3aHO Ha pnc.4.
AKkypaTHO
npOTOnIKHNTe
NHCTpymEHTBHN3
conEBoro 6aka.EcNt
OuSyuaTeCn HaNUnc
TBepDOrO obBeKaTa,
BepoTHee Bcero, 3T- COJRAHO MocT.
OctopoxHO HadaBnT
B HECKOJIbKnx MeCta,
qTO6bl pa3pbXInNTb
MOCT ynapAMn NO KO

PNC.4

HHTPYKUNI NO DE3NHΦEKUNI

Mepbno oBecneHIO uHCTObl yMaHTeIaEOwTeIeEcoWate Systemn ppeIpnHmIoTcNo meCtU n3rOToBJeHn. OHaKo BO Bpem TpaHCnoptnpOBKn, XpaHEnHry, YctaHOBKn n 3ckPnyaTaunB 6nok moryt nonactb 6akTePN. NToTOMy npu yctahOBke peKMeHdyetc* BblonHtB OHCTK:

1. CHIMMTE KpbIky c IaxtbI coNEBoro 6aka n BneIte npIMepHO 40 Mn (2 - 3 CTOnOBbIX loKKn) OsbHOrO 6blTOBoro OTBeINBaIOe oPactBoPa B IwaxTy coNBO 6aka ymRcHTen/ouHCNTenB. B npOdaKe IMeOTc r OTBeINBaIOuie pACTBOpBcl Clorox n DpyTne HAmHeOBaHN. 3akpoTe KpbIky WaxtbI coNEBoro 6aka.
   2.3anyctnte «HemeIeHnyo peerehepaunO（cm.ctp.65).Pn BbIOJIHeHHpeRehepaun OTBeINBaIOu pactBop HauHET NOCTyNaT B CNTcEmYyMaHTeJI/OuHCTnteJI.

*PekomeHIOBDAO ACCoJIaMeIe KaueCTBa BOIby (Water Quality Association). B HEKOTOpbIX CnYaX, B 3ABNCIMoCTN IOndaBAeMOI BOIby, HEO6xoIMMo BblIOINHITb nepoDmueKydo SeHHPeKmuO bIoKA EcoWater Systems.

IPMMEUAHNE: Mby peKOMeHdyem BbIOnHbTb 06cIyKuBaHne ymraHHTe/ouctTeTena exeroHO.

PYKOBODCTBO NO YCTPAHEHIO HENCPABHOCTEIN

INSTALARE CU BYPASS TIP CLEMÄ

INSTALARE CU COTURI ADAPTOARE

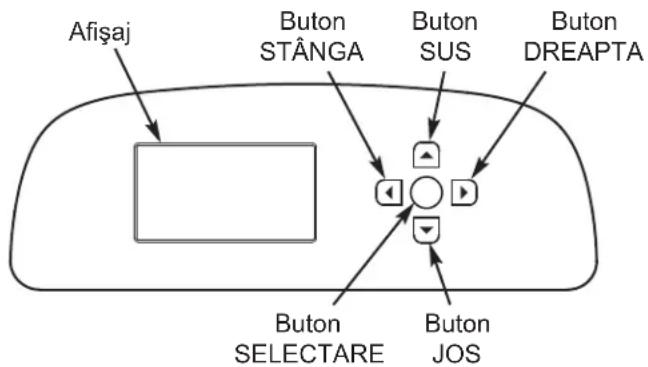

PROCEDURE DE SETARE

EcoWater Systems Italy www.ecowater-systems.it

EcoWater Systems Poland www.ecowater.pl

EcoWater Systems Romania www.ecowater.ro

EcoWater Systems UK www.ecowater.co.uk
