USER MANUAL CWC 154 EEL CANDY

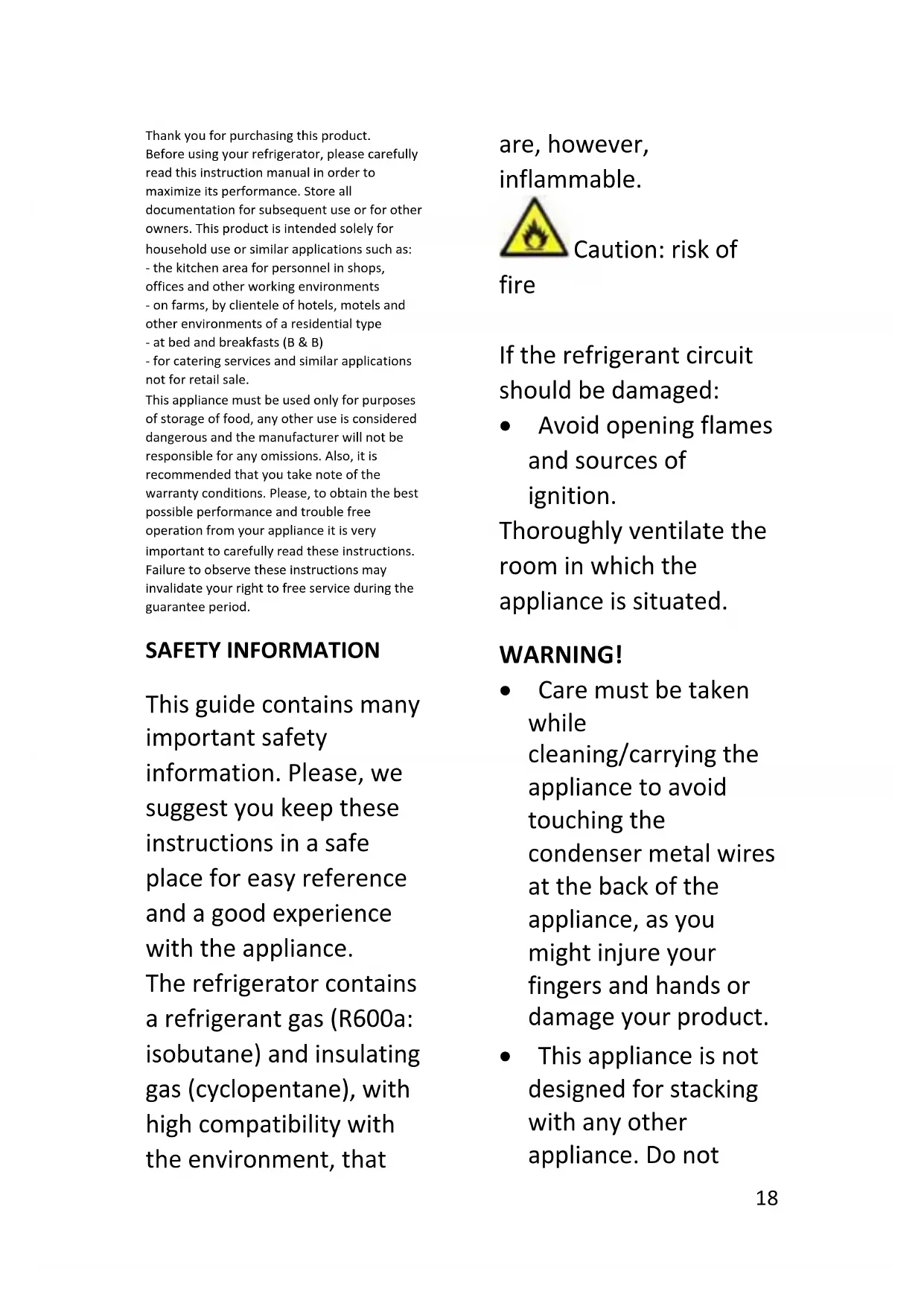

• Rimuovere la polvere accumulata sulla parte posteriore dell'elettrodomestico.18 Thank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: - the kitchen area for personnel in shops, offices and other working environments - on farms, by clientele of hotels, motels and other environments of a residential type - at bed and breakfasts (B & B) - for catering services and similar applications not for retail sale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions. Failure to observe these instructions may invalidate your right to free service during the guarantee period. SAFETY INFORMATION This guide contains many important safety information. Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance. The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable. Caution: risk of fire If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition. Thoroughly ventilate the room in which the appliance is situated. WARNING!

• Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.

• This appliance is not designed for stacking with any other appliance. Do not19 attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

• Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.

• When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

• Do not install the appliance near heaters or inflammable materials.

• If there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

• If you find that the lid of the chest freezer is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will20 equalize and allow the lid to be opened normally after a few minutes.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.

• This freezer must only be used for its intended purpose (i.e. storing and freezing of edible foodstuff).

• Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.

• Before performing any operation, unplug the power cord from the power socket.

• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.

• Do not use extension cords or adapters.

• Do not excessively pull or fold the power cord or touch the plug with wet hands.

• Do not damage the plug and/or the power cord; this could cause21 electrical shocks or fires.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

• Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.

• Do not place objects and/or containers filled with water on the top of the appliance.

• We do not recommend the use of extension leads and multi-way adapters.

• Do not dispose of the appliance on a fire. Take care not to damage, the cooling circuit/pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.

• The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they22 are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

• Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not use mechanical devices or other equipment to hasten the defrosting process.

• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.

• Never use water wash the compressor23 position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

• The product is designed and built for domestic household use only.

• The guarantee will be void if the product is installed or used in commercial or non- residential domestic household premises.

• The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.

• The guarantee is applicable only to new products and is not transferable if the product is resold.

• Our company disclaims any liability for incidental or consequential damages.

• The guarantee does not in any way diminish your statutory or legal rights.

• Do not perform repairs on this Wine Coolers. All interventions must be performed solely by qualified personnel. SAFETY CHILDREN!

• If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical,24 sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.25

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures. INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler

• Remove the exterior and interior packing, including protective material.

• Check if the components or accessories are completed and in good condition.

• Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth. Installation of Your Wine Cooler

• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the legs at the front of the appliance.

• Allow 5 inches of space between the back and sides of the appliance, which allows the proper air circulation to cool the compressor.

• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.

• Extreme cold ambient temperatures may also cause the appliance not to perform properly.

• Avoid locating the appliance in moist areas. Too much moisture in the air will cause frost to form quickly on the evaporator.

• Plug the appliance into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.

• Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized products service center.

Warning: Improper use of the grounded plug

can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized products service center. EXTERNAL HANDLE If the external handle is presented in the product, follow the below steps for assembly.26 Reversing the Door Swing of Your Wine Cooler This wine cooler has NO capability of either opening the door from the left or right side. IMPORTANT SAFEGUARDS Do not store food in wine cooler, as interior temperature may not get cool enough to prevent spoilage. As a natural result of condensation, in summer months or area of high humidity, the glass door may build up moisture on the outside. Just wipe it away.

OPERATING YOUR WINE COOLER

It is recommended you install the wine cooler in a place where the ambient temperature is between 22 -25 degree Celsius. If the ambient temperature in above of below the recommended temperature, conditions may cause interior temperature to fluctuate. If the interior light is left on, the temperature inside the wine cooler will be higher. Recommended Temperatures for chilling Wine Red wines: 15.5-18.5 C Dry/White Wines 10-15 C Sparkling Wines 7.2-9.5 C Rose Wines 9.5-10.5 C The above temperatures may fluctuate depending on whether or not the interior bulb is on or off of whether the bottles are located on the lower/middle or lower section.

This specification concerns the function of the electronic display for wine cellars. The image below shows the Candy version of the user interface. The user interface is formed by: - 4 buttons (On/Off, Programmes, Temperature °C and one side mechanical switch). - 1 white digital LCD - 4 white LEDs Function - On/Off: the appliance can be switched on or off with the “On/Off” button. Every time the appliance is switched on, the internal light will switch on as well. After 15 seconds, if the "light" button is set on off, the light will switch off, if it is set on, the light will stay on. At each switching on, the last set programme and

the product on a flat floor.

external handle and 4 screws.

magnetic cross screw driver to fix the external handle on the 4 pre- screw holes.

make sure all screws are fixed well27 temperature will be restored. At the first start- up, the wine cellar will be set on "Red Wine" with a preset temperature of 16°C. - Programme: to select the cellar programme, press the programme button until reaching the required programme. Sequentially, the programmes that can be selected are: “Red Wine”, “White Wine”, “Champagne”, “Mix”. The LED corresponding to the programme will switch on at each programme change and the display will show the preset temperature (if the programme was selected for the first time) or the temperature set by the user (see table 1). The programme will start 5 seconds after the release of the button. - Temperature °C: to set the temperature just press the button “TEMP C°” after selecting the programme. The temperature will change according to the sequence (e.g. 7-8-9-10-11- 12-13-14-15-16-17-18-7-8-…). The temperature change will start 5 seconds after the release of the button. - Light button: pressing the light button, you switch the light on or off. -E1: Temperature probe problem The table for temperature range and preset temperatures for each programme is shown here below: PROGRAMME PRESET TEMPERATURES (Celsius) TEMPERATURE RANGE

Shelves Shelf is chrome plated or wooden wine rack. To accommodate different size bottles, they can be moved up or down by sliding them out the tracks first. Shelves are designed to accommodate maximum amount of bottles. Wine Rack There is an additional wine rack at bottom section of the unit where you can store up to 6 wine bottles. This rack is removable for cleaning purpose. There is a 4 to 6 C variance between the top and bottom shelves of the wine chiller. Therefore, If you have set the wine chiller for red wine only and you want to place a mix of white and red wines, you should place the white wine bottles on the bottom shelves and the red wines on the top shelves.

CARE AND MAINTENANCE

Cleaning Your Wine Cooler

• Unplug the wine cooler and remove the bottles.

• Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a liter of water.

• Wash the shelves and trays with a mild detergent solution.

• The outside of the wine cooler should be cleaned with mild detergent and warm water.

• It may also be necessary to periodically wipe the bottom part of the storage area, as the wine cooler is designed to retain humidity, and condensation may collect there. Maintenance of Your Wine Cooler Power Failure Most power failures are corrected within a few hours and should not affect the temperature of your wine cooler if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents. Vacation Time During long absences, remove all the bottles; unplug your wine cooler, clean your wine cooler, and leave the door open slightly to avoid possible formation of condensation, mold, or odors. Moving Your Wine Cooler

• Remove all the bottles.

• Securely tape down all loose items inside your wine cooler.

• Turn the levelling screws up to the base to avoid damage.

• Tape the doors shut.

• Be sure the wine cooler stays in the upright position during transportation. TROUBLESHOOTING28 You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE Wine cooler does not operate. Not plugged in. The circuit breaker tripped or blown fuse. Wine cooler is not cold enough. Check to be sure the temperature control setting. External environment may require a higher setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly. The wine cooler does not have the correct clearances. Compressor turns on and off frequently The room temperature is hotter than normal. A large amount of contents has been added to the wine cooler. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. The wine cooler does not have the correct clearances. The light does not work. The home circuit breaker or fuse has tripped. The wine cooler is unplugged. The bulb has burned out. The switch is in the "OFF" position. Vibrations. Check to assure that the wine cooler is level. The wine cooler seems to make too much noise. The rattling noise may come from the flow of the refrigerant,which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine cooler. Contraction and expansion of the inside walls may cause popping and crackling noises. The wine cooler is not level. The door will not close properly. The wine cooler is not level. The doors were reversed and not properly installed. The gasket is dirty. The shelves are out of position. Technical specifications: For detailed specifications, please refer to the nameplate at the back of the wine cellar. The specifications are subject to change without prior notice due to products improvement.29

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: WEEE should not be treated as household waste. WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment. Conformity By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product. ENERGY SAVING For better energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well-ventilated room.

• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functionalizing of the compressor.

• Do not excessively stuff foods so as to ensure proper air circulation.

• Defrost the appliance in case there is ice to facilitate the transfer of cold.

• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.

• Open or keep the doors of the appliance open as little as possible.

• Avoid adjusting the setting to temperatures too cold.

POKYNY NA INŠTALÁCIU

• Удаляйте пыль с задней стенки электроприбора.244 CANDY HOOVER GROUP S.R.L. Via Privata Eden Fumagalli 20861 Brugherio Milan ItalyEN FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in ppliance FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine FOOD STORAGE Position different food in different compartments according to be below table Refrigerator compartment Type of food Door or balconies of fridge compartment

• Foods with natural preservatives, such as jams, juices, drinks, condiments.

• Do not store perishable foods Crisper drawers (salad drawer)

• Fruits, herbs and vegetables should be placed separately in the crisper bin

• Do not store bananas, onions, potatoes, garlic in the refrigerator Fridge shelf – middle

• Dairy products, eggs Fridge shelf – top

• Foods that do no need coocking, such as ready-to-eat foods, deli meats, leftovers. Freezer drawer(s)/tray

• Foods for long-term storage

• Bottom drawer for raw meet, poultry, fish

• Middle drawer for frozen vegetables, chips.

• Top tray for ice cream, frozen fruit, frozen baked goods.

• It’s suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment.

• For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.

• For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18° POSITIONING Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: - Extended temperate (SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’ - Temperate (N): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’ - Subtropical (ST): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’- Tropical (T): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’

“Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market”.

GUARANTEE Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.
