Double Induction cooking plate (27-43)

```c Gnoss-103 English 15 Squash 14-19 Terry 42-31 Biology 87-42 Magazine 4-50 Salad 51-58 Fruit and/or 50-60 Chicken 7-74 Pigments 73-82 Bones 68-80 Eggs (1)

100121111144a 1134

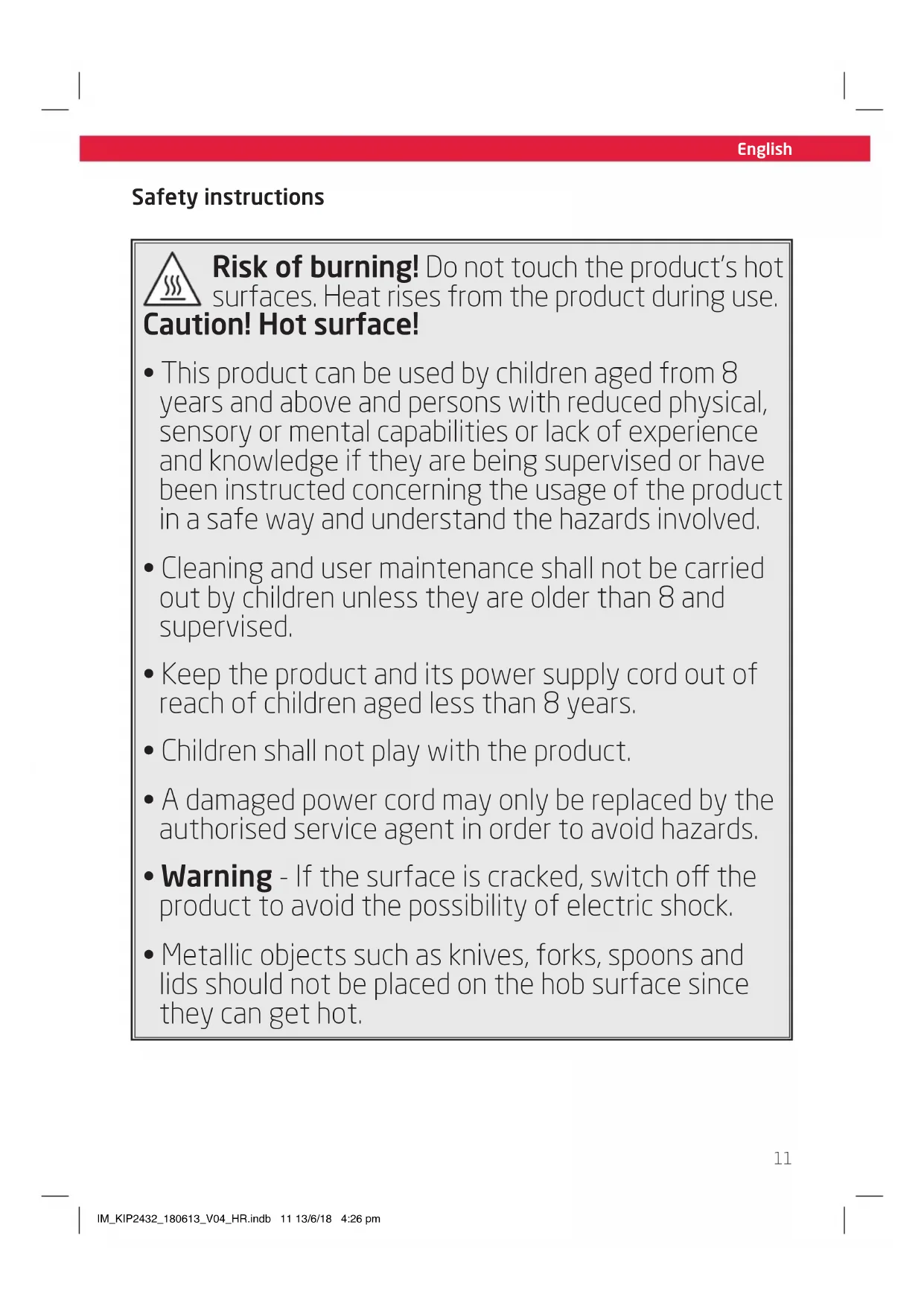

Sicherheitshinweise

Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use.

Caution! Hot surface!

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning the usage of the product in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be carried out by children unless they are older than 8 and supervised.
• Keep the product and its power supply cord out of reach of children aged less than 8 years.
• Children shall not play with the product.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Warning - If the surface is cracked, switch off the product to avoid the possibility of electric shock.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

English

Safety instructions

• The product is not intended to be operated by means of an external timer or separate remote-control system.
• Follow the instructions in the chapter Cleaning and care.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or other fluids during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
  The mains voltage must match the information on the rating label of the product.
  Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

Use this product in dry indoor areas only and never outdoors.
- Never use, expose or put the product near to: - direct sunlight and dust; - fire (fireplace, grill, candles), water (water splashes, vases, bath tub) or heavy moisture.
This product is not intended for commercial use. It is designed for household use only.
- Keep electrical products out of reach of children. Do not let them use the product without supervision.
- Warning: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover the flames e.g. with a lid or a fire blanket.
- Warning - Danger of fire: Do not store items on the cooking surfaces.
- Do not use a steam cleaner for cleaning!
After usage, switch off the product by its control and do not rely on the pan detector.
- Caution: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed for heating and cooking foods with pots/saucepans. Any other use may result in damage to the product or injuries.

The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the

recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Double induction cooking plate

1 x User manual

Controls and components

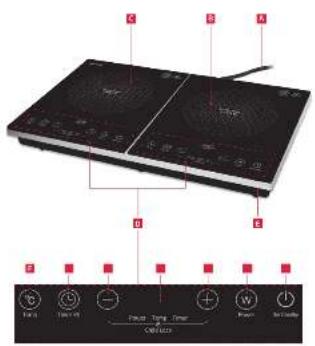

A Power cord with plug
B Induction cooking hob 1500 W
C Induction cooking hob 2000 w
D Control panels with displays
Feet
F Temperature mode selection button
G Timer button
H - button
Display
+ button
K Power mode selection button
ON/Standby button with power indicator

Cookware

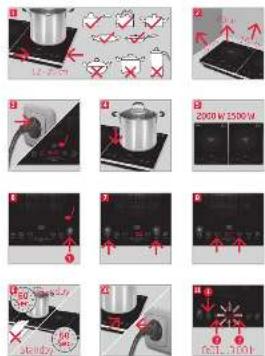

Fig.1 Suitable cookware:

Only use pans and pots which are declared as suitable for induction cooking with a bottom diameter of 12 to 26cm

Not suitable cookware:

• Heat-resistant glass, ceramic, copper or aluminium cookware
  Cookware with curved bottoms or with feet
  Cookware with a diameter less than 12 cm and larger than 26 cm.

Operation

Fig. 2 Place the induction cooking plate on an even, stable and heat resistant surface. Ensure for enough spaces for air circulation. The following distances are required: 60cm above and 10cm to all sides.
Fig.3 Connect the power plug to a suitable power outlet. An acoustic signal sounds and the power indicator lights flash once. The induction cooking plate is on standby mode now.

Note: If the cooking surface temperature is >50^ H is shown in display.

Fig. 4 Place a filled, suitable cookware in the center of the circle mark on the hob.

Warning

The pots which are placed on the two hobs shall not weight more than 10kg in total (incl. contents).

Note: Ensure that the pot/saucepan is clean and dry on the outside.

Fig. 5 The hobs can be used separately or at once. The use is explained based on one hob. The left hob has 2000W , the right hob has 1500W .
Fig. 6 Press the ON/Standby button for approx. 2 seconds to switch on a certain hob which is indicated by an acoustic signal and a red indicator LED.
Fig. 7 Choose temperature or power mode using buttons and The preset mode is indicated by a red LED.
Fig.8 Set the desired power and temperature.

Temperature:

• 60-220°C (in 20°C steps)

Power:

1500 W plate: 200-1500 W (in 200 W steps, the last step is 100 W)
- 2000 W plate: 200-2000 W (in 200 W steps)

Fig. 9 In turned on product will switch to standby mode,

after 60 seconds, when no setting was done
after 60 seconds, when the hob is left empty

Fig. 10 After use press ON/Standby button to turn the product to standby.

Warning

Always unplug the product to ensure it is completely turned off.

English

Timer

Note: When using the timer function the induction cooking plate will automatically turn to standby after a preset time has elapsed. The min./max. adjustable times are 0:01 minute/3:00 hours.

Fig.11 Set the timer

To activate the timer press the timer
during cooking. The display shows 00:00 flashing.
The residual time can be set using the +/- buttons. With a single tap of the +/- button the value changes by 1 minute. When keeping the +/- button pressed, the value changes quickly with 10 minutes increments.
Press timer button again to confirm the set value.

Note: If the timer is activated, the display alternatingly shows the residual time and the preset temperature or power level. After the preset time has elapsed the induction cooking plate will be switched to standby.

Key Lock

The induction cooking plate can be locked against unintentional use (e.g. as child protection). If the lock is activated all control buttons except the on/off switch are locked.

Fig. 12

Press + and - buttons at once to lock the control panel. A red LED turns on centrally below the display. Press + and - buttons at once for approx. 3 seconds to unlock the control panel.

Cleaning and care

Warning

• Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

Fig. 13 Unplug the induction cooking plate and let it cool down completely before cleaning.

Fig. 14 Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the product interior (for example, through the switch).

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem / error code	Possible causes Solution
Buzzing (every two seconds)	No or unsuitable pot on the plate	Use suitable pot or pan for cooking
E1 Surface thermistor is open circuit • Contact your service agent.
E2 Surface thermistor is short circuit • Contact your service agent.
Eb Surface thermistor is disabled • Contact your service agent.
E4 IGBT thermistor is open circuit • Contact your service agent.
E5 IGBT thermistor is short circuit • Contact your service agent.
E7 Supply voltage too low • Use with required supply voltage, see Technical Data
E8 Supply voltage too high • Use with required supply voltage, see Technical Data

Noise during operation

Because of the induction technology, following noises can be occurred during operation:

Noise Meaning
Humming Caused by	induction and increases when the power is set on higher level.
Crackling Caused by	vibration of the cookware bottom during heating
Fan noise The fan protects the product from overheating. The noise increases simultaneously with the power level. After turning off the product, the fan will still operate for some minutes to cool down the product.

English

Energy saving

In order to reduce total environmental impact (e.g. energy use) of the cooking process, please consider the following hints:

• Place the cookware in the middle of the cooking zone before switching on the product.
• When cooking always cover the cookware with a lid.
• When boiling water, only boil the required quantity of water.
  Always use the lowest possible temperature for cooking.
• Turn off the cooking zone in time and make use of residual heat.

Technical Data

Model KIP 2432
Type of hob Free standing Induction cooking plate
No. of cooking zones 2
Heating technologies Induction
Diameter of each cooking plates (Ø) 20 cm
Energy consumption/ plates (ECelecric cooking)	--
Energy consumption hob (ECelecric hob)	C:193.5 Wh/kg B:189.7 Wh/kg
Rated voltage 220 - 240 V~ 50 Hz
Rated current 15 A
Rated Power 3500 W
Protection class II
Dimensions 565 x 360 x 65 mm

This is a free standing induction cooking plate.
- ERP-testing was done according to EN 60350-2:2013+A11:2014 & EN 50564:2011.
See website below for detailed technical information or ask your vendor for specification sheet. www.koenic-online.com.

Fig.11 Stall in timern
