Product Type	Portable Induction Hob
Brand	Koenic
Model	KIP 2431
Number of Cooking Zones	2
Heating Technology	Induction
Cooking Zone Diameter	20 cm
Total Power	3500 W
Left Zone Power	2000 W
Right Zone Power	1500 W
Temperature Range	60 °C to 220 °C (in 20 °C steps)
Power Range	200 W to 2000/1500 W (in 200/100 W steps)
Timer	Yes, from 1 minute to 3 hours
Child Lock	Yes (key lock)
Residual Heat Indicator	Yes (“H” display)
Power Supply	220-240 V~, 50/60 Hz, 15 A
Energy Consumption	191.8 Wh/kg
Dimensions (W x D x H)	565 x 360 x 65 mm
Surface Material	Ceramic glass
Automatic Shut-off Function	Yes (if no action for 60 s)
Cleaning	Damp cloth, no solvents or abrasives
Protection Class	II
Intended Use	Heating and cooking food
Included Accessories	User manual

Frequently Asked Questions - KIP 2431 Koenic

What types of cookware to use with the induction hob?

Only use certified induction-compatible pans and pots with a base diameter between 14 and 22 cm. Avoid heat-resistant glass, ceramic, copper or aluminium, as well as cookware with rounded bottoms or feet.

How to turn the KIP 2431 hob on and off?

Press the ON/Standby button (L) for about 2 seconds to turn on the desired zone. To turn off, press the ON/Standby button again. It is recommended to unplug the product for complete shutdown.

How to adjust the cooking temperature or power?

Use the °C and W buttons to select the mode (temperature from 60 to 220 °C in 20 °C steps, or power from 200 to 2000/1500 W in 200/100 W steps). Adjust with the + and - buttons.

How to use the timer?

During cooking, press the timer button (G). Set the duration from 0:01 to 3:00 hours with the +/- buttons (hold for 10-minute increments). Press the timer button again to confirm. At the end, the hob goes to standby and “H” flashes.

How to activate the child lock?

Press the + and - buttons simultaneously to lock the control panel. To unlock, hold both buttons for 3 seconds.

What does the “H” display on the hob mean?

“H” indicates residual heat: the cooking zone is still hot after turning off. The display automatically turns off when the temperature becomes safe.

What to do in case of error codes E1, E7 or E8?

These codes indicate a missing power supply or a sensor fault. Check the socket and plug. If the problem persists, unplug the appliance and contact after-sales service.

Why does the hob suddenly stop and beep?

This may be due to incompatible cookware or too small a diameter. Use an induction-compatible pan (base 14 to 22 cm). If the beeping persists, check that the temperature sensor is not faulty (codes E2/E4/E5/EB).

How to clean the induction hob?

Unplug and let cool. Clean external surfaces with a damp cloth and wipe thoroughly. Never use solvents, abrasive materials, metal or sharp objects. Avoid letting liquids enter the interior.

How to save energy when cooking?

Place the cookware in the centre of the zone before turning on, always cover pans, only heat necessary water, and use the lowest possible temperature. These actions reduce energy consumption.

USER MANUAL KIP 2431 Koenic

Double induction cooking plate

×2431

图 1-4-10

1. (_1^2-_2^2)

图 1-2

图 4-10:16 Instrucciones

图2-1-4-11-16

每10克/小时

20 C###

图1-4.6.1.1

For the proof

1. Sredartendz

图 4. 利润度

Deutsch 3.10

U(s) = 90.11 - 11

Etsch 10 25

(2)

Temp Temperature Power Energy Enter W Power Control

Cooking instruction sequence showing cooking steps with pots, panes, and kitchen utensils

1. 0201, 0300, 0400, 0500, 0600, 0700, 0800

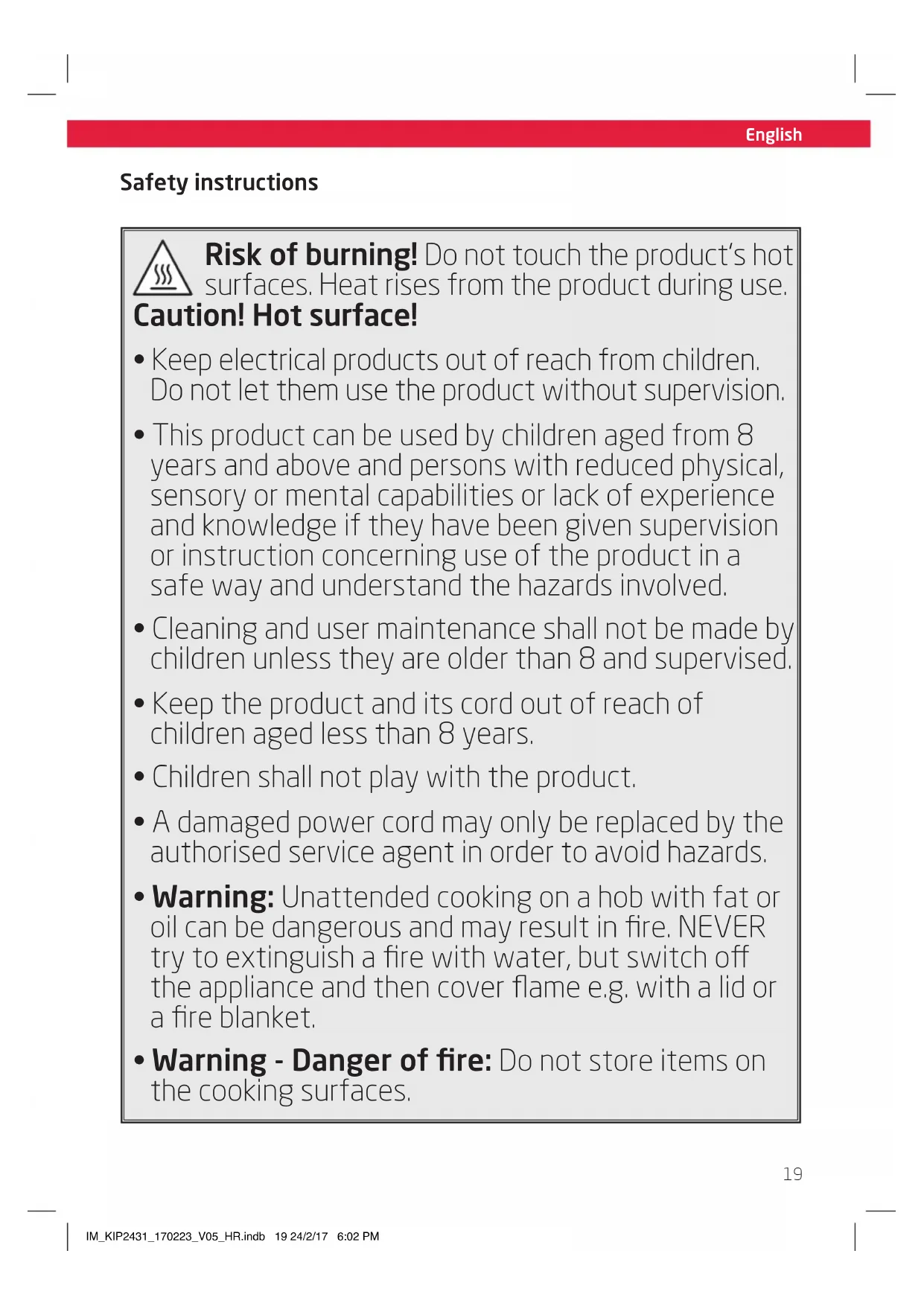

Sicherheitshinweise

Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use.

Caution! Hot surface!

• Keep electrical products out of reach from children. Do not let them use the product without supervision.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the product and its cord out of reach of children aged less than 8 years.
  • Children shall not play with the product.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Warning: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• Warning - Danger of fire: Do not store items on the cooking surfaces.

English

Safety instructions

• Warning - If the surface is cracked, switch off the product to avoid the possibility of electric shock.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• The product is not intended to be operated by means of an external timer or separate remote-control system.
• Do not use a steam cleaner for cleaning!
• After use, switch off the product by its control and do not rely on the pan detector.
• Caution: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• Follow the instructions in the chapter Cleaning and care.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
  • Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Never use, expose or put the product near to: - direct sunlight and dust;

• fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

- This product is not intended for commercial use. It is designed for household use only.

English

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed for heating and cooking foods with pots/saucepans. Any other use may result in damage to product or injuries. The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Induction cooking plate

1 x User manual

Part list

A Power cord with plug
B Induction cooking hob 1500 W
c Induction cooking hob 2000 W
D Control panels with displays
E Feet
F Temperature mode selection button
G Timer button
H - button
Display
J + button
K Power mode selection button
ON/Standby button with power indicator

Cookware

Fig. 1 Suitable cookware:

Only use pans and pots which are declared as suitable for induction cooking with a bottom diameter of 14 to 22 cm.

Not suitable cookware:

• Heat-resistant glass, ceramic, copper or aluminium cookware
  • Cookware with curved bottoms or with feet
  • Cookware with a diameter less than 14 cm

Operation

Fig. 2 Place the Induction cooker on an even, stable and heat resistant surface. Keep a distance of 5 -10 cm away from the wall or any other objects.
Fig. 3 Connect the power plug to a suitable power outlet. An acoustic signal sounds and the power indicator lights flashing once. The induction cooker is on standby mode now.

Note: If the cooking surface temperature is > 50 °C H is shown in display.

Fig. 4 Place a suitable pot/saucepan on the center of the cooking zone.

Note: Ensure that the pot/saucepan is clean and dry on the outside.

Fig. 5 The hobs can be used separately or at once. The use is explained based on one hob. The left hob has 2000 W, the right hob has 1500 W.

Fig. 6 Press the ON/Standby button for approx. 2 seconds to switch on a certain hob which is indicated by an acoustic signal and a red indicator LED.
Fig. 7 Choose temperature or power mode using buttons ℃ and ⓌThe preset mode is indicated by a red LED.
Fig. 8 Choose the desired power (200 - 2000/1500 W in 200/100 W steps) or temperature (60 - 220 °C in 20 °C steps) by pressing +/- buttons.
Fig. 9 In turned on product will switch to standby mode, when

• after 60 seconds no setting was done

• after 60 seconds after a setting the hob is left empty

Fig. 10 After use press ON/Standby button to turn the product to standby.

Warning

Always unplug the product to ensure it is completely turned off.

English

Timer

Note: Using the timer function the induction cooking hobs will automatically turn to standby after a preset time elapsed. The min./max. adjustable times are 0:01 minute/3:00 hours.

Fig. 11 Set the timer

1 To activate the timer press the timer
during cooking. The display shows 00:00 flashing.
2 The residual time can be set using the +/- buttons. With a single tap of the +/- button the value changes by 1 minute. Keep the +/- button pressed, the value changes quickly with 10 minutes increments.
3 Press timer button again to confirm the set value.

Note: If the timer is activated the display alternatingly shows the residual time and the preset temperature or power level. After preset time elapsed the induction cooking hob will be switched to standby and the display shows blinking H.

Key Lock

The cooktop can be locked against unintentional use (e.g. as child protection). If the lock is activated all control buttons except the on/off switch are locked.

Fig. 12 Press + and - buttons at once to lock the control panel. Press + and - buttons at once for approx. 3 seconds to unlock the control panel.

Residual heat indicator

Fig. 13 The induction cooking plate has a residual heat indicator. If the cooking plate is off but still hot, H is shown in each power level display. The display turns off when the cooking plate cooled down to a safe temperature.

Cleaning and care

Warning

When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

Fig. 14 Unplug the induction cooker and let it cool down completely before cleaning. Fig. 15 Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the product interior (for example, through the switch).

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem / error code Possible causes Solution
The LED does not come on when unit is plugged in. /E1/E7/E8	No power supplied • Check to see if plug is secured tightly in outlet and that outlet is working.
The Cooking Mode Indicator comes on, but heating does not start. /E3/E6	High temperature of the hob.	• Ambient temperature may be too high.• Air Intake or Air Vent may be blocked.
	There is something wrong with the fan	• Check whether the fan runs smoothly
Heating stops suddenly during operation and hear a beep every second.	Pan Type is wrong. • Use	the proper pot (refer to the instruction manual.)
	Pot diameter is too small.
E2/E4/E5/EB Failure of the	temperature sensor	• Unplug the product and contact the authorized service.

Noise during operation

Because of the induction technology, following noises can be occurred during operation:

Noise Meaning
Humming Caused by vibration of the cookware bottom during heating
Crackle Caused by vibration of the cookware bottom during heating
Fan noise The fan protect the product of overheating. The noise increase with power level. After turn off the product, the fan will still operate for some minutes to cool down the product.

English

Energy saving

In order to reduce total environmental impact (e.g. energy use) of the cooking process, please consider the following hints:

• Place the cookware in the middle of the cooking zone before switch on the product.
• When cooking always cover the cookware with a lid.
• When boiling water, only boil the required quantity of water.
  • Always use the lowest possible temperature for cooking.

Technical Data

Model KIP 2431
Type of hob Free standing Induction cooking plate
No. of cooking zones 2
Heating technologies Induction
Diameter of each cooking plates (∅) 20 cm
Energy consumption/ plates (ECelectric cooking) 191.8 Wh/kg
Energy consumption hob (EClectric hob) 191.8 Wh/kg
Rated voltage 220 - 240 V~ 50/60 Hz
Rated current 15 A
Rated Power 3500 W
Protection class II
Dimensions 565 x 360 x 65 mm

• This is a free standing induction cooking plate.
• Erp-testing was done according to EN 60350-2:2013 & EN 50564:2011.
• See website below for detailed technical information or ask your vendor for specification sheet.
www.koenic-online.com.
