Product Type	Range Hood
Brand	JUNO
Model	JDWS605E9
Use	Domestic, kitchen odor removal
Minimum Safety Distance from Cooking Surface	650 mm (or more according to the cooktop instructions)
Exhaust Duct Diameter	120 mm minimum
Power Supply	220-240 V, 50 Hz
Number of Speeds	3 (V1 silent, V2 medium, V3 maximum)
Lighting	Yes, with separate switch
Grease Filter Type	Dishwasher-safe
Charcoal Filter Type	Non-washable, replaceable
Grease Filter Cleaning Frequency	Every 2 months (or more often with heavy use)
Charcoal Filter Replacement Frequency	Every 4 months (or more often depending on usage)
Electrical Class	Class I (grounding required)
Width (estimate)	60 cm
Minimum Installation Height	650 mm above cooking surface
Hood Cleaning	Damp cloth and neutral liquid detergent
Exhaust Warning	Do not connect to a combustion smoke duct (boiler, chimney)
Use with Gas Appliances	Requires adequate room ventilation
Fire Safety	Do not flambé food under the hood
Installation	Must be performed by a qualified technician
Control Type	Push buttons (L, S, V1, V2, V3)

Frequently Asked Questions - JDWS605E9 JUNO

What is the minimum installation height for the JDWS605E9 hood?

The minimum safety distance between the cooking surface and the hood is 650 mm. If your gas cooktop specifies a greater distance, follow that.

How to clean the grease filters of the hood?

Grease filters should be cleaned every 2 months. They can be washed in a dishwasher or by hand with mild detergent.

How often should the charcoal filter be replaced?

The activated charcoal filter cannot be washed. It should be replaced approximately every 4 months, or more often with heavy use.

Can I use the hood with a gas cooktop?

Yes, but ensure the room is properly ventilated and that negative pressure does not exceed 0.04 mbar to prevent backdraft of gases.

What type of exhaust duct should be used?

Use an exhaust duct with a minimum diameter of 120 mm. The route should be as short as possible and not connected to combustion smoke ducts.

How to clean the exterior of the hood?

Clean the hood with a damp cloth and neutral liquid detergent. Avoid abrasive products.

What speeds are available?

The hood offers 3 speeds: V1 (silent minimum speed), V2 (medium speed), and V3 (maximum speed for heavy steam emissions).

What to do if the power cord is damaged?

Do not use it. Have it replaced by the manufacturer or a qualified technician to avoid electric shock risk.

Does the hood require grounding?

Yes, the hood is Class I. Ensure your electrical installation has a proper grounding.

Can I install the hood myself?

Installation must be carried out by a qualified technician to ensure compliance with electrical and safety standards. Incorrect installation may cause damage or risks.

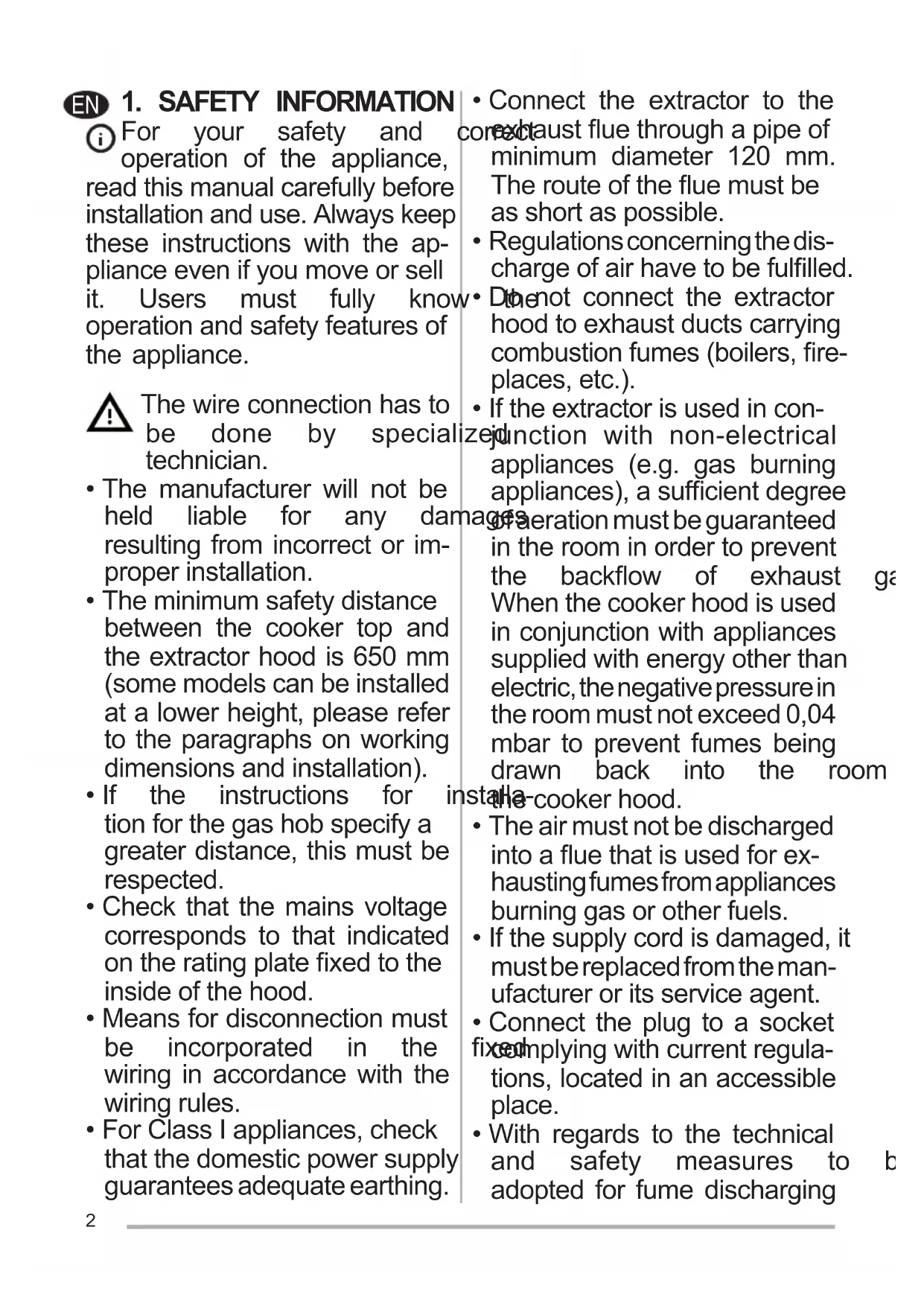

USER MANUAL JDWS605E9 JUNO

For your safety and operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know operation and safety features of the appliance.

The wire connection has to be done by specia technician.

• The manufacturer will not be held liable for any data resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).

- If the instructions for it tion for the gas hob specify a greater distance, this must be respected.

- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

- Means for disconnection must be incorporated in the wiring in accordance with the wiring rules.

- For Class I appliances, check that the domestic power supply guarantees adequate earthing.

- Connect the extractor to the correct exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Regulations concerning the discharge of air have to be fulfilled.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree

nages of eeration must be guaranteed in the room in order to prevent the backflow of exhaust ga When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room install a-cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

- Connect the plug to a socket fix complying with current regulations, located in an accessible place.

- With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been supervision or instruction.

Accessible parts may come hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ✉ on the product or on its packaging indicates that this product may not treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be conti monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

W

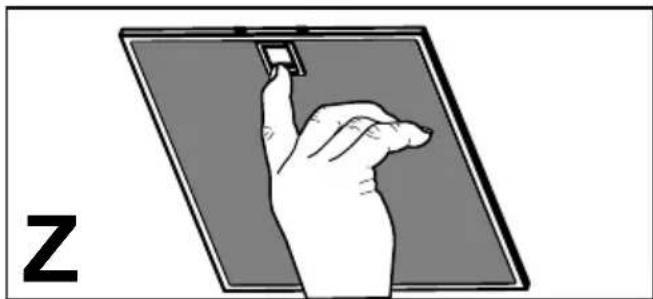

- The Grease filters must be every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand holding a small object on a tablet screen, with letter 'Z' in the corner (no text or symbols on the diagram itself)

- Clean the hood using a damp cloth and a neutral liquid detergent.

the CONTROLS

S V1 V2 V3 L

L	Light	Switches the lighting system on and off.
S	Led	Motor running led.
V1 under	Motor	Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours.
V2 uously	Speed	Medium speed, suitable for most operating conditions given the optimum treated air flow/n level ratio.
V3	Speed	Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

cleaned

5. LIGHTING

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
	4 E14 2	20-240 107 x 37	DRBB/F-4-220-240-E14-35/100

m s Z eff

S V1 V2 V3 L

L	Light Switches the lighting system on and off.
S	Led Motor running led.
V1	Motor Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours.
V2	Speed Medium speed, suitable for most operating conditions given the optimum treated air flow/r level ratio.
V3	Speed Max mum speed, used for eliminating the highest cooking vapour emission, including long periods.

oise

5. BELEUCHTUNG

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Diagram illustrating a shopping cart with two circular insets showing mechanical components and directional arrows, labeled 'W'

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

S V1 2 V2 3 V3 L

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Ampoule Absorption (W) Cullot Voltage (V) Dimensions (mm)				Code ILCOS
[1422]	4 E14 220-240		107 x 37	DRBB/F-4-220-240-E14-35/100

NL 1. VEILIGHEIDSINFORMATIE

Illustration of a hand interacting with a device on a screen, labeled 'Z' (no text or symbols on the diagram itself)

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Lamp Stroomopname (W) Aansluiting Voltage (V) Afmeting (mm) ILCOS-code
	4 E14 220-240 107 x 37 DRBB/F-4-220-240-E14-35/100

ES

Illustration of a hand holding a small square object on a tablet screen, with letter 'Z' and no visible text or symbols.

S ① V1 ② V2 ③ V3 L

Illustration of a hand holding a small electronic component on a screen, with letter 'Z' in the corner (no text or symbols on the diagram itself)

S V1 2 V2 3 V3 L

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Illustration of a hand interacting with a device on a tablet screen (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Lampada	Assorbimento (W) Attacco	Voltaggio (V) Dimensione	(mm) Codice ILCOS
[480A]	4 E14 220-240	107 x 37 DRBB/F-4-220-	240-E14-35/100

SV 1.SÄKERHETSINFORMATION

Illustration of a hand holding a small object on a tablet screen, with the letter 'Z' in the corner (no text or symbols on the diagram itself)

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Lampa	Förbrukning (W)	Sockel	Spänning (V)	Mått (mm)	ILCOS art.nr
	4 E14 220-240	107 x 37	DRBB/F-4-220-240	-E14-35/100

NO 1.SIKKERHETSINFORMASJON

Illustration of a hand holding a small electronic component on a flat surface, labeled 'Z' (no text or symbols on the diagram itself)

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Lyspære	Forbruk (W) Sokkel Spenning (V)	Mål (mm) ILCOS	art.nr.
[193X]	4 E14 220-240 107 x 37	DRBB/F-4-220-240-E14-35/100

FI 1. TURVALLISUUSTIETOJA

Illustration of a hand holding a small object on a tablet screen, with letter 'Z' and number 'Z' labeled (no text or symbols on the diagram itself)

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Lamppu Ottoteho (W) Kanta Jännite (V) Koko (mm) ILCOS-koodi
[BKKC]	4 E14 220-240 107 x 37		DRBB/F-4-220-240-E14-35/100

DA 1. OPLYSNINGER OM SIKKERHED

Illustration of a hand interacting with a device on a screen, labeled 'Z' (no text or symbols on the diagram itself)

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Illustration of a hand holding a small object on a flat surface, with letter 'Z' in the corner (no text or symbols on the diagram itself)

S ① V1 ② V2 ③ V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Illustration of a hand holding a small object on a tablet screen, with letter 'Z' in the corner (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Pirn Võimsus (W) Pesa Pinge (V) Möõtmed (mm) ILCOS kood
	4 E14 220-240 107 x 37 DRBB/F-4-220-240-E14-35/100

LV 1. INFORMAÇIJA PAR DROŠIBU

Illustration of a hand holding a small electronic device on a tablet screen (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Lampa	Jauda (W) Ligzda Spriegums (V)	Gabarīti (mm)	ILCOS kods
[45DA]	4 E14 220-240 107 x 37	DRBB/F-4-220-240	-E14-35/100

LT 1. SAUGUMO INFORMACIJA

Illustration of a hand holding a small object on a flat surface, with the letter 'Z' in the corner (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Lemputė	Galingumas (W) Lizdas Įtampa	(V) Matmenys (mm) ILCOS kodas
[3TDS]	4 E14 220-240 107 x 37 DRBB/F-4-220-240-E14-35/100

1. ІНФОРМАЦІЯ

З ТЕХНІКИ БЕЗПЕКИ

Illustration of a hand interacting with a device on a tablet screen (no text or symbols)

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols visible)

Z

du- S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Žiarovka	Príkon (W) Prípojka Napätie (V) Rozmer (mm) Kód ILCOS
	4 E14 220-240 107 x 37 DRBB/F-4-220-240-E14-35/100

RO 1. INFORMATII PRIVIND SIGURANTA

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Bec Putere absorbită (W)	Dulie Tensiune (V)	Dimensiune (mm)	Cod ILCOS
	4 E14 220-240	107 x 37	DRBB/F-4-220-240-E14-35/100

1. INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA

Two circular diagrams showing a person moving on a curved structure, with arrows indicating direction (no text or symbols)

Illustration of a hand holding a small object on a flat surface, with no visible text or symbols.

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Illustration of a hand holding a small object on a flat surface, with the letter 'Z' in the corner (no text or symbols on the diagram itself)

- Očistite napu koristeći vlažnu krpu i neutralni tekući deterdžent.

4. UPRAVLJANJE

S V1 V2 V3 L

L	Svjetla	Pali i gasi rasvjetni uređaj.
S	Led	Paljenja motora.
V1	Motor	Pali i gasi motor za usisavanje najmanjom brzinom, prikladnom za posebno tihu stalnu izmjenu zraka, kod malo isparavanja prilikom kuhanja.
V2	Brzina	Srednja brzina, prikladna za najveći dio uvjeta korištenja, budući da ima izvrstan odnos između dometa obrađenog zraka i zvučne razine.
V3	Brzina	Maksimalna brzina, prikladna za najveće emisije pare od k čak i za duže vrijeme.

5. RASVJETA

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Žarulja	Apsorpcija (W)	Grlo žarulje	Voltaža (V)	Dimenzije (mm)	Sustav označavanja ILCOS
	4 E14 220-240 107 x 37		DRBB/F-4-220-240-E14-35/100

SL 1. VARNOSTNE INFORMACIJE

Illustration of a hand holding a small electronic device on a screen, with letter 'Z' and no visible text or symbols.

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Svetilka Absorpcija (W) Vtičnica	Napetost (V) Mere (mm)	Koda ILCOS
[476D]	4 E14 220-240 107 x 37	DRBB/F-4-220-240-E14-35/100

Illustration of a hand interacting with a device on a screen, labeled 'Z' (no text or symbols on the diagram itself)

S V1 V2 V3 L

Line drawing of a hand using a tool to apply or install a component, enclosed in a circular frame (no text or symbols)

Illustration of a hand holding a small electronic device on a screen, with letter 'Z' and no visible text or symbols.

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Ampul Ampul Gücü (W) Duy/Soket Ampul Voltajı (V) Boyut (mm) ILCOS Kodu
	4 E14 220-240 107 x 37 DRBB/F-4-220-240-E14-35/100

BG 1. ИНФОРМАЦИЯ ЗА БЕЗОПАСНОСТ

yK o- tri- ku to W

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Крушка	Мощност (W)	Фасунга	Напрежение (V)	Размери (mm)	Код по ILCOS
[5×27]	4	E14	220-240	107 x 37	DRBB/F-4-220-240-E14-35/100

1. KAYIPI3DIK

ТУРАЛЫ АҚПАРАТ

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Line drawing of a hand using a tool to interact with a small object, enclosed in a circular frame (no text or symbols)

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Llamba Absorbimi (W) Spina Voltazhi (V) Përmasa (mm) Kodi ILCOS
4 E14 220-240 107 x 37 DRBB/F-4-220-240-E14-35/100

Illustration of a hand holding a small object on a flat surface, with no visible text or symbols.

Diagram illustrating a shopping cart and two circular insets showing mechanical components with directional arrows, labeled 'W'

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Illustration of a hand interacting with a smartphone screen, showing a finger pointing at the screen (no text or symbols present)

S V1 V2 V3 L

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

ILCOS-ر مزإلاً	(الابعاد)	(بفولاتاج (واط)	بتوصيلاه	(بستهلاك (واط)	الإمصباح
DRBB/F-4-220-240-E14-35/100	107 x 37	220-240	E14	4	[CSYW]

CE
