Product type	Analog wristwatch
Model	IAN 285520 (also references 2-LD4647-3-4 and 2-LD4647-6)
Brand	Auriol
Power supply	1 SR626SW battery
Display	Analog (hands), with or without date depending on the model
Main functions	Time and date display (models with date), graduated rotating bezel (model 2-LD4647-6)
Water resistance	5 bars (50 meters) according to DIN 8310 standard
Strap	Metal with adjustable links (resizing tool included for some models)
Care and cleaning	Clean with a dry, lint-free cloth
Battery replacement	Must be done by a watchmaker
Safety	Keep batteries out of reach of children; do not recharge, short-circuit, or open batteries
Spare parts and repairability	Replacement SR626SW battery available; repairs under warranty or by a watchmaker
Package contents	Watch with battery, two extra links (selected models), resizing tool, instruction manual
Warranty	3 years from date of purchase
Disposal instructions	Do not dispose of in household waste; take to a recycling center or collection point (Triman logo)

Frequently Asked Questions - IAN 285520 AURIOL

How do I set the time on my Auriol IAN 285520 watch?

Gently pull out the crown, turn it in either direction to set the time, then push it back against the case. For models without date, one click is sufficient.

How do I set the date on my watch?

For models with date, pull the crown to the second position, turn to set the time, then push back to the first position. Then turn the crown to change the date. Finally, push the crown fully in.

Is my watch water-resistant?

Yes, it is water-resistant up to 5 bars (50 meters) according to DIN 8310 standard. This means it withstands splashes and rain but is not suitable for diving.

How do I change the battery in my watch?

Battery replacement (type SR626SW) must be done by a watchmaker to avoid damaging the case or seals.

How do I shorten the metal strap?

Use the provided tool to remove links. Place the strap in the tool so that the V-notch aligns with the pin, turn the screw to push it out, then remove the pin. Remove the desired number of links (marked with an arrow), then reinsert the pin by turning in the opposite direction. Watch the online video via the QR code in the manual.

What to do in case of contact with a leaking battery?

Avoid any contact with skin, eyes, and mucous membranes. Wear gloves, rinse thoroughly with clean water, and seek immediate medical attention.

How do I clean my watch?

Clean it only with a dry, lint-free cloth, like for eyeglass lenses.

What to do if my watch stops working?

First check the battery. If the problem persists, contact the customer service mentioned in the manual. The watch is covered by a 3-year warranty against material or manufacturing defects.

How to dispose of my watch and used batteries?

Do not dispose of the watch or batteries in household waste. Take them to a suitable collection point (recycling center, battery container). The watch bears the Triman logo indicating it is recyclable.

Does the warranty cover damage from incorrect use?

No, the warranty only covers material or manufacturing defects. Damages resulting from improper use, mishandling, or normal wear and tear are not covered.

USER MANUAL IAN 285520 AURIOL

Usage and safety instruction

FR BE

MONTRE

Usage and safety instructions .... 8 -

Batteriewechsel (SR626SW)

GB Usage and safety instructions

Table of contents

Table of contents -8-

Introduction 9

Intended use -9

Scope of delivery 9

Important safety information for users Important safety information for users

Important safety information for the batteries important safety information for the batteries

Time setting: wristwatch without date display ... - 10 -

Time setting: wristwatch with date display - 10 -

Turning bezel -10-

Instruction manual for models

2-LD4647-3-4,2-LD4647-6 10-

Replacement of battery (SR626SW) - 11 -

Cleaning instructions -11-

Water resistance -11-

Disposal of the watch 11

Disposal of the batteries. -11

digi-tech gmbh warranty. -12-

Warranty conditions -12

Warranty period and defects liability -12

Scope of the warranty -12

Warranty claim procedure 12

Service. -13

Supplier -13

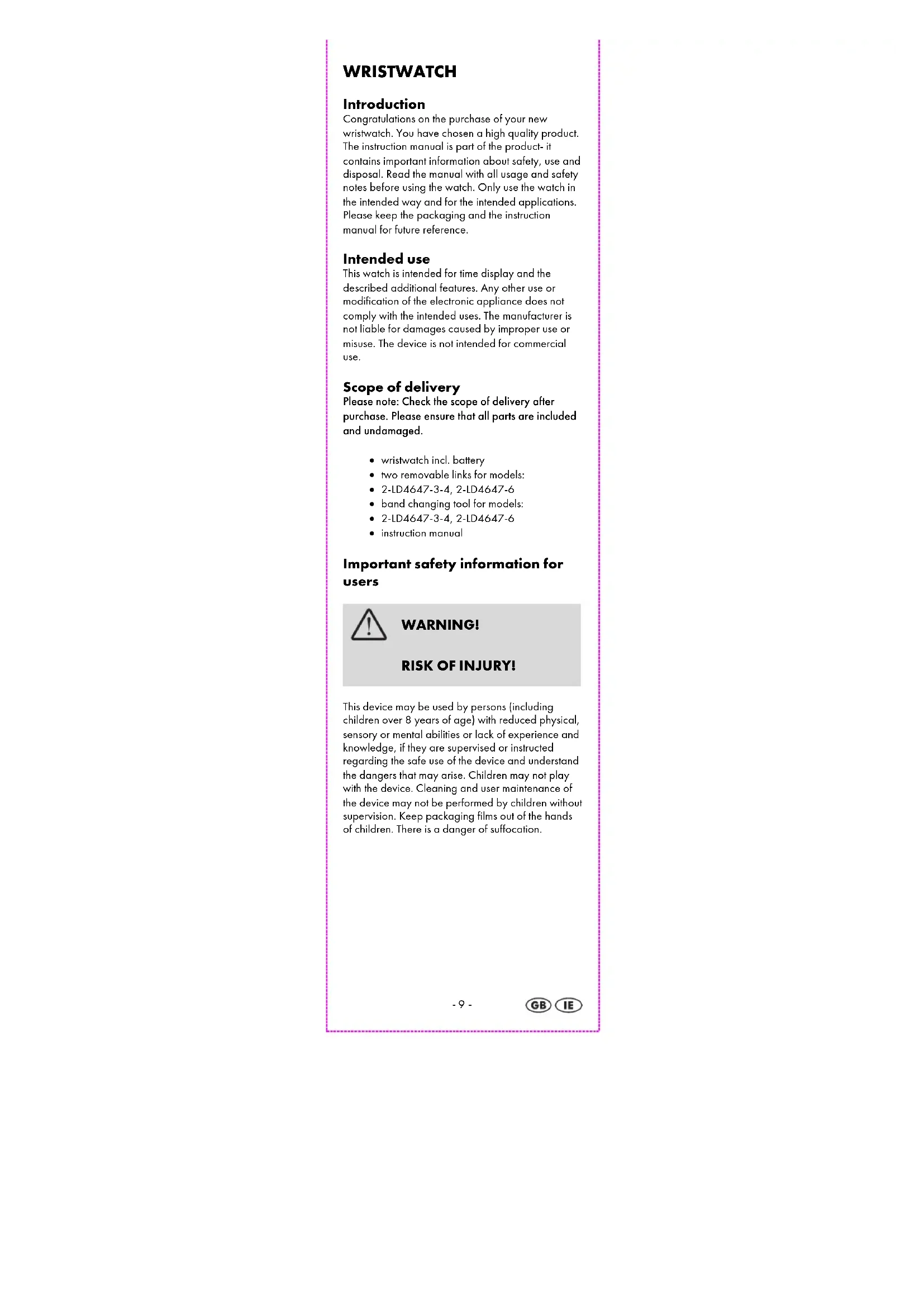

WRISTWATCH

Introduction

Congratulations on the purchase of your new wristwatch. You have chosen a high quality product. The instruction manual is part of the product-it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications. Please keep the packaging and the instruction manual for future reference.

Intended use

This watch is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Scope of delivery

Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

• wristwatch incl. battery
• two removable links for models:
  2-LD4647-3-4,2-LD4647-6
  band changing tool for models:
  2-LD4647-3-4,2-LD4647-6
• instruction manual

Important safety information for users

WARNING!

RISK OF INJURY!

This device may be used by persons (including children over 8 years of age) with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or instructed regarding the safe use of the device and understand the dangers that may arise. Children may not play with the device. Cleaning and user maintenance of the device may not be performed by children without supervision. Keep packaging films out of the hands of children. There is a danger of suffocation.

Important safety information for the batteries

WARNING!

HEALTH HAZARD!

RISK OF EXPLOSION!

Keep batteries out of reach of small children. If a battery is swallowed, you must seek medical attention immediately. Batteries/rechargeable batteries must always be inserted in the correct polarity. If necessary, clean the battery and device contacts. Never attempt to recharge non-rechargeable batteries. Never short-circuit or attempt to open batteries. Never throw batteries into fire as they may explode. If the device will not be used for an extended time period, remove the battery and store the device in a dry and dust-free area. Improper use of the battery can lead to explosion or leakage. If the battery leaks, avoid contact with skin, eyes and mucous membranes. Use gloves. If you are exposed to battery acid, rinse the affected areas with plenty of clean water and immediately seek medical attention. Remove discharged batteries from the device as they present an increased risk of leakage.

Time setting: wristwatch without date display

Carefully pull the crown out all the way. Turn the crown clockwise or counter clockwise to set the time. To finish the setting press the crown back in all the way.

Time setting: wristwatch with date display

To set the time, carefully pull the crown out all the way. Turn the crown clockwise or counter clockwise to set the time. Carefully press the crown back in halfway to the case. The date can be set by turning the crown. To finish the setting press the crown back in all the way.

Turning bezel

2-LD4647-6

Instruction manual for models 2-LD4647-3-4, 2-LD4647-6

-10-

Band shortening can be accomplished by removing links. Open the band clasp safety and open the clasp. The band is held to the clasp by a spring bar. Image 1. Compress and remove the spring bar by using a pointed tool. Now place the watch face down on a soft surface. Image 2. The links that can be removed are marked with an arrow. Image 3. Place the band in the band changing tool in such a way that the pointed end of the tool points directly at the metal rod. Turn the screw in the direction of the arrow until the metal rod is pushed out a small distance. The rod can now be pulled out (using pliers if necessary). The strap can now be taken disassembled. Remove as many links as necessary using this method. Reinsert the rod in the opposite direction of the arrow and push it back into the band. The strap and clasp can now be reassembled. An instructional video is available for online viewing at the following URL: http://specials.lidl.com/videos/nou9nohN/ ..or simply scan the following QR code:

Replacement of battery (SR626SW)

Battery replacements must be performed by an expert to avoid damaging the case or gaskets.

Cleaning instructions

Clean the wristwatch with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

Water resistance

Water resistant up to 5 bar. The bar value specifies the atmospheric overpressure which is applied during testing (DIN 8310).

Disposal of the watch

This wristwatch may not be disposed of with normal household waste. Dispose of the wristwatch at an approved disposal facility or at your local recycling centre. Please observe the current rules and regulations when disposing of the watch. Contact the disposal system if in doubt.

Disposal of the batteries

Please dispose of your batteries properly in containers especially set up at retailers. Batteries do not belong in household waste. Dispose of the batteries at an approved disposal facility or at

at your

at your

rent

m - 1 0 ;

watch .

m = 311 ;

m - 1 0 ;

向

图

4

A

m - 1 0 ;

：

Dispose

your local recycling centre. Contact the disposal system if in doubt.

digi-tech gmbh warranty

This wristwatch includes a 3 year warranty starting on the day of purchase. In case of defects of this wristwatch you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs.

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the wristwatch within 3 years, the wristwatch will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the wristwatch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired wristwatch or a new watch. Repair or replacement does not cause the warranty period to restart.

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The wristwatch was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass.

This warranty becomes void if the wristwatch is damaged, is not used in the recommended way or is improperly repaired.

For proper use of the wristwatch all instructions in this manual must be adhered to exactly. Use of the wristwatch in a way that is discouraged in the manual must be avoided.

The wristwatch is not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (285520) handy.
  The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
  In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service

Please note that the following address is not a service address.

Please first contact the service address (see above).

Name: digi-tech gmbh

Street: Valterweg 27A

Town: DE-65817 Eppstein

Country:GERMANY

2-LD4647-3-4,2-LD4647-6. -17

3 BAR	✓	×	×	×
5 BAR	✓	✓	×	×
10 BAR	✓	✓	✓	×
20 BAR	✓	✓	✓	✓

Leverantiebepaling 23

2-LD4647-3-4,2-LD4647-6 25-

Batterij verrangen (SR626SW) -25-

Schoonmaaktip -25-

Waterdichtheid 25-

2-LD4647-3-4,2-LD4647-6 31-

Vymena baterie (SR626SW) -32-

Pokyny pro cisteni -32

Vodotesnest 32

Vymena baterie (SR626SW)

Vymenu baterie musi provest hodinar. Takhle zabrinite poškozeni pouzdra hodinek a těnsicho kroužku.

Pokyny pro cistěni

Cistete pristooj pouze suchym hladkym hadrikem, ktery se hodi napriklad na cisteni brylovych skel.

Vodotěsnost

3 BAR	✓	X	X	X
5 BAR	✓	✓	X	X
10 BAR	✓	✓	✓	X
20 BAR	✓	✓	✓	✓

2-LD4647-3-4, 2-LD4647-6

3 BAR	✓	X	X	X
5 BAR	✓	✓	X	X
10 BAR	✓	✓	✓	X
20 BAR	✓	✓	✓	✓
