USER MANUAL SuperVarioElmarSL 1635mm f3.54.5 ASPH. LEICA

Product Support/Software Support

Am Leitz-Park 5

D-35578 Wetzlar

Tel.: [phone]/-108

Fax: [phone]

[e-mail]/[e-mail]

LEICA CUSTOMER CARE

Thank you for purchasing this lens and for your trust in our products. Please read this manual carefully to ensure that you will enjoy this high-quality products for many years to come.

PART DESIGNATIONS

Lens hood
a Index points
2 Front mount
a External male bayonet for lens hood
Index point for lens hood
c Internal thread for filter
3 Focus ring
4 Zoom ring
5 Index for focal length
6 Red index button for lens replacement
7 Contact strip

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

(Appplies within the EU and for other European countries with active waste separation policies)

This device contains electrical and/or electronic components which must not be disposed of in general household waste! Make sure to bring this device to a local disposal collection point for recycling. The service is free of charge. Any standard or rechargeable batteries used in this device must be removed and disposed of separately in accordance with local regulations. Please contact your local authorities, waste disposal collection point or the retailer, from whom you purchased the device for more information on correct waste disposal.

TECHNICAL SPECIFICATIONS

Wide-aperture zoom lens with extended mid-range focal length and 4 aspherical lens areas for excellent imaging performance.

Compatible cameras	Any Leica camera with a Leica L bayonet fitting \( {}^{1} \)
View angle (diagonal, horizontal, vertical)	For Leica SL (at 16/35 mm): approx. \( {105}^{ \circ },{95}^{ \circ },{72}^{ \circ }/{64}^{ \circ },{55}^{ \circ } \) , \( {38}^{ \circ } \) , for Leica TL and CL models (at 16/35 mm): approx. \( {81}^{ \circ },{71}^{ \circ },{51}^{ \circ } * / \) \( {45}^{ \circ },{38}^{ \circ },{25}^{ \circ } * * \) (equal to approx. \( {24}^{ * } \) or \( {53}\mathrm{\;{mm}} * * \) focal length for \( {35}\mathrm{\;{mm}} \) image) \( {}^{2} \)

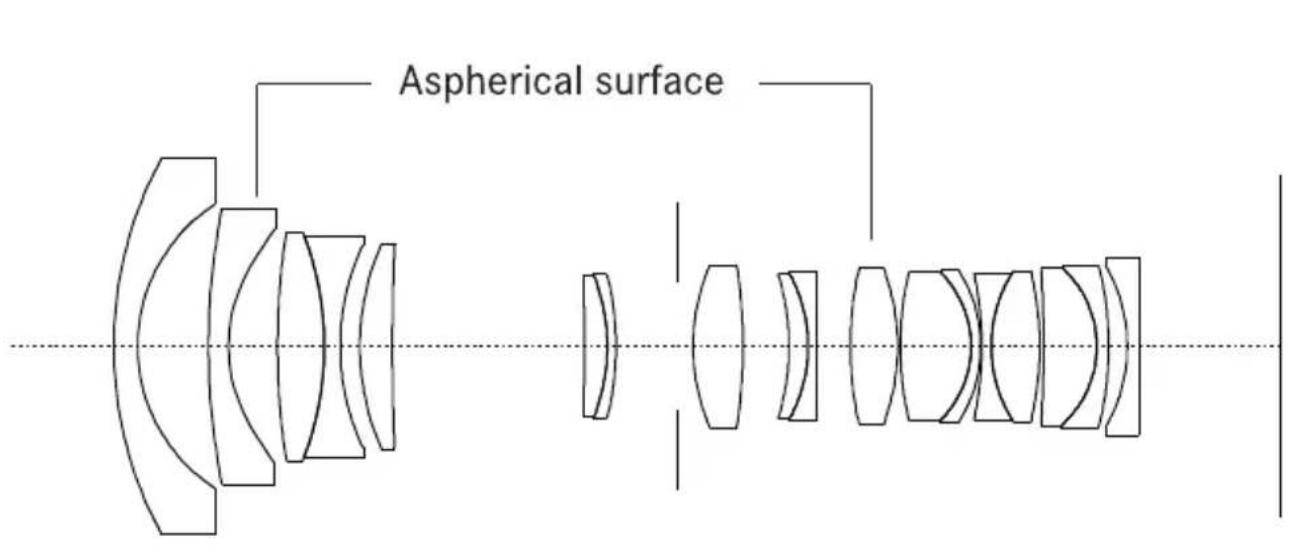

Optics structure
Number of lenses/assemblies 18/12
Aspherical surfaces 4
Position of entrance pupil (in relation to the bayonet seating, set to infinity)	at 16/35 mm: 105.9/105 mm
Distance setting
Setting Automatic (auto focus)	\( {}^{3} \) or manual mode settings on the camera
Focus range	0.25 m to \( \infty \)
Smallest object field / largest scale (at 35 mm)	For Leica SL: approx. \( {90} \times {135}\mathrm{\;{mm}}/1 : {3.7} \) For Leica TL and CL models: approx. \( {59} \times {88}\mathrm{\;{mm}}/1 : {3.7} \)
Aperture
Function Setting	Electronic control On the camera (half value incremental settings)
Lowest value 22

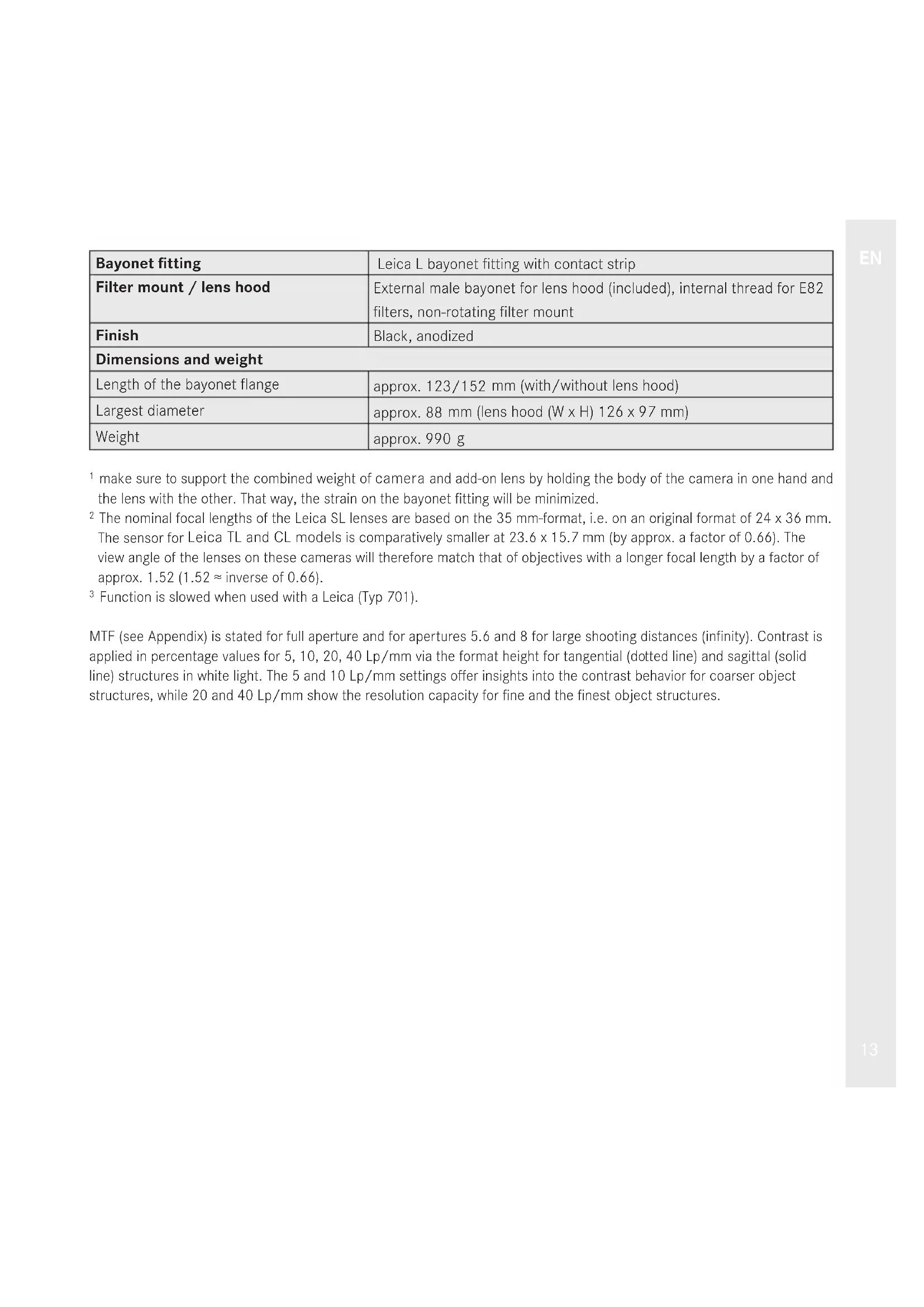

Bayonet fitting	Leica L bayonet fitting with contact strip
Filter mount / lens hood	External male bayonet for lens hood (included), internal thread for E82 filters, non-rotating filter mount
Finish	Black, anodized
Dimensions and weight
Length of the bayonet flange	approx. 123/152 mm (with/without lens hood)
Largest diameter	approx. 88 mm (lens hood (W x H) 126 x 97 mm)
Weight	approx. 990 g

1 make sure to support the combined weight of camera and add-on lens by holding the body of the camera in one hand and the lens with the other. That way, the strain on the bayonet fitting will be minimized.
2 The nominal focal lengths of the Leica SL lenses are based on the 35mm -format, i.e. on an original format of 24× 36mm . The sensor for Leica TL and CL models is comparatively smaller at 23.6× 15.7mm (by approx. a factor of 0.66). The view angle of the lenses on these cameras will therefore match that of objectives with a longer focal length by a factor of approx. 1.52 (1.52≈ inverse of 0.66).
3 Function is slowed when used with a Leica (Typ 701).

MTF (see Appendix) is stated for full aperture and for apertures 5.6 and 8 for large shooting distances (infinity). Contrast is applied in percentage values for 5, 10, 20, 40 Lp/mm via the format height for tangential (dotted line) and sagittal (solid line) structures in white light. The 5 and 10 Lp/mm settings offer insights into the contrast behavior for coarser object structures, while 20 and 40 Lp/mm show the resolution capacity for fine and the finest object structures.

SPECIAL FEATURES

Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH. is a wide angle zoom lens with Leica L-bayonet. It is compatible with Leica SL, LEICA TL and CL cameras¹. It features exceptionally short close-up setting limits, which results in large max. magnification ratios.

The Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH. features excellent contrast rendering and superior resolution with an open aperture, at all focal lengths, and all the way from infinity to close-up. The lens offers image error compensation and any residual image errors are corrected digitally in the camera. Stopping down may offer an additional minor performance increase, but would generally only be used for reasons of image composition via the depth of field.

A total of 18 lenses in five agile assemblies ensure this excellent performance. In addition to the four aspherical surfaces, there are three lenses with anomalous partial dispersion for correcting chromatic image errors. All lens surfaces come with a high quality coating to ensure minimal reflection or scattered light effects.

The focus is set via the movement of a relatively small and lightweight two-lens cemented element. A drive system consisting of a step motor and a linear guide ensure a very fast auto focus function. The actual lens length does not change in this model during focusing, which makes it particularly easy to handle. The focus action is virtually noiseless.

The robust metal construction and complete dust and splash water protection makes this lens a great choice in adverse conditions.

Summary: The Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH. combines virtually all popular wide-angle focal lengths in one single lens assembly and features an extraordinary high imaging performance across the entire focal range from infinity to close-up, with the lens wide open or closed. It also features a highly robust, weatherproof outer casing. A photographer can build a comprehensive high performance kit with just three lenses: Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH., a Leica SL standard zoom and a Leica SL telezoom.

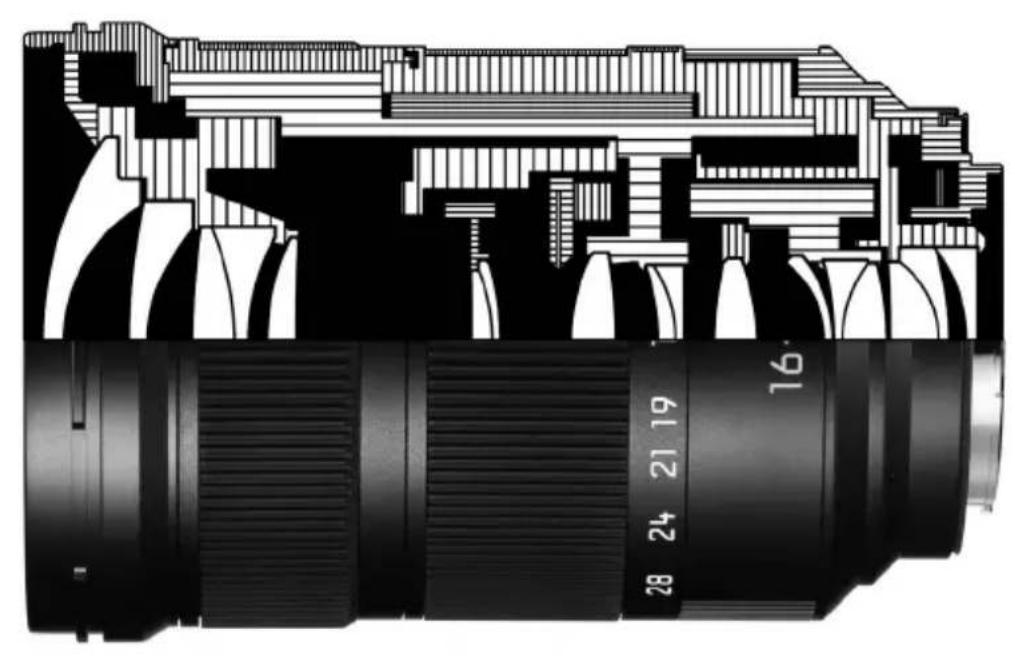

DESIGN OF THE LEICA SL LENSES

All Leica SL lenses look virtually identical: they have 2 an external bayonet fitting on the front 2a for the lens hood 1 and an internal thread 2c for filters; there is a focus ring 3 and a red index button for orientation during lens exchange 6. Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH. comes with an additional zoom ring 4 complete with a visual index 5.

A contact strip 7 in the bayonet flange does all the data exchange between the camera and the lens, including control commands for auto focus and aperture.

ADJUSTMENT OF THE FOCUS AND FOCAL LENGTH

In auto focus mode, the focus is set automatically by the camera; in manual mode, the photographer turns the focus ring 3 at the front of the lens. The speed at which you turn the ring determines how quickly the setting changes. Targeted fine adjustments or moving from a close-up focus to an infinity range couldn't be easier. Please read the relevant sections in the camera manual for more details. Setting the focal length - and therefore the desired image section - is done via the setting ring just behind it 4.

DEPTH OF FIELD

No depth of field scale is provided, because Leica SL lenses don't come with an aperture settings ring. Instead, the top-panel display of the Leica SL offers the near and far focal length limits for the set distance.

TAKING PHOTOGRAPHS WITH AUTOMATIC DISPOSURE SETTINGS AND MANUAL SETTINGS FOR SHUTTER SPEED AND APERTURE

The Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH. features variable shutter speeds, which means that the effective aperture opening will vary depending on the focal length setting. The aperture will match the displayed value if the aperture value 3.5 is set at 16mm . The actual aperture decreases for longer focal lengths and at 35mm we get to the second value of 4.5 this lens is named after. The light metering function of the lens ensures that the correct light volume is measured for any exposure mode. Make sure to specify the desired image section (by selecting the correct focal length) for the later shot before you save the measured value or changing the timer/aperture combination to prevent incorrect exposure.

The same applies for flash operation with a manual setting of the flash output or a computer-controlled flash unit. In both cases, the aperture setting on the flash unit must match to the actual lens aperture. Where a computerized flash unit and a TTL flash exposure controller is used, the actual aperture setting is forwarded automatically and the right exposure will always be guaranteed.

LENS HOOD

The Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH. comes with a lens hood 1 matching the optical beam paths. The symmetrical bayonet is attached quickly and simply; it also fits backwards for space-saving storage. With the lens cover removed, position it in such a way that one of the index points on the lens hood 2b matches the position of the index point on the front mount of the lens 1a. Once aligned, twist the lens hood into position by turning it approx. 30^ until you can hear and feel it click into place. Keep the lens hood in place whenever you carry the camera ready for use. It protects against contrast-reducing stray light and against damage and soiling of the front lens, e.g. from accidental fingerprints.

FILTERS

The Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH. is compatible with E82 screw-on filters. Simply order the relevant UV (Order No. 13 042), ND16x (Order No. 13 059) and polarization filters (Order. No. 13 052) directly from Leica.

SPARE PARTS Order No.

Back cover 16 064

Front cover 16019

Lens hood. 12 304

Softbag. 439-606.130-000

TIPS ON LENS CARE

Dust on outer lenses should only be removed with a soft-haired brush or a soft, clean and dry microfiber cloth. Use a microfiber cloth with a circular motion from the center of the lens outward to remove stains and fingerprints. The Leica Aquadura® coating is dirt-repellent and easy to clean. Avoid cleaning with too much force to maintain this feature as long as possible.

Cleaning cloths for spectacles are not suitable for lens cleaning, because they are doused in chemical substances that could damage the camera lens and its coating.

Avoid excessive pressure on the lens while cleaning, even if the surface is heavily soiled. The coating is abrasion-resistant, but is not impervious to sand particles or salt crystals. Never use any lens cleaner containing solvents or oil.

In addition to its type designation, each lens has its individual serial number. Please note this number in your documents as a safety measure.

LEICA PRODUCT SUPPORT

The product support department at Leica Camera AG will be happy to help you with any questions regarding the technical operation of Leica products by phone or via email. Product Support is also your first point of contact for sales assistance or if you are looking for specific manuals. Alternatively, you can submit questions via the contact form provided on the Leica Camera AG website.

Leica Camera AG

Product Support / Software Support

Am Leitz-Park 5

35578 Wetzlar, Germany

Tel.: [phone]/-108

Fax: [phone]

[e-mail]/[e-mail]

LEICA CUSTOMER CARE

Please contact the Customer Care department at Leica Camera AG or the Repair Service department at your regional Leica subsidiary (a list of addresses is provided on the website of Leica Camera AG) for maintenance or repair issues with your Leica equipment.

Leica Camera AG

Customer Care

Am Leitz-Park 5

35578 Wetzlar, Germany

Tel.: [phone]

Fax: [phone]

[e-mail]

AVANT-PROPOS

Product Support / Software Support

Am Leitz-Park 5

35578 Wetzlar, Germany

Tél. : [phone]/-108

Fax: [phone]

[e-mail]/[e-mail]

LEICA CUSTOMER CARE

35578 Wetzlar, Germany

Tél. : [phone]

Fax: [phone]

[e-mail]

VOORWOORD

Product Support / Software Support

Am Leitz-Park 5

35578 Wetzlar, Germany

Telefoo: [phone]/-108

Fax: [phone]

[e-mail]/[e-mail]

LEICA CUSTOMER CARE

35578 Wetzlar, Germany

Telefoon: [phone]

Fax: [phone]

[e-mail]

PREFAZIONE

Product Support/Software Support

Am Leitz-Park 5

35578 Wetzlar, Germany

Telefono: [phone]/-108

Telefax: [phone]

[e-mail] / [e-mail]

LEICA CUSTOMER CARE

35578 Wetzlar, Germany

Telefono: [phone]

Fax: [phone]

[e-mail]

PROLOGO

Product Support/Software Support

Am Leitz-Park 5

35578 Wetzlar, Germany

35578 Wetzlar, Germany

35578 Wetzlar, Germany

電話：[phone]/-108

傳真：[phone]

[e-mail]/[e-mail]

LEICA顧客服務

35578 Wetzlar, Germany

電話：[phone]

傳真：[phone]

[e-mail]

前言

35578 Wetzlar, Germany

电话：[phone]/-108

传真：[phone]

邮箱：[e-mail]/[e-mail]

LEICA 客户服务部

35578 Wetzlar, Germany

电话：[phone]

传真：[phone]

[e-mail]

声明

自他之，

部

Leica Super-Vario-Elmar-SL 16-35 f/3.5-4.5 ASPH. 是一个反向的开张的，它和它都适合。当，该定的主语是“如果”时，主语是“如果”。
Togeth is the first thing that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that can be done in a way that cannot be done.

IeR 10.

Lefes H

Product Support/Software Support

Am Leitz-Park 5

35578 Wetzlar, Germany

+49(0)6441 - 2080 - 111 / - 108

默：[phone]

[e-mail]/[e-mail]

LEICA 这个东西是

Leica 好贝 Uzit bssn 15000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Leica Camera AG

Customer Care

Am Leitz-Park 5

35578 Wetzlar, Germany

+49(0)6441 - 2080 - 189

[ \text{默} \text{山}: +49(0)6441 - 2080 - 339 ]

[e-mail]

PPEINCSIOBNE

Bolbwoe cnpn6o 3a oBepne, KOTOpoe Bbl OKa3aHn Ham npno6peTeHNem 3T0rO 06BeKTHBa. YTO6bl 3TO BlicOKokaueeCTBeHHOE n3dJIne IOCTabJIIO Bam yIOBOJIbCTBNE MHOrne IOnbl, BHIMATEJIbHO pOCHITaHTe 3Tu INHCTpyKcIIO.

OBO3HAUEHNE JETAJEIN

1 CBeTo3aUHTNa 6JIeHda
a INDEKCOM
2ФpoHTaIbHaonpaBa
BHeWHHm 6aHOHTOM DnA CBETO3aUTHOJ 6JeHNbI
3 INHnDEKCOM DnA CBeTo3aunTHoN 6JIeHnDbI
BHyTpeneHnepe3b6oInlaTpa
3 KonbUO FOKycnpoBKN
4 PerynipobOohoe KOJIbUo 0 KOKyCHoro paCToHHa
5 5kaanafokychohoro pacctoHHa
6 KpacnaKHONka-UNDEKcIy CmehbIOBeKTINBa
7 KOHTaKTHa KOnOJaKa

YTHIN3AUNI 3JEKTPNUECKNX I 3JEKTPOHHbIX PPNBOPOB

(PacnpocpaHareTcHa ctpaHbI Ebponeckoro Co1o3a, a taKxe Ha npyrne ebponeckne rocydapctBa, B KOTopbIX DeiCTByET CnCTema pa3deNbHOrO cbopa OTxOIOB.)

3TO yCTPOIcTBo COePjNT 3JIeKTPnueckne n/nn 3JIeKTPoHbIe KOMNoHEnTbI, I NO 3ToI npuHHe OHO He MoXET 6blt bYTHIN3NpOBAHO BMeCTe C 06bUHbIMN 6blTOBbIMN OTxODaMn! BMeCTO 3TOrB U cIax BTOpNUHO Ipepa6OTKn 3TOr OyCTPOIcTBa eRTO Heo6XoDIMO CdaTb B OINH INCpuAnH3npOBAHHbIX NyHKTOB pInema, KOToPbIE oprAHIN3OBbIAIOTCs OprAHAMN MeCTHO CamOynpAIBeHnra. 3Ta YcLyra RaBnaTeC 6ecPiAtHO. Ecln YCTPOIcTBO Hmee TcMeHHbIe 3JIeMENTbI PHTAHN INAKKyMuJlTOpbl, To INx Heo6XoDIMO IN3BLeCbN, IpN Heo6XoDImOCtN, YTHIN3NpOBAbTcGnLacHO DeiCTByUOzIM npabnlam. Bolee PoDPbHyIO INΦopMaunIO Bbl MOXETI ONyUHTB BAWeM KOMMyHaJIbHOM UnpaBNeHn, PpeIpnTn IO c6Opy INyTIIN3aUnn OTxODOB INN B MaRa3InHe, B KOTOPOM Bbl Prno6peNil DaHHoe yCTPOIcTBO.

TEXHNUECKNEXAPAKTEPNCN

CBeTocnHbIyM-ObekTNB C paunpeHHbIM CEHTpaIbHbIM dnaana3OHOM okychoTO pacCTOHN, OChaueHHb4 aeepeuueckmnn HnH3amn n oecneuBAoosn npekpachoe kaeCTBO n3o6paxeHn.

35578 Wetzlar, Germany

Tel.: [phone]/-108

Fax: [phone]

[e-mail]/[e-mail]

LAYANAN PELANGGAN LEICA

35578 Wetzlar, Germany

Telp.: [phone]

Fax: [phone]

[e-mail]

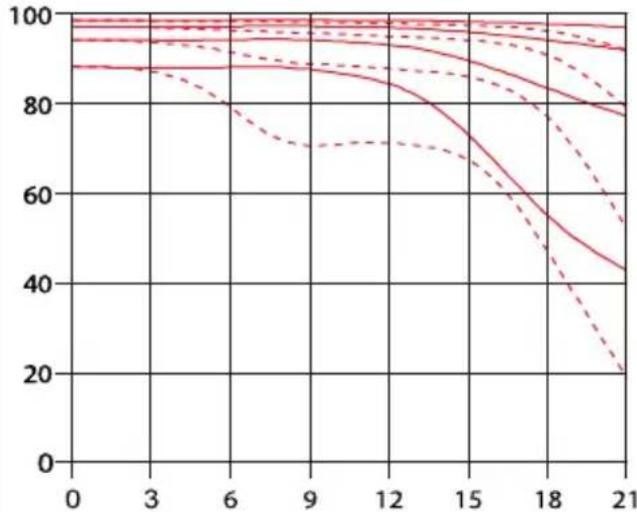

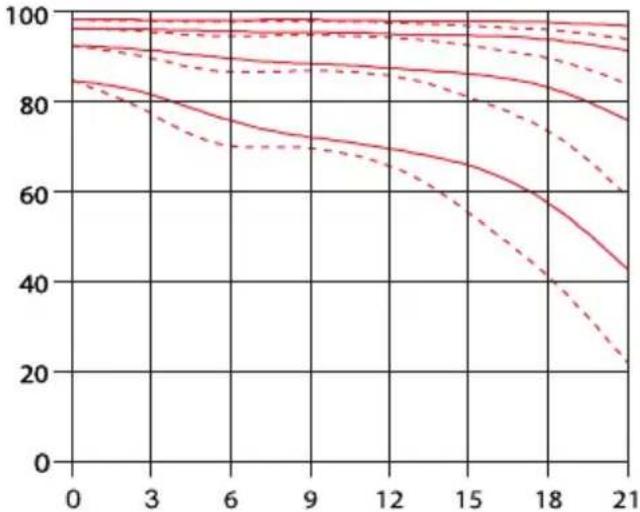

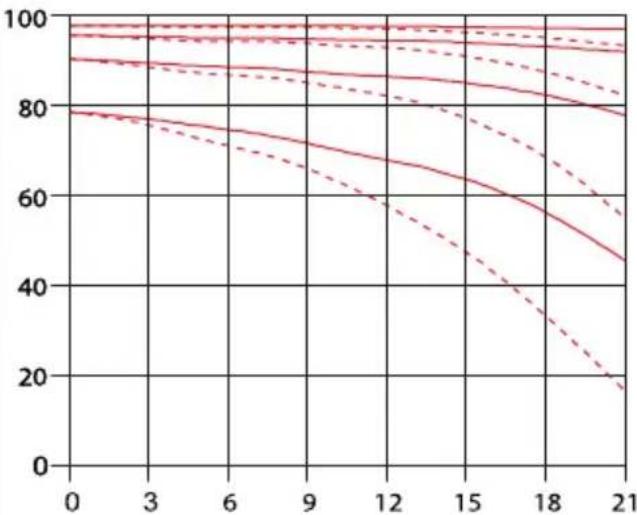

FOCAL LENGTH 16mm

f 3.5

f4.0

f4.5

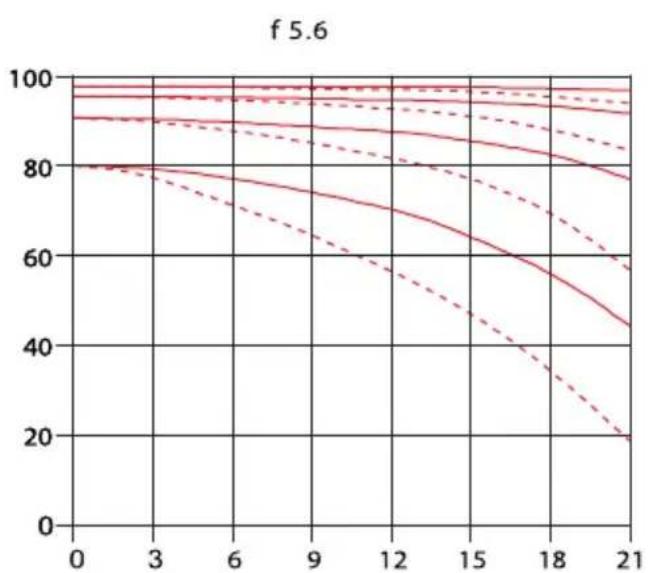

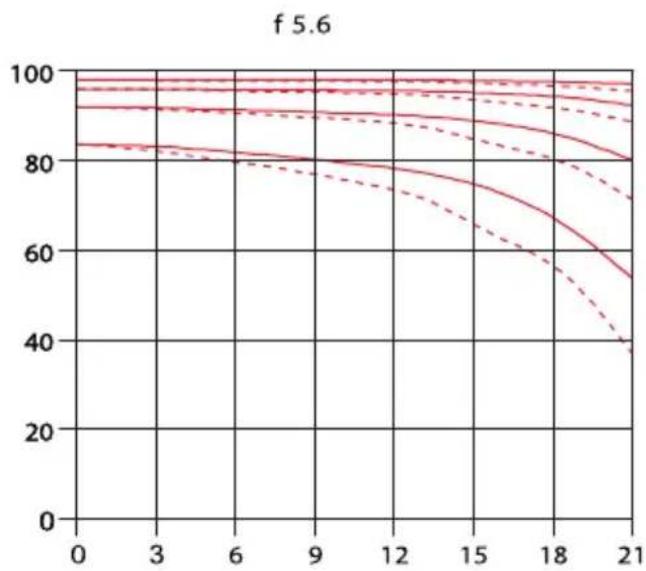

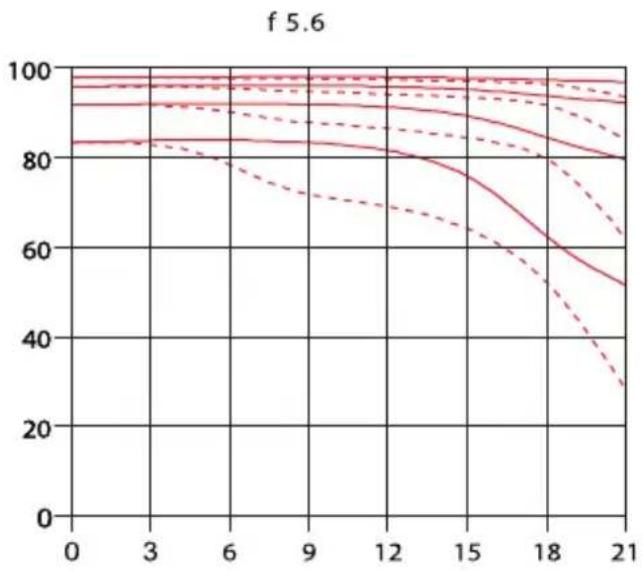

FOCAL LENGTH 24mm

MTF

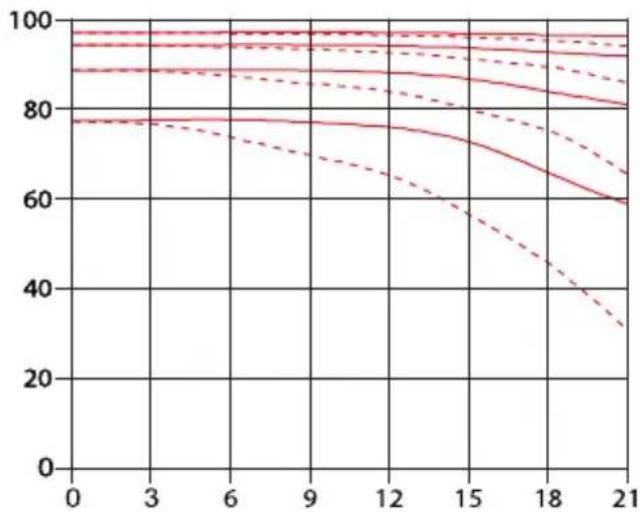

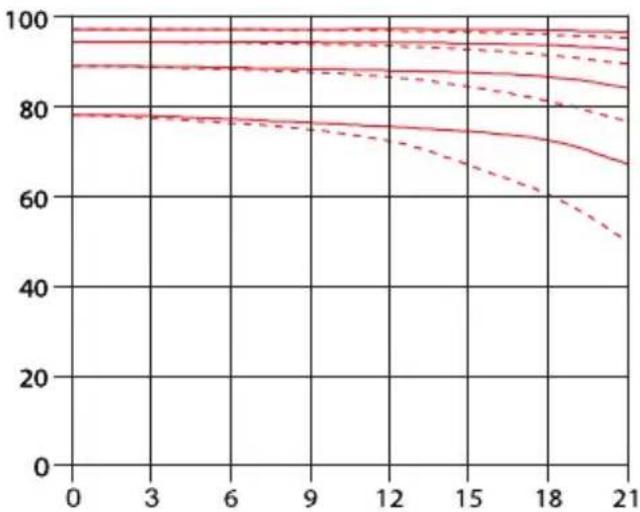

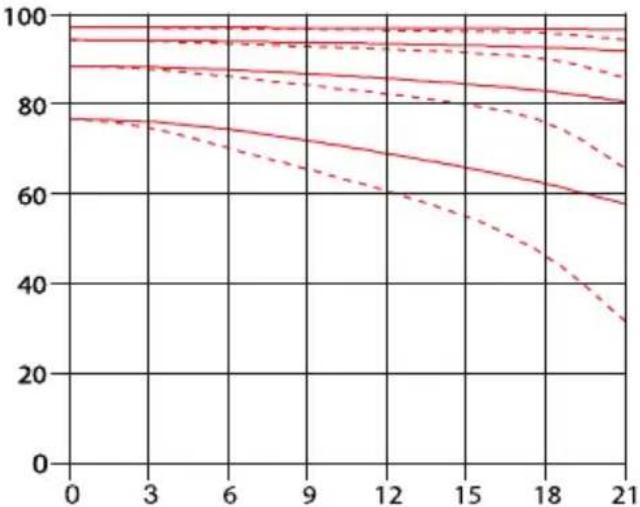

FOCAL LENGTH 35mm

f8.0

f8.0

f8.0

产品说明书附件SUPPLEMENT TO PRODUCT INSTRUCTIONS
这个文件涉及的是在中华人民共和国境内进口或销售的电子信息产品Include this document with all Electronic Information Productsimported or sold in the People's Republic of China
SUPER-VARIO-ELMAR-SL1:3.5-4.5/16-35 ASPH.order# 11177	有毒有害物质和元素
	Toxic and Hazardous Substances and Elements
部件名称Part Name	铅	汞	镉	六价铬	多溴联苯	多溴二苯醚
	Lead(Pb)	Mercury(Hg)	Cadmium(Cd)	HexavalentChromium(Cr(VI))	Polybrominatedbiphenyls(PBB)	Polybrominateddiphenyl ethers(PBDE)
电路模块(Circuit Modules)	0	0	0	0	0	0
电缆及电缆组件(Cables & Cable Assemblies)	0	0	0	0	0	0
金属部件(Metal Parts)	X	0	0	0	0	0
塑料和聚合物部件(Plastic and Polymeric parts)	0	0	0	0	0	0
光学和光学组件(Optics and Optical Components)	0	0	0	0	0	0
电池(Batteries)	0	0	0	0	0	0
表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006标准规定的限量要求以下。Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part isbelow the limit requirement in SJ/T11363-2006.
表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006标准规定的限量要求。Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials usedfor this part is above the limit requirement in SJ/T11363-2006.
All parts named in this table with an X are in compliance with the European Union's RoHS Legislation "Directive2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use ofcertain hazardous substances in electrical and electronic equipment."
除非另外特别的标注,此标志为针对所涉及产品的环保使用期标志。某些零部件会有一个不同的环保使用期(例如,电池单元模块)贴在其产品上。此环保使用期限只适用于产品是在产品手册中所规定的条件下工作。The Environmentally Friendly Use Period (EFUP) for all enclosed products and their parts are perthe symbol shown here, unless otherwise marked. Certain parts mayhave a different EFUP (for example, battery modules) and so are marked to reflect such. TheEnvironmentally Friendly Use Period is valid only when the product is operated under the condi-tions defined in the product manual.
