RG 9474 - Grill plate SEVERIN - Free user manual and instructions

Product type	Raclette grill with natural cooking stone
Brand	Severin
Model	RG 9474
Cooking surface	Natural cooking stone and reversible plate (grooved side and smooth side for crêpes)
Adjustable thermostat	Yes, with yellow indicator (heating) and red indicator (ready)
Included accessories	4 mini pans, cooking stone, reversible plate
Power	Approximately 1200 W
Power supply voltage	220-240 V ~ 50/60 Hz
Stone material	Natural stone (caution against thermal cracks and vinegar)
Non-stick coating	Yes, on the reversible plate and mini pans
Number of mini pans	4
Main functions	Raclette, grilling, cooking meat, fish, vegetables, crêpes
Cleaning the stone	Under running water only, without detergent, with a synthetic sponge
Cleaning the plate and mini pans	With warm soapy water, dry thoroughly
Safety	Unplug before cleaning; do not immerse; keep out of reach of children under 8 years
Warranty	2 years
Use	Domestic and similar (offices, hotels, etc.)

Frequently Asked Questions - RG 9474 SEVERIN

How to clean the cooking stone?

Let the stone cool down, then clean it only under running water with a synthetic sponge, without detergent. Dry it thoroughly with a soft cloth. Never immerse it.

What type of cheese to use for raclette?

Preferably use raclette cheese or soft cheese, cut into slices 3 to 5 mm thick. Allow 200 to 300 g per person.

Can I cook frozen food?

It is recommended to thaw frozen food before grilling to avoid damaging the stone or plate and ensure even cooking.

What if the appliance does not heat up?

First check that the plug is properly connected and the thermostat is set to a high position. If the yellow indicator does not light up, contact customer service (see addresses in the manual).

How to preheat the appliance?

For the plate, preheat for about 10 minutes. For the cooking stone, preheat for about 25 minutes with the thermostat at maximum.

Can I use metal utensils on the plate or mini pans?

No, use only non-abrasive utensils (wood, silicone, plastic) to avoid scratching the non-stick coating.

What is the warranty period?

The warranty is 2 years from the date of purchase, against any material defect or manufacturing fault. It does not cover normal wear or damage due to misuse.

How to eliminate the new smell on first use?

Heat the appliance empty for about 10 minutes, ensuring good ventilation (open windows). A slight smoke is normal. Then clean the stone, plate, and mini pans.

Can I leave the appliance plugged in after use?

No, after use, set the thermostat to the minimum position and always unplug the plug from the wall socket for safety reasons.

Are the mini pans dishwasher safe?

The manual does not specify, but it is recommended to wash them by hand with warm soapy water to preserve the non-stick coating.

USER MANUAL RG 9474 SEVERIN

GB Instructions for use

FR Mode d'emploi

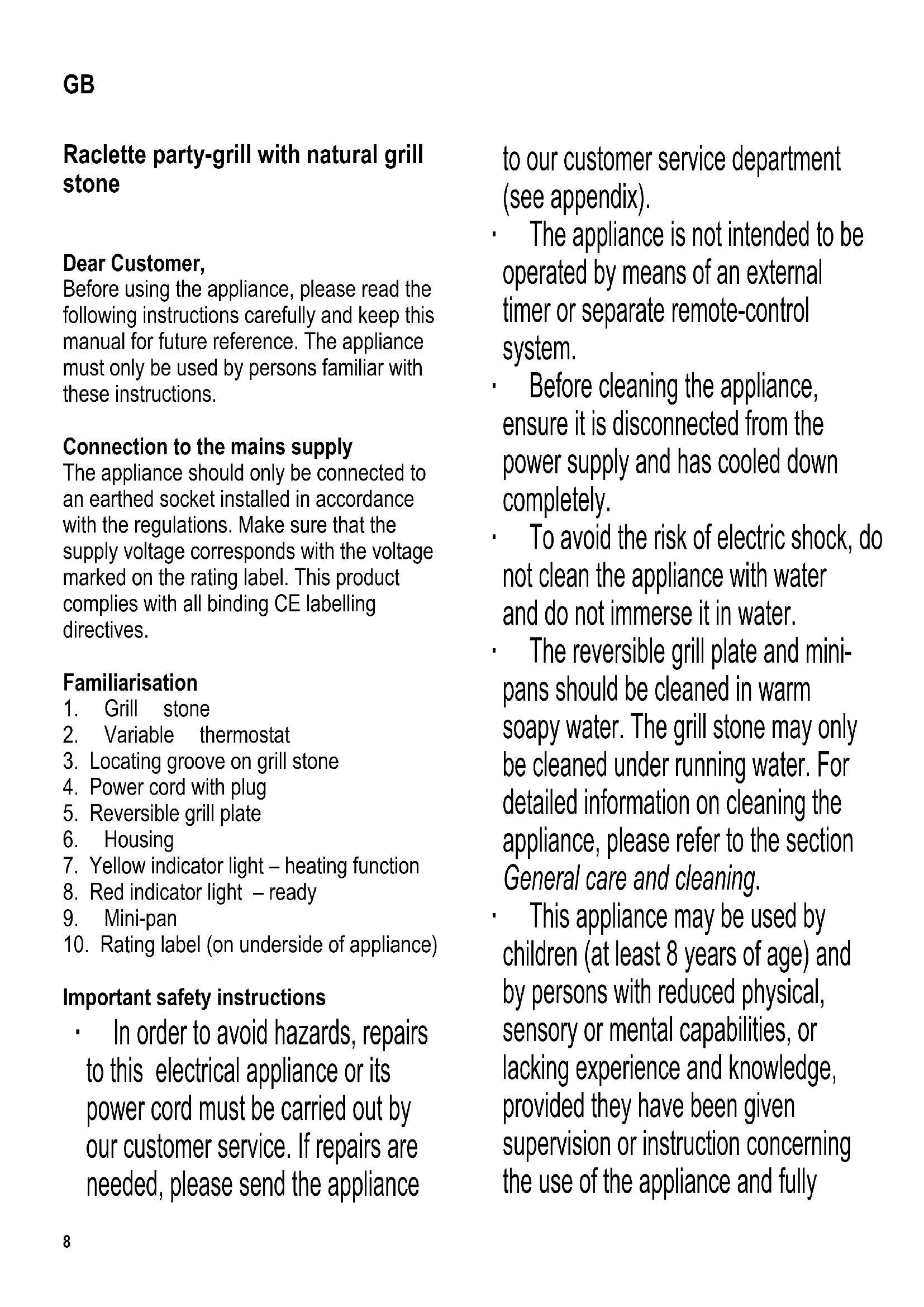

Raclette party-grill with natural grill stone

Dear Customer,

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Grill stone
2. Variable thermostat
3. Locating groove on grill stone
4. Power cord with plug
5. Reversible grill plate
6. Housing
7. Yellow indicator light - heating function
8. Red indicator light - ready
9. Mini-pan
10. Rating label (on underside of appliance)

Important safety instructions

In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance

to our customer service department (see appendix).

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• The reversible grill plate and mini-pans should be cleaned in warm soapy water. The grill stone may only be cleaned under running water. For detailed information on cleaning the appliance, please refer to the section General care and cleaning.
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully

understand all dangers and safety precautions involved.
Children must not be permitted to play with the appliance.
Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord must be kept well away from children under 8 at all times.
- Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.
- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
- The surfaces of the appliance, the reversible grill plate, grill stone and mini-pans become hot during use. Caution: there is a danger of burning injury.
Do not leave the appliance unattended while in use.
- Do not allow the power cord to touch any hot part of the appliance.
During operation, the appliance must

be placed on a heat-resistant surface, impervious to splashes and stains.

When cooking food with a high fat or moisture content, splashes are not always avoidable.

• Do not position the grill next to a wall or corner, and ensure that no inflammable materials are stored near it.
• Before use, the reversible grill plate and the grill stone must be placed on top of the appliance over the heating element.
  Always remove the plug from the wall socket

-after use,

-in case of any malfunction, and before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.
  This appliance is intended for domestic or similar applications, such as

• in shops, offices and other similar working environments,
  -in agricultural working environments,
  -by customers in hotels, motels etc. and similar establishments,
  -in bed-and breakfast type environments.

How to use your grill

Before first use

• Remove any packing materials completely.
• Before using the grill for the first time, clean the reversible grill plate, grill stone and mini-pans with a damp cloth.
• Heat up the appliance and mini-pans for about 10 minutes, without any food, to

eliminate the smell typically encountered when first switching on a grill (a small amount of smoke may be noticeable). For that reason, adequate ventilation should be ensured by opening windows or balcony doors.

Clean the appliance afterwards as described in General care and cleaning.

Grill stone

• Fit the stone on to the appliance over the heating element, with the polished side up. Caution: avoid placing a cold stone onto a hot element.
  The stone can be used for cooking vegetables, sliced meat or fi sh etc. as required.
• This stone is entirely natural material. Small cracks resulting from natural expansion and contraction during heating and cooling, as well as a change to a darker colour are normal and have no detrimental effects.
• Do not place any frozen food or items containing vinegar (such as pickled gherkins or mustard) on the stone.

Reversible grill plate

• Fit the grill plate on to the appliance over the heating element.
• With the ribbed side facing upwards, the grill plate can be used for grilling in the normal way. The grill plate should be lightly greased before use. The reverse side is suitable for cooking 4 small crêpes or pancakes.

Variable thermostat and indicator light

If the thermostat control is set to its highest setting (hard to the right), the heating element will be switched on most of the time. If the

thermostat is moved to the left (lower setting), the heating element will switch off from time to time and then switch on again.

The yellow indicator light remains lit as long as the heating element is switched on.

After use, return the thermostat to its lowest setting and unplug the appliance from the mains supply.

Operation

• Place the grill stone and the reversible grill plate on the unit, ensuring that the locating groove on the grill stone is properly secured by the corresponding lugs on the holding bracket. For safe operation, the additional ridge on the grill plate must sit securely in front of the lugs on the holding bracket.
• Insert the plug into a suitable wall socket and push the thermostat all the way to the right.
• Let the appliance preheat for about 10 minutes to reach the required temperature. However, the grill stone requires a pre-heating time of around 25 minutes.
• Place the food to be cooked on the grill plate or on the stone as required. The grill plate can also be used for preparing crêpes or pancakes.
• Put the raclette cheese into the mini-pans. Place the mini-pans in the appliance, under the heating element, and leave them until the cheese has melted.

Warning: Do not place empty mini-pans in the appliance while it is switched on.

• When grilling is finished, push the thermostat all the way to the left and unplug the appliance from the mains.

How to prepare raclette cheese

Use about 200 to 300 grams of cheese per person. Cut the cheese into slices of about 3 to 5mm thickness and put them into the mini-pans. It is preferable to use original raclette cheese. Any other fast melting cheese, however, is also suitable.

Practical hints

• Frozen food should always be properly thawed before it is cooked.
• To avoid damage to the coating of grill plate and mini-pans, use only non-abrasive utensils.
• When grilling larger amounts of food, the accumulated fat should be carefully removed from time to time.

General care and cleaning

• Before cleaning the appliance, always make sure that the plug has been removed from the wall socket and allow the appliance to cool down.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives or harsh cleaning solutions.
• Wipe the outer surfaces of the grill with a clean damp cloth.
• Remove the grill plate and rinse it in a little hot water. If necessary, some mild detergent may be used. Wipe thoroughly dry again with a soft cloth.
  Before the stone is removed for cleaning, ensure it has cooled down completely. Clean the stone with a synthetic sponge under running water without detergent. Wipe thoroughly dry afterwards with a soft cloth. Do not immerse the stone in water.
  Clean the mini-pans in warm soapy water

and dry them thoroughly afterwards.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
