HS 7730 - Hair Straightener GRUNDIG - Free user manual and instructions

Product type	Hair straightener with ceramic plates and ionizer
Brand	Grundig
Model	HS 7730
Plates	5-layer ceramic straightening plates and stainless steel curling plates
Adjustable temperature	From 80°C to 210°C (14 levels)
Ionizer	Yes, negative ion emission (button activation)
Memory function	Yes, remembers the last temperature used
Turbo heating	Yes, reaches 210°C in 110 seconds
Automatic button lock	Yes, after 5 seconds of inactivity
Clip lock	Yes, for storage
Automatic shut-off	Yes, after 60 minutes of non-use
Cord	Power cord with swivel
Power supply	220-240 V~, 50 Hz
Power	45 W
Safety	Automatic shut-off, overheat protection, heat-resistant surface
Maintenance	Clean with a damp cloth; do not immerse
Repairability	Cable replaceable by a professional; do not open the device

Frequently Asked Questions - HS 7730 GRUNDIG

How to adjust the temperature on the Grundig HS 7730 straightener?

Use the + and - buttons (H) to set the temperature among 14 levels, from 80°C to 210°C. For fine hair, use a low temperature (80-170°C); for thick hair, a high temperature (180-210°C). Once the desired temperature is reached, the LCD display stabilizes.

What to do if the buttons are locked?

The device has an automatic button lock after 5 seconds. To unlock, press the - button (H) for 2 seconds. The temperature lock unlocks in the same way.

How to activate the ionic function?

Press the Ions button (J) to turn on the ionizer. The ion indicator light (F) will display. Negative ions neutralize static electricity in the hair. To turn off, press the same button again.

How to straighten hair with this straightener?

Comb a strand of about 3 cm. Place it between the straightening plates (C) near the root. Close the clip and slide the device gently from root to tip without stopping. Repeat strand by strand.

How to create curls or waves?

Place a strand between the straightening plates (C) near the root, close the clip. Give the device a 180° rotation to wrap the hair around the plates. Pull gently towards the end to form a curl. The curved curling plates help create dynamic curls.

How to clean the Grundig HS 7730 straightener?

After turning off and unplugging the device, let it cool completely (about 45 minutes). Clean it with a soft, damp cloth. Never immerse the device or cord in water. Do not use harsh cleaning products.

How long does it take for the straightener to heat up?

The straightener reaches 100°C in 30 seconds and the maximum temperature of 210°C in 110 seconds thanks to the turbo heating function (press and hold + for 2 seconds).

What to do if the power cord is damaged?

Do not use the device. Have the cord replaced by the manufacturer, an authorized service center, or a qualified person to avoid any risk of electric shock. Do not attempt to repair it yourself.

Why does my straightener turn off by itself?

The device is equipped with automatic shut-off after 60 minutes of non-use. This is a safety feature. If you are using it, it will stay on. Otherwise, turn it off manually and unplug it.

Is this straightener suitable for fine or fragile hair?

Yes, thanks to the temperature setting from 80°C to 210°C. For fine, porous, colored, or bleached hair, use a temperature between 80°C and 170°C. Always start with the lowest temperature.

USER MANUAL HS 7730 GRUNDIG

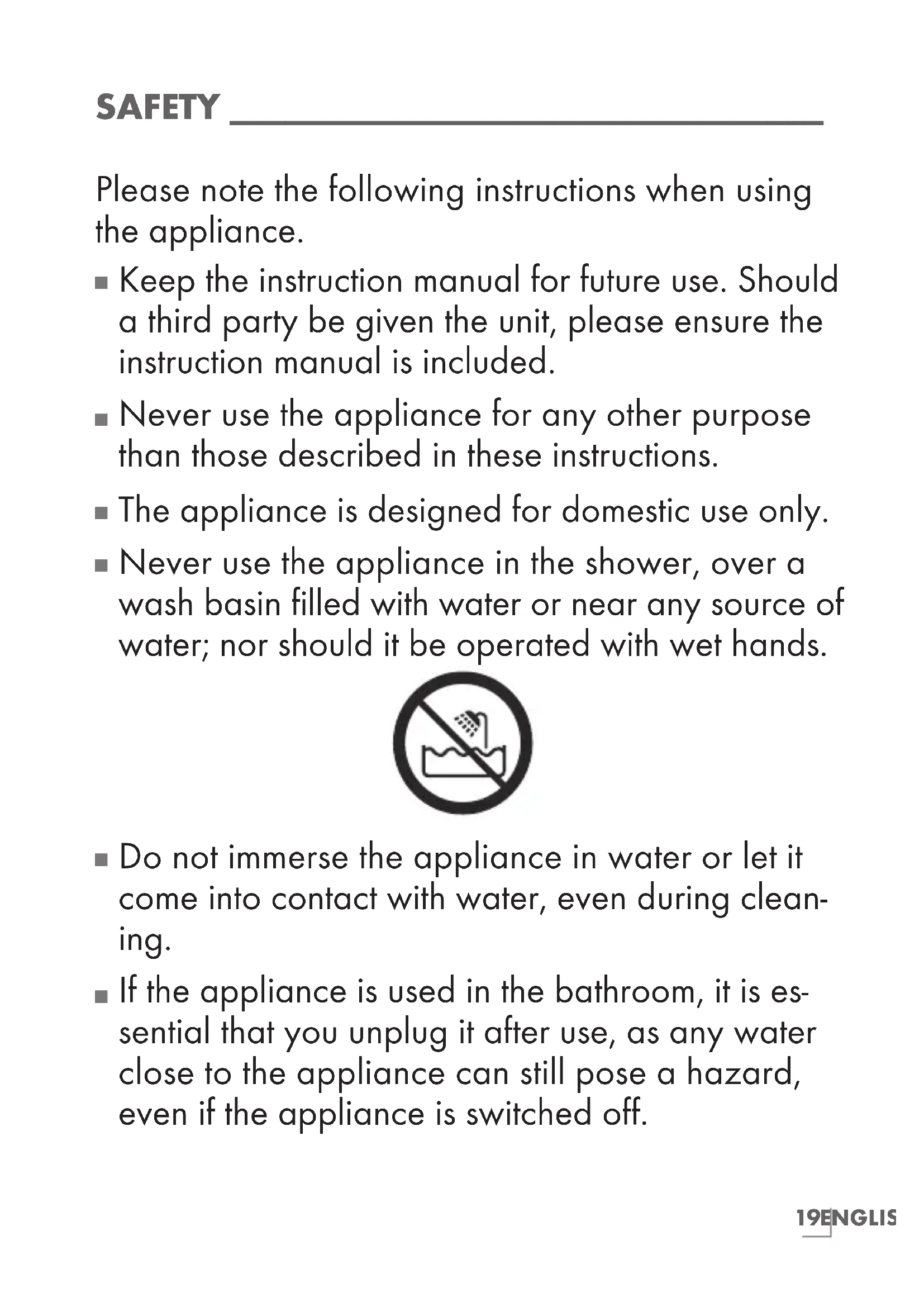

Please note the following instructions when using the appliance.

• Keep the instruction manual for future use. Should a third party be given the unit, please ensure the instruction manual is included.
• Never use the appliance for any other purpose than those described in these instructions.
  The appliance is designed for domestic use only.
• Never use the appliance in the shower, over a wash basin filled with water or near any source of water; nor should it be operated with wet hands.

• Do not immerse the appliance in water or let it come into contact with water, even during cleaning.
  If the appliance is used in the bathroom, it is essential that you unplug it after use, as any water close to the appliance can still pose a hazard, even if the appliance is switched off.

If not already in use, installing a residual current-operated protective device (RCD) is recommended for additional protection with a rated residual operating current not exceeding 30mA in the electrical circuit of your bathroom. Ask your plumber for advice.
- Never cover the appliance, for example with a towel.
- Never place the appliance on soft cushions or blankets during operation.
- The appliance can become very hot. Do not keep your hair around the curling plates or between the ceramic plates for more than a few seconds.
- Do not allow the hot plates to come into contact with your face, neck or head. Do not touch it with your bare hands.
- Unplug the appliance after use and before cleaning. Do not disconnect the plug by pulling on the cord. Place the appliance on a heat resistant surface and allow it to cool down.
- Always allow the unit to cool down on a flat, heat resistant surface.

• Never use the appliance if it or the power cord is visibly damaged.
  If the power cord is damaged, it must be replaced by the manufacturer, a service centre or a similarly qualified person to avoid any danger of electrical shock.
• Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Keep the appliance out of the reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not leave the appliance unattended when switched on.

• Never open the appliance under any circumstance. No warranty claims are accepted for damage caused by improper handling.

• Check if the mains voltage on the type plate (on the handle of the appliance) corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to unplug it.
• Never wrap the power cord around the appliance.
• Never use the appliance in or near to combustible, inflammable places and materials and furniture. Do not let the appliance come into contact with or become covered by inflammable materials e.g. curtains, textiles, etc. Please make sure that the appliance is always kept a safe distance away from flammable materials and furniture.
• Do not use paper, cardboard, plastic, inflammable, unprotected polished surfaces under the appliance.
• Never use the appliance outdoors.

Dear customer,

congratulations on purchasing the GRUNDIG Professional Ionic Hair Styler Straight & Curls HS 7730.

Please read the following user guide carefully to ensure that you have many years of enjoyment from your quality Grundig product at home.

Responsible trading!

Both internally and for suppliers, GRUNDIG insists on contractually guaranteed social working conditions with fair

wages, efficient use of raw materials with continuous reduction in waste of several tonnes of plastic each year and at least 5 years availability for all accessories.

For a future worth living.

Grundig.

Controls

See the figure on page 3.

A Cool tip
B Curling plates
Straightening plates (5 times ceramic-coated)
Brush sleeve
E Ion emitting hole
F Ion indicator light
G LCD display
H Buttons ( + , -) for regulating the temperature (14 levels 80^ to 210^
On/Off button
Jlonic button
Hinge lock button
Power cord with swivel joint

The appliance has individual temperature control from 80^ to 210^ (+ / - 10^) , suitable for any type of hair. Depending on the hair structure, we recommend the following settings:

for fine, porous, coloured, bleached hair: 80^ to 170^
for strong, resistant, thick hair and for professional styling results: 180^ to 210^

Preparation

Caution

The housing of the appliance becomes very hot near the heating plates. Do not touch them with your bare hands.
- Do not allow the hot plates to come into contact with your skin, face, neck or head.
Make sure your hair is completely dry.

Notes

If you want to style your hair with the curling plates B you have to remove the brush sleeves D first.
The auto lock function locks all buttons automatically after turning on the appliance for 5 seconds.

• To unlock the buttons, press - H for 2 seconds.

The temperature lock function locks the desired temperature after setting it with + or - H and then pressing - H for 2 seconds.
- To unlock, press - H
The turbo heating function sets the temperature to 210^ in just 110 seconds by pressing + for 2 seconds.
Memory function: The appliance automatically heats up to the temperature level last used after being switched on.
The hinge lock button is for storage only (see chapter Storage).

1 Plug the power cord into the wall socket.
- The LCD display G lights up blue and the information OFF « appears.
2 Switch the appliance on by pushing the On/Off button for 2 seconds.
- The information 150 appears and the LCD display G begins flashing.
3 Push + or - H to adjust the required heat.
- When the required temperature has been reached the LCD Display will be solid.

Notes

Adjust to the lowest temperature the first time you use it. You can find the level which is suitable for your hair by incrementing the temperature level.
The appliance is able to reach a maximum temperature in 110 seconds, 100^ will be reached after 30 seconds only.
If the appliance is not used for a while after it is heated up, it automatically switches off after 60 minutes.
Never leave the appliance unattended while it is plugged in.
Unplug the power cord after use.
- Allow the appliance to cool in a safe place.

Ionic function

The ionizer emits negative ions, which neutralize your hair's static charge.

1 To switch on the ionizer, press the ions button J.

• The ion indicator light F appears.

2 To switch off the ionizer, press the ions button J.

• The ion indicator light F disappears.

Styling Options

Using your hair styler, you can:

Straighten hair
Shape the ends (inwards and outwards)
Style soft-cascading waves and curls.

Straightening hair

1 Comb or brush out a section of your hair about 3cm wide, starting at the neck.
2 Place the section of hair between the straightening plates as close to the hair line as you can.

Caution

• Do not touch the ceramic plates as they are very hot.
  3 Close the straightening plates and then immediately glide the straightener down the section of the hair, gently moving from roots to tip. Avoid making kinks in it.

Notes

Repeat the procedure section by section.
If you have thick hair, you might have to repeat this procedure on the same section several times.

4 After use, switch the appliance off by firstly unlocking the temperature lock function by pressing - for 2 seconds and secondly pressing the On/ Off button I for 2 seconds.
- The LCD display G turns off.
5 Unplug the power cord from the wall socket.

Styling waves or curls

1 Comb or brush out a section of your hair about 3cm wide.
2 Place the section of hair between the straightening plates as close to the hair line as you can and close them.
3 Rotate the appliance by 180^ so that the hair wraps around it at the height of the heating plates.

Note

Curved stainless steel curling plates on top of the surface get warm for optimally support of styling curls and waves.
4 While rotating, slowly pull the appliance towards the ends of the hair.

• A curl is formed once the appliance has been pulled down and over the ends of the hair.

Note

Repeat the procedure section by section.
5 After use, switch the appliance off by firstly unlocking the temperature lock function by pressing - for 2 seconds and secondly pressing the On/Off button I for 2 seconds.

• The LCD display G turns off.

6 Unplug the power cord from the wall socket.

Now, your defined curls are ready - spectacularly springy and stay in a perfect, long lasting shape.

For gentle waves just comb the hair once or style it with your fingers until you get the result you like.

Cleaning and care

1 Turn the appliance off and unplug the power cord L from the wall socket.
2 Before cleaning, allow the appliance to cool down. The appliance can become very hot and may take up to 45 minutes to cool down.
3 Clean the appliance only with a soft damp cloth.

Caution

• Never put the appliance or power cord in water or any other liquid. Do not use any cleaning agents.
  Always allow the unit to cool down on a flat heat resistant surface.

Note

Before using the appliance after cleaning, dry all parts carefully using a dry soft towel.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
Make sure that it is unplugged, has completely cooled and is completely dry.
- Do not wrap the power cord around the appliance.

Lock the hinge of the appliance by closing the straightening plates and pressing the right side of the hinge lock button K with
To unlock the hinge of the appliance after storage close the straightening plates and press the left side with
- Keep the appliance in a cool, dry place.
Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was pu

chased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our

National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220 - 240 V~, 50 Hz

Power: 45 W

Technical and design modifications reserved.
