USER MANUAL KCZWX 20600L KITCHENAID

APPLIANCE SWITCHING ON AND OFF

FUNCTIONS AND SETTINGS

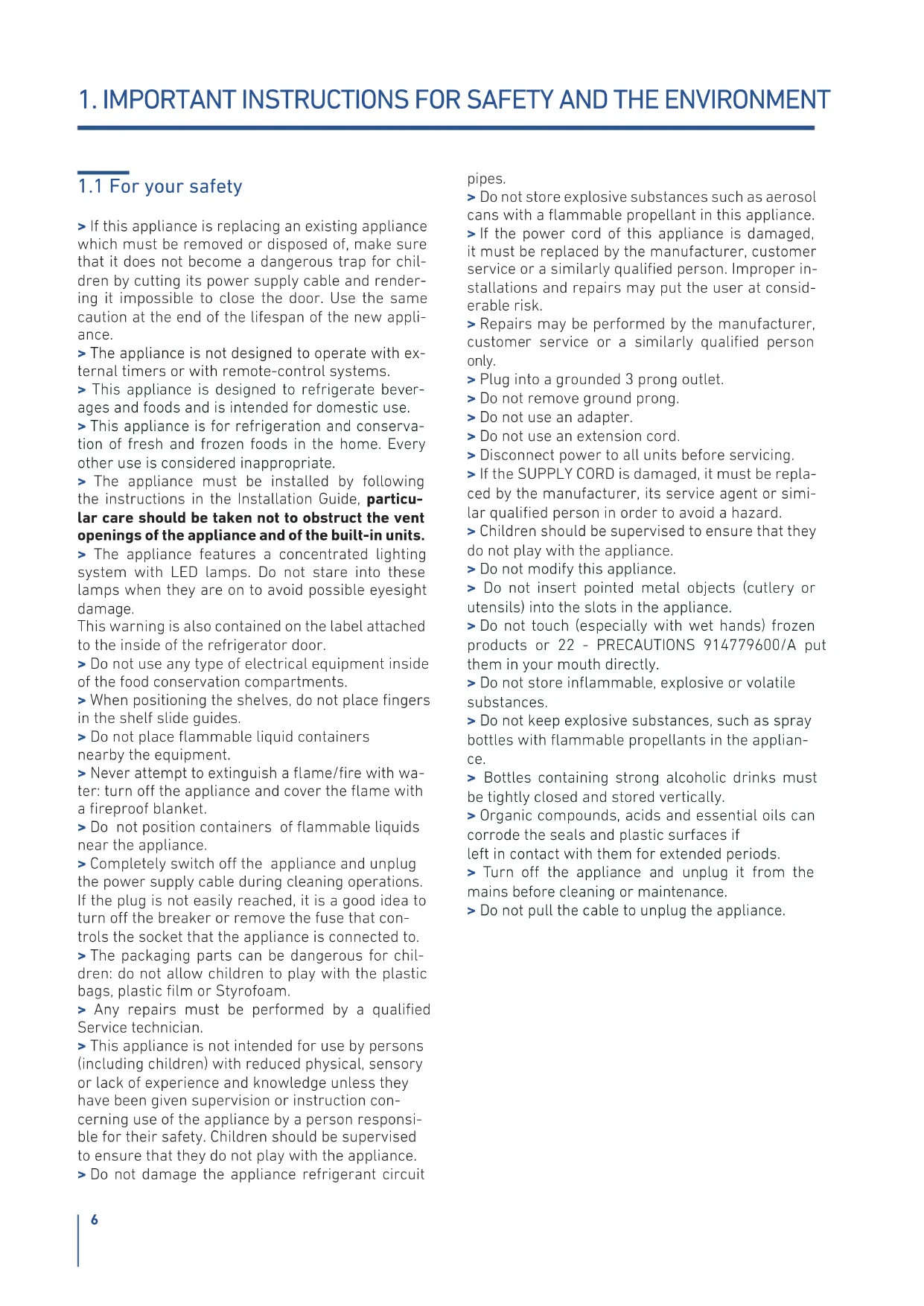

> If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for chil- dren by cutting its power supply cable and render- ing it impossible to close the door. Use the same caution at the end of the lifespan of the new appli- ance. > The appliance is not designed to operate with ex- ternal timers or with remote-control systems. > This appliance is designed to refrigerate bever- ages and foods and is intended for domestic use. > This appliance is for refrigeration and conserva- tion of fresh and frozen foods in the home. Every other use is considered inappropriate. > The appliance must be installed by following the instructions in the Installation Guide, particu- lar care should be taken not to obstruct the vent openings of the appliance and of the built-in units. > The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage. This warning is also contained on the label attached to the inside of the refrigerator door. > Do not use any type of electrical equipment inside of the food conservation compartments. > When positioning the shelves, do not place ngers in the shelf slide guides. > Do not place ammable liquid containers nearby the equipment. > Never attempt to extinguish a ame/re with wa- ter: turn o the appliance and cover the ame with a reproof blanket. > Do not position containers of ammable liquids near the appliance. > Completely switch o the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn o the breaker or remove the fuse that con- trols the socket that the appliance is connected to. > The packaging parts can be dangerous for chil- dren: do not allow children to play with the plastic bags, plastic lm or Styrofoam. > Any repairs must be performed by a qualied Service technician. > This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction con- cerning use of the appliance by a person responsi- ble for their safety. Children should be supervised to ensure that they do not play with the appliance. > Do not damage the appliance refrigerant circuit pipes. > Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance. > If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualied person. Improper in- stallations and repairs may put the user at consid- erable risk. > Repairs may be performed by the manufacturer, customer service or a similarly qualied person only. > Plug into a grounded 3 prong outlet. > Do not remove ground prong. > Do not use an adapter. > Do not use an extension cord. > Disconnect power to all units before servicing. > If the SUPPLY CORD is damaged, it must be repla- ced by the manufacturer, its service agent or simi- lar qualied person in order to avoid a hazard. > Children should be supervised to ensure that they do not play with the appliance. > Do not modify this appliance. > Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance. > Do not touch (especially with wet hands) frozen products or 22 - PRECAUTIONS 914779600/A put them in your mouth directly. > Do not store inammable, explosive or volatile substances. > Do not keep explosive substances, such as spray bottles with ammable propellants in the applian- ce. > Bottles containing strong alcoholic drinks must be tightly closed and stored vertically. > Organic compounds, acids and essential oils can corrode the seals and plastic surfaces if left in contact with them for extended periods. > Turn o the appliance and unplug it from the mains before cleaning or maintenance. > Do not pull the cable to unplug the appliance.7 ENEN

1.2 Important information when using

the appliance > Cleaning and maintenance that should be per- formed by the user must not be carried out by unsupervised children. > Never use electrical appliances inside the appli- ance (e.g. heater, electric ice maker, etc.). Explosion hazard! > Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electri- cal parts and cause a short-circuit. Risk of electric shock! > Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could dam- age the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite. > Take care that no objects are stuck in the doors. > Do not store products which contain ammable propellants (e.g. spray cans) or explosive sub- stances in the appliance. Explosion hazard! > Do not stand on or lean heavily against base of appliance, drawers or doors, etc. > Before cleaning the appliance, pull out the power cord plug or switch o the fuse. Do not pull out the power cord plug by tugging on the power cord. > Store high-percentage alcohol tightly closed and standing up. > Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous. > Never cover or block the ventilation openings for the appliance. injury > According to current regulations, children betwe- en 3 and 8 years of age can take or load food from the appliance, but it is highly discouraged to allow children under 8 years of age to perform these operations and in general to use the appliance. > Keep children under the age of eight at a safe di- stance unless they are constantly supervised and make sure that they do not play with the applian- ce. > Do not use mechanical, electrical, chemical de- vices other than those recommended by the manu- facturer to speed up the defrosting process. > Do not damage the cooling circuit (if it can be ac- cessed). > Do not use electrical appliances inside food stor- age compartments unless these are of the type recommended by the manufacturer. >In the event of damage to the cooling circuit, avoid the use of naked ames and ventilate the area properly. > Do not use the appliance or parts of it in ways other than those specied in this manual. > Opening the door for long periods can cause the temperature in the appliance compartments to rise considerably. >Clean surfaces that may comeinto contact with food and accessible drainage systems regularly. > Store raw meat and sh in suitable containers in the refrigerator, so that it does not come into contact with other food or drip on it. > If the appliance is left empty for long periods of time, switch it o, thaw it, clean it, dry it and leave the door open to prevent the development of mould inside. > Never rest sharp metal objects such as knives, for- ks, spoons and lids on the appliance during use. > Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts. > Do not sit on the appliance. > Do not sit or lean on the door or any open drawers. > Do not prize on the door or handle to move the ap- pliance. > Do not use electrical appliances (e.g. hair dryers) or sprays for defrosting, the plastic parts could be da- maged. > Do not use the appliance to cool rooms for any re- ason. > Always unplug the appliance in the event of a fault or when performing cleaning or maintenance. > Do not keep liquids in tins or glass containers in the freezer. > Do not place heavy objects on the top of the ap- pliance. This appliance is intended to be used in household and similar applications such as: sta kitchen areas in shops, oces and other working environments; farm houses; by clients in hotels, motels, bed & bre- akfast and other residential environments. Symbols used in the Guide:8 Note Recommendations for correct use of the appliance Important Directions for avoiding appliance damage Warning Indications for avoiding injury to people

1.3 Caring for the environment

> This appliance conforms to the WEEE European di- rective (2012/19/EU) and must be disposed of sepa- rately from other waste at the end of its service life. > The appliance does not contain substances in quantities sucient to be considered hazardous to health and the environment, in accordance with cur- rent European directives. > Pay special attention to correct disposal proce- dure for all the packaging materials. Power voltage Danger of electrocution Disconnect the mains power supply. Unplug the appliance. > The appliance must not be disposed of with urban waste. Contact local waste disposal centres for on how to dispose of recyclable waste. > To dispose of the appliance: Cut the power cable and remove it. > Prior to disposal, cut the power supply cord and make it impossible to close the door. > During disposal, avoid damage to the refrigera- tion circuit. > The appliance does not contain hazardous sub- stances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation. > Our appliances are packaged in non-polluting and recyclable materials. > Deliver the packing materials to the appropriate recycling centre. Plastic packaging

Danger of suffocation Do not leave the packaging or any part of it unattended. Do not let children play with the plastic bags.

1.4 Informations for control bodies

> For EcoDesign checks, the installation and preparation of the appliance must comply with EN 62552-1/-2/3 standard. > Ventilation requirements, dimensions and minimum space from the rear wall are indicated in the “Installation” chapter of this manual. > Contact the manufacturer for more information.

1.5 Informations for control bodies

> Correct use of the appliance, correct packaging of foodstus, a constant temperature and food hygiene have eects on the quality of storage. > Reduce the number of times that the doors are opened and the length of time they remain open to prevent the compartments from heating up excessively. > Clean the condenser (if it can be accessed) at the rear of the appliance periodically to prevent the appliance from losing eciency. > Defrost frozen food in the refrigerator compartment in order to make use of the cold stored in the frozen foods. >This product contains a light source of energy ef- ciency class G.

Make sure that installation is performed correctly, adhering to all directions in the specic installation manual provided with the appliance. Warning Always connect the water before the power. The appliance must be connected to ground in compliance with electrical system safety stand- ards. > Position the appliance with the aid of a second person. > Never use the open door tolever the appliance into place when tting. > Avoid exerting too much pressure on the door when open. > The appliance must not be installed near heat sources. If this is not possible, suitable insulation must be used. >The appliance must not be exposed to direct sun- light. > Do not use the appliance outdoors. > Installation and servicing should be carried out by qualied personnel in accordance with current standards. > Have the electrical connection performed by au- thorised technical personnel. > For avoiding dangers, if the power supply cable is damaged, contact technical support immediately and they will replace it, so as to prevent any risk. > Always use any necessary/ required personal protective equipment (PPE) before performing any work on the appliance (installation, maintenance, positioning or movement). > Before performing any operation on the appli- ance, switch o the power supply. > This appliance can be used up to a maximum alti- tude of 4,000 metres above sea level. >If installed near another refrigerator or freezer, keep it at a minimum distance of 2 cm. >Do not try to repair the appliance yourself or with- out the assistance of a qualied technician. >Do not install/use the appliance outdoors. >CAUTION: while positioning the appliance, make sure that the power supply cable is not caught or damaged. >To prevent instability of the appliance, install and secure it correctly as indicated in the instructions provided in this manual.

The refrigerant isobutane (R600a) is contained with- in the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless ammable. > During transportation and installation of the ap- pliance, be certain that none of the components of the refrigerant circuit become damaged. > If the refrigerant circuit should become damaged: – avoid open ames and sources of ignition; – thoroughly ventilate the room in which the appli- ance is situated. ISO 7010 W021

2.2 Connection to the electrical power

supply The appliance is equipped with a Schuko type 16A plug and must be connected to the electrical power supply through a corresponding Schuko socket. Do not use extension cords and/or multiple adapt- ers for the power supply connection. Important Do not use extension cords and/or mul- tiple adapters for the power supply con- nection. Warning If energy is supplied through an alter- native energy power source (solar, geo- thermal, etc..) or if home automation systems are installed, it is necessary to install the Alternative Energy Kit to inte- grate the unit into the power grid. Caution: risk of fire / flammable materials. Important Carry out transportation, installation and/or clearing with extra care so that no damage occours to the refrigeration circuit.10

Congratulations for having purchased your new ap- pliance: from now on you can use our innovative conservation system, which will allow you to keep all of your food in the best way possible. In order to receive a more complete as- sistance, please register your product on w w w . k i t c h e n a i d . e u / r e g i s t e r . Before using the appliance carefully read the Safety Instruction.

3.2 Manufacturer’s liability

The manufacturer declines all liability for damage to persons or property caused by: > use of the appliance other than that specied; > failure to comply with the instructions in the user manual; > tampering with any part of the appliance; > use of non-original spare parts.

3.3 Technical support

> In the event of failure of the appliance, contact the technical support and have the repair carried out by qualied personnel only. > make sure you have the model and serial number available on the identication plate. > Use original spare parts only. >Do not try to repair the appliance yourself or without the assistance of a qualied technician: this aects safety and may void the warranty. > Original spare parts remain available for 10 years after the last production of the model. > The following spare parts are available only for authorized repair technicians: electronic boards, thermostats, temperature sensors, hinges, lamps, door handles. Important Before calling take note of the serial number of the appliance, shown on the warranty certificate and on the serial number plate located inside the refrig- erator compartment on the side opposite the door opening.

Refrigerant type, storage volume and other techni- cal data can to be found on the product plate. The model information can be retrieved using the QR-Code indicated on the energy label. The label also includes the model identier that can be used to consult the https://eprel.ec.europa.eu database portal.Position of the serial number inside the compartment.

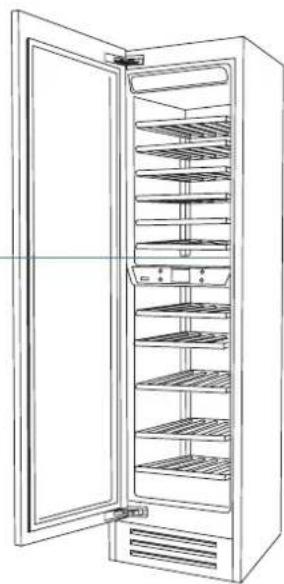

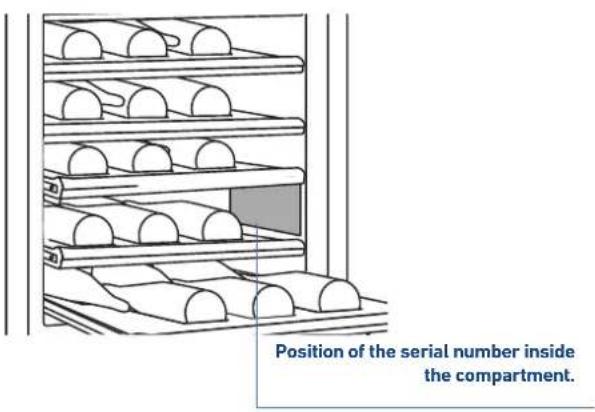

The product plate is positioned on the side opposite door opening. Climatic class of operation > SN (Subnormal) from +10°C to +32°C > N (Normal) from +16°C to +32°C > ST (Subtropical) from +16°C to +38°C > T (Tropical) from +16°C to +43°C

The product plate shows the technical data, the se- rial number and the model. The product plate must never be removed.3.6 Main components

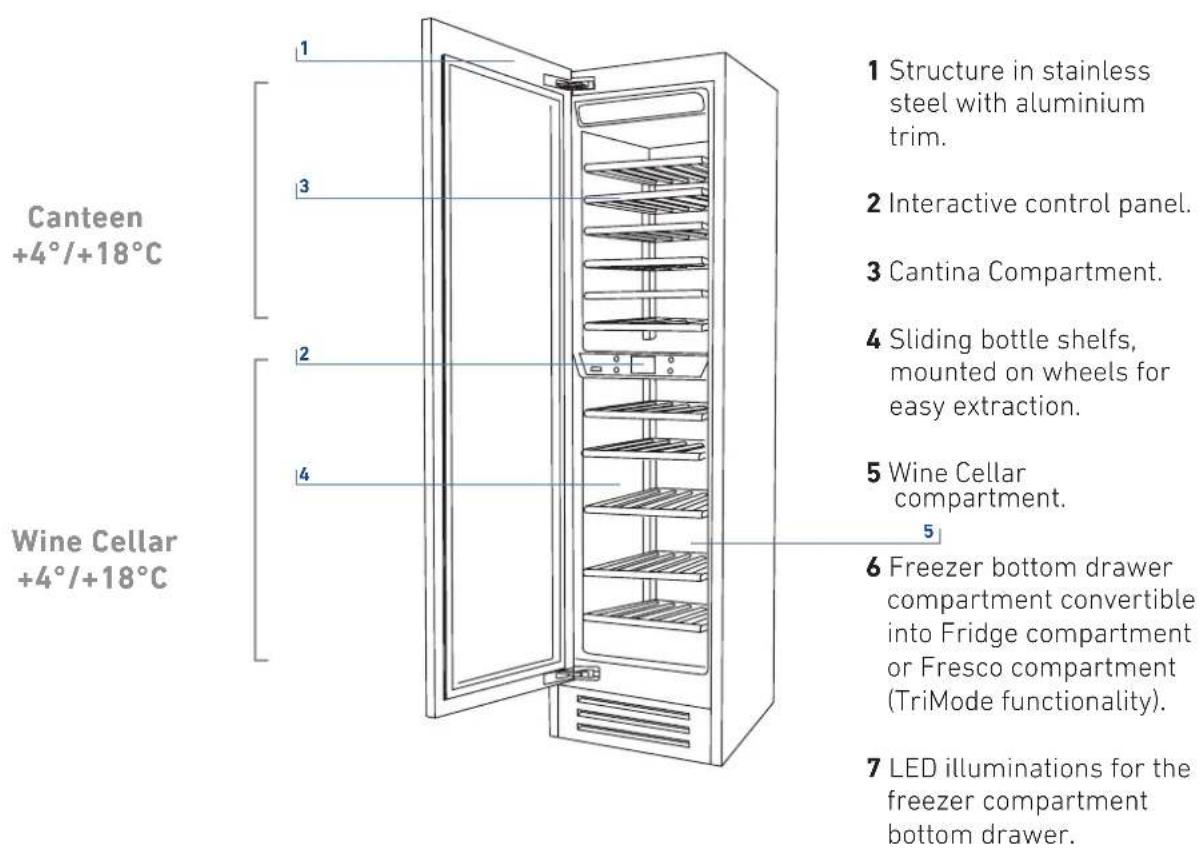

The innovative electronic control system designed by KitchenAid maintains constant temperature on the three compartments and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.

3.8 Main control panel (models 60cm).

Turnign On / Turning Off: Touch the icon for turning on or off the unit. Home Touch the icon home for going back to the main display screen. Allarm Touch the icon to view the alarm tone functions and to deactivate them. Back Touch the arrow icon for going back to the previous display screen.+6 °C

OFF Turn Compartment OFF? YesNo SettingsFunctions Initial test … Are you sure you want to power o this unit? YesNo Are you sure?On OSettingsFunctions

4.1 Switching on and o

First time starting the unit Touch the button . The display shows the following launch screens:

°C- (*) The home screen varies depending on the models; (vedi paragrafo 4.2 pag 12). When the appliance is first switched on is recco- mended to wait at least 12 hours without open- ing the doors and before placing any food inside the unit.During such period deactivated any error message by pressing the Alarm button.

en with the envirorment temperature me- asured from the fridge inside the com- partments. Automatically the unit start to cool down until reaching the set temperatures. SettingsFunctions

- cantina compartment +8°C. - wine cellar compartment +5°C. - TriMode compartment -18°C.

shutdown by touching the yes icon. Switching off Cantina and Wine Cellar compartment. (Model 60cm) The cantina compartment and the wine cellar compartment, can be shutdown individually whereas the TriMode drawer can’t be turned off unless through the complete shutdown of the unit.

Yes to turn compartment off.

4. APPLIANCE SWITCHING ON AND OFF+6 °C

Are you sure? YesNo Are you sure?YesNo Turn compartment ON? YesNo SettingsFunctions

The same procedure is required if you want to restart the wine cellar compartment Impostazioni Funzioni

off, which indicates that the cantina compartment is off

Yes for confirming the disactivation.

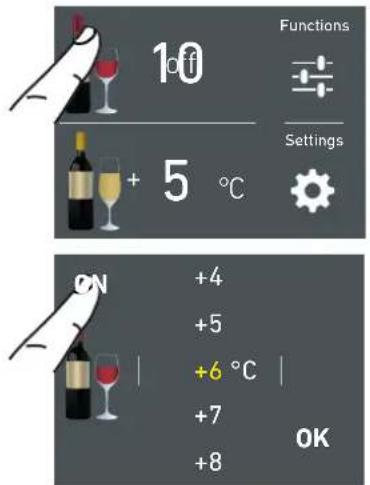

on. Turning on again ,the cantina and wine cellar compartment. For turning on the unit again press the button, the display will turn on and the launch screen will appear again with the temperatures measu- red inside the fridge compartments. The fridge will start to cool down until reaching the set temperatures. For turning off the wine cellar compartment Impostazioni Funzioni

follow the same directions.

For example for turning back on the cantina compartment, touch the icon off.

the cantina compartment. Home screen will open up.

icon for confirming the disactivation. Switching off for long periods During long absence periods it is recommended to switch off the refrigerator by pressing the Unit button for three seconds and disconnect- ing the electrical plug or the breaker controlling the socket. Completely empty the refrigerator, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors. If at the rst startup the Standby message does not appear, but another message ap- pears, it means that the appliance has al- ready started the cooling process. During the rst startup, it will not be possi- ble to use the Menu to modify the factory set- tings until the preset temperature has been reached. During the rst startup, it will not be possible to use the Menu to modify the fac- tory settings until the preset temperature has been reached. Each time the appliance is switched on it goes through a self-diagnosis procedure lasting three minutes before completely starting up. If only the refrigerator compartment or the Fresco compartment is switched o, the spe- cic fan will continue to operate to prevent the formation of unpleasant odours and mould. Restart the compartments. In the case you wish to turn on again the fridge and fresco compartments.+6 °C

OFF SettingsFunctions

The same procedure is required to set the tem- perature in the Cantina compartment SettingsFunctions5°C 10°C °C18- from +4°C to +18°C

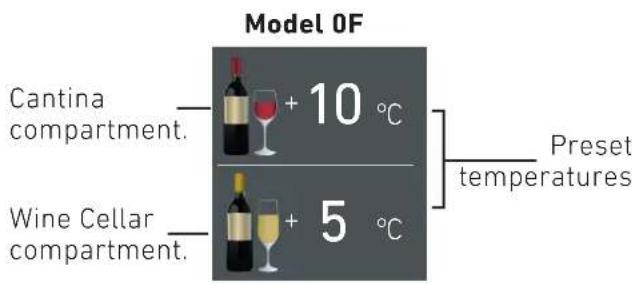

4.2 How to adjust the temperature for

dierent requirements. Each model has been carefully tested before leav- ing the factory and is adjusted in such a way to ensure high performance and low consumption. Usually, it is not necessary to modify the settings. Cantina compartment. Wine Cellar compartment. Preset temperatures Model 0F How it looks to the home screen in the various models:

Touch icon of SettingsFunctions5°C 10°C °C18- cantina compartment. The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quanti- ties of foods. 6 to 12 hours are necessary reach the selected temperature.

select the desided temperature. Cantina Compartment from +4°C to +18°C

3) Touch the icon ok

to confirm the desider temperature. Modify the temperatures compartment Example: How to modify the Cantina com- partment temperature.

4. APPLIANCE SWITCHING ON AND OFF17

An integrated control system will give informa- tion through bright texual signals messages you can see on the display. The voiced signal that goes along with some of the anomalies signals and can be turned off by touching the button allarm on the main con- trol panel. You can find the list of the anomalies signals at the end of this manual. (see paragraph

4.3 Information signals of anomaly on

the display. Padlock icon. The padlock icon shows up when the temperatu- res are set up. The padlock open/close shows that is or isn’t possible to modify the compartment’s tempera- tures anymore. Usually an open yellow padlock can be seen open; in that case you can scroll up or down with a finger on the display, select the desired tempe- rature and press OK for confirming.

Whereas a closed padlock can be seen if the user has activated some functions (described in the paragraph 5.1) therefore the user in that situation will not be able anymore to change the temperature of the compartments.

If the icon function is touched and a specific function is set (for example Vacation mode...), the yellow padlock will be seen closed and it won’t be possible to change the temperature of the compartments as long as the function won’t be completed or if it is manually deactivated. +6 °C

Bor deauxBOTTLEVacation Mode Shopping Mode:FridgeRapid Bottle CoolerShopping Mode:Trimode Light 12h Vacation Mode Rapid Bottle Cooler Shopping Mode:TrimodeDual Zone Humidity Control Light 12h Bur gundy BOTTLE

For a better conservation the red wines need a warmer temperature.

Red Wine. White Wine. from +10°C to +18°C from +4°C to +9°C For example if a temperature higher than +9°C is set for white wine, the display will change icon from white wine to red wine.

It is possible to personalize the operation of your KitchenAid unit in order to adapt it to the different ways you might want to use it. After touching the functions icon Impostazioni Funzioni

on the home screen will be shown the following icons with the following availables functions.

4. APPLIANCE SWITCHING ON AND OFFVacation ModeRapid Bottle Cooler

Rapid Bottle Cooler On O SettingsFunctions

This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the refrigerator compartment temperature to +14°C (57.2°F) It is possible to program the duration, or it can be manually deactivated upon re-entry after a period of absence. This function remains active even if during the period of absence there is a prolonged interruption of electrical power. It is possible to program a period from 1 to 90 days. A) Home screen. Touch the icon function. B) Touch the icon Vacation. D) Scroll up / down to set the desired time (in days) and then pres ok. It is possible to pro- gram a period from 1 to 90 days. C) Touch the button On to activate the function. A) Home screen. Touch the icon function.

4) Rapid Bottle Cooler

This function can be activated when it is necessary to cool o beverages quickly, by placing them inside the freezer compartment. It is possible to select a duration of 1 to 45 minutes. A sound signal will indicated when the optimal tem- perature has been reached. After removing the beverages, deactivate the sound signal by pressing the Alarm button

This function enables to set the humidity of the can- tina and wine cellar compartments. The default set- ting is set to “Medium”.

6) Inner lighting for 12 h.

This function enables to set the timing of the inner lighting and it stays on 12 hours when the wine cellar door is closed, in order to see the inner part lighted up, through the glass. B) Scroll right twice and touch the icon humidity. C) Scroll until setting the desired humidity and press ok. A) Home screen. Touch the icon function. A) Home screen. Touch the icon function. B) Scroll right until reaching the 12h light icon. C) Push On if you want to activate 12h light Mode.

It is possible to personalize the settings of your KitchenAid fridge for adapting it to the different ways you might want to use it.

The display will show the date in the format (day:month:year). By touching the display you can modify the set- tings. E) Scroll up or down until selecting the desire day and press ok. D) Scroll up or down until selecting the desired month and press ok. B) Touch the icon date. A) Home screen. Touch the icon settings. C) Scroll up or down until selecting the desired year and them press ok.37min

The display shows the hours and minutes in the format hh:mm. This function selects the display at 12 or 24 h. C) Touch in which way you want to see the time: 12 or 24 hours. B) Touch the icon time. A) Home screen. Touch the icon settings. D) Scroll up / down to set the hours and then press ok. E) Scroll up / down to set the minutes and then press ok.

To set the language of the fridge, simply touch the settings button on the display. B) Touch the icon language. C) Scroll up / down to select the desired language and press ok. A) Home screen. Touch the icon settings.

6) Sabbath Mode (Optional)

The function makes it possible to comply to certain religious observances requiring that the operation of the appliance is not aected by the opening or closing of the doors (the thermostatic control, the inner lighting and the ice maker are deactivated). A) Home screen. Touch the icon settings. B) Scroll right twice and touch the icon sabbath. E) The fridge will work accordingly to this configuration. C) Touch the Yes button to activate the function. D) Touch the yes button to activate the function.SabbathDemo ModeReset Confirm resettingto factory default settings?

It gives the possibility to restore the base settings that were set in the factory, cancelling all the changes that has been made from there onward. Important If you restore the base settings(“reset”), it is necessary to set again the choice of the functioning of the trimode drawer that has been made, in case they were set before as fridge or fresco. A) Home screen. Touch the icon settings. B) Scroll right twice and toch icon reset.

It is possbile to simulate the functioning of the fridge, for showroom display or for fairs. A) Home screen. Touch the icon settings. B) Scroll right twice and toch demo mode. D) Touch the Yes button. E) The reset has been performed. The fridge's factory settings have been restored. C) Touch the Yes button to activate the function. C) Insert the password for the activation. Default password 1-2-3-4 D) Push On or Off Buttom

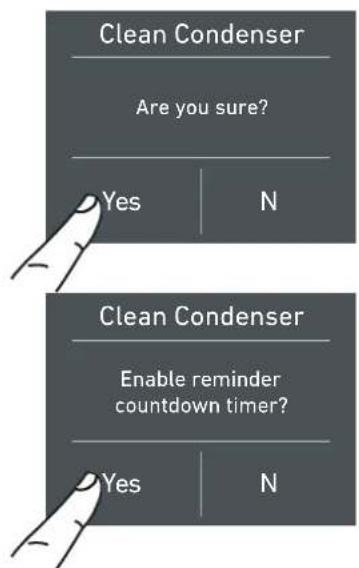

9) Maintenance (through allarm sign).

Te units requires, for a correct operation, the cle- aning of the ventilation grille, of the lter and the condenser. The default setting of the unit is"Warning disa- bled". See instruction 11.2 and the video tutorial available in the support area in the KitchenAid's website at The recurring clenaning every 12 months is remin- ded by an acoustic and optical signal on the display. It is possible to disable the warning signal and see the time left before the next cleaning that has to be done. For details see pages 30 e 31. B) Scroll to the right three times and touch the icon maintenance. A) Home screen. Touch the icon settings. C) To enable it, touch the Yes icon. D) To enable it, touch the Yes icon. E) The display shows the remaining time before the next cleaning. F) Instead, if you want to disable the warning previously set, touch the icon reset. G) To disable the warning, touch the yes button.

The service function Manutenzioni Service Info System is reserved for the Kitche- nAid assistance.Serial no.Model - SWSK PowerSK UserF20191016000001M8991TST6I - 99HW: 0504SW: 0518HW: 1002SW: 1069 - G1011Maintenance ServiceInfo SystemSettingsFunctions

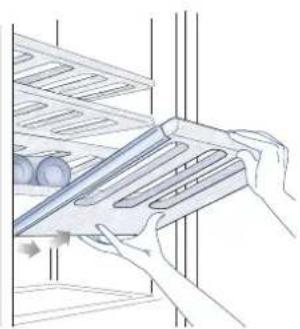

(positioning, adjustment, removal) Wine shelf The shelves can be easily removed for cleaning. Remove the bottles, completely extract the shelf, tilt it upward until the wheels are free of their seat and extract it.

The function Info System shows the data of the pro- ducts for example the software's code, serial num- ber amd the factory's codes of the fridge. B) Touch the icon Info System. C) Here are shown the data of the KitchenAid unit. A) Home screen. Touch the icon settings.

To provide optimum interior lighting, LED strips illuminate the refrigerator compartment from the top and sets of LED lights directly illuminate different areas of the refrigerator compartment, of the Crisper-Fresco drawers and the freezer drawer. In case of malfunction and/or failure of the light- ing system, you should contact an authorized KitchenAid Service Agent. Once activated, the light of the top com- partment will automatically shut off after 6 hours.

8.1 General directions

As is known, wine can be stored for long periods of time if this is done under the following condi- tions: > Suitable temperature without appreciable vari- ations over time > Controlled level of humidity > Protection from light > Absence of noise and vibrations > Absence of odours > Bottle kept horizontal. All of these conditions are fully met in the Kitch- enAid Wine Cellar.

8.2 Conservation temperature

The space offered by the Wine Cellar and Can- tina compartments, which can be expanded as necessary by using the TriMode compartment as a wine cellar, allows conservation of your best wines at three different temperatures. The three compartments are initially set to the following temperatures: > Cantina compartment +12° C (53.6° F) - adjustable from +4° C to +18° C (from 39,2° F to 64,4° F) > Wine Cellar compartment +10° C (50° F) - adjustable from +4° C to +18° C (from 39,2° F to 64,4° F) To transform the TriMode compartment into a wine cellar space, you must access the Menu, set it as a refrigerator compartment, and adjust it to a temperature between +4° C and +8° C (from 39.2° F to 46.4° F). All the temperatures can be modified according to the characteristics of the wines and personal preferences. However, you should attempt to keep the temperature as constant as possible over time. Rapid and large-scale temperature variations can in fact cause dilation of the liquid and early aging of the wine. You should also avoid very low temperatures (below 4° C - 39.2° F ) which may lead to the formation of deposits and damage the aesthetic qualities of the wine. All the compartments offer optimal conditions and take into account all these needs. It should however be noted that the Cantina compartment, in particular, is thermostatically controlled in a very precise manner and ensures the utmost care and attention over time of your most prized bottles. When the Cantina compartment is set below +10° C (50° F) the Wine Cellar must not be set beyond +12° C (53.6° F).

8.3 Time of conservation

Improvement of wine over time and its duration usually depends on the character of the variety and its type. The following chart shows the best period of conservation and aging for various types in ideal con- servation conditions offered by your appliance. However, you should always follow the instructions of the winemaker, especially for fine wines. TYPE OF WINE CONSERVATION TEMPERATURE TIME OF CONSERVATION New wines (Vin Nouveau) da 12° a 14° C 6 months Sweet sparkling wines da 8° a 10° C 1 year Rosé da 10° a 14° C 1 year Semi-sparkling wines da 10° a 12° C 1-2 year Normal white wines da 10° a 14° C 1-2 year Light red wines da 12° a 14° C 2 year Dry sparkling wines da 8° a 10° C 2 year Classic sparkling wines da 8° a 10° C 3-4 year Barrique and Vigorous white da 8° a 12° C 3-5 year Normal red wines da 14° a 16° C 3-5 year Barrique and Vigorous red wines da 14° a 18° C 7-10 year Straw wines or Liquorous wines da 16° a 18° C 10-15 year29

8.4 Consumption temperature

As a general rule, white wines should be served at a temperature between 10 and 12° C (50 and 53,6°F) and red wines between 12 and 14° C (53,6 and 57,2°F). Some wines may however be best enjoyed at higher or lower temperatures. You should also keep in mind that, during the summer, wine is generally enjoyed at lower tem- peratures than during the winter. You should also consider the following: White wines White wines are normally not served at high tem- peratures, since they are generally more acidic that red wines and not very tannic. Therefore they are more enjoyable at low temperatures. It is preferable to serve these wines between 10° C and 14° C (50°F and 57,2°F). Young, fresh and aromatic wines can also be served at 10° C (50°F), while less aromatic ones are served at 12° C (53,6°F). Temperatures between 12° C and 14° C (53,6°F and 57,2°F) are for soft, mature white wines that have been aged for some years in the bottle. Higher temperatures would favour the exaltation of the sweet character of the wine, at the expense of the acidity and flavour, which are considered pleasant and desirable characteristics of this type of wine. Rosé Rosé wine is served at the same temperature as white wines. It should be noted that these wines may include a certain amount of tannin and may therefore be preferable at higher temperatures. Therefore, they are served between 10° C and 12° C (50°F and 53,6°F), if young and fresh, and between 12° C and 14° C (53,6°F and 57,2°F) if robust and mature. New wines (Vin Nouveau) Due to the special processing they undergo, new vintage wines contain a low tannin content and are therefore more enjoyable if served between 12° C and 14° C (53,6 and 57,2°F). Red wines Since they contain more tannin and are less acid- ic, red wines are normally served at higher tem- peratures. Younger wines with less tannin are normally served between 14° C and 16° C (57,2 and 60,8°F), while more full-bodied ones that are more tan- nic may be served at up to 18° C (64,4°F). Some wines that have aged for years in the bottle, still full-bodies and tannic, may be served at 18°C (64,4°F) or even 20° C (68°F). Young red wines with little tannin and slightly structured may be enjoyable at lower tempera- tures, between 12° C and 14° C (53,6 and 57,2°F). Sparkling wines It is difficult to provide instructions to cover the wide variety of sparkling wines in available. As a general rule, sweeter and more aromatic sparkling wines should be served at lower tem- peratures, down to 8° C (46,4°F), whereas more tannic sparkling wines may be served at higher temperatures, up to 14° C (57,2°F). Dry sparkling wines are usually served between 8° C and 10° C (46,4 and 50°F). “Classic” sparkling wines are normally served at these temperatures, which may be as high as 12° C (53,6°F) for sparkling wines that have been aged for some time. It is however advisable, especially for finer wines, to follow the suggestions and recommendations of the winemaker on the bottle. Liqueur and straw wines These types of wines can be served at tempera- tures between 16° C and 18° C (60,8 and 64,4°F), depending on personal tastes, to attenuate the sweet taste of straw wines, it can also be served at 10° C (50°F).Bor deaux BOTTLE Bur gundy BOTTLE

8.5 Position of bottles

The sliding shelves are made of fine wood and contoured so as to hold bottles of the most clas- sical traditional shape or of the most modern design. Whether your collection holds fine bouteilles or petit bouteilles, they will be right at home in the KitchenAid Wine Cellar. A special accessory, available on request, will let you place them in an inclined position, in order to display the la- bels of your most prized items. Also Magnum bouteilles can be stored, provided you remove the shelf just above the one that will hold them. Warning After a prolonged interruption of electri- cal power, once the electrical power is re- activated, an audible signal will indicate if the temperature has raised above normal levels. In addition to this the display will show for one minute the highest temper- ature detected inside the compartments, to allow the user to decide how to better use the food items. After one minute the display will resume normal operation, while the Alarm button will continue to blink. Press the Alarm button to display the highest recorded temperatures. Nota Scrupulously follow the detailed direc- tions that can be found in the provided kit and never use abrasive or metallic prod- ucts which could scratch and damage the satin finishing on the appliance perma- nently. Before performing any sort of cleaning, disconnect the appliance from the electri- cal power supply. Make sure you do not damage the refrig- erant circuit in any way. Warning The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

9.1 Care and Cleaning

To clean the parts made of steel use a microfib- er cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel’s satin finish. Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth. Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves. You should use special care to keep the ventila- tion openings in the appliance or in the cabinet that houses it free of obstructions.

9. CARE AND CLEANING

9.2 Cleaning of the ventilation grille, l-

ter and condenser. The unit requires, for a correct operation, the cleaning of the ventilation grille, lter and condenser. The recurring clenaning every 6 months is remin- ded by an acoustic and optical signal on the dispaly. It is possible to disable the warning signal and see the time left before the next cleaning has to be done. Behind the frontal ventilation grille situated in the lower part of the units there is the condenser. See page 7 paragraph 3.2. To clean it use a vacuum cleaner with a soft brush attachment at maximum power, swee- ping it along the vent slits. In case of a signicant dust build up, the ventilation grille can be remo- ved to allow a more accurate cleaning of the lter. On the mantenience settings, Maintenance ServiceInfo System after the installation of the unit and after it has been turned on, you can set the condenser cleaning warning. In the case the warning sign will be enable, there will be an acoustic signal every 6 months, that tells that is time to clean the condenser. After cleaning it, touch the reset icon in order to reactivate the warning signal in 6 months. In the case you do not want the warning cleaning signal of the condenser anymore, touch the o icon. For knowing how to use the mainteniance display, see page 23.

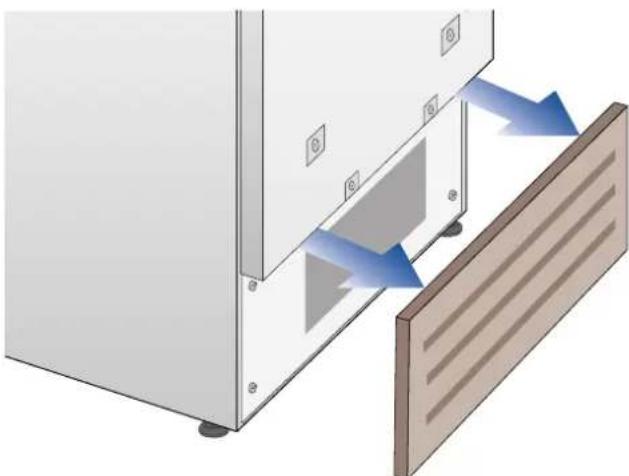

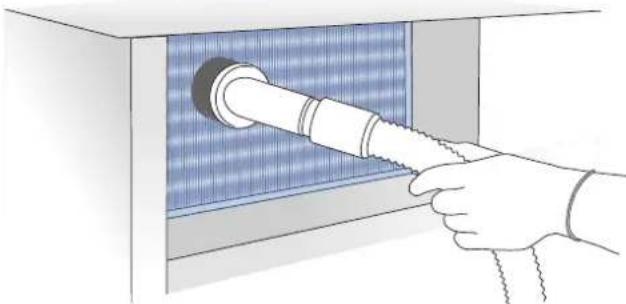

Lower condenser. For cleaning the condenser in the models Classic, Integrated or Brilliance follow the instructions: > Switch o the appliance by pressing the Unit button on the main control panel for approx 3 seconds. > Wait approx 30 minutes, until the nned condens- er cools down to room temperature. > Remove the removable grille under the door. > Clean it thoroughly from any dust build up as shown in the picture, taking care not to damage it. > Restart the unit again, pressing on the unit bottom for three second. Warning The edges of the condenser are sharp, therefore use adequate protection for the hands and arms when cleaning the condenser.32

9.3 Internal cleaning

Clean the internal and removable parts by wash- ing them with a solution of lukewarm water and a small amount of dishwashing detergent. Rinse and dry right away. Do not use mechanical devices or other methods to speed up defrosting. Warning Do not use water on the electrical parts, lights and control panel. Warning The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc). Note Do not bring cold glass parts into contact with boiling water. Do not wash any parts of the refrigerator in a dishwashing machine since this could damage or irreparably deform the parts.

9. CARE AND CLEANING

10.1 Troubleshooting guide

If you notice malfunctions in your appliance, use this guide before calling Service. This guide may help you resolve the problem yourself or could provide important information to ensure rapid and effective service. Malfunction message A malfunction is usually indicated on the display. Problems that cannot be resolved by the user are signalled through a malfunction code. The appliance does not work Is the appliance connected to the electrical pow- er supply? Does electrical power arrive at the electrical socket? Is the Unit key activated? Is the condenser clean? The internal temperatures are higher than normal Does the display show a malfunction code? Is the temperature adjusted correctly? Is the condenser clean? Were the doors or drawers open for a long period of time? Were large quantities of food recently inserted? The appliance remains in function for a long time period Bear in mind that during a very hot weather and with very high temperatures in the room it is nor- mal that the compressor remains in operation for prolonged periods of time. Were the doors or drawers open for a long period of time? Were large quantities of food recently inserted? Is the condenser clean? Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door. If you hear strange noises It is normal to hear noise from the fans or com- pressors during the defrost phase. Noise could be louder depending on the position of the appliance and the surrounding environ- ment.

Condensation forms both inside and out If the climate is very humid, the formation of con- densation is normal. Opening the door or draw- ers for prolonged periods of time can contribute to the formation of condensation. In any case, make sure that the doors are always perfectly closed. The Refrigerator or Freezer has frost or ice Did you leave the doors open for a long period of time? Do the doors close perfectly? If the doors do not close perfectly, contact your installer. Unpleasant odours inside the refrigerator Clean the appliance completely as indicated in this manual. Hermetically cover all the food. Do not conserve food for prolonged periods of time. The doors are difficult to open The appliance was designed to permit hermetic closure. When the door is closed, a vacuum situation can occur: in this case it is necessary to wait a few seconds until the pressure balances before open- ing the door.34

10.2 Malfunction indications appearing on the display

Display message Malfunction description Power Failure Prolonged interruption of electrical power The appliance starts up again automatically and indicates the highest recorded temperatures. Door open Door open this message appears few minutes from the door opening Drawer open Drawer open this message appears few minutes from the drawer opening Cellar too warm Cellar (Wine Cellar) compartment too warm See the troubleshooting guide Cellar too cold Cellar (Wine Cellar) compartment too cold Wait 12 hours. If the problem persists, contact Customer Care Cantina too warm Cantina compartment too warm See the troubleshooting guide Cantina too cold Wait 12 hours. If the problem persists, contact Customer Care Fridge too warm TriMode compartment (refrigerator mode) too warm See the troubleshooting guide Fridge too cold TriMode compartment (refrigerator mode) too cold Wait 12 hours. If the problem persists, contact Customer Care Cooler too warm TriMode compartment (cooler mode) too warm See the troubleshooting guide Cooler too cold riMode compartment (cooler mode) too cold Wait 12 hours. If the problem persists, contact Customer Care Freezer too warm TriMode compartment (freezer mode) too warm See the troubleshooting guide Freezer too cold TriMode compartment (freezer mode) too cold Wait 12 hours. If the problem persists, contact Customer Care Error Code... Functional problems call Customer Care who may help you to salve the problem or put you in contact with the nearest Service Agent Check condenser Check Condenser Every 6 months the display shows the message “Check Cond”, clean the condenser and press for 5 seconds the Enter button to reset.

10. TROUBLESHOOTING GUIDE

> In case of anomalities, touch the button Alarm and the display will show the anomaly message with its error number code. > The message will be shown for 3 seconds, then it will go back to the home screen. > For blocking the message on the screen, press on the display, the button info ( Modalità Bottle Cooler On O ). The message will be on the screen for 30 seconds, then it will go back to the home screen. > In the case there is more than one error message, the dispay will show in time sequence the dierent anomalies messages.35 EN3637
