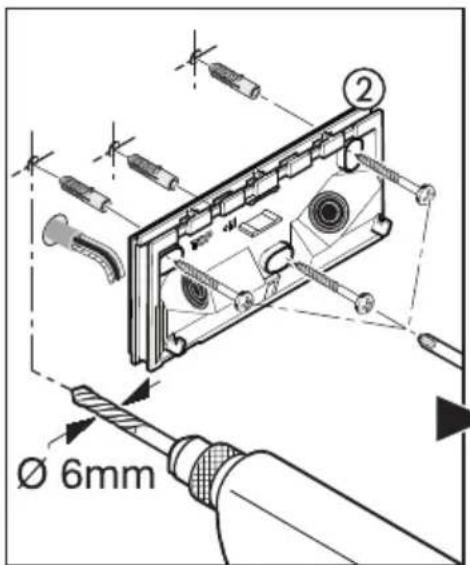

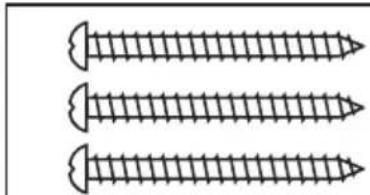

∅ 6 mm

L 800 S L 800 SC L 800 C 230 88 56 170 100 146 230 230 170 91 56 230 100 146 230 100 146 230 82 L 810 S L 810 C L 820 S L 820 SC 230 170 65 59 261 91 56 230 100 146 230 82

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

Diagram showing two labeled components connected to a device, with numbered annotations indicating parts of the main assembly.

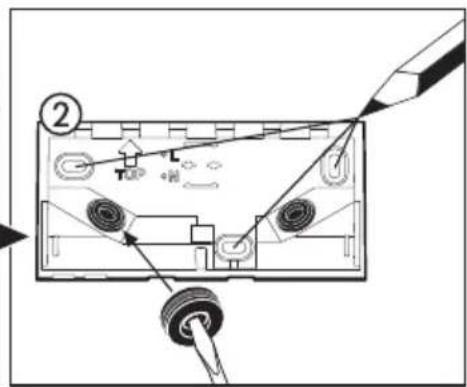

Diagram showing a device with labeled components and tool path, including a pencil and pulley mechanism.

Ø 6mm

Diagram of a device rear panel with labeled ports and wiring, showing connections to ports F and Z.

Diagram of a device's electrical wiring and connections, showing labeled components and directional arrows

L 800 S / L 810 S / L 820 S / L 800 C / L 810 C L 800 SC / L 810 SC / L 820 SC

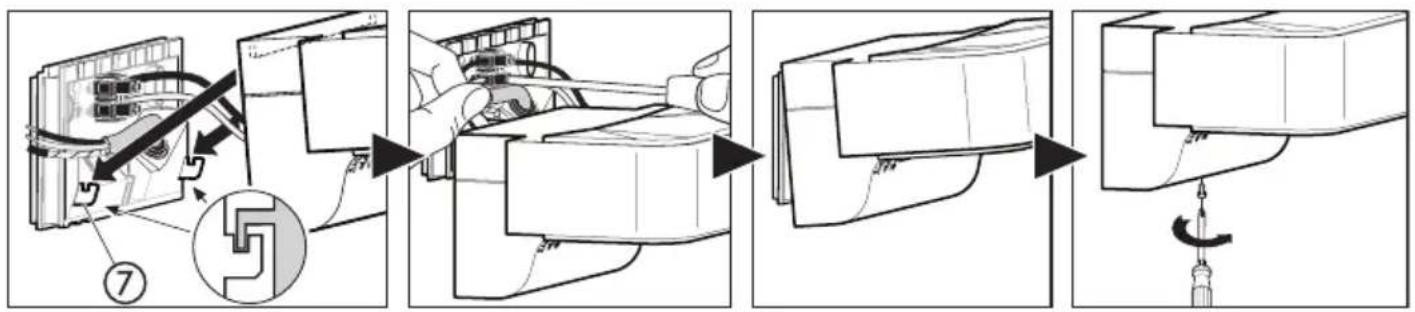

Technical diagram illustrating the step-by-step assembly of a mechanical device, showing component positioning and tool path.

L 800 S / L 810 S / L 820 S only ⑪⑫⑬⑭⑮⑯ max off min + - - 30 min 10 min

15.1

1 x 5 sec. - 15 min.

15.2

2 x 4 h

L 820 S / L 820 SC

⑨

82

8₂ → 82 82 82 8² → 82 82

82 ④ ⑨ 82 ⑩ 82 ④ ⑨ 82 ③ 82 ⑩

DE

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Polar coordinate system diagram with labeled axes and concentric circles, showing two overlapping ellipses.

L 810 S / L 810 SC / L 810 C L 820 S / L 820 SC

Please read carefully and keep in a safe place.

• Under copyright. Reproduction either in whole or in part only with our consent.
• Subject to change in the interest of technical progress.

Symbols

Hazard warning!

Reference to other information in thedocument.

2. General safety precautions

Disconnect the power supply before attempting any work on the unit.

• During installation, the electric power cable being connected must not be live being connected must not be live. Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit.
• Installing the sensor-switched light involves work on the mains voltage supply. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions. (e.g. DE: VDE 0100, AT: ÖVE / ÖNORM E8001-1, CH: SEV 1000)

3. L 800 S / L 810 S / L 820 S / L 800 C / L 810 C / L 800 SC / L 810 SC / L 820 SC

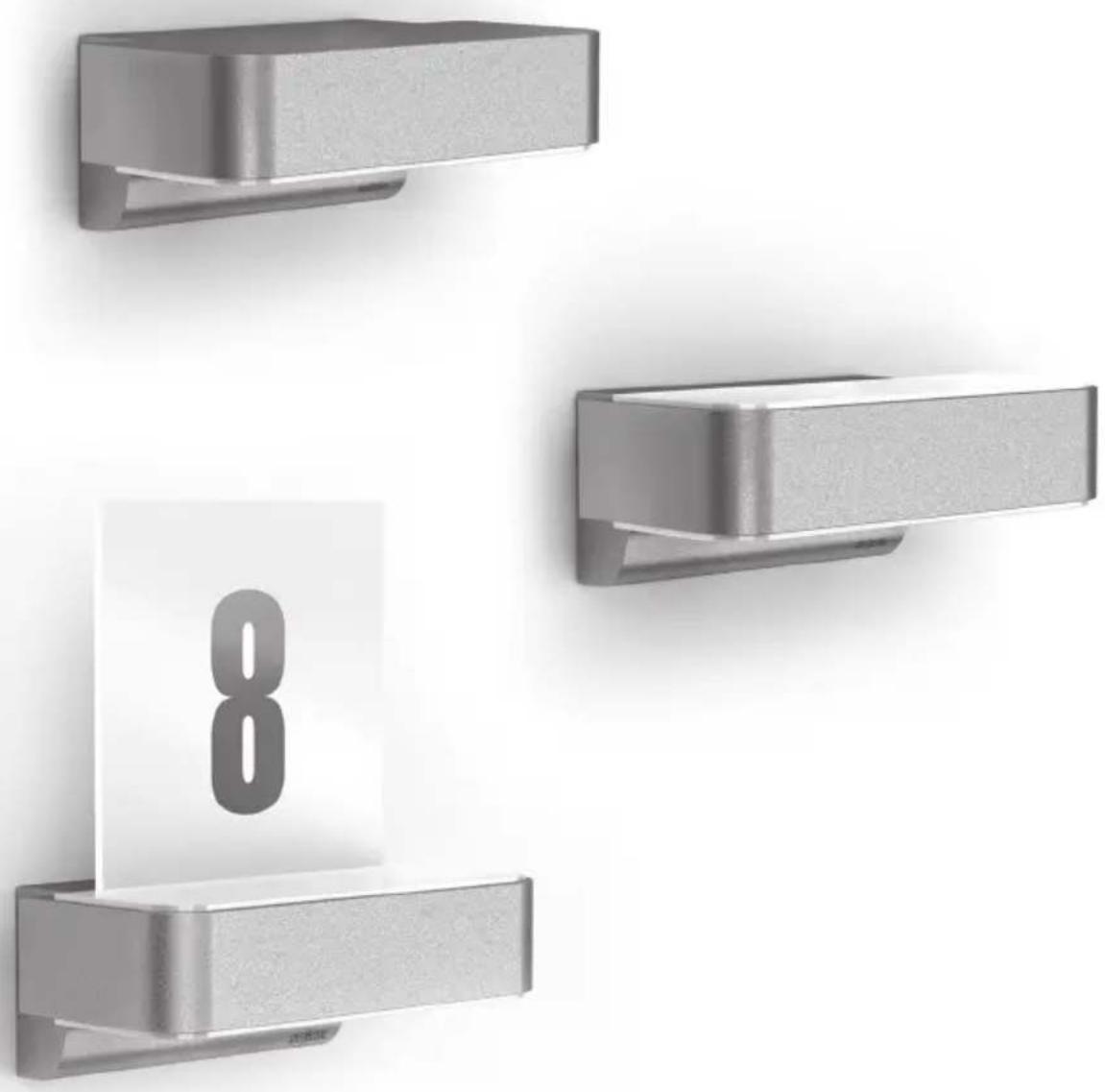

① Light enclosure
② Wall mount

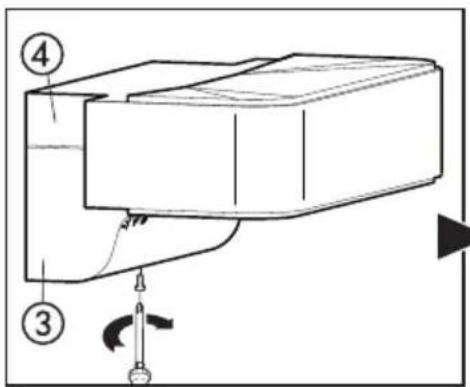

③ Bottom cover
④ Top cover
⑤ Mains lead, concealed wiring
⑥ Mains lead, surface wiring
⑦ Mounting hook to simplify installation / cable strain relief grips
⑧ Spacers for surface wiring

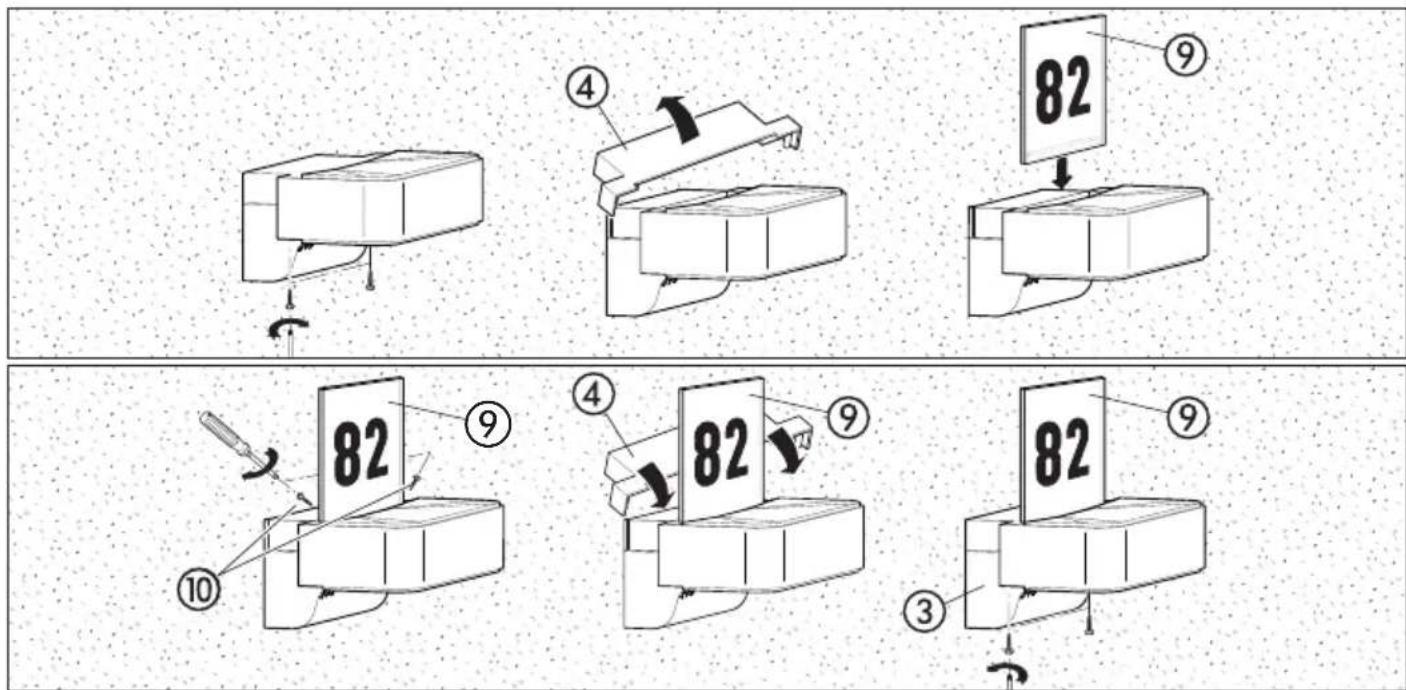

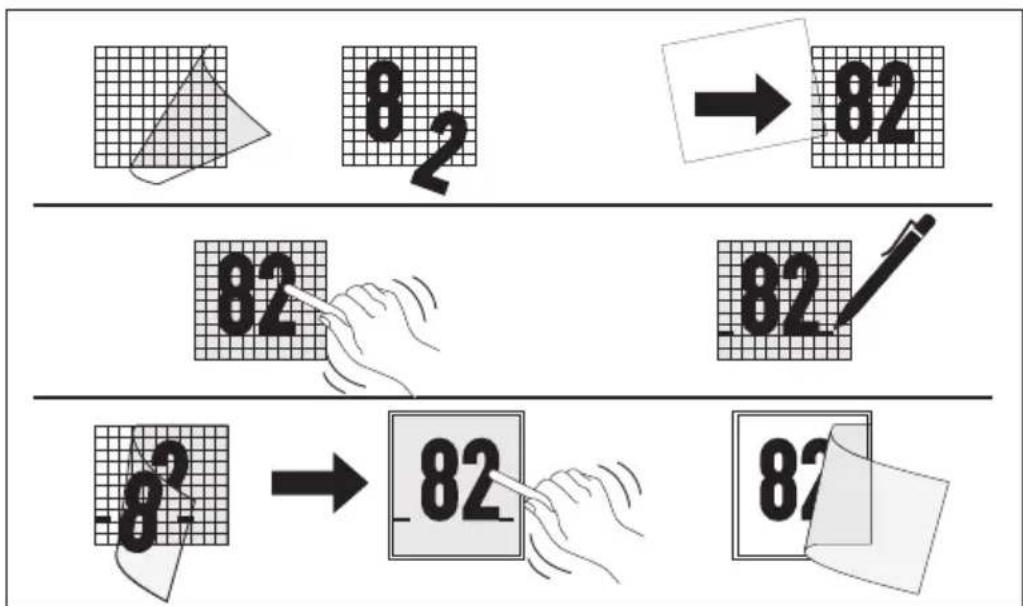

⑨ House number panel (L 820 S / L 820 SC)
⑩ Retaining screws for house number panel (L 820 S / L 820 SC)
⑪ Reach setting (S only)
⑫ Time setting (S only)
⑬ Twilight setting (S only)
⑭ Programme setting (S only)
⑮ Manual override function

4. Principle

Sensor-switched light with an active motion detector. The integrated iHF sensor emits high-frequency electromagnetic waves (5.8 GHz) and receives their echo. Any movement by persons in the light's detection zone is noticed by the sensor as a change in echo. A microprocessor then issues the switch command "switch light ON". Detection is possible through doors, panes of glass or thin walls. (L 800 C / L 800 SC / L 810 C / L 810 SC / L 820 SC)

The functions of the sensor-switched light can be set via smartphone and tablet or control dial. Bluetooth interconnection is only possible via smartphone or tablet. (L 800 SC / L 800 C / L 810 SC / L 810 C / L 820 SC)

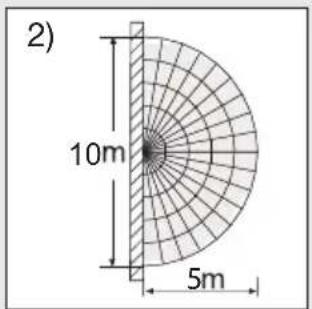

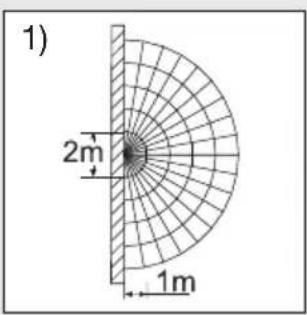

Detection zones for wall mounting:

1) Minimum reach (1 m)
2) Maximum reach (5 m)

1) 2m 1m

2) 10m 5m

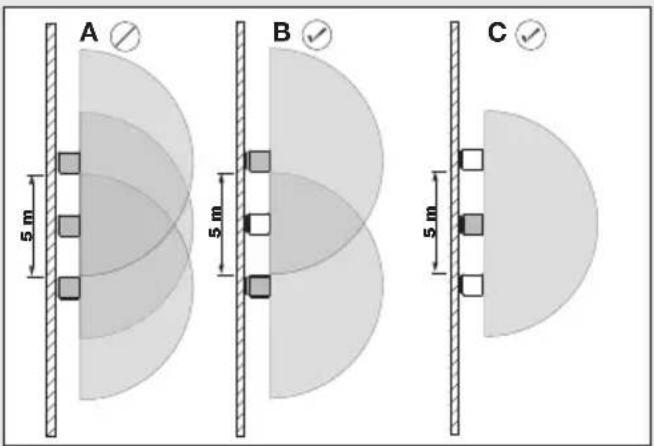

A 5 m B 5 m C 5 m

Note:

If lights are mounted too close together, switching errors may occur as the high-frequency signals emitted will interfere with each other (Fig. A).

The following measures will help to avoid switching errors of this kind:

• Allow a distance of at least 5 m between lights.
• Interconnect lights via the Smart Remote app and selectively deactivate the sensor in individual lights via the Sensor-Off function (Fig. B + C).
  As a result of interconnection, movement will also switch lights ON in spite of their sensor being deactivated.

Note:

The high-frequency output of the iHF sensor is approx. 1 mW – 1.000 times less than the transmission power of a mobile phone or microwave oven.

Note:

The sensor is suitable for switching light on automatically. Note: weather conditions may affect the way the sensor works. Strong gusts of wind, snow, rain or hail may cause the light to come on when it is not wanted.

5. Electrical connection

To achieve the stated reach of 5 m, the light should be mounted at a height of approx. 2 m.

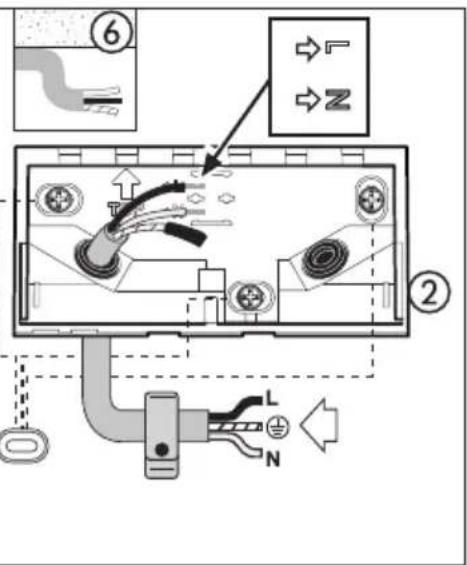

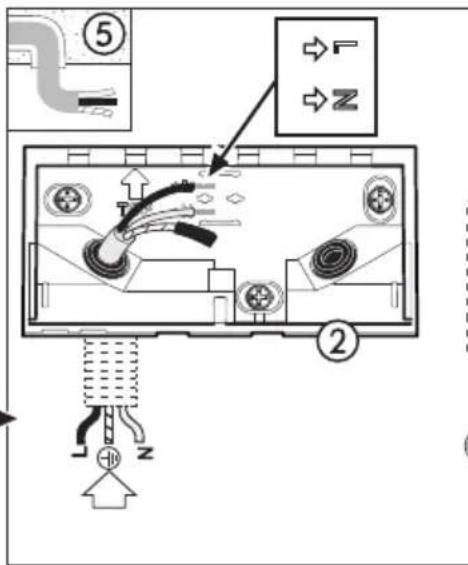

Connecting the mains power supply lead (see diagram)

The supply lead is a three-core cable:

L = phase conductor (usually black, brown or grey)

N = neutral conductor ( usually blue )

PE = protective-earth conductor (green/yellow)

If you are in any doubt, identify the conductors using a voltage tester; then disconnect from the power supply again. Phase (L) and neutral conductor (N) are connected to the terminal block.

Important:

Incorrectly wired connections will produce a short circuit later on in the product or your fuse box. In this case, you must identify the individual conductors once again and reconnect them.

Note:

The light source of this luminaire cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete luminaire must be replaced.

LED LED

A mains power switch for turning the unit ON and OFF may of course be installed in the mains supply lead.

6. Functions

The sensor-switched light can be put into service after mounting the enclosure and connecting to the mains power supply. When putting the light into operation manually at the light switch, it will switch OFF after 1 second for the calibration phase and is then activated for sensor mode.

It is not necessary to operate the light switch a second time.

Functions can be set via Smart Remote app (L 800 SC / L 800 C / L 810 SC / L 810 C / L 820 SC) or control dial.

Note:

The settings last selected on the control will be used.

Smart Remote app

To configure the light via smartphone or tablet, you must download the STEINEL Smart Remote app from your app store. You will need a Bluetooth-capable smartphone or tablet.

QR codes
Android

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Additional functions only via the Smart Remote app:

• Main light- / basic light level adjustable
• Extended reach adjustment
• Group interconnection
  – Twilight setting by teach-in

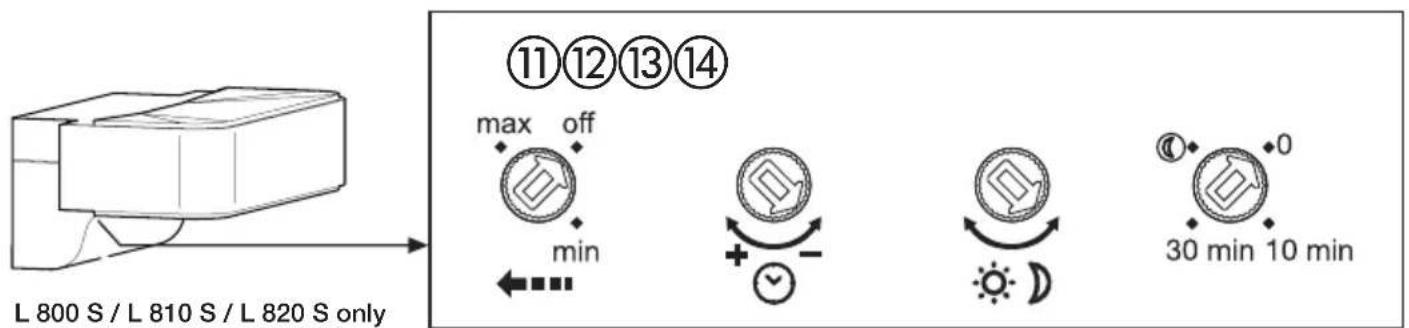

Reach setting (sensitivity) (S only)

factory setting: 5 m

Reach is the term used to describe the semi-circular zone that is produced on the ground when mounting the light at a height of 2 m.

max off min

• Potentiometer set to "max" = max. reach of 5 m
• Potentiometer set to "min" = min. reach of 1 m
• Potentiometer "off" = Sensor OFF

Sensor off: Motion detection and all other sensor functions are completely deactivated. We recommend selecting the shortest time (5 seconds) for setting the detection zone.

Tine setting (switch-off delay) (S only)

Factory setting: 5 s

The light's ON time can be set to any period from approx. 5 s to a maximum of 15 min (for S) or from approx. 5 s to a maximum of. 60 min (for SC).

Simple diagram with a clock icon, plus and minus signs, and a circular arrow (no text or symbols)

Adjustment control set to::

• = maximum time (15 min or 60 min).
• = minimum time (5 s).

Any movement detected before this time elapses will restart the timer. The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

Note:

After the light switches OFF, it takes approx. 1 second before it is able to start detecting movement again. The light will only switch ON in response to movement once this period has elapsed.

Twilight setting (response threshold) (S only)

Factory setting: 2,000 lux

The light's chosen response threshold can be infinitely varied from approx. 2 to 2,000 lux.

approx. 2,000 lu approx. 2 lux.

Adjustment control set to:

= Daylight mode
D = Night-time operation

To adjust the detection zone in daylight, the control dial must be set to 2000 lux.

Programme setting (S only)

0 30 min 10 min

0 min = Soft start / no basic lighting level ON as from the selected twilight level
10 min = Soft start + basic lighting level 10 minutes
30 min = Soft start + basic lighting level 30 minutes
= Soft start + basic lighting level all night long

7. Manual override function ⑮

If a mains switch is installed in the mains supply lead, the following functions are available in addition to simply switching light ON and OFF:

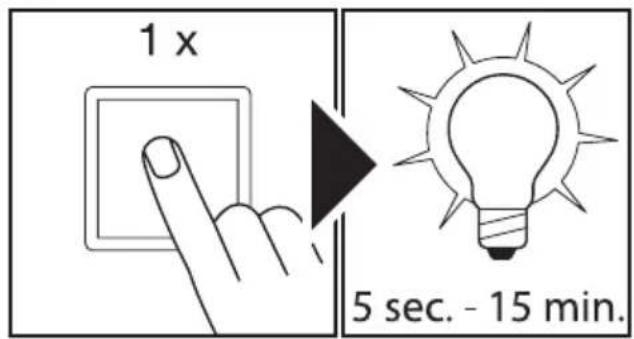

Sensor mode 15.1:

Switch light ON (when light is OFF):

Switch OFF and ON once. Light stays ON for the period selected.

Switch light OFF (when light is ON):

Switch OFF and ON once. Light goes out or switches to sensor mode.

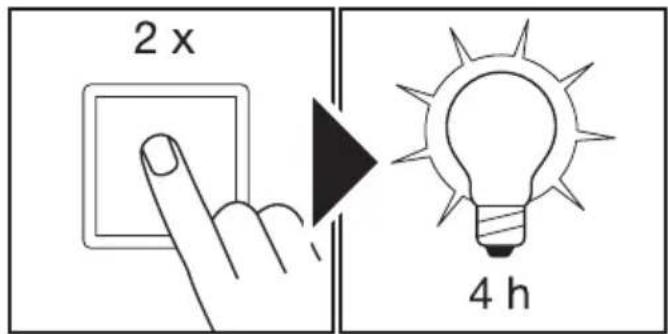

Manual override 15.2:

1) Activate manual override:

Switch OFF and ON twice. The light is set to stay ON for 4 hours (blue LED lights up behind the diffuser ④). Then it returns automatically to sensor mode (blue LED OFF).

2) Deactivate manual override:

Switch OFF and ON once. Light goes out or switches to sensor operation.

Important:

The switch should be actuated in rapid succession (in the 0.2–1-second range).

What is soft light start?

The sensor-switched light features a soft light start function. This means that when turned ON, the light is not switched directly to maximum output but gradually builds up brightness to 100% within the space of a second. Brightness is also gradually reduced when the light is switched OFF.

What is basic light level?

The basic light level provides continuous night-time illumination at approx. 10% light output. The light only switches to maximum output (100%) in response to movement in the detection zone (see Time setting ⑫ ). The light then returns to the basic light level (approx. 10%). The SC version switches the light to the basic light level you preselect (10-50%).

Note:

Depending on the local power grid, the LED's may flicker slightly when dimmed. This is not a product defect and no reason for complaint.

8. Maintenance / care

The product requires no maintenance.

The light can be cleaned with a damp cloth (without detergents) if dirty.

Important note: the control gear cannot be replaced.

230 V LED

9. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

10. Declaration of Conformity

Hereby, STEINEL Vertrieb GmbH declares that the radio equipment type L 800 SC / L 800 S / L 800 C / L 810 SC / L 810 S / L 810 C / L 820 SC / L 820 S is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.steinel.de

11. Manufacturer's Warranty

This Steinel product has been manufactured with utmost care, tested for proper operation and safety and then subjected to random sample inspection. Steinel guarantees that it is in perfect condition and proper working order. The warranty period is 36 months and starts on the date of sale to the consumer. We will remedy defects caused by material flaws or manufacturing faults. The warranty will be met by repair or replacement of defective parts at our own discretion. The warranty shall not cover damage to wear parts, damage or defects caused by improper treatment or maintenance.

Further consequential damage to other objects shall be excluded.

Claims under the warranty will only be accepted if the unit is sent fully assembled and well-packed with a brief description of the fault, a receipt or invoice (date of purchase and dealer's stamp) to the appropriate Service Centre.

Repair service:

If defects occur outside the warranty period or are not covered by the warranty, ask your nearest service station for the possibility of repair.

1. Technical specifications

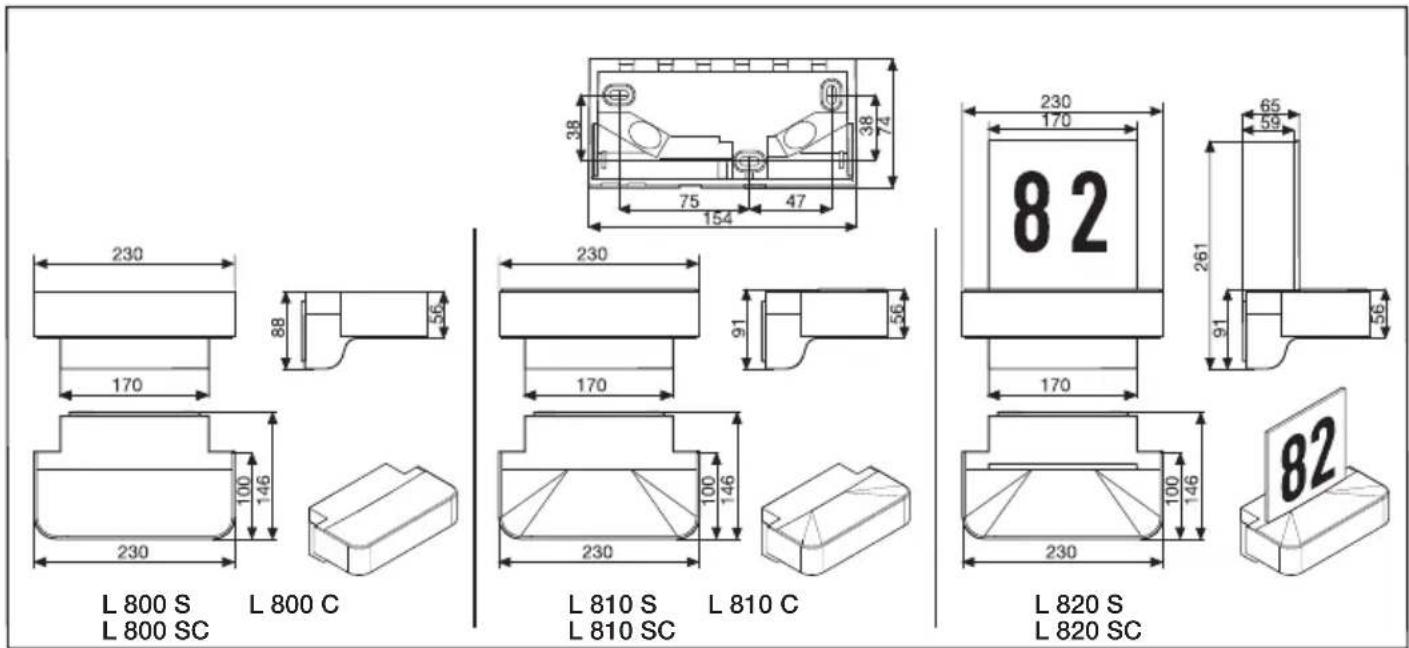

Dimensions (H × W × D) 88 × 230 × 145 mm	(L 800 S / L 800 SC / L 800 C)
91 × 230 × 145 mm	(L 810 S / L 810 SC / L 810 C)
260 × 230 × 145 mm	(L 820 S / L 820 SC)

Material Light enclosure: aluminiumLight diffuser: plastic

Power supply 220 – 240 V, 50/60 Hz

Power consumption ( P_on ) 7.50 W (L 800 S / L 800 SC / L 800 C)9.80 W (L 810 S / L 810 SC / L 810 C)9.80 W (L 820 S / L 820 SC)

Power consumption of iHF sensor 0.61 W (SC / C only)

Light output 466 lm (L 800 S / L 800 SC / L 800 C)

679 lm (L 810 S / L 810 SC / L 810 C)

679 lm (L 820 S / L 820 SC)

Efficiency 62 lm/W (L 800 S / L 800 SC/ L 800 C)

69 lm/W (L 810 S / L 810 SC / L 810 C)

69 lm/W (L 820 S / L 820 SC)

Colour rendering index R

a = 82

Standby network ( Pnet)

0.40 W (SC / C only)

Power factor

0.89

Colour temperature

3000 K (warm white)

Average rated life expectancy (L70B50 at 25 °C)

>60,000 hours

Angle of coverage

160° with Sneak-by guard (SC / S only)

Detection reach 1 – 5 m ((SC / C only)

Twilight setting

2-2,000 LuxFor C: only in combination with a Bluetooth sensor-switched product

Time setting	For SC: 5 s - 60 min
	For S: 5 s - 15 min
	For C: only in combination with a Bluetooth sensor-switched product

Basic light level

For S: 0 %, 10 % (can only be set by adjustment control)For SC: 0 %, 10 - 50 % (with optional Smart Remote)For C: 0 - 50 % soft start (with optional Smart Remote) and only in combination with a Bluetooth sensor-switched product

Permanent light

selectable (4 h)

IP rating

IP 44

Protection class

II

Ambient temperature

-20^ to +40^

Bluetooth frequency

2.4 – 2.48 GHz (L 800 / L 810 / L 820 SC)

Bluetooth transmitter power 5 dBm / 3 mW (L 800 / L 810 / L 820 SC)

Sensor frequency 5.8 GHz

Sensor transmitter power < 1 mW

Colour consistency SDCM Starting value: 3

Luminous intensity distribution

Diagram showing a circular pattern with labeled axes and concentric circles, likely representing a geometric or directional relationship.

L 800 S / L 800 SC / L 800 C L 810 S / L 810 SC / L 810 C L 820 S / L 820 SC

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

(L 800 S / L 800 SC / L 800 C) This product contains an energy efficiency class "E" light source

(L 810 S / L 810 SC / L 810 C) (L 820 S / L 820 SC)

This product contains an energy efficiency class "D" light source

13. Troubleshooting

Malfunction Cause Remedy

Sensor-switched light without power	■ Fuse has tripped, not switched ON, break in wiring■ Short circuit	■ Activate, change fuse, turn ON mains switch, check wiring with voltage tester■ Check connections
Sensor-switched light will not switch ON	■ Twilight control set to night mode during daytime operation■ Mains switch OFF■ Fuse has tripped■ Detection zone not correctly adjusted	■ Reset■ Switch ON■ Activate, change fuse, check connection if necessary■ Readjust
Sensor-switched light will not switch OFF	■ Continued movement within the detection zone	■ Check detection zone and readjust if necessary
Sensor-switched light will not switch OFF completely	■ Basic lighting level selected	■ Turn programme selector dial to 0
Sensor-switched light switching ON when it should not	■ Wind is moving trees and bushes in the detection zone■ Cars in the street are detected	■ Change detection zone■ Change detection zone
Large metal objects, such as cars or metal walls, in the detection zone	■ Change detection zone	■ e.g. park car somewhere else
LED floodlight is not shown in the Bluetooth listing	■ Incorrect region selected	■ Settings→ Region EU/Region US
Forgotten password? ■ After entering wrong password:		"Reset password" button; switch power supply OFF and back ON again within 10 minutes; then re-enter password
App won't start	■ Location is not activated	■ Activate location in smartphone settings
Settings for LED floodlight are greyed out	■ LED floodlight is not declared as group master (slave mode)	■ Set master floodlight■ Declare LED floodlight as master
No Bluetooth LED floodlight found	■ LED floodlight is not in reach■ Bluetooth is deactivated on smartphone	■ Check whether Bluetooth is activated on smartphone or reduce distance to the product■ Re-startsearch
No connection being set up from smartphone to LED floodlight	■ Smartphone too close to device■ Smartphone not compatible with app■ App version not up to date	■ Distance to LED floodlight at least 1.5 m■ Use different smartphone■ Update Smart Remote app in app store

FR

Application Smart Remote

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a clock icon, plus and minus signs, and a checkmark symbol (no text or labels)

230 V LED

9. Recyclage

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a circular icon, plus/minus signs, and a clock symbol (no text or labels)

Regolatore su:

230 V LED

9. Smaltimento

Radar chart with concentric circles and radial lines, no text or symbols present

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple line diagram with a clock icon, plus and minus signs, and directional arrows (no text or symbols)

Simple diagram with a circular icon containing a speech bubble and directional arrows, plus and minus signs (no text or symbols)

Potenciómetro em:

230 V LED

9. Reciclagem

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

L 800 S / L 800 SC / L 800 C L 810 S / L 810 SC / L 810 C L 820 S / L 820 SC

Diagram showing a polar coordinate system with labeled axes and concentric circles, likely representing a physical or mathematical model.

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Ytterligare funktioner endast via Smart Remote App:

Simple line drawing of a clock with directional arrows and a plus/minus symbol (no text or labels)

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Flere funktioner kun med Smart Remote-appen:

Simple diagram with a circular icon, plus and minus signs, and a checkmark inside a circle (no text or symbols)

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a circular icon containing a speech bubble and directional arrows, plus and minus signs (no text or symbols)

Säädin asennossa:

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Stillskrue på:

• = maksimal tid
  (15 min el. 60 min).
• = minimal tid (5 s).

Diagram showing a circuit or device with labeled components including a 210V component and an LED indicator.

9. Avfallsbehandling

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 30°15'46" 30°15'47" 30°15'48" 30°15'49" 30°15'50" 30°15'51" 30°15'52" 30°15'53" 30°15'54" 30°15'55" 30°15'56" 30°15'57" 30°15'58" 30°15'59" 30°15'60" 30°15'61" 30°15'62" 30°15'63" 30°15'64" 30°15'65" 30°15'66" 30°15'67" 30°15'68" 30°15'69" 30°15'70" 30°15'71" 30°15'72" 30°15'73" 30°15'74" 30°15'75" 30°15'76" 30°15'77" 30°15'78" 30°15'79" 30°15'80" 30°15'81" 30°15'82" 30°15'83" 30°15'84" 30°15'85" 30°15'86" 30°15'87" 30°15'88" 30°15'89" 30°15'90" 30°15'91" 30°15'92" 30°15'93" 30°15'94" 30°15'95" 30°15'96" 30°15'97" 30°15'98" 30°15'99" 30°15'100" 30°15'101" 30°15'102" 30°15'103" 30°15'104" 30°15'105" 30°15'106" 30°15'107" 30°15'108" 30°15'109" 30°15'110" 30°15'111" 30°15'112" 30°15'113" 30°15'114" 30°15'115" 30°15'116" 30°15'117" 30°15'118" 30°15'119" 30°15'120" 30°15'121" 30°15'122" 30°15'123" 30°15'124" 30°15'125" 30°15'126" 30°15'127" 30°15'128" 30°15'129" 30°15'130" 30°15'131" 30°15'132" 30°15'133" 30°15'134" 30°15'135" 30°15'136" 30°15'137" 30°15'138" 30°15'139" 30°15'140" 30°15'141" 30°15'142" 30°15'143" 30°15'144" 30°15'145" 30°15'146" 30°15'147" 30°15'148" 30°15'149" 30°15'150" 30°15' A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

	L 800 S / L 800 SC / L 800 C	L 810 S / L 810 SC / L 810 CL 820 S / L 820 SC
(L 800 S / L 800 SC / L 800 C)	Dette produktet inneholder en lyskilde med energieffektivitetsklasse «E»
(L 810 S / L 810 SC / L 810 C)(L 820 S / L 820 SC)	Dette produktet inneholder en lyskilde med energieffektivitetsklasse «D»

13. Driftsfeil

Feil Årsak Tiltak

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a clock with directional arrows and a circular symbol (no text or labels)

Ρυθμιστής σε θέση:

230 V LED

9. Απόσυρση

Diagram showing a circular grid with radial lines and concentric circles, likely representing a coordinate system or geometric pattern.

L 800 S / L 800 SC / L 800 C L 810 S / L 810 SC / L 810 C L 820 S / L 820 SC

Radar chart with concentric circles and radial lines, no visible text or labels

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a clock icon, directional arrows, and a plus/minus sign (no text or labels)

230 V LED

9. Ártalmatlanítás

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a circular symbol, plus/minus signs, and a clock icon (no text or labels)

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a clock icon, plus and minus signs, and curved arrows indicating rotation or movement (no text or symbols)

Regulátor na:

230 V LED

9. Likvidácia

Diagram showing a circular grid with radial lines and concentric circles, labeled with mathematical expressions for angular measurements.

L 800 S/L 800 SC/L 800 C L 810 S/L 810 SC/L 810 C L 820 S/L 820 SC

Radar chart with concentric circles and radial lines, no visible text or labels

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

230 V LED

9. Utylizacja

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a circular icon, plus and minus signs, and a checkmark inside (no text or symbols)

230 V LED

Polar coordinate system diagram with concentric circles and radial lines, no text or labels present

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Dodatne funkcije ponuja samo aplikacija Smart Remote:

Simple diagram with a circular icon, plus/minus signs, and a clock symbol (no text or labels)

Nastavitveni gumb na:

230 V LED

9. Odstranjevanje

Električne aparate, opremo in embalažo oddajte v okolju prijazno ponovno predelavo.

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Dodatne funkcije samo putem aplikacije Smart Remote:

– Podesiva razina glavnog / osnovnog svjetla
– Prošireno podešavanje dometa
- Grupno umreženje
– Podešavanje svjetlosnog praga pomoću funkcije Teach-In

Podešavanje dometa (osjetljivost) (samo S)

Tvornička podešenost: 5 m

Diagram showing a circular icon with a plus sign and a minus sign, indicating directional feedback or refresh.

Regulator podešen na:

230 V LED

9. Zbrinjavanje

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 圆心坐标系(1) 圆心坐标系(2)

L 800 S / L 800 SC / L 800 C L 810 S / L 810 SC / L 810 C L 820 S / L 820 SC

Diagram showing a circular pattern with angular divisions and radial lines, labeled with Chinese text at the top.

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Programmi seadmine (ainult S)

0 30 min 10 min

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a clock icon, plus and minus signs, and directional arrows (no text or symbols)

Nustatymo reguliatorius ties:

• = maksimali trukmè
  (15 min. arba 60 min.).
• = minimalus laikas (5 s).

230 V LED

9. Šalinimas

Diagram showing a circular target with radial lines and concentric circles, labeled with mathematical expressions at the bottom.

L 800 S / L 800 SC / L 800 C L 810 S / L 810 SC / L 810 C L 820 S / L 820 SC

Radar chart with concentric circles and radial lines, no text or symbols present

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram with a circular icon, plus/minus signs, and a clock symbol (no text or labels)

lestatijumu regulators uz:

+ = maksimālais laiks (15 min, t.i., 60 min).

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Simple diagram showing a sun and moon with an arrow indicating rotation (no text or symbols)

Регулятор на:

230 V LED

9. Утилизация

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Diagram showing a circular icon with directional arrows and a plus/minus symbol, likely representing a feedback or refresh concept.

Регулатор на:

Simple diagram showing a circular arrow with rotation and a sun with partial moon, no text or symbols present.

Регулатор на:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

二维码

Simple diagram showing a circular icon with speech bubble and sun/night symbols, no text or labels present

调节器设置至：
