USER MANUAL ESDEL8A PANASONIC

GBDFINLEDKPNSFINPLCZSKHROTR Thank you for purchasing this Panasonic product.Before operating this unit, please read these instructions completely and save them for future use. Operating Instructions (Household) Epilator Model No.

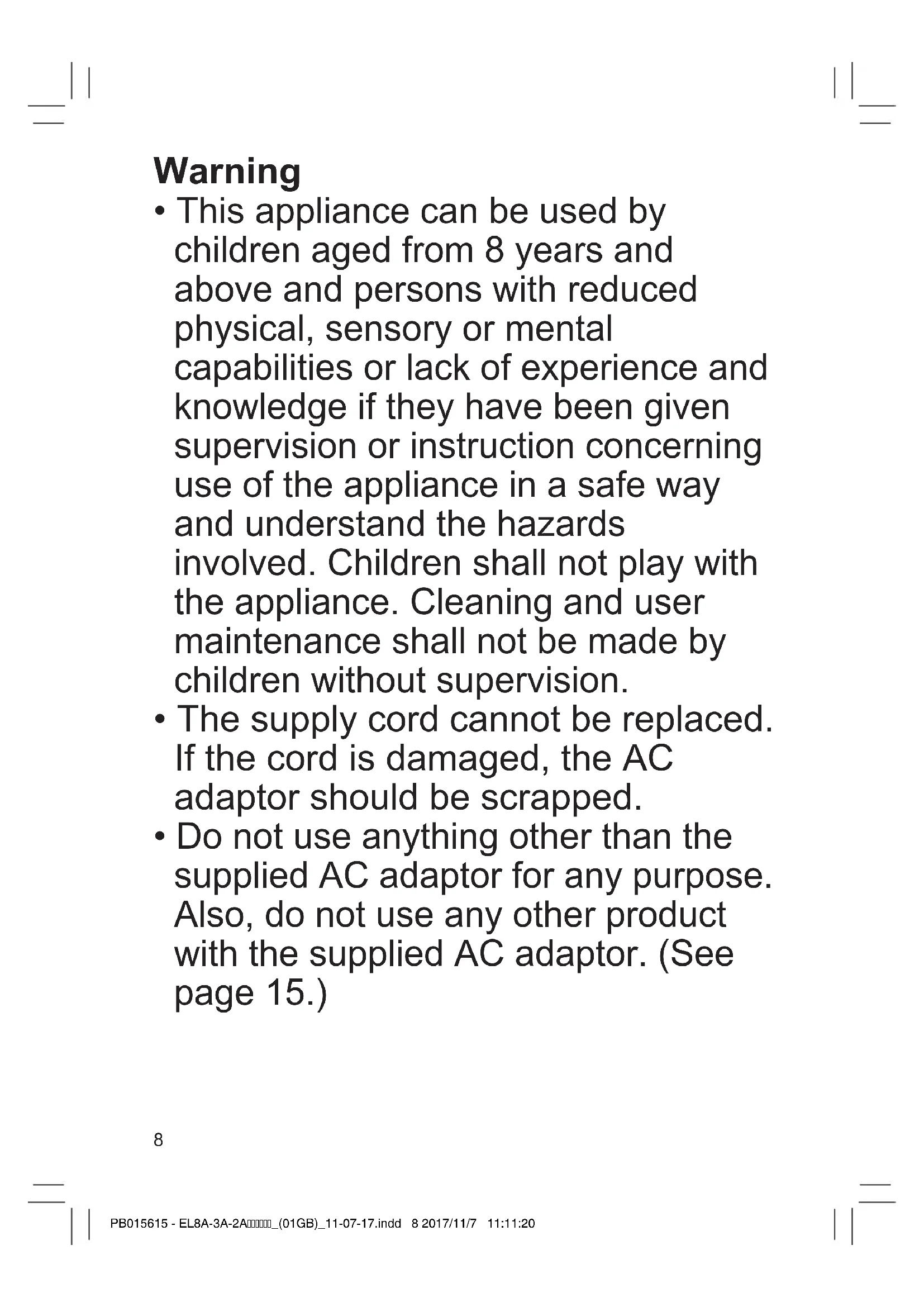

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor. (See page 15.) PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 8 2017/11/7 11:11:209 GBDFINLEDKPNSFINPLCZSKHROTR

• The following symbol indicates that a specicdetachablepowersupplyunit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol. ►Using the head of epilation/shaver

• These heads can be used for wet. The following symbol means suitable for use in a bath or shower. ►Using the foot care head

• The foot care head is washable. The following symbol means that the foot care head can be cleaned under the water.

• Detach the main body from the AC adaptor before cleaning it in water. PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 9 2017/11/7 11:11:2010 WARNING Power supply Do not damage or modify, or forcefully bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord. Do not immerse the AC adaptor in water or wash it with water. Do not place the AC adaptor over or near water lled sink or bathtub. Never use the appliance if the AC adaptor is damaged or if the power plug ts loosely in a household outlet.

Doing so may cause electric shockorreduetoashortcircuit. Do not connect or disconnect the adaptor to a household outlet with a wet hand. ‑ Doing so may cause electric shock or injury. Do not use in a way exceeding the rating of the household outlet or the wiring. ‑ Exceeding the rating by connecting too many plugs to one householdoutletmaycausere due to overheating. Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the adaptor or appliance plug. ‑ Failuretodosomaycausere or electric shock. This product This product has a built‑in rechargeable battery. Do not throw into ame or heat. Do not charge, use, or leave in high temperatures.

Doing so may cause overheating, ignition, or explosion. Do not modify or repair. ‑ Doingsomaycausere,electric shock, or injury. Contact an authorized service centre for repair (battery change etc.). Safety precautions To reduce the risk of injury, loss of life, electricshock,re,anddamageto property, always observe the following safety precautions. Explanation of symbols The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed. DANGER Denotes a potential hazard that will result in serious injury or death. WARNING Denotes a potential hazard that could result in serious injury or death. CAUTION Denotes a hazard that could result in minor injury or property damage. The following symbols are used to classify and describe the type of instructions to be observed. This symbol is used to alert users toaspecicoperatingprocedure that must not be performed. This symbol is used to alert users toaspecicoperatingprocedure that must be followed in order to operate the unit safely. PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 10 2017/11/7 11:11:2011 GBDFINLEDKPNSFINPLCZSKHROTR WARNING Never disassemble except when disposing of the product. ‑ Doingsomaycausere,electric shock, or injury. In case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or malfunction. ‑ Failuretodosomaycausere, electric shock, or injury. <Abnormality or malfunction cases>

• The main unit, adaptor or cord is deformed or abnormally hot.

• The main unit, adaptor or cord smells of burning.

• There is abnormal sound during use or charging of the main unit, adaptor or cord. ‑ Immediately request inspection or repair at an authorized service centre. Preventing accidents Do not place within reach of children or infants. Do not let them use it. ‑ Doing so may cause an accident or injury due to accidental ingestion of the inner blade, brush, etc. Cleaning Always unplug the adaptor from a household outlet when cleaning. ‑ Failure to do so may cause electric shock or injury. Regularly clean the power plug and the appliance plug to prevent dust from accumulating. ‑ Failuretodosomaycausere due to insulation failure caused by humidity. Disconnect the adaptor and wipe with a dry cloth. CAUTION To protect the skin The following persons should not use this appliance:

• Persons suffering from atopic dermatitis or rashes and other skin diseases

• Persons with allergic diathesis or persons who are easily irritated by cosmetics, clothing, metals, etc.

• Persons who are easily suppurated

• Persons suffering from varicose veins, diabetes, hemophilia, etc.

• Persons who have trouble stopping bleeding ‑ Use in such cases may cause the skin to become sensitive or cause inammation,bleeding,or increased pain. Do not use in the following cases:

• During menstruation, pregnancy, or about one month after giving birth

• When you are not well or when you feel an abnormality in your skin or body

• After drinking alcohol or taking medicine, or when you are very tired ‑ Use in such cases may cause the skin to become sensitive or cause inammation,bleeding,or increased pain. Do not use in the following body area:

Doing so may cause injury, inammationoftheskin,orbleeding. Do not use the epilation head for legs/arms to epilate your underarms and bikini‑line. ‑ Doing so may cause injury or inammationoftheskin. Do not press on the blade too strongly when using the shaver head. ‑ Doing so may cause damage which results in injury to the skin. PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 11 2017/11/7 11:11:2012 CAUTION Do not touch the blade section (metallic section) of the inner blade when using the shaver head. ‑ Doing so may cause injury to your hands. Do not turn ON the switch without the head attached. ‑ Doingsomaycausengerinjury or cause hair or clothing entanglement and damage. Do not use with the frame removed. ‑ Doingsomaycausengerinjury or cause hair or clothing entanglement and damage. Do not use the soap with a scrub or with peeling effect. ‑ Doing so may cause injury to the skin, color stains or other skin trouble. The skin protector and the outer foil are fragile. Store the shaver head with the bikini comb attached. ‑ Failure to do so may result in deformation or damage to the skin protector or outer foil, which may cause injury to skin. ‑ Please store the skin protector and the outer foil with care. Before using, check that the skin protector, disc, blade, frame are free from deformities, cracks, and damage. ‑ Failure to do so may cause injury to the skin. Apply the skin protector and the epilation discs at a 90° angle to your skin with gentle force.

Failure to do so may cause injury to the skin or cause hair or clothing entanglement and damage. If skin problems continue for 2 days or longer after treatment, stop using the unit and contact a dermatologist. ‑ Failure to do so may cause symptoms to worsen. Turn the switch off when the appliance becomes hot, and use the appliance only after it has cooled. ‑ Failure to do so may cause low temperature burn. About using the epilation/ shaver head Do not use in the following body area:

• Face, genitals and genital area, or thighs

• Inner side of the upper arms and areas such as elbows or knees which are prone to sagging

Doing so may cause injury, inammationoftheskin,orbleeding. The following persons should not use this appliance:

• Persons who have suffered skin problems (suppuration, inammation,etc.)causedby epilation (plucking, depilation, waxing, etc.) ‑ Use in such cases may cause the skin to become sensitive or cause inammation,bleeding,or increased pain. Do not use epilation/shaver head in the following ways:

• Using just before swimming or sea bathing (use at least 2 days before such activities)

• Using just before bathing

• Engaging in extreme sports or exercise right after epilation ‑ Doing so may cause infection or inammationresultingfrom bacteria that enter the body through the pores. PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 12 2017/11/7 11:11:2013 GBDFINLEDKPNSFINPLCZSKHROTR CAUTION Do not apply strong pressure to the skin, move repeatedly over the same area or move back and forth in one area. Also, do not use with a jabbing motion. ‑ Doing so may cause injury or inammationoftheskin,or increased pain. About using the foot care head Do not use on blisters and corns.

Doing so may cause injury, inammationoftheskin,orbleeding. Do not use foot care head in the following ways:

• Using the foot care head in the bath ‑ Doing so may cause injury to the skin,infection,inammation, bleeding or other trouble, or worsening of such symptoms.

People suffering from poor circulation in the feet; or swelling, itchiness, pain, or excessive warmth in the feet should consult their doctor before using the foot care head.

If skin appears abnormal after ling, stop using the foot care head and consult a dermatologist.

• File the hardened skin little by little over a few days.

• File only calluses or hardened skin on your feet. ‑ Failure to follow the above instruction may cause injury to theskin,infection,inammation, bleeding or other trouble, or worsening of such symptoms. When using the appliance for ling, be careful of the direction in which the main body moves. ‑ Rotationofthelemaycausethe main body to move in an unexpected direction and cause injury to the skin. Store the foot care head with the protection cap attached. ‑ Failure to do so may cause damage to surrounding items. Note the following precautions Do not share with your family or others. ‑ Doing so may cause infection or inammation. Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

Doing so may cause electric shockorreduetoashortcircuit. Do not continuously aim the light directly into your eyes. ‑ Doing so may cause dizziness. Do not drop or subject to shock. ‑ Doing so may cause injury. Do not wrap the cord around the adaptor or the appliance when storing. ‑ Doing so may cause the wire in the cord to break with the load, andmaycausereduetoa short circuit. Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord. ‑ Disconnecting by holding onto the cord may cause electric shock or injury. Disconnect the adaptor from the household outlet when not charging. ‑ Failure to do so may cause electricshockorredueto electrical leakage resulting from insulation deterioration. PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 13 2017/11/7 11:11:2014 Handling of the removed battery when disposing DANGER

• The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

• Do not charge the battery after it has been removed from the product.

• Do not throw into re or apply heat.

• Do not hit, disassemble, modify, or puncture with a nail.

• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.

Doing so may cause overheating, ignition, or explosion. WARNING After removing the rechargeable battery, do not keep it within reach of children and infants. ‑ The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately. If the battery uid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

Failure to do so may cause eye injury. Consult a physician immediately. CAUTION If the battery uid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water. ‑ Failure to do so may cause inammation. Intended use Do not use alcohol, nail polish remover, or detergent (ex. liquid hand soap), etc. to clean the appliance. Doing so may cause failure, cracking or discoloration of the main body. Keep the appliance away from sinks, bathrooms or other high‑humidity areas where it could be exposed to water and moisture after use. Keep the appliance away from where it will be exposed to high temperatures or direct sunlight. When storing, always attach the protection cap for the foot care head and shaver head. PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 14 2017/11/7 11:11:2015 GBDFINLEDKPNSFINPLCZSKHROTR Quick steps for using 1 Charging ( Page 16) 2 Selecting the head ( Page 16) 3 How to use ( Page 17) Parts identication (See page 3) Attachments

Epilation head for legs/arms

Epilation head for underarms/ bikini‑line [

Protection cap for foot care head [

Epilation head for legs/arms 4 Epilation discs

Epilation head for underarms/ bikini‑line 5 Frame release ribs 6 Frame 7 Epilation discs (inside)

Protection cap for foot care head

Foot care head File Frame release buttons Frame

Main body Head release button LED light Mode lights Power switch (power off/on/mode selection)

AC adaptor (RE7‑87) (The shape of the AC adaptor differs depending on the area.) Adaptor Power plug Cord Appliance plug Accessories

Pouch PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 15 2017/11/7 11:11:2116 Charging For best performance, fully charge the appliance before use. You cannot operate the appliance while charging. Charging time = Approx. 1 hour The epilator can be used for approximately 30 minutes (35 minutes when using the gentle cap) after 1 hour of charging. (This will differ depending on the temperature.) Plug the AC adaptor into the epilator ( ) and a household outlet ( ). (Fig. 1)

Red light appears while charging. (Fig. 2)

• Red light goes off after charging is completed. (Fig. 3)

• Red light blinks twice every second when abnormal charging. (Fig. 4)

Recommended ambient temperature for charging is 15 °C – 35 °C. The battery may not charge properly or not at all if outside the recommended temperature.

• The charging time may decrease depending on the charging capacity.

• Charging the appliance every time it is used will not affect the life of the rechargeable battery.

• When charging the appliance for the rsttimeorwhenithasnotbeeninuse for more than 6 months, the charging time may change or the charging indication/noticationlightmaynot glow for a few minutes. It will eventually glow if kept connected.

• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance. <To check if charging is completed> If you remove and reinsert the appliance plug while charging, the charging indication/noticationlightglowsand turns off after approximately 5 seconds. Before use Selecting the head Remove the head while pushing the head release button and push the head until it clicks. (Fig. 5) Using the bikini comb

Place the bikini comb onto the shaver head and slide trimmer up. (Fig. 6)

• When the bikini comb is in place, make sure the comb is in close contact with the skin. <LED light> (Fig. 7) The LED light comes on when the power is turned on. The light will remain on while the power is ON. <Mode selecting function> (Fig. 8)

• The disc rotation speed can be switched between 3 stages. Try using the SOFT mode when you are concerned about irritation when removing hairs.

• Operation will change in order from ●(SOFT) ●●(NORMAL) ●●●(POWER) “OFF” each time the power switch is pressed.

• When using the foot care head, using the POWER mode is recommended. ●: SOFT The disc will rotate at a low speed.

• 1 of Mode lamps will glow blue. ●●: NORMAL The disc will rotate at a normal speed.

• 2 of Mode lamps will glow blue. ●●●: POWER The disc will rotate at a high speed.

• 3 of Mode lamps will glow blue. OFF The power will be switched OFF. PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 16 2017/11/7 11:11:2117 GBDFINLEDKPNSFINPLCZSKHROTR <When the battery capacity is low> Thechargingindication/noticationlight( ) blinks once every second. (Fig. 9) The operating time varies depending on usage or temperature after the charging indication/noticationlightblinks. How to use Epilation head The epilation head for underarms/bikini‑line is suitable for underarms/bikini‑line and the epilation head for legs/arms is suitable for legs/arms.Areas suitable for epilation (Fig. 10)A. Areas the epilation head for legs/arms can be used.B. Areas the epilation head for underarms/bikini‑line can be used. Before epilating the bikini‑line, be sure to put on your swim wear or underwear etc. and check the areas you wish to epilate.
• Using the epilator on areas other than those marked areas may cause pain or skin trouble. Areas not suitable for epilation (Fig. 11)The epilator should not be used on the inner side of the upper arms and areas such as elbows or knees which are prone to sagging.WET epilation (epilating after wetting the skin and epilator and then applying foam) makes the skin softer so it is gentler to your skin when epilating. For DRY epilation, begin at step 3. Before DRY epilation, wipe dry any moisture or sweat from the skin.

Wet the discs and place a small quantity of liquid shower gel on the discs. (Fig. 12)

• Always use shower gel when wet epilating.•Do not use a shower gel with a scrub or with granular salt, this may cause a malfunction. •Rinse any shower gel out of your hands.

Select the mode by pressing the power switch [

• Foam is created. Foam makes the epilator slide better, so you can move it fast.•The appliance may not operate in an ambient temperature lower than approximately 5 °C.•Apply the epilator at 90° to your skin and move it slowly so that it slides over your skin.<Epilating legs or arms>Upwards from the bottom of the leg.Inwards from the outside of the arm. (Fig. 13)<Epilating underarms or bikini‑line>

Move in several directions as underarm/bikini line hair grows in different directions.Stretch the skin with your ngers,andmoveslowlyfrominside to outside going against theowofhair.(Fig.14)PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 17 2017/11/7 11:11:2218 Tips for best epilation results The hair removal is not permanent, so from the second use, it is recommended to epilate the underarms about once a week, and the bikini‑line about once every two weeks. <For beginners/those with sensitive skin>

ES-DEL8A/ES-EL8A / ES-EL3A

Using the gentle cap that comes with the skin guard is recommended for peopleusingtheepilatorfortherst time or for those with sensitive skin. The gentle cap has a skin protector for gentler epilation, to remove hair by holding the skin down to reduce pain.

• We also recommend to use the SOFT mode rotation. ( Page 16)

• Massaging with a body puff may help to prevent ingrown hairs.

• Reddening might appear after use. A cool towel will help if you feel pain or there is a rash.

• If your skin gets dry after epilation, we recommend applying a moisture lotion two days after epilation.

• Make sure skin is clean before and after use. <Best hair length for epilation> Trim your hair before epilating for the rsttimeorifyouhavenotepilatedfor a long time. Hair removal is easier and less painful when the hair is short. Shaver head

WET Shaving with soap lather makes the skin slippery for a closer shave. For DRY shaving, step 3 is unnecessary. Before DRY shaving, wipe dry any moisture or sweat from the skin.

Attach the shaver head [

Check that the outer foil is not deformed or damaged.

Wet your skin and put shower gel on your skin.

• Do not use a shower gel with a scrub or with granular salt. Also do not use shaving cream, skin cream or skin lotion. Doing so may clog the blade and cause a malfunction.

Select the mode by pressing the power switch [

• Press gently so that the whole blade is in close contact with the skin and the surface of the blade does not move up and down. Foot care head

• The foot care head cannot be used in a bath or shower.

• Before use, be sure to fully charge the appliance.

• We recommend using the product within 30 minutes after bathing or showering. With the feet clean, wipe off any water on the skin. (Each use should be approximately 10 minutes (5 minutes on each foot, 10 minutes total for both feet))

Attach the foot care head [

Press the power switch [

• POWER mode is recommended for rotation speed. ( Page 16) PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 18 2017/11/7 11:11:2219 GBDFINLEDKPNSFINPLCZSKHROTR

Bring the foot care head into contact with the skin, and begin ling.

• Filing a single location for a long time can cause it to become hot with friction. To avoid this, be sure tomakesmallchangesinthelingpositionwhileling.•Filing should be performed about once every two weeks. The basics of foot care Donotusetheproductforlinganythingother than calluses and hardened skin on the feet. (Fig. 17)<Use on>Callus

A callus is a hardened layer that forms through repeated pressure or abrasion. Hardened layer Epidermis DermaThings to be careful of when lingBefore use After use

Hardened layer Epidermis Derma Portion to be removed Leave some of the hardened layer•Filing an area too deeply can cause it tobecomesoreorinamed.•Filing too large an area can result in even larger calluses forming. Therefore, be sure to leave some of the hardened layer. Tips for moving the foot care head Move in the direction indicated by the arrows.Useyourfreehandtosupportling.(Fig. 18) Cleaning

• Always clean the heads and caps after use to keep them in a hygienic state.•Switch off and unplug the appliance before cleaning.•Take care not to damage the skin protector, the frame, the fast cap and the gentle cap during cleaning. Dry cleaning [

Epilation head/Shaver head1. Lift fast/gentle caps, the frame upward while holding the cap release ribs [

]/the frame release ribs [

] or remove the frame by pushing the frame release button [

] and the shaver head [ ] with the cleaning brush [ ]. (Fig. 20)PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 19 2017/11/7 11:11:2220 Wet cleaning [

1. Wet the discs and blades, and then

apply liquid hand soap.

2. Turn the switch on and then foam

3. Wash the head with water to wash

• Do not use hot water.

If soap is not completely washed away, then a white deposit can accumulate and prevent the discs and the blades from moving smoothly.

• Rinse the shaver head with the frame removed.

4. Turn the switch off, wipe the appliance

with a dry cloth and dry it well. Foot care head (Fig. 22)

1. Apply liquid hand soap to the

central part of the le.

2. Pour a small amount of water on

the le and turn the switch on.

3. Rinse any debris thoroughly with

water or lukewarm water.

4. After turning the switch off, remove

the frame and rinse inside.

5. Wipe with a dry cloth and dry in a

well‑ventilated location. Replacing the outer foil and the inner blade

We recommend replacing the outer foil

] every year and the inner blade

] every two years. Remove the outer foil of the shaver head [

] only when replacing it. Replacing the outer foil (Fig. 23)

1. While pushing the outer foil gently

with the ngers, use a ngernail to release the plastic panel ( ) on the blade from the hooks ( ) on the inside of the frame.

2. The new outer foil should be

slightly bent and pushed in until it is hooked in the frame. Replacing the inner blade (Fig. 24)

1. Remove the inner blade by holding

it at both ends and pulling straight away from the shaver.

2. Insert the inner blade by holding it

at both ends and press downward. Replacing the le

Thelelifetimeisapproximately1year (assuming a single use every 2 weeks with approximately 10 minutes per use). Werecommendreplacingtheleabout once a year.

1. Press down with your nger and

2. Align the shaped part with the

mark side and press down. (Fig. 25) PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 20 2017/11/7 11:11:2321 GBDFINLEDKPNSFINPLCZSKHROTR Problem Possible cause Action The appliance does not operate. It is not charged. Fully charge the appliance. The switch is turned ON with the adaptor connected to the household outlet. Charging is only possible when connected to the household outlet. Disconnect from the household outlet before use. When epilating The skin protector or discs are deformed, cracked, or damaged. Request repair at an authorized service centre. When epilating or shaving Hair dust has accumulated. Clean the hair dust. Shower gel has adhered to the discs and blade. Wash it off by soaking in warm water. When caring for feet The frame is not securely attached. Reattach it. The usage time gets short. The appliance is used with approximately 5 °C or lower. Use the appliance in an ambient temperature approximately 5 °C or higher. The appliance is pressed against skin too hard. Contact to skin with gentle force. Not charged fully. Fully charge the appliance. The appliance stops during operation. The appliance is pressed against skin too hard. Contact to skin with gentle force. Not charged fully. Fully charge the appliance. Cannot remove hair. When epilating The appliance is used on long hair. Use on hair approximately 2 to 3 mm long. The way the unit is applied or moved is not correct. Refer to page 17. Troubleshooting PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 21 2017/11/7 11:11:2322 Problem Possible cause Action The hair becomes stubble. When epilating The way the unit is applied or moved is not correct. Refer to page 17. The appliance is not removing the hair as well as before. Hair dust has accumulated. Clean the hair dust. The skin protector or discs are deformed, cracked, or damaged. Request repair at an authorized service centre. The appliance is not cutting as well as before. When shaving Hair dust has accumulated. Clean the hair dust. The blade is deformed. Replace the blade. Guidelines for replacement: Outer foil: Approximately 1 year Inner blade: Approximately 2 years The blade is worn out. Cannotle. When caring for feet Theleiswornout. Replacethele. Guidelines for replacement: Approximately 1 year The appliance is used in the SOFT mode. Try using it in POWER mode. Cannot get rid of odor. It is dirty. Soaktheleinwaterfor approximately 24 hours before washing. If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair. PB015615 - EL8A-3A-2A_(01GB)_11-07-17.indd 22 2017/11/7 11:11:2323 GBDFINLEDKPNSFINPLCZSKHROTR Battery life Approximately 3 years. Iftheoperatingtimeissignicantly shorter even after a full charge, the battery has reached the end of its life. (The battery life may change due to usage and storage conditions.) The battery in this appliance is not intended to be replaced by consumers. Have the battery replaced by an authorized service centre. Removing the built‑in rechargeable battery Remove the built‑in rechargeable battery before disposing of the appliance. Please make sure that the battery is disposedofatanofciallydesignated location if there is one. Thisguremustonlybeusedwhen disposing of the appliance, and must not be used to repair it. If you dismantle the appliance yourself, it will no longer be waterproof, which may cause it to malfunction.

Remove the appliance from the AC adaptor.

• Use the battery until it fully discharges if there is any charge remaining.

• Perform steps 1 to 5 and lift the battery, and then remove it. (Fig. 26)

water of lauw water.
