| Product type | Air compressor |
| Brand | Einhell |
| Model | THAC 1906 OF |
| Power supply | 230 V ~ 50 Hz |
| Motor power | 1.1 kW |
| Operating mode | S3 25% 10 min |
| Compressor speed | 3550 min⁻¹ |
| Max. operating pressure | 8 bar |
| Tank capacity | 6 liters |
| Theoretical suction power | 185 L/min |
| Sound power level (LWA) | 97 dB(A) |
| Sound pressure level (LpA) | 75 dB(A) |
| Protection type | IP 20 |
| Weight | 9 kg |
| Switch-on pressure | 6 bar |
| Switch-off pressure | 8 bar |
| Maintenance | Drain condensation water after each use; clean with a damp cloth and mild soap |
| Safety | Factory-set safety valve; on/off switch; motor thermal protection |
| Spare parts and repairability | Parts available from manufacturer or after-sales service; replace the power connection cable by a professional |
| Warranty | 24 months on material or manufacturing defects |
Frequently Asked Questions - THAC 1906 OF EINHELL
User questions about THAC 1906 OF EINHELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air compressor in PDF format for free! Find your manual THAC 1906 OF - EINHELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. THAC 1906 OF by EINHELL.
USER MANUAL THAC 1906 OF EINHELL

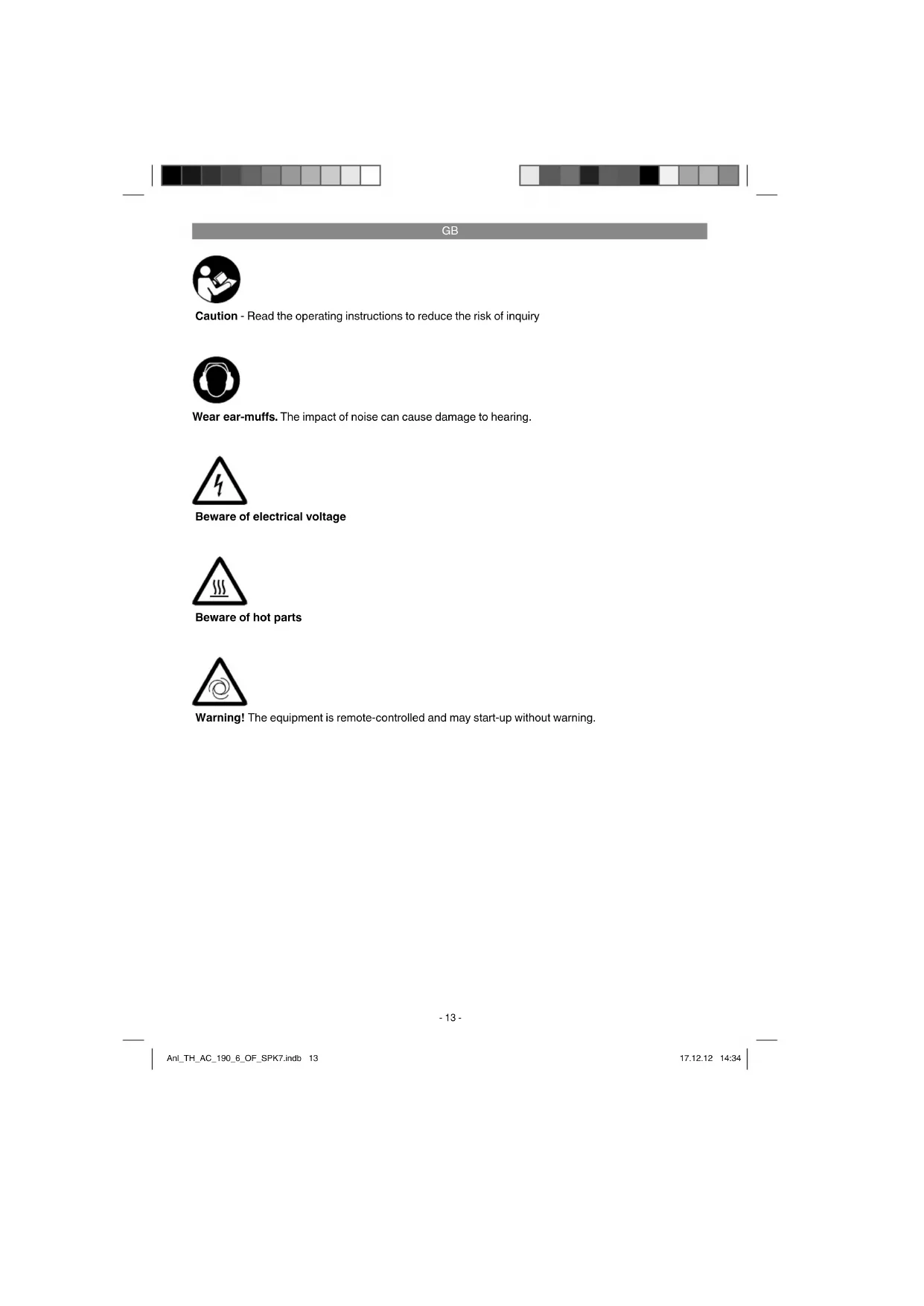

Caution - Read the operating instructions to reduce the risk of inquiry
Wear ear-muffs. The impact of noise can cause damage to hearing.
Beware of electrical voltage
Beware of hot parts
Warning! The equipment is remote-controlled and may start-up without warning.
GB
Important!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Caution!
Read all safety regulations and Instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.
2. Layout and items supplied
2.1 Layout (Fig. 1/2)
- Housing cover
- Pressure vessel
- Hook for cable store
- Supporting foot
- Quick-lock coupling (regulated compressed air)
- Pressure gauge (for reading the set pressure)
- Pressure regulator
- On/Off switch
- Transport handle
- Safety valve
- Drainage cock for condensation water
2.2 Items supplied
Please check that the article is complete as spcified in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
Check to see if all items are supplied. - Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.
Important!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
Original operating instructions
- Safetyinstructions
3. Proper use
The compressor is designed for generating compressed air for tools operated by compressed air.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
GB
4. Technical data
Power supply: 230~50 Hz
Motor rating in kW: 1.1
Operating mode S3 25% 10 min
Compressor speed in rpm: 3550
Operating pressure in bar: 8
Pressure vessel volume in litre: 6
Theoretical intake rate in l/min: 185
Sound power level L_WA in dB: 97
Machine weight in kg: 9
Noise
The noise emission values were measured in accordance with EN ISO 3744.
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
Examine the machine for signs of transit damage. Report any damage immediately to the company which delivered the compressor.
The compressor should be set up near the working consumer.
- Avoid long air lines and long supply lines (extensions).
Make sure the intake air is dry and dust-free.
- Do not set up the compressor in damp or wet rooms.
The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5^ to +40^ ). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room.
The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.
6. Assembly and starting
Important!
You must fully assemble the appliance before using it for the first time.
6.1 Voltage
Before you use the machine, make sure that the mains voltage complies with the specific cations on the rating plate. Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up. In the case of low temperatures below +5^ , motor start-up is jeopardized as a result of stiff ness.
6.2 On/Off switch (8)
To switch on the equipment set the On/Off switch (8) to position 1.
Move the On/Off switch (8) to position 0 to switch off the equipment.
6.3 Adjusting the pressure: (Fig. 1)
- You can adjust the pressure on the pressure gauge (6) using the pressure regulator (7).
The set pressure can be taken from the quicklock coupling (5).
6.4 Setting the pressure switch
The pressure switch is set at the factory.
Switch-on pressure 6 bar
Switch-off pressure 8 bar
7. Replacing the power cable
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
GB
8. Cleaning, maintenance and ordering of spare parts
Important!
Pull the power plug before doing any cleaning and maintenance work on the appliance.
Important!
Walt until the compressor has completely cooled down. Risk of burns!
Important!
Always depressurize the tank before carrying out any cleaning and maintenance work.
8.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
We recommend that you clean the device immediately each time you have finished using it.
Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock. - You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.
8.2 Condensation water
Caution! To ensure a long service life of the pressure vessel (2), drain off the condensed water by opening the drainage cock (11) each time after using. Tilt the compressor tank until the drainage cock is at the lowest point of the tank. All the condensation water can then run out.
8.3 Safety valve (10)
The safety valve has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or remove its seal. Actuate the safety valve from time to time to ensure that it works when required. Pull the ring with sufficient force until you can hear the compressed air being released. Then release the ring again.
8.4 Storage
Important!
Pull the mains plug out of the socket and ventilate the appliance and all connected pneumatic tools. Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person.
Important!
Store the compressor only in a dry location which is not accessible to unauthorized persons. Always store upright, never tilted!
8.5 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
Type of machine
Article number of the machine
Identification number of the machine
Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info
9. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
GB
10. Possible causes of failure
| Problem Cause | Solution | |
| The compressor does not start | 1. No supply voltage2. Insufficient supply voltage3. Outside temperature is too low4. Motor is overheated | 1. Check the supply voltage, the power plug and the socket-outlet.2. Make sure that the extension cable is not too long. Use an extension cable with large enough wires.3. Never operate with an outside temperature of below +5°C.4. Allow the motor to cool down If necessary, remedy the cause of the overheating. |
| The compressor starts but there is no pressure | 1. Leak in the non-return valve2. The seals are damaged.3. The drainage screw for condensation water (11) leaks. | 1. Replace the non-return valve2. Check the seals and have any damaged seals replaced by a service center3. Tighten the screw by hand. Check the seal on the screw and replace if necessary. |
| The compressor starts, pressure is shown on the pressure gauge, but the tools do not start. | 1. Looseseconnections2. Leak in a quick-lock coupling3. Insufficient cients pressure set on the pressure regulator. | 1. Check the compressed air hose and tools and replace if necessary.2. Check the quick-lock coupling and replace if necessary.3. Open the pressure regulator further. |
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
GB
Warranty provisions
iSC GmbH or the DIY store where you made you purchase guarantees the repair of defects or replacement of the equipment in accordance with the overview below. Statutory guarantee claims are unaffected.
| Category Example Warranty | ||
| Defect with regard to material or construction | 24 months | |
| Wear parts* V-belt, air filter 6 months | ||
| Consumables* Warranty only in case of an im- | mediate defect (24 hours after purchase / date on the bill) | |
| Missing parts 5 work days | ||
- Not necessarily included in the scope of delivery!
For consumables, wear parts and missing parts iSC GmbH guarantees the correction of defects or a new delivery only if the defect is reported within 24 hours (consumables), 5 work days (missing parts) or 6 months (wear parts) after purchase and the purchase date is verified with the bill.
In case of defects concerning the material or construction, we kindly request you to submit the equipment together with the fully completed warranty card supplied with the equipment. It is important that you enter an exact description of the defect.
To do so, answer the following questions:
Did the equipment work at all or was it defective from the beginning?
Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
GB
Warranty certificate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:
-
These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
-
Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.
-
The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
-
In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
Also refer to the restrictions of this warranty concerning wear parts/consumables and missing parts as set forth in the warranty conditions in these operating instructions.
F
6.1 Raccordement electrique
6.2 Interru tture ON/OFF (8)
Ei0c npoostiaac IP20
Bapoc ouakeunc 9
Oópuβoc
O1 tuec yia tic eknoptec 0opou
Piieon anevepyoinoic eep.8 bar
7. AvtikataoTaon Tou aywyou ouvdeoc 1e to 6iktuo
Eav raei 1aai to kaiwio ouvsean Tc
oukeun ie to tikuo, npeneipoc anooyn
kvuvou, va avikataotaei anto tov
kataokeuaotn n to tuuia tou eumptnonc
eAatnv n atopapoia eEdiokueevo
npoio.
GR
8. Kaapoiouc, ouvtipnon kai npayyEia avtalaktkwv
△ npooxhi!
Piv ano oLeC tic epyaiec kaepiaou kai ouvtipnnc va byaTe to buoataou sktuou.
±b Npooxh!
IepuEvTe mexp va kpuwoei tealeiwoc oumuotnKivduvoc EykauatoC!
Anpoooxn!
Piv ano oLeC tic eppyaolec kaBapiaoukai ouvtnpnnc va tetheta i aebntac ektospioc.
8.1Kaθaipαoσ
Na kpatate 00n 1io eEveepa ano skovn kai akapoeic yivei ta ooutnmuata npootaiaac, tic oxiec eEepioukai to keluoc tou motep. Skounite tn oukeun e eva kahepo nvi, nKaepiote to e Neneiaevo aepa o xanm hpien.
Suvioioume va kathetae t n oukeun aoeos m e ta ano kae xphon.
Na kaapicete m oukeun taKTka e eva wnto navi kai liyo maakok oanouvi. Mn xnpauotie k aagapiotk na diauutec, yi t dev anokkietai va kataoTppeouv tvn enpavia tnc oukeun.PnoeeTe va m npepaeapevo oto eowtepiok tnc oukeun H dieoov nepuoe nektpkn oukeun auavei tov kivduvo nektonnEiac.
O oWlva cai ta yekaotika Eaaptmuata va xwiocvat aTO tv Oumuotn npiv Tov kaepioo. O oumuotnc dev emtpentau va kaapcetau me vepo, diautc n kati npapouo.
8.2 Uμnukvwa vepou
Ppoooh! Paevalns diapkeiac avtoh tou boxciou niooc (2) va ekkewveta ta aot kae xphon to oumuukvua vepou aoiyovtac tn Biaekewwn (11).Kiveteov λebnta tou ouumieoTo, wote va piaeketai n bida ekkewwn oTo katwepo onueio tou λebnta. Etoru vepo ouunukvmaoc va mopel va ekpeoei nipwc.
Aeiotn naiatao, aeiotne neaTn
Ta npioivta mac unokevtai ae auotnpoc eleyxouc noiotntac. Eav nap oaa auta kantoeev
Aetoupynooau yooia, uantoumaote nolu kai oac napakaoume va anotaveeite npoc to tunmuac
EEumpttnncnElaatov, otn dieuuvon nou avapepete oe autn tvv yunn. Euxapiotwoc ac
Bonouque kai nleawvikuc otov apiioou avapepete nio katw. nTnv katioxwnTw aewewv
eyunongxoyu ta e hnc:
- Autoi oipoi eyyunons puolucov npo0eTeC npoxec eyyunons.Ano mV eyyunon autn 6ev thoyvtai ovuiueae aEwoc aia eyyunon.H npoxn nTc eyyunonac cieivai ia acawpeav.
- H eyyun kaluntai anokkietika kai mvo baaec nov ophiovtae aatwmuata uikw npaywnc kai nepiopcovatn otyn anokataaon autow twv eaattwutv n tvn avitakataoan tnc oukeurnic. Napakaoue va npooeeetene ooukeuec mac dev npooipoyotva iia biounxavia, tn biotexyia kai tvn enayveaatki xpon. Ia to loyo auto dev viptatau yeyunong cne pinnwn xpangcn ts oukeuvcn stioianxavia, biotexya, yea enayyeaatiko n ao npaoio okoan. An tyv eyyonm ac anokkieovtai nepav toutu anocnwoic ia bacec metapopac. bacec opeiaolevec oe mun thnpon nnc Ondyiac ouvapoloynanc, noe eopaalcvn eykataoan, mn thnpon nnc Ondyiac xponc (π.x. ouvdoen oλboc taon diktou n iisoc peuatoct), katxpnntn ox opn xponn (π.x. uneppoptwn n xponn n EYEKPIEYW AVTAALAKTIKW Epyaleuw n EApntmuw). m npnon ttw YNtOeIeewu ouvttnpnckai aoaafleiac, eioosoc Eevw vntikeeewv ont oukeun (onwc π.x. amucn okovn), xponn biac n Eeewtpekn etlpaan (onwc π.x. balec ano pwn) kaowc kai balec nou ophiovtai okvn fbopa. Aut oixuei diaitepa yia ouoawpuete yia touc onolouc nap 6aa auta napexoue eyyunon 12 mnuw. H aeliwn eyyunnc ekinntte ne ppiintwn nou evivav n EEvec eneubaeic otn oukeun.
- H diapkeia tnc eyyunanc aevpxetai o2 etn kal apxiei an ty napeounvia ayopac tnc ouakeuhc. O aiwoeic eyyunanc npentei va katixuoyuv piv tv npoosoc tnc npoepuaic tnc eyyunanc evtoc dvo ebsouadaw an toy diariotwn tou elattwmuoc.AIOKAEiEaTn katioxuan aieowewv eyyunanc mte Ta nv npado tnc npoeeuiac tnc eyyunanc H eniokueun n avtikataotaon tnc ouakeuuc dev ouvenayetal oute tv enektaon tnc diapkeia cnc eyyunanc oute nv evapen vace pnoeuaic eyyunanc yia tn ouakeun ta evexoeuvwc tonoetnteVCTA eApntjmaTa. To idio ixuei kal nepiintwn onepbic ini tonou.
- Ia TnV KATIOXUON TNC aEiOnc TNC EyyUNc OAC napakALoume va mac anooteleTc n oukeun, Xwipic enuapuvon ma c me Taxuspouika teln, stny nu kato avapepeovn dievuyan, Mn Exaoetve naeauvaesTo npWtTOuno TNC anoeiEns ayopac n aoiv oioekitko ayopac. Ia to loyo auto oac napakaloume va pfaleste Ka la nTv anoeiEn Touapeiou! Napakaloume enionc va mac nepiyapaeveTnv atia tvnv diaapaptua oao oo nivautikay yiveta. Eav to eAattwa TNC oukeunoc kaAunttetai andyvyunm lac, etre baac Eniatpaei taxtata ng iNkceuaevn oukeun oac, etre tha aBeTe mia veaoukeun.
Duokéuoue uapotwEvavti aoihnc kaiaattmuata on oukeun oac nou dev Kaunovtai n dekauunovtaiaev ano tvv yyunon. Ta to akanto aut oac napakaoue va anoteiEte T oukeun oac stn dieuvon Tou tmuoc mac yia Eumptm Paeatow.
Tia avaawma kai e nepinwn nou aeinovv Eaaptmuata npanepnoue otouc nepiopouoc autnc TcEyyunon oUwva u touc opouc Eyyunon autuw twv obnyw xponc.
Notified Body: Notified Body No.:
Reg.No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured L_WA = 95 dB (A); guaranteed L_WA = 97 dB (A)
P=1,1 KW; L/0 = cm
Notified Body: 2049, Eurofins Modulo Uno
2004/26/EC
Emission No.:
Standard references: EN 1012-1; EN 60204-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Subject to change without notice
Archive-File/Record: NAPR007527
Documents registrar: Siegfried Roider
Wiesenweg 22, D-94405 Landau/Isar
