USER MANUAL U140PE1E8A PANASONIC

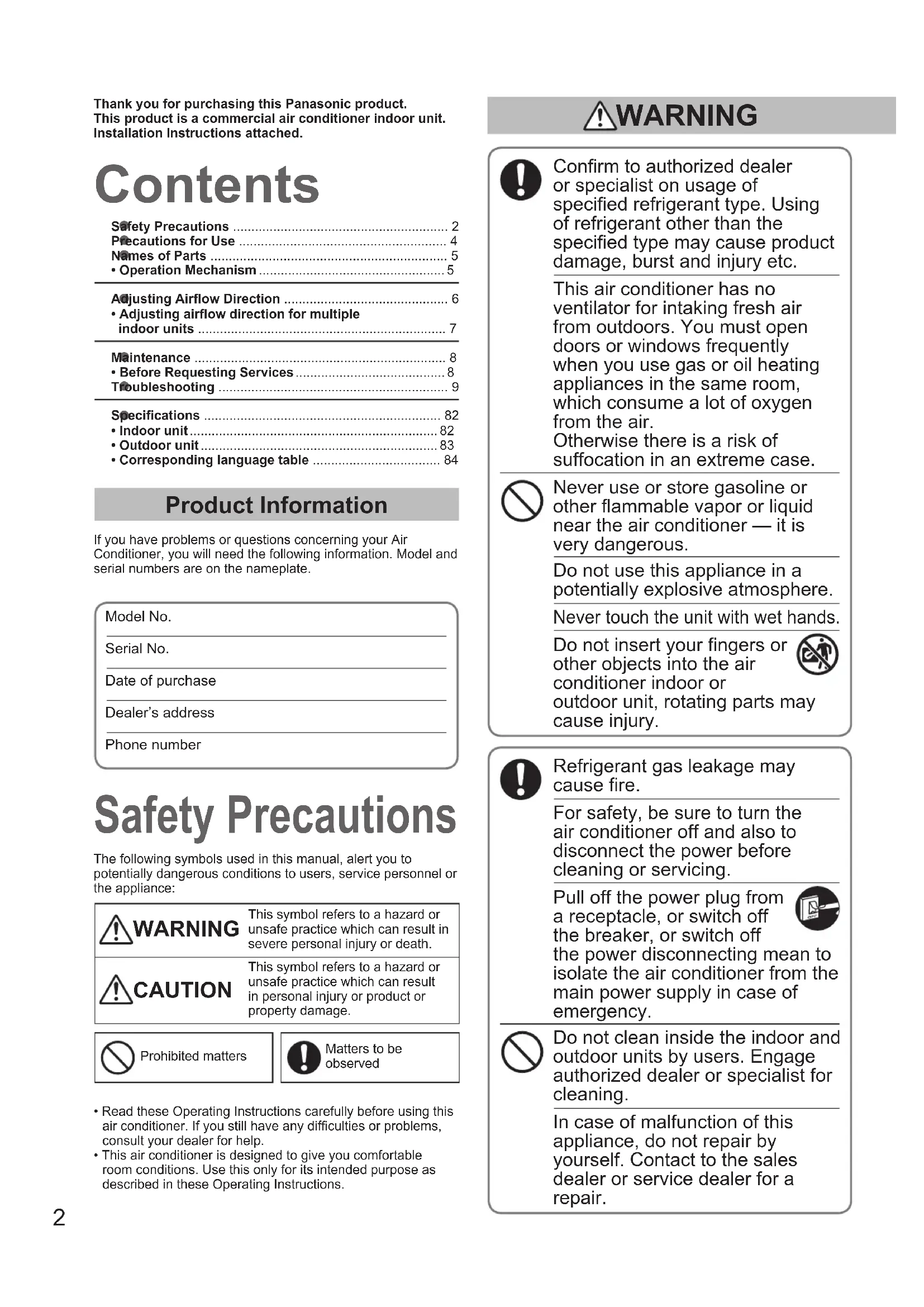

• Corresponding language table ................................... 84 Contents Safety Precautions Product Information If you have problems or questions concerning your Air Conditioner, you will need the following information. Model and serial numbers are on the nameplate.Model No. Serial No. Date of purchaseDealer’s addressPhone number Conrm to authorized dealer or specialist on usage of specied refrigerant type. Using of refrigerant other than the specied type may cause product damage, burst and injury etc. This air conditioner has no ventilator for intaking fresh air from outdoors. You must open doors or windows frequently when you use gas or oil heating appliances in the same room, which consume a lot of oxygen from the air. Otherwise there is a risk of suffocation in an extreme case. Never use or store gasoline or other ammable vapor or liquid near the air conditioner — it is very dangerous. Do not use this appliance in a potentially explosive atmosphere. Never touch the unit with wet hands. Do not insert your ngers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Refrigerant gas leakage may cause re. For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing. Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency. Do not clean inside the indoor and outdoor units by users. Engage authorized dealer or specialist for cleaning. In case of malfunction of this appliance, do not repair by yourself. Contact to the sales dealer or service dealer for a repair. The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance: WARNING This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death. CAUTION This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.Prohibited mattersMatters to be observedThank you for purchasing this Panasonic product.This product is a commercial air conditioner indoor unit.Installation Instructions attached.• Read these Operating Instructions carefully before using this air conditioner. If you still have any difculties or problems, consult your dealer for help.• This air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as described in these Operating Instructions. WARNING OI_00_038226_EU.indb 2 2014/7/10 9:08:163 ENGLISH This appliance is intended to be used by expert or trained users in shops,in light industry and on farms, or for commercial use by lay persons. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the re alarm and the air outlet at least 1.5m away from the unit. Do not cool or heat the room too much if babies or invalids are present. Do not turn the air conditioner on and off from the power mains switch. Use the ON/OFF operation button. Do not stick anything into the air outlet of the outdoor unit. This is dangerous because the fan is rotating at high speed. Do not touch the air inlet or the sharp aluminum ns of the outdoor unit. You may get injured. Do not stick any object into the FAN CASE. You may be injured and the unit may be damaged. Provide a power outlet to be used exclusively for each unit, and a power supply disconnect, Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) for overcurrent protection should be provided in the exclusive line. Provide a power outlet exclusively for each unit, and full disconnection means having a contact separation in all poles must be incorporated in the xed wiring in accordance with the wiring rules. To prevent possible hazards from insulation failure, the unit must be grounded. Do not use modied cord, joint cord, extension cord or unspecied cord to prevent overheating and re. Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/re/electric shock) Examples of abnormality/failure:

• The ELCB trips frequently.

• The product sometimes does not start when turned on.

• The power is sometimes disconnected when the cord is moved.

• Burnt odor or abnormal noise is detected during operation.

• The body is deformed or abnormally hot.

• Water leaks from the indoor unit.

• Power cord or plug becomes abnormally hot.

• Fan speed cannot be controlled.

• The unit stops running immediately even if it is switched on for operation.

• The fan does not stop even if the operation is stopped. Contact immediately your local dealer for maintenance/repair. WARNING CAUTION
• The compressor may occasionally stop during thunderstorms.This is not a mechanical failure. The unit automatically recovers after a few minutes.• The English text is the original instructions. Other languages are translation of the original instructions. Important Information Regarding The Refrigerant Used This product contains uorinated greenhouse gases covered by the Kyoto Protocol. Do not vent gases into the atmosphere.Refrigerant type: R410A GWP (1) value: 1975 (1) GWP = global warming potentialPeriodical inspections for refrigerant leaks may be required depending on European or local legislation. Please contact your local dealer for more information. NOTICE Do not sit or step on the unit. You may fall down accidentally. OI_00_038226_EU.indb 3 2014/7/10 9:08:164 Precautions for Use Installation

This air conditioner must be installed properly by qualied installation technicians in accordance with the Installation Instructions provided with the unit.

Before installation, check that the voltage of the electric sup- ply in your home or ofce is the same as the voltage shown on the nameplate. WARNING Avoidthefollowinglocationsforinstallation.

Locations where smoke or combustible gas exists. Also locations of extremely high temperature such as a greenhouse.

Locations where excessively high heat-generating ob- jects are placed. Attention:

Avoid installing the outdoor unit where salty sea water can splash directly onto it or in sulphurous air near a spa. (To protect the air conditioner from heavy corrosion) Wiring

All wiring must conform to the local electrical codes. (Consult your dealer or a qualied electrician for details.)

Each unit must be properly grounded with a ground (or earth) wire or through the supply wiring.

Wiring must be done by a qualied electrician. Operation Preparation Turnthepowermainson5hoursbefore the start of operation. (For warm-up)

Leave the power mains ON for continuous use.

NOTE Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply when not in use for a long time. Operation Condition Use this air conditioner under the following temperature range.

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

hese symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Noteforthebatterysymbol(bottomtwo symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. OI_00_038226_EU.indb 4 2014/7/10 9:08:175

Air ow direction Air outlet(4 locations)Air intake grilleControl PanelReceiverEmergency button ENGLISH Names of Parts Operation Mechanism

Heating performance zSince this air conditioner utilizes outside air for heating, its heating performance deteriorates as outside tempera-ture decreases.(Due to heat pump system)→In that case, use another heating appliance.

Defrosting zThis appliance may start defrosting operation to melt frost formed in the outdoor unit.

Defrosting starts: The indoor unit fan stops (or the speed becomes extremely slow). ” (STANDBY) appears.

Heating operation resumes after several minutes: The indoor unit fan remains stopped (or it will run at a very slow speed) until the indoor heat exchanger coil warms up suf ciently. ” (STANDBY) is shown.

Defrosting is complete: The indoor unit fan starts operation. ” (STANDBY) disappears.

‘‘DRY’’ operation zOnce the room temperature reaches the level that was set, the outdoor unit repeats the cycle of turning on and off automatically. zWhen the outdoor unit is turned off, the indoor unit fan will stop, too.(To prevent the humidity in the room from rising again) zWhen the room temperature is more likely to reach the level that was set, the fan speed is set to ‘‘breeze’’ (light wind) automatically. z‘‘DRY’’ operation is not possible if the outdoor tempera-ture is 15 °C or less.

Shouldthepowerfailureoccurswhilethe unit is running When the unit automatically resumes operation after temporary power failure, it uses the same settings before the power was cut off.Air intakeAir intakeAir intakeAir outletAir outletAir outlet PE1 (50 type) PE1 (71 type) PE1 (100, 125, 140 type) PEY1 (71 type) PEY1 (100, 125 type) PEY1 (140 type) Optional Model No.CZ-RWSK2 Wireless Remote Controller Model No.CZ-RTC2 Timer Remote Controller Read the operating instructions included with the Remote Controller.Model No.CZ-RTC3 High-spec Wired Remote Controller OI_00_038226_EU.indb 5 2014/7/10 9:08:186 Airow direction displayPress the twice to select the FLAP. AdjustingAirowDirection

Usingthehigh-specwiredremote controller Press / to select your desired airow direction. STOP STOP Flapswingmotion Display when swing operation is stopped

during swing can stop the ap at your preferred position. Recommendedverticalairowdirection

Set the ap to the downward position for heating operation. (With the upward setting, warm air cannot reach the oor.)

Set the ap to the upward position for cooling operation. (With the downward setting, condensation may drip on to the oor.)

Fan and heating Cooling and drying (5 levels) (3 levels) Recommended Recommended Fixed to this position This section is described in the instruction manual supplied with the high-spec wired remote controller (CZ-RTC3). Regarding the timer remote contoller (CZ-RTC2), refer to the Operating Instructions supplied with the model CZ-RTC2. Adjusting the upward and downward motion of airow direction Flapxed (5 levels) OI_00_038226_EU.indb 6 2014/7/10 9:08:187 ENGLISH Tips for Energy Saving Attention: zNever use your hands to move the ap (vertical airow ap) controlled using the remote controller. Note zWhen the air conditioner is turned off, the ap automatically moves toward the direction of closing. zThe ap (vertical airow ap) moves to the upward position during standby operation for heating. zThe swing operation starts after the standby operation has nished, but “Swing” is indicated on the remote controller even during the standby operation.

Avoid zDo not block the air intake and outlet of the unit. (Ifeitherisobstructed,theunitwillnotfunctionwell,causingmalfunction.) zDuring cooling operation, use sunshades, blinds or cur-tains to prevent direct sunlight from entering the room.

zAlways keep the air lter clean. (A clogged lter will impair the performance of the unit.) → “Maintenance” (P.8) zTo prevent conditioned air from escaping, keep win-dows, doors and any other openings closed. Adjustingairowdirection for multiple indoor units (remote controller only)

Whensettingtheairowdirectionof each indoor unit individually

Press or to select the UNIT NO. for adjustment. Press Press or to select your desired airow direction.

Whensettingtheairowdirectionof all indoor units at the same time

Press Press or to select your desired airow direction. 1-1 1-2 1-3 1-4 1-8 OPEN CLOS

Press the to display the Menu. zMaximum of 8 indoor units can be connected. When operating multiple indoor units using 1 remote controller, airow direction can be adjusted for indoor each unit individually or all units at the same time.e.g.) 1 outdoor unit and 8 indoor units ALL 1-1 1-2 1-3 1-4 2-1 2-4 e.g.) 2 outdoor units and 4 indoor units ALL 1-1 1-2 1-3 1-4 1-8 Select “2.FLAP” by pressing or .Then press

OI_00_038226_EU.indb 7 2014/7/10 9:08:208 WARNING zFor safety, be sure to turn the air conditioner off and dis-connect the power before cleaning. (Otherwise, electric shock or injury may result because the fan is rotating at high speed.) zDo not pour water on the indoor unit. (This may damage the internal components and cause an electric shock hazard.) CAUTION zNever use solvents or harsh chemicals. Also, do not wipe plastic parts using very hot water. (This may cause deformation or change in colour.) zSome metal edges and ns are sharp. Be careful when you clean those parts. (Injury may result.) zUse a rm stool or ladder when cleaning an indoor unit installed in high locations. zThe internal coil and other components of the outdoor unit must be cleaned periodically.• Consult your dealer or service center. Maintenance Indoor unit Do not attempt to clean inside the unit by yourself.Refer to the section "Care and Cleaning" in the Installation Instructions. Symptom Cause Action The air conditioner does not operate although the poweristurned on. Power failure or after power failure Press the power ON/OFF button on the remote controller.The operation (power) button is turned off.• If the breaker is turned off, turn the power on.• If the breaker has been tripped, consult your dealer without turning it on.Fuse blow out. Contact your dealer. Poor cooling or heating performance The air intake or air outlet of indoor and outdoor units is clogged with dust.Remove the dust.The wind speed switch is set to “Low”. Change to “High” or “Strong”.Improper temperature settingsSee “Tips for Energy Saving”. (P.7)The room is exposed to direct sunlight in cooling mode.Doors or windows are open.The air lter is clogged. Contact your dealer.Too many heat sources in the room in cooling mode.Use minimum heat sources and in a short time.Too many people in the room in cooling mode.Lower the temperature setting or change to “High” or “Strong”. Ifyourairconditionerdoesnotworkproperlyevenaftercheckingeachitemof “Before Requesting Services” and “Troubleshooting” Stop the operation immediately and turn the power off. Then contact your dealer and report the serial number and symptom. You also report if the inspection mark and the letters E, F, H, L, P in combination with numbers appear on the LCD of the remote controller. zNever repair the air conditioner by yourself since it is very dangerous for you to do so. Before Requesting Services OPEN

Wipe with a soft cloth.(If it is very dirty, use a cloth moistened with water.) OI_00_038226_EU.indb 8 2014/7/10 9:08:209 ENGLISH Troubleshooting Symptom Cause / Action Indoor unit Noise Sound like streaming water is heard during operation or after operation.

• Sound of refrigerant liquid owing inside unit

• Sound of drainage water through drain pipe Cracking noise is heard during operation or when operation stops. Sound due to temperature changes of parts Discharged air smells during operation.

• Indoor odor components, cigarette odor and cosmetic odor accumulated in the air conditioner and its air is discharged.

• The unit inside is dirty. (Contact your dealer.) Dewdropsaccumulateneartheairoutlet during cooling operation.

• Internal moisture is cooled by cool wind and accumulates as dewdrops. Fog occurs during cooling operation.

• If the air conditioner has been installed at places such as restaurants where large amounts of oil mist exist, cleaning is necessary because the unit inside (heat exchanger) is dirty. (Contact your dealer.) Fog occurs during heating operation.

• Defrost operation is in process. Thefanisrotatingforawhileeventhough operation stops.

• Fan rotation makes operation smooth.

• The fan may rotate to dry the heat exchanger depending on the setting. Airow direction Airow direction changes while operating. Airow direction cannot be set. Airow direction cannot be changed.

• When air discharge temperature is low during heating operation, or during defrost operation, horizontal wind ow is made automatically. The ap moves several times after the direction is changed.

• The ap moves to the standard position once, and then turns to the set airow direction. Dust is discharged.

• Dust accumulated inside the indoor unit is discharged. At the initial high-speed operation, the fan sometimes rotates faster than the setting speed. (3 to 30 minutes)

• This is for operation check in order to conrm whether the fan motor rotation is within the range of use. Outdoor unit No operation (Whenthepoweristurnedonimmediately/ When operation is stopped and resumed immediately)

• Operation is not activated for the rst approx. 3 minutes because the compressor protection circuit is activated. Noise occurs during heating operation.

• Defrost operation is in process. Steam comes out during heating operation. The fan continues to rotate even after the operation is stopped using the remote controller.

• Values include the dimension and weight of an optional ceiling panel.

Panel Model No. CZ-KPY3A

BTU/h 24,200 34,100 42,700 47,800 Heating capacity

BTU/h 24,200 34,100 42,700 Heating capacity

569×790×285 996×940×340 996×940×340 Netweight

BTU/h 34,100 42,700 47,800 Heating capacity
