Product Type	Split Air Conditioner
Brand	Panasonic
Model	CS-A28PKD
Functions	Cooling, Heating, Dehumidification, Ventilation
Air Purification Technology	nanoe-G (deactivates viruses, bacteria)
Energy Saving System	ECONAVI with human activity sensor and sunlight sensor
Powerful Mode	POWERFUL (15 minutes duration)
Quiet Mode	QUIET (airflow noise reduction)
Remote Control	With clock and programmable timer
Remote Control Batteries	AAA or R03 × 2 (approximately 1 year life)
Temperature Setting Range	16 °C to 30 °C
Fan Speed	Auto, Low, Medium, High
Airflow Direction	Automatic horizontal and vertical oscillation
Built-in Sensors	Human activity sensor, sunlight sensor
Air Filter Cleaning	Every 2 weeks (washable with water)
nanoe-G Generator Cleaning	Every 6 months (with dry cotton swab)

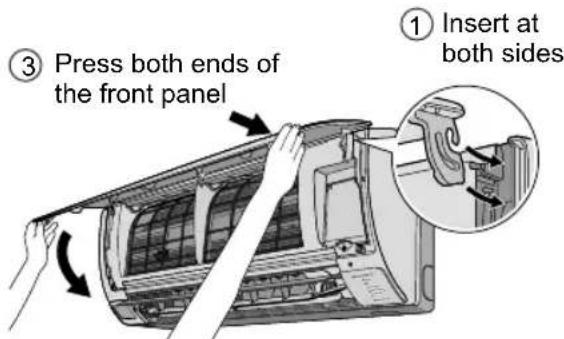

Front Panel	Removable for cleaning
Power Supply	230 V, 50 Hz
Safety Device	Recommended residual current circuit breaker, mandatory grounding
Repairability	Contact an authorized dealer
Supplied Accessories	Remote control, AAA batteries × 2, remote control holder, screws × 2
Manual Languages	French, English, Spanish, etc.

Frequently Asked Questions - CS-A28PKD PANASONIC

How to use the ECONAVI function to save energy?

The ECONAVI function automatically adjusts the temperature based on human presence and activity, as well as sunlight intensity. To activate it, press the ECONAVI button on the remote control. The indicator lights up. The human activity sensor scans the room and the sunlight sensor detects solar radiation to optimize energy consumption.

How to clean the air filters?

Open the front panel, remove the air filters. Gently wash them with clean water (temperature below 40 °C) without harsh detergent. Dry them completely in the shade before reinstalling. It is recommended to clean the filters every 2 weeks under normal use.

What is nanoe-G technology and how does it work?

The nanoe-G is an ion generator that deactivates harmful microorganisms (viruses, bacteria) in the air and on the filter. It starts automatically when the unit is powered on. You can also activate filter disinfection after the unit stops by holding down the appropriate button.

How to set the timer so that the unit stops or starts at a specific time?

On the remote control, press TIMER to select the ON or OFF mode. Set the desired time using the + and - buttons, then confirm with SET. The timer operation repeats daily. To cancel, press CANCEL.

Why does water or steam come out of the outdoor unit?

This is normal: water condenses or evaporates in the pipes during operation. In heating mode, frost may form and melt, producing water. This is not a malfunction.

What to do if the remote control does not work?

First check the batteries: insert new AAA/R03 batteries observing polarity. Make sure the receiver on the indoor unit is not obstructed. If the display is dim, replace the batteries. Some fluorescent lights may interfere; move them away.

How to activate the Powerful (POWERFUL) mode?

Press the POWERFUL button on the remote control. The unit will operate at full power for 15 minutes to quickly reach the desired temperature, then automatically return to normal mode.

Why does the indoor unit make a cracking sound?

Temperature variations cause expansion and contraction of materials. This cracking sound is completely normal and does not require any action.

How to adjust the airflow direction?

Use the remote control to change the flap direction: press the SWING button for automatic oscillation or the direction buttons for manual adjustment. Never move the flap manually to avoid damage.

When to call a professional for repair?

Contact an authorized dealer if you hear abnormal noises, if water enters the unit, if the circuit breaker trips frequently, if the power cord is hot, or if the buttons do not work. Never attempt to repair internal parts yourself.

USER MANUAL CS-A28PKD PANASONIC

Operating Instructions

Air Conditioner

Model No.

Indoor Unit Outdoor Unit

CS-A9PKD

CU-A9PKD

CS-A12PKD

CU-A12PKD

CS-A18PKD

CU-A18PKD

CS-A24PKD

CU-A24PKD

CS-A28PKD

CU-A28PKD

Operating Instructions

2-11

Air Conditioner

Thank you for purchasing this Panasonic Air conditioner. Installation instructions attached.

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

y^2 - 1y

1

j4

aaiiil

y

haggall So Juaa Jaaol

JzunllgssSsll

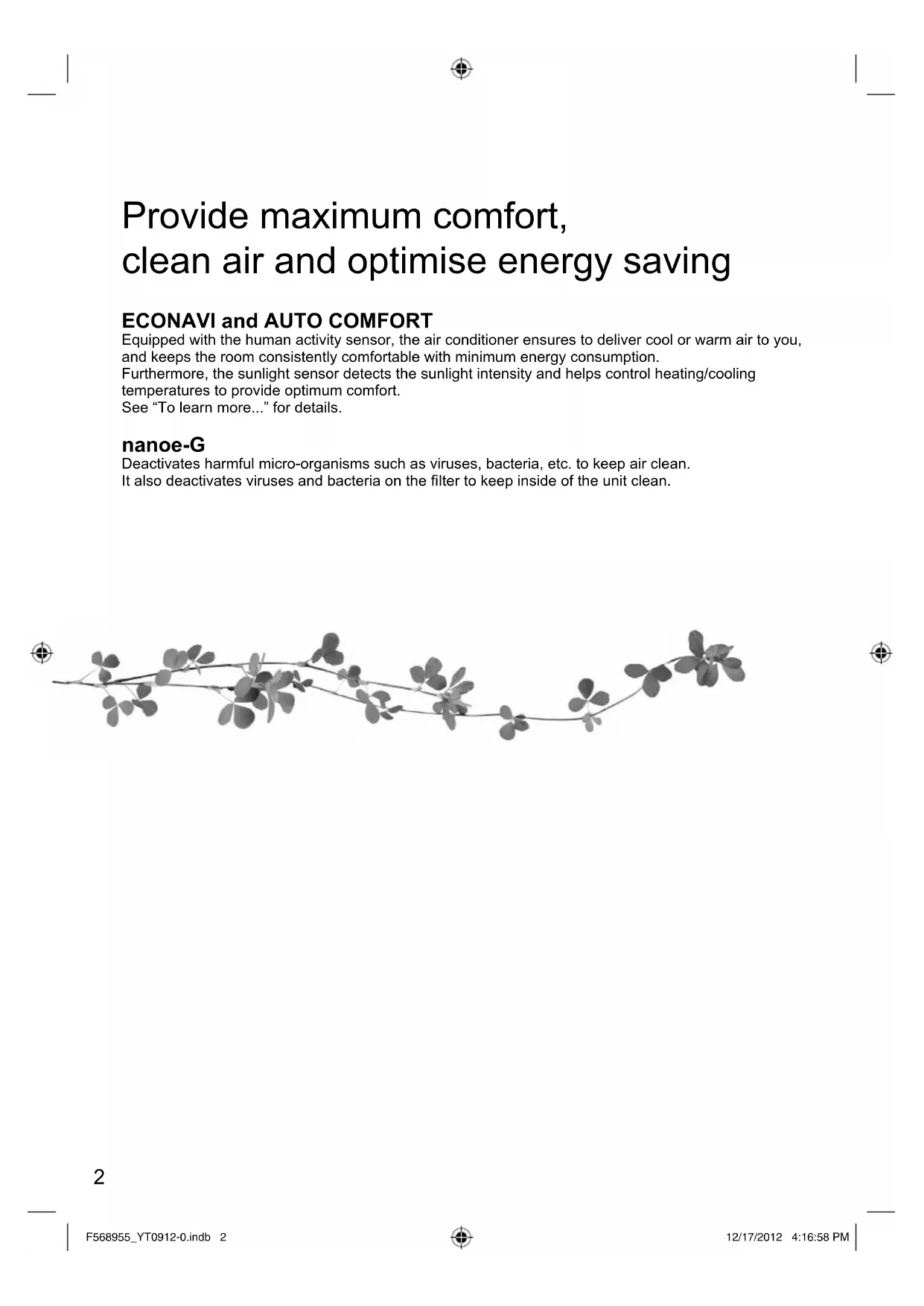

Provide maximum comfort, clean air and optimise energy saving

ECONAVI and AUTO COMFORT

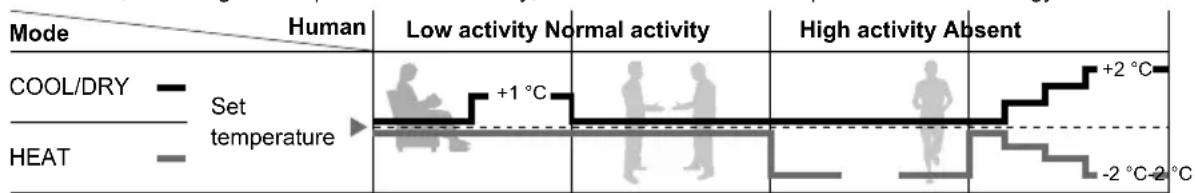

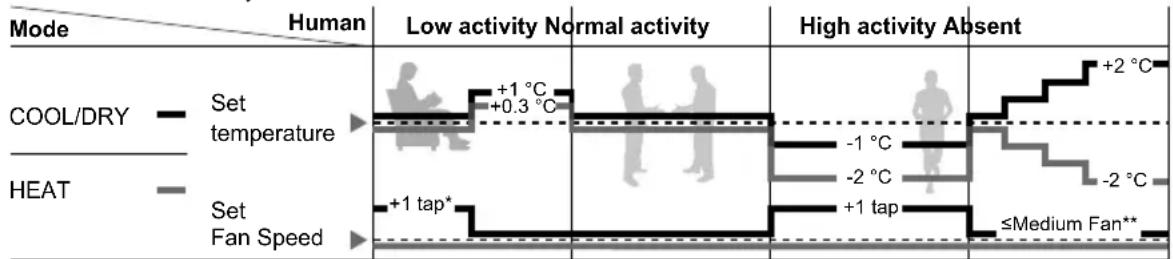

Equipped with the human activity sensor, the air conditioner ensures to deliver cool or warm air to you, and keeps the room consistently comfortable with minimum energy consumption.

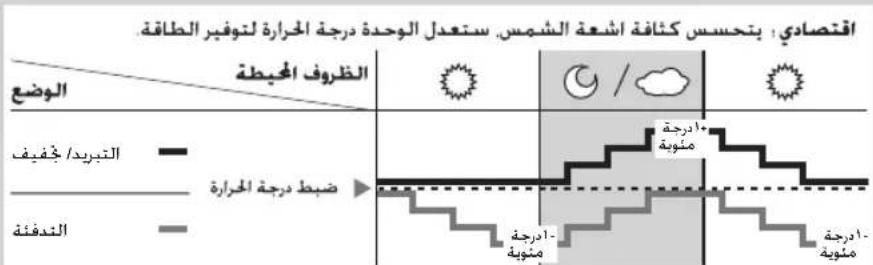

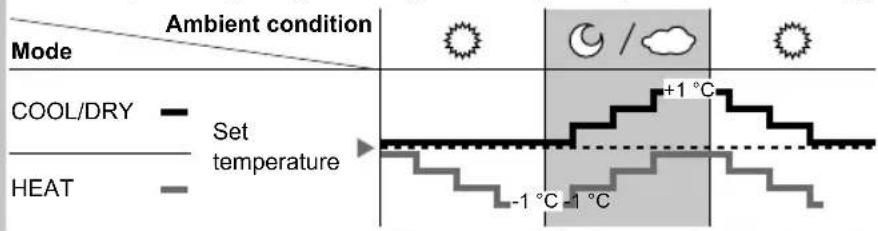

Furthermore, the sunlight sensor detects the sunlight intensity and helps control heating/cooling temperatures to provide optimum comfort.

See "To learn more..." for details.

nanoe-G

Deactivates harmful micro-organisms such as viruses, bacteria, etc. to keep air clean. It also deactivates viruses and bacteria on the filter to keep inside of the unit clean.

Quick guide

Inserting the batteries

① Pull out the back cover of remote control
② Insert AAA or R03 batteries (can be used ~ 1 year)
③ Close the cover

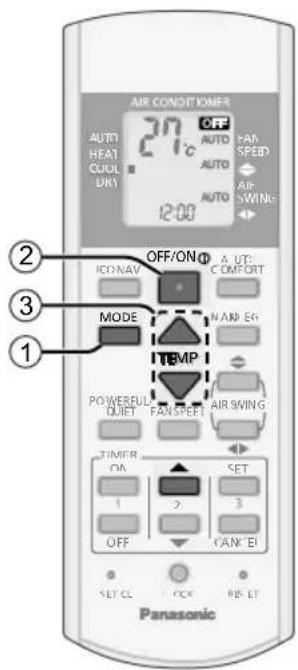

Clock setting

① Press CLOCK
② Set the time
③ Confirm

Basic operation

① Select the desired mode

② Start/stop the operation

• Please note that the OFF indication CS - F to start.

③ Select the desired temperature

• Selection range for HEAT, COOL and DRY mode: 16^ 30^ .
• Operating the unit within the recommended temperature may save energy.

HEAT: 20^ C 24^ C .

COOL: 26^ C 28^ C .

DRY: 1^ 2^ lower than room temperature.

To dim or restore the unit's indicator brightness, press and hold for 5 seconds.

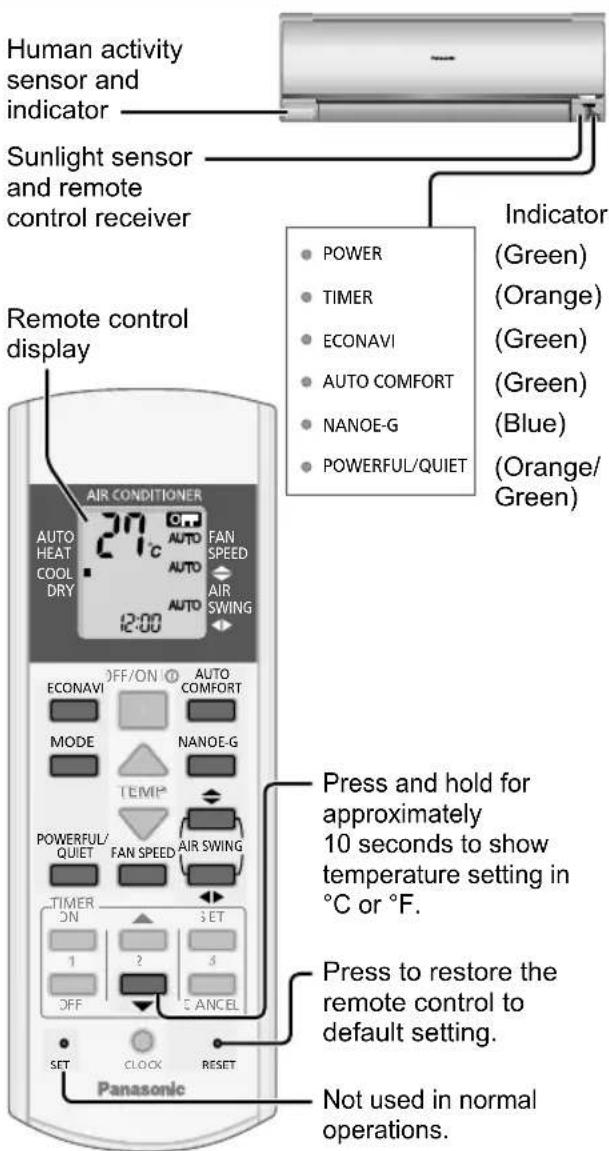

- Use remote control within 8m from the remote control receiver of the indoor unit.

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

English

Table of contents

Safety precautions 4-5
How to use 6-7
To learn more. 8-9

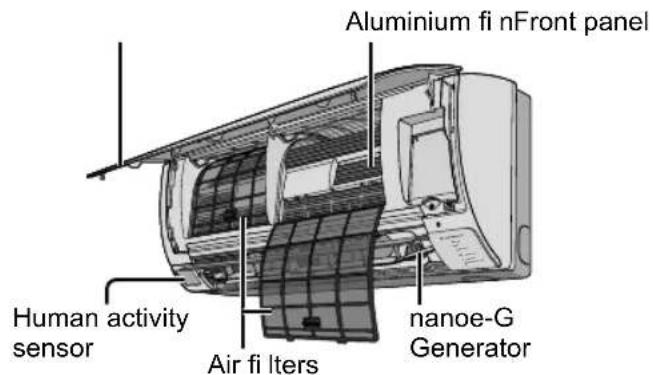

Cleaning instructions 10
Troubleshooting 11
Information. Back cover

Accessories

Remote control
- AAA or R03 batteries × 2
Remote control holder
- Screws for remote control holder × 2

Safety precautions

To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote actions COMPULSORY.

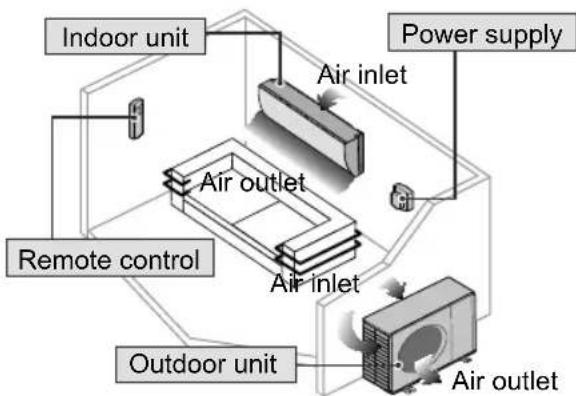

WARNING

Indoor unit and outdoor unit

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

Confirm with authorised dealer or specialist on usage of any specified refrigerant type. Using refrigerant type other than the specified may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

Remote control

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

Power supply

Do not use a modifi ed cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug.

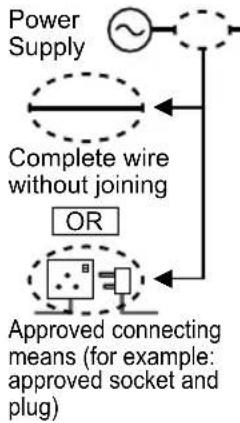

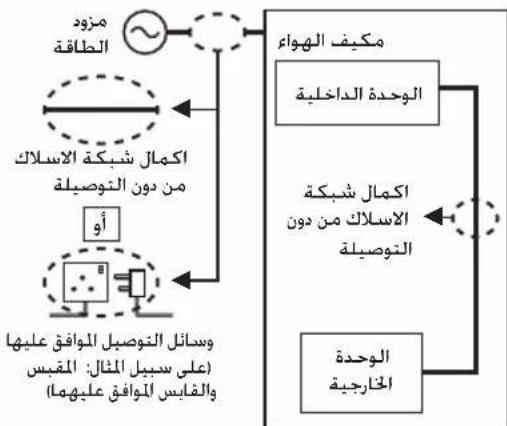

Use complete power supply cord without joining. In unavoidable circumstances that complete power supply cord without joining is impossible, use an approved connection means (for example: socket and plug).

Air Conditioner

Indoor Unit

Complete wire without joining

Outdoor Unit

If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard.

It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire.

To prevent overheating, fire or electric shock:
- Insert the power plug properly.
- Dust on the power plug should be periodically wiped with a dry cloth.

Stop using the product if any abnormality/ failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure

The ELCB trips frequently.
- Burning smell is observed.
Abnormal noise or vibration of the unit is observed.
Water leaks from the indoor unit.
- Power cord or plug becomes abnormally hot.
Fan speed cannot be controlled.
- The unit stops running immediately even if it is switched on for operation.
The fan does not stop even if the operation is stopped.

Contact your local dealer immediately for maintenance/repair.

This equipment must be earthed to prevent electrical shock or fire.

Prevent electric shock by switching off the power supply and unplug:

• Before cleaning or servicing,
• When extended non-use, or
• During abnormally strong lightning activity.

CAUTION

Indoor unit and outdoor unit

Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit.

Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.

Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation.

Do not expose plants or pet directly to airflow to avoid injury, etc.

Do not touch the sharp aluminium fi n, sharp parts may cause injury.

Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit.

Do not install the unit in oily and smoky areas to prevent damage to the unit.

Do not dismantle the unit for cleaning purpose to avoid injury.

Do not step onto an unstable bench when cleaning the unit to avoid injury.

Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock.

Do not open window or door for long time during COOL/DRY mode operation.

Prevent water leakage by ensuring drainage pipe is:

• Connected properly,
• Kept clear of gutters and containers, or
• Not immersed in water

After a long period of use or use with any combustible equipment, aerate the room regularly.

After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.

Remote control

Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.

To prevent malfunction or damage of the remote control:

• Remove the batteries if the unit is not going to be used for a long period of time.
• New batteries of the same type must be inserted following the polarity stated.

Power supply

Do not disconnect the plug by pulling the cord to prevent electric shock.

How to use

ECONAVI

To optimise energy saving

ECONAVI

MODE

To select operation mode

AUTO - For your convenience

• Unit selects the operation mode according to the room temperature.
• Once AUTO mode is selected, the unit will operate at the standard setting temperature.

Room temperature	Operation mode	Standard setting temperature
23°C & above COOL 25°C
Below 23°C	DRY	22°C
Below 20°C HEAT 21°C

• Press for "HI" to +2^ or for "LO" to -2^ to the standard setting temperature.

HEAT - To enjoy warm air

• Unit takes a while to warm up. The power indicator blinks during this operation.

COOL - To enjoy cool air

To reduce power consumption during COOL mode, use curtains to screen off sunlight and outdoor heat.

DRY - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling operation.

POWERFUL

QUIET

To switch between

powerful & quiet

POWERFUL QUIET NORMAL

POWERFUL - To reach temperature quickly

This operation will stop automatically after 15 minutes.

QUIET - To enjoy quiet operation

QUIET

• This operation reduces airflow noises.

FAN SPEED

To select fan speed

(Remote control display)

AUTO

m = 311

1 + u7 = 70%

m = 311

。

1

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

Auto OFF/ON button

Use when remote control is misplaced or a malfunction occurs. Raise the front panel:

• To use in AUTO mode, press the button once.
• To use in COOL mode, press and hold the button until 1 beep is heard, then release.
• Press the button again to turn off.

To maximise comfort

AUTO COMFORT

NANOE-G

To purify the air

NANOE-G

• nanoe-G starts automatically when the unit is turned on with OFF/ON
• Can be activated even when the unit is turned off. In this condition, the unit will operate as a fan with AUTO fan speed and louver swing.

To deactivate viruses/bacteria on the fi Iter

NANOE-G POWER

After the unit is turned off, the nanoe-G in-fi lter deactivation may activate up to 150 minutes. Turning on the unit cancels this operation.
- To disable this operation in the future, press and hold until a short beep sound is heard. This will not disable the nanoe-G to purify the air.
To restore the nanoe-G in-fi lter deactivation, press and hold until a long beep sound is heard.

To adjust airflow direction

(Remote control display)

• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the Louver swings left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver is fixed at the predetermined position. The vertical louver swings left/right after the temperature rises.
• Do not adjust the louver by hand.

To set the timer

To turn ON or OFF the unit at a preset time.

① Select ON or OFF timer

Example: OFF at 22:00

② Set the time

③ Confirm

To cancel ON or OFF timer, press ON or OFF then press CANCE.
- If timer is cancelled manually or due to power failure, you can restore the previous setting (once power is resumed) by pressing SET.
- When ON Timer is set, the unit may start earlier (up to 30 minutes) before the actual set time in order to achieve the desired temperature on time.
- Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick guide.

Notes

• Can be activated in all modes and can be cancelled by pressing the respective button again.

• Cannot be selected at the same time.

To learn more…

Operation mode

HEAT: Unit takes a while to warm up. The POWER indicator blinks during this operation.

COOL: Use curtains to screen off sunlight and outdoor heat to reduce power consumption during COOL mode.

DRY: Unit operates at low fan speed to give a gentle cooling operation.

nanoe-G in-fi lter deactivation

Depending on the unit's accumulated operation time, nanoe-G in-filter deactivation may activate only once a day after the unit turned off.

To remove the moisture left in the internal parts, the fan will operate for 30 minutes with louver opened slightly. This process only applicable when the unit is operated in COOL/DRY mode before turned off. Then, nanoe-G deactivates viruses/bacteria on the filter for 2 hours with fan stopped and louver closed.

Do not turn off the power supply during this operation. After power failure, this operation will not resume.

ECONAVI and AUTO COMFORT

ECONAVI

or

AUTO

COMFORT

The unit will start to initialise (for approximately 1 minute)

The human activity sensor and the sunlight sensor will start to detect.

AIR SWING

Note

When manual AIR SWING is selected, the ECONAVI and AUTO COMFORT operations will be cancelled.

Human activity sensor operation

ECONAVI; Detecting human presence and activity, the unit controls room temperature to save energy.

AUTO COMFORT; Detecting human presence and activity, the unit controls room temperature to keep human comfortable consistently.

• During low activity, fan speed 1 tap up for first 15 minutes or until set temperature is reached.
  ** During human absence, maximum fan speed for COOL/DRY mode is medium fan.

The human activity sensor will also scan for area of heat source and movement in a room.

Detection area Human activity indicator

At left area At center / multiple area At right area

The unit judges human activity area for a few seconds before indicator updates. Based on area activeness horizontal airflow direction louver will adjust either fix at predetermined position or swing left/right periodically.

The human activity sensor performance is influenced by indoor unit location, movement speed, temperature range, etc.
The human activity sensor may:

• mistakenly detect an object with heat source & movement similar to human, such as pets, etc.
• mistakenly detect as non-heat source & movement if a human stays motionless for certain period of time.
• Do not place large objects near the sensor and keep away heating units or humidifier from the sensor's detection area. They may cause sensor malfunction.

Sunlight Sensor operation

ECONAVI; Detecting sunlight intensity, the unit adjust temperature to save energy.

ECONAVI is activated, the unit maintains set temperature until a high sunlight intensity is detected. The sunlight sensor detects sunlight intensity during weather or day/night changes, and the unit adjusts temperature.

• In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night.

Operation conditions

Use this air conditioner under the following temperature range.

DBT: Dry bulb temperature

WBT: Wet bulb temperature

Temperature (°C)		Indoor Outdoor
		DBT WBT DBT WBT
COOL	Max.	32 23 43 26
	Min. 16 1	1 16 11
HEAT	Max. 30 -	24 18
	Min. 16 -	-5	-6

Cleaning instructions

To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap (≤ pH7) or neutral household detergent.
• Do not use water hotter than 40^ .

Indoor unit

Indoor unit

Wipe the unit gently with a soft, dry cloth.

Human activity sensor

Do not hit or violently press or poke it with a sharp object. This can lead to damage and malfunction.

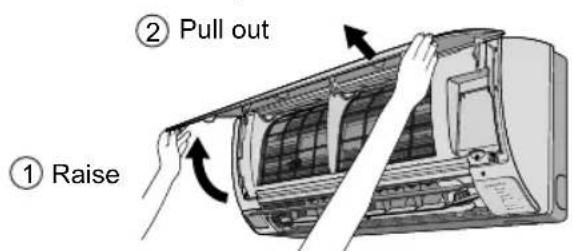

Front panel

Wash gently and dry.

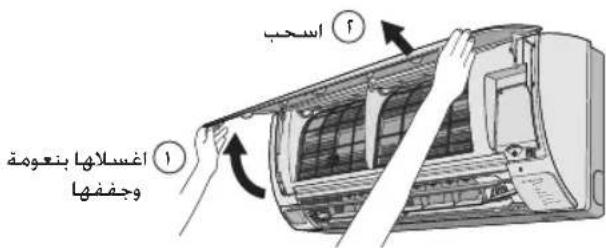

Remove the front panel

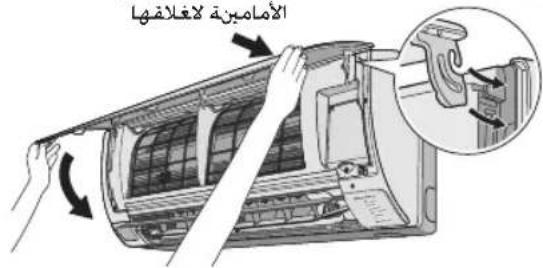

Close it securely

② Close down

For CS-A18PKD, CS-A24PKD, CS-A28PKD: Press at center of the front panel.

nanoe-G Generator

Every 6 months

Clean with dry cotton bud.
- Do not touch during operation.

Air fi Iters

Every 2 weeks

• Wash/rinse the fi Iters gently with water to avoid damage to the fi Iter surface.
• Dry the fi iters thoroughly under shade, away from fire or direct sunlight.
• Replace any damaged fi I ters.

Remove air filter

Attach air filter
Insert into the unit

For seasonal inspection after extended non-use

• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
  After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:

COOL: ≥ 8°C HEAT: ≥ 14°C

For extended non-use

• Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.

Troubleshooting

The following symptoms do not indicate malfunction.

Symptom Cause
Mist emerges from indoor unit. · Condensation	effect due to cooling process.
Water flowing sound during operation.	· Refrigerant flow inside the unit.
The room has a peculiar odour. · This may be due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed setting.	· This helps to remove the surrounding odour.
Operation is delayed a few minutes after restarting.	· The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam. · Condensation	or evaporation occurs on pipes.
TIMER indicator is always on. · The timer setting	repeats daily once set.
POWER indicator blinks during operation and the indoor fan is stopped.	· The unit is in defrost mode, and the melted frost is drained from the outdoor unit.
Indoor fan stops occasionally during heating operation.	· To avoid unintended cooling effect.
Cracking sound during operation. · Changes of	temperature caused the expansion/contraction of the unit.
2 or more human activity indicator turns on simultaneously.	· Judgement of heat source and movement area in progress.

Check the following before calling for servicing.

Symptom Check
Operation in HEAT/COOL mode is not working effi cientsly.	• Set the temperature correctly. • Close all doors and windows. • Clean or replace the fi lters. • Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. • Check if the unit has been installed at an incline. • Close the front panel properly.
Remote control does not work. (Display is dim or transmission signal is weak.)	• Insert the batteries correctly. • Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped. • Check if timers have been set.
The unit does not receive the signal from the remote control.	• Make sure the receiver is not obstructed. • Certain fl fluorescent lights may interfere with signal transmitter. Please consult authorised dealer.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY AND UNPLUG then please consult authorised dealer under the following conditions:

Abnormal noise during operation.
Water/foreign particles have entered the remote control.
Water leaks from Indoor unit.

• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.

g

aalh

a1g sL

aagill gno aellllgill lllpaae 100000000000000000000000000000000000000000000000000000000

SET abwabwgl (jLg≤J,

150020gJJI Jcuii 1ON Juiuui ciog bao hao sic

JgaaJIaIe Jgauai I aegjI Jg (aag,

1 1

Jc pssll 2g aclwll bia Ic cieil Juae

gI Laiu CgI gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I Gao I GAOI

yLg 1yLgCg LgC

ylogjL 1 jxg21 g 2021 g 2021 Lg 2021

5121bLui 1

Jaeag aSyI acywnag yalssIaIg gge gnnnll

20 20

a a a a a a a a a a a a a a a a a a a a a a a a a a a

gannnnnnaaiaaa

aagai Ie 10000000000000000000000000000000000000000000000000000000000000000000000000

JyI110111111111111111111111111111

J 2

A. 2x18x17 3x15 x14 4x13 5x12 6x11 7x10

a|b|c|d|e|f|g|h|i|j|k|l|m|n|o|p|q|r|s|t|u|v|w|x|y|z|

a,b,c,d,e,f,g,h,i,j,k,l,w,BWT

		a.n.l.a.1234567890		(a.e.g. a.1234567890) b.r.d. a.1234567890
			DBTWBT	BTWBT
			r.r.r.r.r.	a.1	a.1
			11111111	a.1
			r--r21A	a.1	a.1
1-	0-	-	17	a.1

1c 1111111111111111

aocLjLs aIbAaBbLbL b0g21 Cwol .

g1y1bluiy1uusio

120 120 120 120

aololglg1

Lgao gao:

aLo81 aog81 gjx wglg j

PSO: biol

a>g2x1 gge ybc

1

Lg2.Lc)

:CS-A18PKD, CS-A24PKD, CS-A28PKD

S AOB = S AOB

nanoe-G

Aa + d = 8

y

slo821 C

C = 90^ + 1

golz agos, sll

12y 58 Jb21 c 1s 1g 1j

2.2.2.11 C

1g21 20

1g25

puiiui 1000

1g21 Cog Loo ciois ploj gcc 2

108

1g21 1009 Ld a 1L 1000

yio 1s:

j21 j 10

x 120

Jggl 4y

△Lgj2yJgjz1

1

5.

Jbcxj

15281 gg

m = 311

m = 311

m = 311

m = 311

m = 311

Retiree panel frontal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Pb

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

#

alaiiull lgl aill clll jolalg gag

（）J 100

123 1111111111111111111111111111111

Pb

Espanol (LE)

© Panasonic Corporation 2012

Printed in Malaysia

F568955

YT0912-0
