USER MANUAL CS-A12PKD PANASONIC

Français Español (LE) English Operating Instructions Air Conditioner F568955 Operating Instructions Air Conditioner 2-11 Thank you for purchasing this Panasonic Air conditioner. Installation instructions attached. Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

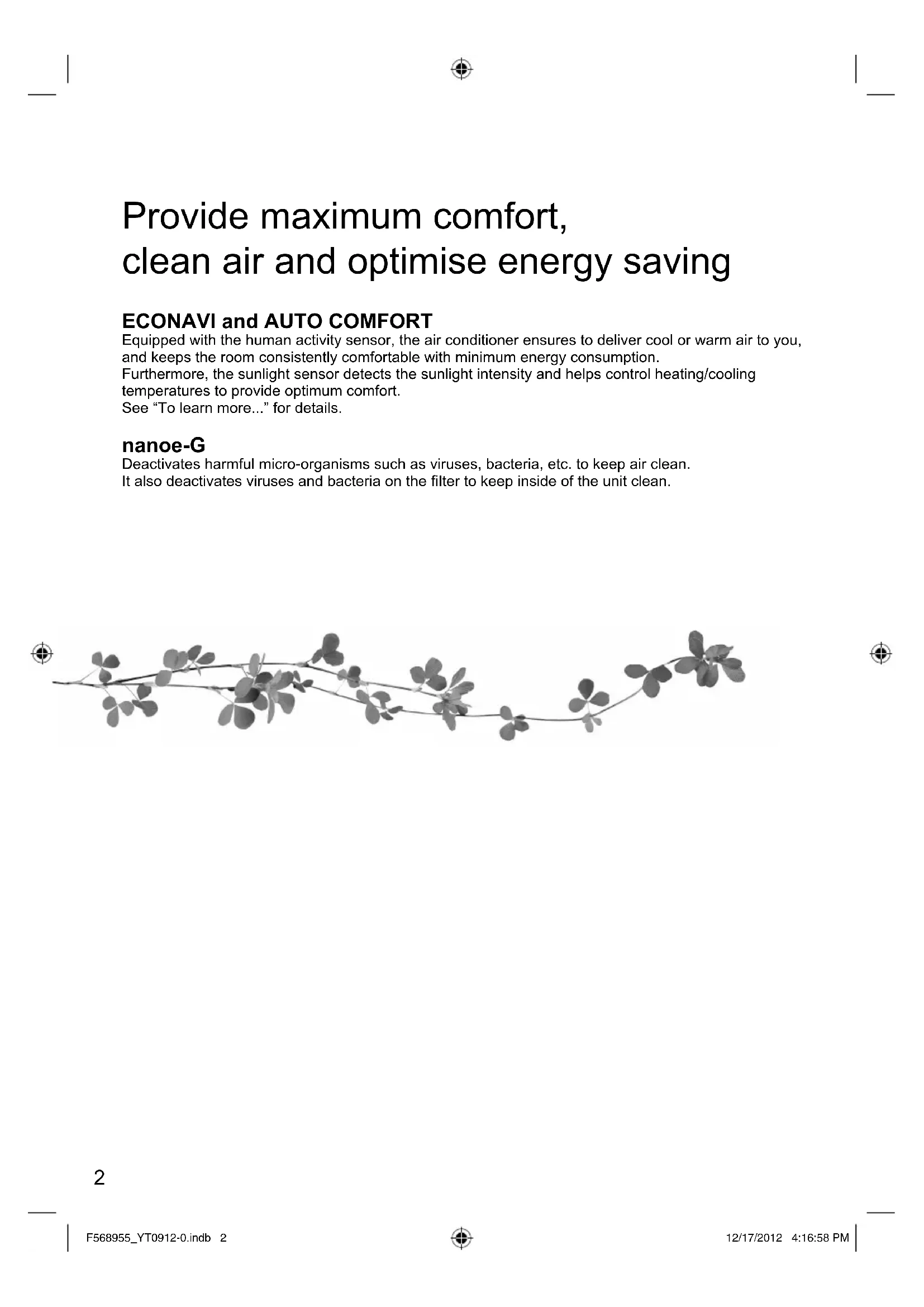

Pull out the back cover of remote control

Start/stop the operation POWER

• Please note that the OFF indication is on to start.

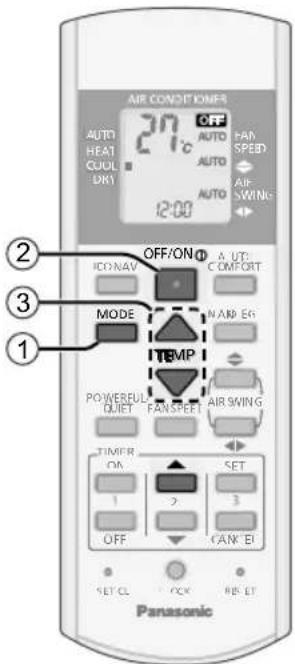

Select the desired temperature

• Selection range for HEAT, COOL and DRY mode: 16 °C ~ 30 °C.

• To dim or restore the unit’s indicator brightness, press and hold for 5 seconds.

• Use remote control within 8 m from the remote control receiver of the indoor unit. The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement. English Table of contents Safety precautions ...................... 4-5 How to use.................................. 6-7 To learn more.............................. 8-9 Cleaning instructions ....................10 Troubleshooting ............................ 11 Information.................... Back cover Accessories

• Remote control holder

• Screws for remote control holder × 2 F568955_YT0912-0.indb 3F568955_YT0912-0.indb 3 12/17/2012 4:16:58 PM12/17/2012 4:16:58 PM4 Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classifi ed as below: WARNING This sign warns of death or serious injury. CAUTION This sign warns of injury or damage to property. The instructions to be followed are classifi ed by the following symbols: This symbol denotes an action that is PROHIBITED. These symbols denote actions COMPULSORY. Confi rm with authorised dealer or specialist on usage of any specifi ed refrigerant type. Using refrigerant type other than the specifi ed may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re. Do not insert your fi ngers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock. Do not expose yourself directly to cold air for a long period to avoid excess cooling. Do not sit or step on the unit, you may fall down accidentally. Remote control Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries. Power supply Do not use a modifi ed cord, joint cord, extension cord or unspecifi ed cord to prevent overheating and fi re. To prevent overheating, fi re or electric shock:

Do not share the same power outlet with other equipment.

Do not operate with wet hands.

Do not over bend the power supply cord.

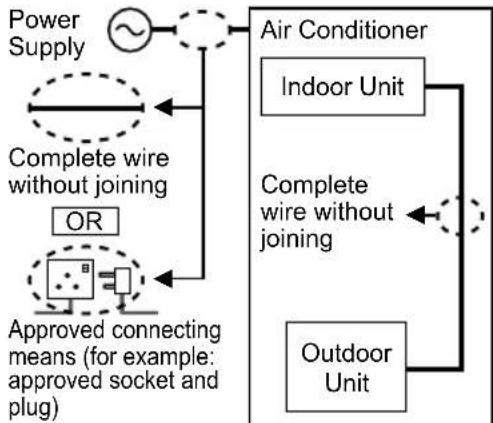

Do not operate or stop the unit by inserting or pulling out the power plug. Use complete power supply cord without joining. In unavoidable circumstances that complete power supply cord without joining is impossible, use an approved connection means (for example: socket and plug). Air Conditioner

Complete wire without joining

Approved connecting means (for example: approved socket and plug) Complete wire without joining Power Supply

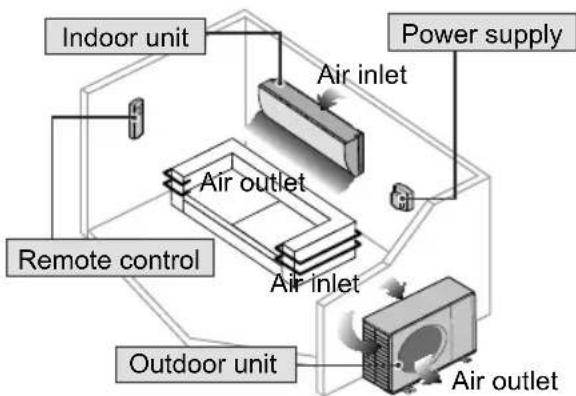

Indoor Unit Outdoor Unit WARNING Indoor unit and outdoor unit This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fi re. Indoor unit Outdoor unit Power supply Remote control Air inlet Air inlet Air inlet Air inlet Air outlet Air outlet Air outlet Air outlet F568955_YT0912-0.indb 4F568955_YT0912-0.indb 4 12/17/2012 4:17:00 PM12/17/2012 4:17:00 PM5 English If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualifi ed persons in order to avoid a hazard. It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fi re. To prevent overheating, fi re or electric shock:

Insert the power plug properly.

Dust on the power plug should be periodically wiped with a dry cloth. Stop using the product if any abnormality/ failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fi re/electric shock) Examples of abnormality/failure

The ELCB trips frequently.

Burning smell is observed.

Abnormal noise or vibration of the unit is observed.

Water leaks from the indoor unit.

Power cord or plug becomes abnormally hot.

Fan speed cannot be controlled.

The unit stops running immediately even if it is switched on for operation.

The fan does not stop even if the operation is stopped. Contact your local dealer immediately for maintenance/repair. This equipment must be earthed to prevent electrical shock or fi re. Prevent electric shock by switching off the power supply and unplug: - Before cleaning or servicing, - When extended non-use, or - During abnormally strong lightning activity. CAUTION Indoor unit and outdoor unit Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit. Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc. Do not use any combustible equipment in front of the airfl ow outlet to avoid fi re propagation. Do not expose plants or pet directly to airfl ow to avoid injury, etc. Do not touch the sharp aluminium fi n, sharp parts may cause injury. Do not switch ON the indoor unit when waxing the fl oor. After waxing, aerate the room properly before operating the unit. Do not install the unit in oily and smoky areas to prevent damage to the unit. Do not dismantle the unit for cleaning purpose to avoid injury. Do not step onto an unstable bench when cleaning the unit to avoid injury. Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock. Do not open window or door for long time during COOL/DRY mode operation. Prevent water leakage by ensuring drainage pipe is: - Connected properly, - Kept clear of gutters and containers, or - Not immersed in water After a long period of use or use with any combustible equipment, aerate the room regularly. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. Remote control Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control. To prevent malfunction or damage of the remote control:

Remove the batteries if the unit is not going to be used for a long period of time.

New batteries of the same type must be inserted following the polarity stated. Power supply Do not disconnect the plug by pulling the cord to prevent electric shock. Safety precautions F568955_YT0912-0.indb 5F568955_YT0912-0.indb 5 12/17/2012 4:17:02 PM12/17/2012 4:17:02 PM6 Human activity sensor and indicator Sunlight sensor and remote control receiver AUTO COMFORT MODE POWERFUL/QUIETTEMPOFF/ONTIMERSETCANCELONOFF123AIR SWINGFAN SPEEDSET CLOCK FAN SPEED AIR SWING AUTO HEAT COOL DRY ECONAVINANOE-GRESET

• Unit selects the operation mode according to the room temperature.

• Once AUTO mode is selected, the unit will operate at the standard setting temperature. Room temperature Operation mode Standard setting temperature 23˚C & above COOL 25˚C Below 23˚CDRY 22˚C Below 20˚C HEAT 21˚C

• Press for “HI” to +2˚C or for “LO” to -2˚C to the standard setting temperature. HEAT - To enjoy warm air

• Unit takes a while to warm up. The power indicator blinks during this operation. COOL - To enjoy cool air

• To reduce power consumption during COOL mode, use curtains to screen off sunlight and outdoor heat. DRY - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling operation. POWERFUL/ QUIET To switch between powerful & quiet QUIETPOWERFUL NORMAL POWERFUL - To reach temperature quickly POWERFUL

This operation will stop automatically after 15 minutes

QUIET - To enjoy quiet operation QUIET

• This operation reduces airfl ow noises. How to use Auto OFF/ON button Use when remote control is misplaced or a malfunction occurs. Raise the front panel:

• To use in AUTO mode, press the button once.

• To use in COOL mode, press and hold the button until 1 beep is heard, then release.

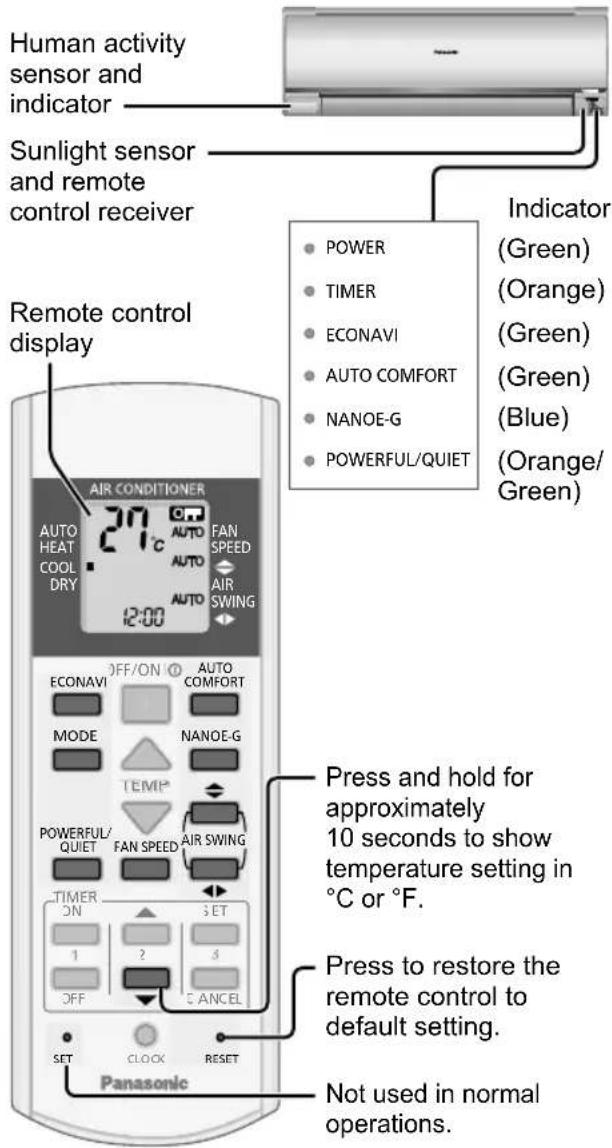

• Press the button again to turn off. Press and hold for approximately 10 seconds to show temperature setting in °C or °F. Press to restore the remote control to default setting. Not used in normal operations. FAN SPEED To select fan speed (Remote control display)

• Can be activated in all modes and can be cancelled by pressing the respective button again.

• Cannot be selected at the same time. To set the timer To turn ON or OFF the unit at a preset time. TIMER SET CANCEL

• If timer is cancelled manually or due to power failure, you can restore the previous setting (once power is resumed) by pressing SET

• When ON Timer is set, the unit may start earlier (up to 30 minutes) before the actual set time in order to achieve the desired temperature on time.

• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick guide. See "To learn more..." for details. AUTO COMFORT To maximise comfort AUTO COMFORT NANOE-G To purify the air NANOE-G

• nanoe-G starts automatically when the unit is turned on with OFF/ON

• Can be activated even when the unit is turned off. In this condition, the unit will operate as a fan with AUTO fan speed and louver swing. To deactivate viruses/bacteria on the fi lter NANOE-G POWER

• After the unit is turned off, the nanoe-G in-fi lter deactivation may activate up to 150 minutes. Turning on the unit cancels this operation.

• To disable this operation in the future, press and hold NANOE-G until a short beep sound is heard. This will not disable the nanoe-G to purify the air.

• To restore the nanoe-G in-fi lter deactivation, press and hold NANOE-G until a long beep sound is heard. AIR SWING To adjust airfl ow direction (Remote control display)

• Keeps the room ventilated.

• In COOL/DRY mode, if AUTO is set, the louver swings left/right and up/down automatically.

• In HEAT mode, if AUTO is set, the horizontal louver is fi xed at the predetermined position. The vertical louver swings left/right after the temperature rises.

• Do not adjust the louver by hand. How to use F568955_YT0912-0.indb 7F568955_YT0912-0.indb 7 12/17/2012 4:17:03 PM12/17/2012 4:17:03 PM8 To learn more... Operation mode HEAT : Unit takes a while to warm up. The POWER indicator blinks during this operation. COOL: Use curtains to screen off sunlight and outdoor heat to reduce power consumption during COOL mode. DRY : Unit operates at low fan speed to give a gentle cooling operation. nanoe-G in-fi lter deactivation Depending on the unit’s accumulated operation time, nanoe-G in-fi lter deactivation may activate only once a day after the unit turned off. To remove the moisture left in the internal parts, the fan will operate for 30 minutes with louver opened slightly. This process only applicable when the unit is operated in COOL/DRY mode before turned off. Then, nanoe-G deactivates viruses/bacteria on the fi lter for 2 hours with fan stopped and louver closed. Do not turn off the power supply during this operation. After power failure, this operation will not resume. ECONAVI and AUTO COMFORT

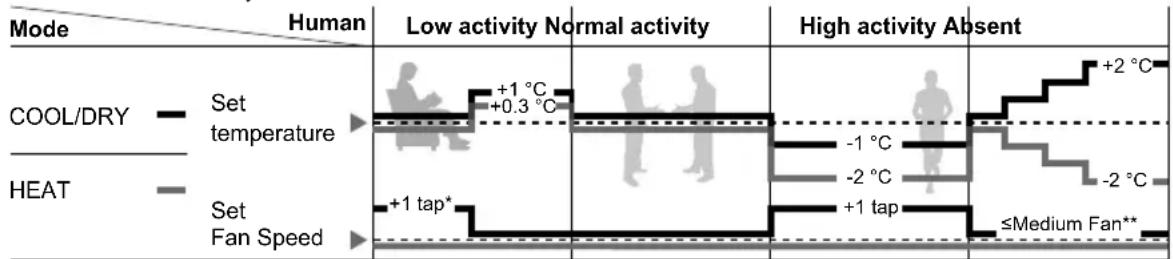

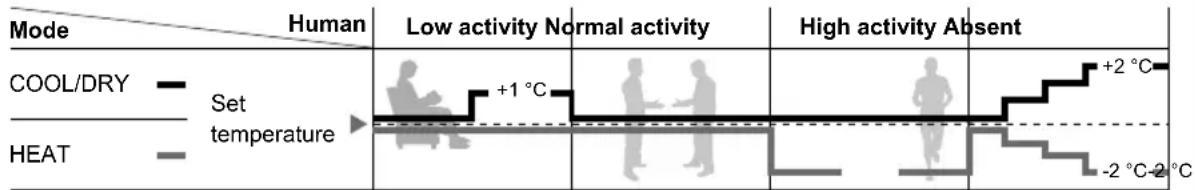

At left area At center / multiple area At right area The unit judges human activity area for a few seconds before indicator updates. Based on area activeness horizontal airfl ow direction louver will adjust either fi x at predetermined position or swing left/right periodically.

• The human activity sensor performance is infl uenced by indoor unit location, movement speed, temperature range, etc.

• The human activity sensor may: - mistakenly detect an object with heat source & movement similar to human, such as pets, etc. - mistakenly detect as non-heat source & movement if a human stays motionless for certain period of time.

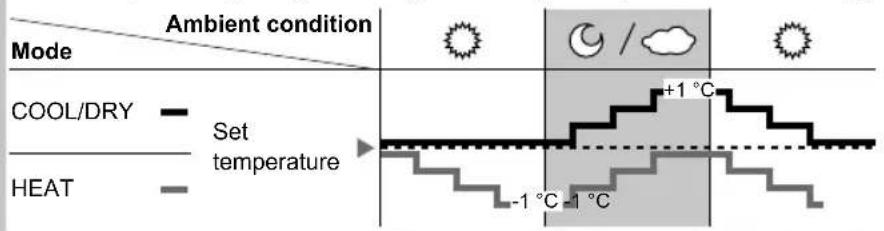

• Do not place large objects near the sensor and keep away heating units or humidifi er from the sensor’s detection area. They may cause sensor malfunction. Sunlight Sensor operation Set temperature HEAT COOL/DRY +1 °C-1 °C -1 °C Ambient condition Mode ECONAVI ; Detecting sunlight intensity, the unit adjust temperature to save energy. ECONAVI is activated, the unit maintains set temperature until a high sunlight intensity is detected. The sunlight sensor detects sunlight intensity during weather or day/night changes, and the unit adjusts temperature.

• In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night. Operation conditions Use this air conditioner under the following temperature range. DBT : Dry bulb temperature WBT : Wet bulb temperature Temperature (°C) Indoor Outdoor

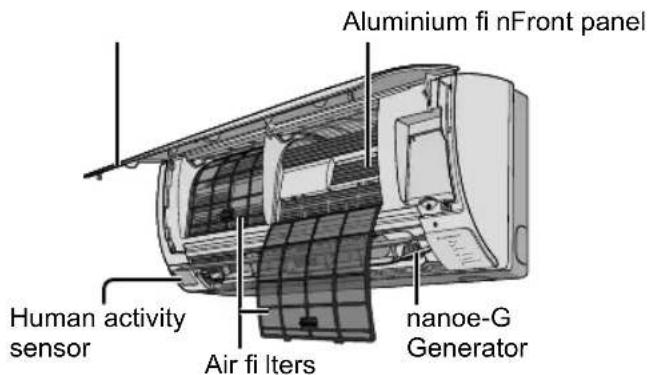

Cleaning instructions To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.

• Do not touch the aluminium fi n, sharp parts may cause injury.

• Do not use benzine, thinner or scouring powder.

• Use only soap ( pH 7) or neutral household detergent.

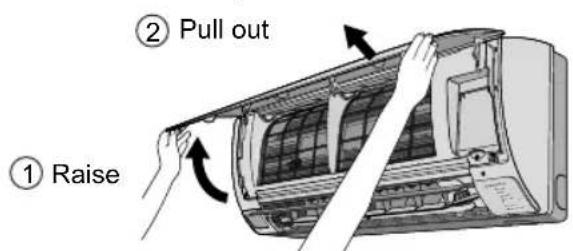

• Do not use water hotter than 40 °C. Indoor unit Wipe the unit gently with a soft, dry cloth. Human activity sensor Do not hit or violently press or poke it with a sharp object. This can lead to damage and malfunction. Front panel Wash gently and dry. Remove the front panel POWERTIMERECONAVIAUTO COMFO NANOE-GPOWERFUL/QUIET Raise Pull out

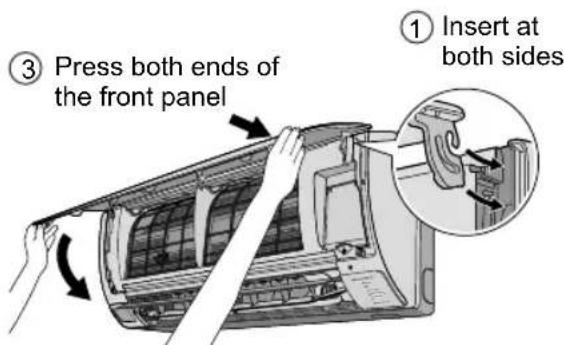

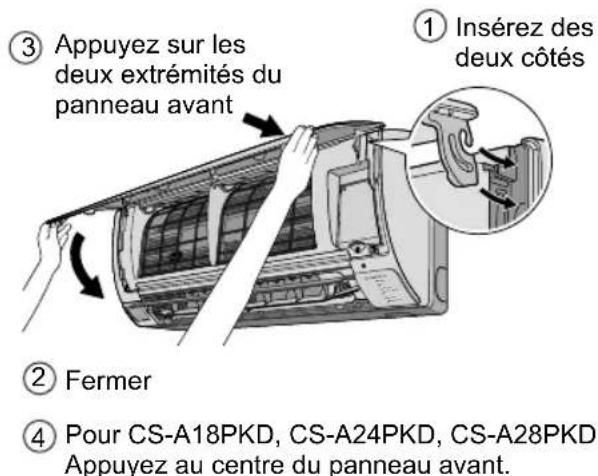

Close it securely For CS-A18PKD, CS-A24PKD, CS-A28PKD: Press at center of the front panel.

Press both ends of the front panel

• Clean with dry cotton bud.

• Do not touch during operation. Air fi lters Every 2 weeks

• Wash/rinse the fi lters gently with water to avoid damage to the fi lter surface.

• Dry the fi lters thoroughly under shade, away from fi re or direct sunlight.

• Replace any damaged fi lters. Remove air fi lter Attach air fi lter Insert into the unit For seasonal inspection after extended non-use

• Checking of remote control batteries.

• No obstruction at air inlet and air outlet vents.

• After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents: COOL: ≥ 8 °C HEAT: ≥ 14 °C For extended non-use

• Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.

• Turn off the power supply and unplug.

• Remove the remote control batteries. Aluminium fi nFront panel Air fi lters Indoor unit Human activity sensor nanoe-G Generator F568955_YT0912-0.indb 10F568955_YT0912-0.indb 10 12/17/2012 4:17:05 PM12/17/2012 4:17:05 PM11 English The following symptoms do not indicate malfunction. Symptom Cause Mist emerges from indoor unit. • Condensation effect due to cooling process. Water fl owing sound during operation. • Refrigerant fl ow inside the unit. The room has a peculiar odour. • This may be due to damp smell emitted by the wall, carpet, furniture or clothing. Indoor fan stops occasionally during automatic fan speed setting.

• This helps to remove the surrounding odour. Operation is delayed a few minutes after restarting.

• The delay is a protection to the unit’s compressor. Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes. TIMER indicator is always on. • The timer setting repeats daily once set. POWER indicator blinks during operation and the indoor fan is stopped.

• The unit is in defrost mode, and the melted frost is drained from the outdoor unit. Indoor fan stops occasionally during heating operation.

• To avoid unintended cooling effect. Cracking sound during operation. • Changes of temperature caused the expansion/ contraction of the unit. 2 or more human activity indicator turns on simultaneously.

• Judgement of heat source and movement area in progress. Check the following before calling for servicing. Symptom Check Operation in HEAT/COOL mode is not working effi ciently.

• Set the temperature correctly.

• Close all doors and windows.

Clear any obstruction at the air inlet and air outlet vents. Noisy during operation. • Check if the unit has been installed at an incline.

• Close the front panel properly. Remote control does not work. (Display is dim or transmission signal is weak.)

• Insert the batteries correctly.

• Replace weak batteries. The unit does not work. • Check if the circuit breaker is tripped.

• Check if timers have been set. The unit does not receive the signal from the remote control.

• Make sure the receiver is not obstructed.

• Certain fl uorescent lights may interfere with signal transmitter. Please consult authorised dealer.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY AND UNPLUG then please consult authorised dealer under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
