USER MANUAL FUMK50010B ABUS

Radio-controlled opening detector

Installation Guide

Instructions d-installation

Draadloze openingsmelder

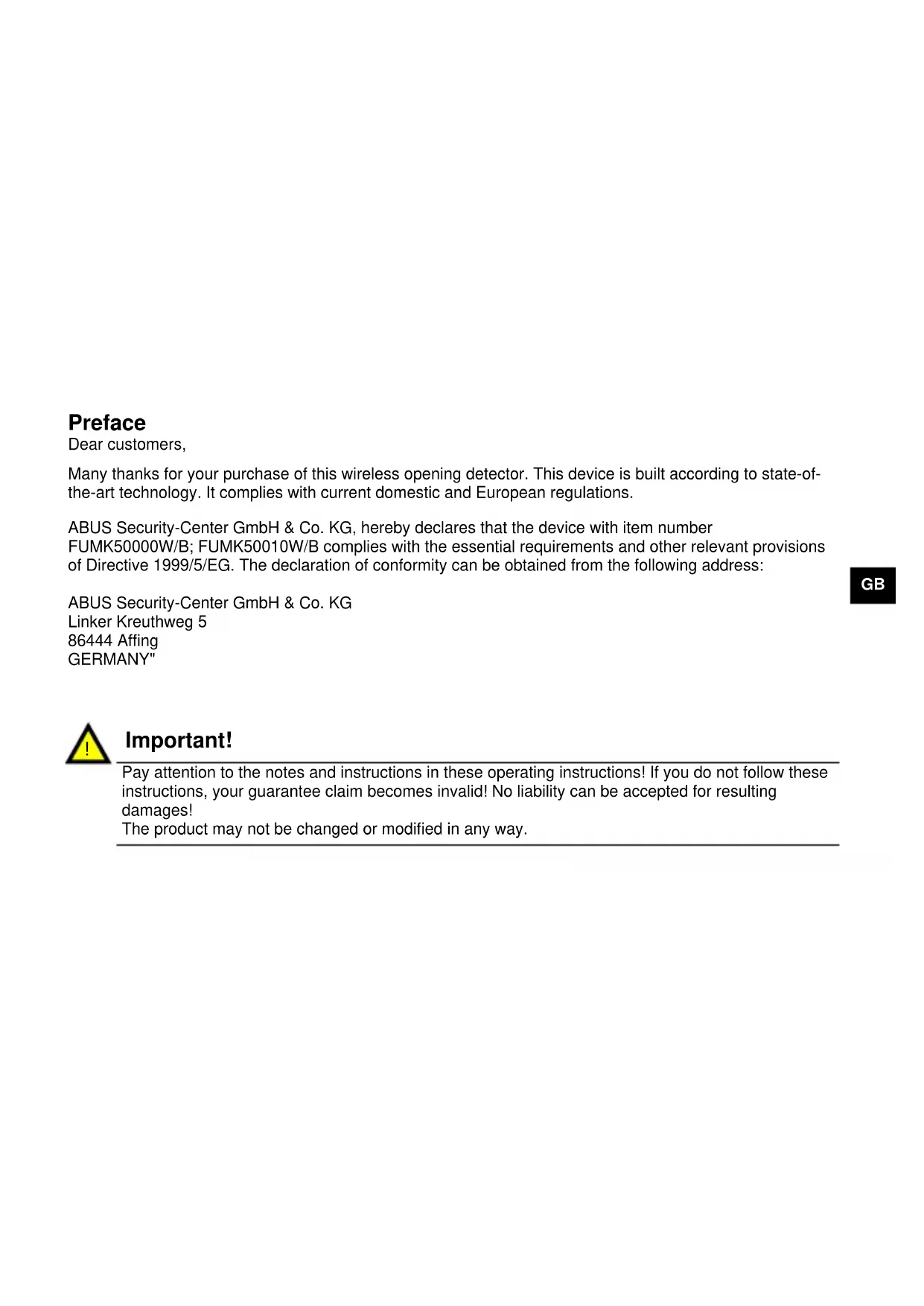

Many thanks for your purchase of this wireless opening detector. This device is built according to state-of-the-art technology. It complies with current domestic and European regulations.

ABUS Security-Center GmbH & Co. KG, hereby declares that the device with item number FUMK50000W/B; FUMK50010W/B complies with the essential requirements and other relevant provisions of Directive 1999/5/EG. The declaration of conformity can be obtained from the following address:

Pay attention to the notes and instructions in these operating instructions! If you do not follow these instructions, your guarantee claim becomes invalid! No liability can be accepted for resulting damages!

The product may not be changed or modified in any way.

Battery warning!

The device is supplied with direct current from a 3 V lithium battery. To guarantee a long working life and avoid fire and injury, please note the following:

• Do not dispose of the battery in domestic waste.
• Do not expose the battery to direct sunlight or sources of heat.
• Do not store the battery under high temperatures.
• The battery must not be burned.
• The battery must not come into contact with water.
• The battery must not be dismantled, pierced or otherwise damaged.
• The battery contacts must not be short-circuited.
• The battery must be kept away from small children.
  The battery cannot be recharged.

1. Scope of delivery

1 x installation instructions
1x magnet
1 x CR2 3 V lithium battery
1 x magnet holder
1 x opening detector
2 × countersunk screws (magnet holder)
2 x rounded head screws (detector)
4 x magnet spacers
2 x detector spacers
4 x jumpers

3. Putting into operation

Open the housing by loosening the screw and then removing the cover.

2. Technical data

Power supply: 3 V Li/MnO2
Battery type: CR2
Power consumption: 0.03 A
Frequency: 868.6625 MHz / F
Weight: ca. 53 g
Dimensions (WxHxD in mm): 33x89x29
Battery life: Up to 36 months
Environment class: I (-10 to +55 °C)
Security level:
INCERT no.: C0160194
Housing material: ABS

Important!

Check for correct polarity!

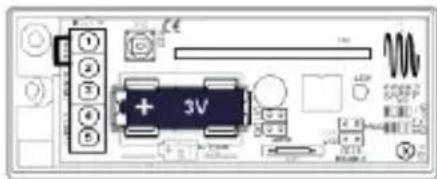

Insert the battery into the wireless opening detector.

4. Signal LEDs

Operating state	Signal
Operating mode	No signal
Transmit / IR programming mode	4 x flash
Programming mode for internal detectors	Continuous flashing

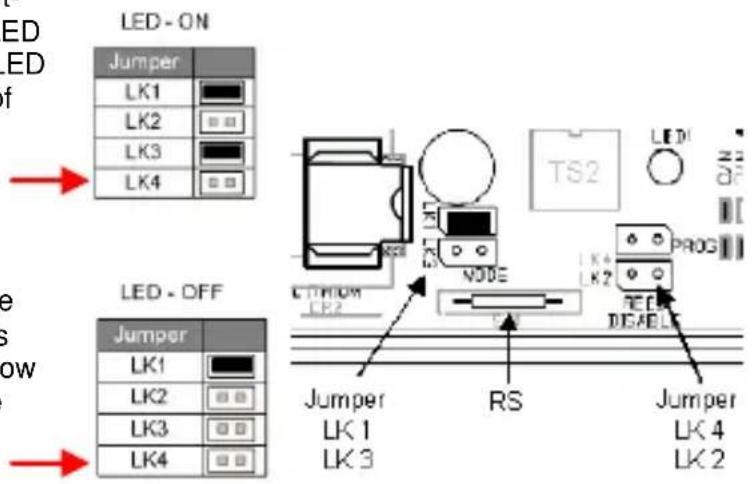

5. Activating the LED

Attach a jumper to contacts LK1 and LK3. Short-circuit the LK4 contact with a jumper until the LED flashes continuously. Remove this again. The LED is now activated. Restore the original position of the jumper.

6. Deactivating the LED

Attach a jumper to contact LK1. Short-circuit the LK4 contact with a jumper until the LED flashes continuously. Remove this again. The LED is now deactivated. Restore the original position of the jumper.

7. Training the zones

Ensure that the Secvest (receiver) is in learning mode. Using a wireless accessory module (wireless extension), hold the "SL" signal LED of the detector at a maximum of 50mm above the IR receiver. Train the zones as described below.

The possible configurations of the individual zones can be found on the previous pages. You can also use this wireless magnet contact as a wireless module.

8. Training zone 1

Keep the "TS2" anti-removal wall contact pressed. When deinstalled, also keep the "TS1" cover contact pressed.

Open one of these contacts until successful reception is confirmed.

GB

9. Training zone 2 (if necessary)

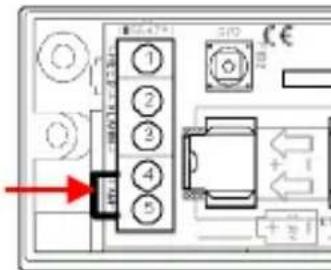

Connect the "TAMP" contact with a jumper on the terminal connector strip of contacts 4 and 5.

Open and close the "TAMP" connection until successful reception is confirmed.

Important!

10. Attaching the detector

• Do not attach on or near metal surfaces!
• Do not attach within 1 metre of gas, water or power lines!
• Do not attach near electronic devices (e.g. computers, photocopiers or other detectors)!

11. Range

The range is dependent on the surrounding conditions. Therefore, use double-sided adhesive tape to fix the detector temporarily in different locations and test it by triggering an alarm. If this signal is not detected by the Secvest, move the detector to a new position. The signal strength should not fall below 3. Testing using the Secvest: Installer menu Test Detector signal

12. Installation location

The best place to install the wireless opening detector is the upper corner of the window/door frame. Ensure that the detector is installed on a flat surface so the TS2 contact switches correctly (see "Training zone 1").

Displays: Secvest

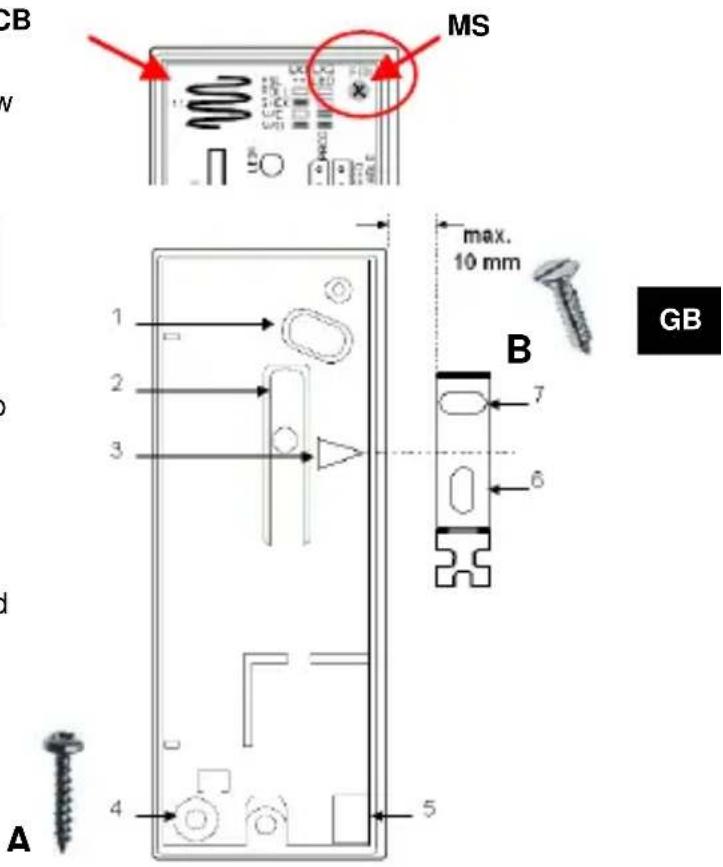

13. Installation

Remove the PCB from the housing. Loosen the "MS" screw and lift out the PCB.

Fasten the detector and magnet holder centrally to the "3" marking with a maximum spacing of 10mm

Use the base plate of the detector and the magnet holder to mark the fastening holes 1, 4, 6 and 7.

Use the rounded head screw "A" for the detector and the countersunk screw "B" for the magnet holder.

Ensure that the anti-removal wall contact "2" can be moved inwards.

Cable opening "5" for external detectors with a connection cable of max. 10 metres.

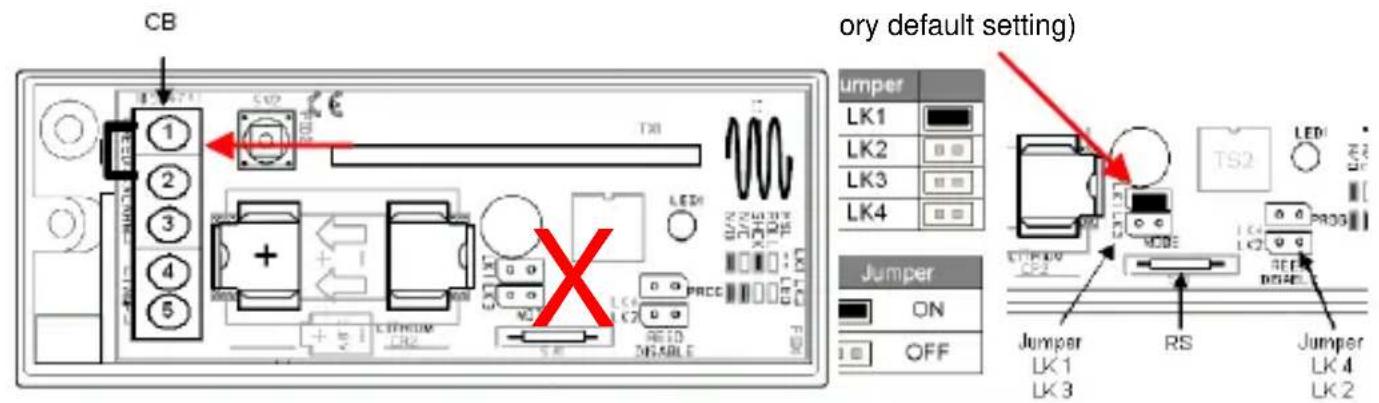

14. Configuration

Abbreviations	Description		Abbreviations	Description
CB	Terminal connector strip		TS1 - 2	Internal tamper contacts
RS	Reed switch		eTS3	External tamper contact
NC	Normal closed contact		eS1 - 2	External switch contacts
NO	Normal open contact

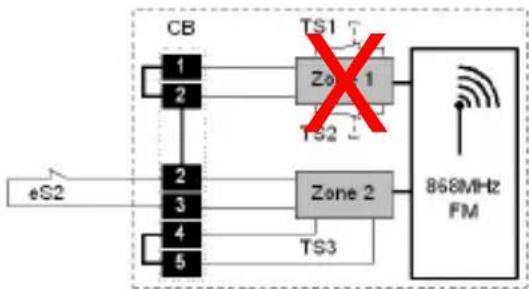

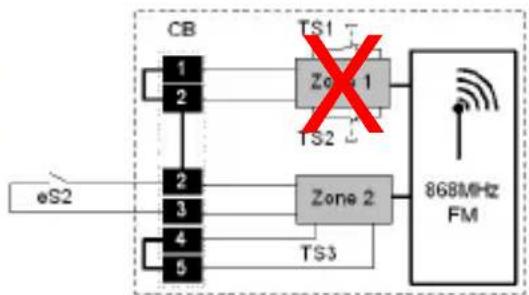

Only use zone 2 of the detector, as the internal tamper contacts TS1-2 are deactivated in this way.

Fig. 1

Préface

Chere cliente, cher client,

6. Deaktivering at LED

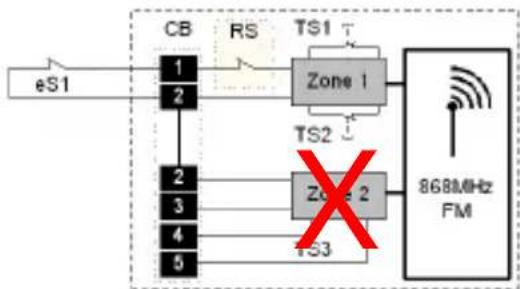

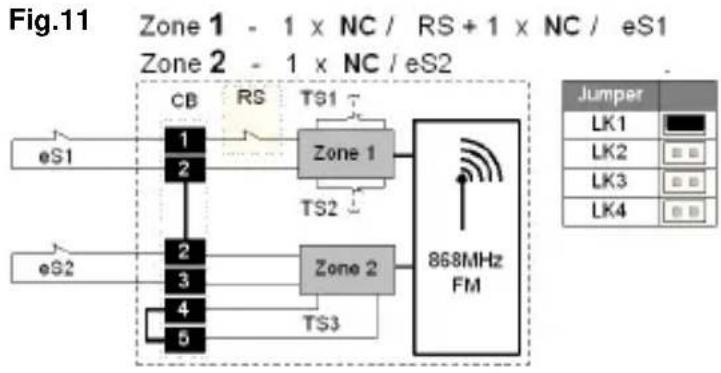

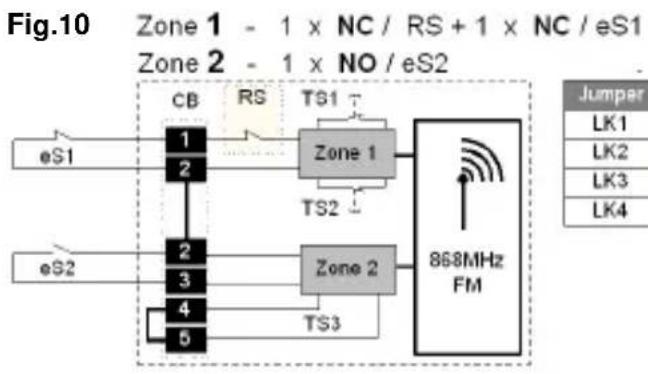

Fig.2 Zone1 - 1xNC/RS+1xNC/eS1

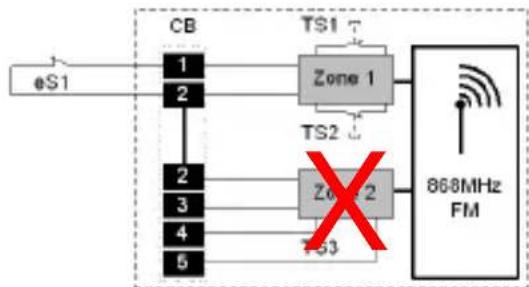

Fig.3 Zone1-1xNC/eS1

Fig.4 Zone2-1xNC/eS2

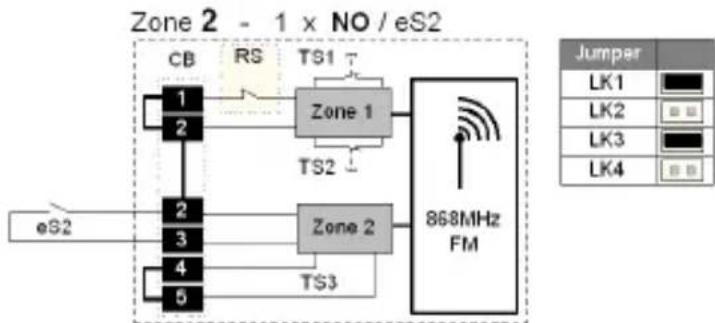

Fig.5 Zone2-1xNO/eS2

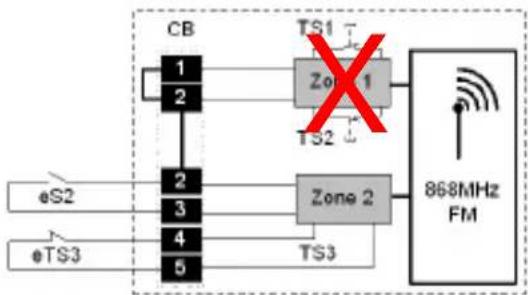

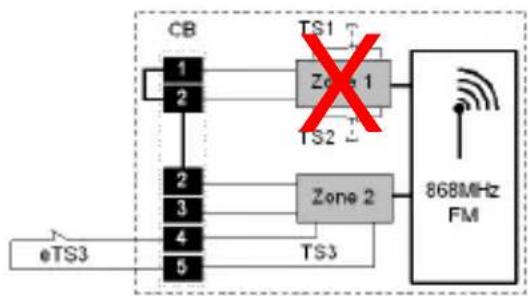

Fig.6 Zone 2 - 1 x NC / eTS3

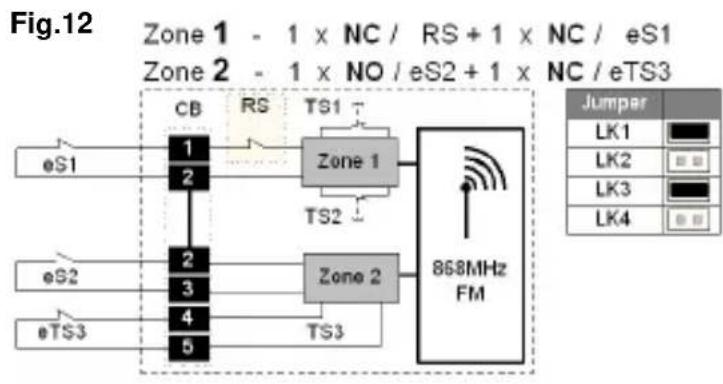

Fig.7 Zone 2 - 1 x NO / eS2 + 1 NC / eTS

Jumper

LK1

LK2

LK3

LK4

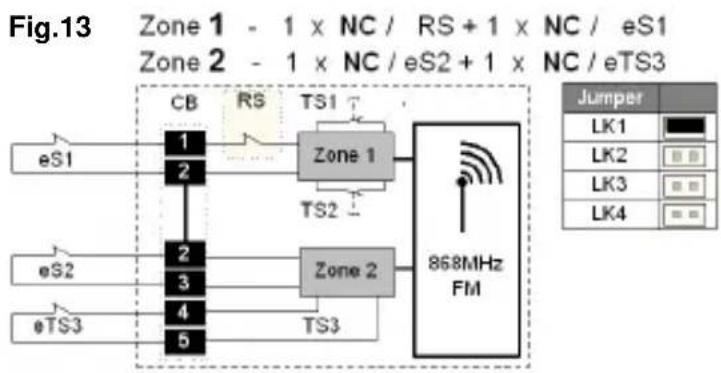

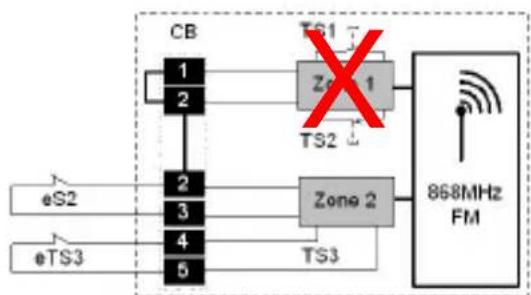

Fig.8 Zone 2 - 1 x NC / eS2 + 1 NC / eTS

Fig.9 Zone1 - 1 x NC / RS

FUMK50010W/

BOM-No.12443335

Funköffnungsmelder

Radio-controlled opening detector

Installation Guide

Instructions d-installation

Draadloze openingsmelder

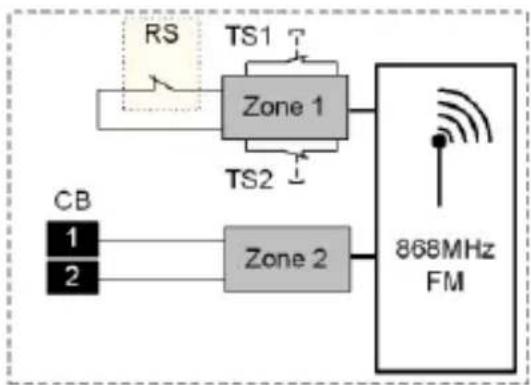

Using detectors as wireless modules

This wireless magnet contact can also be used as a wireless module.

1. Close the jumper connection LK2 (Fig. 1, Pos. 2) to deactivate the internal magnet contact.

Connect the external detectors to the clamps of the screw clamp block and train them (see

"Connecting external contacts" and "Training external contacts").

Training external contacts

The external contacts of the wireless opening detector are trained for an extra zone of the system:

1. Switch your wireless centre to learn mode. Observe the system instructions.
   1.1. Connect both screw clamps on the screw clamp block with a 2K2 resistor.
   1.2. Remove the resistor to trigger wireless transmission. OR:
   1.3. Connect the external contact to a detector and open the tamper protection.
   1.4. Check that the alarm centre has recognised the detector.

Connecting external contacts

External contacts can be connected via DEOL to this opening detector.

Two or more devices must be connected in series.

The cable length must not exceed 10 metres.

Connect the external devices to the screw clamps on the PCB.

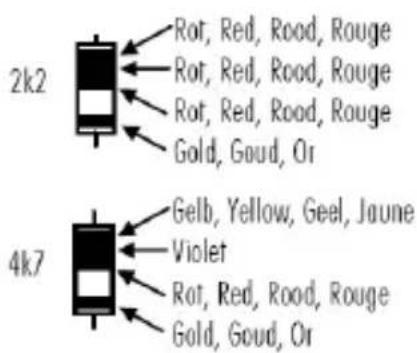

Pay attention to the resistance values.

Activating/deactivating LEDs

Connect the jumper to contact LK3 to activate the LED.

Remove the jumper to deactivate it.

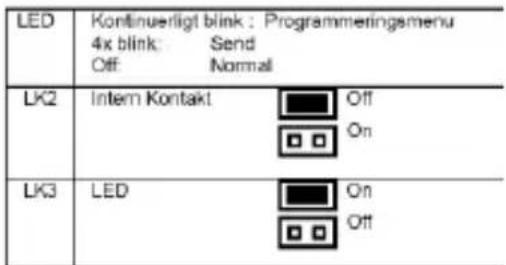

LED	Flashing: Program mode 4x flashing: Transmit Off: Normal
LK2	Internal contact	Off On
LK3	LED	On Off

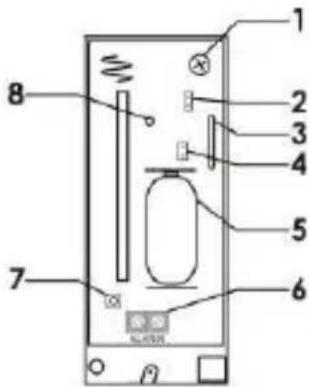

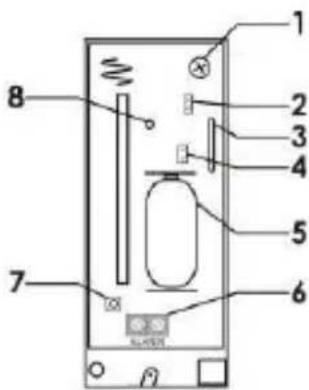

No.	Name
1	Fixing screw
2	Jumper connection LK2
3	Magnet switch
4	Jumper connection LK3
5	Battery
6	Screw clamp block
7	Tamper protection, cover
8	LED

FUMK50010W/B

Aktivering/deaktivering at LED

Slå bro over jumpertilslutning LK3 for at aktivere LED'erne. Fjern broen for at deaktivere dem.
