Product Type	4-channel Analog HD Digital Video Recorder
Brand	ABUS
Model	TVVR33005
Number of Channels	4 channels
Recording Resolution	Analog HD 1080p
Internal Storage	Not included (SATA hard drive bay, screws and cables provided)
Power Supply	Power adapter (12V DC, not specified)
Connectivity	Ethernet 10/100, USB 2.0
Video Outputs	HDMI, VGA
Video Inputs	4 x BNC
Main Functions	Continuous recording, motion detection, network access via IP Installer, remote management
Security	Admin password, reset via GUID file
Included Accessories	USB mouse, 1 m network cable, cables and screws for hard drive, quick start guide, CD
Dimensions (approx.)	Standard 4-channel DVR housing (not disclosed)
Weight (approx.)	Approximately 1.5 kg without hard drive
Operating Temperature	0 °C to 40 °C
Maintenance and Cleaning	Clean with a dry cloth, avoid liquids
Spare Parts and Repairability	Replaceable hard drive, ABUS technical support for password
General Information	Compliant with European directives, manufactured by ABUS Security-Center

Frequently Asked Questions - TVVR33005 ABUS

How to install a hard drive in the TVVR33005 recorder?

Loosen the 4 screws on the bottom, open the housing, align the hard drive on the base, secure it with the provided screws, then connect the data and power cables. Close the housing.

How to reset the administrator password?

You can reset the password using the exported GUID file. Connect a USB drive containing the file, click 'Forgot password' on the login screen, select the file and import it. If you don't have a GUID file, contact ABUS technical support.

What types of cameras are compatible with the TVVR33005?

The recorder is compatible with Analog HD (1080p) cameras with BNC connector. The TVVR33025T kits include outdoor HD 1080p cameras.

How to access the recorder remotely?

Use the IP Installer software provided on the CD. Connect the recorder to your network via Ethernet, launch IP Installer, find the device and access its web interface. You can also configure remote access via network settings.

How to connect cameras to the recorder?

Connect each camera to a BNC input on the back of the recorder using a coaxial cable. Ensure the cameras are powered (e.g., via the kit's power supply or a separate source).

How to set the interface language?

During first startup, the setup wizard allows you to select the language. You can also change it later in system settings.

What to do if you forget the password without a GUID file?

If you don't have a valid GUID file, you must contact ABUS Security-Center technical support. You will need a computer with network access to the recorder and an Internet connection to receive the reset data.

How to export the GUID file?

The GUID file is created during first activation. It is recommended to export it to a USB drive via the recorder's interface. Keep it in a safe place.

How to update the recorder's software?

Download the latest firmware version from the ABUS website. Connect a USB drive, copy the file, then in the recorder's interface go to 'Settings' > 'Update' and select the file.

Where to find the full manual for the TVVR33005?

The full manual is available on notice-facile.com or on the provided CD. You can also download it in PDF format on the ABUS portal.

USER MANUAL TVVR33005 ABUS

Scope of delivery 24

Warnings 25

Connections 26

Hardware Installation 27

Tips for camera installation 29

System activation 31

Resetting the password 32

Software Set-up 33

Français

Security Tech Germany

Hardwareinstallation

Security Tech Germany

Systemaktivierung

1

Security Tech Germany

13

14

15

Quick guide for Video Recorder I Monitoring Set: TVVR33005 | TVVR33025T

This quick start guide describes the initial installation steps for your network camera.

In-depth information can be found in the user guide, which can be downloaded via the IP Installer or from the abus.com homepage.

Dear customers,

Thank you for purchasing this product. This product complies with current domestic and European regulations.

Conformity has been proven and all related certifications are available from the manufacturer on request (ABUS Security-Center GmbH & Co. KG, Linker Kreuthweg 5, 86444 Affing).

To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instructions! Read the entire operating manual carefully before putting the product into operation. Pay attention to all operating and safety information! All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist dealer.

Scope of delivery

TWR33025T

• 4-Channel Analogue HD Video Recorder incl. 1 TB HDD
• 2 x Analogue HD 1080p Mini Outdoor Camera
  Universal power supply unit
• 2 x 30 m coaxial cable
• 1x1m network cable
• Installation material
• USB mouse
  Quick guide
  CD

TVVR33005

• 4-Channel Analogue HD Video Recorder
• 1x1m network cable
• 2 x hard drive cable
• 4 x screws for hard drive
• Power supply unit
• USB mouse
  Quick guide
  CD

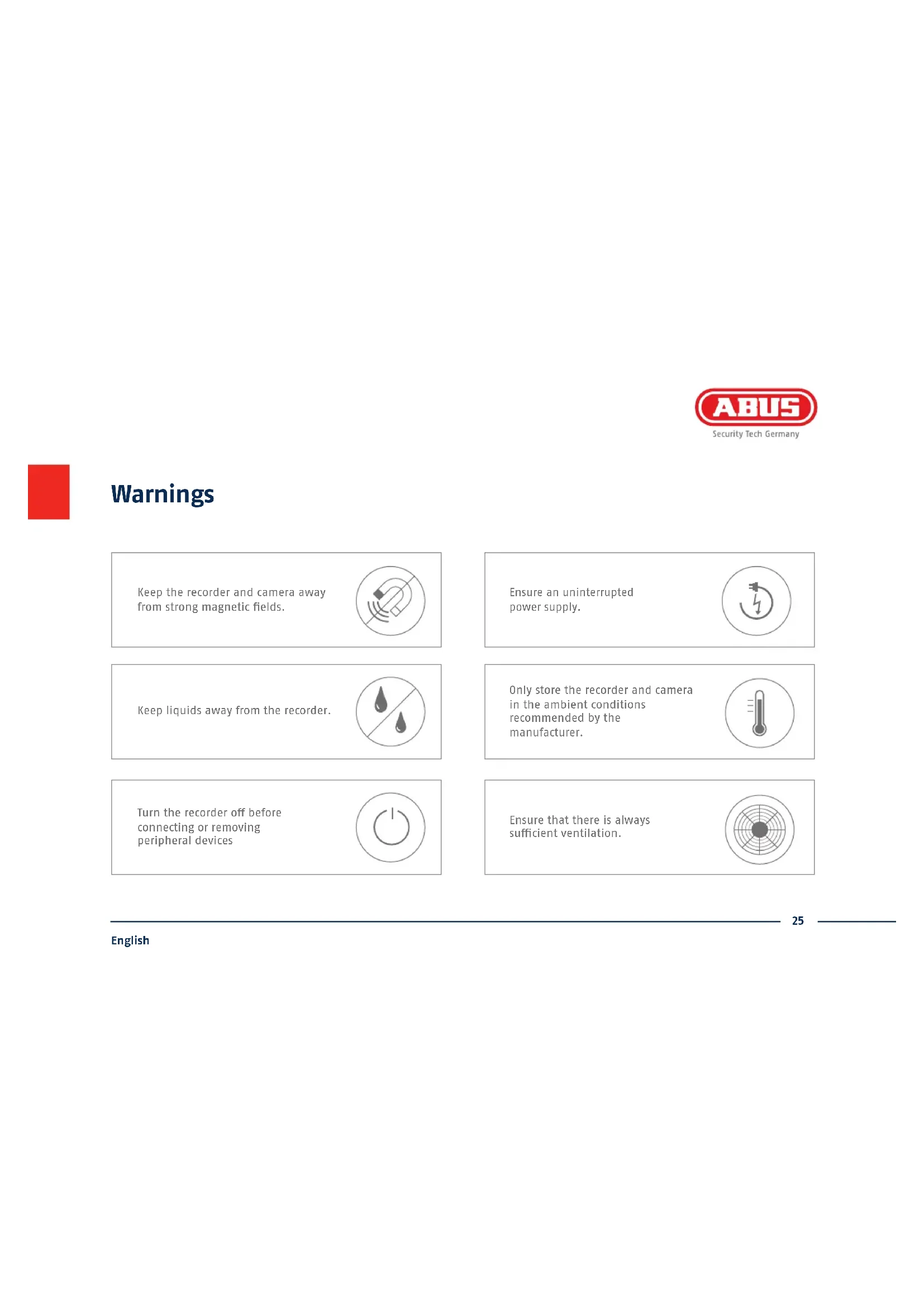

Warnings

Keep the recorder and camera away from strong magnetic fields.

Ensure an uninterrupted power supply.

Keep liquids away from the recorder.

Only store the recorder and camera in the ambient conditions recommended by the manufacturer.

Turn the recorder off before connecting or removing peripheral devices

Ensure that there is always sufficient ventilation.

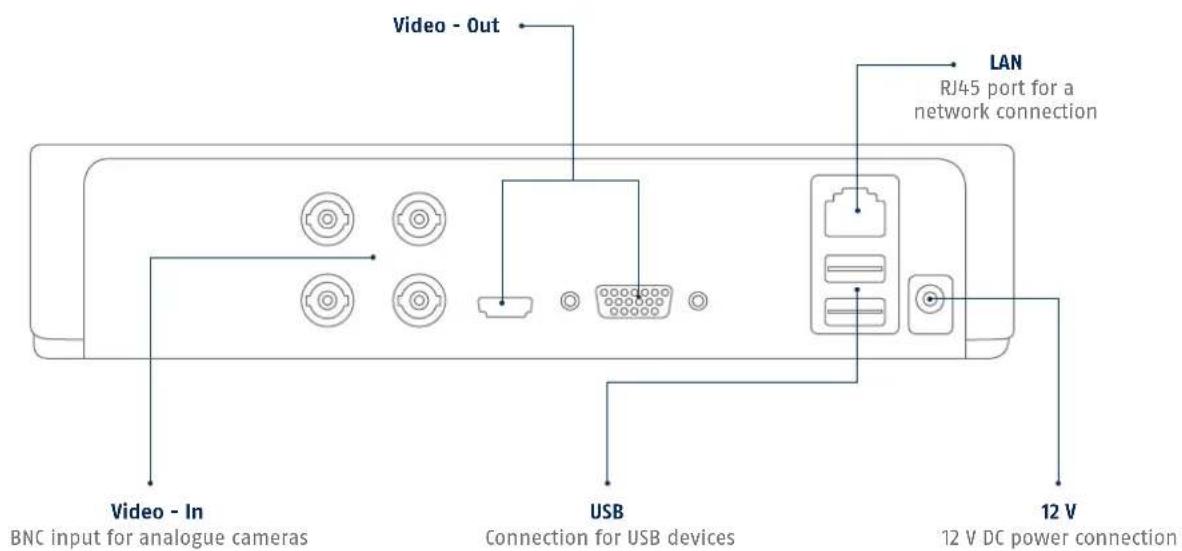

Connections

Hardware Installation

Please ensure that you begin with step ① for the hardware installation of TWR33004. The hardware installation for the video surveillance kits TWR33204 starts at step ⑧, as the hard disk drive is pre-installed for these models.

Tips for camera installation

Plug the recorder into the power supply.

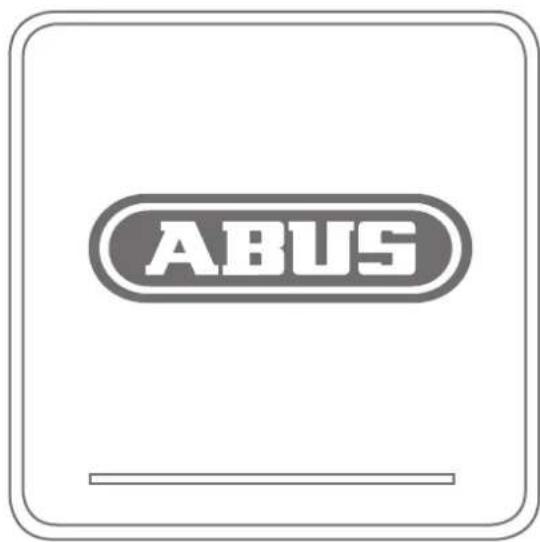

The blue LED bar on top of the recorder indicates that the device is on. You can choose to turn off the light on the LED bar via the menu.

System activation

1

In the fi eld 'New password' enter a password for the admin user. The password must meet the specified minimum requirements. Recommendation: Use a password that is as complex as possible and is classified as 'strong'.

2

Re-enter the password to confirm it. Make a note of the password in the quick start guide as well and keep it in a safe place. The admin password can only be reset by ABUS technical support.

3

The device is activated and all of its functions can now be used.

You will require the GUID fi le in order to reset the password yourself. Export the fi le on to a USB stick and store it securely.

Note: Due to the pre-set default language, the arming process is always in German. Language independently, you can activate the recorder with the ABUS IP-Installer via the network.

Admin password:

Resetting the password

1

You can only reset the admin password yourself using the GUI file.

Please be aware that this file becomes invalid if the password is subsequently changed or the GUI file has already been used. In both cases, a new file will need to be created manually.

2

GUID import, local interface:

Click on the 'Forgotten password' button in the local login dialog. Insert a USB data carrier containing the secure GUI file and select this file. Click on the 'Import' button to reset the password.

3

GUID import, web interface:

Open your recorder's web interface and click on the 'Forgotten password' button. Insert a USB data carrier containing the secure GUI file and select this file. Click on the 'Import' button to reset the password.

Note: Resetting the admin password is a critical and complex process. Please ensure that you have access to this data in the event of an emergency by storing the password securely (leave a note in these instructions or keep the GUI file on an external data carrier). Therefore, please plan for this eventuality at initial start-up and specify where and how this data will be stored and who will have access to it.

Important: If the password needs to be reset, and the password has not been noted down and the GUI file cannot be accessed (or is no longer valid), you will need to contact Technical Support at the ABUS Security-Center. To reset the password with the help of ABUS, you must have a PC on the premises with a network connection to the recorder, and there must be internet access in order to receive the data that will be provided to you by technical support. If these requirements are not met, it will not be possible to reset the password on the recorder.

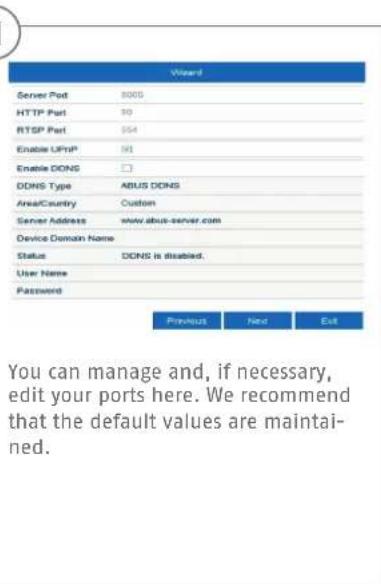

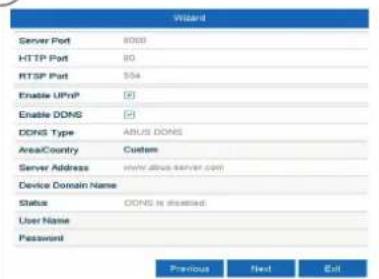

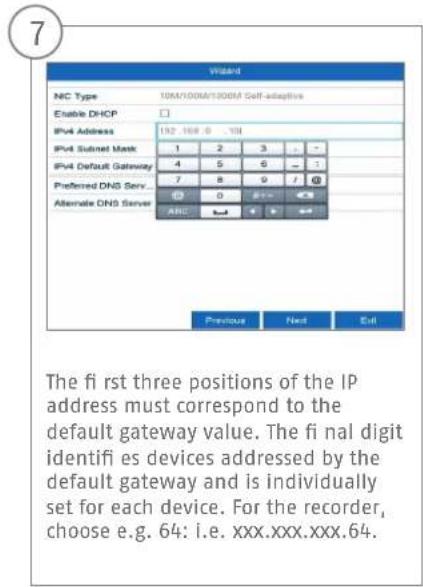

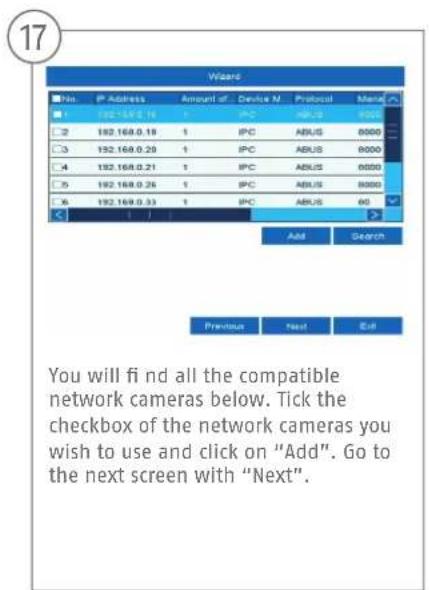

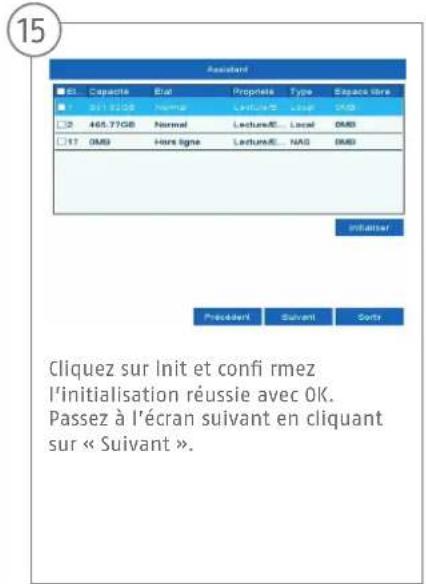

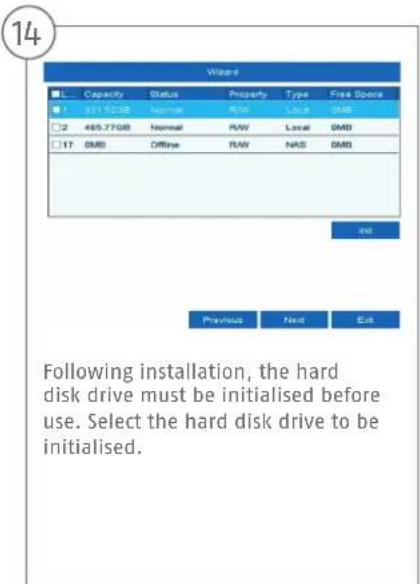

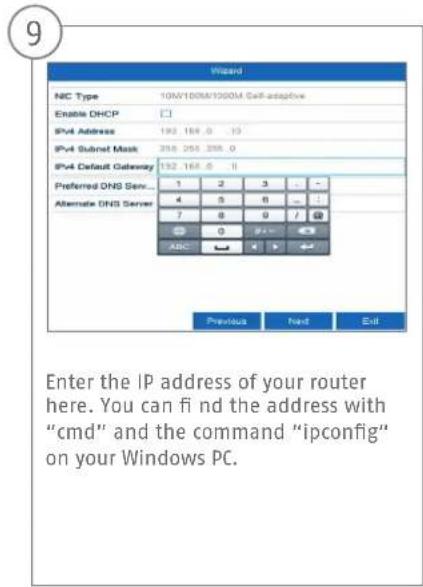

Soft ware Set-up

10

The DNS server "translates" an internet address into an IP address. Enter the value of the default gateway under "Preferred DNS server".

11

12

Chere cliente, cher client,

Security Tech Germany

Security Tech Germany

Security Tech Germany

Soft ware - configureren

1

Security Tech Germany

Hardwareinstallation

1342
Lsn de 4 skruer pa undersiden af optageren.

Security Tech Germany

Systemaktivering

123

Security Tech Germany

13

Security Tech Germany

13

Security Tech Germany

Security Tech Germany

13

Security Tech Germany

Security Tech Germany
