USER MANUAL BG855I BH FITNESS

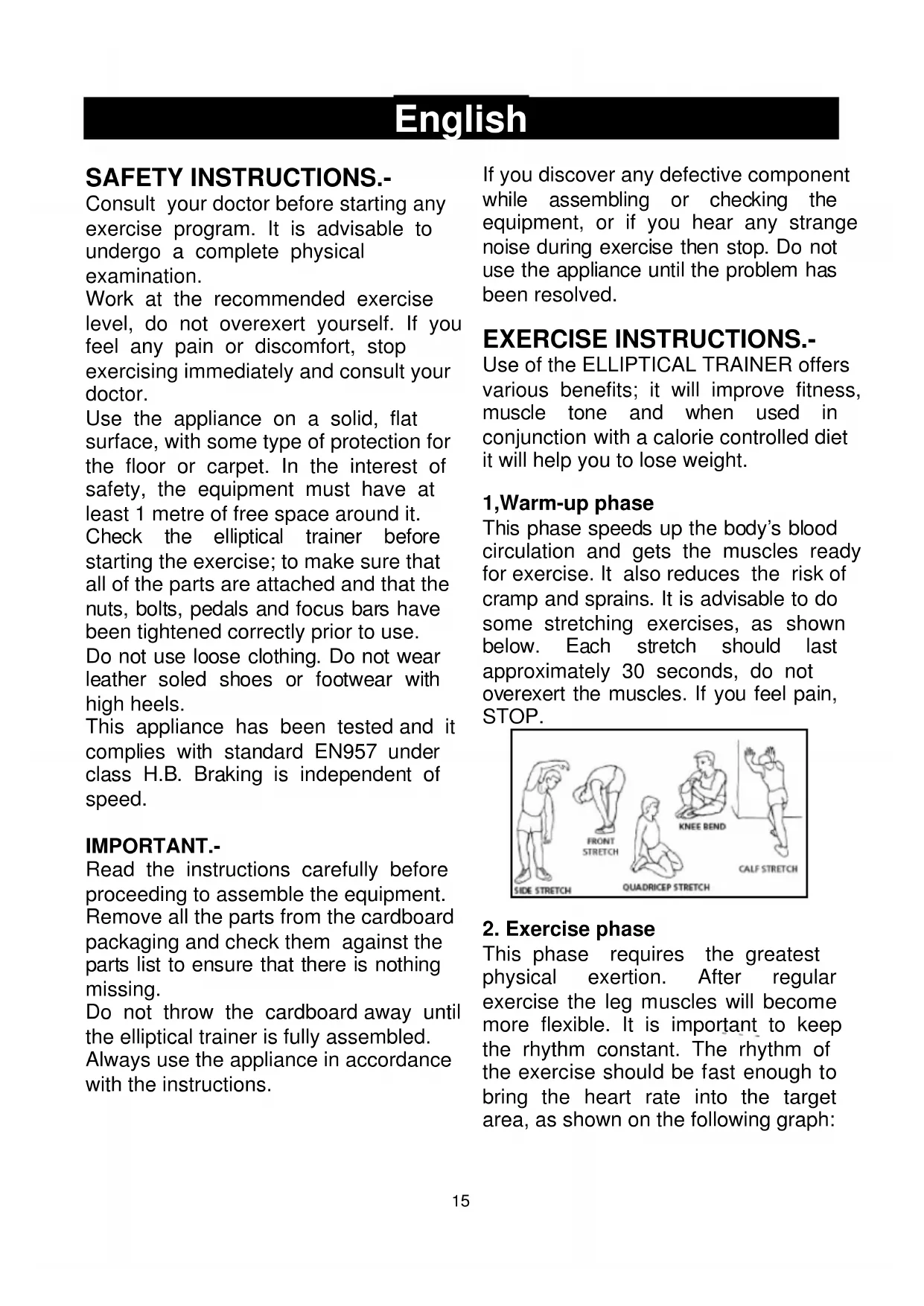

Consult your doctor before starting any exercise program. It is advisable to undergo a complete physical examination.

Work at the recommended exercise level, do not overexert yourself. If you feel any pain or discomfort, stop exercising immediately and consult your doctor.

Use the appliance on a solid, flat surface, with some type of protection for the floor or carpet. In the interest of safety, the equipment must have at least 1 metre of free space around it. Check the elliptical trainer before starting the exercise; to make sure that all of the parts are attached and that the nuts, bolts, pedals and focus bars have been tightened correctly prior to use. Do not use loose clothing. Do not wear leather soled shoes or footwear with high heels.

This appliance has been tested and it complies with standard EN957 under class H.B. Braking is independent of speed.

IMPORTANT.-

Read the instructions carefully before proceeding to assemble the equipment. Remove all the parts from the cardboard packaging and check them against the parts list to ensure that there is nothing missing.

Do not throw the cardboard away until the elliptical trainer is fully assembled. Always use the appliance in accordance with the instructions.

If you discover any defective component while assembling or checking the equipment, or if you hear any strange noise during exercise then stop. Do not use the appliance until the problem has been resolved.

EXERCISE INSTRUCTIONS.-

Use of the ELLIPTICAL TRAINER offers various benefits; it will improve fitness, muscle tone and when used in conjunction with a calorie controlled diet it will help you to lose weight.

1,Warm-up phase

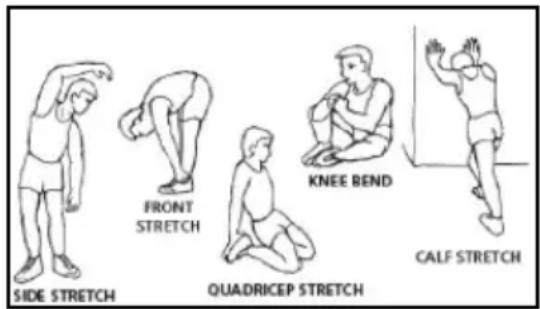

This phase speeds up the body's blood circulation and gets the muscles ready for exercise. It also reduces the risk of cramp and sprains. It is advisable to do some stretching exercises, as shown below. Each stretch should last approximately 30 seconds, do not overexert the muscles. If you feel pain, STOP.

2. Exercise phase

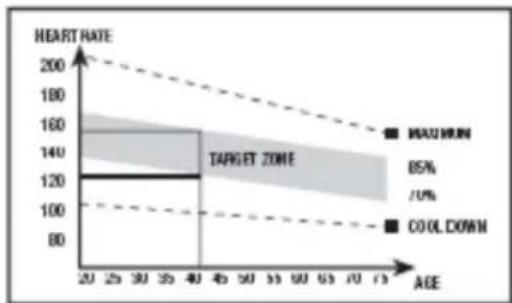

This phase requires the greatest physical exertion. After regular exercise the leg muscles will become more flexible. It is important to keep the rhythm constant. The rhythm of the exercise should be fast enough to bring the heart rate into the target area, as shown on the following graph:

This phase should last at least 12 minutes, although it is advisable for most people to start off with sessions of 10-15 minutes.

3. Cool-down phase

This phase allows the cardiovascular and muscle system to relax. It consists of repeating the warm-up exercises, i.e. reducing the rhythm and continuing for approximately 5 minutes. Repeat the stretching exercises but remember not to overexert the muscles.

Eventually your training sessions will have to become longer and more intensive. It is advisable to exercise at least three days per week, on alternate days.

Muscle toning

You should select a high exertion level in order to tone muscles during exercise. This entails greater stress on the leg muscles, so it may be wise to reduce exercise times. If you also wish to improve your overall fitness then you should change your training program. Do the warm-up and cooldown exercises as normal but when you are reaching the end of the exercise phase, increase the exertion level in order to make your legs work harder. You should reduce speed in order to keep your heart rate within the target area.

Weight loss

In this case the important factor is the effort made. The more intense and the longer the session, the greater the number of calories burned. Even though you are dong the same work as you do to improve fitness, the objective has changed.

GENERAL INSTRUCTIONS.-

Carefully read through the instructions contained in this manual. It provides you with important information about assembly, safety and use of the machine.

1 This unit has been designed for home use. The user weight does not have to exceed 105kg

2 Keep your hands well away from any of the moving parts.

3 Parents and/or those responsible for children should always take their curious nature into account and how this can often lead to hazardous situations and be haviour resulting in accidents. This unit does not have to be used in any case like toy.

4 The owner is responsible for ensuring that anyone who uses the machine is duly informed about the necessary precautions.

5 Your unit can only be used by one person at a time.

6 Use suitable clothing and footwear. Tie up your shoelace correctly.

1. ASSEMBLY INSTRUCTIONS.-

1. Take the unit out of its box and make sure that all of the pieces are there:

ATTENTION: The assistance of a second person is recommended when assembling this machine

Fig.1 Parts list

(4) Left footrest bracket.
(6) Right footrest bracket.
(51) Main body.
(71) Front stabiliser bar with wheels.
(75) Rear stabiliser bar with adjustable feet.
(77) Pedal right foot.
(84) Pedal left foot.
(85) Bottom focus bar, left.
(86) Bottom focus bar, right.
(87) Main post.
(88) Handlebar stem.
(93) Left focus bar or arm.
(96) Right focus bar or arm.
(97) Left footrest.
(102) Right footrest.
(103) Monitor.
(105) Bottom post cover.
(106) Bottle holder.
(107) Handlebar embellishment cover.
(108) Embellishment cover of foot pedal wheel.
(109) Transformer.
(115) (137) Fixing plate of pedal axle.

Fig.2 Screws and fasteners.

(110) Cap.
(111) Post washer M8.
(113) Washer D38.
(114) Post bushing.
(116) Screw M-8x25.
(117) Screw M-8x15.
(118) Spring washer M-8.
(119) Curved washer M-8.
(120) Hex. screw. M-8x15.
(121) Flat washer M-8.
(122) Screw M-8x20.

(123) Screw M-6x31.
(124) Screw M-6x12.
(125) Screw M-5x15.
(126) Auto screw M-5x15.
(127) Screw M-5x10.
Allen spanner n4, n5, n6,
Double ended ring spanner.13-17

2. FITTING THE STABILISER BARS.-

ATTENTION: The assistance of a second person is required for this stage of the assembly.

Bring the front stabiliser bar with wheels (71) to the main body (51) positioning the wheels at the front of the unit, Fig.3, Insert the screws (116), and tighten securely.

Carry out the same operation to attach the rear stabiliser bar.

Take the rear stabiliser with adjustable feet (75), and line up the dots, Fig.3. Insert the screws (128) with the washers (121) and tighten with the washer (111) and the nuts (129) and tighten securely. Place the caps (130).

IMPORTANT: It is advisable to retighten these screws after one month of using the machine.

3. FITTING THE MAIN POST.-

Take the main post (87) and insert the bottom post cover (105). Bring the main post (87) up to boss on the main body (51), Fig.4, connect the terminals (5) and (1), Fig.4.

Slip the main post (87) over the boss on the main body (51), Fig.4, making sure not to snag any of the cables.

Refit the screws (117), the washers (119) and the spring washers (118), Fig.4, and tighten securely.

Lower the bottom trim section (105) for the main post (87) down over the boss section of the main body (51).

4. FITTING THE FOOT BARS.-

Then fit take the left foot (77) (marked with the letter "L") and insert the end bush onto the drive spindle (E) on the main body (51) Fig.4 with washers (112) and (113).

Insert screw (120), as shown in Fig.4, and with the washers (118), (111) and (112) tighten securely. Place the cap (110).

Take the right foot bar (84), (marked with the letter "R") and go through the same assembly procedure as with the left Fig.4.

Next place the foot wheel embellishment covers (108), screw them on with the screws (127) Fig.4.

5. FOOTREST ASSEMBLY.-

Pick up the left footrest (102) marked with the letter (L), and insert the left foot bracket in the foot strap (4) Fig.5. Screw it with bolts (122). Next put the rubber (3) and fit with the screws (126). Perform the same assemble with the right footrest (97) marked with the letter (R) in the foot strap (6) Fig.5.

Pick up the left footrest (102) marked with the letter (L), and insert the axle in the foot strap (77) Fig.6.

Next, get the fottrest support plate (115) and screw it through the center hole with the screws (117), the spring washer (118) and the flat washer (121), next srew the holes at the endges of the plate with the screws (117) the spring washers (118) and the flat washers (121).

Perform the same assemble with the right footrest (97) marked with the letter (R) in the foot strap (84) Fig.6.

ATTENTION: It is advisable to retighten these screws after one month of using the machine.

6. FITTING THE FOCUS BARS.-

Insert the left focus bar (85) (marked with the letter "L") onto the focus bar spindle Fig.7,with the bushing (114) and the washer (113). fit the bolts (120) at the end of the axle with spring washer (118) and flat washers (111), (112) with the help of the box spanners tighten securely.

Take the right focus bar (86), (marked with the letter "R") and go through the same assembly procedure as with the left.

Fit the foot strap (77) and position it with the lower focus bar (85) as shown in Fig.8, lining up the holes.

Next, insert the bolt (117) and with spring washer (118) with the flat washer (121) and tighten.

Fit the foot strap (84) and position it with the lower focus bar (102) as shown in Fig.8, lining up the holes.

Next, insert the bolt (117) and with spring washer (118) with the flat washer (121) and tighten.

If you feel the foot strap has looseness, follow these steps:

• Remove the bolt.
• Add one or more washers.
• Tighten again bolt.

8. FITTING THE UPPER FOCUS BARS.-

Once you have assembled the top focus bars, take the lower focus bar (93) (marked with the letter "L") and insert it onto the boss for the top bar (85), Fig.11, lining up the holes for the screws.

Refit the screws (3124with the end caps (123) Fig.11, and tighten securely.

Go through the same procedure for the lower right focus bar (96) (marked with the letter "R").

9. FITTING THE HANDLEBAR.-

Bring the handlebar (88) up to the handlebar stem (87), Fig.9, insert the hand-grip cable (5) in through the slot as shown in Fig.9, and pull it out through the top of the handlebar stem. Refit the screws (122), Fig.9, and tighten securely, then fit the bracket cover (107).

10. BOTTLE HOLDER ASSEMBLY.-

Place the bottle holder (106) in the tube (87), next place the botel holder support (107) and screw with screws (125) Fig.12.

Next, connect terminals (5) (1), sticking out of the handlebar (87), and terminals, sticking out of the monitor (103), Fig.10.

Place the monitor (103) on top of the plate on the main post (87), as shown in

Fig.10, making sure not to pinch the wires.

Use supplied screws to hold the monitor in place, Fig.10.

LEVELLING.-

Once the unit has been placed into its final position, make sure that it sits flat on the floor and that it is level. This can be achieved by screwing the adjustable feet (69) up or down, as shown in Fig.13.

MOVEMENT & STORAGE.-

The unit is equipped with wheels (68), as shown in Fig.13, which make it easier to move. The two wheels at the front of the unit make it easier to place the unit in to any chosen position by lifting the rear slightly

Store your unit in a dry place, preferably not subject to changes in temperature.

MAINS CONNECTION.-

Insert the jack (m) for the transformer into the connection hole on the main body (k) (bottom, rear of the machine) and then plug the transformer (109) into a 230 V mains supply, Fig.14.

Do not hesitate to get touch with the Technical Assistance Service if you have any queries by phoning customer services (see last page in manual)

BH RESERVES THE RIGHT TO MODIFY THE SPECIFICATIONS OF ITS PRODUCTS WITHOUT PRIOR NOTICE.
