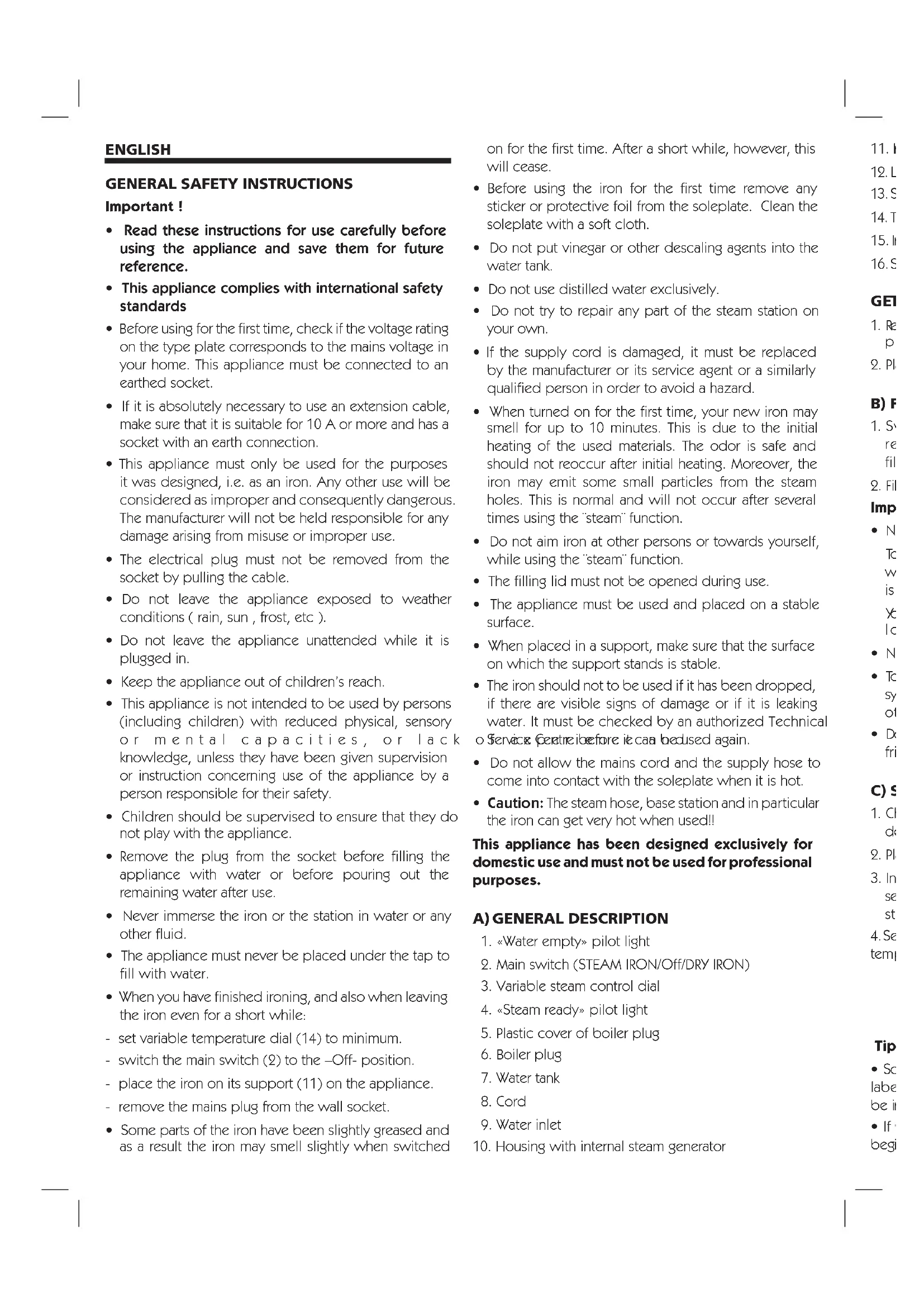

• Read these instructions for use carefully before using the appliance and save them for future reference.

• This appliance complies with international safety standards

• Before using for the first time, check if the voltage rating on the type plate corresponds to the mains voltage in your home. This appliance must be connected to an earthed socket.

• If it is absolutely necessary to use an extension cable, make sure that it is suitable for 10 A or more and has a socket with an earth connection.

• This appliance must only be used for the purposes it was designed, i.e. as an iron. Any other use will be considered as improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.

• The electrical plug must not be removed from the socket by pulling the cable.

• Do not leave the appliance exposed to weather conditions ( rain, sun , frost, etc ).

• Do not leave the appliance unattended while it is plugged in.

• Keep the appliance out of children’s reach.

• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.

• Never immerse the iron or the station in water or any other fluid.

• The appliance must never be placed under the tap to fill with water.

• When you have finished ironing, and also when leaving the iron even for a short while: - set variable temperature dial (14) to minimum. - switch the main switch (2) to the –Off- position. - place the iron on its support (11) on the appliance. - remove the mains plug from the wall socket.

• Some parts of the iron have been slightly greased and as a result the iron may smell slightly when switched on for the first time. After a short while, however, this will cease.

• Before using the iron for the first time remove any sticker or protective foil from the soleplate. Clean the soleplate with a soft cloth.

• Do not put vinegar or other descaling agents into the water tank.

• Do not use distilled water exclusively.

• Do not try to repair any part of the steam station on your own.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• When turned on for the first time, your new iron may smell for up to 10 minutes. This is due to the initial heating of the used materials. The odor is safe and should not reoccur after initial heating. Moreover, the iron may emit some small particles from the steam holes. This is normal and will not occur after several times using the ¨steam¨ function.

• Do not aim iron at other persons or towards yourself, while using the ¨steam¨ function.

• The filling lid must not be opened during use.

• The appliance must be used and placed on a stable surface.

• When placed in a support, make sure that the surface on which the support stands is stable.

• The iron should not to be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.

• Do not allow the mains cord and the supply hose to come into contact with the soleplate when it is hot.

• Caution: The steam hose, base station and in particular the iron can get very hot when used!! This appliance has been designed exclusively for domestic use and must not be used for professional purposes.

3. Variable steam control dial

4. «Steam ready» pilot light

5. Plastic cover of boiler plug

10. Housing with internal steam generator

12. Lock button for permanent steam

1. Remove any label or protective covering from the sole

2. Place the appliance on a stable level surface.

B) FILLING WITH WATER.

1. Switch the main switch (2) to the Off position and

remove the mains plug from the wall socket before filling the water tank.

2. Fill the tank with water until the MAX-mark.

• Normal tap water can be used. To prolong the optimum steam function, mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2. You can inquire about the water hardness with your local water supplier.

• Never use distilled water exclusively

• To avoid any damage and or contamination of the system, do not put in any perfume, vinegar, starch or other type of chemical into the water tank.

• Do not use condensation water from tumble dryers, fridges or the like.

C) SETTING THE TEMPERATURE

1. Check the ironing instruction label on the garment to

determine the correct ironing temperature

2. Place the iron on the iron stand (11).

3. Insert the mains plug into the mains supply and then

set the main switch (2) either to the dry iron

steam iron position.

4. Select the right temperature on the iron by rotating the

temperature dial (14)

• Sort your garments out based on their cleaning symbol labels. Always starting ironing with clothes that have to be ironed at the lowest temperatures

• If you are not sure what the garment is made of then begin ironing at a low temperature and decide on the right temperature by ironing a small section not usually seen when worn.

1. Make sure that there is enough water in the

2. Turn the temperature dial (14) to the steam position

between •• and MAX. (If a too low temperature has been selected and the steam function is used water may leak from the soleplate)

3. Place the iron on the iron stand (11).

4. Insert the mains plug into the wall socket.

5. Turn the main switch (2) to steam position

6. The steam function ready light will flash during heating

up taking approximate 3 minutes. (For first time use, the pre-heating time can be 4 minutes.)

7. The «steam ready» pilot light (4) will be continuously on

after the boiler/iron reaches the desired temperature.

8. Set the desired amount of steam with the variable

steam control dial (3).

9. Hold the steam release button (13) for steam

production during ironing in horizontal position or freshen up garments in vertical position. For permanent steam press the lock button (12) and slide it backwards until it locks. To switch Off the permanent steam, slide the lock button forward. Note:

• The «Water empty» pilot light (1) will flash when the water tank is empty or when the water level is too low. Refill the tank if the steam function is needed. (see B) Important

• The steam hose may get hot if you are ironing for a long time.

• While the steam release button is pressed the appliance may produce a pumping sound. This is normal, indicating that water is pumped into the steam boiler inside the housing.

D) VERTICAL STEAM FEATURE

1. Set the temperature dial (14) to the position ••• o r

2. You can steam curtains and hanging garments by

holding the iron in a vertical position and pressing the steam release button.(13)

3. Operate the iron at a distance of 10 to 20 cm.

Caution: The steam is very hot. Never direct the steam towards a person.IRONING WITHOUT STEAM

• Turn the main switch (2) to the position to iron without steam. The boiler will not be activated.

• Ironing without steam is also possible in the position if the steam release button (13) is not pushed. In this case the boiler is activated.

E) FABRIC-PROTECTION SOLEPLATE COVER

The fabric-protection soleplate cover is used for steam- ironing delicate garments at maximum temperature without damaging them. Use of the soleplate cover also does away with the need for a cloth to prevent shine on dark materials. It is advisable to first iron a small section on the inside of the garment to see if it is suitable. To attach the soleplate cover to the iron, place the tip of the iron into the end of the soleplate cover and pull the elastic strap over the lower rear of the iron until it fits tightly. To release the soleplate cover, pull the elastic strap and remove the iron. The fabric-protection soleplate cover may be purchased from the customer service: Material number (customer service): 464849 CLEANING & MAINTENANCE

1. After ironing remove the mains plug from the wall

socket and allow the iron to cool down sufficiently, before cleaning.

2. Wipe the housing, handle and iron body with a damp

3. If the soleplate is soiled with dirt or scale, wipe it with

4. Never use abrasive products or solvents!

5. Do not use a professional steam cleaner to clean

Important ! Always allow the appliance to cool down before cleaning the boiler! To extend the life of your steam station and to avoid the build-up of scale, it is essential that you rinse out the boiler after every 10 uses. This will prolong the life of your appliance. If your water is hard, increase the frequency. Do not use descaling agents for rinsing out the boiler, as they could damage it.

1. Allow the appliance to cool down.

2. Turn the appliance upside down.

3. Remove the plastic cover of the boiler plug (5) using a

screw driver or coin. Then the boiler plug underneath (6). (See picture K).

4. Use a funnel to introduce ¼ l water inside the boiler

5. Shake the appliance lightly to loosen scale deposits

and pour the water into a sink.

STORING THE APPLIANCE

1. Always allow the appliance to cool down before

2. Set the main switch (2) to the Off position and unplug

3. Pour any remaining water out of the water tank.

4. If the appliance is not used for a longer time, empty

also the steam boiler by opening the plug at the bottom (6) of the appliance (See picture F).

pty the TROUBLE SHOOTING Problem Help Drops are coming out of the steam vents when starting or after ironing breaks. This is normal (hose is cold — steam condenses). Hold the iron over a cloth and press the steam control button until the steam production has normalised. Turn the temperature dial (14) to the steam position between •• and MAX. Turn down the steam regulator. No steam at all Switch the main switch (2) to steam position

Press the steam release button (13) Remark: Sometimes hot steam is hardly visible especially when the room temperature is high or the iron temperature is near to max. Only little steam develops Turn the steam control to a higher position (3). After switching on the steam function (2) wait until the «Steam ready» pilot light (4) stops flashing (approx. 3 minutes). Check if the «Water empty» pilot light (1) is on. Refill the appliance with water if necessary. Lime scale particles coming through the steam vents. Flush the boiler with tap water (see section «Cleaning the boiler»). Add distilled water to the tap water (see section «filling with water»). Loss of steam pressure during ironing The steam button (13) has been held down for a long time. Press the steam button at intervals. The results of your ironing will be improved, as the fabric will dry better and will be smoother ADVICE ON DISPOSAL: Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. This product complies with EU Directive 2002/96/ CE. The crossed wheelie bin symbol shown on the appliance indicates that when it comes to dispose of the product it must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalised. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system. Your local town council can provide you with information about how to dispose of obsolete appliances.FRANÇAIS CONSIGNES GÉNÉRALES DE SÉCURITÉ Remarque importante!
