USER MANUAL DCS-424K PIONEER

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

Operating instructions

Mode d'emploi

Bedienungsanleitung

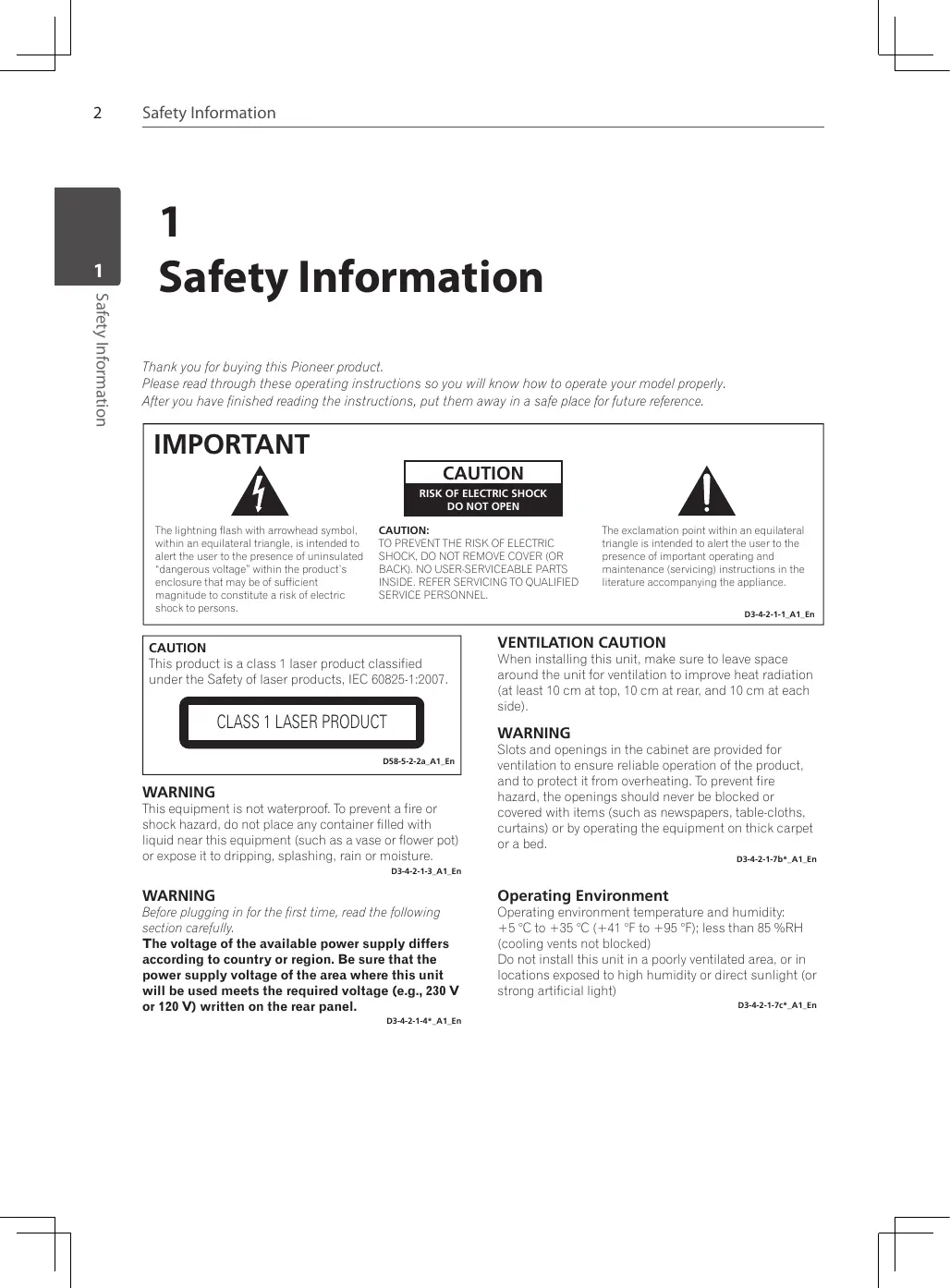

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly.

After you have finished reading the instructions, put them away in a safe place for future reference.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4*A1_EN

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10cm at top, 10cm at rear, and 10cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*A1_EN

Operating Environment

Operating environment temperature and humidity: +5^ to +35^ (+41^ to +95^) ; less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*A1_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

CAUTION

The © STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*A1En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002*A1En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

(Symbol examples) for batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_EN

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. This device is equipped with a portable battery or accumulator.

Safe way to remove the battery or the battery from the equipment:

Remove the old battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursate ment system batteries and accumulators.

The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Copyrights

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Rovi Corporation. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Notes on Copyrights

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programmes, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/or criminal liability.

1

Safety Information

2 CAUTION
4 Copyrights

2

Preparation

8 Unique Features
8 Playable Discs
9 Supplied Accessories
10 Playable files
12 Front panel

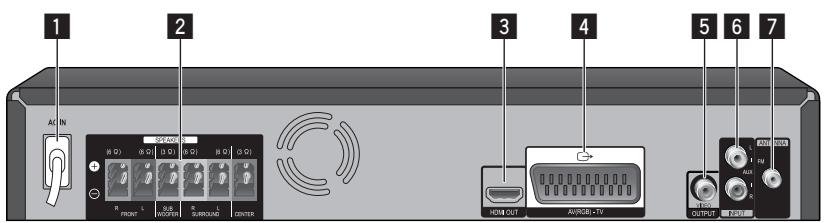

13 Rear panel

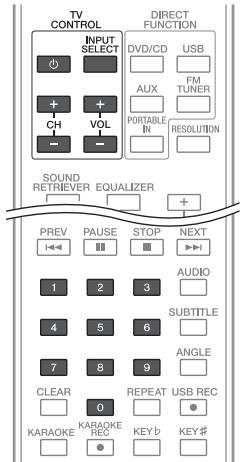

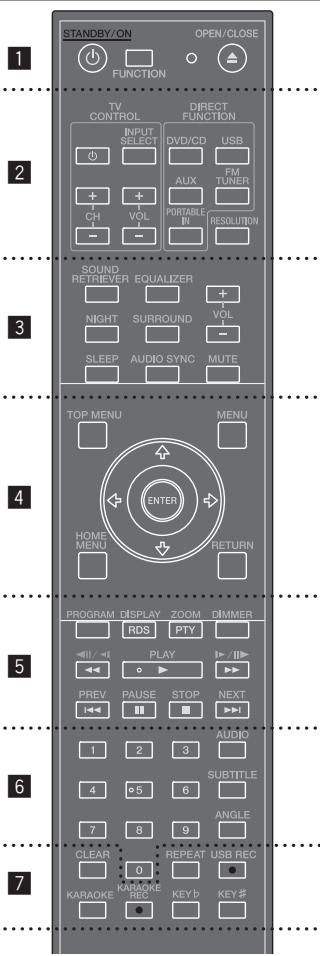

14 Remote Control

3

Installation

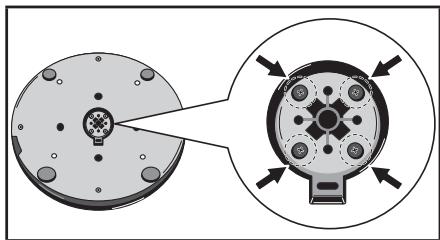

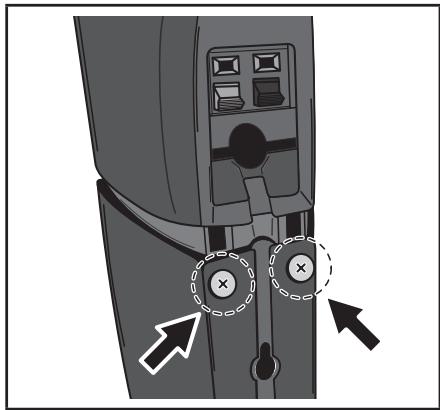

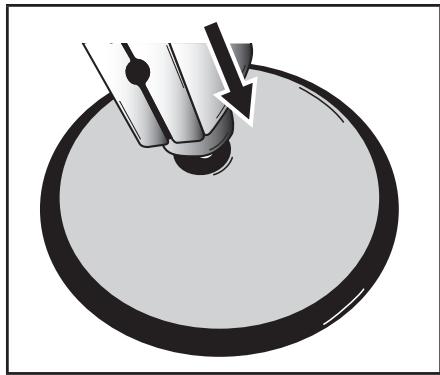

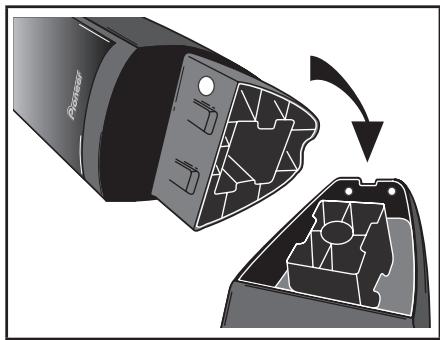

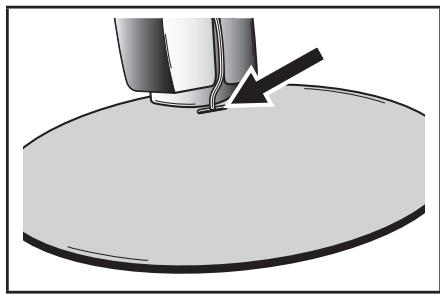

16 Assemble the speakers

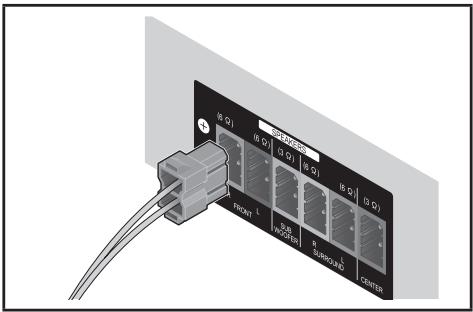

16 Speaker Setup

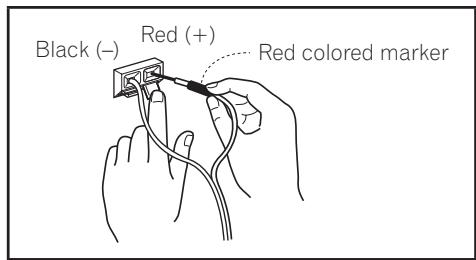

17 Connecting the cord

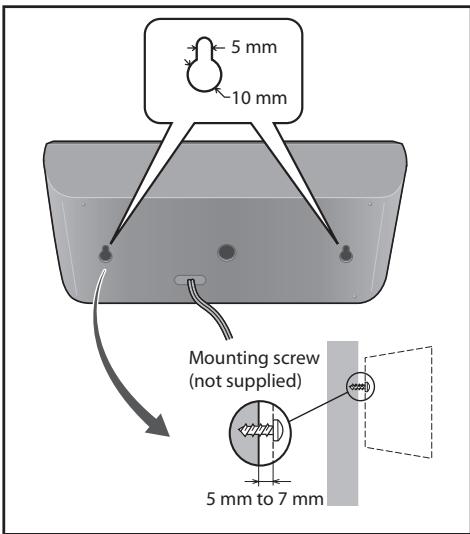

18 Wall mounting
18 Additional notes on speaker

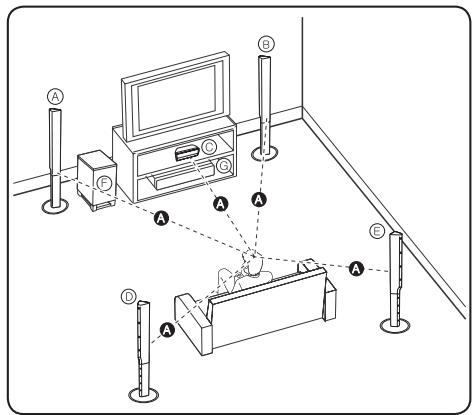

19 Positioning the System
20 Connections to Your TV

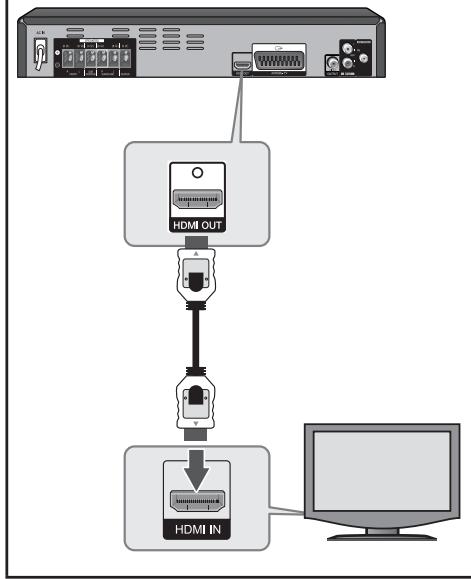

20 HDMI OUT Connection

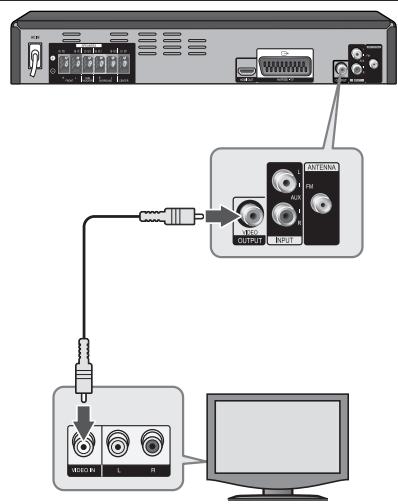

21 Video Connection

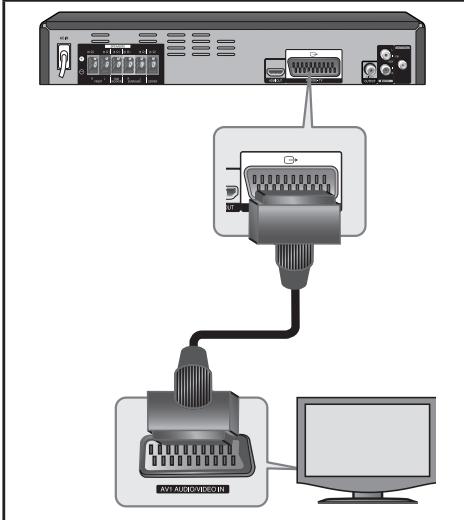

22 Scart Connection
23 Optional Equipment Connection

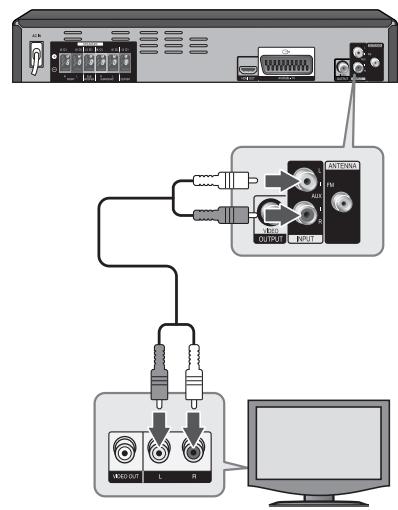

23 AUX IN Connection

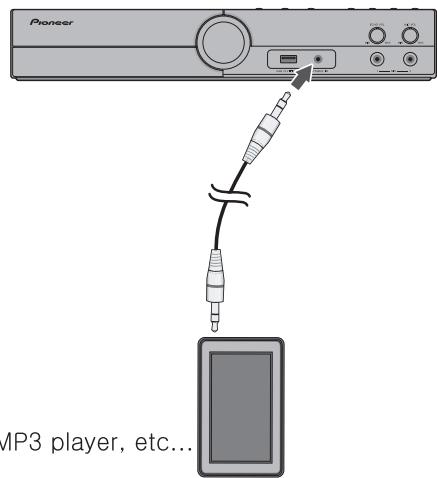

23 PORTABLE IN Connection

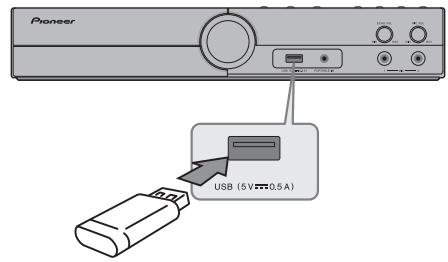

24 USB Connection

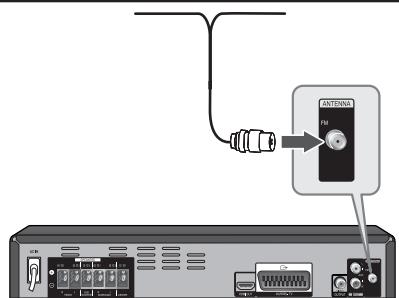

24 Antenna Connection

25

Adjust the Initial Settings

25

To display and exit the Initial Settings Menu

25

Initial Settings Menu

25

Digital Audio Out settings

25

Video Output settings

26

Language settings

26

Display settings

26

Options settings

4

Operation

27

Basic Operations

28

Other Operations

28

Displaying Disc Information on-screen

28

To display the DVD Menu

28

To display the DVD Title

28

Selecting a subtitle language

28

Switches Audio

28

Switches Angle

28

1.4 times speed playback

29

Last Scene Memory

29

A-B Repeat

29

Creating a program list

30

Other functions available from the program menu

30

Searching a disc

30

Viewing photo files as a slide show

30

Listening to music during slide show

31

Radio Operations

31

Listening to the Radio

31

Presetting the Radio stations

31 Deleting all the saved stations
31 Improving poor FM reception
32 Seeing information about a radio station
33 Audio Settings
33 To display Audio Settings Menu
33 Audio Settings parameters
34 Video Adjust
34 To display Video Adjust Menu
34 Video Adjust parameters
35 Advanced Operations
35 Sleep Timer Setting
35 Dimmer
35 Screen Saver
35 Turn off the sound temporarily
35 Audio Sync
35 Listening to music from your
portable player or external device
36 Setting the TV system
36 Copying files on to USB devices
37 Recording audio CD tracks on to
USB devices
38 Karaoke
38 Using karaoke
39 Extra functions for karaoke

5

Maintenance

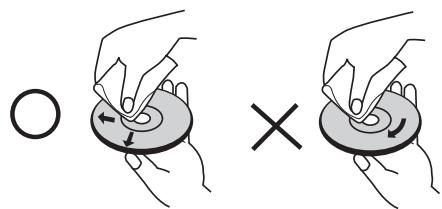

40 Notes on Discs
40 Handling the Unit

6

Troubleshooting

41 Troubleshooting

7

Appendix

42 Operating the TV with the player's remote control
44 Language Codes
45 Area Codes
46 Trademarks and Licences
47 Specifications

2 Preparation

Unique Features

Portable In

Listens to music from your portable device. (MP3, Notebook, etc)

USB Direct Recording

Records music from CD to your USB device.

Playable Discs

DVD-Video	DVD-Video discs DVD-R/-RW/-R DL and DVD+R/+RW/+R DL discs recorded in the Video mode
DVD VR	DVD-R/-RW/-R DL discs recorded in the VR mode
Video CD	Video CDs (including Super VCDs)
CD(R/RW)	Audio CDs CD-R/-RW-ROM discs containing music recorded in the CD-DA format
JPEG	JPEG files recorded on DVD-R/-RW/-R DL discs, CD-R/-RW-ROM discs
DivX	DivX video files recorded on DVD-R/-RW/-R DL discs, CD-R/-RW-ROM discs
WMA	WMA files recorded on DVD-R/-RW/-R DL discs, CD-R/-RW-ROM discs
MP3	MP3 files recorded on DVD-R/-RW/-R DL discs, CD-R/-RW-ROM discs

• Only the discs that have been finalized can be played.
• This unit is not compatible to CPRM.

Discs that cannot be played

• Blu-ray discs
  HD DVDs
  AVCHD
  AVCREC
  DVD-Audio discs
  DVD-RAM discs
  SACDs
• CD-G
• Disks recorded with packet writing
• Programs that can be recorded only once and that are (already) recorded on a DVD-R/-RW/-R DL

Supplied Accessories

Please check and identify the supplied accessories.

VIDEO cable (1)

Remote Control (1)

AAA/R03 dry cell batteries (2)

FM Antenna (1)

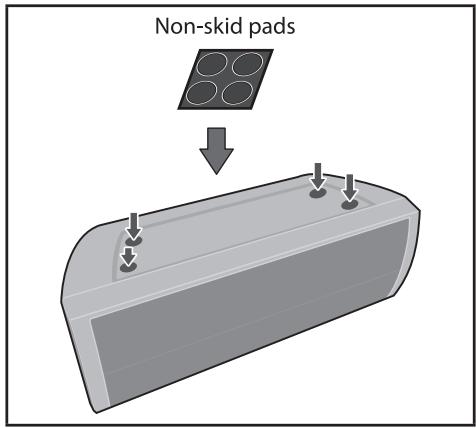

Non-skid pads (1)

Power cord

Colour-coded Speaker cables (4)

Screws M4 x 16 (16)
(They are used to fix to the base and lower cabinet.)

Screws M4 x 12 (8) (They are used to fix the upper and lower cabinet.)

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

Warranty card (1)
- Operating instructions (This document)

Symbol Used in this Manual

NOTE

Indicates special notes and operating features.

CAUTION

Indicate cautions for preventing possible damages from abuse.

All discs and file listed below

MP3 files

DVD and finalized

DVD + R / + RW / - R / - RW

Video CD and Super VCD

WMA files

DivX files

Audio CDs

JPEG files

ALL

MP3

DVD

VCD

WMA

DivX

ACD

JPEG

Regional Codes

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or "All".

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit's regional code; or the disc cannot play.
• If you try to play a DVD with a different regional code from your unit, the message "Incompatible disc region number Can't play disc" appears on the TV screen.

Playable files

• Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.
• Files protected by DRM (Digital Rights Management) cannot be played.
• Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play.

Supported video file formats DivX

Extension:.divx .avi Resolution: up to 720 x 480

• DivX is a media technology created by DivX, Inc. DivX media files contain image data.
• DivX files may also include such advanced playback functions as menu screens and selection of multiple subtitle languages/audio tracks.
• Files not containing DivX video signals cannot be played, even if they have the extension“.avi”.

Displaying external subtitle files

• The font sets listed below are available for external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language on page 26 to match the subtitle file.
• This player supports the following language groups:

Group 1	Afrikaans (af), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romantic (rm), Scottish (gd), Spanish (es), Swedish (sv)
Group 2	Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl)
Group 3	Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk)
Group 4	Hebrew (iw), Yiddish (ji)
Group 5	Turkish (tr)

• Some external subtitle files may be displayed incorrectly or not at all.
• For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi
• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.
• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10.

Supported image file formats JPEG

Extension:.jpg .jpeg

Resolution: Up to 3 072 x 2 048 pixels
- This player supports baseline JPEG.
- This player supports Exif Ver.2.2.

Supported audio file formats

• This player does not support VBR (Variable Bit Rate) and lossless encoding.

Windows Media™ Audio (WMA)

Extension: .wma

• Sampling frequencies: 32kHz , 44.1kHz and 48kHz
• Bit rate: Up to 192 kbps
• This player supports files encoded using Windows Media Player Ver. 7/7.1, Windows Media Player for Windows XP and Windows Media Player 9 Series.
• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

MPEG-1 Audio Layer 3 (MP3)

Extension:.mp3

• Sampling frequencies: 32kHz , 44.1kHz and 48kHz
• Bit-rates: 128 kbps or higher recommended
• This Player supports ID3 tag Ver1.1.

Compatible USB Devices

• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that support USB 2.0 or USB 1.1.
• The USB function of this unit does not support some USB devices.

USB device requirement

Devices which require additional program installation connected to a computer, are not supported.
- Do not extract the USB device while in operation.
- For a large capacity USB, it may take longer than a few minute to be searched.
- To prevent data loss, back up all data.
If you use a USB extension cable or USB hub, the USB device is not recognized.
- Using NTFS file system is not supported. (Only FAT(16/32) file system is supported.)
This unit is not supported when the total number of files is 600 or more.
- External HDD, Card readers, Locked devices, or hard type USB devices are not guaranteed to support.
- USB port of the unit cannot be connected to PC. The unit can not be used as a storage device.
- Some copyright-protected files cannot be played.
- The maximum displayable number of characters for the folder and file names on the Disc Navigator is 14.
- The order of the folder and file names displayed on the Disc Navigator is dependant on the time and date when the folders or files were created on the USB device.

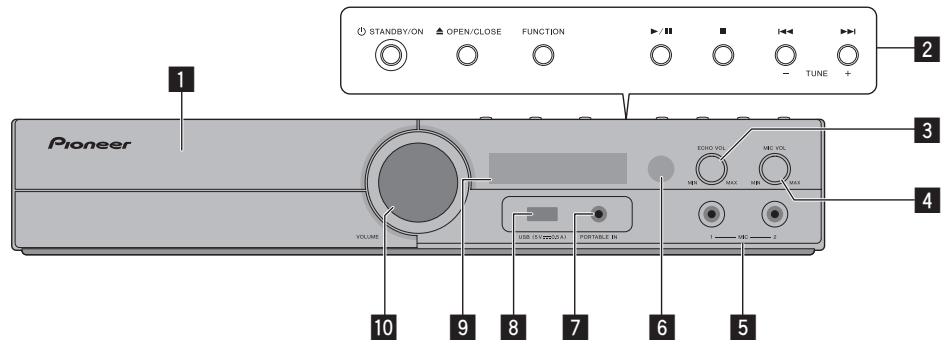

Front panel

1 Disc Tray
2 Operation buttons

STANDBY/ON

Switches the unit ON or OFF.

OPEN/CLOSE

FUNCTION

Changes the input source or function.

/II (PLAY/PAUSE)
STOP

(SKIP)

-TUNE ^+ (Radio tuning)

3 ECHO VOL
4 MIC VOL
MIC1,2
Remote Sensor
7 PORTABLE IN
USB port
9 Display window
10 Volume control

Rear panel

AC IN Plug into the power source.
2 SPEAKERS connectors
3 HDMI OUT (type A) Connects to TV with HDMI inputs.

4 Scart connector
VIDEO OUTPUT
6 AUX (L/R) INPUT
7 FM ANTENNA connector

Remote Control

Remote control

STANDBY/ON (念) : Switches the unit ON or OFF.

FUNCTION : Selects the function and input source. (DVD/CD, USB, FM TUNER, AUX, PORTABLE IN)

OPEN/CLOSE () : Opens and closes the disc tray.

TV CONTROL buttons: Controls the TV.

Controlling the TV

You can control the sound level, input source, and power switching of Pioneer TVs as well (See page 42 for details).

DIRECT FUNCTION buttons : Changes input source or function.

RESOLUTION: Sets the output resolution for HDMI.

3

SOUND RETRIEVER: Switches Sound Retriever setting.

NIGHT:Switches the night mode ON or OFF.

SLEEP : Sets the system to turn off automatically at a specified time.

EQUALIZER: Chooses sound impressions.

SURROUND: Switches between 5 Speaker Mode and Dolby Pro Logic II.

AUDIO SYNC: Switches AUDIO SYNC.

VOL (Volume) (+ / - ) : Adjusts speaker volume.

MUTE: Mutes the sound.

4

TOP MENU : If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may not appear.

MENU:Accesses the menu on a DVD disc.

/ / / (up/down/left/right): Used to navigate on-screen displays.

ENTER: Acknowledges menu selection.

HOME MENU: Press to display/hide HOME MENU.

RETURN: Moves backwards in the menu or exits the Initial Settings menu.

PROGRAM: Registers FM radio stations.

DISPLAY (RDS): Accesses On-Screen Display. When this button is pressed while the FM tuner is selected, the Display window on the unit will switch as follows: Frequency PTY RT PS Frequency

ZOOM (PTY) : Will zoom in or zoom out. When this button is pressed while the FM tuner is selected, the PTY value will switch.

DIMMER: Adjusts the display brightness.

/ (), / () : Searches backward or forward.

PLAY () :Starts playback.

PREV(I<),NEXT(>I):Goes to next or previous title/chapter/track/file.

PAUSE (II): Pauses playback.

STOP () : Stops playback or recording.

0 to 9 numerical buttons : Selects numbered options in a menu.

AUDIO: For discs or files including multiple audio streams/channels, the audio stream/ channel can be changed during playback.

SUBTITLE: On DVD-Video or DivX discs containing subtitles in multiple languages, the subtitle can be changed during playback.

ANGLE: On DVD-Video discs featuring multiple angle, the angle can be changed during playback.

CLEAR: Removes a track number on the Program List.

REPEAT: Select Title Repeat, Chapter Repeat or Track Repeat.

USBREC () :USBDirectRecording.

KARAOKE: Press to display the Karaoke Settings screen.

KARAOKE REC () :Starts recording KARAOKE.

KEY b : Lowers the key for KARAOKE by a semitone.

KEY #: Raises the key for KARAOKE by a semitone.

Put the battery into the remote control

• Make sure for the + (plus) and - (minus) on the battery to be matched on the remote control.
• The batteries included with the unit are to check initial operations; they may not last over a long period. We recommend using alkaline batteries that have a longer life.

WARNING

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

3

Installation

Assemble the speakers

Speaker Setup

1. Connect the wires to the player.

Insert the cables connected to the player to the same colored connector on the speaker.

CAUTION

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
• Do not connect any speakers other than those supplied to this system.

• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

• Attach the non-skid pads to the base of each speaker.

1. Mount the front/surround speaker.

① Pass the speaker cable through the cable hole on the side of the base.

② Insert the lower cabinet to the base so that the cable hole is positioned at the backside.

③ Fix the base to the lower cabinet from the underside, using the four screws (M4 x 16).

④ Insert the upper cabinet to the lower cabinet.

Fix the upper cabinet and the lower cabinet from the backside of the speaker using the two screws (M4 x 12).

CAUTION

• Be careful not to tighten screws excessively. If excessive force is used to tighten screws, the threads of screw and/or nut may be damaged. Use a middle-sized manual screwdriver during assembly. Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws and nuts. Confirm that no foreign matter is stuck to the base or the lower cabinet during assembly. If the unit is assembled with foreign matter stuck between the base and lower cabinet, the unit may not be assembled securely, resulting in tipping or falling.
• Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.

Connecting the cord

1. Attach one end of the supplied speaker cord to the rear of the each speaker.

Connect the wire with the colored marker to the red (+) terminal; the plain wire to the black (-) terminal. Press down the spring-loaded tab and insert the wire, as shown below. Release the tab to secure the wire.

Wall mounting

The center speaker have a mounting hole which can be used to mount the speaker on the wall.

Before mounting

Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.

Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

CAUTION

• If you are unsure of the qualities and strength of the wall, consult a professional for advice.
• Pioneer is not responsible for any accidents or damage that result from improper installation.

Additional notes on speaker

Install the main front left and right speakers at an equal distance from the TV.

Precautions:

The center speaker supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.

The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.

Do not attach the subwoofer to a wall or ceiling. They may fall off and cause injury.

Positioning the System

The following illustration shows an example of positioning the system.

Note that the illustrations in these instructions differ from the actual unit for explanation purposes.

For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (A).

A Front left speaker (L)/ B Front right speaker (R):
Place the front speakers to the sides of the monitor or screen and as flush with the screen surface as possible.
Center speaker: Place the center speaker below or in front of the monitor or screen.
Surround left speaker (L)/ Surround right speaker (R):

Place these speakers behind your listening position, facing slightly inwards.

Subwoofer: The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reflections.

Unit

CAUTION

• Be careful to make sure children do not put their hands or any objects into the subwoofer duct.
  subwoofer duct: A hole for plentiful bass sound on subwoofer cabinet (enclosure).
• Place the centre speaker at a safe distance from the child's reach.
  Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.
• The speakers contain magnet parts, so color irregularity may occur on the TV screen (CRT) or PC monitor screen. Please use the speakers away from the TV screen (CRT) or PC monitor screen.

Connections to Your TV

Make one of the following connections, depending on the capabilities of your existing equipment.

NOTE

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.
• Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.

CAUTION

• Make sure the unit is connected directly to the TV. Tune the TV to the correct video input channel.
• Do not connect your unit via your VCR. The image could be distorted by the copy protection system.

HDMI OUT Connection

If you have a HDMI TV or monitor, you can connect it to this unit using a HDMI cable. Connect the HDMI OUT jack on the unit to the HDMI IN jack on a HDMI compatible TV or monitor.

Set the TV's source to HDMI (refer to TV's Owner's manual).

HDMI OUT Connection

TIP

You can fully enjoy digital audio and video signals together with this HDMI connection.

NOTE

• If a connected HDMI device does not accept the audio output of the unit, the HDMI device's audio sound may be distorted or may not output.

• When you connect a HDMI or DVI compatible device make sure of the following:

• Try switching off the HDMI/DVI device and this unit. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this unit.

• The connected device's video input is set correctly for this unit.

• The connected device is compatible with 720x480i (or 576i), 720x480p (or 576p), 1280x720p, 1920x1080i or 1920x1080p video input.

• Not all HDCP-compatible HDMI or DVI devices will work with this unit.

• The picture will not be displayed properly with non-HDCP device.
• This unit does not playback and TV screen is changed to black or green screen or the snow noise may occur on the screen.

CAUTION

• Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the unit and then turn it on again.
• When the HDMI connection with HDCP is not verified, TV screen is changed to black or green screen or the snow noise may occur on the screen. In this case, check the HDMI connection, or disconnect the HDMI cable.
• If there is noise or lines on the screen, please check the HDMI cable (length is generally limited to 4.5m ) and use a High Speed HDMI cable (Version 1.3).

Video Connection

Connect the VIDEO OUTPUT jack on the unit to the video in jack on the TV using a video cable.

You can hear the sound through the system's speakers.

Video Connection

Scart Connection

Connect the Scart jack on the unit to the Scart in jack on the TV using a Scart cable.

You can hear the sound through the system's speakers.

Scart Connection

Optional Equipment Connection

AUX IN Connection

Connect an Output of auxiliary device to the AUX Input (L/R) Connector. If your TV has only one output for audio (mono), connect it to the left (white) audio jack on the unit.

AUX IN Connection

PORTABLE IN Connection

Connect an OUTPUT of portable device (MP3 or PMP etc) to the PORTABLE IN connector.

PORTABLE IN Connection

USB Connection

Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.

USB Connection

Removing the USB Device from the unit

1. Choose a different function mode or press STOP (■) twice in a row.
   2.Remove the USB device from the unit.

Antenna Connection

Connect the supplied FM antenna for listening to the radio.

Connect the FM Wire antenna to the FM antenna connector.

Antenna Connection

NOTE

Be sure to fully extend the FM wire antenna. After connecting the FM wire antenna, keep it as horizontal as possible.

Adjust the Initial Settings

By using the Initial Settings menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Initial Settings menu, among other things. For details on each Initial Settings menu item, see pages 25 to 26.

To display and exit the Initial Settings Menu

1. Press DVD/CD or press FUNCTION several times to select "DVD/CD" functions.
2. Press HOME MENU to display "HOME MENU".
3. Select "Initial Settings".

About help menu for Setup

Buttons	Operation
+/↓	Moving to another menu.
←	Moving to previous level.
→	Moving to next level or selecting menu.
HOME MENU or RETURN	To exit Initial Settings.
ENTER	To confirm menu.

Initial Settings Menu

The factory default settings are indicated in italic.

Digital Audio Out settings

HDMI Out

Select the audio signals to be output from the HDMI OUT terminal (LPCM (2CH)/Auto/Off) according to the connected HDMI-compatible device.

Video Output settings

TV Screen

Change the picture's display format (4:3 (Letter Box)/4:3 (Pan & Scan)/ 16:9 (Wide)/16:9 (Compressed)), according to the connected TV.

HDMI Resolution

Change the resolution of the video signals output from the HDMI OUT terminals (720x480i/720x576i/720x480p/720x576p/ 1280x720p/1920x1080i/1920x1080p).

HDMI Color

Change the video signals output from the HDMI OUT terminal (Full range RGB/RGB/Component).

Deep Color

Select Auto when the connected TV or monitor is compatible with Deep Color (Auto/Off).

Language settings

Audio Language

Select the language you prefer for the audio track when listening to the sound of DVD-Video discs (English/available languages/Other Language).

Subtitle Language

Select the language you prefer for the subtitles displayed for DVD-Video discs (English/available languages/Other Language).

DVD Menu Lang.

Select the language you prefer for the menu displays of DVD-Video discs (w/Subtitle Lang./available languages/Other Language).

Subtitle Display

Select whether to display subtitles (On) or not (Off).

Display settings

OSD Language

Select the language you prefer for the operation messages (Play, Stop, etc.) displayed on the TV screen (English/ available languages).

Angle Indicator

Select whether to display the angle mark on the TV screen (On) or not (Off).

On Screen Display

Select whether to display operation messages (Play, Stop, etc.) on the TV screen (On) or not (Off).

Options settings

Parental Lock

Restrict DVD-Video viewing (Password/ Level Change/Country Code).

DivX VOD

Display the registration code required for playing DivX VOD files (Activate/Deactivate).

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

Auto Power Off

Select whether to turn the power off automatically (On) or not (Off). When set to On, the power automatically turns off if no operation is performed for 30 minutes or more.

Load Default

Restore the settings to the factory Default.

4

Operation

Basic Operations

1. Insert the disc by Pressing OPEN/CLOSE or connect the USB device to the USB port.
2. Select the DVD/CD or USB function by pressing FUNCTION, DVD/CD or the USB button.
3. Select a file (or track/title) you want to play by pressing / / / .

NOTE

If "Can't play this format" is displayed, select an appropriate file.

To	Do this
Stop	Press■
Playback	Press▶
Pause	Press■
Frame-by-Frame playback	Press▶during PAUSE to move forward to the next frame or▶to return to the previous frame.▶to move forward can be used for DVD, VCD and DivX, but▶to return to the previous frame can only be used for DVD.

To	Do this
Skipping to the next/ previous chapter/ track/file	During playback, press ↓ or > to go to the next chapter/track or to return to the beginning of the current chapter/track. Press ↓ twice briefly to step back to the previous chapter/track.
Locating a point quickly by playing a file in fast forward or fast reverse	During playback, press ↓ or > repeatedly to select the required scan speed. To return to normal speed, press PLAY.
Playing repeatedly or randomly	Press HOME MENU and select play mode while playing, or press REPEAT while playing, and the current title, chapter or track will be played back repeatedly or randomly. - Repeat play mode can be used for DVD, CD, VCD, DivX. - Random play mode can be used for DVD, CD, VCD.
Slowing down the playing speed	When either ↓ or > is pressed and held down during PAUSE, it will become slow-motion playback or reverse slowmotion playback. When either ↓ or > is pressed during slowmotion playback or reverse slow-motion playback, the playing speed can be changed. Slow-motion playback feature can be used for DVD, VCD and DivX. Reverse slow-motion playback feature can only be used for DVD.

Other Operations

Displaying Disc Information

on-screen DVD ACD VCD DivX

You can display various information about the disc loaded on-screen.

1. Press DISPLAY to show various playback information.

The displayed items differ depending on the disc type or playing status.

To display the DVD Menu DVD

When you play a DVD which contains several menus, you can select the menu you want using the Menu.

1. Press MENU.
   The disc's menu appears.
2. Select the menu by using / / / .
3. Press ENTER to confirm.

To display the DVD Title DVD

When you play a DVD which contains several titles, you can select the title you want using the Menu.

1. Press TOP MENU.
   The disc's title appears.
2. Select the menu by pressing / / / .
3. Press ENTER to confirm.

Selecting a subtitle language

DVD DivX

During playback, press SUBTITLE repeatedly to select a desired subtitle language.

Switches Audio DVD ACD VCD

During playback,press AUDIO to the audio stream/channel.

Switches Angle DVD

During playback, press ANGLE to switch angle. When a multi-angle scene is playing, a icon appears on screen (this can be switched off if you prefer — see Display settings on page 26).

1.4 times speed playback DVD

The 1.4 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed.

1. During playback, press I▶/I▶(▶) to play at 1.4 times speed. "X1.4▶" appears on the screen.
2. Press again to exit.

Last Scene Memory DVD

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off (Stand-by mode) the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

NOTE

• This unit may not memorize the last scene depending on the type of disc.
• This unit memorizes the last scene after pressing during playback.

A-B Repeat DVD VCD ACD

The A-B Repeat function allows you to specify two points (A and B) within a track (CD, Video CD/Super VCD) or title (DVD) that form a loop which is played over and over.

1. During playback, press either HOME MENU and select "Play Mode".
2. Select "A-B Repeat".
3. Press ENTER on "A (Start Point)" to set the loop start point.
4. Press ENTER on "B (End Point)" to set the loop end point. After pressing ENTER, playback jumps back to the start point and plays the loop.
5. To resume normal playback, select "Off".

Creating a program list

DVD ACD VCD

This feature lets you program the play order of titles/chapters/tracks on a disc.

1. During playback, press HOME MENU and select "Play Mode".
2. Select "Program" then select "Create/Edit" from the list of program options.

3. Use / / and ENTER to select a title, chapter or track for the current step in the program list.

4. For a DVD disc, you can add a title or a chapter.

5. For a CD or Video CD/Super VCD, select a track to add to the program list.

After pressing ENTER to select the title/chapter/track, the step number automatically moves down one.

1. Repeat step 3 to build up a program list. A program list can contain up to 24 steps.

2. You can insert steps by just highlighting the position where you want the new step to appear and entering a title/chapter/track number.

3. To delete a step, highlight it and press CLEAR.

4. To play the program list, press PLAY. Program play remains active until you turn off program play (see page 30), erase the program list, eject the disc or switch off.

Other functions available from the program menu

DVD ACD VCD

There are a number of other options in the program menu in addition to Create/Edit.

• Playback Start - Starts playback of a saved program list
• Playback Stop - Turns off program play, but does not erase the program list
• Program Delete - Erases the program list and turns off program play

Searching a disc

DVD ACD VCD DivX

You can search DVD discs by title or chapter number, or by time; CDs and Video CD/Super VCDs by track number or time; DivX by time.

1. During playback, press either HOME MENU and select "Play Mode".
2. Select "Search Mode". The search options that appear depend on the kind of disc loaded.

3. Select a search mode.

4. The disc must be playing in order to use time search.

5. Use the number buttons to enter a title, chapter or track number, or a time.

6. For a time search, enter the number of minutes and seconds into the currently playing title (DVD/DivX video) or track (CD/Video CD/Super VCD) you want playback to resume from.

7. Press ENTER to start playback.

Viewing photo files as a slide show JPEG

This unit can play discs with photo files.

1. Select the DVD/CD or USB function by pressing FUNCTION.
2. Press / to select a folder, and then press ENTER.

A list of files in the folder appears. If you are in a file list and want to return to the previous folder list, use the / buttons on the remote to highlight ... and press ENTER.

1. If you want to view a particular file, press / to highlight a file and press ENTER or PLAY. While viewing a file, you can press STOP to move to the previous menu (JPEG menu).

About help menu for slide show

Buttons	Operation
↑/↓	Rotates image 180 degrees.
←/→	Rotates image 90 degrees.
|←/→|	Moves to the next image in succession.
PAUSE	Pauses the slide show.
STOP or RETURN	Returns to file list display window.

Listening to music during slide show JPEG

1. Play after selecting either MP3 file or WMA file on the list display window.
2. When the JPEG file is selected from the list window display, the JPEG file can be displayed while the music is being played.

Radio Operations

Be sure that FM aerial is connected. (Refer to the page 24)

Listening to the Radio

1. Press FMTUNER or FUNCTION until FM appears in the display window. The last received station is tuned in.
2. Scanning will start when either the or the button is pressed. Press / repeatedly.
3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOL + or VOL - on the remote control repeatedly.

Presetting the Radio Stations

You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume.

1. Press FM TUNER or FUNCTION until FM appears in the display window. The last received station is tuned in.
2. Select the desired frequency by using
3. Press PROGRAM a preset number will flash in the display window.
4. Press / to select the preset number you want.
5. Press PROGRAM. The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
7. You can select the stored station by pressing / .

Deleting all the saved stations

1. Press and hold STOP for two seconds. "ERASE ALL" will flash up on the display window.
2. Press STOP to erase all of the saved radio stations.

Improving poor FM reception

Press AUDIO on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

Seeing information about a radio station

The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press DISPLAY (RDS) repeatedly to cycle through the various data types:

PS	(Programme Service Name) The name of the channel will appear in the display.
PTY	(Programme Type Recognition) The programme type (e.g. Jazz or News) will appear in the display.
RT	(Radio Text) A text message contains special information from the broadcast station. This text may scroll across the display.

You can search the radio stations by programme type by pressing DISPLAY (RDS). The display will show the last PTY in use. Press ZOOM (PTY) one or more times to select your preferred programme type. Press and hold / . The tuner will search automatically. When a station is found the search will stop.

Audio Settings

To display Audio Settings Menu

1. Press HOME MENU to display "HOME MENU".
2. Select "Audio Settings".

You can adjust the following settings.

Audio Settings parameters

The factory default settings are indicated in italic.

Sound Retriever (High/Low/Off)

• A WMA or MP3 file is played with high sound quality. This is only valid for files with the extension“.wma” or“.mp3”.
• The effect depends on the file. Try different settings, and choose the one providing the best effect.

About Sound Retriever function

When audio data is removed during the compression process, sound quality often degrades. The Sound Retriever function automatically enhances compressed audio and restores CD quality sound.

Equalizer (Off/Rock/Pop/Live/Dance/ Techno/Classic/Soft)

• Select according to the genre of music being played.

Surround (Off/5 Speaker Mode1/ 5 Speaker Mode2/Dolby PL II Movie/ Dolby PL II Music)

• Select the Surround mode.

5 Speaker Mode1: The sound from the front speakers will also be output by the rear speakers.
5 Speaker Mode2: The same sound will be output from the 5 speakers other than the sub woofer.

• 5 Speaker Mode1 and 5 Speaker Mode2 are valid in both 2 channel audio source and 5.1 channel audio source.

Dolby PL II Movie/Dolby PL II Music: Dolby Pro Logic II enables you to play stereo source on 5.1-channel. Dolby PL II Movie and Dolby PL II Music are valid in 2 channel audio source.

• Surround setting can be changed directly by pressing SURROUND.

Night Mode (Off/On)

• Night Mode can be changed directly by pressing NIGHT.
• This makes loud sounds weaker and weak sounds louder.
• This setting only affects Dolby Digital sound.
• The effect may be weak for some discs.

NOTE

• In some of surround modes, on some speakers, there's no sound or low sound. It depends on the mode of surround and the source of audio, it is not defective.
• You may need to reset the surround mode, after switching the input, sometimes even after the sound track changed.

Video Adjust

To display Video Adjust Menu

1. Press DVD/CD or press FUNCTION several times to select "DVD/CD" functions.
2. Press HOME MENU to display "HOME MENU".
3. Select "Video Adjust".

You can adjust the following settings.

Video Adjust parameters

The factory default settings are indicated in italic.

Sharpness (Fine/Standard/Soft)

• Adjusts the picture's sharpness.

Brightness (-20 to +20)

• Adjusts the picture's brightness.

Contrast (-16 to +16)

• Adjusts the ratio of the brightness of the brightest and darkest portions of the picture.

Gamma (-3 to +3)

• Adjusts the look of the dark portions of the picture.

Hue (green 9 to red 9)

• Adjusts the balance between green and red.

Chroma Level (-9 to +9)

• Adjusts the density of the colors. This setting is effective for sources with many colors, such as cartoons.

Factory default settings for Brightness, Contrast, Gamma, Hue and Chroma Level are set to 0.

Advanced Operations

Sleep Timer Setting

Press SLEEP one or more times to select delay time between 15 and 60 minutes, after the unit will turn off.

To cancel the sleep function, press SLEEP repeatedly until "SLEEP 15" appears, and then press SLEEP once again while "SLEEP 15" is displayed.

NOTE

Depending on the SLEEP timer setting, there may be a few minutes of discrepancy.

Dimmer

Press DIMMER once. The display changes among three levels of brightness. To cancel it, press DIMMER repeatedly until dim off.

Screen Saver

The screen saver appears when you leave the unit in Stop mode for about five minutes.

Turn off the sound temporarily

Press MUTE to mute your unit.

You can mute your unit, for example, to answer the telephone, the "MUTE" displayed in the display window.

Audio Sync

Sometimes Digital TV encounters a delay between picture and sound. You can improve it by setting the delay on the sound.

Press AUDIO SYNC and select delay time using /

Listening to music from your portable player or external device

The unit can be used to play the music from many types of portable player or external devices. (Refer to the page 23)

1. Connect the portable player to the PORTABLE IN connector of the unit.

Or

Connect the external device to the AUX connector of the unit.

1. Turn the power on by pressing STANDBY/ON.
2. Select PORTABLE or AUX function by pressing FUNCTION, AUX, or PORTABLE IN button.
3. Turn the portable player or external device and start it playing.

Setting the TV system

If the picture of the disc being played is distorted, switch the TV system to the one used in your country or region.

1. Display "HOME MENU" by Pressing HOME MENU.
2. Press "9", "8", "7", "6".

Then TV system switches as shown below.

AUTO NTSC

NTSC PAL

PAL AUTO

The default setting is AUTO.

Types of discs/files	Format	Player Setting
		NTSC	PAL	AUTO
DVD-Video	NTSC	NTSC	PAL	NTSC
DVD VR	PAL	NTSC	PAL	PAL
Video CD
DivX
CD (R/RW)	—	NTSC	PAL	NTSC or PAL
WMA
MP3
JPEG
no disc

Copying files on to USB devices

JPEG DivX WMA MP3

Files stored on the discs can be copied on to the USB device through the player.

1. Switch to DVD/CD function.
   Press DVD/CD or press FUNCTION several times to select "DVD/CD" functions.
2. Display the Disc Navigator screen. Press MENU.
3. Press STOP to stop playback if the file is being played.
4. Select the file.
   Use / / / to select, then press .
5. Start copying.
   Use / to select Yes, then press ENTER. The file copying process will appear on the screen.

NOTE

• Do not operate any buttons during the file copying process.
• A folder named "PIONEER" is automatically created on the USB device. The copied files are stored in this folder.

Recording audio CD tracks on to USB devices

The tracks can be recorded from the audio CD on to the USB device through the player.

1. Load the audio CD.
   Press STOP to stop playback if it starts automatically.
2. Press HOME MENU.

Select "CD->USB Rec" or press USB REC.

1. Select "Select Track".
   Use / to select, then press ENTER or
   →.
2. Select the type of recording.

Use / to select, then press ENTER or

→.

Types of recording

• Individual: Select 1 track at a time.
• Select All: Select all the tracks.

• All Clear: Deselect all the tracks.

• Select Bitrate (transfer rate).

Use / / / to select, then press ENTER.

• Select 128 kbps, 192 kbps or 320 kbps.

• Start recording.

Use / / to select "Start", then press ENTER.

NOTE

• The audio signals are converted into MP3 format for output.
• CD -> USB Rec can only be selected when the audio CD is stopped.
• When recording is completed, a folder named "PIONEER" is automatically created on the USB device. The recorded tracks are stored in this folder.
• DTS CD and Copy Protection CD cannot be converted.

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes.

Be responsible

Respect copyrights

Karaoke

Using karaoke

Be sure to adjust the volume to the minimum before connecting the microphone, otherwise it may result in damage to the speakers.

1. Adjust the microphone volume to minimum.
   Turn MIC VOL on the front panel counterclockwise (to MIN).
2. Connect the microphone. Connect the microphone to the MIC terminal on the front panel (see page 12).
3. Display the Karaoke Settings screen. Press KARAOKE.
4. Select "Karaoke". Use / to select, then press ENTER or
5. Activate Karaoke. Use / to select "On", then press ENTER. Karaoke function become valid.
6. Load the disc and start playback. Adjust the microphone volume. Turn MIC VOL on the front panel clockwise (towards MAX).

NOTE

KARAOKE function cannot be used for FM TUNER, AUX, or Portable functions.

To adjust the echo

Adjust by turning the ECHO VOL on the front panel.

• ECHOVOL is effective for both MIC 1 and MIC 2.

To adjust the key

Press either the KEY b or the KEY # on the remote control.

Key value will be displayed on the display window and monitor.
Factory default value is 0.
- The last adjusted value will be retained.
Key can be adjusted between -10 to +10.

NOTE

When inserting the MIC terminal, support the top of the unit with your hand to prevent it from moving.

Extra functions for karaoke

Scoring your karaoke DVD VCD

1. Display the Karaoke settings screen. Press KARAOKE.
2. Select "Karaoke Score". Use / to select, then press ENTER or
3. Activate karaoke scoring. Use / to select "On", then press ENTER.

NOTE

• To cancel scoring, select "Off" on the Karaoke Score screen.
• Karaoke scoring can be activated before or during playback.

Recording your karaoke tracks on to USB devices VCD

You can record your karaoke tracks on to a USB device through the player.

NOTE

• Use this function after adjusting the microphone volume and the echo level using the operations on the left column.
  Depending on the USB device used, this function may not operate normally.

• Display the Karaoke Settings screen during the playback.
  2 Select "Karaoke Rec". Use / to select, then press ENTER or

• Start Karaoke recording. Use to select "Yes", then press ENTER. When recording is completed, a folder named "KARaoke" is automatically created on the USB device. The recorded tracks are stored in this folder.

5 Maintenance

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.
• Wiping with strong pressure may damage the surface. Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service centre.

6

Troubleshooting

PROBLEM	CAUSE	CORRECTION
No Picture	The TV is not set to receive the DVD signal.	Select the appropriate video input mode on the TV so the picture from the DVD Receiver appears on the TV screen.
	The video cables are not connected securely.	Connect the video cables securely to both the TV and DVD Receiver.
There is little or no sound	The audio cables are not connected to the DVD Receiver securely.	Connect the audio cables into the connection terminals correctly.
	Speaker cables are not connected correctly.	Connect speaker cables correctly.
The DVD picture quality is poor	The disc is dirty.	Clean the disc using a soft cloth with outward strokes.
A DVD/CD will not play	An unplayable disc is inserted.	Insert a playable disc (see page 8 for details).
	The disc is inserted upside down.	Place the disc with the label or printed side facing upwards.
Noise heard while a DVD or CD is playing	The disc is dirty.	Clean the disc using a soft cloth with outward strokes.
	The DVD receiver is located too close to the TV, causing feedback.	Move DVD receiver and audio components further away from your TV.
Radio stations can't be tuned in properly	The antenna is positioned or connected poorly.	Check the antenna connection and adjust its position.
		Attach an external aerial if necessary.
	The signal strength of the radio station is too weak.	Tune to the station manually.
	No stations have been preset or preset stations have been cleared (when tuning by scanning preset channels).	Preset some radio stations, see page 31 for details.
The remote control doesn't work well/at all	The remote is not pointed directly at the unit.	Point the remote directly at the unit.
	The remote is too far from the unit.	Use the remote within 7 m of the DVD receiver.
	There is an obstacle in the path between the remote control and the unit.	Remove the obstacle.
	The battery in the remote control is flat.	Replace the battery with new ones.
The DVD receiver's power turns off automatically	The Auto Power Off is set to On.	If Auto Power Off is set to On, this unit will automatically turn off if no operation is performed for 30 minutes or more. Set Auto Power Off to Off to turn this feature off (see page 26).
No sound from the microphone	KARAOKE function is not valid.	Validate KARAOKE function (see page 38).
HDMI output does not display TV image	TV is not compatible with the HDMI Resolution.	Press RESOLUTION on the remote control and change the HDMI Resolution.
Audio volume goes down during playback	The function that lowers the volume to prevent malfunction has automatically activated to turn the volume down as continuing to play at high volume will lead to the unit malfunctioning.	It is not a malfunction. Adjust the volume on the unit or the remote control to recover the volume. However, continuing to play at high volume may force the same function to activate again.

7 Appendix

Operating the TV with the player's remote control

When the manufacturer code for your brand of TV is set on the player's remote control, the TV can be operated using the player's remote control.

CAUTION

• For some models it may not be possible to operate the TV with the player's remote control, even for TVs of brands listed on the manufacturer code list.
• The setting may be restored to the default after the batteries are replaced. If this happens, reset it.

1. Input the 2-digit manufacturer code. Press the number buttons (0 to 9) to input the code while pressing TV CONTROL .

NOTE

The factory default setting is 00 (PIONEER).
- If you make a mistake when inputting the code, release TV CONTROL then start over from the beginning.
- When there are multiple codes for a manufacturer, try inputting them in the indicated order until the TV can be operated.

1. Check that the TV can be operated.

Operate the TV using TV CONTROL.

• Press to turn the TV's power on and off.

INPUT SELECT - Press to switch the TV's input.

CH + / - Press to select the TV channel.

VOL + / - Press to adjust the volume.

TV Preset code list

Manufacturer Code(s)

PIONEER 00,31,32,07,36, 42,51,22

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07,39,41,44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07,36

BASIC LINE 41, 44

BAUR 31,07,42

BEKO 38

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 41

BUSH 07,41,42,44,47,56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

CONTEC 44

CROSLEY 32

CROWN 38,44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07,44,56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07,48

DIXI 07,44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

FUJITSU 48

FUNAI 40,46,58

GBC32,42

GE00,01,08,07,10,11,17 02,28,18

GEC 07,34,48

GELOSO 32,44

GENERAL 29

GENEXXA 31,41

GOLDSTAR 10,23,21,02, 07,50

GOODMANS 07,39,47, 48,56

GORENJE 38

GPM 41

GRAETZ 31,42

GRANADA 07,35,42, 43,48

GRADIENTE 30,57

GRANDIN 18

GRUNDIG 31,53

HANSEATIC 07,42

HCM 18,44

HINARI 07,41,44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18

HUANYU56

HYPSON 07,18,46

ICE 46, 47

IMPERIAL 38,42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13,23

KAISUI 18,41,44

KAPSCH 31

KENDO 42

KENNDy 32,42

KORPEL 07

KOYODA 44

LEYCO07,40,46,48

LIESENK&TTER 07

LOEWE 07

LUXOR 32,42,43

M-ELECTRONIC 31,44,45, 54,56,07,36,51

MAGNADYNE 32,49

MAGNAFON 49

MAGNAVOX 07,10,03, 12,29

MANESTH 39,46

MARANTZ 07

MARK 07

MATSUI 07,39,40,42,44, 47,48

MCMICHAE134

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31,53

MITSUBISHI 09,10,02, 21,31

MULTITECH 44, 49

NEC 59

NECKERMANN 31,07

NEI 07,42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32,42,52

NORDMENDE 32, 36, 51, 52

OCEANIC 31, 32, 42

ORION 32,07,39,40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTO VERSAND 31, 32, 07, 42

PALLADIUM 38

PANAMA 46

PANASONIC 31,07,08, 42,22

PATHO CINEMA 42

PAUSA 44

PHILCO 32,4203

PHILIPS 31,07,34,56,68

PHOENIX 32

PHONOLA 07

PROFEx 42,44

PROTECH 07,42,44,46,49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10,23,21,02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSION 32,42

REX 31,46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 51

SAISHO 39,44,46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07,38,44,46, 69,70

SANYO 35,45,48,21, 14,91

SBR 07,34

SCHAUBLORENZ 42

SCHNEIDER 07,41,47

SEG 42, 46

SEI 32,40,49

SELECO 31,42

SHARP 02,19,27,67,90

SIAREM 32,49

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31, 35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31,41,48

TASHIKO 34

TATUNG 07,48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36,51,52,63

THORN 31,07,42,45,48

TOMASHI 18

TOSHIBA 05, 02, 26, 21, 53

TOWADA 42

ULTRAVOX 32,42,49

UNIDEN 92

UNIVERSUM 31,07,38,42, 45,46,54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32,42,49

WHITE WESTINGHOUSE 07

YOKO 07,42,46

ZENITH 03,20

Language Codes

Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

Language names (codes) an input codes

Japanese (ja), 1001

English (en), 0514

French (fr), 0618

German (de), 0405

Italian (it), 0920

Spanish (es), 0519

Chinese (zh), 2608

Dutch (nl), 1412

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (Io), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Area Codes

Choose a area code from this list.

Country/Area name, Input codes and Country/Area code

United States, 2119, us	Switzerland, 0308, ch	Pakistan, 1611, pk
Argentina, 0118, ar	Sweden, 1905, se	Philippines, 1608, ph
United Kingdom, 0702, gb	Spain, 0519, es	Finland, 0609, fi
Italy, 0920, it	Thailand, 2008, th	Mexico, 1324, mx
India, 0914, in	Taiwan, 2023, tw	Brazil, 0218, br
Indonesia, 0904, id	China, 0314, cn	France, 0618, fr
Australia, 0121, au	Chile, 0312, cl	Belgium, 0205, be
Austria, 0120, at	Denmark, 0411, dk	Portugal, 1620, pt
Netherlands, 1412, nl	Germany, 0405, de	Hong Kong, 0811, hk
Canada, 0301, ca	Japan, 1016, jp	Malaysia, 1325, my
Korea, Republic of, 1118, kr	New Zealand, 1426, nz
Singapore, 1907, sg	Norway, 1415, no

Trademarks and Licences

HOMI

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DVD is a trademark of DVD Format/Logo Licensing Corporation.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

dtts

Digital Surround

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

Specifications

General

Power requirements: AC 220 V to 240 V, 50 Hz/60 Hz
Power consumption: 120 W In Standby mode: Less than 0.5 W
- Dimensions (W x H x D): 360 mm x 64 mm x 351 mm
- Net Weight (Approx.): 2.8 kg
- Operating temperature: 5^ C to 35^ C
- Operating humidity: 5% to 85%
- Bus Power supply (USB): DC 5 V = 500 mA

Inputs/Outputs

VIDEO OUTPUT: 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
- HDMI OUT (video/audio): 19 pin (HDMI standard, Type A)
- PORTABLE IN: 0.5 Vrms (3.5 mm stereo jack)
- SCART OUTPUT (video): 21pin
- MIC INPUT: Mic jack x 2
- USB: 4 pin A Type

Tuner

FM Tuning Range: 87.5 MHz to 108.0 MHz

Amplifier

• Power output, (RMS), THD 30% Front 125 W × 2 (6 Ω) Centre 250 W (3 Ω) Surround 125 W × 2 (6 Ω) Sub-Woofer 250 W (3 Ω, Passive)

System

• Laser: Semiconductor laser
• Signal system: Standard PAL/NTSC colour TV system

Speakers

• Front speaker (Left/Right) Type: 2 Way Impedance Rated: 6 Ω Net Dimensions (W x H x D): 250 mm x 1110 mm x 250 mm Net Weight: 3.5 kg
• Surround speaker (Left/Right) Type: 1 Way Impedance Rated: 6 Ω Net Dimensions (W x H x D): 250 mm x 1110 mm x 250 mm Net Weight: 3.4 kg
• Centre speaker Type: 1 Way Impedance Rated: 3 Ω Net Dimensions (W x H x D): 230 mm x 80 mm x 90 mm Net Weight: 0.7 kg
• Subwoofer Type: 1 Way Impedance Rated: 3 Ω Net Dimensions (W x H x D): 200 mm x 340 mm x 270 mm Net Weight: 3.4 kg

Sound Retriever (High/Low/Off)

Sharpness (Fine/Standard/Soft)

Brightness (-20 to +20)

Hue (green 9 to red 9)

PIONEER 00,31,32,07,36, 42,51,22

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07,39,41,44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07,36

BASIC LINE 41, 44

BAUR 31,07,42

BEKO 38

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 41

BUSH07,41,42,44,47,56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

CONTEC 44

CROSLEY 32

CROWN 38,44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07,44,56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07,48

DIXI 07,44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

FUJITSU 48

FUNAI 40,46,58

GBC32,42

GE00,01,08,07,10,11,17 02,28,18

GEC 07,34,48

GELOSO 32,44

GENERAL 29

GENEXXA 31,41

GOLDSTAR 10,23,21,02, 07,50

GOODMANS 07,39,47, 48,56

GORENJE 38

GPM 41

GRAETZ 31,42

GRANADA 07,35,42, 43,48

GRADIENTE 30,57

GRANDIN 18

GRUNDIG 31,53

HANSEATIC 07,42

HCM 18,44

HINARI 07,41,44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18

HUANYU56

HYPSON 07,18,46

ICE 46, 47

IMPERIAL 38,42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13,23

KAISUI 18,41,44

KAPSCH 31

KENDO 42

KENNDy 32,42

KORPEL 07

KOYODA 44

LEYCO07,40,46,48

LIESENK&TTER 07

LOEWE 07

LUXOR 32,42,43

M-ELECTRONIC 31,44,45, 54,56,07,36,51

MAGNADYNE 32,49

MAGNAFON 49

MAGNAVOX 07,10,03, 12,29

MANESTH 39,46

MARANTZ 07

MARK 07

MATSUI 07,39,40,42,44, 47,48

MCMICHAE134

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31,53

MITSUBISHI 09,10,02, 21,31

MULTITECH 44, 49

NEC 59

NECKERMANN 31,07

NEI 07,42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32,42,52

NORDMENDE 32, 36, 51, 52

OCEANIC 31, 32, 42

ORION 32,07,39,40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTOVERSAND31,32 07,42

PALLADIUM 38

PANAMA 46

PANASONIC 31,07,08, 42,22

PATHO CINEMA 42

PAUSA 44

PHILCO 32,4203

PHILIPS 31,07,34,56,68

PHOENIX 32

PHONOLA 07

PROFEx 42,44

PROTECH 07,42,44,46,49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10,23,21,02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSION 32,42

REX 31,46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 51

SAISHO 39,44,46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07,38,44,46, 69,70

SANYO 35,45,48,21, 14,91

SBR 07,34

SCHAUBLORENZ 42

SCHNEIDER 07,41,47

SEG 42, 46

SEI 32,40,49

SELECO 31,42

SHARP 02,19,27,67,90

SIAREM 32,49

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31, 35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31,41,48

TASHIKO 34

TATUNG 07,48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36,51,52,63

THORN 31,07,42,45,48

TOMASHI 18

TOSHIBA 05, 02, 26, 21, 53

TOWADA 42

ULTRAVOX 32,42,49

UNIDEN 92

UNIVERSUM 31,07,38,42, 45,46,54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32,42,49

WHITE WESTINGHOUSE 07

YOKO 07,42,46

ZENITH 03,20

Codes langue

Avant 125 W x 2 (6 Ω)

Centrale 250 W (3Ω)

Enceintes surround 125 W x 2 (6 Ω)

Caisson de graves 250 W (3Ω, passif)

Système

You can display various information about the disc loaded on-screen.

Sound Retriever (High/Low/Off)

Sharpness (Fine/Standard/Soft)

Brightness (-20 to +20)

Hue (green 9 to red 9)

PIONEER 00,31,32,07,36, 42,51,22

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07,39,41,44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07,36

BASIC LINE 41, 44

BAUR 31,07,42

BEKO 38

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 41

BUSH 07,41,42,44,47,56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

CONTEC 44

CROSLEY 32

CROWN 38,44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07,44,56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07,48

DIXI 07,44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

FUJITSU 48

FUNAI 40,46,58

GBC32,42

GE00,01,08,07,10,11,17 02,28,18

GEC 07,34,48

GELOSO 32,44

GENERAL 29

GENEXXA 31,41

GOLDSTAR 10,23,21,02, 07,50

GOODMANS 07,39,47, 48,56

GORENJE 38

GPM 41

GRAETZ 31,42

GRANADA 07,35,42, 43,48

GRADIENTE 30,57

GRANDIN 18

GRUNDIG 31,53

HANSEATIC 07,42

HCM 18,44

HINARI 07,41,44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18

HUANYU 56

HYPSON 07,18,46

ICE 46, 47

IMPERIAL 38,42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13,23

KAISUI 18,41,44

KAPSCH 31

KENDO 42

KENNDy 32,42

KORPEL 07

KOYODA 44

LEYCO07,40,46,48

LIESENK&TTER 07

LOEWE 07

LUXOR 32,42,43

M-ELECTRONIC 31,44,45, 54,56,07,36,51

MGNADYNE 32,49

MAGNAFON 49

MAGNAVOX 07,10,03, 12,29

MANESTH 39,46

MARANTZ 07

MARK 07

MATSUI 07,39,40,42,44, 47,48

MCMICHAE134

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31,53

MITSUBISHI 09,10,02, 21,31

MULTITECH 44, 49

NEC 59

NECKERMANN 31,07

NEI 07,42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32,42,52

NORDMENDE 32, 36, 51, 52

OCEANIC 31, 32, 42

ORION 32,07,39,40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTO VERSAND 31, 32, 07, 42

PALLADIUM 38

PANAMA 46

PANASONIC 31,07,08, 42,22

PATHO CINEMA 42

PAUSA 44

PHILCO 32,4203

PHILIPS 31,07,34,56,68

PHOENIX 32

PHONOLA 07

PROFEx 42,44

PROTECH 07,42,44,46,49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10,23,21,02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSION 32,42

REX 31,46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 51

SAISHO 39,44,46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07,38,44,46, 69.70

SANYO 35,45,48,21, 14,91

SBR 07,34

SCHAUBLORENZ 42

SCHNEIDER 07,41,47

SEG 42,46

SEI 32,40,49

SELECO 31,42

SHARP 02,19,27,67,90

SIAREM 32,49

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31,35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31,41,48

TASHIKO 34

TATUNG 07,48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36,51,52,63

THORN 31,07,42,45,48

TOMASHI 18

TOSHIBA 05, 02, 26, 21, 53

TOWADA 42

ULTRAVOX 32,42,49

UNIDEN 92

UNIVERSUM 31,07,38,42

45.46.54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32,42,49

WHITE WESTINGHOUSE 07

YOKO 07,42,46

ZENITH 03,20

Sprachcodes

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (Io), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Ländercodes

Surround 125 W x 2 (6 Ω)

Sub-Woofer 250 W (3 Ω, Passive)

System

Impedance Rated: 3 Ω

Gesamttabmessungen

(B × H × T): 230 mm × 80 mm × 90 mm

(B × H × T): 200 mm × 340 mm × 270 mm

$$ D V D + R / + R W / - R / - R W $$

Video CD e Super VCD

File WMA

File DivX

CD Audio

File JPEG

ALL

MP3

DVD

VCD

WMA

DivX

ACD

JPEG

Codici regionali

Sound Retriever (High/Low/Off)

Sharpness (Fine/Standard/Soft)

Brightness (-20 to +20)

Hue (green 9 to red 9)

PIONEER 00,31,32,07,36, 42,51,22

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07,39,41,44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07,36

BASIC LINE 41, 44

BAUR 31,07,42

BEKO 38

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 41

BUSH07,41,42,44,47,56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

CONTEC 44

CROSLEY 32

CROWN 38,44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07,44,56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07,48

DIXI 07,44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

FUJITSU 48

FUNAI 40,46,58

GBC32,42

GE00,01,08,07,10,11,17 02,28,18

GEC 07,34,48

GELOSO 32,44

GENERAL 29

GENEXXA 31,41

GOLDSTAR 10,23,21,02, 07,50

GOODMANS 07,39,47, 48,56

GORENJE 38

GPM 41

GRAETZ 31,42

GRANADA 07,35,42, 43,48

GRADIENTE 30,57

GRANDIN 18

GRUNDIG 31,53

HANSEATIC 07,42

HCM 18,44

HINARI 07,41,44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18

HUANYU 56

HYPSON 07,18,46

ICE 46, 47

IMPERIAL 38,42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13,23

KAISUI 18,41,44

KAPSCH 31

KENDO 42

KENNDy 32,42

KORPEL 07

KOYODA 44

LEYCO07,40,46,48

LIESENK&TTER 07

LOEWE 07

LUXOR 32,42,43

M-ELECTRONIC 31,44,45, 54,56,07,36,51

MGNADYNE 32,49

MAGNAFON 49

MAGNAVOX 07,10,03, 12,29

MANESTH 39,46

MARANTZ 07

MARK 07

MATSUI 07,39,40,42,44, 47,48

MCMICHAE134

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31,53

MITSUBISHI 09,10,02, 21,31

MULTITECH 44, 49

NEC 59

NECKERMANN 31,07

NEI 07,42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32,42,52

NORDMENDE 32,36,51,52

OCEANIC 31, 32, 42

ORION 32,07,39,40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTO VERSAND 31, 32, 07, 42

PALLADIUM 38

PANAMA 46

PANASONIC 31,07,08, 42,22

PATHO CINEMA 42

PAUSA 44

PHILCO 32,4203

PHILIPS 31,07,34,56,68

PHOENIX 32

PHONOLA 07

PROFEx 42,44

PROTECH 07,42,44,46,49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10,23,21,02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSION 32,42

REX 31,46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 51

SAISHO 39,44,46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07,38,44,46, 69.70

SANYO 35,45,48,21, 14,91

SBR 07,34

SCHAUBLORENZ 42

SCHNEIDER 07,41,47

SEG 42,46

SEI 32,40,49

SELECO 31,42

SHARP 02,19,27,67,90

SIAREM 32,49

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31,35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31,41,48

TASHIKO 34

TATUNG 07,48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36,51,52,63

THORN 31,07,42,45,48

TOMASHI 18

TOSHIBA 05, 02, 26, 21, 53

TOWADA 42

ULTRAVOX 32,42,49

UNIDEN 92

UNIVERSUM 31,07,38,42

45.46.54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32,42,49

WHITE WESTINGHOUSE 07

YOKO 07,42,46

ZENITH 03,20

Codici lingua

Sub-Woofer 250 W (3 Ω, Passive)

Sistema

KLASSE 1 LASERPRODUCT

D58-5-2-2a_A1_NI

WAARSCHUWING

WAARSCHUWING NETSNOER

$$ D V D + R / + R W / - R / - R W $$

DVD

REPEAT: Selecteert Title Repeat, Chapter Repeat of Track Repeat.

Initial Settings-menu (Initial Settings)

Kies of u ondtertitelswilt zien (On) of nicht (Off).

Display instellingen

OSD Language

Audio-installingen (Audio Settings)

Audio-installingenmenu tonen (Audio Settings)

1. Druk op HOME MENU zodate "HOME MENU" verschijnt.
2. Selecteer "Audio Settings".

Sound Retriever (High/Low/Off)

Sharpness (Fine/Standard/Soft)

Brightness (-20 to +20)

Hue (green 9 to red 9)

1. Selecteer "Select Track".

• Individual: Selecteer 1 track per keer.
• Select All: Selecteer alle tracks.

• All Clear: Deselecteer alle tracks.

• Selecteer Bitsnelheid

1. Selecteer "Karaoke".

PIONEER 00,31,32,07,36, 42,51,22

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07,39,41,44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07,36

BASIC LINE 41, 44

BAUR 31,07,42

BEKO 38

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 41

BUSH07,41,42,44,47,56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

CONTEC 44

CROSLEY 32

CROWN 38,44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07,44,56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07,48

DIXI 07,44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

FUJITSU 48

FUNAI 40,46,58

GBC32,42

GE00,01,08,07,10,11,17 02,28,18

GEC 07,34,48

GELOSO 32,44

GENERAL 29

GENEXXA 31,41

GOLDSTAR 10,23,21,02, 07,50

GOODMANS 07,39,47, 48,56

GORENJE 38

GPM 41

GRAETZ 31,42

GRANADA 07,35,42, 43,48

GRADIENTE 30,57

GRANDIN 18

GRUNDIG 31,53

HANSEATIC 07,42

HCM 18,44

HINARI 07,41,44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18

HUANYU 56

HYPSON 07,18,46

ICE 46, 47

IMPERIAL 38,42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13,23

KAISUI 18,41,44

KAPSCH 31

KENDO 42

KENNDy 32,42

KORPEL 07

KOYODA 44

LEYCO07,40,46,48

LIESENK&TTER 07

LOEWE 07

LUXOR 32,42,43

M-ELECTRONIC 31,44,45, 54,56,07,36,51

MGNADYNE 32,49

MAGNAFON 49

MAGNAVOX 07,10,03, 12,29

MANESTH 39,46

MARANTZ 07

MARK 07

MATSUI 07,39,40,42,44, 47,48

MCMICHAE134

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31,53

MITSUBISHI 09,10,02, 21,31

MULTITECH 44, 49

NEC 59

NECKERMANN 31,07

NEI 07,42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32,42,52

NORDMENDE 32,36,51,52

OCEANIC 31, 32, 42

ORION 32,07,39,40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTO VERSAND 31, 32, 07, 42

PALLADIUM 38

PANAMA 46

PANASONIC 31,07,08, 42,22

PATHO CINEMA 42

PAUSA 44

PHILCO 32,4203

PHILIPS 31,07,34,56,68

PHOENIX 32

PHONOLA 07

PROFEx 42,44

PROTECH 07,42,44,46,49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10,23,21,02

RBM53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSION 32,42

REX 31,46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 51

SAISHO 39,44,46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07,38,44,46, 69.70

SANYO 35,45,48,21, 14,91

SBR 07,34

SCHAUBLORENZ 42

SCHNEIDER 07,41,47

SEG 42, 46

SEI 32,40,49

SELECO 31,42

SHARP 02,19,27,67,90

SIAREM 32,49

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31,35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31,41,48

TASHIKO 34

TATUNG 07,48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36,51,52,63

THORN 31,07,42,45,48

TOMASHI 18

TOSHIBA 05,02,26,21,53

TOWADA 42

ULTRAVOX 32,42,49

UNIDEN 92

UNIVERSUM 31,07,38,42

45.46.54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32,42,49

WHITE WESTINGHOUSE 07

YOKO 07,42,46

ZENITH 03,20

Taalcodes

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (Io), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Regiocodes

Korea (Republic), 1118, kr

Singapore, 1907, sg

Warranty card (1)
- Operating instructions (This document)

Indicates special notes and operating features.

PRECAUCION

Sound Retriever (High/Low/Off)

Sharpness (Fine/Standard/Soft)

Brightness (-20 to +20)

Hue (green 9 to red 9)

PIONEER 00,31,32,07,36, 42,51,22

ACURA 44

ADMIRAL 31

AIWA 60

AKAI 32, 35, 42

AKURA 41

ALBA 07,39,41,44

AMSTRAD 42, 44, 47

ANITECH 44

ASA 45

ASUKA 41

AUDIOGONIC 07,36

BASIC LINE 41, 44

BAUR 31,07,42

BEKO 38

BEON 07

BLAUPUNKT 31

BLUE SKY 41

BLUE STAR 18

BPL 18

BRANDT 36

BTC 41

BUSH 07,41,42,44,47,56

CASCADE 44

CATHAY 07

CENTURION 07

CGB 42

CIMLINE 44

CLARIVOX 07

CLATRONIC 38

CONDOR 38

CONTEC 44

CROSLEY 32

CROWN 38,44

CRYSTAL 42

CYBERTRON 41

DAEWOO 07,44,56

DAINICHI 41

DANSAI 07

DAYTON 44

DECCA 07,48

DIXI 07,44

DUMONT 53

ELIN 07

ELITE 41

ELTA 44

FUJITSU 48

FUNAI 40,46,58

GBC32,42

GE00,01,08,07,10,11,17 02,28,18

GEC 07,34,48

GELOSO 32,44

GENERAL 29

GENEXXA 31,41

GOLDSTAR 10,23,21,02, 07,50

GOODMANS 07,39,47, 48,56

GORENJE 38

GPM 41

GRAETZ 31,42

GRANADA 07,35,42, 43,48

GRADIENTE 30,57

GRANDIN 18

GRUNDIG 31,53

HANSEATIC 07,42

HCM 18,44

HINARI 07,41,44

HISAWA 18

HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18

HUANYU 56

HYPSON 07,18,46

ICE 46, 47

IMPERIAL 38,42

INDIANA 07

INGELEN 31

INTERFUNK 31, 32, 07, 42

INTERVISION 46, 49

ISUKAI 41

ITC 42

ITT 31, 32, 42

JEC 05

JVC 13,23

KAISUI 18,41,44

KAPSCH 31

KENDO 42

KENNDy 32,42

KORPEL 07

KOYODA 44

LEYCO07,40,46,48

LIESENK&TTER 07

LOEWE 07

LUXOR 32,42,43

M-ELECTRONIC 31,44,45, 54,56,07,36,51

MGNADYNE 32,49

MAGNAFON 49

MAGNAVOX 07,10,03, 12,29

MANESTH 39,46

MARANTZ 07

MARK 07

MATSUI 07,39,40,42,44, 47,48

MCMICHAE134

MEDIATOR 07

MEMOREX 44

METZ 31

MINERVA 31,53

MITSUBISHI 09,10,02, 21,31

MULTITECH 44, 49

NEC 59

NECKERMANN 31,07

NEI 07,42

NIKKAI 05, 07, 41, 46, 48

NOBLIKO 49

NOKIA 32,42,52

NORDMENDE 32, 36, 51, 52

OCEANIC 31, 32, 42

ORION 32,07,39,40

OSAKI 41, 46, 48

OSO 41

OSUME 48

OTTO VERSAND 31, 32, 07, 42

PALLADIUM 38

PANAMA 46

PANASONIC 31,07,08, 42,22

PATHO CINEMA 42

PAUSA 44

PHILCO 32,4203

PHILIPS 31,07,34,56,68

PHOENIX 32

PHONOLA 07

PROFEx 42,44

PROTECH 07,42,44,46,49

QUELLE 31, 32, 07, 42, 45, 53

R-LINE 07

RADIOLA 07

RADIOSHACK 10,23,21,02

RBM 53

RCA 01, 10, 15, 16, 17, 18, 61, 62, 09

REDIFFUSION 32,42

REX 31,46

ROADSTAR 41, 44, 46

SABA 31, 36, 42, 51

SAISHO 39,44,46

SALORA 31, 32, 42, 43

SAMBERS 49

SAMSUNG 07,38,44,46, 69.70

SANYO 35,45,48,21, 14,91

SBR 07,34

SCHAUBLORENZ 42

SCHNEIDER 07,41,47

SEG 42, 46

SEI 32,40,49

SELECO 31,42

SHARP 02,19,27,67,90

SIAREM 32,49

SIEMENS 31

SINUDYNE 32, 39, 40, 49

SKANTIC 43

SOLAVOX 31

SONOKO 07,44

SONOLOR 31,35

SONTEC 07

SONY 04

SOUNDWAVE 07

STANDARD 41, 44

STERN 31

SUSUMU 41

SYSLINE 07

TANDY 31,41,48

TASHIKO 34

TATUNG 07,48

TEC 42

TELEAVIA 36

TELEFUNKEN 36, 37, 52

TELETECH 44

TENSAI 40, 41

THOMSON 36,51,52,63

THORN 31,07,42,45,48

TOMASHI 18

TOSHIBA 05, 02, 26, 21, 53

TOWADA 42

ULTRAVOX 32,42,49

UNIDEN 92

UNIVERSUM 31,07,38,42

45.46.54

VESTEL 07

VICTOR 13

VOXSON 31

WALTHAM 43

WATSON 07

WATT RADIO 32,42,49

WHITE WESTINGHOUSE 07

YOKO 07,42,46

ZENITH 03,20

Códigos de idioma

© 2012 PIONEER CORPORATION. All rights reserved.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B3_En
