L2239W - Monitor DGM - Free user manual and instructions

Product type	22-inch LCD monitor
Brand	DGM
Model	L2239W
Screen size	22 inches (diagonal)
Maximum resolution	1680 x 1050 (WSXGA)
Panel type	TFT Active Matrix LCD
Brightness	280 cd/m² (typical)
Contrast ratio	700:1 (typical)
Response time	5 ms (Tr+Tf)
Viewing angle	Horizontal 170°, Vertical 160°
Color display	16.2 million colors (True Color)
Video inputs	VGA (D-sub 15-pin), DVI-D (Single Link TMDS)
Audio input	3.5 mm stereo jack
Built-in speakers	2 x stereo speakers
Power supply	100-240 V AC, 50/60 Hz (universal)
Power consumption (active)	Less than 48 Watts (typical)
Power consumption (standby)	Less than 1 Watt
Net weight	5.4 kg
Dimensions (W x H x D)	532 x 401.5 x 244 mm
Tilt	0° to 20° backward
Energy-saving functions	Compliant with VESA DPMS, ENERGY STAR
Plug & Play	Yes (DDC/EDID)
Security lock	Kensington (slot)
Certifications	UL/cUL, FCC, CE, BSMI
Maintenance and cleaning	Use a soft, dry cloth; ammonia-free and alcohol-free products
Repairability	Refer to qualified personnel; do not open the casing
General information	Manual available in multiple languages on the manufacturer's website

Frequently Asked Questions - L2239W DGM

How to install the DGM L2239W monitor?

Place the monitor on a stable surface, connect the power cable (100-240 V) and the video cable (VGA or DVI) to the computer. Turn on the computer, then turn on the monitor. The Plug & Play system automatically detects the monitor. Use the Auto button for optimal automatic adjustment.

What to do if the screen stays black?

Check that the monitor is on (green LED). Ensure the power and video cables are properly connected. If the LED is orange, the monitor is in standby; move the mouse or press a key. If the problem persists, run the STFC automatic test by disconnecting the signal cable.

How to adjust the image (brightness, contrast)?

Press the Menu button to display the OSD. Use the arrows to select Image, then adjust brightness and contrast. Confirm with the central button. Settings are automatically saved.

Can I use the monitor with a game console?

Yes, if the console has a VGA or DVI output. Connect it directly. The maximum supported resolution is 1680x1050. Use Image mode (high brightness) for games.

How to clean the LCD screen?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with pure water or alcohol-free/ammonia-free glass cleaner. Wipe gently without pressing. Do not spray directly on the screen.

The monitor emits unusual noise or smell, what to do?

Immediately unplug the monitor and contact an authorized service center. Do not attempt to repair it yourself.

How to activate energy-saving mode?

The monitor automatically goes into standby (orange LED) after a period of inactivity defined by the operating system. You can also press the Turbo button to switch to Economy mode, which reduces backlight brightness.

Can I mount the monitor on the wall?

The monitor is not supplied with a wall mount. However, it has a Kensington lock slot, but no standard VESA mounting. Check the specifications or contact the manufacturer for more information.

What does the message 'Out of Range' mean?

The resolution or refresh rate sent by the computer exceeds the monitor's capabilities. Reduce the resolution to 1680x1050 or less and set the vertical frequency to 60 Hz.

How to reset the monitor to factory settings?

Press Menu, go to Miscellaneous, select Reset, then confirm. This restores default settings for brightness, contrast, position, etc.

USER MANUAL L2239W DGM

22" Wide Screen LCD Monitor

Contents

PRODUCT 2

Features 2

Power saver 2

Plug & play 2

SAFETY 3

Electrical. 3

Common 4

SET UP YOUR LCD MONITOR 5

Installation 5

Screen Adjustments 5

OSD Control 6

Description 8

TROUBLE SHOOTING 9

MAINTENANCE 10

DISPLAY MODE 11

SPECIFICATION 12

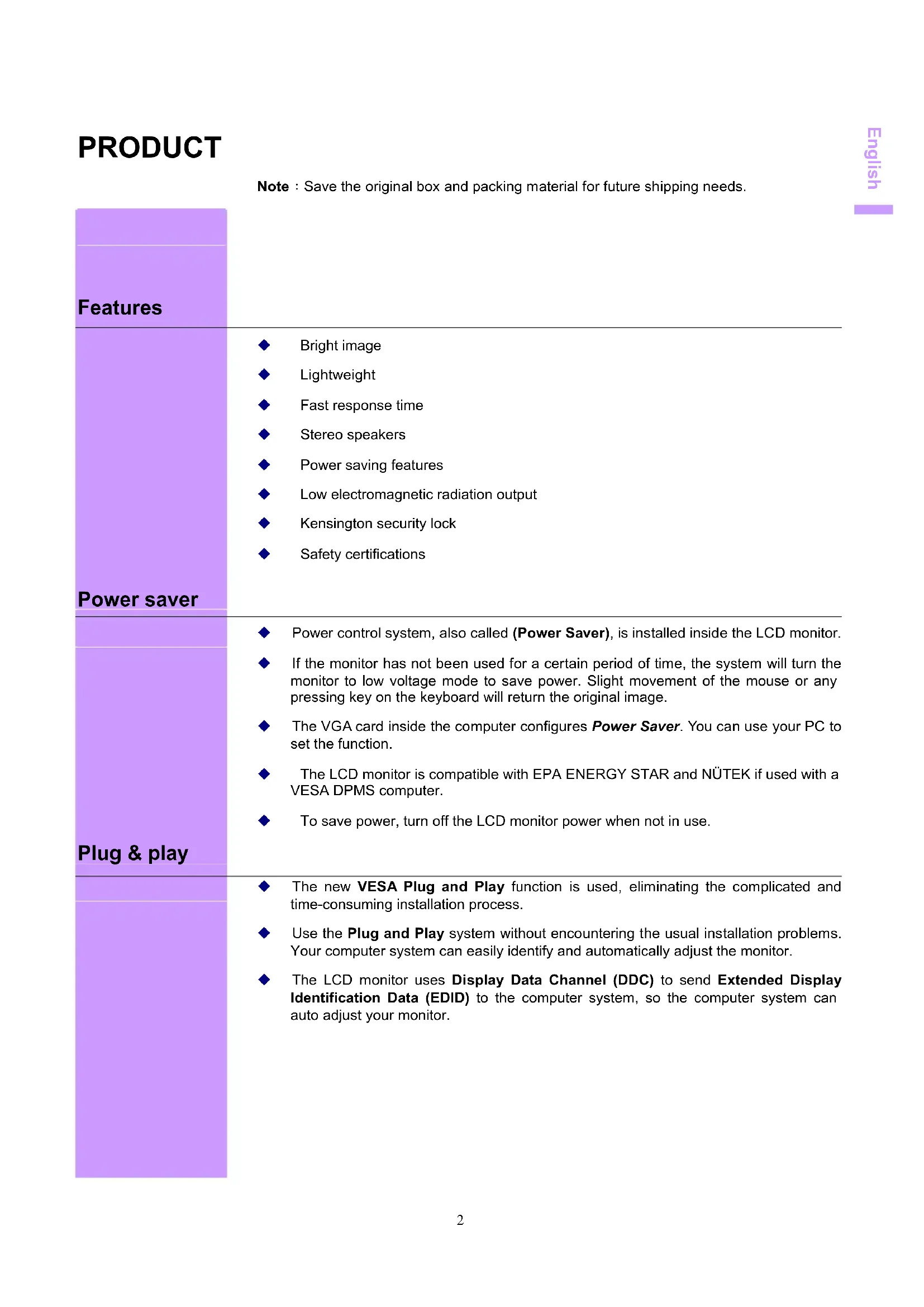

PRODUCT

Note: Save the original box and packing material for future shipping needs.

Features

Bright image
Lightweight
Fast response time
Stereo speakers
Power saving features
Low electromagnetic radiation output
Kensington security lock
Safety certifications

Power saver

Power control system, also called (Power Saver), is installed inside the LCD monitor.
If the monitor has not been used for a certain period of time, the system will turn the monitor to low voltage mode to save power. Slight movement of the mouse or any pressing key on the keyboard will return the original image.
The VGA card inside the computer configures Power Saver. You can use your PC to set the function.
The LCD monitor is compatible with EPA ENERGY STAR and NUTEK if used with a VESA DPMS computer.
To save power, turn off the LCD monitor power when not in use.

Plug & play

The new VESA Plug and Play function is used, eliminating the complicated and time-consuming installation process.
Use the Plug and Play system without encountering the usual installation problems. Your computer system can easily identify and automatically adjust the monitor.
The LCD monitor uses Display Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer system, so the computer system can auto adjust your monitor.

SAFETY

Note: Note the following safety precautions before using this monitor.

Electrical

Check the Voltage

Electrical Shock

Unusual conditions

This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
This product is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.
To prevent electrical shock, do not insert any metal object into any opening in the LCD monitor casing.
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
If the power cord is damaged, do not use the LCD monitor. Do not place any object on the power cord, and place the power cord away from crowded areas.
While pulling the LCD monitor plug away from the socket on the wall, hold the plug not the power cord.
Do not expose the LCD monitor to rain and do not use in environments near water (such as in the kitchen, or near a swimming pool).
If the LCD monitor becomes wet, unplug the power cord immediately and contact a Service Center.
If the LCD monitor begins to perform abnormally, makes a noise, or emits smoke or odors, unplug it immediately and contact a service center.

Common

Monitor and Screen Care

Avoid touching the screen with your fingers or any hard objects. Oil from the skin is difficult to remove, and touching the screen with anything may damage the panel. Clean the monitor using a soft, dry cloth after first turning it off.
The LCD monitor should not be used in dusty or humid environments.
The LCD monitor should be kept away from heat sources and radiation. Such as: stoves, ovens, or direct sunlight.
To reduce glare, avoid placing the monitor in a place that receives direct sunlight.
Avoid letting small children play with monitor. Frequent touching of the panel will leave marks on the screen and lower the image quality.
Handle with care when unplugging and moving the monitor.
Do not place items on top of the LCD monitor.
If the LCD monitor is not in use for a long time, unplug it and store it in the proper package. The original carton and packaging should be used if possible.
The openings in the LCD monitor casing are for ventilation. To prevent overheating, the openings should not be blocked or covered. Do not place the LCD monitor on a bed, sofa, blanket or other soft surfaces; as soft objects may block the vents in the LCD monitor.
If you place the LCD monitor on a bookshelf or other enclosed space, it is essential to leave an air-space of 4-inches (10cm) between the monitor and the enclosure.
Ensure that the area around the LCD monitor is clean and free of moisture. Please refer to "Maintenance" for normal maintenance information.

Cleaning the screen

SET UP YOUR LCD MONITOR

Installation	Note: Read the last section "Safety" before you install the LCD monitor.
Notes	Note the instructions below prior to installing your LCD monitor.
Installation Position	◆ For the best image quality, choose a position away from any windows to minimize reflection of light on the panel. ◆ It is important to view the LCD monitor from at least 30 cm to minimize eyestrain. ◆ Position the LCD monitor slightly above your horizontal vision. ◆ Tilt the LCD monitor either forward or backward for the most comfortable viewing angle. ◆ This LCD monitor supports connection to a personal computer or workstation. The steps are described as Quick Setup. ◆ After installation, refer to "Auto Adjust" for automatic adjustment procedures.
Workstation Height
Angle of Vision
Quick Installation
Screen Adjustments
Auto Adjust	Though your computer system can automatically identify the new LCD monitor system, the Auto Adjust function can enhance the display. To enter adjust mode, refer to "OSD Control". ◆ Turn the computer and LCD monitor on. ◆ Press the 'Auto' button to start Auto Adjust. ◆ The LCD monitor starts the Auto Adjust process. The process will continue for 10 seconds. You will notice the image change as the Auto Adjust is working. ◆ Your LCD monitor provides a STFC function, through which you can check whether the LCD monitor is working properly. ◆ If your LCD monitor is properly connected, but there is no image showing and the indicator light remains orange, follow these steps to start STFC. □ Shutdown computer and LCD monitor. □ Unplug the signal connector from the back of computer. □ Turn the LCD monitor on. ◆ If the image connector is disconnected or damaged, the following message will appear during normal operation. No Signal Input □ Turn off the LCD monitor and reconnect the signal cable. Turn the computer and LCD monitor on. ◆ If the LED on the LCD monitor remains orange after completing the steps above, check your VGA card, cable, and computer system. Your monitor should be operating properly.
Self Test Function Check (STFC):

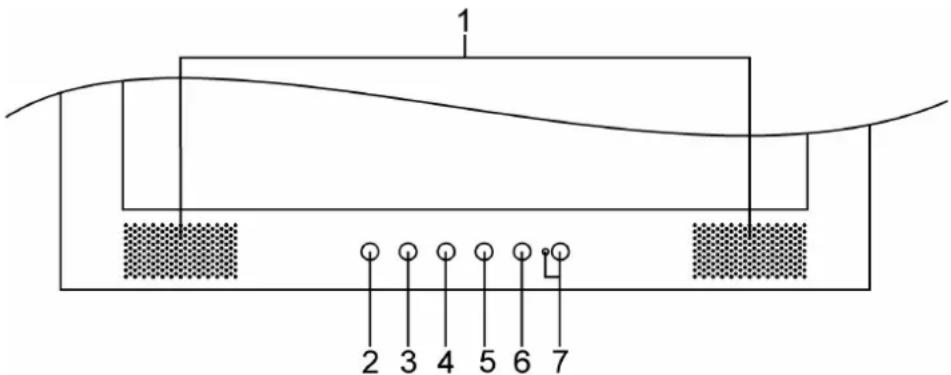

Keypad Button Definition

1	Speakers Audio	output.
2	Turbo/▲	• Switch between picture, text and economy modes. • Move selection up when OSD is displayed.
3	Auto/▼	• Automatically optimize positions, phase, and clock when OSD is not displayed. • Move selection down when OSD is displayed.
4 /▲	○	• Quick contrast adjustment and decrease contrast/brightness. • Move selection left when OSD is displayed.
5	▲/▲	• Quick brightness adjustment and increase contrast/brightness. • Move selection right when OSD is displayed.
6	□	Enter and exit the OSD menu.
7	Power On/Off button and indicator LED. ○	Green: Normal. Orange: Power Saving. Off: Power Off.

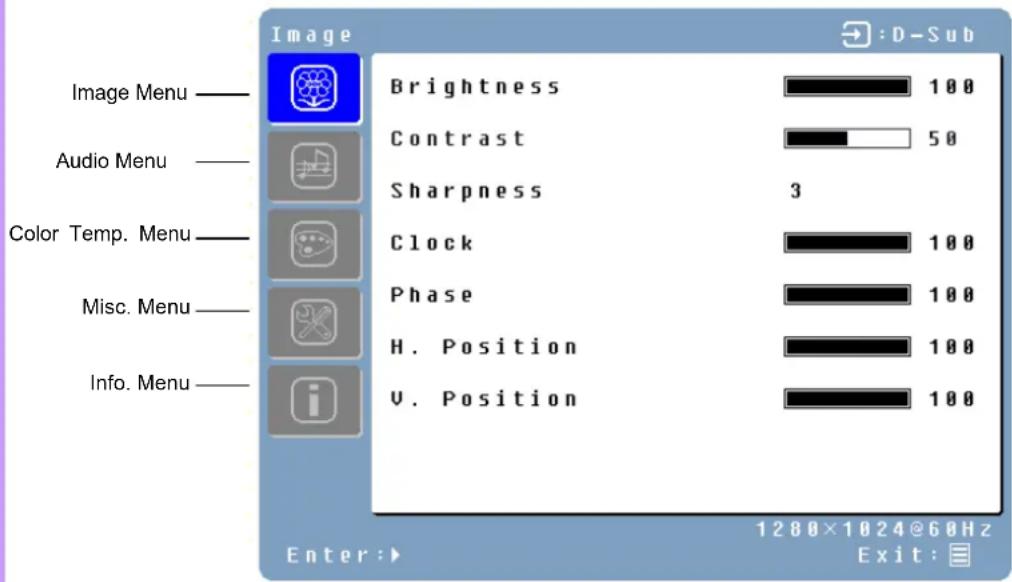

Operation

Your LCD monitor has been adjusted to its optimal settings before shipment. You can also adjust the image using the following illustrations and steps.

Press the "Menu" button to display the OSD.
Press the or button to select the function to be adjusted.
Press the button to access the function to be adjusted.
Press the or buttons to change the current setting of the function.
To go back to the previous menu, press the button. Changes are saved automatically.
To exit the OSD menu press "Menu" again.

Notes

The OSD turns off several seconds after you stop pressing the buttons while performing an adjustment.
Any changes are automatically saved in memory when the OSD turns off. Turning off the power should be avoided while using the menu.
Adjustments for clock, phase and positions are saved for each individual signal timing. Except for these adjustments, all other adjustments have only one setting, which applies to all signal timings.
To select function, click the blue cursor on the desired option.

Function Definition

Primary Menu	Secondary Menu	Description
Image	Brightness	Adjust the brightness of the screen.
	Contrast	Adjust the contrast of the image.
	Sharpness	Adjust the picture sharpness of low resolution pictures.
	Clock	Adjust the monitor clock. (Optional)
	Phase	Adjust the monitor phase. (Optional)
	H.	MPosifirimage left or right on the screen. (Optional)
	V.	MPosifirimage up or down on the screen. (Optional)
Audio Mute	Volume	Adjust the volume of the audio.
		Disable the audio.
Color	Color	telaep/9300K/7500K/6500K/sRGB
	Red	Adjust red color.
	Green	Adjust green color.
	Blue	Adjust blue color.
Misc	Language	English, Français, Deutsch, Espanol, Italiano, 日本語, Yüssenk, 素習[, 简体[, , 法国]
	OSD time-out	Adjust OSD display time setting.
	OSD position	Move OSD display position to any one of the following 5 positions within the overall screen.
	Reset	Restore LCD monitor to factory settings.
	Input Select	Analog / Digital
	Auto setting	Adjust clock, phase and positions automatically. (Optional)
	CM Engine	Color Management Engine. (Optional)
Info	Resolution	Displays resolution.
	Horizontal frequency	Displays horizontal frequency.
	Vertical frequency	Displays vertical frequency.
	Version	Displays firmware version.

Quick Adjustment

You can skip the Menu pages and display an adjustment scale directly by using the following button operations:

Brightness: Press the Brightness button when the Menu is not displayed.
Contrast: Press the Contrast button when the Menu is not displayed.
Auto Setting: Press the Auto button when the Menu is not displayed.
Turbo: Press the Turbo button when the Menu is not displayed to switch between picture modes.

Picture Mode - High brightness
Text Mode - Normal
Economy Mode - Brightness of back-light is reduced
Changing to a lower brightness mode can lessen eye fatigue.
Change from Picture Mode to Text Mode when working with text.
Change from Text Mode to Economy Modes when viewing the screen for long periods.

TROUBLE SHOOTING

	Check the information in this section to see if problems can be solved before requesting repair. Note: Users should only attempt to solve the problems described below. Any unauthorized product modification, or failure to follow instructions supplied with the product, will void the warranty immediately.
No image	◆ Make sure power is ON. ◆ Check whether the LCD monitor and computer power cords are plugged in and whether there is power. ◆ Check the signal connection between the computer and LCD monitor.
No Signal Input
“Out Of Range”	◆ Check the computer image output resolution and frequency and compare the value with the preset values. ◆ Perform Auto Adjust, or adjust clock and phase. ◆ Adjust brightness and contrast using OSD.
Fuzzy image
Image too bright
Image too dark
Irregular image	◆ Check the signal connection between the computer and LCD monitor. ◆ Perform Auto Adjust.
Distorted image	◆ Reset the LCD monitor. (perform the “Reset” function using OSD) ◆ Remove extra accessories (such as signal extension cord).
Image is not centered	◆ Use OSD Image Menu to adjust H. Position and V. Position.
Size is not appropriate	◆ Check image size setting. ◆ Perform Auto Adjust.
Uneven color	◆ Use OSD Color Menu to adjust color setting.
Color too dark
Dark area distorted
White color is not white
Can’t adjust the LCD monitor with the buttons on the front panel.	◆ Contact the store where you purchased the unit or service center listed on your warranty card.
Can’t display the LCD monitor with resolution 1680x1050	◆ Please download the video card driver from websites below: Nvidia : http://www.nvidia.com/content/drivers/drivers.asp Intel : http://downloadfinder.intel.com/scripts-df/support_intel.asp ATI : https://support ATI.com/ics/support/default.asp ◆ Video chips below support the resolution 1680x1050: Geforce4 Ti4200 , Geforce FX5200 , Geforce PCX6200 , ATI Radeon 9600 , ATI RadeonRX300 Matrox P750 , Nvidia Geforce2 , I865G , I915G ◆ At least 16MB video memory required for the graphic card.

MAINTENANCE

This product has undergone strict quality control during the production process. For maintenance of the LCD monitor, refer to the information below. Maintenance is important for maximizing the display performance and product life.

Warning: To prevent electrical shock, do not open the LCD monitor casing. Users should not attempt to repair the LCD monitor on their own. User maintenance is limited to the procedures listed below.

Unplug the power

Check the cover

Clean

Cleaner

Screen

Case

Accessory

Conserve

Disclaimer

Unplug the LCD monitor from the AC socket before conducting maintenance.
Check to see if the LCD monitor and accessories are damaged or broken..
Never spray or pour any liquid directly onto the screen or case.
Do not allow water or liquid to enter the LCD monitor or accessories.

Use pure water or non-ammonia, non-alcohol based glass cleaner.
- Do not use ketene (such as acetone), ethanol, toluene, acetic acid, methane, chloride, or abrasive detergent to clean the monitor because these chemicals can damage the LCD monitor.
To clean your LCD monitor screen, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.
□ If possible, use a special screen cleaner sheet or a solution suitable for static electricity application.
To clean your LCD monitor case, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.
To clean your accessories, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.

If the LCD monitor is not in use for a long time, please unplug and store in the original box in order to avoid any unexpected damage.
Any damage resulting from use of any cleaner that is not mentioned above is not covered under this warranty term.

DISPLAY MODE

Incoming Display Mode

Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
640×480 31.47 59.94
640×480 37.86 72.81
640×480 37.50 75.00
800×600 35.16 56.25
800×600 37.88 60.32
800×600 48.08 72.19
800×600 46.88 75.00
1024×768 48.36 60.00
1024×768 56.48 70.07
1024×768 60.02 75.03
1152×864 67.50 75.00
1280×1024 63.98 60.02
1280×1024 79.98 75.03
1440×900 55.94 59.89
1440×900 70.64 74.98
1680×1050 65.29 59.95

1. We offer you 16 available modes compatible with Windows.
2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.
3. To have Best quality present on the PC, remember to upgrade your video card Driver. We strongly recommend you to choose a Model listed in the table.
4. The other Modes may not be supported that are not list on the table above
5. You may use the power management on your computer. It's good for last service life of the product.

SPECIFICATION

LCD Panel	Type	22" TFT Active Matrix LCD Display
	Viewing Angle	H:170°, V:160°
	Contrast Ratio	700:1 (Typical
	Brightness	280cd/m² (Typical)
	Response Time(Tr+Tf)	5ms
	Display Colors	16.2M colors
	Max Resolution	1680X1050(WSXGA)
	Pixel Pitch	0.282mm(H)x0.282mm(V)
Input Signals	VGA	VGA compatible analog RGB Composite sync supported
	DVI	DDWG compliant Single Link TMDS Digital Visual
		Interface (DVI)
Compatibility	PC Up	to 1680X1050@60Hz(Non-interlaced)
Connector	VGA	D-sub 15-pins
	DVI	DVI-D
	Audio	Stereo Phone Jack
	Power	A/C Input
Power	Voltage	Built-in universal power supply: 100-240 VAC, 50/60 Hz
	Consumption	Active < 48 Watt (typ.)
	Power saving mode	Standby < 1 Watt
Internal Speaker		Speaker x 2
User Interface	LED Indicator Active	- Green
		Standby - Orange
Operating Condition	Temperature	Operating:5°C to 40°C
	Humidity	20% ~ 80% R.H.
Dimensions	Physical	532mm(W) x 401.5mm(H) x 244mm(D)
Net Weight		5.4 Kg
Tilt Angle		0° dip and 20° elevation
DDC	DDC2B
Power Management	VESA DPMS
Regulation (Certifications)		UL/CUL, FCC, CE, BSMI

目录

产品 2

功能 2

省电装置 2

即插即用 2

安全 3

电气 3

一般问题 4

设定您的LCD显示器 5

安装 5

屏幕调整 5

OSD控制 6

说明 8

故障排除 9

产品保养 10

支援显示模式 11

产品规格表 12

产品

1. We offer you 16 available modes compatible with Windows.
2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.
3. To have Best quality present on the PC, remember to upgrade your video card Driver. We strongly recommend you to choose a Mode listed in the table.
4. The other Modes may not be supported that are not list on the table above
5. You may use the power management on your computer. It's good for last service life of the product.

Spezifikationen
