GB ORIGINAL INSTRUCTIONS Electrical Hedge Trimmer 550W PE-EHS 5560

MNL_PE-EHS 5560_V02

Pattfield ERGO TOOLS

Pattfield ERGO TOOLS

Vi tackar for att Ni har kopt ett verktyg av vart marke Pattfeld. Vi ar overtygade om, att det har verktygetkommen att overtraffa Era forvantninger pa spetskvalitet och tillforlitliget. Vi ber att Ntar Er tid, att la saigenom den har bruskanvisingen noga innan Ni boorjar anvanda det har verktyget.Beakta de grundlaggande drifts- och sakerhetsforeskrifterna
CZ Dekujeme Vam, ze jste si koupili stroj nazi znacky Pattfeld. Jsme si jisti, ze tento stroj svou spickovou kvalitou a spolehlivosti prekona Vase ocekavani. Prid pouzitim sekacky na travo si peclive piectete navod k pouziti. Dodrzujte zakladni provozni a bezpecnostni prdepisy.
SK Dakujeme vam za kupu naradia nasej znacky Pattfeld. Sme presvedceni, ze toto naradie predci vase očakávania ohladom spickovej kvality a spolahivosti. Pred použivanim naradia si vyhradte pár minut casu a precitajte si dokladne nasledovné námod na obsluhu. Dbajte na základné prevadzkové a bezpečnostné predpisy.
RO Vamultumim pentru achizia unui utilaj din gama noastra Pattfeld. Suntem convisi de faptul ca acestutilay va depasi asteptarile dumneavoastravivind calitateasa fiabilitatea.Va rugam sa vafaceli tamppentru aciti cu atentie aceste instruioni deutilizare, inaintede a puneutilajulinfunciune.Va rugam sarespecta instruetionile de bazaprivindutilizarea siguranata.
Thank you for buying a tool of our brand Pattfeld ®. We are convinced that this tool will exceed your expectations of top quality and reliability. Please take your time to read these operating instructions before putting the tool into operation. Please note the basic operating and safety regulations.

Pattfield

ERGO TOOLS

Pattfield

ERGO TOOLS

Pattfield

ERGO TOOLS

D Inhalt

I - Parts list 02
II - Technical data 04

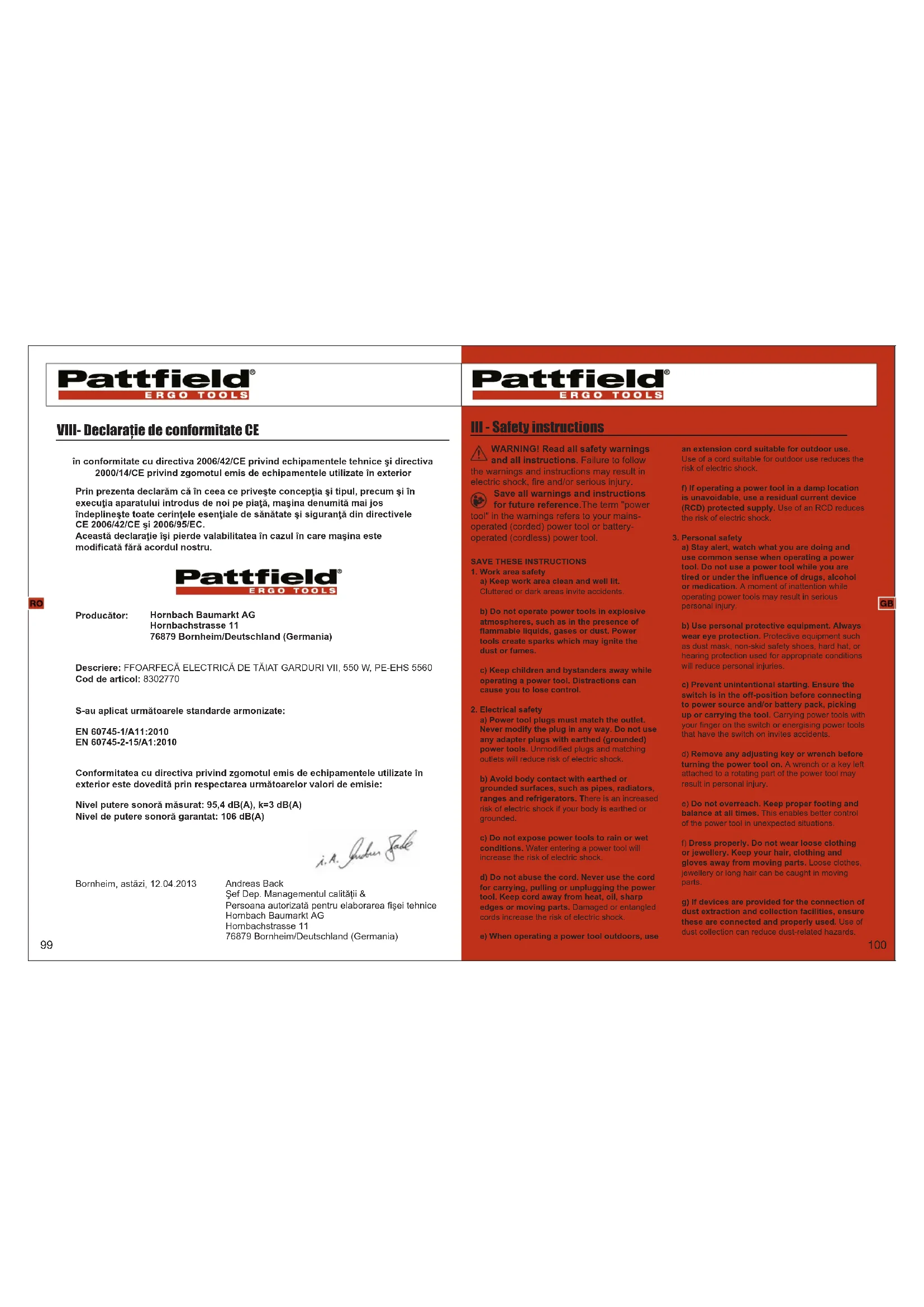

III - Safety instructions 06
IV-Before use 09
V - Operating instructions 10
VI - Maintenance and repair 11
VII - Guarantee 12
VIII - Declaration of conformity 13

Pattfield

ERGO TOOLS

Dl-Teileliste

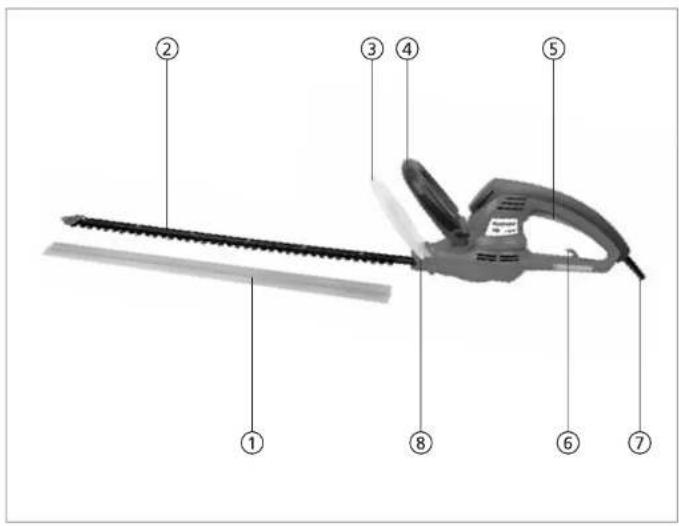

1. Blade protection sheath
2. Cutting blade
3. Safety guard
4. Front handle with safety switch
5. Rear handle with ON/OFF switch
6. Cable hook
7. Main cable with plug
8. Fixed guard screw (X2)

Pattfield

ERGO TOOLS

D

Rated voltage:	220-240V- 50/60Hz
Rated Power:	550W
No-load speed:	1600/min
Max. cutting capacity:	20 mm
Max. cutter length:	600 mm
Cutting blade type:	laser blade
Net weight:	2.8 kg
Measured sound pressure level:	79.6 dB(A), k=3 dB(A)
Measured weight sound power level:	95.4 dB(A), K=3 dB(A)
Guaranteed sound power level:	106 dB(A)
Vibration:	3.307m/s², K=1.5m/s²

The declared vibration value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration value may also be used in a preliminary assessment of exposure.

WARNING! The vibration emission value during actual use of the tool can differ from the declared value depending on the ways in which the tool is used. Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

The sound intensity level for the operator may exceed 85dB(A) and ear protection measures are necessary
