USER MANUAL PEAHS 18 Li Pattfield

Pattfield ERGO TOOLS

GB Translation of the Original Instructions Cordless hedge trimmer 18 V

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 1

PE-AHS 18 Li

Pattfield

ERGO TOOLS

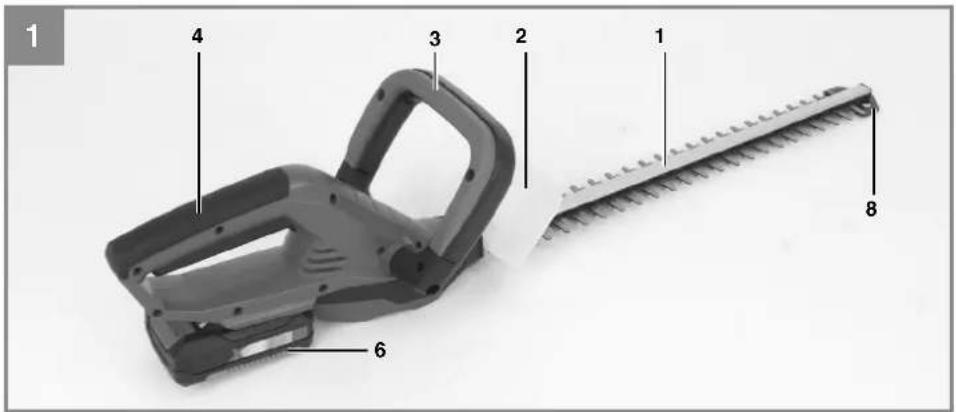

Pattfield PEAHS 18 Li - Pattfield - 1

Pattfield PEAHS 18 Li - Pattfield - 2

Pattfield PEAHS 18 Li - Pattfield - 3

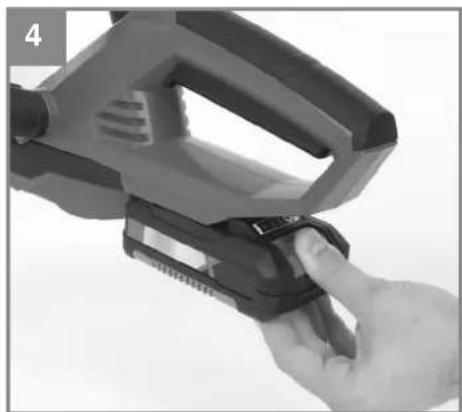

Pattfield PEAHS 18 Li - Pattfield - 4
-2-

Pattfield ERGO TOOLS

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 1

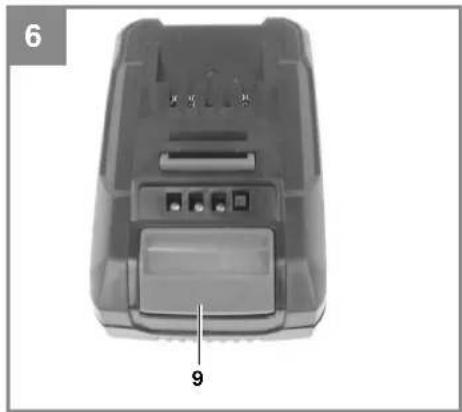

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 2

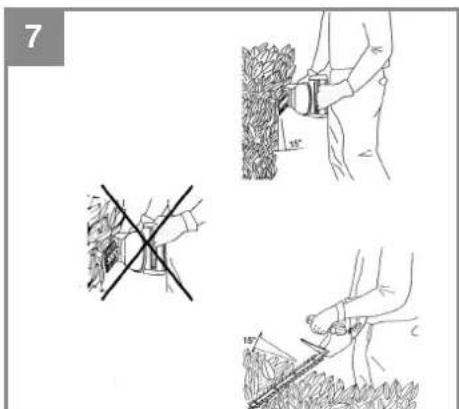

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 3

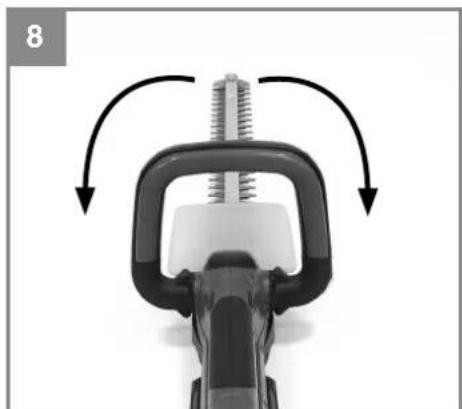

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 4

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 5

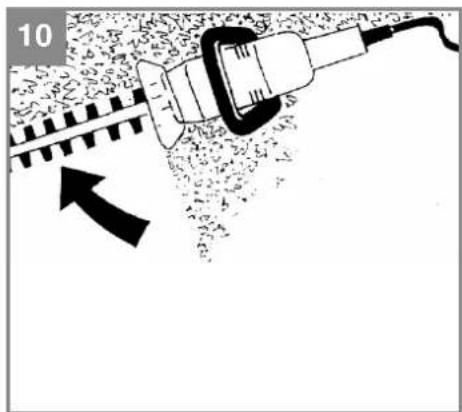

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 6

Pattfield

ERGO TOOLS

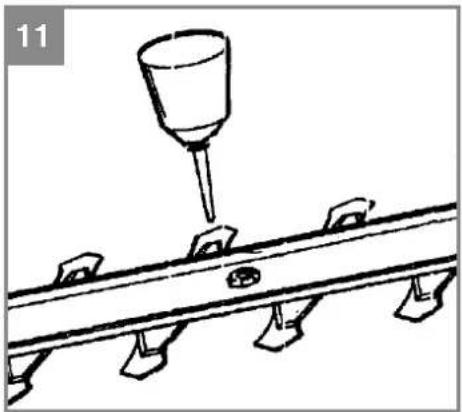

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 7

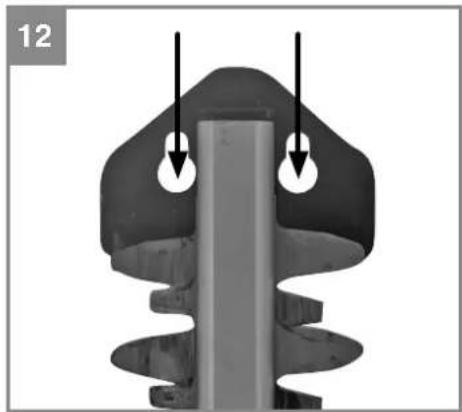

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 8

-4-

Pattfield ERGO TOOLS

Inhaltsverzeichnis

Pattfield ERGO TOOLS

Gefahr!

Pattfield ERGO TOOLS

6. Service

Pattfield ERGO TOOLS

4. Technische Daten

Schwertlange 520 mm

Schnittlange 460 mm

Zahnabstand 15 mm

Pattfield ERGO TOOLS

Sommaire

Pattfield ERGO TOOLS

Danger!

Pattfield ERGO TOOLS

blessures.

Pattfield ERGO TOOLS

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 1

Pattfield ERGO TOOLS

Chere cliente, cher client,

Pattfield ERGO TOOLS

#

Pattfield ERGO TOOLS

Pericolo!

Pattfield ERGO TOOLS

battery.

Pattfield ERGO TOOLS

Inhoudsopgave

Pattfield ERGO TOOLS

Gevaar!

Pattfield ERGO TOOLS

6. Service

Pattfield ERGO TOOLS

buiten waarneemt.

Pattfield ERGO TOOLS

horen.

Pattfield ERGO TOOLS

Gevaar!

Pattfield ERGO TOOLS

Fara!

Pattfield ERGO TOOLS

4. Tekniska data

Svärdlängd. 520mm

Snittländg 460 mm

Tandavstand 15 mm

Klippkapacitet max. 11 mm

Snitt/min. 2200

Pattfield ERGO TOOLS

8. Störningar

Maskinen startup inte:

EMC-directivet 2004/108/EC

Pattfield ERGO TOOLS

Obsah

Pattfield ERGO TOOLS

Nebezpečí!

Pattfield ERGO TOOLS

Pri transportu nebo ulozeni nuzek na zive ploty vzdy nasadte ochranny kryt. Peclive zachazenis pristrojem snizuje nebezpeci zraneni nozem.

Pattfield ERGO TOOLS

4. Technická data

Délka listy 520 mm

Délka rezu 460 mm

Pattfield ERGO TOOLS

8. Poruchy

Přístroj nefunguje:

Pattfield ERGO TOOLS

skody pri preprave), pouzivanim nasilnebo cizim pusobenim (jako napr. skody zpusobene padem).

Pattfield ERGO TOOLS

Obsah

Pattfield ERGO TOOLS

Nebezpečenstvo!

Pattfield ERGO TOOLS

6. Servis

Pokyny k akumulatoru

Pattfield ERGO TOOLS

znatel'ne prehriatie.

9. Zabrante poskodeniam a nárazom!

Pattfield ERGO TOOLS

dní v nabijačke.

Pattfield ERGO TOOLS

nahrad'te.

Pattfield ERGO TOOLS

Nebezpečenstvo!

Pattfield ERGO TOOLS

4. Technické udaje

DlZka liSty 520 mm

DlZka strihania 460 mm

Odstup zubov 15 mm

Sila strihania max. 11 mm

Početrezov/min 2200

Cas nabijania cca 0,5 h

Pattfield ERGO TOOLS

Poças nabijaniamöze dojst'k ciastocnému zohriatiu akumuláhora.To je však normalne.

Pattfield ERGO TOOLS

8. Poruchy

Prístroj nebeží:

Pattfield ERGO TOOLS

Cuprins

Pattfield ERGO TOOLS

Pericol!

Pattfield ERGO TOOLS

f) Daca utilizesa sculei electric in mediu umed este inevitabilita, folosi un intrerupator de protecie impotrivacurrentilor vagabonzi. Utilizarea unui intrerupator de protecie impotrivacurrentilor vagabonzi reduce riscul unui soc electric.

3. Siguranta personelor

Pattfield ERGO TOOLS

supraíncálzire Şi deteriorarea celulelor. Nu incárcaşi nu lucrati niciodata cu acumuloare care au fost supraíncálzite - inlocui-te imediat.

Pattfield ERGO TOOLS

4. Date tehnice

Pattfield ERGO TOOLS

8. Defectiuni

Aparatul nu fonctioneaza:

Pattfield ERGO TOOLS

Stimata clienta, stimate client,

Pattfield ERGO TOOLS

Safety regulations

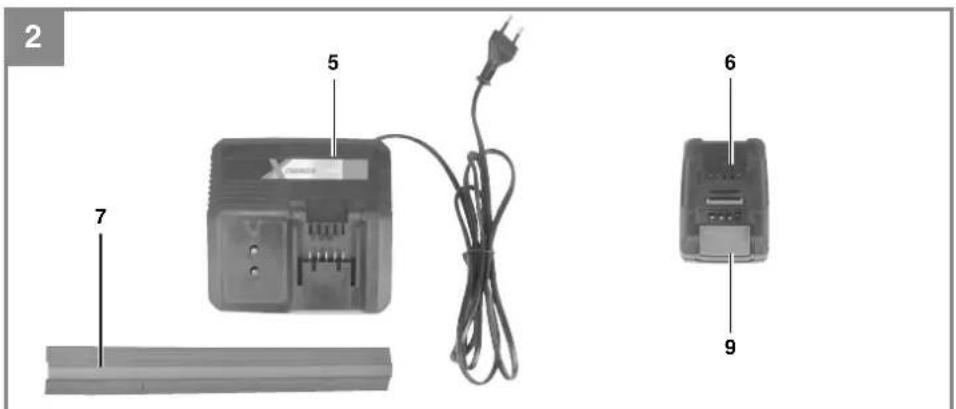

Layout and items supplied
Proper use
Technical data
Before starting the equipment
Operation
Care and maintenance
Faults
Charger indicator
Disposal
EC Declaration of Conformity
Warranty certificate

Pattfield ERGO TOOLS

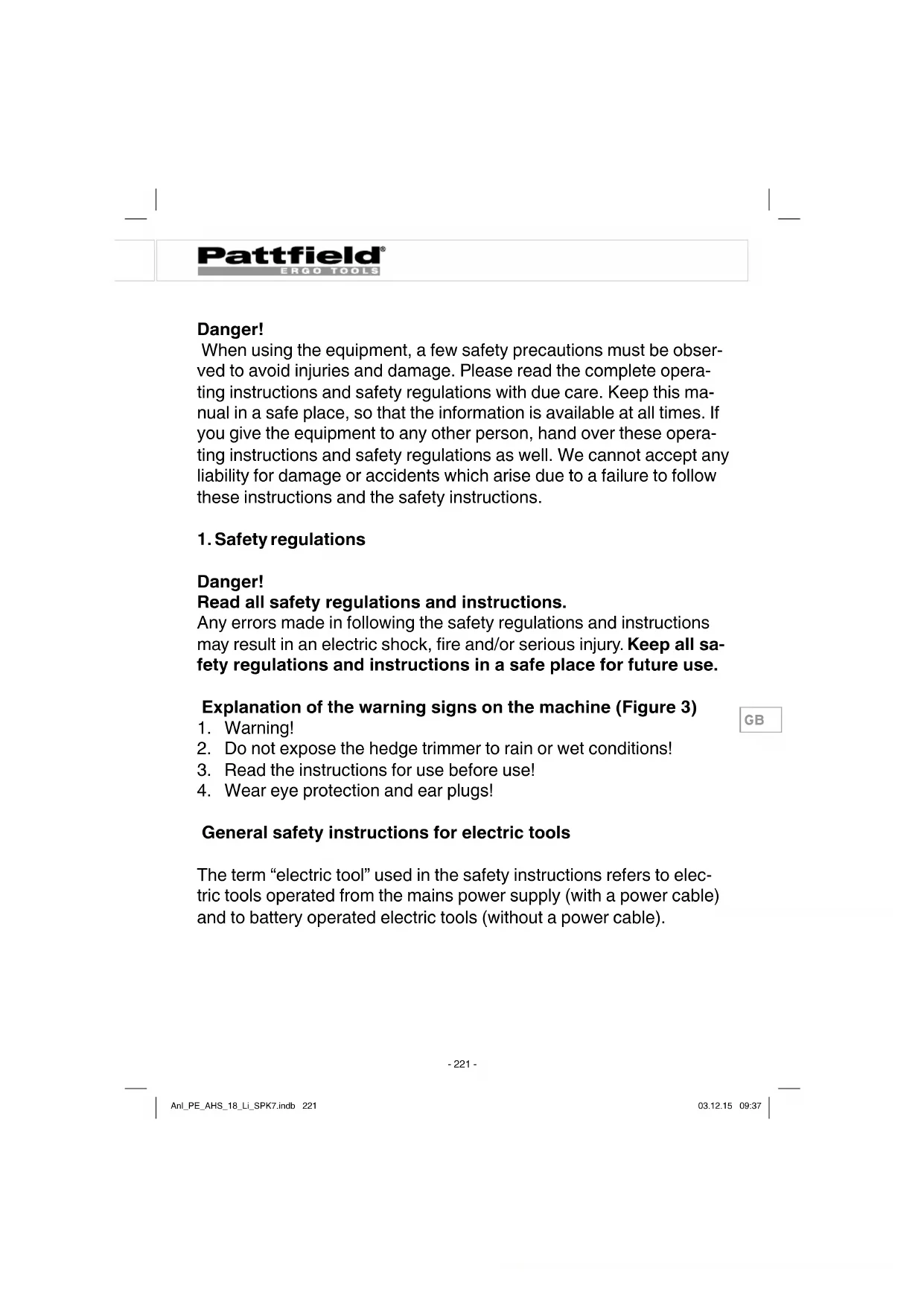

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

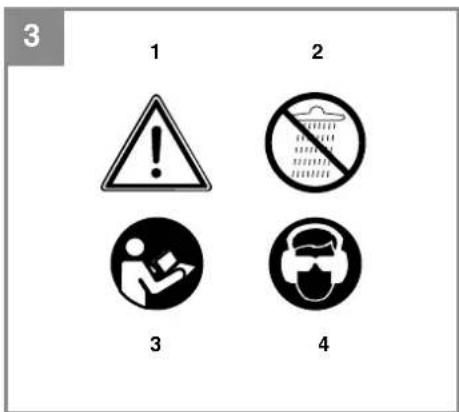

Explanation of the warning signs on the machine (Figure 3)

Warning!
Do not expose the hedge trimmer to rain or wet conditions!
Read the instructions for use before use!
Wear eye protection and ear plugs!

General safety instructions for electric tools

The term "electric tool" used in the safety instructions refers to electric tools operated from the mains power supply (with a power cable) and to battery operated electric tools (without a power cable).

Pattfield ERGO TOOLS

1.Workplace safety

a) Keep your work area clean and well illuminated. Untidy or unlit work areas can result in accidents.
b) Do not operate the electric tool in an environment where there is a risk of explosions and where there are infl ammable liquids, gases or dust. Electric tools produce sparks which could set the dust or vapours alight.
c) Keep the electric tool out of the reach of children and other persons. If there is a distraction, you may lose control of the appliance.

2. Electrical safety

a) The connector plug from this electric tool must fit into the socket. The plug should never be altered in any way. Never use adapter plugs together with earthed electric tools. Un-altered plugs and correct sockets reduce the risk of an electric shock.
b) Avoid bodily contact with earthed surfaces such as pipes, heating, ovens and fridges. The risk of electric shock is increased if your body is earthed.
c) Keep the tool out of the rain and away from moisture. The ingress of water into an electric tool increases the risk of an electric shock.
d) Do not use the cable to carry the electric tool, to hang it up or to pull it out of the socket. Keep the cable away from heat, oil, sharp edges and moving parts of the appliance. Damaged or entangled cables increase the risk of an electric shock.
e) If you are working outdoors with an electric tool, only use extension cables which are designed specifi cally for this purpose. Using specially designed outdoor extension cables, the risk of electric shock is reduced.
f) If operation of the electric tool in a damp environment cannot be avoided, use a earth-leakage circuit-breaker. The earth-leakage circuit-breaker reduces the risk of an electric shock.

3. Safety of persons

a) Be careful, watch what you are doing and use an electric tool sensibly. Do not use the tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using the electric tool can result in serious injuries.
b) Wear personal protection equipment and always wear safety goggles. Wearing personal protection (such as dust masks, non-slip safety shoes, safety helmet or ear protection, depending upon the type and use of the electric tool) reduces the risk of injury.
c) Make sure that the appliance cannot start up accidentally. Ensure that the electric tool is switched off before you connect it to the power supply and/or insert the battery, or pick up or carry the tool. If your finger is on the switch whilst carrying the electric tool or if you connect the appliance to the mains when it is switched on, this can lead to accidents.
d) Remove keys and wrenches before switching on the electric tool. A tool or key which comes into contact with rotating parts of the appliance can lead to injuries.
e) Avoid abnormal working postures. Make sure you stand squarely and keep your balance at all times. In this way, you can control the electric tool better in unexpected circumstances.
f) Wear suitable work clothes. Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair can get trapped in moving parts.
g) If vacuuming devices and draining devices can be fitted, make sure that these are correctly attached and correctly used. The use of a dust extraction system can reduce the danger posed by dust.

Pattfield ERGO TOOLS

Usage and treatment of the electric tool

a) Do not overload the appliance. Use the correct tool for your work. You will be able to work better and more safely within the given performance boundaries.
b) Do not use an electric tool with a defective switch. An electric tool that cannot be switched on or off is dangerous and must be repaired.
c) Pull the plug out of the socket and/or remove the battery before making any adjustments to the appliance, changing accessories or putting the appliance down. This safety measure prevents starting the electric tool unintentionally.
d) Keep unused electric tools out of the reach of children. Do not allow people who are not familiar with the appliance or who have not read these instructions to use the appliance. Electric tools are dangerous if they are used by inexperienced people.
e) Clean your electric tool carefully. Check whether moving parts are functioning properly and not jamming, whether parts are broken or damaged enough that the functioning of this electric tool is affected. Have damaged parts repaired before using the appliance. Many accidents are caused by badly maintained electric tools.
f) Keep your cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges will jam less and are easier to control.
g) Make sure to use electric tools, accessories, attachments, etc. in accordance with these instructions. Take the conditions in your work area and the job in hand into account.

Using electric tools for any purpose other than the one for which they are intended can lead to dangerous situations.

Using and handling the cordless tool

a) Only charge the batteries in chargers that are recommended by the manufacturer. A charger that is designed for a certain type of battery may pose a fire risk if it is used with other types of battery.
b) Use only the correct batteries in the electric tools. The use of other batteries may result in injuries and a fire risk.
c) Keep unused batteries away from paper clips, coins, keys, nails, screws and other metallic objects that could cause a short circuit between the contacts. A short circuit between the battery contacts may cause burns or a fire.
d) In case of incorrect use, fluid may escape from the battery. Avoid contact with it. If you touch it by accident, rinse the affected area with water. If you get the fluid in your eyes, also seek medical advice. Leaking battery fluid can cause skin irritation or burns.

Service

a) Have your electric tool repaired only by trained personnel using only genuine spare parts. This will ensure that your electric tool remains safe to use.

Safety information for hedge trimmers:

Make sure you keep all parts of your body away from the blades. Never attempt to remove cuttings with the blade running or to hold material you want to cut. Always switch off the equipment before attempting to remove any jammed cuttings. A single moment of carelessness when using the hedge trimmer can result in serious injuries.
Carry the hedge trimmer by its handle and make sure the blades have stopped. Always fit the protective cover when transporting the hedge trimmer or putting it into storage. Careful handling of the equipment reduces the likelihood of injury by the blades.

Pattfield ERGO TOOLS

Hold the power tool only by the insulated handles because the blade may strike concealed power cables. Contact between the blade and a live cable can make the metal parts of the equipment live and cause an electric shock.

Additional safety instructions

We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries which feature maximum power density, durability and safety. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data are then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use.

Safe use can only be guaranteed if undamaged cells are used. Incorrect handling can cause cell damage.

Important: Analyses confirm that incorrect use and poor care are the main causes of the damage caused by high performance batteries.

Information about the battery

The battery pack supplied with your cordless tool is not charged. The battery pack has to be charged before you use the tool for the first time.
For optimum battery performance avoid low discharge cycles. Charge the battery pack frequently.
Store the battery pack in a cool place, ideally at 15^ and charged to at least 40% .
Lithium-ion batteries are subject to a natural ageing process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power re

Pattfield ERGO TOOLS

requirements and therefore pose a safety risk.

Do not throw battery packs into an open fire. There is a risk of explosion!
Do not ignite the battery pack or expose it to fire.
Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partly discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after it has been fully charged.
Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside the battery housing without this overheating actually being apparent externally.
Avoid damage and shocks. Replace batteries which have been dropped from a height of more than one meter or which have been exposed to violent shocks without delay, even if the housing of the battery pack appears to be undamaged. The battery cells inside the battery may have suffered serious damage. In this respect, please also read the waste disposal information.
If the battery pack suffers overloading and overheating, the integrated protective cut-off will switch off the equipment for safety reasons. Important. Do not press the ON/OFF switch any more if the protective cut-off has actuated. This may damage the battery pack.
Use only original battery packs. The use of other batteries may result in injuries, explosion and a fire risk.

Information on chargers and the charging process

Please check the data marked on the rating plate of the battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a different mains voltage.

Pattfield ERGO TOOLS

Protect the battery charger and its cable from damage and sharp edges. Have damaged cables repaired without delay by a qualified electrician.
Keep the battery charger, batteries and the cordless tool out of children's reach.
Do not use damaged battery chargers.
Do not use the supplied battery charger to charge other cordless tools.
In heavy use the battery pack will become warm. Allow the battery pack to cool to room temperature before commencing with the charging.
Do not over-charge batteries. Do not exceed the maximum charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partly charged battery pack will result in over-charging and cell damage. Do not leave batteries in the charger for days on end.
Never use or charge batteries if you suspect that the last time they were charged was more than 12 months previously. There is a high probability that the battery pack has already suffered dangerous damage (exhaustive discharge).
Charging batteries at a temperature below 10^ will cause chemical damage to the cell and may cause a fire.
Do not use batteries which have heated during the charging process, as the battery cells may have suffered dangerous damage.
Do not use batteries which have suffered curvature or deformation during the charging process or which show other non-typical symptoms (gassing, hissing, cracking,...)
Never fully discharge the battery pack (recommended depth of discharge max. 80% ) A complete discharge of the battery pack will lead to premature ageing of the battery cells.
Never charge the batteries unsupervised.

Protection from environmental influences

Wear suitable work clothes. Wear safety goggles.
Protect your cordless tool and the battery charger from moisture and rain. Moisture and rain can cause dangerous cell damage.
Do not use the cordless tool or the battery charger near vapors and infl ammable liquids.
Use the battery charger and cordless tools only in dry conditions and an ambient temperature of 10 - 40^ .
Do not keep the battery charger in places where the temperature is liable to reach over 40^ . In particular, do not leave the battery charger in a car that is parked in the sunshine.
Protect batteries from overheating. Overloads, over-charging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries which have been overheated - replace them immediately if possible.
Storage of batteries, battery chargers and cordless tools. Store the charger and your cordless tool only in dry places with an ambient temperature of 10 - 40^ . Store your lithium-ion battery pack in a cool, dry place at a temperature of 10 - 20^ . Protect them from humidity and direct sunlight. Only place fully charged batteries in storage (charged at least 40% ).
Prevent the lithium-ion battery pack from freezing. Battery packs which were stored below 0^ for more than 60 minutes must be disposed of.
When handling batteries beware of electrostatic charge: Electrostatic discharges cause damage of the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.

Pattfield PEAHS 18 Li - Protection from environmental influences - 1

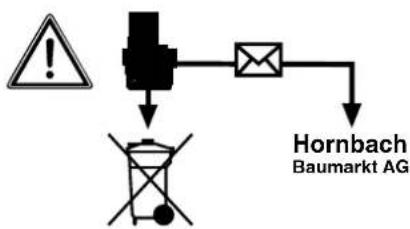

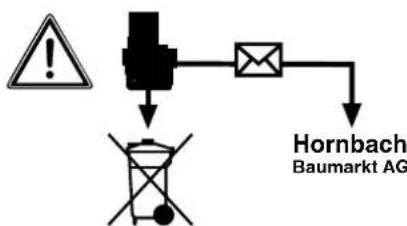

Batteries and cordless electric equipment contain materials that are potentially harmful to the environment. Do not place cordless equipment in your household refuse. If the equipment becomes defective or worn, remove the batteries and take the equipment to your Hornbach store. If the batteries cannot be removed, take the complete cordless equipment. You can then be sure that the equipment will be correctly disposed of by the manufacturer.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.

Pattfield PEAHS 18 Li - Protection from environmental influences - 2

Store the battery only in dry rooms with an ambient temperature of +10^ to +40^ . Place only charged batteries in storage (charged at least 40% ).

Additional safety instructions

1 Always remove batteries before you perform any work on the hedge trimmer, e.g.

cleaning the blades

troubleshooting

cleaning and maintenance

or before leaving the tool unattended.

Pattfield ERGO TOOLS

2 The hedge trimmer can cause serious injuries! Read the directions for use carefully in order to acquaint yourself with

the correct way to handle,
set up,
service,
start and put down the machine.

Familiarize yourself with all the machine's control elements and its proper use.

3 Always handle the hedge trimmer with both hands.
4 When working with the hedge trimmer, wear sturdy shoes and make sure of your footing.
5 Never work with the hedge trimmer in the rain or on wet hedges and never leave the hedge trimmer outdoors. The hedge trimmer must not be used if it is wet.
6 We recommend that you wear safety goggles and ear-muffs when working with the hedge trimmer.
7 Wear suitable working clothes such as rubber gloves and non-slip shoes. Do not wear loose garments. Keep long hair in a hairnet.
8 Avoid abnormal postures and make sure of your footing, particularly when working on ladders and steps.
9 Be sure to hold the hedge trimmer well away from your body when it is switched on.
10 Make sure there are no other persons or animals within your working area (radius of swing).
11 Carry the hedge trimmer only by its guide handle.
12 The cutting unit must be checked regularly for damage. If necessary, arrange for the cutting tool to be repaired by your Hornbach store.
13 If the blades become jammed, e.g. due to thick branches or the like, switch off and remove the battery immediately. Only then are you to remove the cause of the obstruction.
14 Keep the hedge trimmer in a dry, safe place out of children's reach.

Pattfield ERGO TOOLS

15 During transportation and storage of the hedge trimmer, keep the blades covered at all times with the special guard.
16 Take care not to overload the hedge trimmer and do not use it on jobs for which it is not intended, i.e. you are allowed to use the hedge trimmer only to cut hedges, shrubs and perennials.
17 The hedge trimmer requires regular inspection and maintenance. Always replace damaged blades in pairs. If the hedge trimmer suffers any damage from impact (falling on hard ground etc.), have it checked immediately by a specialist.
18 Look after your hedge trimmer carefully. Keep it clean and sharp to ensure efficienl and safe cutting. Follow the maintenance and cleaning instructions.
19 The German Farmers Union, for example, prohibits the use of electric hedge trimmers by persons aged 17 or less. Persons aged 16 and above may only use electric hedge trimmers if supervised by an adult.
20 Do not use the hedge trimmer with a damaged or excessively worn cutting system.
21 Check your surroundings and take note of any potential dangers which you may not be able hear due to the machine's noise.
22 It is advisable not to use the hedge trimmer when other persons, and particularly children, are nearby.
23 Children are not allowed to use the hedge trimmer.
24. The noise generated at the workplace may exceed 85 db(A). The operator will require noise protection measures and ear muffs if this is the case. The noise generated by this electric tool was measured in accordance with EN 60745-1 and EN 60745-2-15.
25. Vibrations emitted by the handle equal < 2.5m / s2 and were measured in accordance with EN 60745-1 and EN 60745-2-15.

Pattfield PEAHS 18 Li - Pattfield ERGO TOOLS - 1

Pattfield ERGO TOOLS

Important! It is not allowed to use the hedge trimmer without hand guard.

It is recommended to search the hedge for hidden objects (e.g. wire fencing).

Do not lose these safety instructions

-233

Pattfield ERGO TOOLS

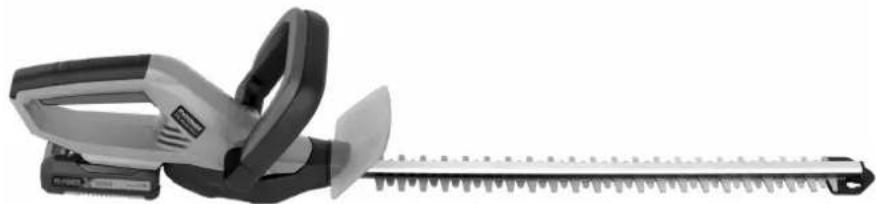

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

Cutter rail
Hand guard
Steady grip with button switch
Handle with button switch
Battery charger
Battery pack
Cutter guard
Impact guard
Lock for battery

2.2 Items supplied

Hedgetrimmer
Cutterguard
Battery
Charging unit

GB

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equipment with care.
Remove the packaging material and any packaging and/or transportation braces (if available).
Check to see if all items are supplied.
Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.

Pattfield ERGO TOOLS

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

3. Proper use

This hedge trimmer is suitable for cutting hedges, bushes and shrubs.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Pattfield ERGO TOOLS

4. Technical data

Cutter rail length 520 mm

Cutting length 460 mm

Tooth spacing 15 mm

Cutting thickness max. 11 mm

Cuts/min 2200

Charging time 0.5 h

Sound pressure level, L_pA 64.8 dB

Sound power level, L_WA 84.8 dB

K uncertainty 3 dB

Interchangeable battery 18 V d.c. / 1500 mAh (optional 18 V d.c. / 3000 mAh)

Vibration a_hy 2.5 m/s²

K uncertainty 1.5 dB

Weight 2.0 kg

GB

Battery charger

Mains voltage 200-250 V ~ 50-60 Hz

Output voltage/current 21 V d. c. / 3 A

The machine may exceed 85 dB (A). The operator will require noise protection measures if this is the case. The noise was measured in accordance with EN 60745-1. The value of the vibrations emitted by the handle was determined in accordance with EN 60745-1.

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect working order.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
Have the appliance serviced whenever necessary.
Switch the appliance off when it is not in use.
Wear protective gloves.

5. Before starting the equipment

5.1 Installing the battery (Fig. 4)

Press the side pushlock buttons of the battery pack as shown in Fig. 4 and push the battery pack into the mount provided. When the battery pack is positioned as in Fig. 1, make sure that the pushlock buttons latch in place! To remove the battery pack, proceed in reverse order.

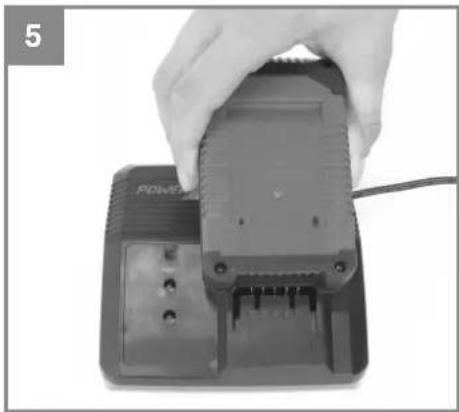

5.2 Charging the battery (Fig. 5)

Take the battery pack out of the equipment. Do this by pressing the side pushlock buttons.
Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (5) into the mains socket outlet. The green LED will then begin to flash.
Insert the battery pack (6) into the battery charger (5).
In section "Charger indicator" you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal.

Pattfield ERGO TOOLS

If the battery pack fails to charge, check:

whether there is voltage at the socket outlet
whether there is good contact at the charging contacts

If the battery pack still fails to charge, take

the charging unit
and the battery pack

to your Hornbach store.

To ensure that the battery pack provides long service, you should take care to recharge it promptly.

You must recharge the battery pack when you notice that the power of the cordless hedge trim-mer drops. Never fully discharge the battery pack. This will cause it to develop a defect.

6. Operation

Switching ON/OFF.

The hedge trimmer is equipped with a two-handed safety switch. The machine works only when the switch on the steady grip (Figure 1 / Item 3) is pressed with one hand and the switch on the handle (Figure 1 / Item 4) is pressed with the other hand. If either switch is released, the cutters will stop moving. Please watch out for the cutters as they slow down to a standstill.

Notes on working practice

A hedge trimmer can be used to cut shrubs and bushes as well as hedges.
To obtain the best cutting results, hold the hedge trimmer so that the cutter teeth are at an angle of approx. 15^ in relation to the hedge (see Figure 7).
The twin-bladed cutters rotate in opposite directions, thus enabling cutting in both directions (see Figure 8).

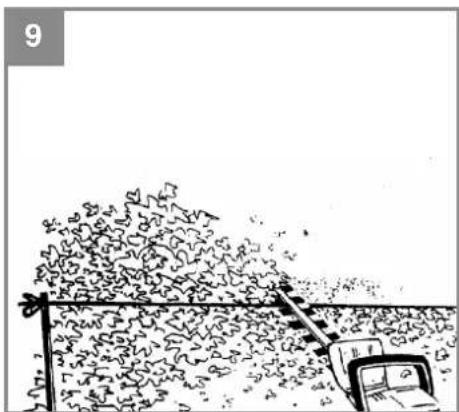

It is recommended to tie a guide line of string or the like along the

Pattfield ERGO TOOLS

hedge so that you cut the hedge to a level height. Cut off all branches which protrude beyond the guide line (see Figure 9).

Cut the sides of the hedge with curve-shaped movements from the bottom up (see Figure 10).

7. Care and maintenance

Always keep the tool clean and dry and protect it from oil and grease.
- Wear safety goggles to protect your eyes during cleaning.
Always keep the tool and the air vents clean in order to ensure safe and correct use.
- Check the ventilation grilles at the motor and at the On/Off switch for dust and foreign bodies. Remove layers of dust with a soft brush.
- If required, use a soft damp rag to wipe the tool housing clean. You can use a mild cleaning agent but no alcohol, petrol or other cleaning agent.
- Never use aggressive cleaning agents to clean plastic parts.
- Lubricate all moving parts regularly.
- Check all fasteners regularly. Vibrations might cause fasteners to become loose in the course of time.
- The cutters should be cleaned and lubricated at regular intervals in order to ensure best performance at all times. Remove deposits with a brush and apply a thin film of oil (Figure 11).
- For storage, the hedge trimmer can be hung up on a nail, screw or similar in a borehole on the impact guard, with blade guard mounted (Fig. 12)

8. Faults

The device does not operate:

Check that the battery is charged and whether the charging unit is working. If the equipment will not work in spite of the voltage supply being OK, please take it to your Hornbach store.

9. Charger indicator

Indicator status		Explanations and actions
Red LED	Green LED
Off	Flashing	Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode.
Off On The battery		is 85% charged and ready for use. (Charging time for 1.5 Ah battery: 30 min) (Charging time for 3.0 Ah battery: 60 min) The unit then changes over to gentle charging mode until the battery is fully charged. (Total charging time for 1.5 Ah battery: approx. 40 min) (Total charging time for 3.0 Ah battery: approx. 75 min) Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply.

Pattfield

ERGO TOOLS

Indicator status		Explanations and actions
Red LED	Green LED
Flashing	Off Adapted chargingThe charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more than 1 hour. The reasons can be:- The battery pack has not been used for a very long time or an already fl at battery was further discharged (exhaustive discharge). - The battery pack temperature is outside the ideal range (between 10°C and 45°C).Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing	Flashing FaultCharging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature faultThe battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0°C).Action:Remove the battery pack and keep it at room temperature (approx. 20°C) for one day .

10.Disposal

Pattfield PEAHS 18 Li - 10.Disposal - 1

For EU countries only

Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

This consignment contains lithium-ion batteries.

In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment package is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fixed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying the products is permitted only with the express consent of Hornbach Baumarkt AG. Subject to technical changes

11. EC Declaration of Conformity

Declaration of Conformity

Pattfield PEAHS 18 Li - Declaration of Conformity - 1

declare, that the product described.

in Technical Data :

Pattfield

ERGO TOOLS

Cordless hedge trimmer PE-AHS 18 Li

Charging Unit PE-Power-X-Charger 18V 30min.

Manufactured for:

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC

Noise Emission of Outdoor Equipment Directive 2000/14/EC (+2005/88/EC)

EMC Directive 2004/108/EC

and in accordance to the following applicable harmonized standards:

EN 60745-1/A11:2010

EN 60745-2-15: 2009/A1:2010

EN 62233: 2008

EN 60335-1:2012

EN 60335-2-29:2004+A2

EN 55014-1/A2:2011

EN 55014-2/A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

The conformity with the Noise Emission of Outdoor Equipment Directive is verified by the adherence to the following emissions values:

Measured sound power level: 84,8 dB (A)

Guaranteed sound power level: 89 dB (A)

Pattfield PEAHS 18 Li - ERGO TOOLS - 1

Andreas Back

Head of Quality Management &

Person authorised to compile the technical file

12.Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer.

Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

The following are not covered by our guarantee:
Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.
Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as

Pattfield ERGO TOOLS

sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
