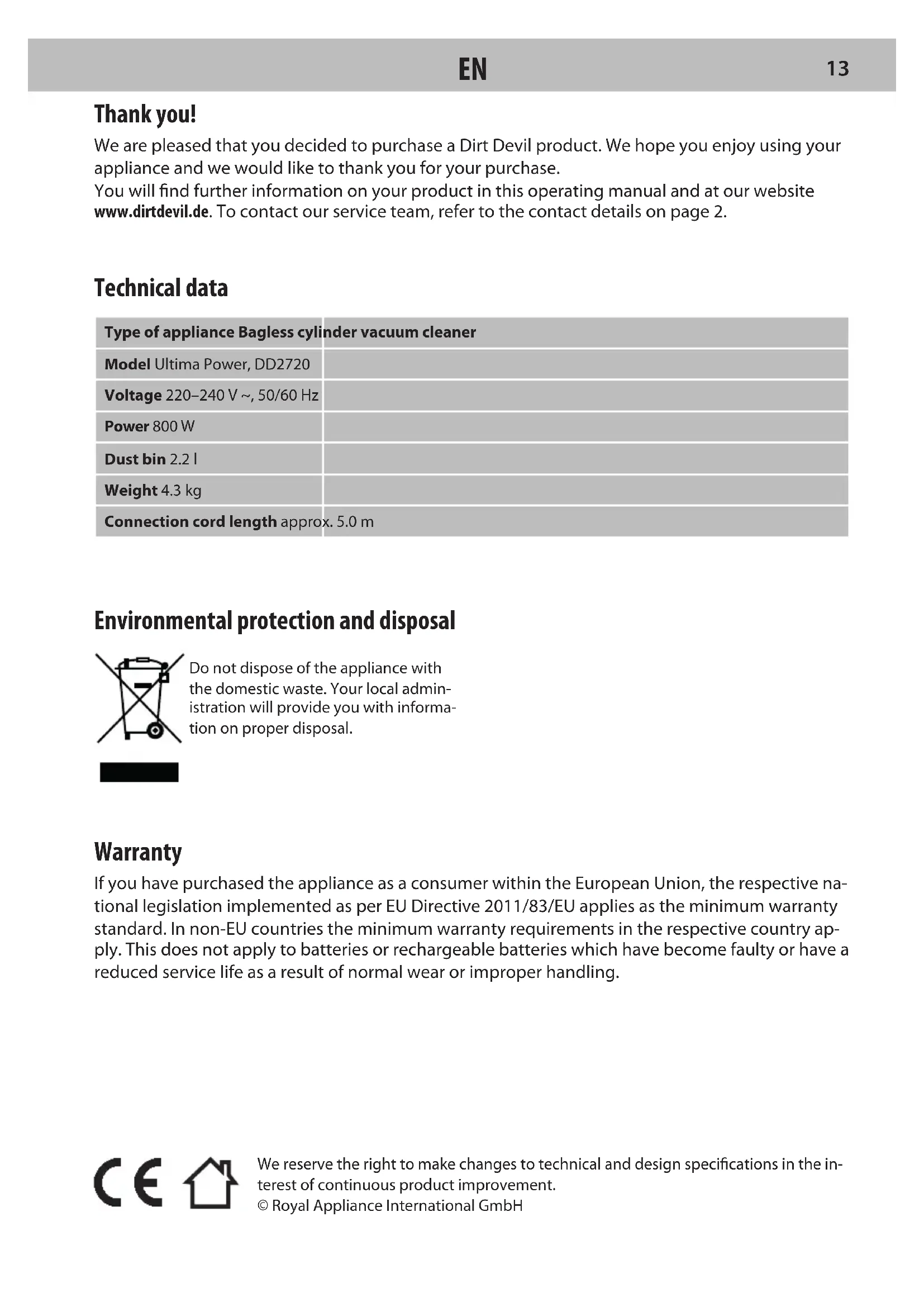

DEEnvironmental protection and disposal Do not dispose of the appliance with the domestic waste. Your local admin- istration will provide you with informa- tion on proper disposal. Warranty If you have purchased the appliance as a consumer within the European Union, the respective na- tional legislation implemented as per EU Directive 2011/83/EU applies as the minimum warranty standard. In non-EU countries the minimum warranty requirements in the respective country ap- ply. This does not apply to batteries or rechargeable batteries which have become faulty or have a reduced service life as a result of normal wear or improper handling. We reserve the right to make changes to technical and design specications in the in- terest of continuous product improvement. © Royal Appliance International GmbH Thank you! We are pleased that you decided to purchase a Dirt Devil product. We hope you enjoy using your appliance and we would like to thank you for your purchase. You will nd further information on your product in this operating manual and at our website www.dirtdevil.de. To contact our service team, refer to the contact details on page 2. Technical data Type of appliance Bagless cylinder vacuum cleaner Model Ultima Power, DD2720 Voltage 220–240 V ~, 50/60 Hz Power 800 W Dust bin 2.2 l Weight 4.3 kg Connection cord length approx. 5.0 m

13SAFETY INSTRUCTIONS About the operating manual Read this operating manual completely before using the appliance. Keep this op- erating manual for reference. If you pass the appliance on to third parties, it must be accompanied with this operating manual. Failure to adhere to this operating manual can lead to serious injuries or damage to the appliance. We assume no liability for dam- age caused as a result of failure to adhere to this operating manual. Important information not included in this chapter is indicated as follows: WARNING! Warns of health hazards and identies possible risks of injury. CAUTION! Indicates possible dangers to the appliance or other objects. NOTE Highlights tips and information. You can also download this operating manu- al at any time from out website: www.dirtdevil.de Concerning certain groups of persons These appliances can be used by children of 8 years and persons with impaired phy- sical, sensory or mental abilities, or insu- cient experience or knowledge, providing they are supervised or have been instructed in the proper use of the appliance and un- derstand the risks involved. Children must not perform cleaning or user maintenance tasks without supervision. Children must not play with the appliance. Packing material ad small parts must not be used as toys. There is risk of asphyxi- ation. Children under the age of 8 years old should be kept away from the appliance and the connection cord whilst the appliance is switched on, plugged in at the socket or cooling down. Information on the power supply The appliance is operated with electrical current. Thus there is always risk of electri- cal shock. You must therefore observe the following: Never immerse the appliance in water or other liquids. If you want to pull the connection cord out of the socket, always pull directly on the plug. Never pull on the connection cord. Ensure that the connection cord is not bent, pinched, rolled over and that it does not come into contact with heat sources.

EN Always check the connection cord for possible damage before using the appliance. Do not use a connection cord with a dama- ged cord or plug. Before cleaning or performing main- tenance on the appliance, ensure that the appliance is switched o and that the connection cord is not connected. Information on the rotating brush roller (optional) The brush roller in turbo nozzles rotates at hight speed. This poses various hazards to people, animals and objects: Never vacuum clean people, animals or plants. Keep parts of the body and items of clothing away from the moving parts and openings on the appliance when it is in ope- ration. They may otherwise be drawn in and may cause injuries. Before you detach or attach, open or cle- an the turbo nozzle, switch o the appliance. Do not run over cords, cables etc. as the- re is a risk of them becoming tangled in the brush roller and may become damaged. Keep the rotating brush roller away from all delicate surfaces. This may otherwise cause damage. Comply with the care and cleaning instructions provided by the manu- facturer. Also keep the rotating brush roller away from curtains, long tassels and the like. The objects may otherwise become drawn in and damaged. If the appliance is faulty If the appliance or the connection cord are damaged, they will need to be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualied person in order to prevent hazards. Hand over a faulty appliance to an au- thorised dealer or send it to the Dirt Devil customer service department for repairs, >“International Service“ on page 2. Never use a faulty appliance or a faulty connection cord. Information on proper use This appliance is intended for domestic use only. It is not suitable for industrial or commercial use. Only use the appliance for cleaning lightly soiled, dry hard oors, car- pets or upholstered furniture. Any other use is considered improper use and is prohibited. The following in particular is prohi- bited: Vacuuming: – People, animals, plants or items of clothing on the body High risk of injury! – Hot ash, burning cigarettes, matches and highly ammable substances Risk of re! – Water and other liquids Risk of short circuit! – Toner (for laser printers, copying ma- chines, etc.) Risk of re and explosion!

15 Use – in the vicinity of explosive or highly ammable substances Risk of re and explosion! – outdoors Risk of damage due to rain and dirt! – of non-original accessories Impairment of appliance safety! Carrying out repairs yourself Risk of injury and loss of entitlement to free replacement! Concerning disposal After its service life, dispose of the appli- ance in an environmentally friendly manner, as described, >“Environmental protection and disposal“ on page 13.

ENPreparatory work Getting to know the appliance Fig.

suction hose connection;

telescopic tube release catch;

Check that the unpackaged contents are com- plete. If you notice any transport damage or if an- ything is missing, contact your dealer immediate- ly.

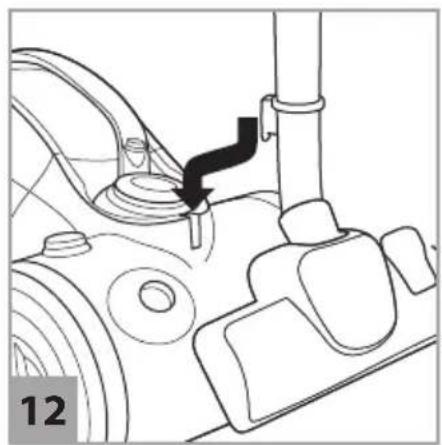

Connect suction hose and appliance (Fig.

Connect the suction hose with the telescopic tube and adjust the length of the telescopic tube (Fig.

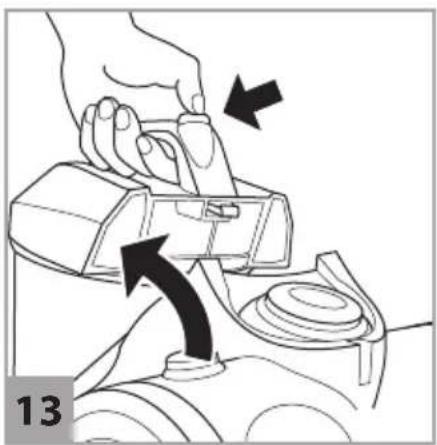

Ensure that the bypass vent (Fig.

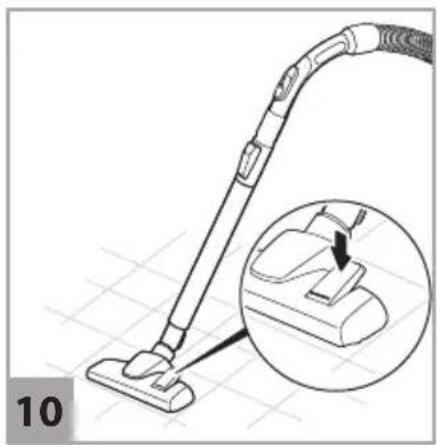

is completely closed. Using the accessories CAUTION! For hard oors, only use the switchable oor noz- zle with the brush (Fig.

) extended, as the hard oor may otherwise become damaged. CAUTION! If using the turbo nozzle, make sure that the surface can withstand the rotating brush without becoming damaged. NOTE: You can also use the suction nozzles without the telescopic tube as necessary. To do so, connect the required accessories directly to the handle (Fig.

Connect the required accessory to the handle or the telescopic tube (Fig.

Make sure that the accessory is securely connected. ➔ The appliance can be connected. Connecting the appliance CAUTION! If the red marking is visible (Fig.

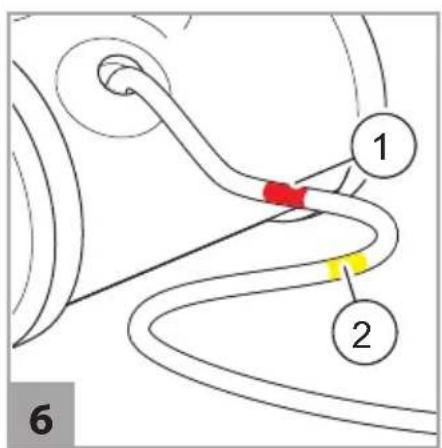

), retract the connection cord by pressing the cord rewind button to pull in the cord up to the yellow mark (Fig.

). Otherwise, the connection cord might be damaged.

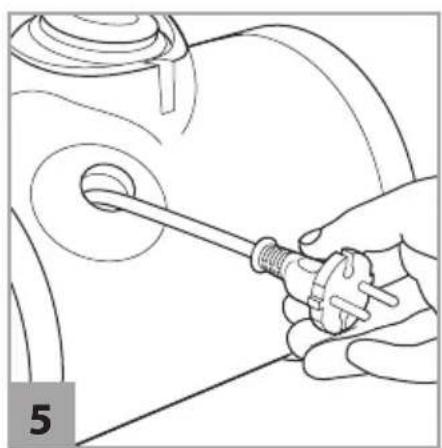

Pull the cable out of the appliance (Fig.

In- sert the plug into a mains socket. Vacuum cleaning Flexible vacuum-cleaning

Connect the required accessories >”Using the ac- cessories” on page 17.

Connect the appliance >”Connecting the appliance” on page 17.

➔ The appliance starts vacuuming.

When working with the appliance, pull it after you like a sleigh.

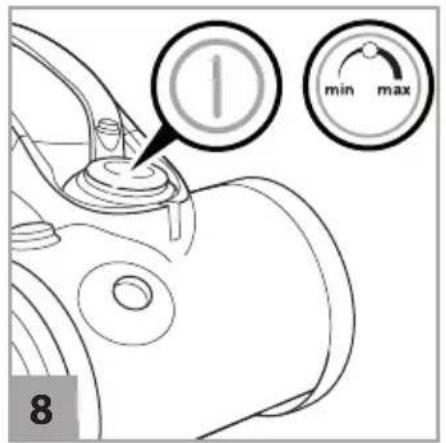

). ➔ The appliance switches o. Regulating the suction power With the suction power controller (Fig.

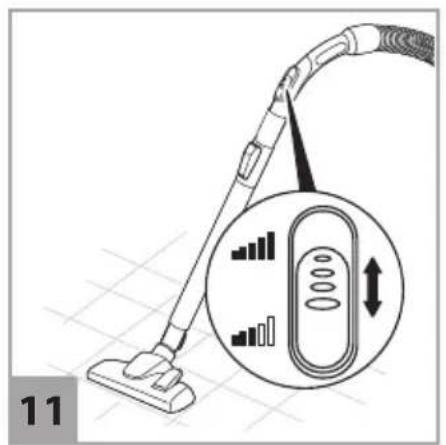

) you can adjust the suction power to the surface to be cleaned:

• min. position: for curtains, drapes and the like

• middle position: for hard oors without joints and crevices

• max. position: for carpets and hard oors with joints and crevices Storing the appliance NOTE: If necessary, use the accessories mount (Fig.

to attach 2 accessories.

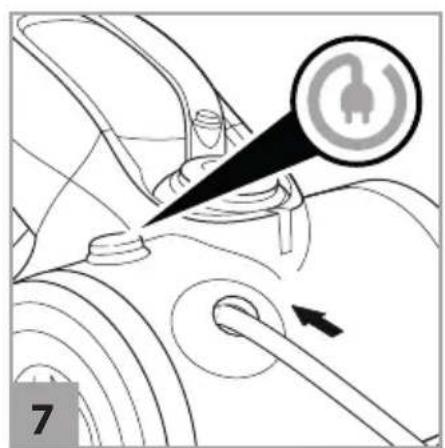

Switch o the appliance and pull the plug from the socket.

Push the cord rewind button until the cord has been fully rewound (Fig.

Hang the teles- copic oor nozzle or parquet nozzle (connected to the telescopic tube or handle) in the parking bracket (Fig.

Switch o the appliance and pull the plug from the socket. Press the dust bin release catch and re-move the dust bin from its console in the appliance (Fig.

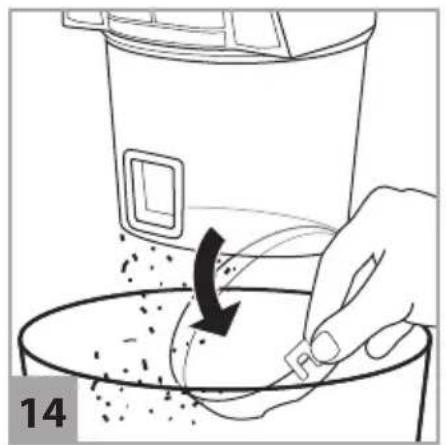

Place dust bin closely above a waste bin and release the dust bin (Fig.

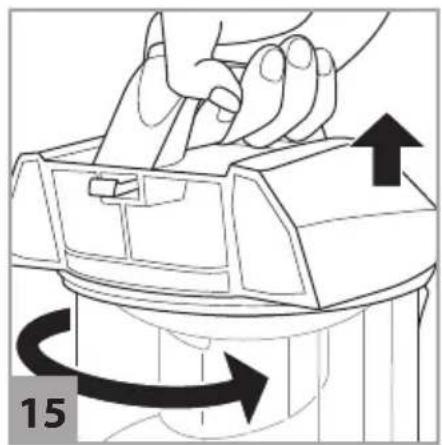

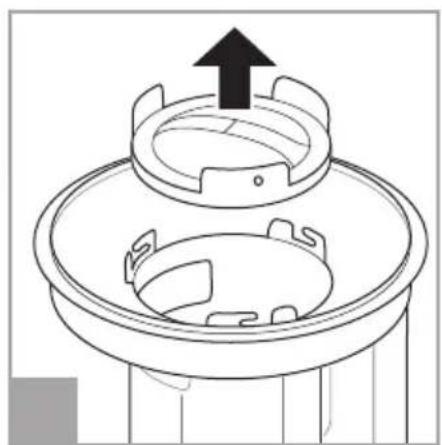

Dispose of the contents of the dust bin in a waste bin. Gently tap out the dust bin to remove any soiling. Close the emptied dust bin. Re-insert the dust bin into its console in the appliance so that you feel it click into place. Cleaning the separator and lter NOTE: The appliance, the separator and the pre-motor lter should be cleaned regularly in order to maintain the suction power. Remove the dust bin from the appliance, >”Emp-tying the dust bin” on page 18. Unscrew the dust bin cover in the anti-clockwise direction and lift it o (Fig.

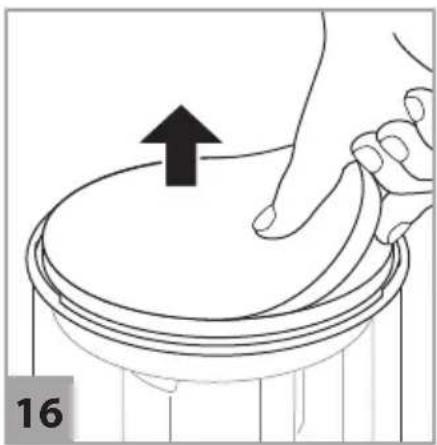

Release the separator cover by turning it in the clockwise direction (Fig.

Remove the cover from the separator (Fig.

Remove the separator and dispose of the content in a waste bin (Fig.

Rinse the pre-motor lter and the separator out thoroughly under running water. Leave the cleaned parts to dry completely for at least 24 h. Insert the separator cover into the separator.

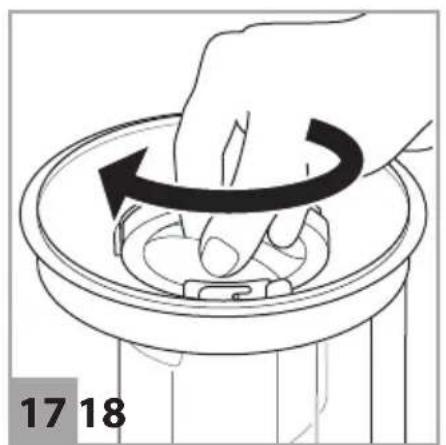

Secure the separator cover by turning it in the an-ti-clockwise direction (Fig.

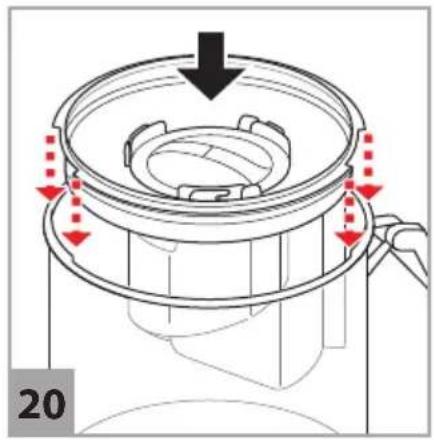

Insert the separa-tor, together with the separator cover, into the dust bin (Fig.

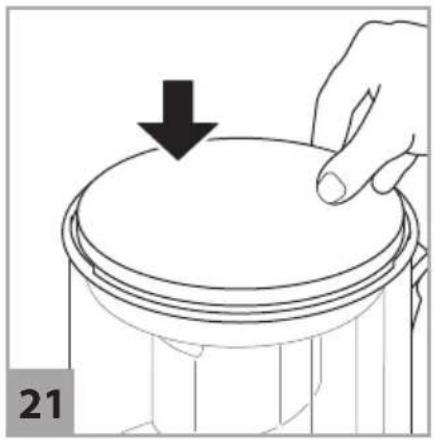

Place the pre-motor lter on the dust bin (Fig.

Screw the dust bin cover onto the dust bin by turning it in the clockwise direction. Re-insert the dust bin into its console on the ap-pliance body. You must be able to feel the dust bin click into place. Cleaning the exhaust lter CAUTION! The ne ns on the exhaust lter are sensitive. Never clean the ns with water and only ever use soft brushes for cleaning. NOTE: Replace any damaged, discoloured or deformed exhaust lters with new ones. Screw the exhaust lter cover in the anti-clock-wise direction and remove it from its console on the appliance body (Fig.

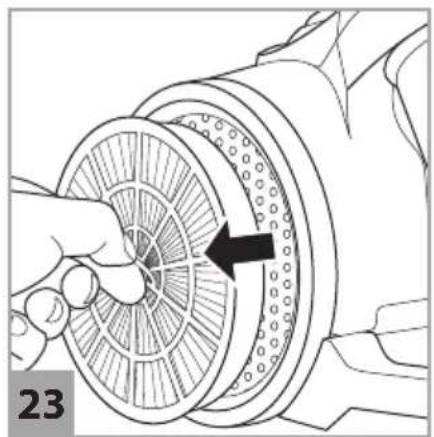

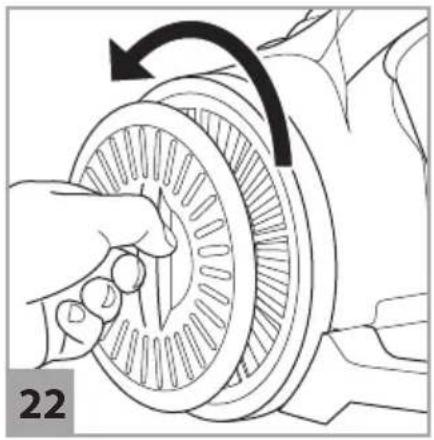

Carefully tap out the exhaust lter. Carefully clean the exhaust lter with a soft brush. Re-insert the exhaust lter into its console on the appliance. Ret the exhaust lter cover. Secure the exhaust lter cover by turning it in the clockwise direction. Cleaning the mini turbo nozzle

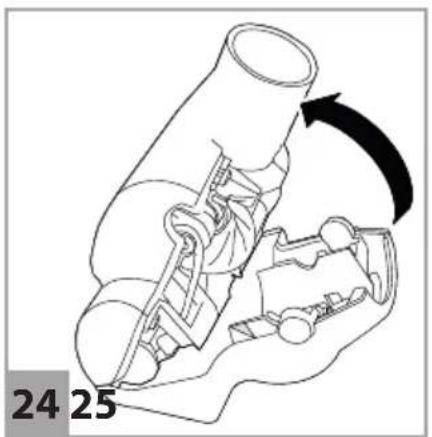

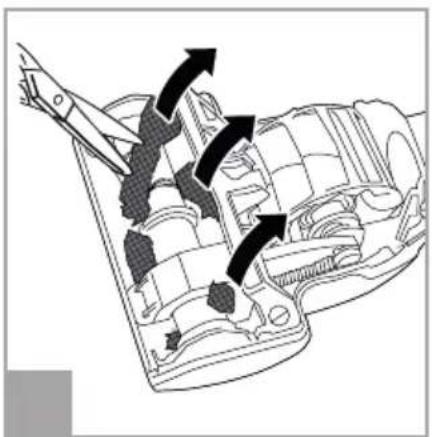

Thoroughly clean the brush by hand. In case of stubborn soiling, carefully use tweezers or scissors (Fig.

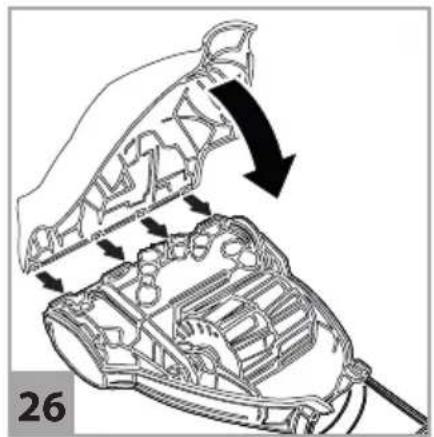

Place the appliance top on the 4 tabs on the appliance bottom and then carefully close the appliance top (Fig.

Ret the two screws on the bottom of the mini turbo nozzle and tighten them. Accessories

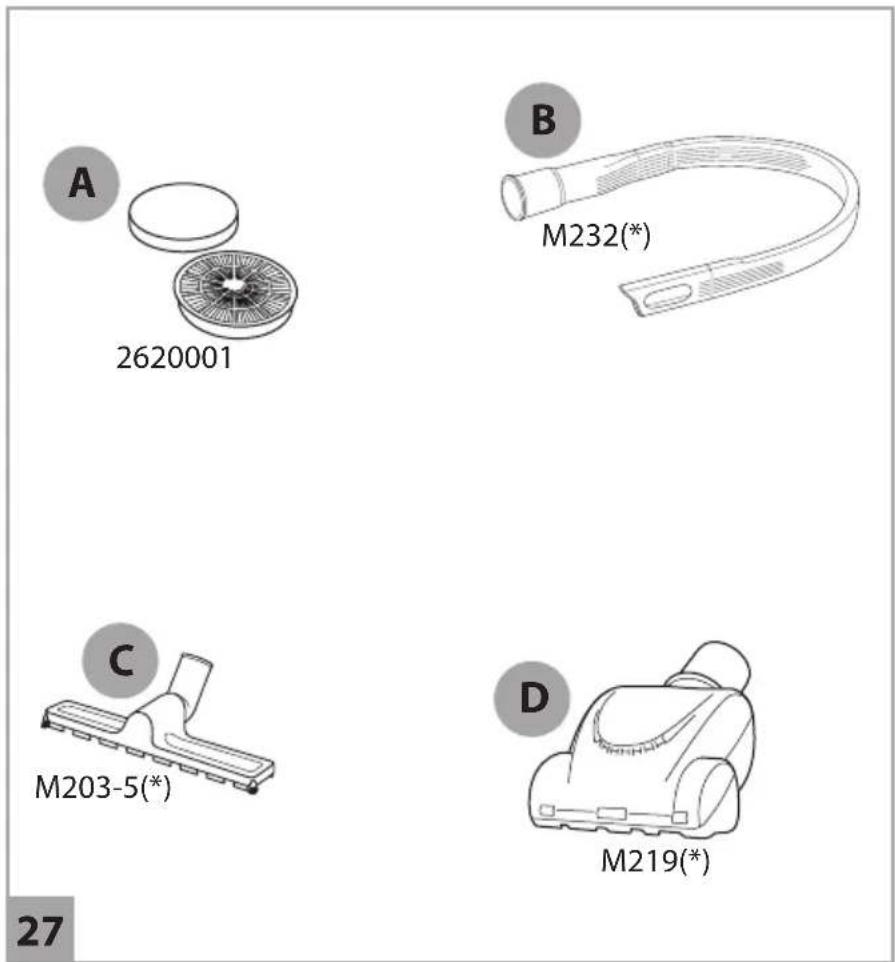

• Filter set (1 pre-motor lter, 1 exhaust lter) – 2620001 (Fig.

• 1 Long exible crevice nozzle – M232 (Fig. /B) (*)• 1 Mini turbo nozzle "Fellino" – M219 (Fig. /C) (*)• 1 Parquet brush – M203-5 (Fig. /D) (*)(*) optional Troubleshooting Before you contact our customer service department or send the appliance to the Dirt Devil customer ser-vice department, you will nd a lot of additional in-formation in the service area of our website which will help you solve problems. www.dirtdevil.de/service WARNING! Switch o the appliance before you start trouble-shooting. Never use a faulty appliance.
