Product type	Waffle maker
Brand	WMF
Model	Lono 04.1542.0011
Mains voltage	220-240 V~, 50-60 Hz
Removable plates	Yes (sets for waffles and sandwiches)
Non-stick coating	Yes
Indicator light	Red (heating) then white (ready)
On/off switch	Yes
Opening	Button in handle
Capacity	1 waffle or 1 sandwich
Cleaning of plates	Dishwasher or manual
Cleaning of appliance	Damp cloth, do not immerse
Usage	Domestic
Safety	Do not leave unattended, risk of burns
Included accessories	Waffle and sandwich plates
Cable storage	Can be wrapped around the appliance

Frequently Asked Questions - Lono 04.1542.0011 WMF

How to clean the plates of the WMF Lono?

After cooling, remove the plates by pressing the push buttons. Wash them by hand with a soft sponge and dish soap, or in the dishwasher. Never use metal or abrasive objects.

Can I use metal utensils on the plates?

No, the non-stick coating scratches easily. Use wooden or plastic utensils.

What to do if the appliance does not heat up?

Check that the appliance is plugged into a power outlet and that the switch is on. If the red indicator light does not turn on, contact WMF after-sales service.

How long does it take to cook a waffle?

Cooking time depends on the batter and desired browning. The white indicator indicates that the optimal temperature is reached. Open regularly to check.

Can I leave the appliance plugged in after use?

No, turn off the appliance with the switch and unplug the plug after each use. Never leave it unattended while operating.

Are the plates interchangeable?

Yes, the waffle and sandwich plates are removable. The waffle plates with wide guides only go in the top half; the sandwich plates can go in the top or bottom.

How to correctly insert the plates?

Place the guides of the half-plates into the corresponding recesses at an angle, then press down until you hear a click. Both halves must be inserted.

How to open the appliance?

Press the button located on the inside of the handle upwards. The appliance opens automatically.

Does the first use emit an odor?

Yes, it is normal for a slight odor or smoke to appear during the first use. Open a window and heat the empty plates for 2-3 minutes before first use.

Can I use other types of bread for the sandwiches?

Yes, you can use all kinds of bread suitable for the plate size. Make sure the bread does not overhang and adjust the cooking time according to the desired degree of browning.

USER MANUAL Lono 04.1542.0011 WMF

1 Päckchen Vanilcczucker

3 Eier

3/8 | Milch

300g Mehl

Packchen Backpulver

Rum nach Geschmack

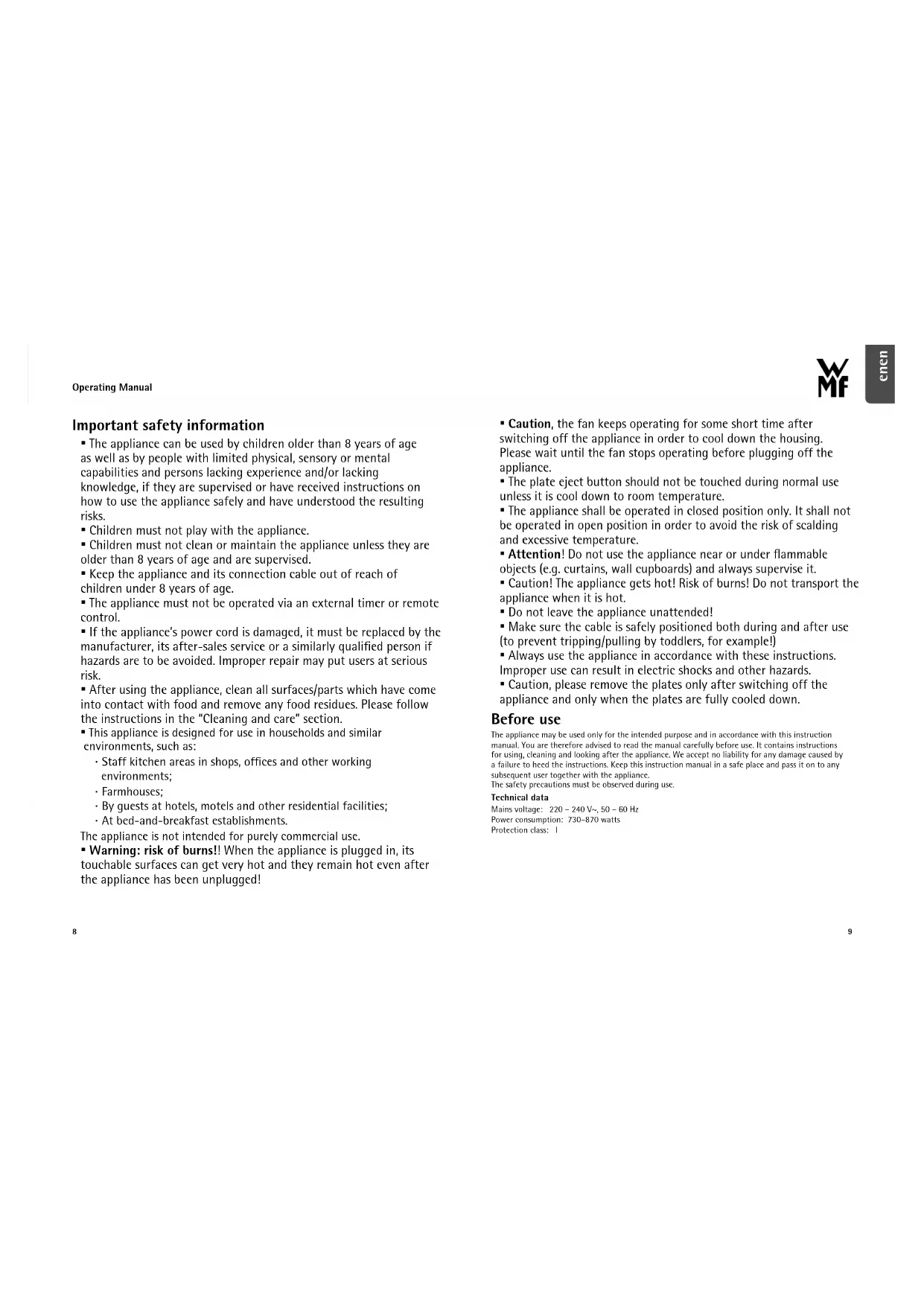

Important safety information

• The appliance can be used by children older than 8 years of age as well as by people with limited physical, sensory or mental capabilities and persons lacking experience and/or lacking knowledge, if they are supervised or have received instructions on how to use the appliance safely and have understood the resulting risks.
  Children must not play with the appliance.
  Children must not clean or maintain the appliance unless they are older than 8 years of age and are supervised.
• Keep the appliance and its connection cable out of reach of children under 8 years of age.
• The appliance must not be operated via an external timer or remote control.
• If the appliance's power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person if hazards are to be avoided. Improper repair may put users at serious risk.
• After using the appliance, clean all surfaces/parts which have come into contact with food and remove any food residues. Please follow the instructions in the "Cleaning and care" section.

• This appliance is designed for use in households and similar environments, such as:

• Staff kitchen areas in shops, offices and other working environments;
  Farmhouses;

• By guests at hotels, motels and other residential facilities;
• At bed-and-breakfast establishments.

The appliance is not intended for purely commercial use.

• Warning: risk of burns!! When the appliance is plugged in, its touchable surfaces can get very hot and they remain hot even after the appliance has been unplugged!

• Caution, the fan keeps operating for some short time after switching off the appliance in order to cool down the housing. Please wait until the fan stops operating before plugging off the appliance.

• The plate eject button should not be touched during normal use unless it is cool down to room temperature.
• The appliance shall be operated in closed position only. It shall not be operated in open position in order to avoid the risk of scalding and excessive temperature.
• Attention! Do not use the appliance near or under flammable objects (e.g. curtains, wall cupboards) and always supervise it.
• Caution! The appliance gets hot! Risk of burns! Do not transport the appliance when it is hot.
• Do not leave the appliance unattended!
• Make sure the cable is safely positioned both during and after use (to prevent tripping/pulling by toddlers, for example!)
  Always use the appliance in accordance with these instructions. Improper use can result in electric shocks and other hazards.
• Caution, please remove the plates only after switching off the appliance and only when the plates are fully cooled down.

Before use

The appliance may be used only for the intended purpose and in accordance with this instruction manual. You are therefore advised to read the manual carefully before use. It contains instructions for using, cleaning and looking after the appliance. We accept no liability for any damage caused by a failure to heed the instructions. Keep this instruction manual in a safe place and pass it on to any subsequent user together with the appliance. The safety precautions must be observed during use.

Technical data

Mains voltage: 220 - 240 V~, 50 - 60 Hz

Power consumption: 730-870 watts

Protection class: I

Additional safety information

• The appliance should be connected only to earthed wall sockets that have been installed in accordance with the regulations. The power cable and plug must be dry.
• Do not pull or clamp the connection cable over sharp edges. Do not leave it dangling. Protect it from heat and oil.
• Do not place the appliance on hot surfaces, such as on hotplates or similar areas, and do not operate near naked flames.
• Never pull the mains plug out of the socket by the cable or with wet hands.
• Stop using the appliance and/or pull the mains plug out of the socket immediately if: - The appliance or power cord is damaged

you suspect that the device may be defective following a fall or similar incident.

• if malfunctions occur during use
  before cleaning
  after every use.

In such cases, arrange for the appliance to be repaired. Do not immerse the appliance in water.
- We accept no liability for any damage caused as a result of misuse, incorrect operation or improper repairs. Warranty payments are also excluded in such cases.
- The appliance is not intended for commercial use.
- Do not cover the appliance.
- Pull the mains plug out of the socket after use and open the appliance.
- Leave the appliance to cool down before transporting it or putting it away. - Never clean the appliance and the cable in the dishwasher!
The connection cable must not come into contact with hot appliance parts!
- Place the appliance on a flat, solid surface.
- Do not disassemble or open the appliance housing - there is a risk of electrocution - Only operate the appliance with original accessories from WME.
- Never leave the appliance unattended when the mains plug is connected! While the appliance is in use and cooling down, make sure that other persons cannot accidentally touch it as this could cause burns!
- Make sure the appliance is positioned on a secure, horizontal surface with plenty of clearance to the wall and other objects.
- Remove all packaging material / films / transport locks if applicable
Clean the parts with a soft cloth before first use
- With the windows open, heat the grill plates for the first time for around 2-3 minutes each in order to remove any manufacturing residues. This could cause a slight smell, which is completely harmless.

non-stick coating

Never touch the scratch-sensitive non-stick coating with sharp or pointed objects. Use a barbecue fork and tongs made of wood or synthetic material. When using your
new appliance for the first time there may be a little smoke or odour. This is for technical reasons and is perfectly normal.
Warning: After use, switch the appliance off using the on / off switch and pull the mains plug out of the socket.

Initial operation

• Clean all the plates with a damp cloth and some washing-up liquid before using the appliance for the first time. The plate set found in the appliance can be removed using the square push-buitions.
• Select the plate set you want, dry it carefully and place it in the appliance.
• Insert the plate guides on the respective plate halves in the designated appliance slots at an angle of approx. 30^ .
  Note: Please note that the waffle plate with the wide guides may only be inserted in the top half of the appliance. The sandwich plates can be inserted in either the top or the bottom half.
  After inserting the plates, press them downwards until you hear them lock into place.
  Note: Both plate halves must be inserted, otherwise the appliance does not work properly.
  Brush the plates with a few drops of oil.
• Connect the mains plug to an earthed wall socket.
• Switch the appliance on at the on/off switch to heat it up. The indicator light glows red.
• The indicator light changes colour from red to white as soon as the optimum temperature is reached. Note: There may be a slight odour the first time you use your new appliance. This is for technical reasons and is perfectly normal.
• Push the button on the inside of the handle up to open the appliance.
• Load the plate and close the appliance. Depending on the amount of filling, the lid clicks into place one or two times.
  Note: Do not eat the first waffle cooked in the new appliance.
  After a short time, the red indicator light comes on again to show that the appliance is heating up.
• Open the appliance and remove the snacks as soon as they reach the desired browning level.

Tips for successful sandwiches

• It is advisable to have all the ingredients ready before you begin tasting. You can also prepare a certain number of sandwiches in advance in order to reduce the waiting time.
• All types of bread can be used as long as they fit on the plates.
  The toasting time depends on the moisture content of the bread and the type of filling used.
• Check that the sandwiches are toasting according to your taste.
• Remove the sandwiches using a wooden spatula to protect the coating.

Sandwich recipe idea:

ciabatta sandwich

Ingredients

1 Ccabatta

2 tbsp. butter

250g rocket

2 small tomatoes

2 tbsp, olivc oil

2 balls of mozzarella

2.5 tons of mice 4 rocket pesto

100 g Serrano ham

salt,pepper

Preparation:

Cut the ciabatta in half lengthways, spread butter on one half. Wash

the rocket, remove the hard stems, shake dry and then spread evenly on the halved ciabatta with the Serrano ham. Wash and dry the tomatoes, remove the stem and slice. Drain and slice the mozzarella.

Place the tomato and mozzarella on the sandwich and spread a little pesto on the mozzarella

sliccs. Place on the top half of the ciabatta, press down and toast the sandwich in the Lono Snack Master.

Tips for successful waffles

All the baking ingredients should be at room temperature before you prepare the batter.

Pour the batter into the baking mould quickly, otherwise the waffle will be different shades of brown on the top and bottom. The colour of your waffle will be uneven and patchy if you do not add enough batter. Add the batter for your next waffle immediately after removing the finished one to achieve the best baking results. Place the finished waffles on a wire rack to keep them crispy. Waffles go soft quickly when stacked.

Waffle recipe:

Basic recipe

Ingredients:

80 g butter

60 g sugar

1 sachet vanilla sugar

3 eggs

3/81 milk

300g flour

Y2sachel baking powder

Rum to taste

Powdered sugar for dusting

Preparation:

Beat butter with sugar, vanilla sugar and eggs until fluffy. Alternating with milk, gradually add the sieved flour mixed with baking powder. Add less milk and more rum to taste. Always add the liquid in such a quantity that the batter is thick. Dust with icing sugar before serving.

Cleaning and care

After use, remove the mains plug and allow the appliance to cool down.

Remove fat or other residue from the plates with a piece of kitchen roll.

Never immerse the appliance in water or clean it under running water.

Only wipe the casing with a damp cloth and then dry it.

When cooled, remove the plate by pressing the push buttons. Clean the plates with a soft brush, or in lukewarm water with a little washing-up liquid.

Note: Do not use abrasives, metal scourers or oven cleaner. For stubborn dirt or to make cleaning easier, you can also clean the plates in the dishwasher. But we advise washing the plates by hand to increase their service life or to ensure that the coating is handled carefully.

Under no circumstances should you use sharp or hard objects on the plates with a non-stick coating, as these could damage the coating.

The cable can be wound on the underside of the appliance to save space during storage.

For UK use only

• This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.
• The replacement of the plug at the mains lead has to be done according to the following instructions:

Warning - This appliance must be earthed

Important: The wires in this mains lead are coloured in accordance with the following code:

green/yellow Earth

blue Neutral

Live

As the colours of the wires in the mains lead of this appliance may not

correspond with the coloured markings identifying the terminals in your plug, proceed as follows:As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol or coloured green or green and yellow.
• the wire which is coloured blue must be connected to the terminal which is marked the letter N or coloured black,
• the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
• If a 13 A (BS 1363) plug is used it must be fitted with a 13 A fuse conforming to BS 1362 and be ASIA approved. If any other type of plug is used, the appliance must be protected by a 10 A fuse either in the plug or adapter or at the distribution board.
  If in doubt - consult a qualified electrician.
• Never use the plug without closing the fuse cover.

The appliance complies with European directives 2014/35/EU, 2014/30/EU and 2009/125/EU.

At the end of its life, this product must not be disposed of in normal household waste but must instead be delivered to a collection point for recycling electric and electronic appliances.

The materials are recyclable in accordance with their labelling. The reuse, recycling or other use of old appliances makes an important contribution to protecting our environment.

Please ask your local administration for the appropriate disposal point.

Subject to alterations
