USER MANUAL TL20 BEURER

EN Daylight therapy lamp

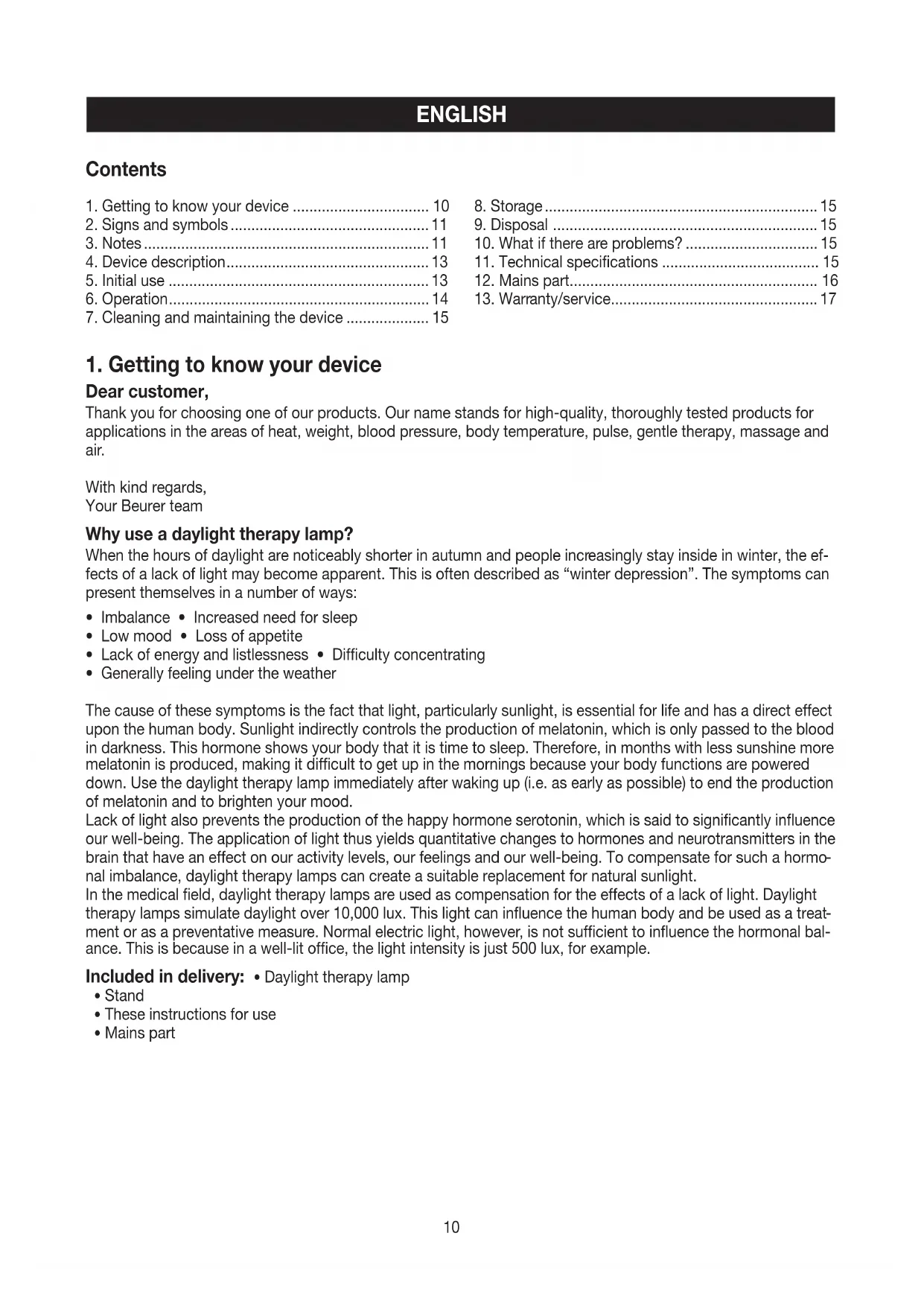

Instructions for use. 10

1. Getting to know your device 10
2. Signs and symbols 11
   3.Notes 11
3. Device description 13
4. Initial use 13
5. Operation 14
6. Cleaning and maintaining the device 15

8.Storage 15
9. Disposal 15
10.What if there are problems? 15
11. Technical specifications 15
12.Mains part. 16
13.Warranty/service. 17

1. Getting to know your device

Dear customer,

Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage and air.

With kind regards,

Your Beurer team

Why use a daylight therapy lamp?

When the hours of daylight are noticeably shorter in autumn and people increasingly stay inside in winter, the effects of a lack of light may become apparent. This is often described as "winter depression". The symptoms can present themselves in a number of ways:

• Imbalance - Increased need for sleep
• Low mood - Loss of appetite
• Lack of energy and listlessness - Difficulty concentrating
  Generally feeling under the weather

The cause of these symptoms is the fact that light, particularly sunlight, is essential for life and has a direct effect upon the human body. Sunlight indirectly controls the production of melatonin, which is only passed to the blood in darkness. This hormone shows your body that it is time to sleep. Therefore, in months with less sunshine more melatonin is produced, making it difficult to get up in the mornings because your body functions are powered down. Use the daylight therapy lamp immediately after waking up (i.e. as early as possible) to end the production of melatonin and to brighten your mood.

Lack of light also prevents the production of the happy hormone serotonin, which is said to significantly influence our well-being. The application of light thus yields quantitative changes to hormones and neurotransmitters in the brain that have an effect on our activity levels, our feelings and our well-being. To compensate for such a hormonal imbalance, daylight therapy lamps can create a suitable replacement for natural sunlight.

In the medical field, daylight therapy lamps are used as compensation for the effects of a lack of light. Daylight therapy lamps simulate daylight over 10,000 lux. This light can influence the human body and be used as a treatment or as a preventative measure. Normal electric light, however, is not sufficient to influence the hormonal balance. This is because in a well-lit office, the light intensity is just 500 lux, for example.

Included in delivery: Daylight therapy lamp

• Stand
  These instructions for use
• Mains part

2. Signs and symbols

The following symbols appear in the instructions for use or on the device.

	Read the instructions for use	i Note	Note on important information
Warning	Warning notice indicating a risk of injury or damage to health		Manufacturer
Important	Safety note indicating possible damage to the device/accessory		Protection class II
SN	Serial number	1	OFF/ON
CE0123	The CE labelling certifies that the product complies with the essential requirements of Directive 93/42/EEC on medical devices	IP21	Protected against solid foreign objects 12.5 mm in diameter and larger, and against vertically falling drops of water
Storage	Permissible storage temperature and humidity		For indoor use only
Operating	Permissible operating temperature and humidity		Polarity of the DC voltage connection
PAP	Dispose of packaging in an environmentally friendly manner

3. Notes

Please read these instructions for use carefully and keep them for later use. Be sure to make them accessible to other users and observe the information they contain.

Safety notes

Warning

• The daylight therapy lamp is only intended for radiation on human bodies.
• The device is not intended for commercial or clinical use; it is designed exclusively for personal use at home.
• The device is suitable for health applications at home. No special training is required to use the device.
• Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.
• Ensure that the daylight therapy lamp is positioned on a stable base.
• The device must only be connected to the mains voltage that is specified on the type plate.
• Never submerge the device in water or other liquids and do not use it in the bathroom.
  It must not be used on people with disabilities, children under 3 years of age or people with reduced sensitivity to heat (e.g. people with skin alternations due to illness), after taking pain relief medication, alcohol or drugs.
• Keep packaging material away from children (risk of suffocation!).
• Do not allow children to play with the device.

• If the device is warm, do not cover it or pack and store it.
  Always unplug the mains part and allow the device to cool down before touching it.

• Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry.

• Ensure that you only insert and remove the mains part with dry hands and that you only press the ON/OFF button with dry hands.
• Keep the mains cable away from hot objects and naked flames.
• Protect the device from heavy impact.
• Do not pull the mains part out of the socket using the mains cable. Hold the mains part directly when pulling the mains part from the socket.
• Do not use the device if it shows signs of damage or does not function properly. In such cases, contact Customer Services.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.
• The plug is used to disconnect the power supply. Position the device so that you can easily unplug the plug from the power supply at all times.
• Disconnection from the power supply network is only guaranteed when the mains part is unplugged.
• Do not use the device in the presence of flammable anaesthetic gas connections with air, oxygen or nitrogen oxide.
• No calibration and no preventive checks or maintenance need to be carried out on this device.
• You cannot repair the device. The device contains no parts that you can repair.
• Do not make any changes to the device without the manufacturer's permission.
• If the device has been changed, thorough tests and checks must be carried out to ensure the continued safety of further use of the device.

General notes

Important

The following conditions may be contraindication for use of this appliance:

• suffer(ed) from severe depression;
• recent eye surgery or a diagnosed eye condition whereby doctor has advised you to avoid bright light;

• skin sensitive to light, such as systemic lupus erythematosus.

• Always consult a doctor before using the daylight therapy lamp if you are taking medication such as pain relief medication, medication to reduce high blood pressure or antidepressant medication.
  Diabetics and people who suffer from retinal diseases must be examined by an optician before using the daylight therapy lamp.

• Please do not use the device if you suffer from an eye disease such as cataracts, glaucoma, diseases of the optic nerve or inflammation of the vitreous body.
  If you have health concerns of any kind, consult your GP!
• Remove all packaging material before using the device.
  Light sources are excluded from the warranty.

EMC information

Warning

• Use of this appliance adjacent to or stacked with other device should be avoided because it could result in improper operation. If such use is necessary, this appliance and the other device should be observed to verify that they are operating normally. If the appliance does not light on or is flickering, it means that the appliance is not operating normally.
• Do not change any cable without authorization of the manufacturer. Use of cables other than those specified or provided by the manufacturer of this appliance could result in increased electromagnetic emissions or decreased electromagnetic immunity of this appliance and result in improper operation.
• Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30~cm to any part of this appliance, including power cable. Otherwise, degradation of the performance of this equipment could result.
• If the appliance does not light on or is flickering due to the electromagnetic disturbances, do not use it and try to place the appliance in other location.
• For maintaining the basic safety and essential performance with regard to electromagnetic disturbances for the expected service life, please take precaution if the use location is near (e.g. less than 1,5km from) from AM, FM or TV broadcast antennas.

Repairs

Important

• Do not open the device. Do not attempt to repair the device yourself. This can result in serious injury. Failure to comply with this instruction will void the warranty.
• For repairs, please contact Customer Services or an authorised retailer.
• Do not use the device if it is damaged. If the device is not working, try to solve the problem using the information in chapter "What if there are problems?". If you are unable to solve the problem, contact Customer Services or an authorised retailer.

4. Device description

Overview

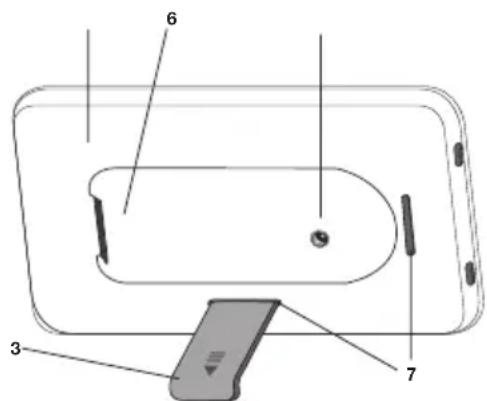

1. Fluorescent screen
2. Rear of the housing
3. Stand
4. ON/OFF button
5. Mains part connection
6. Storage slot for stand
7. Holder for using the stand

5. Initial use

Take the device out of the plastic wrapping. Check the device for damage or faults. If you notice any damage or faults on the device, do not use it and contact Customer Services or your supplier.

Setting up the device

Place the device on an even surface. The position should be chosen to ensure a distance of between 10cm and 30~cm between the user and the device. The lamp is most effective at this distance.

Mains connection

• To prevent possible damage to the device, the daylight therapy lamp must only be used with the mains part described here.
• Insert the mains part into the connection provided for this purpose on the rear of the daylight therapy lamp. The mains part must only be connected to the mains voltage that is specified on the type plate.
• Plug the mains part into a suitable socket.
• After using the daylight therapy lamp, unplug the mains part from the mains socket first and then disconnect it from the daylight therapy lamp.

iNote:

• Ensure that there is a mains socket close to the set-up area.
• Ensure that the mains part plug is completely inserted in the mains socket.
• Arrange the mains cable so that no-one will trip over it.

6. Operation

1	Remove the stand from the storage slot on the rear of the device.
2	Clip the stand into one of the two holders [7] on the rear. The orientation/angle of the TL 20 changes depending on where and in which direction you attach the stand. The stand can be inserted so that the bend faces up or down. You can therefore position the daylight therapy lamp at two different angles. The stand can be attached on both the long and short sides, which enables you to use the TL 20 both horizontally and vertically.
3 Switching on the lamp ▶ Press the ON/OFF button.
4 Enjoying the light Position yourself as close as possible to the lamp, at a distance of between 10 cm and 30 cm. You can continue to go about your day-to-day activities during application, including reading, writing, making telephone calls, etc. · Keep looking directly into the light for a short period of time as it is absorbed and shows an effect via the eyes/retina. · Use the daylight therapy lamp as often as you like. However, the treatment is most effective if you carry out the light therapy for at least 7 successive days according to the prescribed times. · The most effective time of day for the treatment is between 6 am and 8 pm and we recommend that it is used for 2 hours per day. · However, do not look directly into the light for the entire application period as this may cause over-stimulation of the retina. · Start with a brief application period and gradually increase the time over the course of a week. · Do not leave the daylight therapy lamp unsupervised if it is being used. Note: After the first few applications you may experience side effects such as pain in the eyes and head or nausea. This should disappear in further sessions as the nervous system becomes accustomed to the new stimuli. Refrain from using the daylight therapy lamp for a few days until the side effects have subsided, then try to use the device again.
5 Things to consider We recommend a distance of between 10 and 30 cm from the face to the lamp during application. The duration of the application depends on the distance:
Lux Distance Application duration
10,000 approx. 10 cm 0.5 hours
5,000 approx. 20 cm 1 hour
2,500 approx. 30 cm 2 hours
In principle: The closer you are to the light source, the shorter the application time.
6 Enjoying the light over longer periods Repeat application on at least 7 consecutive days during darker periods of the year, or for longer depending on your individual needs. Application should take place during the mornings where possible.
7 Switching off the lamp ▶ Press the ON/OFF button. The LEDs switch off. Unplug the mains part from the mains socket. IMPORTANT! The lamp remains warm after use. Allow the lamp to cool down sufficiently before putting it away and/or packing it away warm.

7. Cleaning and maintaining the device

The device should be cleaned from time to time.

Important

• Ensure that no water gets inside the device.

The device must be switched off, disconnected from the mains and allowed to cool down each time before cleaning.

• Do not clean the device in a dishwasher.

Use a slightly damp cloth to clean the device.

• Do not use any abrasive cleaning products and never submerge the device in water.

Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry.

8. Storage

If you are not going to use the device for an extended period of time, disconnect it and store it in a dry place, out of the reach of children.

Follow the storage instructions provided in the "Technical data" chapter.

9. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its service life.

Dispos of the device at a suitable local collection or recycling point in your country. Dispos of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

10. What if there are problems?

Problem Possible cause Solution
Device does not light up	ON/OFF button switched off Switch on the	ON/OFF button.
	No electricity Connect the mains part properly.
	No electricity The mains part is faulty. Contact Customer Services or your retailer.
	LEDs have reached the end of their service life. LEDs faulty.	For repairs, please contact Customer Services or an authorised retailer.

11. Technical specifications

Model/type TL 20
Dimensions (W, H, D) approx. 210 x 130	x 20 mm
Weight approx. 230 g (mains part: 84 g)
Light LEDs
LED colour temperature 6,000 (± 300) Kelvin
Output 7.2 watts
LED service life approx. 10,000 hours
Illuminance 10,000 lux (at a distance of approx. 10 cm)
Location of emission aperture	Screen (around approx. 140 cm²)
Radiation	Radiant power outside of the visible range (infrared and UV) is low enough that no eye or skin damage is anticipated.
Operating conditions	0°C to +40°C, 30 - 90% relative humidity, atmospheric pressure: 700 ~ 1060 hPa
Storage conditions -10°C to +60°C, 30	90% relative humidity, atmospheric pressure:700 ~ 1060 hPa
Product classification 1. Class II equipment	2. No applied part3. Protection against ingress of water: IP214. Not category AP / APG equipment5. Mode of operation: Continuous operation6. External power supply
Risk Group of light source equipment Risk group 1 classified by IEC 60601-2-57: 2011
Product lifetime 3 years
Accessories Mains part, stand, instructions for use

Maximum output of optical radiation for the TL20

Radiance Output Risk group classified	by IEC 60601-2-57: 2011	Max. value
EUVA: Eye UV-A Exempt Group 9×10		-5 W·m-2
ES: Actinic UV skin & eye Exempt Group	8×10	-5 W·m-2
EIR: Infrared radiation hazard exposure limits for the eye	Exempt Group 3×10	-2 W·m-2
EH: Thermal hazard for the skin Exempt	Group 2×10	1 W·m-2
LB: Blue light Risk Group 1 4×10		2 W·m-2·sr-1
LR: Retinal thermal Exempt Group 3×10		2 W·m-2·sr-1

Subject to technical changes.

The serial number is located on the device or in the battery compartment.

This device meets the requirements of the European Directives for medical devices, 93/42/EEC and 2007/47/EC, as well as the German Medical Devices Act (Medizinproduktegesetz).

This device complies with European Standard EN 60601-1-2 and is subject to particular precautions with regard to electromagnetic compatibility. Please note that portable and mobile HF communication systems may interfere with this device. More details can be requested from the stated Customer Service address or found at the end of the instructions for use.

12. Mains part

Model no. GL12A - 120	060 - AdV or GL12A-120060-AdB
Input	100 – 240 V ~ 50/60 Hz 0.8A
Output	12 V DC, 600 mA, only in conjunction with TL 20
Protection	The device is double-protected.
←C+	Polarity of the DC voltage connection
Classification	Protection class II

13. Warranty/service

In case of a claim under the warranty please contact your local dealer or the local representation which is mentioned in the list "service international".

In case of returning the unit please add a copy of your receipt and a short report of the defect.

The following warranty terms shall apply:

1. The warranty period for BEURER products is either 3 years or- if longer- the country specific warranty period from date of Purchase.
   In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Repairs (complete unit or parts of the unit) do not extend the warranty period.
3. The warranty shall not be valid for damages because of

a. improper treatment, e.g. nonobservance of the user instructions.
b. repairs or tampering by the customer or unauthorised third parties.
c. transport from the manufacturer to the consumer or during transport to the service centre.
d. The warranty shall not be valid for accessories which are subject to normal wear and tear (cuff, batteries etc.).

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

FRANÇAIS

Sommaire

Chere clientele, cher client,

HeypaBHOBeeHHOCTb;
- NOdaBneHHoe HacTpoeHne;
BraIOCTbI aNaTnIa
- 06uee HeDomorAHne;

IOBbIeHHa COHINBOCTb;
- notepra annetnTa;
HapyuHeHKe KOHcEHTpaCm BNImaHnA.

PnHIOH 3TNX CmNTOMOB ABJAE TOT fakT, YTO CBET, NOCO6eHNO COJIHeHbI CBET, XN3HEHNO Heo6xOIM MeNoBeky I OKa3bIbAeT PpAme Bo3dEcnCTBne Ha ero opraHn3M. CoJIHeHbI CBET OKa3bIbAeT KocBeHnoe BnnaHne Ha BbIpa60Ky MeLaToHnHa, KOtOpBn NOcTyNaet B KPOBb TOJbKO C HAcTyPJIeHNMe TEMHotbl. 3TOT ropMOH Daet CNrHAn OPraHn3My, YTO HAcTyNlIO BpeM cHa. ImEHNO No3OMy B MecraCbI, KOrDa COJIHca MaJIO, BbIPA60f Ka MeLaToHnHa yBeJIuHbAeTcR. Ham CLOXHee BCTaBaTb NO yTpam, TaK kФyHKUIN OPAraHn3Ma 3aTopMaXknBaIoTc. EcIn NcNoB3OBAbT pIP6Op DHeBHO CBeTa cpa3y nocLe yTpEHHero npObojXJeHn, To eCt b KaK MoXHo paHbSe, TO MOXHO ppeKpaTITb BbIPA60Ky MeLaToHnHa N 6blCTpo UnyuWntb HaCtpoehne.

При HeIoCTaTKe CBeTa TAKKHe 3aMeIJIeTcR IpoUeCC BbIpa6ToKr rOpMOHa CuaCTbR, cepToHnHa, KOTopbIMeET 6OJIbIooE 3HaueHne dIЯ XopoUeRo cAmOyBCTBnI. IprimeHHeHne CBeTOBO BO3dIeCTBnR Bbl3bIBaET KOJIuYeCTBeHHbIe N3MeHEnHr IopMOHO H HeIpOMeIaTopOB B rIOJbHOM M03Re, YTO MOKeT NOLOXHTeNbHO nBnIaTb Ha Na Hau yPoBeHb AKTUBHOCtN OObSe cOCToHne OprAHn3Ma. B 6Opb6e C ropMOHaJIbHbIM DnC6aJIaHCOM PpIbOpbI dHeBHOrO CBeTa MOrY CTaTb NODxOJaIe 3aMeHOn pPnpOJHO cONHeHOrO CBeta.

B MeiunHe np60bI DHeBHoro CBeta pImMeHOTcIg IJeueHn HeOMOraHn, Bbl3bBaembIX HeOCTaTKOM coJIHeHoro CBeta. Pn60bI DHeBHoro CBeta IMITpyoT n3JyueHne DHeBHoro CBeta CnIOJ CbbIe 10 000 Jk. CBET 6IaTOBOPHO BO3dEICTByeT Ha YeIOBeueckn OprAHN3M m MOKeT pIMeHrTcR K aK B IpoOpNJaKTUeCKnx, TAK N B Leue6hBix cIeyx. ObuHoro 3JIeKTPnueCKoro CBeta H XBataeT, YTO6bl BBipOBHrT bROPMOHaJIbHbI dNG-6anHC. TaK, daKe B XopoIo OCBeueHHom OFnce Cnla CBeta COCTABnRE T BCero IINb 500 Jk.

KomnjeKt noctabKn: npnbop dHeBHO CBeTa;

• NOДСТАВКа;
  -ДаHHаИнСТуКУпЯ NOПримЕнHuO;
• 6JIOK NITaHnI.

2. Поршени К симболам

B nHCTpykqnn no npimEnHeHIO nn Ha npnbope nCnOJb3yOTc CNeDyUOuNE CmMBoJIbI.

The "TL20" has been designed and manufactured to conform to the highest standards of safety and performance including electromagnetic compatibility (EMC).

The appliance is complied with the following emission and immunity standard, and test level:

Emissions Test Standard Compliance

RF emissions CISPR 11:2009+A1:2010	Group 1, Class B
Harmonic emissions IEC 61000-3-2:2014	Class C
Voltage fluctuations/ flicker emissions IEC 61000-3-3:2013	Complies

Immunity Test Standard Compliance level

Electrostatic discharge (ESD)	±8 kV contact
IEC 61000-4-2:2009	±15 kV air
Electrical fast transient/burst	±2 kV, for power supply lines
IEC 61000-4-4:2004
Surge IEC 61000-4-5:2006 ±1 kV line to line
Voltage dips, interruptions and variations on power supply input lines	V NOM: 230Vac Level of Reduction (dip): 500 mS at 30% of V NOM and 100 mS at 60% of V NOM Duration of Interruption (>.95* V NOM): 10ms
IEC 61000-4-11:2004
Power frequency (50/60 Hz) magnetic field	30 A/m
IEC 61000-4-8:2009
Conducted RF	3 V, 150 kHz to 80 MHz
IEC 61000-4-6:2003+A1:2004+A2:2006	6V (ISM/ Amateur radio band)
Radiated RF	10 V/m
IEC 61000-4-3:2006+A1:2007	80 Hz to 2,7 GHz

Zero-Plus International Limited

Rm 1004, 10/F, Join-in Hang Sing Centre, 71-75 Container, Port Road

Kwai Chung, New Territories, Hongkong

Distributed by BEURER GmbH • Söflinger Str. 218 • 89077 Ulm (Germany)

www.beurer.com • www.beurer-gesundheitsratgeber.com

www.beurer-healthguide.com

C E 0123

Company Limited

4B Christchurch House, Beaufort Court,

Medway City Estate, Rochester, Kent, ME2 4FX

United KingdomEstate
