USER MANUAL ER2171 PANASONIC

Operating Instructions

AC/Rechargeable Beard/Hair Trimmer

Model No. ER2171

English 2 Dansk 38 Cesky 74

Deutsch 8 Portuguès 44 Slovensky 80

François 14 Norsk 50 Magyar 86

Italiano 20 Svenska 56 Romänă 92

Before operating this unit, please read these instructions completely.

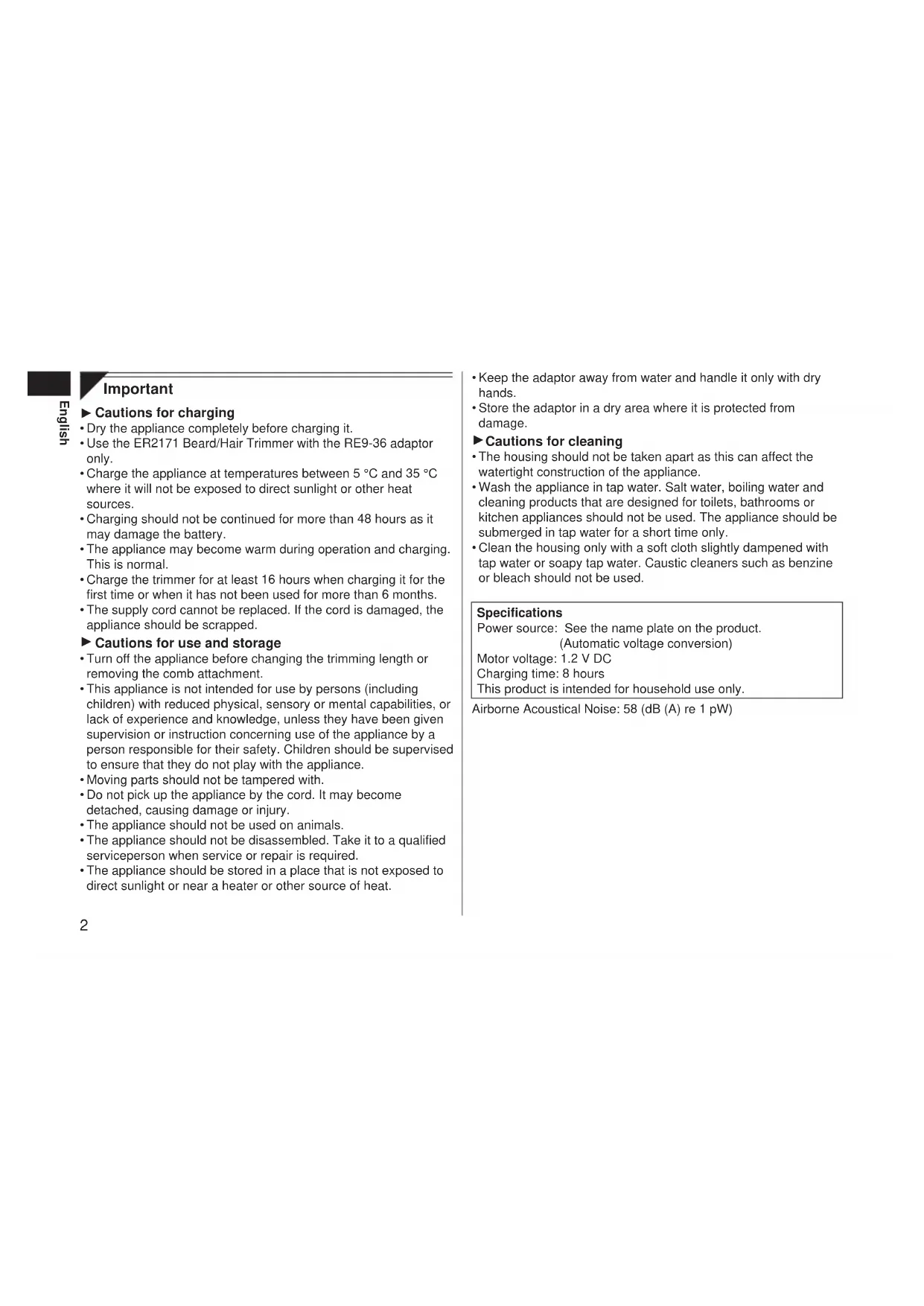

Important

Cautions for charging

• Dry the appliance completely before charging it.
• Use the ER2171 Beard/Hair Trimmer with the RE9-36 adaptor only.
• Charge the appliance at temperatures between 5^ and 35^ where it will not be exposed to direct sunlight or other heat sources.
• Charging should not be continued for more than 48 hours as it may damage the battery.
• The appliance may become warm during operation and charging. This is normal.
• Charge the trimmer for at least 16 hours when charging it for the first time or when it has not been used for more than 6 months.
• The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.

Cautions for use and storage

• Turn off the appliance before changing the trimming length or removing the comb attachment.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Moving parts should not be tampered with.
• Do not pick up the appliance by the cord. It may become detached, causing damage or injury.
  The appliance should not be used on animals.
• The appliance should not be disassembled. Take it to a qualified serviceperson when service or repair is required.

• The appliance should be stored in a place that is not exposed to direct sunlight or near a heater or other source of heat.

• Keep the adaptor away from water and handle it only with dry hands.

• Store the adaptor in a dry area where it is protected from damage.

Cautions for cleaning

• The housing should not be taken apart as this can affect the watertight construction of the appliance.
• Wash the appliance in tap water. Salt water, boiling water and cleaning products that are designed for toilets, bathrooms or kitchen appliances should not be used. The appliance should be submerged in tap water for a short time only.
• Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Caustic cleaners such as benzine or bleach should not be used.

Specifications

Power source: See the name plate on the product.

(Automatic voltage conversion)

Motor voltage: 1.2 V DC

Charging time: 8 hours

This product is intended for household use only.

Airborne Acoustical Noise: 58 (dB (A) re 1 pW)

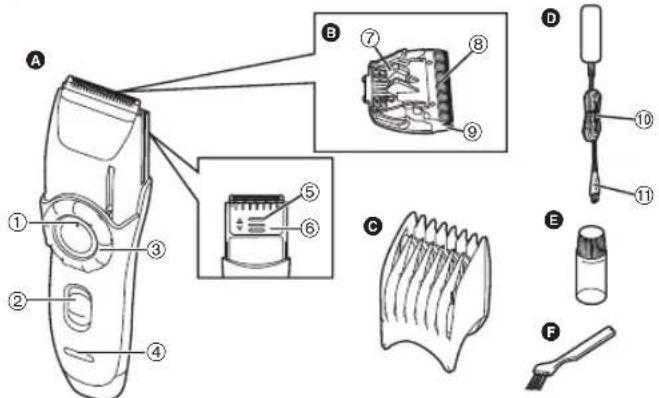

Parts identification

A Main body
① Trimming length indicator
② Switch
③ Dial
④ Charge indicator lamp
⑤ Thinning plate lock button
⑥ Thinning plate
Comb attachment
Adaptor (RE9-36)
10 Power cord 11 Appliance plug
Oil
F Cleaning brush
Blade block
⑦ Cleaning lever
⑧ Movingblade
(9) Stationary blade

Charge

Charging the trimmer

You can fully charge the trimmer in 8 hours if it is losing speed.

A full charge supplies enough power for approximately 50 minutes of use.

1. Insert the appliance plug into the trimmer.

2. Plug in the adaptor into a household outlet.

The charge indicator lamp lights and stays on until the adaptor is removed from a household outlet.

Cord Trimming

If you insert the appliance plug to the trimmer and plug in the adaptor into a household outlet, you can use it even if the battery capacity is low.

• If the trimmer does not work, continue charging it for approx. 1 minute.

Use

Using the trimmer

Trimming your beard and moustache

1. Apply a few drops of the oil to the blades. (See page 6.)

2. Turn the dial to move the comb attachment to the desired trimming length (between 1 mm and 20 mm).

Indicator	Trimming length	Indicator	Trimming length
1 1.0	mm 11	11.0 mm
2 2.0	mm · 1	2.5 mm
·3.5	mm 14	14.0 mm
5 5.0	mm · 1	5.5 mm
·6.5	mm 17	17.0 mm
8 8.0	mm · 1	8.5 mm
·9.5	mm 20	20.0 mm

1. Slide the switch on the main body upwards to turn on the trimmer.

2. Place the angled face of the comb against the skin and cut the beard by moving the trimmer in all directions to obtain a uniform cut.

With curly facial hair, the comb attachment may not cut all of the hair. In this case, remove the comb attachment and use a conventional comb to draw out the remaining uncut hair.

Shaping your moustache

1. Remove the comb attachment.
2. Place the angled edge against the skin and make the border of the beard even.

Using the thinning function

1. Slide the thinning plate upwards until it clicks.

1. Run the trimmer slowly across the head as if combing the hair with applying the blade point at right angles (90^) to the hair.

2. Thin the hair gradually while checking the overall balance.

1. Push the thinning plate lock button to slide the thinning plate back.

Notes for thinning

• Slide the thinning plate upwards until it clicks. Incorrect setting may result in excessive cutting.
• If a difference in level is produced, lightly thin to compensate.
• If thick and thin portions are produced, or if there are portions with an excessive amount of hair, thin the appropriate portions to compensate.

Cutting of hair

Cut hair to the correct height by moving the trimmer back against the flow of the hair.
- Do not use the trimmer in an inverted position. This can cut hair too deeply.

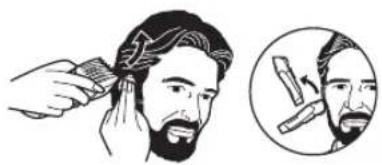

Cutting around the ears

Cut a little, and then gently separate the trimmer from the hair.

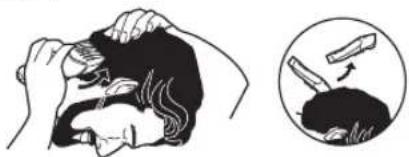

Cutting the nape of the neck

Bring the trimmer gently away from the hair to finish.

Clean

Cleaning the trimmer

Using the cleaning brush
1. Remove the comb attachment.
2. Hold the main body, place your against the blades and then put them away from the main body.
3. Brush off any hair trimmings from the main body and from around the blade.
4. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever to raise the moving blade.

If washing in water

The following is the symbol of washable trimmer. The symbol means that hand-held part may be cleaned under water.

Warning - Detach the hand held part from the power cord before cleaning it in water.

1. Disconnect the power cord from the trimmer.
2. Remove the blade.
3. Rinse off any hair trimmings that are sticking to the blades with running water.
4. Rinse out any hair trimmings that are inside the trimmer with running water.

1. Gently shake the trimmer 4 or 5 times and then wipe off any water drops from the trimmer and the blade.
2. Place the trimmer on a towel with the switch on the main body facing downwards to let it dry fully.

Lubrication

Lubricate the blades before using them or after cleaning them.

1. Apply a drop of the oil to the points indicated by the arrows.

Remounting the blade

Fit the mounting hook into the blade mounting on the trimmer and then push in until it clicks.

Blade life

Blade life varies according to the frequency and length of use of the trimmer.

For example, the blade life is approximately 3 years when using the trimmer for 10 minutes every 3 days. Replace the blades if cutting efficiency reduces substantially despite proper maintenance.

Battery life

Battery life varies according to the frequency and length of use of the appliance.

For example, the battery life is approximately 6 years when the battery is charged 3 times a month.

The appliance should not be left for more than 6 months without charging it. The charge drains from the battery and the battery life may be shortened.

Removing the built-in rechargeable battery

The battery in this trimmer is not intended to be replaced by consumers. However, the battery may be replaced at an authorized service center.

The procedure described below is intended only for removal of the rechargeable battery for the purpose of proper disposal.

1. Disconnect the power cord from the trimmer.
2. Remove the blade from the trimmer. Remove the screw (a) and detach the bottom cover (b).
3. Detach the dial cover (c), remove the screw (d) and disconnect the dial (e).
4. Remove the 2 screws (f).

1. Detach the housing (g).
2. Remove the screws (h).

1. Disconnect housing (i).

2. Disconnect the battery chamber (j) and remove the battery (k).

3. Discharge the battery completely before removing it.

4. Be careful not to short the + and - terminals of the battery after removing it.

For environmental protection and recycling of materials This trimmer contains a Nickel-Metal Hydride battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Please read "Information for Users on Collection and Disposal of Old Equipment and used Batteries" on page 104.

Wichtig

Precautions concerning la recharge

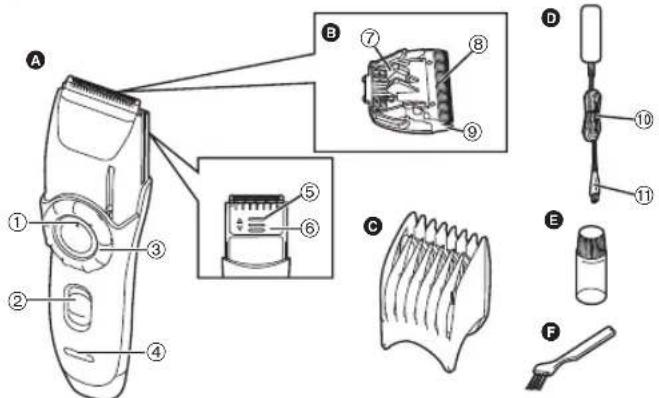

Identification of dele

Apparats krop

① Indikator for trimmelaengde
② Taend/sluk-kontakt
③ Drejeknap
④ Opladningsindikatorlampe
⑤ Udtyndingskaerets laseknap
⑥ Udtyndingsskaer

Afstandskam

Adapter (RE9-36)

⑩ Strömledning

⑪ Stik til apparat

Olie

Rengaringsbarste

B Skaerenhed

⑦ Rengöringshandtag
⑧ Bevageligt skaer
⑨ Fast skaar

Opalading

Lubrifique as laminas antes de as usar ou depuis de as limpar.

Advarsler for rengjaring

• Hoveddelen ma违法犯罪, da dette kan skade apparatets vanntette konstruktjon.

Motorspenning: 1,2 V likestrom

Ladetid: 8 timer

Dette Produktet er kun beregnet til husholdningsbruk.

Akustisk stoy: 58 (dB (A) re 1 pW)

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
