USER MANUAL ESED93 PANASONIC

Operating Instructions

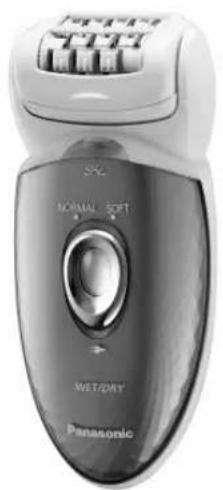

(Household) Epilator

Model No. ES-ED93/ES-ED53/ES-ED23

NORMAL SOFT WET/DRY Panasonic

CE

GB English .... 5 DK Dansk .... 137 CZ Česky .... 269
D Deutsch ..... 25 P Português ..... 159 SK Slovensky .....291
F Français .... 49 N Norsk .... 181 H Magyar .... 313
I Italiano .... 71 S Svenska .... 201 RO Română .... 335
NL Nederlands ..... 93 FIN Suomi ..... 223 TR Türkçe ..... 357
E Español ..... 115 PL Polski ..... 245

1

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

2

Simple line drawing of an open book with a vertical spine and two curved arrows indicating rotation or movement (no text or symbols)

Panasonic

Operating Instructions

(Household) Epilator

Model No. ES-ED93/ES-ED53/ES-ED23

Contents

Safety precautions 8

Intended use ....12

Quick steps for using....12

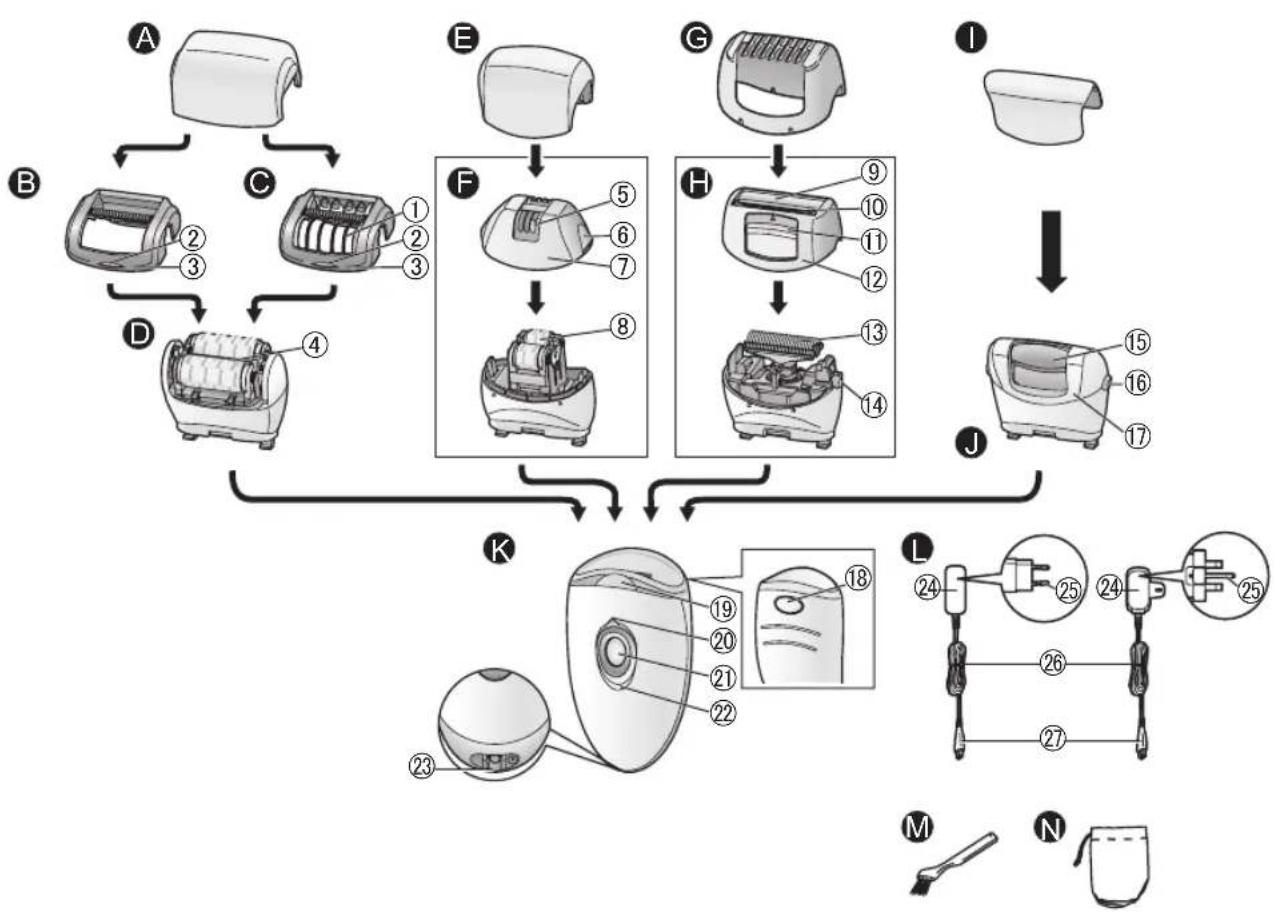

Parts identification....13

Charging....14

Before use....14

How to use ....15

Cleaning 19

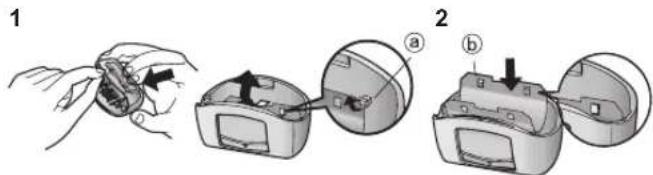

Replacing the outer foil and the inner blade....20

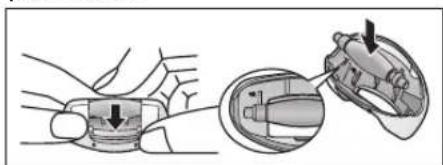

Replacing the file....20

Troubleshooting ....21

Battery life 23

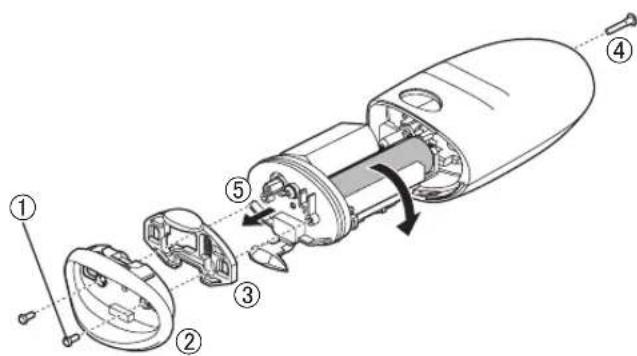

Removing the built-in rechargeable battery....23

Guarantee....23

Specifications 24

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.
• Do not use anything other than the supplied AC adaptor for any purpose.
  Also, do not use any other product with the supplied AC adaptor. (See page 13.)

- The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

▶ Using the head of epilation/shaver

• These heads can be used for wet. The following symbol means suitable for use in a bath or shower.

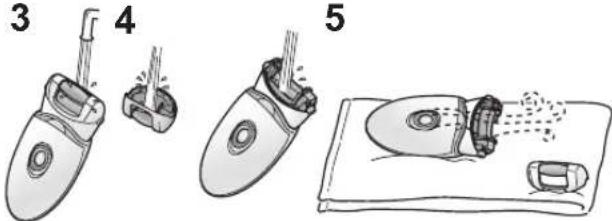

▶ Using the foot care head

- The foot care head is washable. The following symbol means that the foot care head can be cleaned under the water.

- Detach the main body from the AC adaptor before cleaning it in water.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

▶ This product

This product has a built-in rechargeable battery. Do not throw into flame or heat. Do not charge, use, or leave in high temperatures.

- Doing so may cause overheating, ignition, or explosion.

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change etc.).

▶ In case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

• The main unit, adaptor or cord is deformed or abnormally hot.
• The main unit, adaptor or cord smells of burning.
• There is abnormal sound during use or charging of the main unit, adaptor or cord.
• Immediately request inspection or repair at an authorized service centre.

▶ Preventing accidents

Do not place within reach of children or infants. Do not let them use it.

- Doing so may cause an accident or injury due to accidental ingestion of the inner blade, brush, etc.

WARNING

▶ Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

Doing so may cause electric shock or injury.

Do not immerse the AC adaptor in water or wash it with water.

Do not place the AC adaptor over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage or modify, or forcefully bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor or appliance plug.

- Failure to do so may cause fire or electric shock.

Always unplug the adaptor from a household outlet when cleaning.

- Failure to do so may cause electric shock or injury.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

CAUTION

▶ To protect the skin

The following persons should not use this appliance:

• Persons suffering from atopic dermatitis or rashes and other skin diseases
• Persons with allergic diathesis or persons who are easily irritated by cosmetics, clothing, metals, etc.
• Persons who are easily suppurated
• Persons suffering from varicose veins, diabetes, hemophilia, etc.
• Persons who have trouble stopping bleeding
• Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use in the following cases:

• During menstruation, pregnancy, or about one month after giving birth
• When you are not well or when you feel an abnormality in your skin or body
  • After drinking alcohol or taking medicine, or when you are very tired
• Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use in the following body area:

• Injury, rash, moles, bruises, warts, pimples, etc.
• On suntanned skin
• Doing so may cause injury, inflammation of the skin, or bleeding.

CAUTION

Do not use the epilation head for legs/arms to epilate your underarms and bikini-line.

- Doing so may cause injury or inflammation of the skin.

Do not use the soap with a scrub or with peeling effect.

- Doing so may cause injury to the skin, color stains or other skin trouble.

Do not press on the blade too strongly when using the shaver head.

- Doing so may cause damage which results in injury to the skin.

Do not touch the blade section (metallic section) of the inner blade when using the shaver head.

- Doing so may cause injury to your hands.

Do not turn ON the switch without the head attached.

- Doing so may cause finger injury or cause hair or clothing entanglement and damage.

Do not use with the frame removed.

- Doing so may cause finger injury or cause hair or clothing entanglement and damage.

Before using, check that the skin protector, disc, blade, frame are free from deformities, cracks, and damage.

- Failure to do so may cause injury to the skin.

The skin protector and outer foil are easily deformed, so store with the protection cap attached.

- Failure to do so may result in deformation or damage to the skin protector or outer foil, which may cause injury to skin.

Apply the skin protector at a 90° angle to your skin with gentle force.

- Failure to do so may cause injury to the skin or cause hair or clothing entanglement and damage.

Note the following precautions

Do not share with your family or others.

- Doing so may cause infection or inflammation.

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not continuously aim the light directly into your eyes.

- Doing so may cause dizziness.

Do not wrap the cord around the adaptor when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not drop or subject to shock.

- Doing so may cause injury.

Disconnect the adaptor from the household outlet when not charging.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

- Disconnecting by holding onto the cord may cause electric shock or injury.

CAUTION

▶ About using the epilation/shaver head

Do not use in the following body area:

• Face, genitals and genital area, or thighs
- Inner side of the upper arms and areas such as elbows or knees which are prone to sagging
- Doing so may cause injury, inflammation of the skin, or bleeding.

The following persons should not use this appliance:

• Persons who have suffered skin problems (suppuration, inflammation, etc.) caused by epilation (plucking, depilation, waxing, etc.)
• Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use epilation/shaver head in the following ways:

- Using just before swimming or sea bathing (use at least 2 days before such activities)

• Using just before bathing
- Engaging in extreme sports or exercise right after epilation
- Doing so may cause infection or inflammation resulting from bacteria that enter the body through the pores.

Do not apply strong pressure to the skin, move repeatedly over the same area or move back and forth in one area. Also, do not use with a jabbing motion.

- Doing so may cause injury or inflammation of the skin, or increased pain.

If skin problems continue for 2 days or longer after treatment, stop using the unit and contact a dermatologist.
- Failure to do so may cause symptoms to worsen.
If skin problems continue for 2 days or longer after treatment, stop using the unit and contact a dermatologist.
- Failure to do so may cause symptoms to worsen.

▶ About using the foot care head

Do not use on blisters and corns.

- Doing so may cause injury, inflammation of the skin, or bleeding.

Do not use foot care head in the following ways:

• Filing too deeply
• Letting the file touch soft skin
  • Using the foot care head in the bath
• Doing so may cause injury to the skin, infection, inflammation, bleeding or other trouble, or worsening of such symptoms.

When using the appliance for filing, be careful of the direction in which the main body moves.

• Rotation of the file may cause the main body to move in an unexpected direction and cause injury to the skin.
• People suffering from poor circulation in the feet; or swelling, itchiness, pain, or excessive warmth in the feet should consult their doctor before using the foot care head.

• If skin appears abnormal after filing, stop using the foot care head and consult a dermatologist.
• File the hardened skin little by little over a few days.
• File only calluses or hardened skin on your feet.
• Failure to follow the above instruction may cause injury to the skin, infection, inflammation, bleeding or other trouble, or worsening of such symptoms.

Store the foot care head with the protection cap attached.

- Failure to do so may cause damage to surrounding items.

Handling of the removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products. Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
• Do not peel off the battery casing or outer wrap.
• Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

If the battery fluid leaks out, do not touch the battery with your bare hands.

• The battery fluid may cause blindness if it comes in contact with your eyes.
  Do not rub your eyes. Wash immediately with clean water and consult a physician.

• The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.
  Wash it off thoroughly with clean water and consult a physician.

• Do not use alcohol, nail polish remover, or detergent (ex. liquid hand soap), etc. to clean the appliance. Doing so may cause failure, cracking or discoloration of the main body.

• Keep the appliance away from sinks, bathrooms or other high-humidity areas where it could be exposed to water and moisture after use.
• Keep the appliance away from where it will be exposed to high temperatures or direct sunlight.
• When storing the epilator, always attach the protection cap for the epilation head/foot care head/shaver head.

Charging (Page 14)

Selecting the head ( Page 14)

How to use (Page 15)

Parts identification

A Protection cap for epilation head (legs/arms)

B Fast cap

© Gentle cap (→ Page 17)

① Skin protector

② Cap release ribs

③ Frame

© Epilation head for legs/arms

④ Epilation discs

E Protection cap for epilation head (underarms/bikini-line)

F Epilation head for underarms/bikini-line

⑤ Skin protector (metal part on the outside)

⑥ Frame release ribs

⑦ Frame

⑧ Epilation discs (inside)

© Bikini comb (Protection cap for shaver head)

H Shaver head

⑨ Outer foil

⑩ Trimmer

⑪ Pop-up trimmer switch

⑫ Frame

⑬ Inner blade

⑭ Frame release button

① Protection cap for foot care head

Foot care head

⑮ File

⑯ Frame release buttons

⑰ Frame

K Main body

⑱ Head release button

⑲ LED light

⑳ Mode lights

②1 Power switch

② Charging indication/ notification light

②3 Socket

L AC adaptor (RE7-87)

(The shape of the AC adaptor differs depending on the area.)

②4 Adaptor

⑲ Power plug

②6 Cord

⑳ Appliance plug

Accessories

M Cleaning brush

N Pouch

Attachments ES-ED93 ES-ED53 ES-ED23
Protection cap for epilation head (legs/arms) [A]	√	√	√
Protection cap for epilation head (underarms/bikini-line) [E]	√	—	—
Bikini comb (Protection cap for shaver head) [G]	√	√	—
Protection cap for foot care head [I]	√	—	—
Fast cap [B]	√	√	√
Gentle cap [C]	√	√	√
Epilation head for underarms/bikini-line [F]	√	—	—
Shaver head [H]	√	√	—
Epilation head for legs/arms [D]	√	√	√
Foot care head [J]	√	—	—
Pouch [N]	√	√	√

Charging

For best performance, fully charge the appliance before use. You cannot operate the appliance while charging.

Charging time = Approx. 1 hour

The epilator can be used for approximately 30 minutes (40 minutes when using the gentle cap) after 1 hour of charging. (This will differ depending on the temperature.)

Plug the AC adaptor into the epilator (a) and a household outlet (b).

- Recommended ambient temperature for charging is 15 - 35 °C. The battery may not charge properly or not at all under extreme low or high temperatures.

Diagram showing a handheld device connected to a plug, labeled with parts (a) and (b)

While charging

Red light appears.

After charging is completed

Red light goes off.

Abnormal charging

Blinks twice every second.

• The charging time may decrease depending on the charging capacity.
  If you remove and reinsert the appliance plug while charging, the charging indication/notification light glows and turns off after approximately 5 seconds.

• Charging the appliance every time it is used will not affect the life of the rechargeable battery.

• When charging the appliance for the first time or when it has not been in use for more than 6 months, the charging time may change or the charging indication/notification light may not glow for a few minutes. It will eventually glow if kept connected.

Before use

Selecting the head

1 Remove the head while pushing the head release button.

Diagram showing a toaster with an open lid and its internal components, including a close-up of the lid's edge.

2 Push the head until it clicks.

Using the bikini comb ES-ED93 / ES-ED53

Place the bikini comb onto the shaver head and slide trimmer up.

- When the bikini comb is in place, make sure the comb is in close contact with the skin.

The LED light comes on when the power is turned on. The light will remain on while the power is ON.

Operation will change in order from "NORMAL" → SOFT → "OFF" each time the power switch is pressed.

NORMAL

In NORMAL mode, epilation is performed in a short time with fast disc rotation speed.

• The orange lamp will light up.

SOFT

SOFT mode will control the rotation speed of the discs, and minimize irritation at the time of epilation.

• The green lamp will light up.

NORMAL SOFT

OFF

The power will be switched OFF.

- The charging indication/notification light (→) blinks once every second.

- The operating time varies depending on usage or temperature after the charging indication/notification light blinks.

How to use

Epilation head

Areas suitable for epilation

The epilator can be used on the areas.

Illustration of a person performing a seated leg stretch or exercise (no text or symbols present)

ES-ED93

The epilator can be used on the areas.

Before epilating the bikini-line, be sure to put on your swim wear or underwear etc. and check the areas you wish to epilate.

- Using the epilator on areas other than those marked may cause pain or skin trouble.

Areas not suitable for epilation

The epilator should not be used on the inner side of the upper arms and areas such as elbows or knees which are prone to sagging.

Illustration showing three different postures of a human arm joint, with dotted lines indicating movement or positioning (no text or symbols present)

WET epilation (epilating after wetting the skin and epilator and then applying foam) makes the skin softer so it is gentler to your skin when epilating. For DRY epilation, begin at step 3. Before DRY epilation, wipe dry any moisture or sweat from the skin.

1 Wet your skin.

2 Wet the discs and place a small quantity of liquid shower gel on the discs.

• Always use shower gel when wet epilating.
- Do not use a shower gel with a scrub or with granular salt, this may cause a malfunction.
- Rinse any shower gel out of your hands.

3 Select the mode by pressing the power switch [K②]. (→ Page 15)

- Foam is created. Foam makes the epilator slide better, so you can move it fast.

- The appliance may not operate in an ambient temperature lower than approximately 5 °C.

- Apply the epilator at 90^ to your skin and move it slowly so that it slides over your skin.

Upwards from the bottom of the leg. Inwards from the outside of the arm.

Illustration showing two different positions of a person's arm and wrist, with no visible text or symbols.

ES-ED93

Move in several directions as underarm/bikini line hair grows in different directions.

Stretch the skin with your fingers, and move slowly from inside to outside going against the flow of hair.

Tips for best epilation results

The hair removal is not permanent, so from the 2nd use we recommend that you epilate the underarms about once a week and the arms and legs about once every two weeks.

When epilating for the first time, or when using on sensitive skin, we recommend using the gentle cap.

The gentle cap has a skin protector for gentler epilation, to remove hair by holding the skin down to reduce pain.

- We also recommend to use the SOFT mode rotation.

(→ Page 15)

1. Remove the fast cap [B].
2. Attach the gentle cap [©].

• Massaging with a body puff may help to prevent ingrown hairs.
• Reddening might appear after use. A cool towel will help if you feel pain or there is a rash.
• If your skin gets dry after epilation, we recommend applying a moisture lotion two days after epilation.
  • Make sure skin is clean before and after use.

Trim your hair before epilating for the first time or if you have not epilated for a long time. Hair removal is easier and less painful when the hair is short.

Shaver head ES-ED93 / ES-ED53

WET Shaving with soap lather makes the skin slippery for a closer shave. For DRY shaving, step 3 is unnecessary. Before DRY shaving, wipe dry any moisture or sweat from the skin.

1 Attach the shaver head [G].
- Confirm the bikini comb [G] is detached.
2 Check that the outer foil is not deformed or damaged.
2 Wet your skin and put shower gel on your skin.

- Do not use a shower gel with a scrub or with granular salt. Also do not use shaving cream, skin cream or skin lotion.

Doing so may clog the blade and cause a malfunction.

4 Select the mode by pressing the power switch [K②]. (→ Page 15)

- Press gently so that the whole blade is in close contact with the skin and the surface of the blade does not move up and down.

Foot care head ES-ED93

• The foot care head cannot be used in a bath or shower.
- Before use, be sure to fully charge the appliance.
- We recommend using the product within 30 minutes after bathing or showering. With the feet clean, wipe off any water on the skin. (Each use should be approximately 10 minutes (5 minutes on each foot, 10 minutes total for both feet))

1 Attach the foot care head [J].

- Push down firmly until you hear a "click".

2 Press the power switch [K②] once.

• NORMAL mode is recommended for rotation speed. (Page 15)

3 Bring the foot care head into contact with the skin, and begin filing.

- Filing a single location for a long time can cause it to become hot with friction. To avoid this, be sure to make small changes in the filing position while filing.

- Filing should be performed about once every two weeks.

The basics of foot care

Do not use the product for filing anything other than calluses and hardened skin on the feet.

Callus

A callus is a hardened layer that forms through repeated pressure or abrasion.

a Hardened layer
b Epidermis
© Derma

Things to be careful of when filing

Before use After use

a b c d e

a Hardened layer
b Epidermis
© Derma
(d) Portion to be removed
(e) Leave some of the hardened layer

• Filing an area too deeply can cause it to become sore or inflamed.
• Filing too large an area can result in even larger calluses forming. Therefore, be sure to leave some of the hardened layer.

Tips for moving the foot care head

Move in the direction indicated by the arrows.

Use your free hand to support filing.

Cleaning

• Always clean the heads and caps after use to keep them in a hygienic state.
- Switch off and unplug the appliance before cleaning.
• Take care not to damage the skin protector, the frame, the fast cap and the gentle cap during cleaning.

Dry cleaning [BCDFH]

Epilation head/Shaver head

1. Lift fast/gentle caps, the frame upward while holding the cap release ribs [B②]/the frame release ribs [F⑥] or remove the frame by pushing the frame release button [H⑭].

2. Clean the gentle cap [C], the epilation head [DF] and the shaver head [H] with the cleaning brush [M].

Diagram illustrating a step-by-step procedure for handling a device, labeled with arrows ① and ②.

Illustration of four different electrical circuit components: a switch, fuse, battery, and plug (no text or symbols present)

Wet cleaning [BCDFHJ]

Epilation head/Shaver head

1. Wet the discs and blades, and then apply liquid hand soap.

2. Turn the switch on and then foam is created.

3. Wash the head with water to wash out hair.

4. Do not use hot water.

5. If soap is not completely washed away, then a white deposit can accumulate and prevent the discs and the blades from moving smoothly.

6. Rinse the shaver head with the frame removed.

7. Turn the switch off, wipe the appliance with a dry cloth and dry it well.

Illustration of a pair of computer monitors with visible internal components and a tool inserted (no text or symbols)

Foot care head

1. Apply liquid hand soap to the central part of the file.
2. Pour a small amount of water on the file and turn the switch on.
3. Rinse any debris thoroughly with water or lukewarm water.
4. After turning the switch off, remove the frame and rinse inside.
5. Wipe with a dry cloth and dry in a well-ventilated location.

3

Illustration showing five different types of hairless devices with numbered labels, including a pen holder and a cloth cover.

Replacing the outer foil and the inner blade ES-ED93 / ES-ED53

We recommend replacing the outer foil [H⑨] every year and the inner blade [H⑬] every two years. Remove the outer foil of the shaver head [H] only when replacing it.

Replacing the outer foil

1. While pushing the outer foil gently with the fingers, use a fingernail to release the plastic panel (①) on the blade from the hooks (④) on the inside of the frame.
2. The new outer foil should be slightly bent and pushed in until it is hooked in the frame.

Diagram illustrating a device being opened into a housing, showing step 1 and step 2 with labeled components.

Replacing the inner blade

1. Remove the inner blade by holding it at both ends and pulling straight away from the shaver.
2. Insert the inner blade by holding it at both ends and press downward.

Replacing the file ES-ED93

The file lifetime is approximately 1 year (assuming a single use every 2 weeks with approximately 10 minutes per use). We recommend replacing the file about once a year.

1. Press down with your finger and release the file.
2. Align the shaped part with the mark side and press down.

Illustration of a hand holding a small mechanical component with an arrow indicating direction (no text or symbols present)

Troubleshooting

Problem Possible cause		Action
The appliance does not operate.	When epilating	It is not charged. Fully charge the appliance.
		The switch is turned ON with the adaptor connected to the household outlet.	Charging is only possible when connected to the household outlet.Disconnect from the household outlet before use.
		The skin protector or discs are deformed, cracked, or damaged.	Request repair at an authorized service centre.
	When epilating or shaving	Hair dust has accumulated. Clean the hair dust.
		Shower gel has adhered to the discs and blade.	Wash it off by soaking in warm water.
	When caring for feet	The frame is not securely attached.	Reattach it.
The usage time gets short.		The appliance is used with approximately 5 °C or lower.	Use the appliance in an ambient temperature approximately 5 °C or higher.
		The appliance is pressed against skin too hard.	Contact to skin with gentle force.
		Not charged fully.	Fully charge the appliance.
The appliance stops during operation.		The appliance is pressed against skin too hard.	Contact to skin with gentle force.
		Not charged fully.	Fully charge the appliance.
Cannot remove hair.	When epilating	The appliance is used on long hair.	Use on hair approximately 2 to 3 mm long.
The hair becomes stubble.		The way the unit is applied or moved is not correct.	Refer to page 16.
The appliance is not removing the hair as well as before.	When epilating	► Hair dust has accumulated. Clean the hair dust.
		► The skin protector or discs are deformed, cracked, or damaged.	► Request repair at an authorized service centre.
The appliance is not cutting as well as before.	When shaving	► Hair dust has accumulated. Clean the hair dust.
		► The blade is deformed.	► Replace the blade.Guidelines for replacement:Outer foil: Approximately 1 yearInner blade: Approximately 2 years
		► The blade is worn out.
Cannot file.	When caring for feet	► The file is worn out.	Replace the file.Guidelines for replacement:Approximately 1 year
		► The appliance is used in the SOFT mode.	► Try using it in NORMAL mode.
Cannot get rid of odor.		► It is dirty.	► Soak the file in water for approximately 24 hours before washing.

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Battery life

Approximately 3 years.

If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life.

(The battery life may change due to usage and storage conditions.)

The battery in this appliance is not intended to be replaced by consumers. Have the battery replaced by an authorized service centre.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the appliance.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the appliance, and must not be used to repair it. If you dismantle the appliance yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the appliance from the AC adaptor.
• Use the battery until it fully discharges if there is any charge remaining.
• Perform steps ① to ⑤ and lift the battery, and then remove it.
• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Exploded view diagram of a device showing internal components and labeled parts

For environmental protection and recycling of materials This appliance contains a Li-ion battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Guarantee

Please visit Panasonic web site http://www.panasonic.com or contact an authorized service centre (You find its contact address in the pan european guarantee leaflet.) if you need information or if the epilator or the cord get damaged.

Specifications

Power supply	See the name plate on the AC adaptor. (Automatic voltage conversion)
Charging time Approx. 1 hour
Airborne Acoustical Noise	Epilation head for legs/arms: 69 (dB (A) re 1 pW)Epilation head for underarms/bikini-line: 67 (dB (A) re 1 pW)Shaver head: 61 (dB (A) re 1 pW)Foot care head: 66 (dB (A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Betriebsanleitung

Diagram showing a device labeled 'a' connected to a plug labeled 'b', likely illustrating a medical or laboratory procedure.

Illustration of a toaster oven and its paper with a scroll, showing mechanical components (no text or symbols)

Diagram showing a device being processed from a fan or scanner, with arrows indicating the process.

NORMAL SOFT

AUS

Illustration of a person performing a seated leg stretch or exercise (no text or symbols present)

ES-ED93

Illustration showing three different postures of a human arm joint, with dotted lines indicating specific areas (no text or symbols present)

Illustration showing two different positions of a person's arm and wrist, with no visible text or symbols.

ES-ED93

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing hand positioning and component handling.

Illustration of four different hand tools: a grid device, a magnifying glass, a handheld device with a flame, and a small lamp (no text or symbols present)

Simple line drawing of a device emitting exhaust smoke from a tray (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts (a) and (b), showing hand positioning and disassembly steps.

Illustration of a hand holding a small mechanical component with an arrow indicating a downward motion (no text or symbols present)

Fehlersuche

Exploded view diagram of a device showing internal components and labeled parts

▶ Prévention des accidents

Diagram showing a device labeled 'a' connected to a plug labeled 'b', likely illustrating a medical or electrical setup.

Illustration of a toaster with an open lid and a close-up of its cover (no text or symbols)

NORMAL SOFT

ARRÊT

Illustration of a person sitting on a mat, showing leg extension and banding (no text or symbols)

ES-ED93

Illustration of three different postures of a human arm and torso, showing different postures with no text or symbols.

Illustration showing two different positions of a person's arm and foot, with a 30° angle marker indicating the measurement.

Illustration of two hands using a handheld device to adjust a cylindrical component (no text or symbols present)

Diagram illustrating a cross-section of a layered material with labeled components (a, b, c, d) and an arrow indicating transformation.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of four different hand tools or devices, including a grid device and a handheld device, with no visible text or symbols.

Illustration of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Illustration showing five different types of hair cleaning tools: iron shingles, hair blisters, hair rollers, and a car.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating movement or assembly.

Illustration of a hand holding a small mechanical component with an arrow indicating a process (no text or symbols present)

Dépannage

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a handheld device connected to a plug, labeled with parts (a) and (b)

Illustration of a handwashing machine with a magnified inset showing a hand holding a bag (no text or symbols present)

NORMAL SOFT

Spento

Illustration of a person sitting on the floor performing a knee stretch (no text or symbols)

ES-ED93

Illustration of three different postures of a knee joint, showing different positioning angles (no text or symbols present)

Illustration showing two different positions of a human arm or wrist, one with a finger pointing to the wrist area and the other with a bandage (no text or symbols present)

ES-ED93

Illustration of two hands holding a device with a handle, showing internal components and movement (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing hand positioning and component handling.

Illustration of four different hand tools: a grid device, a handheld device, a small mechanical component, and a base with a stirrer (no text or symbols present)

Pulizia a umido [BODFHJ]

Illustration of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Illustration of a device emitting exhaust smoke from a tray (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts (a) and (b), showing hand tool, component close-ups, and final assembled device.

Sostituire la lima interna

Illustration showing a hand holding a small mechanical component with a close-up view of the internal part (no text or symbols present)

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a handheld device connected to a plug, labeled with parts (a) and (b)

Illustration of a toaster with a hand gesture and a close-up of its body (no text or symbols)

Diagram showing a device being processed from a fan or scanner, with arrows indicating the process.

Illustration of a person sitting on the floor performing a knee stretch (no text or symbols)

ES-ED93

Illustration showing three different postures of a human arm joint, with dotted lines indicating specific areas (no text or symbols present)

Illustration of two hands holding cylindrical devices with arrows indicating motion (no text or symbols)

Diagram illustrating a cross-section of layered material with labeled components (a, b, c, d) and an arrow indicating transformation.

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing hand positioning and component handling.

Illustration of four different hand tools: a grid device, a handheld device, a small tool with a base, and a mechanical component (no text or symbols present)

Nat schoonmaken [BCDFHJ]

Epileerkop/Scheerkop

Illustration of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Illustration of a device emitting exhaust smoke from a bottle onto a surface (no text or symbols)

Illustration of a hand holding a small electronic component, showing three steps: adding a cable to a housing, adjusting a panel, and finally adjusting a device (no text or symbols present)

Illustration of a hand holding a small mechanical component with a close-up view showing the internal structure (no text or symbols)

Problemen oplossen

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a handheld device connected to a plug with labeled parts (a) and (b)

Illustration of a toaster oven and its corresponding door panel with a circular arrow indicating rotation (no text or symbols)

Diagram showing a device being processed into a fan or scanner, with arrows indicating the process.

NORMAL SOFT

APAGADO

Illustration of a person sitting on the knee, showing leg extension and banding (no text or symbols)

ES-ED93

Illustration showing three different postures of a human arm joint, with dotted lines indicating specific areas (no text or symbols present)

Illustration showing two different positions of a person's arm and wrist, with no visible text or symbols.

ES-ED93

Illustration of two hands using a handheld device to adjust internal components (no text or symbols present)

Diagram illustrating a step-by-step assembly of a device with labeled parts and directional arrows indicating sequence.

Illustration of four different hand tools: a grid device, a handheld device, a handheld device with a plug, and a mechanical tool (no text or symbols present)

Illustration of a computer mouse with a handle and scroll, shown from top and side views (no text or symbols)

Illustration of a printer emitting exhaust smoke from a paper tray (no text or symbols)

Illustration of a hand holding a small electronic component, showing three steps: adding a cable to a housing, adjusting a panel, and finally adjusting a device (no text or symbols present)

Mechanical assembly diagram showing a hand pressing a button on a car seat, with a close-up view of the component being inserted (no text or symbols present)

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a device labeled 'a' connected to a plug labeled 'b', likely illustrating a medical or laboratory procedure.

Illustration of a toaster with a hand gesture and a close-up of its screen showing a scroll (no text or symbols)

NORMAL SOFT

SLUKKET

Illustration of a person sitting on a mat, showing hands and legs (no text or symbols)

ES-ED93

Three-step illustration showing a knee joint technique with dotted lines indicating points of interest (no text or symbols present)

Illustration showing two different positions of a human arm or wrist, one with a finger pointing to the wrist area and the other with a bandage (no text or symbols present)

ES-ED93

Illustration of two hands holding a battery pack, showing internal components and movement (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing hand positioning and component handling.

Illustration of four different hand tools: a grid device, a handheld device, a handheld device with a warning light, and a small electronic device (no text or symbols present)

Våd rengøring [BCDFHJ]

Epileringshoved/Shaverhoved

Illustration of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Simple line drawing of a device emitting exhaust smoke from a tray (no text or symbols)

Illustration of a hand holding a small electronic component, showing three steps: adding a cable to a housing, adjusting a switch, and finally adding a device (no text or symbols present)

Illustration of a hand holding a small mechanical component with a downward arrow indicating motion (no text or symbols present)

Fejlfinding

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a device labeled 'a' connected to a plug labeled 'b', likely illustrating a physical or electrical setup.

Diagram showing a toaster with airflow direction and a close-up of the device's screen, likely illustrating a motion or signal processing concept.

Diagram showing a device being processed from a fan or scanner, with directional arrows indicating process flow.

NORMAL, SOFT

Illustration of a person sitting on the knee, showing bandage and leg extension (no text or symbols)

ES-ED93

Illustration showing three stages of a human arm joint or stretch, with dotted lines indicating movement direction (no text or symbols present)

Illustration of two human arm joint movements, one with bandages and angle measurement (no text or symbols)

ES-ED93

Illustration of two hands holding a device with arrows indicating motion (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing hand positioning and component insertion.

Illustration of four different hand tools or devices, including a grid device and a handheld device, with no visible text or symbols.

Diagram showing five stages of a medical or cleaning procedure: dissection, washing machine, cleaning device, and packaging with dust.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating movement or assembly.

Illustration showing a hand holding a small object with a downward arrow, and a close-up of the interior view of a mechanical component (no text or symbols)

Exploded view diagram of a device showing internal components and labeled parts

Ladetid = Omtrent 1 time

Diagram showing a handheld device connected to a plug, labeled with parts (a) and (b)

Under lading Rød lampe vises.

Diagram showing a toaster with airflow direction and a close-up of the device's internal structure.

NORMAL 30°

AV

Illustration of a person performing a seated leg stretch exercise (no text or symbols)

ES-ED93

Illustration showing three different postures of a human arm joint, with dotted lines indicating movement or positioning (no text or symbols present)

Illustration showing two different positions of a person's arm and wrist, with no visible text or symbols.

ES-ED93

Illustration of two hands performing a mechanical press or lifting operation (no text or symbols present)

Diagram illustrating a process of surface deformation with labeled components (a, b, c, d) and an arrow indicating transformation.

Diagram illustrating a step-by-step assembly of a device with labeled parts and directional arrows indicating motion.

Illustration of four different hand tools: a grid device, a handheld device, a small tool, and a base with a stirrer (no text or symbols present)

Illustration of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Illustration of a hand holding a small electronic component, showing three steps: adding a cable, adjusting a package, and finally adjusting a device (no text or symbols present)

Illustration of a hand holding a small mechanical component with a close-up view showing internal components (no text or symbols)

Problemløsning

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a handheld device connected to a plug, labeled with parts (a) and (b)

Illustration of a toaster with a scroll wheel and a magnified view of the front panel (no text or symbols)

NORMAL SOFT

AV

Strömmen stängs AV.

Illustration of a person sitting on a mat, showing hands placed on the knee (no text or symbols present)

ES-ED93

Illustration showing three stages of a garment pattern: front, mid, and side (no text or symbols)

Illustration showing two different positions of a human arm or wrist, with no visible text or symbols.

ES-ED93

Illustration of two hand positions (1 and 2) showing a mechanical device with a handle and internal components, no text or symbols present.

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing hand positioning and component handling.

1. Rengör den milda kåpan [©],

Illustration of four different hand tools: a grid device, a handheld device, a handheld device with a tool, and a small mechanical component (no text or symbols present)

Våt rengöring [BCDFHJ]

Illustration of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Illustration of a hand holding a small electronic component, showing three steps: adding a cable to a housing, adjusting a switch, and finally adding a device (no text or symbols present)

Byte av inre blad

Illustration of a hand holding a small mechanical component with an arrow indicating a process (no text or symbols present)

Felsökning

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a hairdryer connected to a plug with labeled parts (a) and (b)

Illustration of a toaster oven and its internal circuit board with a scroll (no text or symbols)

NORMAL SOFT

OFF

Illustration of a person performing a seated leg stretch or exercise (no text or symbols present)

ES-ED93

Illustration showing three stages of a human arm joint or stretch, with dotted lines indicating movement and shading (no text or symbols present)

Illustration showing two different positions of a person's arm and neck, with no visible text or symbols.

ES-ED93

Illustration showing two-step medical procedure steps with arrows indicating movement (no text or symbols)

Diagram illustrating a process of surface deformation with labeled components (a, b, c, d) and an arrow indicating transformation.

Diagram illustrating a step-by-step assembly of a device with labeled parts and directional arrows indicating motion.

Illustration of four different hand tools: a battery pack, a close-up of a device, a handheld device with a lit fuse, and a small electronic device (no text or symbols present)

Illustration of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Jalkahoitopää

Illustration showing five different types of hair cleaning devices with numbered labels (3, 4, 5)

Diagram illustrating a device's internal components and assembly, labeled with parts 1 and 2.

Illustration of a mechanical component being adjusted, showing a close-up view of the part (no text or symbols present)

Vianetsintä

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a medical device connected to a device labeled (a) and (b), with arrows indicating direction of connection.

Diagram showing a toaster with an open lid and its internal components, alongside a close-up of the lid's internal structure with a curved arrow indicating rotation.

Diagram showing a device being processed from a fan or scanner, with arrows indicating the process.

NORMAL SUFT R

Wył.

Illustration of a person sitting on the floor performing a knee stretch (no text or symbols)

ES-ED93

Illustration showing three different postures of a human arm joint, with no text or symbols present.

Illustration of two hands holding a battery pack, showing internal components and movement (no text or symbols)

Diagram illustrating a cross-section of a material with labeled parts (a, b, c, d, e) showing structural change before and after treatment.

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing hand positioning and component insertion.

Two technical illustrations of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Diagram showing five stages of a hairdryer device with labeled parts and motion indicators

Diagram showing a hand holding a device with directional arrows, alongside two views (a and b) illustrating the process of device assembly or repair.

Illustration of a hand holding a small mechanical component with a downward arrow indicating motion (no text or symbols present)

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a device labeled 'a' connected to a plug labeled 'b', likely illustrating a cable or connector assembly.

Illustration of a toaster oven and its internal circuit board (no text or symbols)

NORMAL SOFT

VYP

Illustration of a person sitting on a mat with hands placed on the knee (no text or symbols)

ES-ED93

Illustration showing three different postures of a human arm joint, with no text or symbols present.

Illustration showing two different positions of a person's arm and neck, with no visible text or symbols.

ES-ED93

Illustration showing two-step instructions for handling a device, labeled 1 and 2 with arrows indicating movement.

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing hand positioning and component insertion.

Illustration of four different hand tools: a grid device, a tool with a handle, a small mechanical component, and a base (no text or symbols present)

Illustration of a computer mouse with a handle and scroll, showing internal components (no text or symbols)

Simple line drawing of a device with a lid and base, no text or symbols present

Illustration of a hand holding a small electronic component, showing three steps: adding a cable to a housing, adjusting a panel, and finally adjusting a device (no text or symbols present)

Illustration of a hand holding a small mechanical component with a downward arrow indicating motion (no text or symbols present)

Řešení potíží

Exploded view diagram of a device showing internal components and labeled parts

Diagram showing a handheld device connected to a plug with labeled parts (a) and (b)

Illustration of a toaster oven and its door panel with a scroll, showing mechanical components (no text or symbols)

NORMAL SOFT

Illustration of a person sitting on the knee with hands placed on the leg (no text or symbols)

ES-ED93

Illustration showing three different postures of a human arm joint, with dotted lines indicating specific areas (no text or symbols present)

Illustration showing two different body positions with directional arrows indicating movement or pressure (no text or symbols present)

ES-ED93
