USER MANUAL CM1099 SAMSUNG

MEDIUM LOW (MOYENNEMENT FAIBLE) 30% 315W

UUNIN OIKEAN TOIMINNAN TARKASTAMINEN

UUNIN OIKEAN TOIMINNAN TARKASTAMINEN

05 VIANMÄÄRITYS JA VIRHEKOODIT

MANUEL OPTØNING AF MAD

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven:

WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. Warning; Fire hazard Warning; Hot surface Warning; Electricity Warning; Explosive material Do NOT attempt. Do NOT touch. Do NOT disassemble. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Note Important

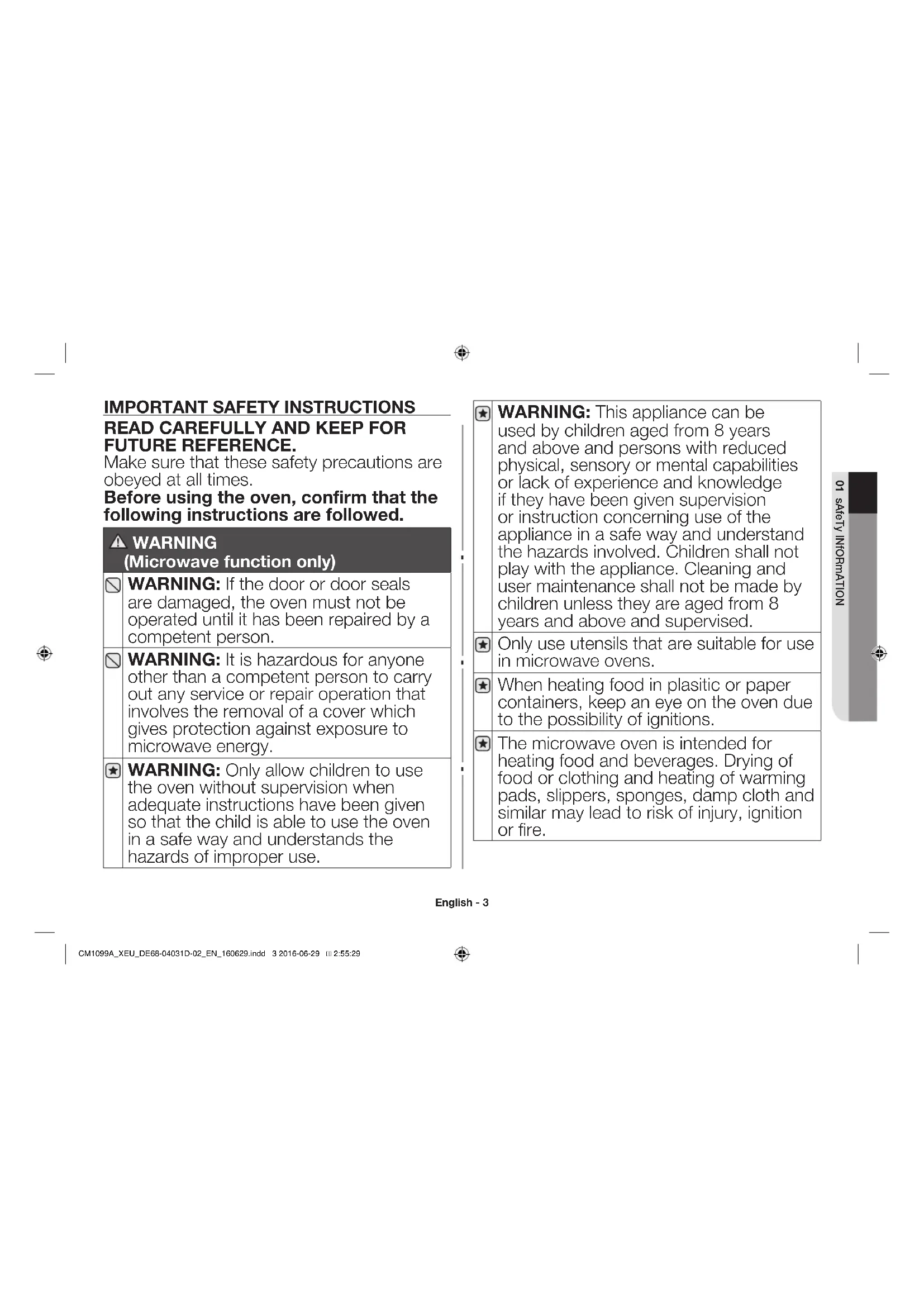

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE. Make sure that these safety precautions are obeyed at all times. Before using the oven, confirm that the following instructions are followed. WARNING (Microwave function only)

WARNING: If the door or door seals

are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone

other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Only allow children to use

the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 2 2016-06-29 2:55:28English - 2 English - 3 01 sAfeTy INfORmATION safety information

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven:

WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. Warning; Fire hazard Warning; Hot surface Warning; Electricity Warning; Explosive material Do NOT attempt. Do NOT touch. Do NOT disassemble. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Note Important

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE. Make sure that these safety precautions are obeyed at all times. Before using the oven, confirm that the following instructions are followed. WARNING (Microwave function only)

WARNING: If the door or door seals

are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone

other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Only allow children to use

the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

WARNING: This appliance can be

used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Only use utensils that are suitable for use in microwave ovens. When heating food in plasitic or paper containers, keep an eye on the oven due to the possibility of ignitions. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 3 2016-06-29 2:55:29English - 4 English - 5 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Liquids and other foods

must not be heated in sealed containers since they are liable to explode; The appliance should not be cleaned with a water jet. This oven should be positioned proper direction and height permitting easy access to cavity and control area. Before using the your oven first time, oven should be operated with the water during 10 minute and then used. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center. The microwave oven has to be positioned so that plug is accessible. The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. WARNING (Oven function only) - Optional

WARNING: When the appliance is

operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may

become hot during use. Young children should be kept away. A steam cleaner is not to be used. If smoke is emitted, switch o or unplug the appliance and keep the door closed in order to stifle any flames.

WARNING: Microwave heating of

beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

WARNING: The contents of feeding

bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. The oven should be cleaned regularly and any food deposites removed. Failure to maintain the oven in a clean conditioin could lead to deterioration of the surface that could adversely aect the life of the appliance and possibly result in a hazardous situation. The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 4 2016-06-29 2:55:29English - 4 English - 5 01 sAfeTy INfORmATION This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Liquids and other foods

must not be heated in sealed containers since they are liable to explode; The appliance should not be cleaned with a water jet. This oven should be positioned proper direction and height permitting easy access to cavity and control area. Before using the your oven first time, oven should be operated with the water during 10 minute and then used. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center. The microwave oven has to be positioned so that plug is accessible. The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. WARNING (Oven function only) - Optional

WARNING: When the appliance is

operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may

become hot during use. Young children should be kept away. A steam cleaner is not to be used.

WARNING: Ensure that the appliance is

switched o before replacing the lamp to avoid the possibility of electric shock.

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. The temperature of accessible surfaces may be high when the appliance is operating. The door or the outer surface may get hot when the appliance is operating. Keep the appliance and its cord out of reach of children less than 8 years. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 5 2016-06-29 2:55:29English - 6 English - 7 A equipment is equipment suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Warning: Class A equipment is intended

for use in an industrial environment. There may be potential diculties in ensuring electromagnetic compatibility in other environments, due to conducted as well as radiated disturbances.

INSTALLING YOUR MICROWAVE OVEN

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above.

3. Install the roller ring and turntable. Check

that the turntable rotates freely. (Turntable type model only)

4. This microwave oven has to be positioned

so that plug is accessible. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For your personal safety, plug the cable into a proper AC earthed socket. Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

CLEANING YOUR MICROWAVE OVEN

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• TurntableandRollerrings (Turntable type model only) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Appliances are not intended to be operated by means of an external timer or separate remote-control system. This product is a Group 2 Class A ISM equipment. The definition of group 2 which contains all ISM equipment in which radio- frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. For Class 10 cm behind 20 cm above 10 cm on the side 85 cm of the floor CM1099A_XEU_DE68-04031D-02_EN_160629.indd 6 2016-06-29 2:55:29English - 6 English - 7 01 sAfeTy INfORmATION A equipment is equipment suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Warning: Class A equipment is intended

for use in an industrial environment. There may be potential diculties in ensuring electromagnetic compatibility in other environments, due to conducted as well as radiated disturbances.

INSTALLING YOUR MICROWAVE OVEN

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above.

3. Install the roller ring and turntable. Check

that the turntable rotates freely. (Turntable type model only)

4. This microwave oven has to be positioned

so that plug is accessible. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For your personal safety, plug the cable into a proper AC earthed socket. Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

CLEANING YOUR MICROWAVE OVEN

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• TurntableandRollerrings (Turntable type model only) ALWAYS ensure that the door seals are clean and the door closes properly. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely aect the life of the appliance and possibly result in a hazardous situation.

Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.

2. Remove any splashes or stains on the

inside surfaces of oven with a soapy cloth. Rinse and dry.

3. To loosen hardened food particles and

remove smells, place a cup of diluted lemon juice in the oven and heat for ten minutes at maximum power.

4. Wash the dishwasher-safe plate whenever

necessary. DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles: CM1099A_XEU_DE68-04031D-02_EN_160629.indd 7 2016-06-29 2:55:30English - 8 English - 9 NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplugitfromthewallsocket

• Contactthenearestafter-salesservice centre If you wish to store your oven away temporarily, choose a dry, dustfree place. Reason : Dust and damp may adversely aect the working parts in the oven. The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care, to arrange for a qualified engineer to replace the bulb. WARNING Only qualified sta should be allowed to modify or repair the appliance. Do not heat liquids and other food in sealed containers for microwave function. For your safety, do not use high-pressure water cleaners or steam jet cleaners. Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground. This appliance must be properly grounded in accordance with local and national codes. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. Do not pull or excessively bend or place heavy objecton the power cord. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the power plug with wet hands. Do not turn the appliance o by unplugging the power plug while an operation is in progress. Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre. Do not apply excessive pressure or impact to the appliance. Do not place the oven over a fragile object such as a sink or glass object. Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance. Ensure that the power voltage, frequency and current are the same as those of the product specifications. Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer. Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.

• Preventthedoorfromclosingcorrectly Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury. When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45 ° and clean it. (Swing heater model only)

STORING AND REPAIRING YOUR

MICROWAVE OVEN A few simple precautions should be taken when storing or having your microwave oven serviced. The oven must not be used if the door or door seals are damaged:

• Distortedorbentovencasing Only a qualified microwave service technician should perform repair CM1099A_XEU_DE68-04031D-02_EN_160629.indd 8 2016-06-29 2:55:31English - 8 English - 9 01 sAfeTy INfORmATION NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplugitfromthewallsocket

• Contactthenearestafter-salesservice centre If you wish to store your oven away temporarily, choose a dry, dustfree place. Reason : Dust and damp may adversely aect the working parts in the oven. The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care, to arrange for a qualified engineer to replace the bulb. WARNING Only qualified sta should be allowed to modify or repair the appliance. Do not heat liquids and other food in sealed containers for microwave function. For your safety, do not use high-pressure water cleaners or steam jet cleaners. Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground. This appliance must be properly grounded in accordance with local and national codes. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. Do not pull or excessively bend or place heavy objecton the power cord. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the power plug with wet hands. Do not turn the appliance o by unplugging the power plug while an operation is in progress. Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre. Do not apply excessive pressure or impact to the appliance. Do not place the oven over a fragile object such as a sink or glass object. Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance. Ensure that the power voltage, frequency and current are the same as those of the product specifications. Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer. Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven. Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre. Do not pour or directly spray water onto the oven. Do not place objects on the oven, inside or on the door of the oven. Do not spray volatile material such as insecticide onto the surface of the oven. Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven. Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.

WARNING: Microwave heating of beverages can

result in delayed eruptive boiling,therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched o so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions:

• Donotapplyanycreams,oilsorlotions. Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 9 2016-06-29 2:55:33English - 10 English - 11 Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam. Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally. Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.) Take care when connecting other electrical appliances to sockets near the oven. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.(MICROWAVE FUNCTION ONLY) Failure to observe the following safety precautions may result in harmful exposure to microwave energy. (a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes. (b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth. (c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent) (2) door hinges (broken or loose) (3) door seals and sealing surfaces (d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer. Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include: (a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel. (b) A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.

• Usethisapplianceonlyforitsintendedpurposeasdescribedinthis instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

• Becausethesefollowingoperatinginstructionscovervariousmodels, the characteristics of your microwave oven may dier slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.

• Thismicrowaveovenissupposedforheatingfood.Itisintendedfor domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.

• Failuretomaintaintheoveninacleanconditioncouldleadtodeteriorationof the surface that could adversely aect the life of the appliance and possible result in a hazardous situation.

CORRECT DISPOSAL OF THIS PRODUCT

(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of the hot liquid. CAUTION Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc. Remove wire twist ties from paper or plastic bags. Reason: Electric arcing or sparking may occur and may damage the oven. Do not use your microwave oven to dry papers or clothes. Use shorter times for smaller amounts of food to prevent overheating and burning food. Do not immerse the power cable or power plug in water and keep the power cable away from heat. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc. Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself o automatically, and will remain o until it cools suciently. Always use oven mitts when removing a dish from the oven to avoid unintentional burns. Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 10 2016-06-29 2:55:34English - 10 English - 11 02 QUICK LOOK-UP GUIDe quick look-up guide If you want to cook some food.

1. Place the food in the oven.

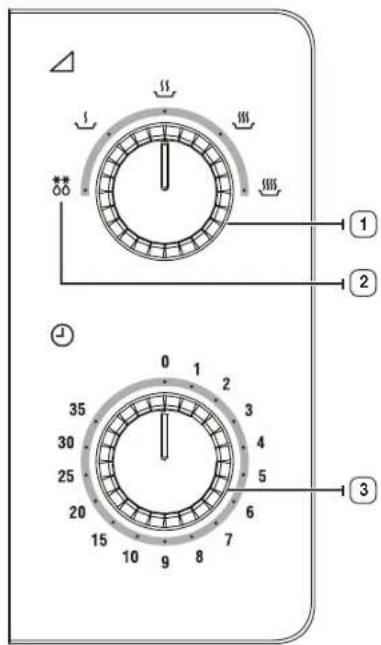

Select the power level by rotating the COOKING POWER CONTROL knob.

2. Select the cooking time by rotating the TIMER knob.

If you want to defrost some food.

2. Turn the TIMER knob to select the appropriate time.

If you want to adjust the cooking time.

1. Leave the food in the oven.

Turn the TIMER knob to desired time. Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam. Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally. Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.) Take care when connecting other electrical appliances to sockets near the oven. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.(MICROWAVE FUNCTION ONLY) Failure to observe the following safety precautions may result in harmful exposure to microwave energy. (a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes. (b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth. (c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent) (2) door hinges (broken or loose) (3) door seals and sealing surfaces (d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer. Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include: (a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel. (b) A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.

• Usethisapplianceonlyforitsintendedpurposeasdescribedinthis instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

• Becausethesefollowingoperatinginstructionscovervariousmodels, the characteristics of your microwave oven may dier slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.

• Thismicrowaveovenissupposedforheatingfood.Itisintendedfor domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.

• Failuretomaintaintheoveninacleanconditioncouldleadtodeteriorationof the surface that could adversely aect the life of the appliance and possible result in a hazardous situation.

CORRECT DISPOSAL OF THIS PRODUCT

(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 11 2016-06-29 2:55:35English - 12 English - 13 oven features OVEN

CORRECTLY The following simple procedure enables you to check that your oven is working correctly at all times. First, place a bowl of water on the ceramic plate. Then, close the door.

1. Set the power level to maximum by turning COOKING

POWER CONTROL knob. (MAXIMUM POWER : 1050 W)

2. Set the desired heating time by rotating the TIMER DIAL.

The oven must be plugged into an appropriate wall socket. If a power level other than the maximum is used, the water takes longer to boil.

CORRECTLY The following simple procedure enables you to check that your oven is working correctly at all times. First, place a bowl of water on the ceramic plate. Then, close the door.

1. Set the power level to maximum by turning COOKING

POWER CONTROL knob. (MAXIMUM POWER : 1050 W)

2. Set the desired heating time by rotating the TIMER DIAL.

The oven must be plugged into an appropriate wall socket. If a power level other than the maximum is used, the water takes longer to boil. COOKING/REHEATING The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the ceramic plate. Then, close the door.

1. Set the power level to maximum by turning COOKING

POWER CONTROL knob. (MAXIMUM POWER : 1050 W)

2. Set the time by turning TIMER knob.

Result : The oven light comes on. Never switch the microwave oven on when it is empty. You can change the power level during cooking by turning the COOKING POWER CONTROL knob. POWER LEVELS You can choose among the power levels below. Power level Percentage Output HIGH 100 % 1050 W

Adjust the remaining cooking time by rotating the TIMER knob.

STOPPING THE COOKING

You can stop cooking at any time to check the food.

1. To stop temporarily;

Open the door. Result : Cooking stops. To resume cooking, close the door.

2. To stop completely;

Turn the TIMER knob to “0”.

MANUAL DEFROSTING FOOD

The Defrost feature enables you to defrost meat, poultry, fish. First, place the frozen food in the centre of the ceramic plate and close the door.

2. Turn the TIMER knob to select the appropriate time.

Result : Defrosting begins. Use only recipients that are microwave-safe. cookware guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven. Cookware Microwave- safe Comments Aluminum foil

Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. China and earthenware

Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless deco-rated with a metal trim. Disposable polyester cardboard dishes

Some frozen foods are packaged in these dishes. Fast-food packaging

Can be used to warm food. Overheating may cause the polystyrene to melt.

Paper bags or newspaper

Recycled paper or metal trims

May cause arcing. Glassware

Can be used, unless decorated with a metal trim.

Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.

Must remove the lid. Suitable for warming only. Cookware Microwave- safe Comments Metal

Dishes May cause arcing or fire.

Freezer bag twist ties Paper

Plates, cups, napkins and Kitchen paper For short cooking times and warming. Also to absorb excess moisture.

Recycled paper May cause arcing. Plastic

Containers Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.

Cling film Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.

Freezer bags Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease- proof paper Can be used to retain moisture and prevent spattering.

cookware guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven. Cookware Microwave- safe Comments Aluminum foil

Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. China and earthenware

Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless deco-rated with a metal trim. Disposable polyester cardboard dishes

Some frozen foods are packaged in these dishes. Fast-food packaging

Can be used to warm food. Overheating may cause the polystyrene to melt.

Paper bags or newspaper

Recycled paper or metal trims

May cause arcing. Glassware

Can be used, unless decorated with a metal trim.

Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.

Must remove the lid. Suitable for warming only. Cookware Microwave- safe Comments Metal

May cause arcing or fire.

Freezer bag twist ties

Plates, cups, napkins and Kitchen paper

For short cooking times and warming. Also to absorb excess moisture.

May cause arcing. Plastic

Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.

Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.

Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease- proof paper

Can be used to retain moisture and prevent spattering.

: Unsafe cooking guide Reheating Dish Entrees Use the power levels and times in this table as a guide lines for reheating. Food Serving Size Power Time (min.) Plated Meal (Chilled) 350 g MEDIUM 6½-7 Instructions Plate a meal of 2-3 chilled components on a ceramic dish. Reheat covered. Stand for 3 minutes. Chicken Curry & Rice (Chilled) 300 g MEDIUM 4½-5½ Instructions Plate a meal of 2 chilled components on a ceramic dish (e.g. rice and curry). Reheat covered. Stand for 3 minutes. Pasta with Sauce (Chilled) 350 g HIGH 4-5 Instructions Put pasta (e.g. spaghetti or egg noodles) into a deep ceramic plate. Reheat covered. Stir during reheating. Stand for 3minutes. Filled Pasta in Sauce (Chilled) 350 g MEDIUM 4½-5½ Instructions Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Reheat covered. Stir occasionally during reheating. Stand for 3minutes. Lasagne (Chilled) 400 g HIGH 4½-5½ Instructions Put the chilled lasagne (pre-cooked product) widthways in the centre of table. Reheat covered. Stand for 3 minutes. Bechamel Potatoes (Chilled) 400 g MEDIUM 5½-6½ Instructions Put bechamel potatoes (pr-cooked product) widthways in the centre of table. Reheat covered. Stand for 3 minutes. Baked Potatoes (Ready Cooked and Chilled) 500 g (2 x 250) HIGH 5-6 Instructions Pierce film and put potatoes on a flat ceramic plate. Stand for 2-3 minutes. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 15 2016-06-29 2:55:37English - 16 English - 17 Reheating Soup and Stew Use the power levels and times in this table as a guide lines for reheating. Food Serving Size Power Time (min.) Soup (Chilled) 250 g HIGH 3-3½ Instructions Pour into a deep ceramic plate. Reheat covered. Stir during reheating. Stand for 2-3 minutes. Stew (Chilled) 250 g 500 g MEDIUM 4-4½ 5½-6 Instructions Pour into a deep ceramic plate or bowl. Reheat covered. Stir during reheating. Stand for 2-3 minutes. Bean Stew (Canned) 350 g MEDIUM 3½-4 Instructions Pour into a deep ceramic plate or bowl. Reheat covered. Stir during reheating. Stand for 2-3 minutes. Soup (Frozen) 1000 g HIGH 20-22 Instructions Pour into a glass pyrex dish with lid. Reheat covered. Stir during reheating. Stand for 2-3 minutes. Cooking Breakfast Use the power levels and times in this table as a guide lines for cooking. Food Serving Size Power Time (min.) Bacon (Chilled) 2 slices (20 g) HIGH ca. 1½ Instructions Put bacon slices on kitchen paper on a flat ceramic plate. Stand for 1 minutes. Scrambled Eggs 2 eggs MEDIUM LOW ca. 2½ Instructions Beat eggs, add salt and 2 tbsp. milk. Put in a deep ceramic plate. Stir several times during cooking. Stand for 1 minutes. Baked Beans (Canned) 250 g MEDIUM 2½-3½ Instructions Put the beans in a deep ceramic plate. Reheat covered. Stir during reheating. Stand for 1-2 minutes. Reheating Snacks Use the power levels and times in this table as a guide lines for reheating. Food Serving Size Power Time (min.) Cheesebur Ger (Chilled) 150 g (1 pc) HIGH 1-1½ Instructions Put burger on kitchen paper on a ceramic plate. Stand for 2-3minutes. Cheesebur Ger (Frozen) 150 g (1 pc) MEDIUM LOW 3-3½ Instructions Put burger on kitchen paper on a ceramic plate. Stand for 2-3minutes. Hot Dog (Chilled) 125 g (1 pc) MEDIUM 1½ Instructions Put hot dog on kitchen paper on a ceramic plate. Stand for 2-3minutes. Pizza Slice (Chilled) 100 g MEDIUM LOW 1½-2 Instructions Put the pizza slice on a kitchen paper on ceramic plate. Stand for 1-2minutes. Meat & Vegetable Wrap (Chilled) 200 g MEDIUM 2-2½ Instructions Put the chilled wrap (filled pastry roll) on kitchen paper on a ceramic plate. Stand for 1-2minutes. Quiche/Pie (Chilled) 150 g MEDIUM 2-2½ Instructions Put quiche on kitchen paper on a ceramic plate. Stand for 2-3minutes. Croissants 60 g (2 pcs) MEDIUM ½-1 Instructions Put the croissants on kitchen paper on a ceramic plate. Serve croissants directly after warming. Defrosting and Cooking Desserts Use the power levels and times in this table as a guide lines for cooking. Food Serving Size Power Time (min.) Berries in Sauce 250 g MEDIUM 6-6½ Instructions Put frozen fruits in a glass pyrex bowl with lid. Reheat covered. Stir once during standing time. Stand for 2-3 minutes. Yeast Dumplings with Jam Filling 300 g (2 pcs) MEDIUM 4½-5 Instructions Put frozen yeast dumplings (pre-cooked) side by side in a glass pyrex bowl with lid. Moist the top of them with cold water. Cook covered. Stand for 2-3 minutes. Defrosting Bread and Cake Use the power levels and times in this table as a guide lines for cooking. Food Serving Size Power Time (min.) Baguettes 150 g (1 pc) DEFROST ca. ½ Instructions Put the baguette widthways on kitchen paper in the oven. Stand for 3-5 minutes. Bread Rolls 50 g (4 pcs) DEFROST ca. 3 Instructions Put the rolls side by side on kitchen paper in the oven. Stand for 3-5 minutes. Fruit Cake 120 g (1 pc) DEFROST 3-3½ Instructions Put the piece of cake on a ceramic plate. Stand for 5-10minutes. Cream Cake Roll 100 g (1 pc) DEFROST ca. 1 Instructions Put the piece of cake on a ceramic plate. Place plate in the centre of table. Let stand until cream is totally defrosted. Stand for 10-20 minutes. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 16 2016-06-29 2:55:37English - 16 English - 17

05 TROUBLESHOOTING AND ERROR CODE

Reheating Snacks Use the power levels and times in this table as a guide lines for reheating. Food Serving Size Power Time (min.) Cheesebur Ger (Chilled) 150 g (1 pc) HIGH 1-1½ Instructions Put burger on kitchen paper on a ceramic plate. Stand for 2-3minutes. Cheesebur Ger (Frozen) 150 g (1 pc) MEDIUM LOW 3-3½ Instructions Put burger on kitchen paper on a ceramic plate. Stand for 2-3minutes. Hot Dog (Chilled) 125 g (1 pc) MEDIUM 1½ Instructions Put hot dog on kitchen paper on a ceramic plate. Stand for 2-3minutes. Pizza Slice (Chilled) 100 g MEDIUM LOW 1½-2 Instructions Put the pizza slice on a kitchen paper on ceramic plate. Stand for 1-2minutes. Meat & Vegetable Wrap (Chilled) 200 g MEDIUM 2-2½ Instructions Put the chilled wrap (filled pastry roll) on kitchen paper on a ceramic plate. Stand for 1-2minutes. Quiche/Pie (Chilled) 150 g MEDIUM 2-2½ Instructions Put quiche on kitchen paper on a ceramic plate. Stand for 2-3minutes. Croissants 60 g (2 pcs) MEDIUM ½-1 Instructions Put the croissants on kitchen paper on a ceramic plate. Serve croissants directly after warming. Defrosting and Cooking Desserts Use the power levels and times in this table as a guide lines for cooking. Food Serving Size Power Time (min.) Berries in Sauce 250 g MEDIUM 6-6½ Instructions Put frozen fruits in a glass pyrex bowl with lid. Reheat covered. Stir once during standing time. Stand for 2-3 minutes. Yeast Dumplings with Jam Filling 300 g (2 pcs) MEDIUM 4½-5 Instructions Put frozen yeast dumplings (pre-cooked) side by side in a glass pyrex bowl with lid. Moist the top of them with cold water. Cook covered. Stand for 2-3 minutes. Defrosting Bread and Cake Use the power levels and times in this table as a guide lines for cooking. Food Serving Size Power Time (min.) Baguettes 150 g (1 pc) DEFROST ca. ½ Instructions Put the baguette widthways on kitchen paper in the oven. Stand for 3-5 minutes. Bread Rolls 50 g (4 pcs) DEFROST ca. 3 Instructions Put the rolls side by side on kitchen paper in the oven. Stand for 3-5 minutes. Fruit Cake 120 g (1 pc) DEFROST 3-3½ Instructions Put the piece of cake on a ceramic plate. Stand for 5-10minutes. Cream Cake Roll 100 g (1 pc) DEFROST ca. 1 Instructions Put the piece of cake on a ceramic plate. Place plate in the centre of table. Let stand until cream is totally defrosted. Stand for 10-20 minutes. troubleshooting and error code TROUBLESHOOTING If you have any of the problems listed below try the solutions given. This is normal.

Air flow around the door and outer casing.

Light reflection around the door and outer casing.

Steam escaping from around the door or vents. The oven does not start when you press the START/+30s button.

Is the door completely closed? The food is not cooked at all.

Have you set the timer correctly and/or pressed the START/+30s button?

Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered? The food is either overcooked or undercooked.

Was the appropriate cooking length set for the type of food?

Was an appropriate power level chosen? The light bulb is not working.

The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care, to arrange for a qualified engineer to replace the bulb. The oven causes interference with radios or televisions.

Slight interference may be observed on televisions or radios when the oven is operating. This is normal. To solve this problem, install the oven away from televisions, radios and aerials.

If interference is detected by the oven’s microprocessor, the display may be reset. To solve this problem, disconnect the power plug and reconnect it. Reset the time. Sparking and cracking occur inside the oven (arcing).

Have you used a dish with metal trimmings?

Is aluminum foil too close to the inside walls? CM1099A_XEU_DE68-04031D-02_EN_160629.indd 17 2016-06-29 2:55:37English - 18 English - 19 Smoke and bad smell when initial operating.

It’s a temporary condition by new component heating. Smoke and smell will disappear completely after 10 minutes operation. To remove smell more quickly, please operate microwave oven with putting lemon formation or lemon juice in the cabinet. If the above guidelines do not enable you to solve the problem, then contact your local SAMSUNG customer service centre. Please have the following information read;

• Acleardescriptionoftheproblem Then contact your local dealer or SAMSUNG aftersales service. ERROR CODES Error Items Code Error Beep Cause Power frequency Error (50/60 Hz) E1 One long beep for 2 sec. Power frequency is other than 50Hz. Remedy Unplug the power cord plug and check if the power frequency is 50 Hz. Plug the power cord in 50 Hz power source and see If “E1” appears. If the error code is displayed again even after the correct power source is provided, contact the nearest service centre. Thermistor Open Error E21 One long beep for 2 sec. Thermistor Sensor which is supposed to sense the temperature of the cavity inside does not work properly. (Thermistor Sensor open) Remedy Unplug the power cord and wait for more than 10 seconds. Plug the power cord again. If the symptom persists, contact the nearest service centre. Error Items Code Error Beep Cause Thermistor Short Error E22 One long beep for 2sec. Thermistor Sensor which is supposed to sense the temperature of the cavity inside does not work properly. (Thermistor Sensor short) Remedy Unplug the power cord and wait for more than 10 seconds. Plug the power cord again. If the symptom persists, contact the nearest service centre. Temperature of exhaust air too High Error E3 One long beep for 2 sec. The oven cavity gets too hot due to excessive operation with no load or small load, or due to some blocking materials around the Air Filter or Air Exhaust at the back of the oven. Remedy Open the oven door and check if 1) the oven has been operating with no load or too small load, 2) the air filter is placed in a wrong position, or 3) any blocking materials exist around the Air Exhaust. Cool down the oven (for approx. 30 min) under the normal temperature. The oven is back to normal when the error code “E3” disappears and “ON” appears again in the display window. Unplug the power cord, remove the blocking materials around the ventilation openings, cool down the oven (for approx. 30 min) suciently, plug the power cord in again and check if the error code appears again. If the symptom persists even when the oven is cooled down suciently, contact the nearest service centre. HVT-I Power Error E41 One long beep for 2 sec. The circuitry inside the oven is not working correctly. Remedy Unplug the power cord and wait for 10 seconds. Plug the power cord in again and check if the error code “E41” appears again. If the symptom persists, contact the nearest service centre. Error Items Code Error Beep Cause HVT-II Power Error E42 One long beep for 2 sec. The circuitry inside the oven is not working correctly. Remedy Unplug the power cord and wait for 10 seconds. Plug the power cord in again and check if the error code “E42” appears again. If the symptom persists, contact the nearest service centre. EEPROM Error E5 One long beep for 2 sec. Memory IC (EEPROM IC) is not working correctly. In this case, other features except for memory function work properly. (You can operate the oven manually.) Remedy Press CANCEL button one or more times and try to start a memory heating. If the error code “E5” persists, contact your nearest service centre. For any codes not listed above, or if the suggested solution does not solve the problem, contact your local SAMSUNG Customer Care Centre. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 18 2016-06-29 2:55:37English - 18 English - 19 06 TECHNICAL SPECIFICATIONS technical specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. Model CM1099/CM1099

Error Items Code Error Beep Cause Thermistor Short Error E22 One long beep for 2sec. Thermistor Sensor which is supposed to sense the temperature of the cavity inside does not work properly. (Thermistor Sensor short) Remedy Unplug the power cord and wait for more than 10 seconds. Plug the power cord again. If the symptom persists, contact the nearest service centre. Temperature of exhaust air too High Error E3 One long beep for 2 sec. The oven cavity gets too hot due to excessive operation with no load or small load, or due to some blocking materials around the Air Filter or Air Exhaust at the back of the oven. Remedy Open the oven door and check if 1) the oven has been operating with no load or too small load, 2) the air filter is placed in a wrong position, or 3) any blocking materials exist around the Air Exhaust. Cool down the oven (for approx. 30 min) under the normal temperature. The oven is back to normal when the error code “E3” disappears and “ON” appears again in the display window. Unplug the power cord, remove the blocking materials around the ventilation openings, cool down the oven (for approx. 30 min) suciently, plug the power cord in again and check if the error code appears again. If the symptom persists even when the oven is cooled down suciently, contact the nearest service centre. HVT-I Power Error E41 One long beep for 2 sec. The circuitry inside the oven is not working correctly. Remedy Unplug the power cord and wait for 10 seconds. Plug the power cord in again and check if the error code “E41” appears again. If the symptom persists, contact the nearest service centre. Error Items Code Error Beep Cause HVT-II Power Error E42 One long beep for 2 sec. The circuitry inside the oven is not working correctly. Remedy Unplug the power cord and wait for 10 seconds. Plug the power cord in again and check if the error code “E42” appears again. If the symptom persists, contact the nearest service centre. EEPROM Error E5 One long beep for 2 sec. Memory IC (EEPROM IC) is not working correctly. In this case, other features except for memory function work properly. (You can operate the oven manually.) Remedy Press CANCEL button one or more times and try to start a memory heating. If the error code “E5” persists, contact your nearest service centre. For any codes not listed above, or if the suggested solution does not solve the problem, contact your local SAMSUNG Customer Care Centre. CM1099A_XEU_DE68-04031D-02_EN_160629.indd 19 2016-06-29 2:55:37DE68-04031D-02 QUESTIONS OR COMMENTS? COUnTry Call Or viSiT US OnlinE aT AUSTRIA 0800-SAMSUNG (0800-7267864) [Only for Premium HA] 0800-366661 [Only for Dealers] 0810-112233 www.samsung.com/at/support
