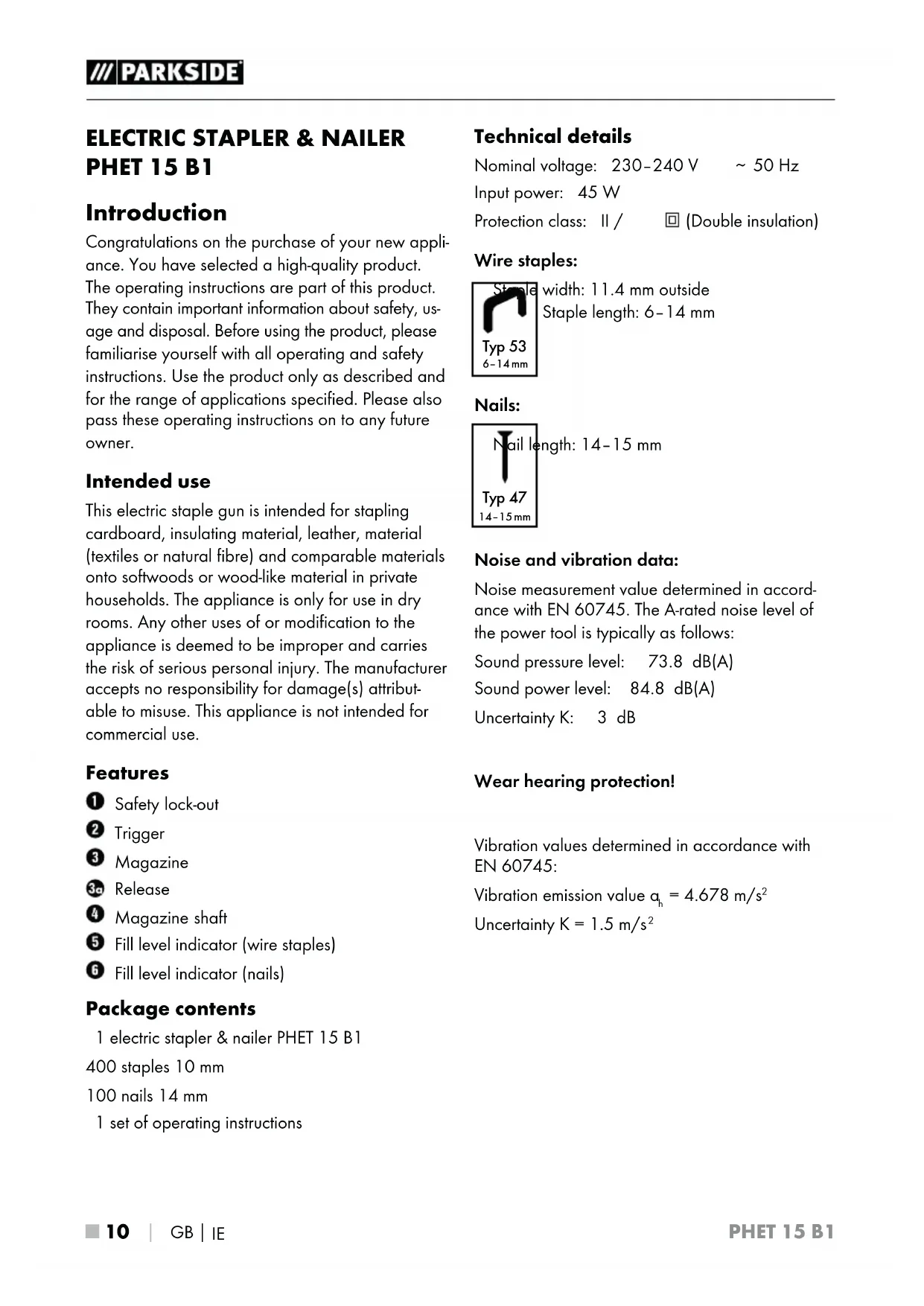

ELECTRIC STAPLER & NAILER PHET 15 B1

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This electric staple gun is intended for stapling cardboard, insulating material, leather, material (textiles or natural fibre) and comparable materials onto softwoods or wood-like material in private households. The appliance is only for use in dry rooms. Any other uses of or modification to the appliance is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse. This appliance is not intended for commercial use.

Features

Safety lock-out
Trigger
3 Magazine
3 Release
Magazine shaft
5 Fill level indicator (wire staples)
6 Fill level indicator (nails)

Package contents

1 electric stapler & nailer PHET 15 B1
400 staples 10mm 100 nails 14mm 1 set of operating instructions

Technical details

Nominal voltage: 230-240 V ~ 50 Hz
Input power: 45 W
Protection class: II / (Double insulation)

Wire staples:

Nails:

Noise and vibration data:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: 73.8 dB(A)

Sound power level: 84.8 dB(A)

Uncertainty K: 3 dB

Wear hearing protection!

Vibration values determined in accordance with EN 60745:

Vibration emission value q_h = 4.678 m/s^2

Uncertainty K = 1.5m / s^2

WARNING!

The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the power tool in such a way may cause the user to underestimate the vibration.

NOTE

For an accurate estimate of the vibration load during a specific working period, the periods during which the appliance is switched off or is running but not actually being used must also be taken into consideration. This can significantly reduce the vibration load over the total working period.

General Power Tool SafetyWarnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure that the electric tool is switched off before you connect it to the power supply, pick it up or carry it. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Remove the plug from the socket before making adjustments to the device, changing accessories or putting the device into storage. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for electric staple guns

Always check that the power tool contains staples. Careless handling of the electric staple gun can lead to unexpected ejection of staples, which could cause injuries.
Never aim the power tool at yourself or other people in the vicinity. Unintended triggering will cause a staple to be shot out, which can lead to injuries.
Do not activate the power tool until it is pressed firmly against the workpiece. If the power tool is not in contact with the workpiece, the staple can rebound off the fastening point.
Disconnect the power tool from the mains or battery if a staple becomes jammed in the power tool. If the electric staple gun is connected to a power source, it could be unintentionally activated while removing a jammed staple.
■ Be careful when removing a jammed staple. The system may be live and the staple could be forcefully ejected while you are attempting to unblock the jam.
Never use this electric staple gun for fastening electrical cables. It is not suitable for the installation of electrical lines, can damage the insulation of electrical cables and thus cause electrical shocks and increase the risk of fire.

Supplementary notes

WARNING! RISK OF INJURY!

• Never aim the appliance towards yourself or other people or animals.
  Ensure that no other people or animals are on the other side of the workpiece or in the immediate vicinity.

PROTECT YOUR EYES! Wear safety goggles. This also applies to people who are carrying out support and holding work during operation.
Secure the workpiece! A workpiece securely held by a clamping device or vice is much safer than one held in your hand.
Always guide the power cord away to the rear of the appliance.

Original accessories/auxiliary equipment

Only use the accessories and additional equipment which are specified in the operating instructions and compatible with the appliance.

Operation

Filling the magazine

WARNING! RISK OF INJURY!

Switch the appliance off and remove the power plug before starting any work on the appliance.

Turn the appliance around.
Press the releas together (see Fig. A).
Pull the magazin ③ backwards (see Fig. A).
Fill the magazine sha with staples or nails (see Fig. B).

NOTE

Nails can only be inserted into the magazine shaft 4 from the left - as shown.
After filling, push the release into the magazine far as the stop until it clicks into place.

NOTE

Use the fill level indicator, 6 o see whether the magazine contains staples or nails.

Use

Switching on

Press the appliance onto the location on the material that you want to staple/nail.
Release the safety lock-out.
Press the trigge.

Troubleshooting

WARNING! RISK OF INJURY!

• Switch the appliance off and remove the power plug before starting any work on the appliance.

Cause:

A staple or nail is blocking the appliance.

Solution:

Open the release. This will remove the tension.
Remove the staple or nail.

Maintenance and cleaning

WARNING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appliance.

The appliance must always be kept clean, dry and free from oil or grease.
Use a soft, dry cloth to clean the housing.

WARNING!

If the connecting cable needs to be replaced, this must be carried out by the manufacturer or an official representative in order to avoid safety hazards.

NOTE

Replacement parts not listed (such as switches) can be ordered via our service hotline.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to

the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.

Service

GB Service Great Britain Tel.:[phone] E-Mail: [e-mail]

IE Service Ireland Tel.:[phone] (0,08 EUR/Min.,(peak)) (0,06 EUR/Min.,off peak)) E-Mail: [e-mail] IAN 327106_1904

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

The packaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant.

dispose of power tools in your normal household waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:Plastics,

20-22: Paper and cardboard,

80-98: Composites

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

*The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1:2009 + A11

EN 60745-2-16:2010

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Type designation of machine:

Electric stapler & nailer PHET 15 B1

Year of manufacture: 07 - 2019

Serial number: IAN 327106_1904

Bochum, 17.07.2019

CE

Semi Uguzlu

• Quality Manager -
