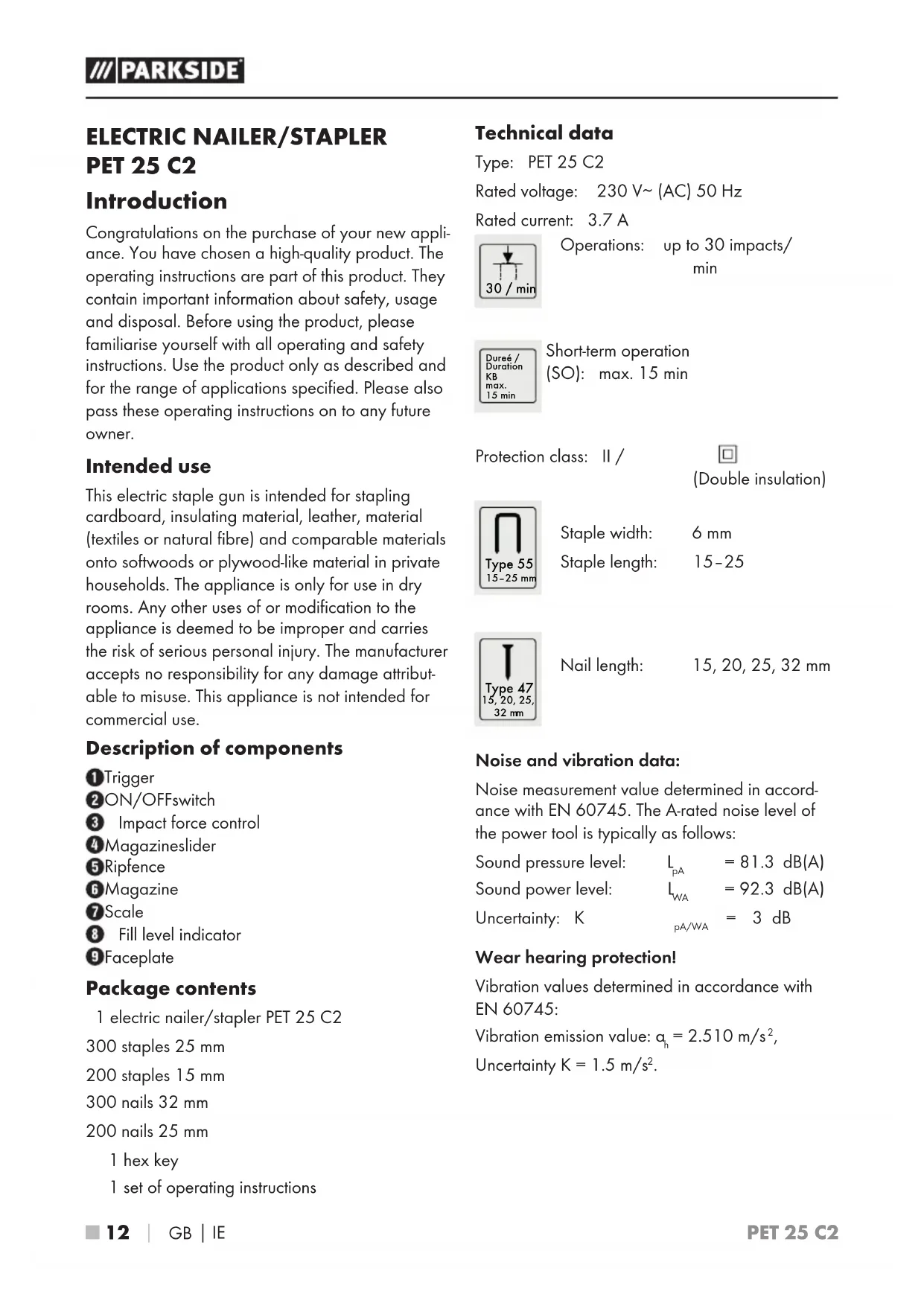

ELECTRIC NAILER/STAPLER PET 25 C2

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This electric staple gun is intended for stapling cardboard, insulating material, leather, material (textiles or natural fibre) and comparable materials onto softwoods or plywood-like material in private households. The appliance is only for use in dry rooms. Any other uses of or modification to the appliance is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for any damage attributable to misuse. This appliance is not intended for commercial use.

Description of components

Trigger
ON/OFFsswitch
3 Impact force control
Magazineslider
5Ripfence
Magazine
7Scale
8 Fill level indicator
9Faceplate

Package contents

1 electric nailer/stapler PET 25 C2

300 staples 25mm

200 staples 15mm

300 nails 32mm

200 nails 25mm

1 hex key
1 set of operating instructions

Technical data

Type: PET 25 C2

Rated voltage: 230V (AC) 50 Hz

Rated current: 3.7 A

Operations: up to 30 impacts/min

Short-term operation

(SO): max. 15 min

Protection class: II /

(Double insulation)

Staple width: 6 mm

Staplenext: 15-25

Nail length: 15, 20, 25, 32 mm

Noise and vibration data:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level:

$$ L _ {D A} = 8 1. 3 \mathrm {d B (A)} $$

Sound power level:

$$ \mathrm {L} _ {\mathrm {W A}} = 9 2. 3 \mathrm {d B (A)} $$

Uncertainty: K

$$ \mathrm {p A / W A} = 3 \mathrm {d B} $$

Wear hearing protection!

Vibration values determined in accordance with EN 60745:

Vibration emission value: a_h = 2.510 m/s^2 ,

Uncertainty K = 1.5m / s^2

WARNING!

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the power tool in such a way may cause the user to underestimate the vibration.

NOTE

Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. All states of operation must be taken into consideration (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

eral Power Tool SafetyWarnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for electric staple guns

Always check that the power tool contains staples.
Careless handling of the staple gun can lead to unexpected ejection of staples which could cause injuries.
Never aim the power tool at yourself or other people in the vicinity. Unintended triggering will cause a staple to shoot out, which can lead to injuries.
Do not activate the power tool until it is pressed firmly against the workpiece. If the power tool is not in contact with the workpiece, the staple can rebound off the fastening point.
- Disconnect the power tool from the mains or battery if a staple becomes jammed in the power tool. If the staple gun is connected to a power source, it could be unintentionally activated while removing a jammed staple.
■ Be careful when removing a jammed staple. The system may be live and the staple could be forcefully ejected while you are attempting to unblock the jam.
Never use this staple gun for fastening electrical cables. It is not suitable for the installation of electrical lines, can damage the insulation of electrical cables and thus cause electrical shocks and increase the risk of fire.

WARNING!

To avoid risks, damaged mains cables of the appliance should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.

Before use

NOTE

• Only fill the magazine when the appliance is switched off! Set the ON/OFF switch ② to the position "0" and pull out the plug!

Filling the magazine

Squeeze the magazine slide (see fig. A).
Pull the magazine slide out of the magazine 6 of the appliance (see fig. B).
Fill the magazin with staples or nails (see fig. C).
After filling, push the magazine slide back into the magazine 6s far as the stop and you hear and feel it click into place.

NOTE

• When filling with nails, use the right shaft (as shown in fig. C). Ensure that the nail heads are always at the top.
  Note the maximum fill level of approx. 85 staples or approx. 75 nails.
  The fill level indicates shows whether the magazine still contains staples or nails.

Setting the impact force

NOTE

• Select the lowest impact force sufficient for stapling. Take into account the length of the staples or nails you are using as well as hardness of the material you are working with.

Impact force control

3

Increasing the impact force:

Turn the impact force control anticlockwise.

Reducing the impact force:

Turn the impact force control clockwise.

Use

Switching on and off

Set the ON/OFF switch to the position "l" to switch the appliance on.
Set the ON/OFF switch to the position "0" to switch the appliance off.

Stapling/nailing

Switch the appliance on by moving the ON/OFF switch the position "I".
Press the face plate of the appliance onto the location on the material that you want to staple/nail.
Press the trigger!

NOTE

The integrated safety switch on the face plate prevents accidental triggering.

Working with the rip fence

If you want to tack with nails or staples at a constant distance to an edge, proceed as follows:

Pull out the rip fence in the direction of the arrow.
Move the rip fence 5 along the scale 7 ntil it is at the required distance from the edge of the object that you want to work on.
Place the rip fence onto the edge of the object that you want to work on.
Proceed as described in the section Stapling/ nailing.

Troubleshooting

CAUTION!

• Ensure that the appliance has been disconnected from the power in order to prevent it from being accidentally switched on and causing injuries.

Cause:

A staple or nail is blocking the appliance.

Solution:

Open the magazine slide. This will remove the tension. Use the hex key (fig. D) to remove the screws from the face plate
Remove the staple or nail.

Maintenance and cleaning

WARNING! RISK OF INJURY

Always remove the plug from the power socket before working on the appliance.

The electric staple gun is maintenance free.

The appliance must always be kept clean, dry and free from oil or grease.
Always clean the appliance directly after finishing work.
Never permit liquids to enter inside the appliance.
Use a cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.

Disposal

ckaging consists of environmentally friendly material. It can be disposed of in the local recycling containers.

dispose of power tools in your normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

Your local community or municipal authorities can provide information on how to dispose of the appliance.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:Plastics,

20-22: Paper and cardboard,

80-98: Composites

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

NOTE

For Parkside and Florabest tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

WARNING!

Have your appliance repaired by qualified specialists only. Always use genuine spare parts.
Plugs and power cords should only be replaced by the manufacturer of the power tool or the manufacturer's authorised customer service agent.

This will ensure that the safety of the appliance is maintained.

NOTE

• Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline.

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., {peak})

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN310956

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr. Semi Uguzlu, BURGSTR. 21, DE-44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

*The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1:2009/A11:2010

EN 60745-2-16:2010

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Type designation of machine:

Electric nailer/stapler PET 25 C2

Year of manufacture: 11 - 2018

Serial number: IAN 310956

Bochum, 06/11/2018

CE

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Table des matieres

Introduction. 20

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines

(2006/42/CE)

• Responsible qualite -

Spijkerlength: 15,20,25,32mm

WAARSCHUWING! LETSELGEVAAR

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NIEMCY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

Preklad originalnehoVyhlasenia o zhode

My, spolocnost KOMPERNASS HANDELS GMBH, zodpovedna osoba za dokumentaciu: pán Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, DEUTSCHLAND/NEMECKO vyhlasujeme, ze tento vyrobok je v sulade s nasledovnymi normami, normativnymi dokumentmi a smernicami ES:

Smernica o strojovych zariadeniach (2006/42/EC)

Smernica o elektromagnetickej kompatibilite (2014/30/EU)

Smernica RoHS (2011/65/EU)*

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
