USER MANUAL PMTS 180 A1 PARKSIDE

Translation of the original instructions

Safety instructions for abrasive cutting appliances ............................5

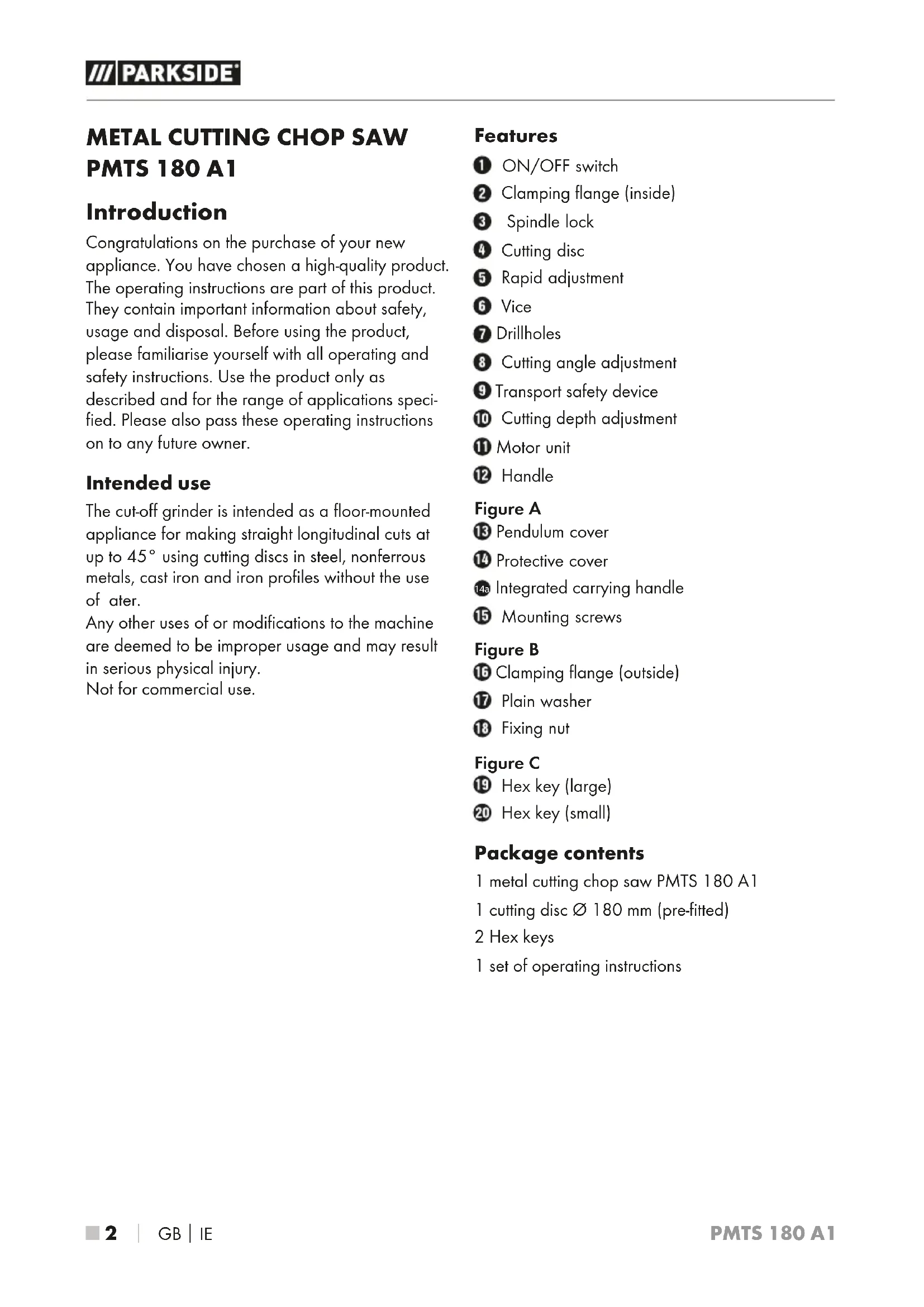

PMTS 180 A1 Introduction Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications speci- fied. Please also pass these operating instructions on to any future owner. Intended use The cut-off grinder is intended as a floor-mounted appliance for making straight longitudinal cuts at up to 45° using cutting discs in steel, nonferrous metals, cast iron and iron profiles without the use of ater. Any other uses of or modifications to the machine are deemed to be improper usage and may result in serious physical injury. Not for commercial use. Features ON/OFF switch Clamping flange (inside) Spindle lock Cutting disc Rapid adjustment Vice Drillholes Cutting angle adjustment Transport safety device Cutting depth adjustment Motor unit Handle Figure A Pendulum cover Protective cover 14a Integrated carrying handle Mounting screws Figure B Clamping flange (outside) Plain washer Fixing nut Figure C Hex key (large) Hex key (small) Package contents 1 metal cutting chop saw PMTS 180 A1 1 cutting disc Ø 180 mm (pre-fitted) 2 Hex keys 1 set of operating instructionsPMTS 180 A1

 3 ■ Technical data Rated voltage 230 V ∼, 50 Hz (alternating current) Rated power consumption 1280 W Rated idle speed n

7700 rpm Cutting disc mounting Ø 22.23 mm Thread size M8 Maximum speed of the cutting disc 8500 rpm Working speed of the cutting disc max. 80 m/s Cutting disc diameter Ø 180 mm Cutting disc thickness 1.6 mm Inclined cuts 0°–45° max. cut depth 50mm 50 mm at 0° mitre angle Protection class II / (double insulation) Noise emission value Noise measurement value determined in accord- ance with EN 62841. The A-rated noise level of the power tool is typically as follows: Sound pressure level L

= 3 dB Sound power level L

= 106 dB (A) Uncertainty K

= 3 dB Wear hearing protection! WARNING! ► Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece that is being worked, the vibration and noise emission values can deviate and may sometimes exceed the values given in these instructions. Regular use of the power tool in this way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General Power Tool Safety Warnings WARNING! ► Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.PMTS 180 A1 ■ 4 

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat orhearing protection used for appropriate condi- tions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.PMTS 180 A1

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detach- able, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. Ifdamaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unex- pected situations.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Safety instructions for abrasive cutting appliances

1) Safety instructions for abrasive

cutting appliances a) Ensure that you and everyone else in the vicinity remain outside of the range of the rotating grinding disc. The blade guard is designed to protect the operator from fragments and accidental contact with the grinding tool. b) Use only reinforced bonded or diamond- coated cutting discs for your power tool. Just because you can attach the accessories to your power tool does not guarantee they are safe to use. c) The permissible speed of the accessory tool used must be at least as high as the maximum speed specified for the power tool. Accesso- ries that rotate faster than the permissible rate can break and throw pieces into the air. d) Grinding tools should only be used for the recommended applications. For example: Never grind with the side surface of a cutting disc. Cutting discs are designed to remove material with the edge of the disc. Any lateral application of force on these grinding tools can lead to a breakage. e) Always use an undamaged clamping flange of the correct size and shape for the selected grinding disc. Suitable flanges support the grinding disc and reduce the risk of disc breakage. f) The external diameter and thickness of the attachment part used must comply with the dimensions of the power tool. Incorrectly dimensioned accessory tools cannot be suffi- ciently shielded or controlled.PMTS 180 A1 ■ 6 

g) Grinding discs and flanges must fit precisely onto the grinding spindle of your power tool. Accessory tools which do not fit precisely on the grinding spindle of the power tool will rotate unevenly, vibrate severely and can lead to a loss of control. h) Do not use damaged grinding discs. Check the grinding discs before each use for chips and cracks. If the power tool or grinding disc is dropped, check to see if either are damaged or use an undamaged grinding disc. After checking and inserting the grinding disc, ensure that you and any other people in the vicinity remain outside of the range of the rotating grinding disc and allow the tool to rotate at maximum speed for one minute. Damaged grinding discs usually break during this test period.

i) Wear personal protective equipment.

Depending on the application, ensure that you use full face protection, eye protection or goggles. If required, use a dust mask, ear protectors, protective gloves or special apron to protect you from grindings and material particles. The eye protection must be worn to protect you against flying debris, which may be caused by the various applications. Dust or filter masks must be used to filter any dust created by the application. If you are exposed to loud noise for any length of time, you can suffer a hearing loss. j) Ensure that other people remain at a safe distance to your workspace. Anyone who enters the workspace must wear personal protective equipment. Fragments of the work- piece or broken accessory tools can fly off and cause injury – even outside the immediate working area. k) Keep the power cable away from any rotating accessories. If you lose control of the appliance, the connecting cable may get cut or caught and your hand or arm could get caught in the rotating accessory tool. l) Clean the ventilation slits in your power tool regularly. The engine fan draws dust into the housing and a strong accumulation can cause electrical hazards. m) Do not use the power tool near flammable materials. Do not use the electrical appliance if it is placed on a flammable surface such as wood. Sparks can ignite such materials. n) Do not use any attachment parts that require liquid coolant. The use of water or other liquid coolants may lead to an electric shock.

2) Kickback and corresponding

safety instructions Kickback is a sudden reaction caused when a rotating cutting disc catches or jams. Catching or jamming causes the rotating accessory tool to stop abruptly. This results in an uncontrolled cutting grinding tool being accelerated upwards towards the operator. If, for example, a cutting disc catches or jams, the edge of the cutting disc that is projecting into the workpiece can get caught and break off the cutting disc or cause a kickback. This can also break cutting discs. A kickback is caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as given below. a) Hold the power tool firmly in both hands and position your body and arms so that they can absorb the kickback forces. By taking adequate precautions, the operator can stay in control of the kickback and reaction torques. b) Avoid the area in front of and behind the rotating cutting disc. In cases of kickback, an uncontrolled cutting grinding tool is driven upwards towards the operator.PMTS 180 A1

 7 ■ c) Do not use a toothed, wood-cutting or chain saw blade or segmented diamond-coated disc with more than 10 mm wide gaps. Such accessories often cause a kickback or loss of control over the power tool. d) Avoid cutting disc jams or excessive contact pressure. Do not make any excessively deep cuts. Overloading the cutting disc increases the stress and likelihood of tilting or blocking and thus the possibility of a setback or a breakage of the grinding tool. e) If the cutting disc jams or you stop working, switch the tool off and hold the cutting appli- ance steady until the disc has completely stopped turning. Never attempt to pull a rotating cutting disc out of a cut. This could lead to a kickback. Identify and remove the cause of the jam. f) Do not switch the power tool back on for as long as it is in the workpiece. Allow the cutting disc to reach its full speed before you carefully continue the cut. Otherwise, the disc can jam, jump out of the workpiece or cause kickback. g) Support large workpieces to reduce the risk of the cutting disc jamming and causing a kickback. Large workpieces can bend under their own weight. The workpiece must be supported on both sides, namely in the vicinity of the cut, and also at the edge. Further safety instructions forabrasive cutters ■ Never stand on an electrical appliance. Serious injuries can occur if the electrical appli- ance tips over or if you inadvertently come into contact with the cutting disc. ■ Always use the protective cover. A protective cover protects the user against parts of the cutting disc which have broken off and also against unintentional contact with the cutting disc. ■ Ensure that the protective cover is working properly and that it can move freely. Never clamp the protective cover when it is in the open position. ■ Use the appliance only for dry cutting. Water entering a power tool will increase the risk of electric shock. ■ Keep the power cable away from any rotating accessories. The power cable can be cut through or caught up. ■ Keep handles dry, clean and free from oil and grease. Greasy, oily handles are slippery and result in loss of control. ■ Never remove cutting leftovers, metal swarf etc. from the cutting area while the power tool is running. Always place the tool arm in the idling position and switch the power tool off. ■ Always switch on the power tool before applying it to the workpiece. Otherwise, there is a danger of kickback if the cutting disc becomes caught up in the workpiece. ■ Only use the power tool if the working surface is free of all adjusting tools, metal swarf etc. except for the workpiece to be processed. Small pieces of metal or other objects which come into contact with the rotating cutting disc can hit the operator at high speed.PMTS 180 A1 ■ 8 

■ Always clamp the workpiece to be processed firmly. Never use workpieces which are too small to clamped firmly. The distance between your hand and the rotating cutting disc is other- wise too small. ■ If the cutting disc jams, switch the power tool off and wait until the cutting disc has completely stopped turning. Never attempt to pull a rotating cutting disc out of a cut. This could lead to a kickback. Identify and remove the cause of the jam. ■ Do not apply lateral pressure to try and slow the cutting disc down after switching off the appliance. The cutting disc might be damaged, break or cause a kickback. ■ Never ram the cutting disc into the workpiece forcefully, and never apply too much force when using a power tool. You should espe- cially avoid jamming the cutting disc when working on corners, sharp edges etc. If the cutting disc is damaged by misuse, it can form cracks that result in sudden breakage. ■ Wear a safety apron. Ensure that nobody can be endangered by flying sparks. Remove all flammable material from the vicinity. Grinding metal creates flying sparks. ■ Only use the abrasive cutter for materials specified in the instructions for proper use. Otherwise, the abrasive cutter can be over- loaded. ■ Never use any damaged, non-circular or vibrating cutting discs. Damaged cutting discs cause increased friction, jamming of the cutting disc and kickback. ■ Always use cutting disks of the correct size and with an appropriate central fixing bore (e.g. diamond-shaped or circular). Cutting disks which do not match the fitting parts on the abrasive cutter will run eccentrically and cause loss of control. ■ Do not use chains or toothed saw blades. Such accessories often cause a kickback or loss of control over the power tool. ■ Observe the operating manual published by the cutting disc manufacturer when fitting and using the cutting disc. Unsuitable cutting disks can lead to personal injury and may cause snagging, tearing of the disc or kickback. ■ Do not use any accessories that have not been specifically provided or recommended by the manufacturer for this power tool. Just because you can attach the accessories to your power tool does not guarantee they are safe to use. ■ Do not touch the cutting disks after work until they have cooled down. Cutting discs become very hot while they are working. ■ Check the cable regularly. Damaged cables may only be repaired by an authorised customer service location for power tools. Replace any damaged extension cables. This will ensure that the safety of the power tool is maintained. ■ Store unused power tools safely. The storage location must be dry and lockable. This prevents the power tool being damaged by storage or being used by inexperienced persons. ■ Secure the workpiece! A workpiece securely held by a clamping device or vice is much safer than one held in your hand. ■ Never leave the tool until it has come to a complete standstill. Power tools which continue to run on can cause injuries. ■ Do not use the power tool with a damaged cable. Never touch a damaged cable and remove the plug from the mains socket if the cable becomes damaged during work. Damaged cables increase the risk of electric shock.PMTS 180 A1

 9 ■ Supplementary notes ■ Always wear eye and ear protectors. Use other protective equipment such as dust masks, protective gloves, protective goggles if neces- sary. ■ Never use any cutting discs with spalling, cracks or other damage. ■ Always visually inspect cutting discs before each use. ■ Do not use any saw blades. ■ Never use the appliance without the disc guard. WARNING! DANGER DUE TO DUST EXPOSURE! ► When working for extended periods of time on wood and, in particular, materials that produce dust which is hazardous to health, connect the appliance to an appropriate external dust extraction appliance. Symbols used on the power tool Keep your hands clear of the cutting area while the power tool is running. There is a danger of injury if you contact the cutting disc. Wear protective gloves! Wear a dust mask! Wear protective goggles! Wear hearing protection! Wear safety shoes! Not designed for wet grinding Use of damaged cutting or polishing discs is dangerous and can lead to serious injuries! Intended for metal grinding

Disc diameter Before using the device for the first time, read the original operating instructions and safety instructions. Metal cut-off grinder WARNING! TOXIC FUMES! ► Working with the tool can produce harmful/ toxic dusts that represent a health hazard for the person operating the appliance and for any other people in the area.PMTS 180 A1 ■ 10 

Original accessories/auxiliary equipment ■ Use only the additional equipment and accesso- ries specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury. Before use Setting up the appliance Fix the appliance using suitable bolts (not included in delivery) to a flat, stable base. Use the drill holes for this purpose. Ensure that a mains socket is within easy reach. NOTE ► In exceptional cases you can position the baseplate for this process on a solid support. Removing/inserting transport safetydevices Removing transport safety devices ♦ Apply a little pressure to the handle and pull the transport safety device out. The motor unit can now be moved upwards. Inserting transport safety devices ♦ Press the handle downwards and push the transport safety device into the appliance. The motor unit is now fixed. NOTE ► Use the transport safety device for trans- porting the appliance. Carry the appliance by its integrated carrying handle 14a

Operation Switching on and off ■ Direction of rotation of the tool! ■ Insert the plug into a mains power socket. Switching on ♦ Press the ON/OFF switch and keep it pressed. Switching off ♦ Release the ON/OFF switch

Setting the cutting depth WARNING! RISK OF INJURY! ► Always remove the power plug from the wall socket before carrying out any work on the appliance. ♦ Adjust the screw on the cutting depth adjust- ment with the aid of the supplied hex key (small)

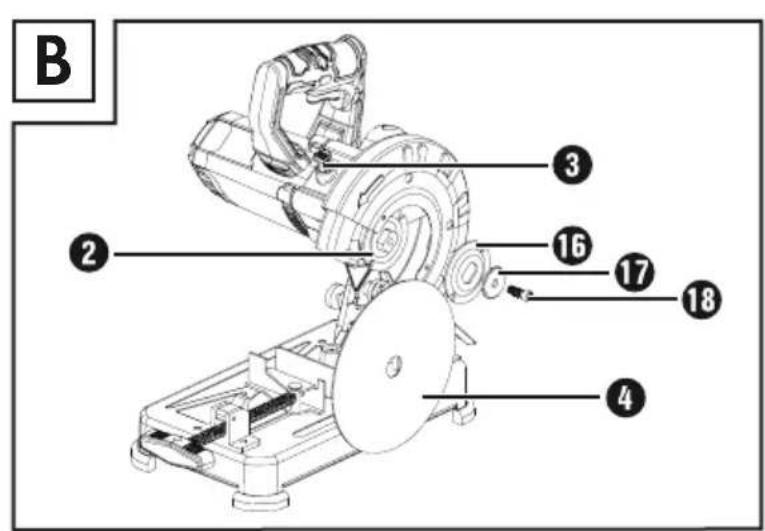

♦ Test the cutting depth by lowering the motor unit. Changing the cutting disc WARNING! RISK OF INJURY! ► Always remove the power plug from the wall socket before carrying out any work on the appliance. ► Allow the cutting disc to cool down before you touch it ► Check the cutting disc . It should not be damaged or damp, and it should have no cracks. Otherwise, it could break during use and cause injuries. NOTE ► Only use cutting disks which comply with the performance data stated in this manual. ♦ Undo the mounting screws using the supplied hex key (small) , in order to remove the protective cover .PMTS 180 A1

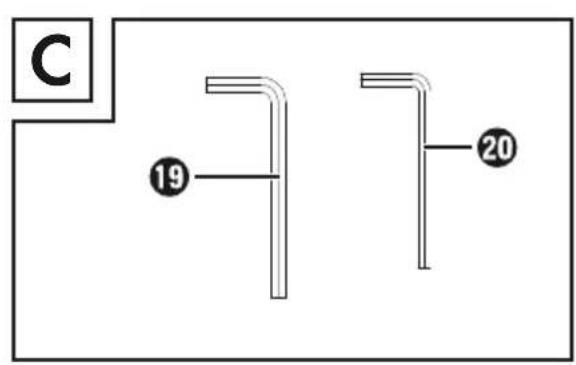

 11 ■ ♦ Swing the pendulum cover back completely and hold it firmly in place with your hand. ♦ Press the spindle lock all the way down and hold it in this position. If necessary, rotate the cutting disc by hand until this is possible. ♦ Use the hex key supplied (large) to unscrew the fixing nut out in an anticlockwise direc- tion. ♦ Remove the plane washer , the clamping flange (outside) and the cutting disc

♦ Insert a new cutting disc. ♦ Proceed in reverse order in order to reassemble the appliance to a usable condition. ♦ Check whether all the fastening elements are correctly fitted. NOTE ► Ensure that the cutting disc can be rotated freely. ► Switch the appliance on for around 60seconds to check that there are no unusual vibrations. If this is not the case, you should check that the cutting disc is installed correctly

Clamping the workpiece You can clamp the workpiece and adjust the mitre angle with the aid of the fitted vice. Using the vice ♦ Turn the handle on the vice clockwise to clamp the workpiece. ♦ Turn the handle on the vice anticlockwise to unclamp the workpiece. NOTE ► You can also fold the rapid adjustment upwards in order to make a quick adjustment to the vice . Fold the rapid adjustment down again in order to fix the vice . After this, use the vice handle to make fine adjustments. Setting the cutting angle (mitre angle) ♦ Undo the cutting angle adjustment by turning it anticlockwise. If necessary, pull the cutting angle adjustment upwards. ♦ Set the required cutting angle using the angle given. ♦ Retighten the cutting angle adjustment

turning it clockwise. Cleaning and maintenance WARNING! RISK OF INJURY! ► Always remove the power plug from the wall socket before carrying out any work on the appliance. ■ The appliance must always be kept clean, dry and free from oil or grease. ■ Use a soft, dry cloth to clean the housing. ■ Clean the ventilation slits in your power tool with a soft brush regularly. NOTE ► Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline. ► Required maintenance work should only be replaced by qualified service personnel.PMTS 180 A1 ■ 12 

Disposal The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant. Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environ- mentally compatible manner. Dispose of the packaging in an envi- ronmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The pack- aging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The product is recyclable, subject to extended producer responsibility and is collected separately. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statu- tory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly main- tained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.PMTS 180 A1

 13 ■ This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)373210_2104 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 373210_2104. NOTE ► For Parkside tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.). WARNING! ► Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This ensures that the safety of the tool is main- tained. ► Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or its customer service. This ensures that the safety of the tool is maintained. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 373210_2104 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, Germany, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) Electromagnetic Compatibility (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards EN 62841-1:2015 EN 62841-3-10:2015/A11:2017 EN ISO 12100:2010 EN 55014-1:2017/A11:2020 EN 55014-2:2015 EN 61000-3-2:2014

EN IEC 61000-3-2:2019

EN 61000-3-3:2013 EN 61000-3-3:2013/A1:2019 EN IEC 63000:2018 Type/appliance designation: Metal Cutting Chop Saw PMTS 180 A1 Year of manufacture: 07–2021 Serial number: IAN 373210_2104 Bochum, 22.07.2021 Semi Uguzlu - Quality Manager - The right to effect technical changes in the context of further development is reserved.PMTS 180 A1
