PDTS 6.3 A1 - Grinder PARKSIDE - Free user manual and instructions
Find the device manual for free PDTS 6.3 A1 PARKSIDE in PDF.
| Product Type | Pneumatic angle grinder (die grinder) |
| Brand | Parkside |
| Model | PDTS 6.3 A1 |
| Operating pressure | 6.3 bar |
| Compressed air connection | 1/4" (6.35 mm) |
| No-load speed | 19000 min⁻¹ |
| Grinding wheel (diameter × thickness × bore) | ∅ 75 × 2.0 × ∅ 9.5 mm |
| Spindle diameter | 9.5 mm |
| Length | 185 mm |
| Weight | 0.7 kg |
| Sound level (LWA) | 102.6 dB |
| Sound level (LPA) | 91.6 dB |
| Vibrations (ISO 28927-4) | 6.41 m/s² (K=1.16 m/s²) |

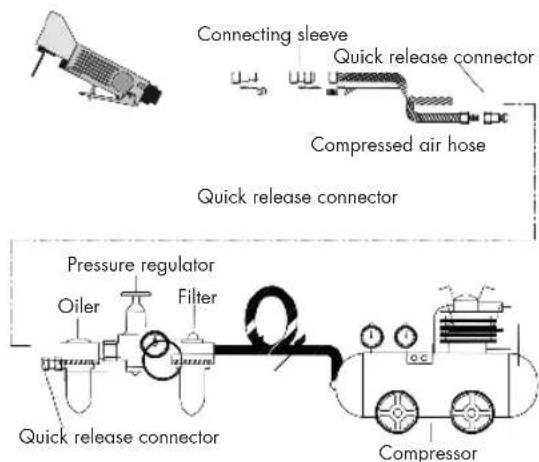

| Air supply | Filtered, lubricated and regulated compressed air |
| Intended use | Cutting of metals, manual use |
| Safety equipment | Anti-start safety, protective guard, trigger lever |
| Lubrication | SAE 10-20 motor oil or pneumatic tool oil |
| Delivery contents | Angle grinder, grinding wheel, mounting wrench, 1/4" hex key, compressed air connector |
| Warranty | 3 years |
| Wear parts | Grinding wheel (replaceable) |
Frequently Asked Questions - PDTS 6.3 A1 PARKSIDE
User questions about PDTS 6.3 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grinder in PDF format for free! Find your manual PDTS 6.3 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PDTS 6.3 A1 by PARKSIDE.
USER MANUAL PDTS 6.3 A1 PARKSIDE
Operation and Safety Notes Translation of the original instructions
NL
PERSLUCHT-DOORSLIJPER
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DK
GB/IE/NI Operation and Safety Notes Page 21
Table of contents
List of pictograms used....Page 6
Introduction Page 6
Intended use Page 6
Features Page 6
Technical specifications ......Page 6
Delivery contents Page 7
Safety instructions for pneumatic tools....Page 7
Warnings specific to the pneumatic angle grinder ....Page 14
Operation Page 15
Before starting up....Page 15
Starting up....Page 16
Switching OFF....Page 16
Maintenance......Page 16
Warranty and service information......Page 17
Warranty terms Page 17
Extent of warranty....Page 17
Processing of warranty claims ......Page 17
Environmental notes and disposal information ......Page 18
Declaration of Conformity Page 18
/// PARKSIDE
GB/IE/NI
5
Introduction
| List of pictograms used | |||
 | Please read the operating instructions! |  | Note |
 | Wear hearing protection, respirator / dust mask, goggles, and protective gloves. |  | Observe warnings and the safety instructions! |
 | Compressed air hose |  | Never use bottled hydrogen, oxygen, carbon dioxide, or other gases as an energy source |
 | Dispose of the packaging and product in an environmentally-friendly manner! |  | Oil regularly! |
AIR ANGLE GRINDER PDTS 6.3 A1
- Introduction
Congratulations! You have purchased a high-quality product. Before initial startup, please familiarise yourself
with the product. First read the safety instructions carefully. Only trained persons may start up this product.
KEEP OUT OF THE REACH OF CHILDREN!
- Intendeduse
The pneumatic angle grinder is a tool powered by compressed air for skilled manual work. It is designed for easy parting work on metal. The operating personnel should wear goggles to protect themselves from flying fragments and accidental contact with the abrasive wheel. Caution! This device may be used only as specified herein.
- Features
1 Compressed air connection
2 Trigger arm
3 Switch ON guard
4 Housing
5 Protective cowl
6 Parting disc
7 Assembly key
8 Allen key
9 Screw plug
• Technical specifications
Product: Pneumatic angle grinder
Model: PDTS 6.3 A1
Operating pressure: 6.3 bar
Compressed air
connection 1/4" (6.35 mm)
Idle speed: 19,000 rpm
Parting disc: ∅ 75 × 2.0 × ∅ 9.5 mm
Spindle diameter: 9.5 mm
Length: 185 mm
Weight: 0.7 kg
Noise emission values
(under EN ISO 15744): LWA : 102.6 dB
LPA:91.6dB
Uncertainty K: 3 dB
GB/IE/NI6
/// PARKSIDE
Introduction / Safety instructions for pneumatic tools
Vibrations
(under ISO 28927-4): 6.41 m/s²
Uncertainty K: 1.16 m/s 2
- Delivery contents
1 × pneumatic angle grinder
1 × parting disc
1 × assembly key
1 × 1/4" Allen key
1 × compressed air connection
● Safety instructions for pneumatic tools
BEFORE USE, PLEASE READ FIRST THE OPERATING INSTRUCTIONS CAREFULLY.THESE FORM PART OF THE DEVICE AND MUST BE AVAILABLE AT ALL TIMES!
WARNING! The use of pneumatic tools must comply with fundamental safety precautions serving to rule out all risks of fire, electric shock, and injury. Before first use, please read and observe without fail the information in these operating instructions, and keep these in a safe place. The manufacturer accepts no liability for any damage or injury incurred through failure to observe these operating instructions.
WARNING! The specified hazards are foreseeable risks associated with the general use of handheld pneumatic angle grinders. Nevertheless, the user must also assess specific risks that may arise as a result of each and every use.
WARNING!
DANGER OF INJURY!
Shut off the compressed air supply before changing tools and before configuration and maintenance work.
WARNING!
EXPLOSION HAZARD!
- Never use petrol or other flammable fluids to clean the pneumatic device! Sparking may ignite any vapours trapped in the pneumatic device and cause it to explode. Do not work with the device in a potentially explosive environment where there are flammable liquids, gases, or dusts. Do not process materials that are or may become easily flammable or explosive.
GENERAL SAFETY RULES
☐ For multiple hazards: The safety instructions must be read and understood before configuration, operation, repair, maintenance,
/// PARKSIDE
GB/IE/NI 7
Safety instructions for pneumatic tools
and exchange of accessories on the pneumatic angle grinder and before all work near the machine. If this is not the case, there may be grievous injury as a result.
☐ The pneumatic angle grinder should be configured, set, and used exclusively by correspondingly qualified and trained operating personnel.
☐ This machine may not be altered. Alterations may compromise the effectiveness of the safety measures and increase the risks for the operating personnel.
☐ The safety instructions may not become lost – give these to the operating personnel.
□ Never use damaged pneumatic angle grinders.
☐ The pneumatic angle grinder must be inspected regularly for the clear legibility of all rated values and labels as demanded under this section of ISO 11148. If necessary, the employer/user must contact the manufacturer for replacement labels.
HAZARDS FROM FLYING PARTS
☐ A fracturing workpiece, accessory, or machine tool can eject parts at high speed.
□ Impact resistant eye protection must be worn when the pneumatic
angle grinder is being operated. The degree of this requisite protection should be rated separately for every single use.
☐ Ensure that the workpiece is fixed securely in place.
☐ Ensure that the parting disc is clamped securely to the pneumatic angle grinder.
□ Check that the parting disc's maximum operating speed (in rpm) is equal to or greater than the spindle's rated speed. Brushes should not be fitted to machines when their speeds are greater than the maximum values approved for brushes.
□ Make sure that the protective cowl is fitted, is in good working condition, has been secured properly, and is inspected at regular intervals.
□ Check regularly that the pneumatic angle grinder's speed is not greater than that specified on the machine. These speed tests must be conducted without attached parting disc and in accordance with the manufacturer's instructions.
□ Check that the clamping flanges are used in accordance with the manufacturer's specifications and that they are plane and in good working condition, e.g. uncracked and unfractured.
Safety instructions for pneumatic tools
□ Check that there is no damage or wear on the spindle and spindle thread.
- Check that there can be no hazards posed by sparks and debris generated during use.
- The pneumatic angle grinder must be disconnected from its power supply before maintenance and before the parting disc is replaced.
TRAPPING HAZARDS
There is a risk of strangulation, scalping, and/or other cutting injury when loose clothing, jewellery, necklaces, hair, or gloves are not kept away from the machine and its accessories.
HAZARDS DURING OPERATION
□ Avoid contact with the rotating spindle and attached parting disc to prevent cutting injuries to hands and other parts of the body.
□ Using the machine may expose the operating personnel's hands to hazards such as e.g. cuts, scrapes, and heat. Wear suitable gloves to protect the hands.
□ The operating and the maintenance personnel must be physically able to handle the machine's position, size, mass, and power output.
□ Hold the machine correctly: Be prepared to counteract the usual or sudden movements – keep both hands ready.
□ Make sure that your body is balanced and that you are standing on a stable surface.
□ Activate a startup or shutdown control device in the event of power outage.
□ Use only those lubricants recommended by the manufacturer.
☐ Goggles must be worn; gloves and protective clothing are recommended.
□ A hard hat must be worn for overhead work.
□ Specify the runout time when this is longer than 5 s; it is recommended urgently to place the pneumatic angle grinder in a protected place.
☐ For abrasive cutting work, the workpiece must be supported in such a manner that the parting slit maintains a constant or increasing width during the whole work.
☐ If the parting disc jams in a parting slit, the pneumatic angle grinder must be switched OFF and the parting disc loosened. Before resuming operation, check that the parting disc has been secured properly and is not damaged.
Safety instructions for pneumatic tools
☐ Grinding and parting discs may not be used for face grinding (exception: face grinding wheels). Pneumatic angle grinders may not be used at circumferential speeds greater than the maximum value specified for an abrasive.
☐ The operating personnel must make sure that there is nobody standing nearby.
☐ Personal protective equipment such as suitable gloves, aprons, and hard hats must be used.
☐ The sparks generated by parting work may ignite clothing and cause serious burns. Make sure that the sparks do not contact clothing. Wear fire retardant clothing, and make sure that there is a pail of water nearby.
HAZARDS FROM REPEATED MOVEMENTS
□ Using a pneumatic angle grinder for work related activities may cause unpleasant sensations in the operating personnel's hands, arms, neck, shoulders, and other parts of the body.
□ When using a pneumatic angle grinder, the operating personnel should adopt a comfortable posture, stand on a stable surface, and avoid postures making it difficult to maintain balance.
The operating personnel should change their posture during long work periods, thereby helping to minimise unpleasant sensations and fatigue.
☐ If the operating personnel should feel symptoms like e.g. constant or recurrent nausea, complaints, throbbing, pain, tingling, numbness, burning, or stiffness, these should not be ignored. The operating personnel should report this to the employer and consult a qualified medical expert.
HAZARDS FROM ACCESSORIES
□ Disconnect the pneumatic angle grinder from the power source before fitting or replacing the machine tool or accessory.
□ Use exclusively those accessories and consumables of the sizes and types recommended by the manufacturer of the pneumatic angle grinder. Do not use any other size or type of accessories and consumables.
□ Make sure that the parting disc size is compatible with that of the pneumatic angle grinder and that the parting disc fits on the spindle.
□ Make sure that the parting disc's thread type and size correspond exactly to the spindle thread's type and size.
Safety instructions for pneumatic tools
□ Before use, first inspect the abrasive. Do not use parting discs that may have been dropped or that exhibit spalling, cracks, or other defects.
□ Make sure that before use the parting disc has been secured properly and tightened adequately. The pneumatic angle grinder must be operated for at least one minute at idle speed in a safe position. The machine must be switched OFF immediately there is considerable vibrations or other damage, and their cause identified.
- The spindle's measurements and other key data must be examined if there is to be no contact between the end of the spindle and the base of openings for straight and flaring cup wheels or threaded grinding rods designed for mounting on machine spindles.
☐ In the case of parting discs supplied with or designed for use with adapters or adapter bushings, the user must ensure that the adapter or the adapter bushing does not contact the face side of the clamping flange and that the clamping force generates enough rotational drive to prevent the parting disc from slipping.
☐ If clamping flanges are provided for a range of parting disc types and sizes, always fit that clamping flange matching the parting disc used.
☐ Before and after using the machine tool, avoid direct contact: it may still be hot or have sharp edges.
□ The parting disc must be stored and handled in accordance with the manufacturer's instructions.
HAZARDS AT THE WORKPLACE
☐ Slipping, tripping, and falling are the predominant causes of injuries at work. Take note of surfaces that have become slippery through the use of the machine and of tripping hazards posed by the air or hydraulic hose.
□ Proceed carefully in unfamiliar environments. There may be hidden dangers in the form of electric or other supply cables.
☐ The pneumatic angle grinder is not designed for use in potentially explosive atmospheres and is not insulated against contact with electrical power sources.
□ Make sure that there are no electrical lines, gas piping, etc., that may pose a hazard in the event of damage caused by the machine in use.
/// PARKSIDE
GB/IE/NI 11
Safety instructions for pneumatic tools
HAZARDS FROM DUST AND VAPOURS
☐ The dusts and vapours generated by pneumatic angle grinders may be detrimental to health (e.g. cancer, birth defects, asthma, dermatitis). These risks must be assessed without fail and the corresponding regulating mechanisms implemented.
☐ This risk assessment should extend to the dusts generated by the machine in use and to the potential raising of dust deposits.
☐ The pneumatic angle grinder must be operated and serviced as recommended in these instructions if the release of dust and vapours is to be minimised.
☐ The exhaust air must be extracted in such a manner that the dust raised in dusty environments is reduced to a minimum.
☐ If dusts and vapours are generated, the main task is to check these at the place of their release.
□ All machine fitted installations or accessories designed to capture, extract, or suppress airborne dust or vapours should be used and serviced in accordance with the manufacturer's instructions.
☐ The consumables / machine tools must be selected, serviced, and replaced in compliance with the
recommendations in these instructions if there is to be no unnecessary increase to dust and vapour levels.
□ Use respirator equipment as set down in your employer's instructions or in the work and health protection rules.
□ Processing certain materials may emit dust and vapours that in turn may lead to a potentially explosive environment.
HAZARDS FROM NOISE
☐ The effects of high noise levels may cause permanent damage to hearing when there is inadequate protection. This may lead to loss of hearing and other problems, e.g. tinnitus (ringing, buzzing, whistling, or humming in the ears).
☐ These risks must be assessed without fail and the corresponding regulating mechanisms implemented.
☐ Regulating mechanisms suitable for minimising risks include e.g. the use of insulating materials that suppress ringing noises on the workpieces.
□ Use hearing protection equipment as set down in your employer's instructions or in the work and health protection rules.
Safety instructions for pneumatic tools
☐ The pneumatic angle grinder must be operated and serviced as recommended in these instructions if there is to be no unnecessary increase to noise levels.
☐ If the pneumatic angle grinder is fitted with a silencer, always make sure that this is in place and in full working order when the machine is operating.
☐ The consumables / machine tools must be selected, serviced, and replaced in compliance with the recommendations in these instructions if there is to be no unnecessary increase to noise levels.
HAZARDS FROM VIBRATIONS
□ Vibrations can prove detrimental to the nerves and blood circulation in hands and arms.
□ When working in cold environments, wear warm clothing, and keep your hands warm and dry.
☐ If you start feeling numbness, tingling, or pain in your fingers or hands, or the skin of your fingers or hands starts turning white, stop work with the pneumatic angle grinder, notify your employer, and seek medical advice.
☐ The pneumatic angle grinder must be operated and serviced as recommended in these instructions
if there is to be no unnecessary increase to vibration levels.
☐ Do not let the machine tool chatter on the workpiece: this will in all probability increase the vibrations to a great extent.
☐ The consumables / machine tools must be selected, serviced, and replaced in compliance with the recommendations in these instructions if there is to be no unnecessary increase to vibration levels.
□ Whenever possible, use a column, clamp, or balancing device to hold the machine's mass.
- Keep a reliable, but not too tight grip on the machine, noting the force of your manual response: vibration levels tend to increase with tighter grips.
□ Use suitable intermediate wheels with bonded abrasives.
ADDITIONAL SAFETY INSTRUCTIONS FOR PNEUMATIC MACHINES
□ Compressed air can cause grievous injury.
□ When the machine is not in use and before replacing accessories or performing repairs, make sure that the air supply has been shut off, the air hose is unpressurised, and the machine has been disconnected from the air supply.
□ Compressed air can cause grievous injury.
□ When the machine is not in use and before replacing accessories or performing repairs, make sure that the air supply has been shut off, the air hose is unpressurised, and the machine has been disconnected from the air supply.
Safety instructions for pneumatic tools
□ Never direct the air flow towards yourself or any other person.
□ Thrashing hoses can cause grievous injury. So always check that the hoses and their fasteners are undamaged and have not detached.
- Locking pins must be used on universal swivel (jaw) couplings. Whipcheck hose fasteners must be used as protection against a failing hose-machine and hose-hose connector.
□ Make sure that the maximum pressure specified on the machine is not exceeded.
□ Never carry pneumatic machines by their hoses.
■ Use the device only for applications it has been designed for!
■ Do not overload the device.
Never use bottled hydrogen, oxygen, carbon dioxide, or other gases as an energy source: these can cause explosions and therefore serious injury.
DANGER! Keep your hands and limbs away from rotating parts. Otherwise, there is danger of injury.
■ Make sure that the motor oil SAE 10-20 is applied correctly for the optimal lubrication of the pneumatic device (see Section "Operation" on page 15). Contact with eyes or skin can cause inflammation or irritation. It is therefore important that the motor oil is applied with great care into the compressed air connection on the pneumatic devices.
- Warnings specific to the pneumatic angle grinder
Before fitting a parting disc, after every tool repair, and before the first use of an angle grinder, always check the speed dial and make sure that the angle grinder's actual idle speed at 6.3 bar does not exceed the speed stamped or printed on the type plate. Furthermore, all angle grinders in use must be examined at least once a shift.
■ Make sure that the parting disc has been fitted correctly and the parting disc nut tightened securely. The parting disc should not sit too tightly or too loosely.
- Check that the speed specified on the parting disc is at least equal to the rated speed of the pneumatic angle grinder.
/// PARKSIDE
Warnings specific to the pneumatic angle grinder / Operation
Otherwise, accessories turning faster than permitted may be damaged irreparably.
■ Make sure that the parting disc size is appropriate for the pneumatic angle grinder and that the parting disc fits on the spindle.
- Parting discs must be stored and handled with care and in accordance with the manufacturer's instructions.
■ Inspect the parting disc before use, and discard all that have spalled, fractured, or sustained any other damage.
■ Before use, make sure that the parting disc has been fitted correctly and tightened securely, and let the device run idle for thirty seconds in a safe place. Stop the machine immediately there are considerable vibrations or defects. If this is the case, examine the devices and identify the cause.
- Do not use separate adapters or adapter bushes: use instead parting discs with a larger hole diameter.
■ Always use the recommended guard supplied with the pneumatic angle grinder. The opening in the guard must face away from the operator.
■ Do not use angle grinders for face cutting.
■ The parting disc continues rotating even after the device has been switched OFF. After switching OFF, the device may not be put down until the parting disc has come to a complete stop. This precautionary measure serves to prevent not only serious accidents, but also dust and chips from being sucked into the devices.
- Operation
- Before starting up
Fit the parting disc
Disconnect the compressed air supply from the compressed air connection.
Use the assembly key 7 to lock the spindle in place, at the same time loosening the hex screw and flange with the Allen key 8.
Fit the new parting disc 6 and flange on the spindle. Use the Allen key 8 to tighten firmly the Allen screws. Check that the parting disc has been fitted correctly and can rotate without hindrance!
Compressed air supply and connection. Use filtered, lubricated, and regulated compressed air only. The following figure illustrates the correct way
/// PARKSIDE
GB/IE/NI 15
Operation
of connecting to the compressed air system, and tool effectiveness and life is extended as a result.
Before first use and thereafter at regular intervals, apply a few drops of pneumatic equipment or motor oil SAE 10-20 into the compressed air connection on the pneumatic device. After every 3–4 operating hours, use the assembly key to remove the screw plug 9 in the oil reservoir. Fill the oil reservoir with pneumatic equipment or motor oil SAE 10-20, and insert the screw plug back. Wrap some Teflon sealing tape around the thread on the air connections. Screw the air connections into the pneumatic devices.
- Starting up
Put on protective clothing and goggles. OTHERWISE THERE IS DANGER OF INJURY!
Check that the parting disc has been tightened securely.
Check that the workpiece is supported or has been locked in place correctly. A C clamp is recommended on loose workpieces.
Make sure that generated sparks do not pose any danger, i.e. they cannot contact any persons or ignite flammable substances.
Connect the compressed air supply. To do so, connect the compressed air source to the compressed air connection.
Press the switch ON guard towards the chuck. Press the trigger arm, and perform the cutting work. The device rotates at the maximum speed when the trigger arm is tightened to the stop. Regulate the tightening pressure and therefore the speed for the optimal grinding results.
- Switching OFF
Release the trigger arm 2 to switch OFF the pneumatic angle grinder. After work, disconnect the device from the compressed air source.
Note: First detach the hose from the compressed air source, and then remove the supply hose from the device. This prevents the supply hose from whirling out of control.
- Maintenance
If the machine is to enjoy a long service life and operate without problems, it is important that the following maintenance instructions are followed. The pneumatic angle grinder must be lubricated regularly if it is to operate flawlessly at all times.
ATTENTION: DISCONNECT COMPRESSED AIR BEFORE MAINTENANCE WORK!
Keep the pneumatic devices clean. Turn over the tool so that the compressed air connection points upwards, and apply a few drops of pneumatic equipment or motor oil SAE 10-20 into the compressed air connection on the pneumatic devices.
Press the trigger arm 7 to distribute the oil more evenly. Hold a cloth or absorbent paper towel in front of the exhaust air openings, and let the device run in idle mode for a few seconds.
ATTENTION! EXCESS OIL IS BLOWN OUT. KEEP THE DISCHARGE HOLE AWAY FROM PERSONS AND OBJECTS.
Operation / Warranty and service information
Speed and vibrations must be checked every time after maintenance and care.
The pneumatic tool should be kept and stored in a dry room. Make sure that no moisture can enter inside the pneumatic device.
Check regularly the spindles, threads, and clamping mechanisms for wear, and the tolerances for fitting abrasives.
Before all maintenance, clean the device of hazardous substances that have deposited on it (during work processes). Avoid all skin contact with these substances. Hazardous dust coming into contact with skin may cause serious dermatitis. Dust that is generated or raised during maintenance work can be breathed in.
● Warranty and service information
Creative Marketing Consulting GmbH warranty
Dear Customer,
The warranty for this device is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Our warranty, outlined below, does not limit your statutory rights.
- Warranty terms
The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.
Should this product have a material or manufacturing error within three years of the purchase date, the product will be repaired or replaced – dependent on our choice - by us at no cost to you. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing
what the fault entails and when it occurred.
If the defect is covered by our warranty, we will return the repaired device or a replacement thereof. A repair or exchange of the device does not start a new warranty period.
• Extent of warranty
The device has been manufactured according to strict quality guidelines and meticulously examined before delivery.
The warranty applies to defects in material or manufacture. This warranty does not extend to product parts which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries, or parts made from glass.
This warranty is void if the product is damaged, improperly used, or serviced. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. Uses and acts that the operating instructions dissuade or warn against are to be avoided without question.
The product is only intended for private use and is not for commercial use. The warranty becomes void, in the event of misuse and improper use, use of force, and any interference not carried out by our authorised service branch.
- Processing of warranty claims
Please follow the instructions below to ensure quick processing of your claim: When inquiring about your product please have your receipt and product number (e.g. IAN) ready as your proof of purchase. The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or bottom. Should you have any functional fault or other error, first contact the service department
/// PARKSIDE
GB/IE/NI
Environmental instructions and disposal information / Declaration of Conformity
listed below by phone or email. You can then forward a product recognized as defective with a proof of purchase (sales receipt) and a statement indicating what the fault entails and when it occurred to the service address, which will be given at no cost to you for postage.
Note:
You can download this handbook and many more, as well as product videos and software at www.lidl-service.com.
How to contact us:
GB, IE, NI
Name: C. M. C. GmbH
Website: www.cmc-creative.de
E-mail: service.gb@cmc-creative.de
Phone: 0-808-189-0652
Registered office: Germany
IAN 292193
Please note that the following address is not a service address. Please first contact the service point named above.
Address:
C. M. C. GmbH
Katharina-Loth-Str. 15
66386 St. Ingbert
Germany
● Environmental notes and disposal information
Always recycle the tool, accessories and packaging in an environmentally-friendly manner.
Do not dispose of pneumatic devices in household waste! Whenever possible, devices that are no longer functional should be recycled. Contact your local retailer for information.
- Declaration of Conformity
We,
C. M. C. GmbH
Responsible for documentation: Mark Uhle
Katharina-Loth-Str. 15
66386 St. Ingbert
Germany
declare in our sole responsibility the product
AIR ANGLE GRINDER
IAN: 292193
Article no.: 2087
Year of manufacture: 2018/04
Model: PDTS 6.3 A1
meets the basic safety requirements of European Directives
Machinery Directive:
2006/42/EC
and their amendments.
The conformity assessment is based on the following harmonised standards:
EN ISO 11148-7:2012
St. Ingbert, 07/11/17
pp Marc Uhle - Documentation Officer
Indholdsfortegnelse
Symbolforklaring....Side 20
Indledning....Side 20
34 DK
/// PARKSIDE
Inhoudsopgave
Product: perslucht-doorslijper
Model: PDTS 6.3 A1
Werkdruk: 6,3 bar
Persluchtaansluiting: 1/4" (6,35mm)
Stationair toerental: 19000 omw/min
perslucht-doorslijper
IAN: 292193
Art.nr.: 2087
Product: perslucht-doorslijper
Model: PDTS 6.3 A1
Werkdruk: 6,3 bar
Persluchtaansluiting: 1/4" (6,35mm)
Stationair toerental: 19000 omw/min
perslucht-doorslijper
IAN: 292193
Art.nr.: 2087
RISQUES DUS AU HAPPAGE
RISQUES AU POSTE DE TRAVAIL
RISQUES DUS AU BRUIT
RISQUES DUS AUX VIBRATIONS
84 FR
/// PARKSIDE
Inhaltsverzeichnis
⚠️ WARNUNG! EXPLOSIONS-GEFAHR!
service.at@cmc-creative.de
service.ch@cmc-creative.de
Telefon: +49 (0) 6894 9989740
- Perslucht-doorslijper
- Dk
- Table of contents
- List of pictograms used....page 6
- Introduction page 6
- Safety instructions for pneumatic tools....page 7
- Warnings specific to the pneumatic angle grinder ....page 14
- Operation page 15
- Warranty and service information......page 17
- Environmental notes and disposal information ......page 18
- Declaration of conformity page 18
- Introduction
- Air angle grinder pdts 6.3 A1
- Introduction
- Keep out of the reach of children
- Intendeduse
- Features
- Technical specifications
- Introduction / safety instructions for pneumatic tools
- Delivery contents
- ● Safety instructions for pneumatic tools
- Warning
- Danger of injury
- Explosion hazard
- General safety rules
- Safety instructions for pneumatic tools
- Hazards from flying parts
- Trapping hazards
- Hazards during operation
- Hazards from repeated movements
- Hazards from accessories
- Hazards at the workplace
- Hazards from dust and vapours
- Hazards from noise
- Hazards from vibrations
- Additional safety instructions for pneumatic machines
- Warnings specific to the pneumatic angle grinder
- Warnings specific to the pneumatic angle grinder / operation
- Operation
- Before starting up
- Operation
- Starting up
- Switching off
- Maintenance
- Operation / warranty and service information
- ● Warranty and service information
- Creative marketing consulting gmbh warranty
- Warranty terms
- Extent of warranty
- Processing of warranty claims
- Environmental instructions and disposal information / declaration of conformity
- Note
- How to contact us
- Gb, ie, ni
- Ian 292193
- Address
- C. gmbh
- ● Environmental notes and disposal information
- Declaration of conformity
- Air angle grinder
- Machinery directive
- En iso 11148-7:2012
- Indholdsfortegnelse
- Symbolforklaring....side 20
- Indledning....side 20
- Inhoudsopgave
- Risques dus au happage
- Risques au poste de travail
- Risques dus au bruit
- Risques dus aux vibrations
- Inhaltsverzeichnis
- ⚠️ Warnung! explosions-gefahr
Brand : PARKSIDE
Model : PDTS 6.3 A1
Category : Grinder
