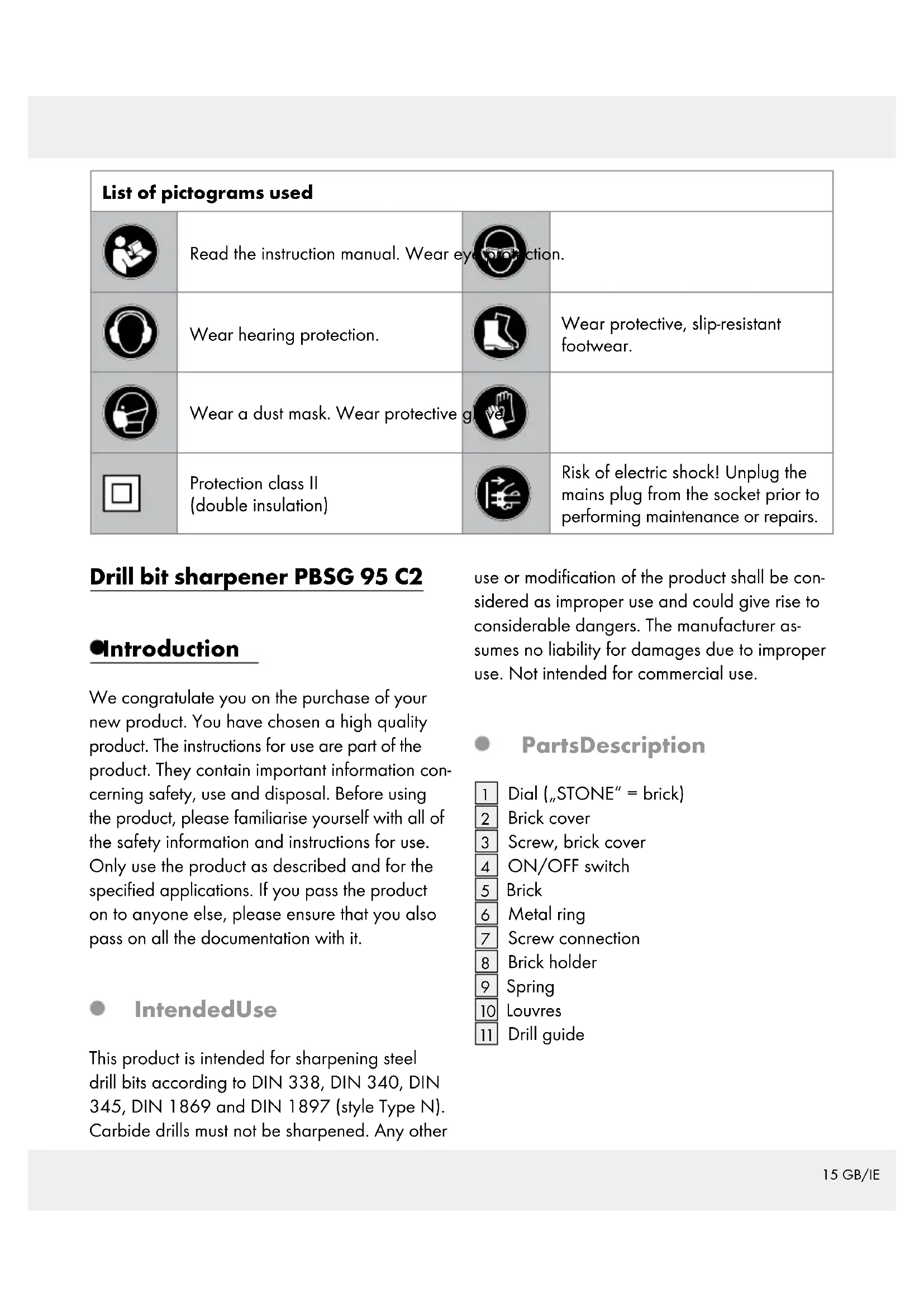

List of pictograms used
	Read the instruction manual. Wear eye protection.
	Wear hearing protection.		Wear protective, slip-resistant footwear.
	Wear a dust mask. Wear protective gve
	Protection class II (double insulation)		Risk of electric shock! Unplug the mains plug from the socket prior to performing maintenance or repairs.

Drill bit sharpener PBSG 95 C2

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

IntendedUse

This product is intended for sharpening steel drill bits according to DIN 338, DIN 340, DIN 345, DIN 1869 and DIN 1897 (style Type N). Carbide drills must not be sharpened. Any other

use or modification of the product shall be considered as improper use and could give rise to considerable dangers. The manufacturer assumes no liability for damages due to improper use. Not intended for commercial use.

PartsDescription

1 Dial (STONE = brick)
2 Brick cover
3Screw,brick cover
4 ON/OFF switch
5 | Brick
6 Metal ring
7 Screw connection
8 Brick holder
9 Spring
10 Louvres
11 Drill guide

Scope of Delivery

1 Drill sharpener PBSG 95 C2
20 Titanium-coated HSS drill
2 Replacement bricks
1 Instructions for use

TechnicalData

Dimensions: 115 × 128 × 175 ~mm

$$ (W \times H \times D) $$

Total weight: 945 g

Brick: 46g

Rated voltage: 220 - 240V (AC)

$$ 5 0 \mathrm {H z} $$

Rated power: 95 W

Rated idle

speed: n_01350^-1

For drill : 3 - 12mm

Protection class: II /

Noise emission value:

The A-rated noise level of the power tool is typically:

Load (grinding):

Noise level L_pA 61.2 dB (A)

Uncertainty K_pA 3 dB

Sound power level L_WA 74.2dB(A)

Uncertainty KWA: 3 dB

General safety instructions

WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. Read all

these instructions before attempting to operate this product and save these instructions

Safe operation

1. Keep work area clear

Cluttered areas and benches invite injuries.

2. Consider work area environment

Do not expose tools to rain.
Do not use tools in damp or wet locations.
Keep work area well lit.
Do not use tools in the presence of flammable liquids or gases.

3. Guard against electric shock

• Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).

4. Keep other persons away

Do not let persons, especially children, not involved in the work touch the tool or the extension cord and keep them away from the work area.

5. Store idle tools

When not in use, tools should be stored in a dry locked-up place, out of reach of children.

6. Do not force the tool

It will do the job better and safer at the rate for which it was intended.

7. Use the right tool

Do not force small tools to do the job of a heavy duty tool.
Do not use tools for purposes not intended; for example do not use circular saws to cut tree limbs or logs.

8. Dress properly

Do not wear loose clothing or jewellery, they can be caught in moving parts.

Non-skid footwear is recommended when working outdoors.
Wear protective hair covering to contain long hair.

9. Use protective equipment

Use safety glasses.
Use face or dust mask if working operations create dust.

10. Connect dust extraction equipment

If the tool is provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used.

11. Do not abuse the cord

• Never yank the cord to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges.

12. Secure work

Where possible use clamps or a vice to hold the work. It is safer than using your hand.

13. Do not overreach

• Keep proper footing and balance at all times.

14. Maintain tools with care

• Keep cutting tools sharp and clean for better and safer performance.
  Follow instruction for lubricating and changing accessories.
  Inspect tool cords periodically and if damaged have them repaired by an authorized service facility.
  Inspect extension cords periodically and replace if damaged.
• Keep handles dry, clean and free from oil and grease.

15.Disconnect tools

• When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply.

16. Remove adjusting keys and wrenches

Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.

17. Avoid unintentional starting

Ensure switch is in "off" position when plugging in.

18. Use outdoor extension leads

When the tool is used outdoors, use only extension cords intended for outdoor use and so marked.

19. Stay alert

Watch what you are doing, use common sense and do not operate the tool when you are tired.

20. Check damaged parts

Before further use of tool, it should be carefully checked to determine that it will operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation.
A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless otherwise indicated in this instruction manual.
Have defective switches replaced by an authorized service centre.
Do not use the tool if the switch does not turn it on and off.

21. Warning

The use of any accessory or attachment other than one recommended in this instruction manual may present a risk of personal injury.

22. Have your tool repaired by a qualified person

This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

Before use

Note: Remove all packaging material from the product.

The operator should stand in front and stay close to the power tool to prevent overreach.
In case of blockage, switch off the appliance and unplug from the mains. Then clear the jam.

- Initial use

Grinding drills

Note: First rough grind severely damaged drills with a grinding block.

Fully lower the brick. To do so, turn the dial 1 all the way in the DOWN direction.
Insert the drill into the smallest drill guide 11 on the sharpener it will fit. Please refer to the markings (3 to 12) for the exact sizes () of the respective drill guides 11.
Set the ON/OFF switch 4 to position ^ to switch on the product.
Turn the dial 1 in the UP direction until you hear a grinding noise. Note: The dial 1 controls the position of the brick inside the grinding head, thus the

grinding pressure the brick applies to the drill. The more the dial 1 is turned in the UP direction, the greater the grinding pressure. Be sure not to raise the brick too high. The brick may otherwise get in contact with the housing.

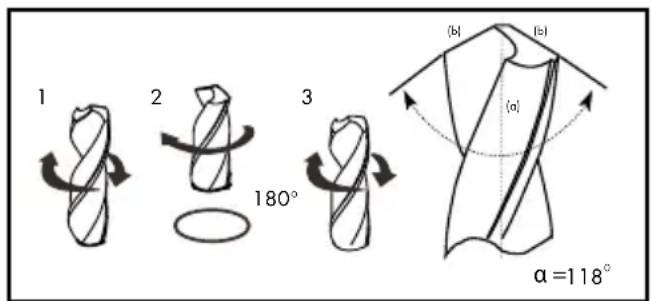

Loosely and quickly rotate the drill back and forth about 10 times between the left and right stop, applying light pressure (small drills about 5 times).
Slightly pull out the drill, turn 180^ (horizontal) and reinsert up to the brick.
If necessary, repeat the entire process until both faces are sharp. Polish so the angle () between the two cutting edges (b) is 118^ . Both cutting edges (b) must have the same angle to the drilling axle (a) and have the same length for the drill to run centred (see images below).

Set the ON/OFF switch 4 to position ^ 0^ to switch off the product.

- Replacing the brick

WARNING! RISK OF INJURY! AI-

ways unplug from the mains before working on the product. Replace a worn or damaged brick (diminished, uneven grinding, broken brick). You will need a phillips head screwdriver for this step.

Unscrew the 4 screws 3 on the brick cover 2 and remove the cover 2 (see Fig. A).
Remove the brick 5.
Loosen the screw connection 7 keeping the brick 5 in the brick holder 8 with a 27mm open-end spanner (not included) or a nut driver (see Fig. B).

Note: Turn counter-clockwise to open!

Remove the metal ring 6.
- Secure the new brick in the brick holder 8 with the flattened edge down and reinstall the metal ring 6.
- Tighten the screw connection with a 27 mm open-end spanner.

Note: Turn clockwise to close!

Be sure the spring 9 is installed in the product as shown in Fig. D and insert the brick into the product. Turn the brick until it is again precisely fitted as shown in Fig. A or the brick cover 2 will not fit.
Reattach the brick cover 2 and fasten in place with the 4 screws 3

- Maintenance and Cleaning

This product is maintenance-free except for replacing the bricks.

RIS 品 :WARNUNG!

ELECTRIC SHOCK! Unplug the mains plug from the socket prior

to performing maintenance or repairs.

Clean the product regularly, preferably immediately after every use.
Use a dry cloth to clean the housing. Never use petrol, solvents or cleaning agents that attack plastic.

A

WARNING! RISK OF INJURY! Never

open the product except to replace the brick. Always have repairs or parts replacements performed at the service centre or by an electrician. If the input lead on this product is damaged, it must be replaced with a specially prepared power cord at the service centre.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and

their opening hours can be obtained from your local authority.

Service

WARNING!

Have your product repaired at the service centre or an electrician, using only original manufacturer parts. This will maintain the safety of this product.
Always have a plug or power cord replaced by the product manufacturer or its service centre. This will maintain the safety of this product.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

$$ (0. 0 7 \text {英} / \min - 0. 6 8 \text {英} / \min + 0. 1 3 \text {英} / $$

$$ \text {c a l l} (\text {s e t u p f e e}) \text {(f e e s d e p e n d s o n} $$

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

$$ (0. 0 5 2 \epsilon / \min + 0. 2 0 \epsilon / \min (\text {s e t} \quad \text {u p f e e}), $$

$$ \text {m o b i l e} 0. 1 5 \epsilon / \min - 0. 3 0 \epsilon / \min $$

$$ (f e e \text {d e p e n d s} $$

E-Mail: [e-mail]

IAN 285164

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Translation of original conformity declaration

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Drill sharpening machine PBSG 95 C2, Model No.: HG02365, Version: 04 / 2017, to which this declaration refers, complies with the standards / normative documents of 2006/42/EC, 2014/30/EU, 2011/65/EU.

Applied harmonised standards:

EN 61029-1:2009+A11

EN ISO 12100:2010

EN 55014-1:2006+A1+A2

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Serial number: IAN 285164

Tobias König

Division Manager / Responsible for documentation
OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY
Neckarsulm, 12.01.2017

The declaration of conformity can also be viewed at: www.owim.com.

The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
