Comfortcook 99393 - Food Processor TREBS - Free user manual and instructions

Technical Specifications	TREBS Comfortcook 99393 Food Processor
Bowl Capacity	3.5 liters
Power	800 W
Functions	Cooking, mixing, kneading, emulsifying
Included Accessories	Stainless steel bowl, whisk, dough hook, spatula
Usage	Easy to use with intuitive controls
Maintenance	Bowl and accessories dishwasher safe
Repair	After-sales service available, spare parts accessible
Safety	Integrated safety system, overheating protection
Dimensions	30 x 25 x 30 cm
Weight	3.5 kg
Warranty	2 years

Frequently Asked Questions - Comfortcook 99393 TREBS

How do I clean the TREBS Comfortcook 99393?

To clean the TREBS Comfortcook 99393, unplug the device and let it cool down. Use a damp cloth to wipe the exterior. Removable accessories can be washed with warm soapy water or in the dishwasher.

What should I do if the food processor does not turn on?

Check that the device is properly plugged in and that the outlet is working. Also ensure that the lid is properly closed, as the device will not turn on if the lid is open.

How do I adjust the speed of the TREBS Comfortcook 99393?

Use the speed control knob located on the control panel. Turn it to select the desired speed according to the preparation.

The robot makes a strange noise during use, what should I do?

A strange noise may indicate that the accessories are not properly attached. Check that they are correctly in place. If the problem persists, stop the device and contact customer service.

How do I use the steam cooking function?

To use the steam cooking function, fill the water tank, place the food in the steam basket, then select the cooking time and start the device.

Are the parts compatible with other models?

The parts of the TREBS Comfortcook 99393 are specifically designed for this model. It is recommended to use only original spare parts to ensure optimal operation.

How do I resolve an overheating problem?

If the device overheats, turn it off immediately and unplug it. Let it cool down for at least 30 minutes before using it again. Also check that the device is not blocked and that the vents are clear.

Where can I find the user manual?

The user manual is usually included in the packaging. You can also download it as a PDF from the official TREBS website in the support section.

What is the maximum bowl capacity?

The maximum bowl capacity of the TREBS Comfortcook 99393 is 3.5 liters, making it ideal for preparing meals for several people.

How do I register the product warranty?

To register the warranty, you need to fill out the registration form available on the official TREBS website and provide proof of purchase.

USER MANUAL Comfortcook 99393 TREBS

White square oven with a roasted chicken inside, no visible text or symbols on the appliance or background.

Tension: 220 V \~240 V/50 Hz

Puissance: 2.000 W

SERVICE

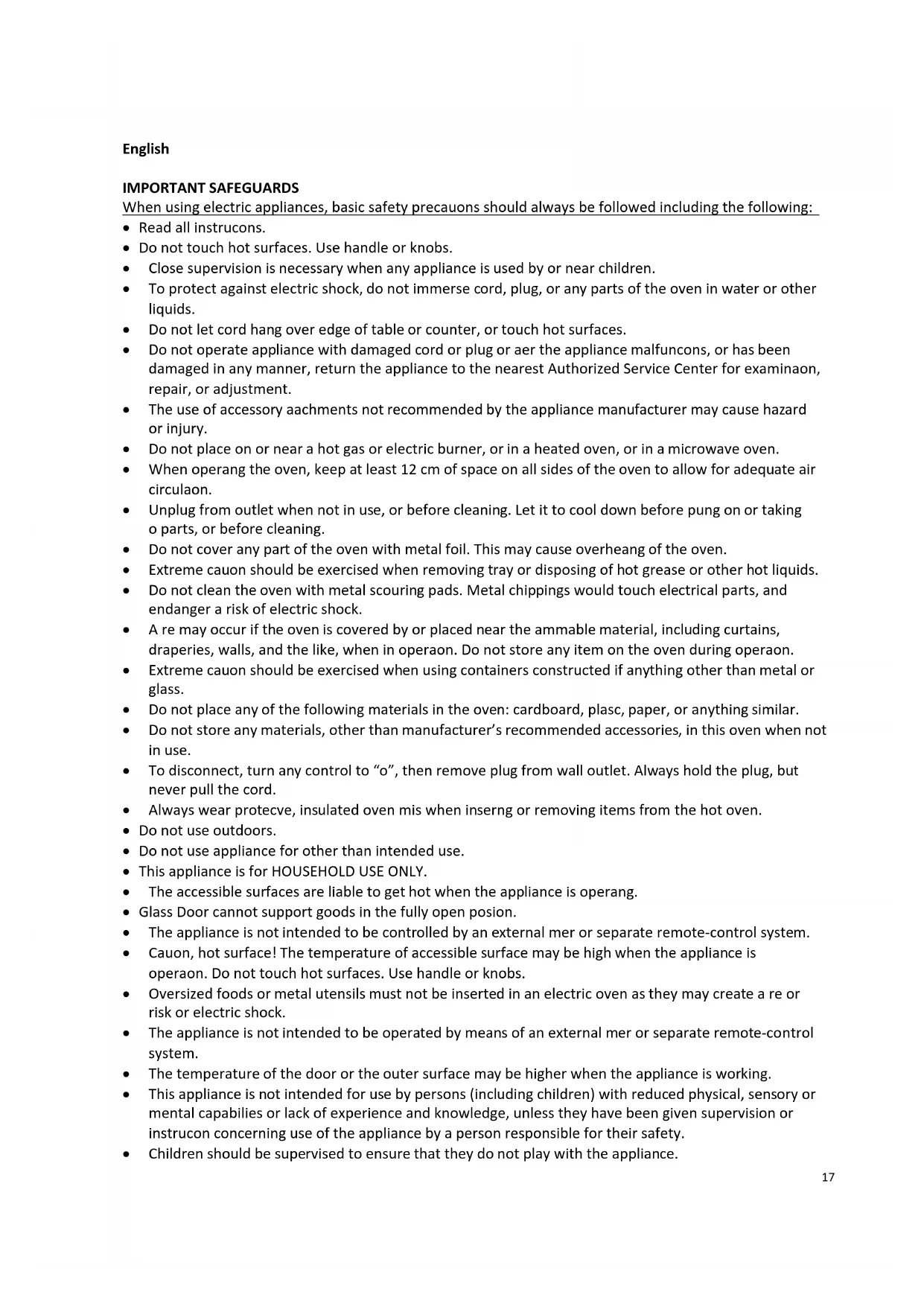

When using electric appliances, basic safety precautions should always be followed including the following:

• Read all instrucons.
• Do not touch hot surfaces. Use handle or knobs.
• Close supervision is necessary when any appliance is used by or near children.
• To protect against electric shock, do not immerse cord, plug, or any parts of the oven in water or other liquids.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not operate appliance with damaged cord or plug or aer the appliance malfuncons, or has been damaged in any manner, return the appliance to the nearest Authorized Service Center for examinaon, repair, or adjustment.
• The use of accessory aachments not recommended by the appliance manufacturer may cause hazard or injury.
• Do not place on or near a hot gas or electric burner, or in a heated oven, or in a microwave oven.
• When operang the oven, keep at least 12 cm of space on all sides of the oven to allow for adequate air circulaon.
• Unplug from outlet when not in use, or before cleaning. Let it to cool down before pung on or taking o parts, or before cleaning.
• Do not cover any part of the oven with metal foil. This may cause overheang of the oven.
• Extreme cauon should be exercised when removing tray or disposing of hot grease or other hot liquids.
• Do not clean the oven with metal scouring pads. Metal chippings would touch electrical parts, and endanger a risk of electric shock.
• A re may occur if the oven is covered by or placed near the ammable material, including curtains, draperies, walls, and the like, when in operaon. Do not store any item on the oven during operaon.
• Extreme cauon should be exercised when using containers constructed if anything other than metal or glass.
• Do not place any of the following materials in the oven: cardboard, plasc, paper, or anything similar.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• To disconnect, turn any control to "o", then remove plug from wall outlet. Always hold the plug, but never pull the cord.
  • Always wear protecve, insulated oven mis when inserng or removing items from the hot oven.
• Do not use outdoors.
• Do not use appliance for other than intended use.
• This appliance is for HOUSEHOLD USE ONLY.
• The accessible surfaces are liable to get hot when the appliance is operang.
• Glass Door cannot support goods in the fully open posion.
• The appliance is not intended to be controlled by an external mer or separate remote-control system.
• Cauon, hot surface! The temperature of accessible surface may be high when the appliance is operaon. Do not touch hot surfaces. Use handle or knobs.
• Oversized foods or metal utensils must not be inserted in an electric oven as they may create a re or risk or electric shock.
• The appliance is not intended to be operated by means of an external mer or separate remote-control system.
• The temperature of the door or the outer surface may be higher when the appliance is working.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instrucon concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

• For appliance with type Y aachment, if the supply cord is damaged, it must be replaced by the manufacturer, its services agent or similarly qualified persons in order to avoid a hazard.

• Rear surface of appliances should be placed against a wall and are not accessible with test probe 41 of EN61032.

SAVE THESE INSTRUCTIONS

HOW TO USE THE ELECTRIC OVEN

Before use:

• Read all instrucons included in this manual.
• Make sure oven is unplugged and Timer Knob is in the "OFF" posion.
• Remove all accessories and wash it in hot sudsy water or in dishwasher.
• Thoroughly dry all accessories and re-assemble in oven. Plug oven into outlet and you are ready to use your new cooker with Convecon and Grill.
• It may result in smell or smoke for the rst use. This is normal. It is due to the protective substance on heang elements, which avoids salt eects during shipping from factory. So it is recommended operating oven dry for about 15 minutes at the rst, moreover, making sure to keep good venlaon of the room.

When using the oven:

• Conrm the marked power consumpon is in conformity with your household electric power.
• Do not let cord hang over edge of table or counter to avoid that children may stumble over.
• If the supply cord is damaged, the oven should not be used before it is repaired.
• Oven should be sent to the manufacturer, authorized service agent or a similarly qualified person to repair in order to avoid a hazard.

This unit has a short power supply cord to reduce the risk resulting from becoming entangled in or tripping over a long cord. An extension cord may be used if you are careful in its use:

• The electric rang of the extension cord should be at least as great as the electrical rang of the appliance.
• An extension cord with the power cord must be arranged so that it will not drape over the countertop or table top where they can be pulled on by children or tripped over accidentally.

Components oven

Grill Rack Food Tray Food Tray Handle Glass Door Door Handle Thermostat Knob Rotisserie Power Indicator Rotisserie&Convection Function Knob Convection Power Indicator Heating Function Knob Power Indicator Timer Knob Rotisserie Kit Handle Rotisserie Kit

Temperature Knob: choose the desired temperature from 90°C to 230°C.

Rosserie & Convecon Funcon Knob: choose rosserie and/or convecon funcon. Choose rosserie funcon (←) or convecon funcon( ) or rosserie and convecon funcons work together().

Note: Convecon funcon combines hot air movement by means of a fan. It provides faster cooking in many cases than regular radiant types ovens. The fan gently sends air to every area of the food, quickly browning, crisping and sealing in moisture and avor. It produces more even temperature all around the food by air movement, so that food cooks evenly versus the normal ovens. The convecon feature allows cooking at lower temperatures, which saves energy and helps keep the kitchen cooler. Convecon air is superheated and it circulates around the food so it cooks food significantly faster than normal ovens.

Heang Funcon Knob: choose desired heang funcons: upper heang, lower heang, dual heang.

Timer Knob: turn control to the right (clockwise) and the oven will turn o automacally at the end of the selected me and a bell will ring. When seng the Timer to less than 5 min, turn it to more than 6 min. and then back to the selected me.

Power Indicator: It is illuminated whenever the mer is turned on.

Rosserie Power Indicator: it is illuminated whenever the rosserie is turned on.

Convecon Power Indicator: it is illuminated whenever the convecon is turned on.

Grill Rack: for toasng, baking, and general cooking in casserole dishes and loading standard pans.

Food Tray: for use in broiling and roasng various foods that contain water or will release water or oil during cooking.

Food Tray Handle: allows you to pick up the food tray and grill rack to avoid any scald.

Rosserie Kit: composed of a sha and 2pcs of forks with screw. For use in broiling and roasng chicken and various food.

Rosserie Kit Handle: for use in taking rosserie kit out of electric oven.

Using Your Oven:

• Select cooking mode with the Funcon Knobs.
• Use the temperature knob to select your desired temperature.

• Place the food on the grill rack or Food tray and close the oven door.

• Do not use any paper or plasc container.

• Use Food tray for any food that is small in size or likely to drip while cooking.
• Place the food evenly on the grill rack.

- Insert the power plug into the socket.

- Set the cooking funcon and desired me.

- When cooking nished, turn the Timer knob to "O-0" posion.

- Remove the power plug from the socket aer cooking.

USING THE ROTISSERIE FUNCTION:

• Set the temperature knob to 230^ .
• Insert the meat or poultry that you are going to cook onto the rosserie sha and make
• sure that the meat or poultry is secured ghtly onto the sha with the forks and screws. Make sure that the meat or poultry is centered onto the sha.
• Insert the pointed end of the rosserie sha into the drive socket located on the right
• hand side of the oven wall. Make sure that the square end of the rosserie sha rests on the rosserie sha support located on the le hand side of the oven wall.
• Slide the bake tray onto the lowest posion to catch the food drippings.
• Choose rosserie funcon. If convecon is desired please choose rosserie and
• convecon funcons work together.
• Set desired me.
• When cooking nished, turn the Timer knob to "O-0" posion..
• Remove the rosserie sha from the oven by placing the hooks of the rosserie kit
• handle under the grooves on either side of the rosserie sha, li the le side of the rosserie sha rst by liing it up and out. Then pull the rosserie sha out of the drive socket and carefully remove the roast from the oven.

Note: the weight of the food which is put on the food tray/grill rack cannot be over 3.5kg. (just for reference). The food cannot concentrate on one side of the food tray/grill rack, you would beer try your best to make the food put on the food tray/grill Rack evenly.

Posioning of the Wire Rack:

. Cookies – use the boom and middle support guides.
. Layer Cakes – use the boom support guide only (bake one at a me).
. Pies – use the boom and middle support guides.

CORRECT

WRONG

CLEANING AND MAINTENANCE

• It is important that you clean the appliance aer each use to prevent an accumulation of grease and avoid unpleasant odors.
• Allow the appliance to cool and unplug from outlet before cleaning.
• Do not immerse appliance in water or wash it under waterspout.
• Removable wire rack, bake pan, crumb tray can be washed, as normal kitchenware.
• Clean outside of appliance with a damp sponge.
• Do not use abrasive cleaners or sharp utensils to clean the oven, as scratching may weaker it and cause shearing.
• Let all parts and surfaces dry thoroughly prior to plugging oven in and using.

DISPOSAL OF THE OLD DEVICE

Old electric and electronic devices frequently sill contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly,

they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

• Utilize the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collecon service or your dealer for informaon.
• Ensure that your old device is stored safely away from children until it is taken away.

GUARENTEE

You have to be registered for warranty with your supplier.

This warranty is subject to the following provisions:

• We provide a 24 month guarantee for this product, commencing from the date of sale, for faults
- which are atributable to producon or material faults.
- Your legal guarantee entitlements in accordance with § 439. BGB-E remain unaffected by this.
- The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfuncons which only have a minor eect on the funcon or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entlements.
- This device is designed for use in domesc situaons and has the appropriate performance levels.
- Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
- In the event of jused complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

CE REGULATIONS

Hereby, Trebs B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essenal EU direcve requirements.

The declaraon of conformity may be consulted via [e-mail]

CE

TECHNICAL DETAILS

Labeling: Electric oven

Arcle number: 9939

Voltage: 220V \~240V / 50Hz

Power: 2.000 W

SERVICE

If you have any further quesons about the product aer reading this manual, please contact the Trebs customer service.

Trebs BV

Thermiekstraat 1a

6361 HB Nuth

Nederland

Internet: www.trebs.nl / www.trebsshop.com
