Comfortjuicer 99336 - Food Processor TREBS - Free user manual and instructions

Brand	TREBS
Model	Comfortjuicer 99336
Product type	Food processor (chopper and blender)
Power supply	220-240V ~ 50-60Hz, 300W
Bowl capacity	600 ml
Bottle capacity (for drinking)	570 ml
Main functions	Chopping (meat, vegetables, etc.) and blending (smoothies, drinks)
Materials	Plastic bowl and jug, stainless steel blades
Care and cleaning	Dishwasher-safe parts (except motor block and anti-slip ring); clean motor block with a damp cloth
Safety	Automatic shut-off in case of overload, safety lock, do not immerse motor block
Warranty	24 months

Frequently Asked Questions - Comfortjuicer 99336 TREBS

How to use the appliance as a blender?

Place ingredients in the bottle, do not exceed the MAX mark (570 ml). Attach the blade base, turn it over and place it on the blender base. Press the center button to start. The maximum continuous operation time is 60 seconds.

What is the maximum capacity for chopping meat?

The maximum amount for meat is 200 g, but for foods like pork or steak, do not exceed 100 g per cycle. Do not operate for more than 30 seconds and let it cool for 1 minute between cycles.

Can I wash the parts in the dishwasher?

Yes, the bowl, lid, blade holder, and sealing ring are dishwasher safe. Do not put the anti-slip ring in the dishwasher to avoid color differences. The motor block must never be immersed or washed in the dishwasher.

The appliance does not start, what should I do?

First check that the plug is properly connected. Make sure the lid is securely locked on the motor block and the locks are in place. If the problem persists, contact Trebs customer service.

Can I crush ice with this appliance?

Yes, but only if you also add water. Do not crush ice alone, as this could damage the appliance.

What is the maximum continuous operation time?

The appliance can operate for a maximum of 60 seconds continuously. Then let it cool down sufficiently before using again. In case of overload, the motor stops automatically; unplug it and let it cool for 15 minutes.

How to clean the motor block?

Never immerse the motor block in water. Use only a damp cloth to clean it. Do not use abrasive products or metal scrapers.

What types of food can I chop?

You can chop meat (pork, beef), vegetables (onions, parsley), and other soft foods. Cut ingredients into pieces of about 2 cm before chopping. Hot ingredients must cool to a maximum of 80 °C.

What to do if the blade holder gets stuck?

Disassemble the motor block and lid, then remove the blocking ingredients with a spatula. Do not touch the blades directly as they are very sharp.

Is the appliance under warranty?

Yes, Trebs offers a 24-month warranty from the date of purchase for manufacturing or material defects. Keep your proof of purchase. Contact customer service before returning the appliance.

USER MANUAL Comfortjuicer 99336 TREBS

Diagram of a blender with nine labeled parts, showing exploded view and internal structure.

Opmerkingen

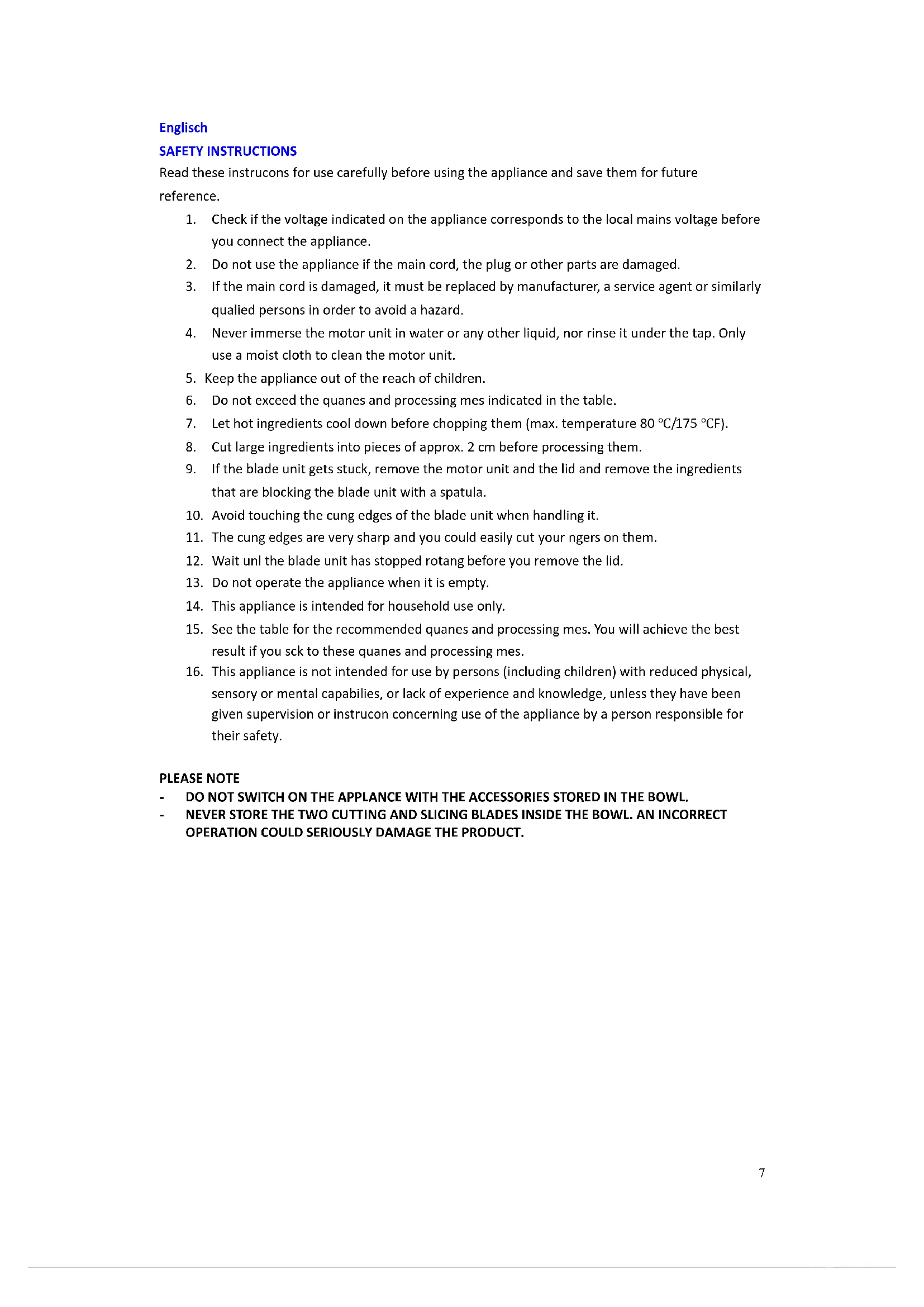

Read these instrucons for use carefully before using the appliance and save them for future reference.

1. Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
2. Do not use the appliance if the main cord, the plug or other parts are damaged.
3. If the main cord is damaged, it must be replaced by manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
4. Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit.
5. Keep the appliance out of the reach of children.
6. Do not exceed the quanes and processing mes indicated in the table.
7. Let hot ingredients cool down before chopping them (max. temperature 80 °C/175 °CF).
8. Cut large ingredients into pieces of approx. 2 cm before processing them.
9. If the blade unit gets stuck, remove the motor unit and the lid and remove the ingredients that are blocking the blade unit with a spatula.
10. Avoid touching the cung edges of the blade unit when handling it.
11. The cung edges are very sharp and you could easily cut your ngers on them.
12. Wait unl the blade unit has stopped rotang before you remove the lid.
13. Do not operate the appliance when it is empty.
14. This appliance is intended for household use only.
15. See the table for the recommended quanes and processing mes. You will achieve the best result if you sick to these quanes and processing mes.
16. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instrucon concerning use of the appliance by a person responsible for their safety.

PLEASE NOTE

• DO NOT SWITCH ON THE APPLANCE WITH THE ACCESSORIES STORED IN THE BOWL.
• NEVER STORE THE TWO CUTTING AND SLICING BLADES INSIDE THE BOWL. AN INCORRECT OPERATION COULD SERIOUSLY DAMAGE THE PRODUCT.

THE PRODUCT

Thoroughly clean the parts that will come into contact with food before you use the appliance for the rst me (see chapter 'Cleaning').

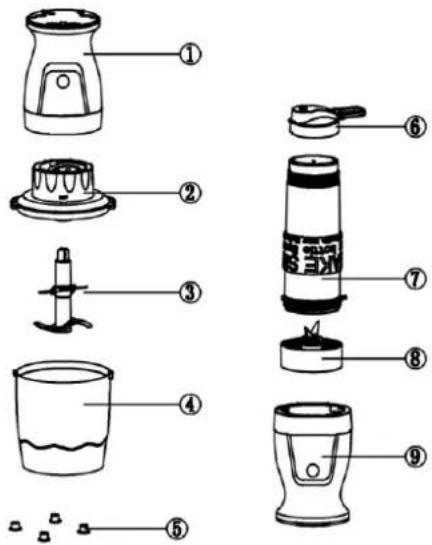

Parts

1. Motor unit

2. Lid

3. Double blade unit

4. Chopper bowl

5. An slip feet

6. Bole cap

7. Drinking cup

8. Blade base

9. Push buon

Diagram of a blender with numbered parts for identification and assembly reference.

Using the appliance as a chopper funcon

1. Place the blade unit onto the pin in the center of the bowl.

2. Put the ingredients in the bowl.

See the table below for the recommended quanes and processing mes. You will achieve the best results if you sick to the quanes and processing mes in the table.

- Pork & meat: Max. 200 g

When prepare the food such as Pork, meat, steak etc. the max. quantity of the mixture is 100g. The operaon me is max. 30s and the rest periods is 1min of each use. Then let the appliance cool down to the room temperature.

1. Put the lid on the bowl.

2. Place the motor unit on the lid.

Make sure that the posioning on the lid and on the motor unit are clicking in a fasten posion.

1. Press the middle buon to start the chopping process.

When chopping so ingredients (e.g. onions, parsley or lean beef), we advise you to press the motor unit briefy several mes.

Using the appliance as a blender funcon

1. Place the bole (drink cup) on a at surface, open the bole.

2. Fill the bole with your favorite ingredients, all the ingredient must be lled below the bole max. level mark.

3. Fasten the blade base on the open end of the bole.

4. Turn the bole upside down, put the bole and blade base together on the blender base, ensure the three micro switch block is in the right posion.

5. Press the middle buon to start the machine, release your nger and the machine will stop.

6. Unlock the bole from the base.

7. Turn the bole over and place on a at surface, take out the blade base, put the drinking lid on.

Notes

1. The appliance is only permied to use 60's connuously maximum. Before it's used again, it must cool down enough.
2. Parts and unit are dishwasher safe. Be aware the an-slip grip will be fading when pung in the dischwascher.
3. Do not use for only ice crushing, should with water together.
4. For liquid and so and frozen fruits. Cut fruit rst in pieces. When overload, motor will automatically stop, please unplug, empty the cup and wait for 15 minutes to cool down motor, aer that, you can use it again.

CLEANING

Do not use abrasives, scourers, alcohol, etc. to clean the appliance. And never immerse the motor unit in water or never clean it in the dishwasher.

1. Unplug the appliance and disassemble it.
2. For extra thorough cleaning, you can also remove the sealing ring and non-slip ring. It's been not to put the non-slip ring of the cup in the dishwasher because of discoloron prevenon.
3. Clean the bowl, the lid, the blade unit, the sealing ring and the non-slip ring in the warm water with some washing-up liquid.
4. Clean the motor unit with a moist cloth.

TROUBLESHOOTING

If the appliance do not work, please check :

• the conncon
• that the bowl cover are properly locked on to the motor unit.
• That the lockers are locked properly.

If in this case your appliance sll does not work? Contact a service center or manufacturer.

DISPOSAL OF THE OLD DEVICE

Old electric and electronic devices frequently sill contain valuable materials. However, they also contain damaging substances, which were necessary for their funconality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

• Utilize the collecon point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collecon service or your dealer for informaon.
• Ensure that your old device is stored safely away from children until it is taken away.

GUARENTEE

• We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to producon or material faults.

• Your legal guarantee entitlements in accordance with § 439 . BGB-E remain unacted by this.

• The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfuncons which only have a minor eect on the funcon or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entlements.
  • This device is designed for use in domesc situations and has the appropriate performance levels.

• Any use in commercial situaons is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domesc situaon. It is not intended for any additional, commercial use.
• In the event of jused complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

TECHNICAL INFORMATION

Model: 99336

Voltage: 220-240V \~ 50-60Hz 300W

Capacity bole (drink cup): 570 ml

Capacity bowl: 600 ml

SERVICE

If you have any further quesons about the product aer reading this manual, please contact the

Trebs customer service: [e-mail].

Tel.: [phone]

Trebs BV

Thermiekstraat 1a, 6361 HB, Nuth, The Netherlands, Email: [e-mail], Internet: www.trebs.nl

CE

Deutsch

Diagram of a blender with labeled parts in Chinese, showing exploded views from top to bottom.
