Product type	Automatic ice maker
Brand	Trebs
Model	99363
Power supply voltage	220-240 V, 50 Hz
Power consumption	105 W
Water tank capacity	1,8 L
Dimensions (L x W x H)	33,5 x 25,7 x 32,5 cm
Net weight	7,5 kg
Ice production	Cycle of 7 to 15 minutes
Storage capacity	Approximately 1.5 kg (estimate)
Automatic shutdown	When the bin is full or reservoir empty
Light indicators	ICE, ICE FULL, ADD WATER
Cleaning	Recommended once a week, soft cloth and vinegar
Safety	Grounding, do not immerse, do not use an extension cord
Warranty	24 months
Customer service	Tel. [phone], [e-mail]
Replacement parts	Repair by authorized service only
Recommended ambient temperature	10°C to 32°C
Recommended water temperature	8°C to 28°C

Frequently Asked Questions - Comfortice 99363 TREBS

How to start ice production?

Make sure the drain plug is closed, plug in the appliance, open the lid, remove the ice bucket, fill the water tank to the MAX mark, replace the bucket, close the lid, and press the ON/OFF button. The ICE indicator stays on and production starts.

What to do if the ADD WATER light turns on?

The ADD WATER indicator indicates a lack of water in the tank. Stop the machine, remove the ice bucket, add fresh water up to the MAX level, replace the bucket, and press ON/OFF again to restart. The appliance will restart automatically after a while if you forget to press.

What to do if the ICE FULL light turns on?

The ICE FULL indicator means the ice bucket is full. Carefully remove the ice cubes using the provided scoop. After about 5 seconds, the machine automatically restarts production. If the light stays on even though the bucket is not full, check that the infrared diodes are not obstructed.

Why are the ice cubes stuck together?

This can happen if the production cycle is too long or if the water temperature is too low. Stop the machine, let the ice cubes melt, then restart. Use water between 8°C and 25°C to avoid this problem.

Why does the machine not produce ice cubes even though the cycle seems normal?

Check that the ambient temperature does not exceed 32°C and that the water is cold (between 8°C and 28°C). If the problem persists, the refrigeration system may be faulty. Contact customer service.

How to clean the ice maker?

Stop the machine and unplug it. Drain residual water via the drain plug. Remove the ice bucket and scoop, wash them with warm soapy water. Clean the interior with a soft cloth soaked in warm water and vinegar, then rinse. Never use solvents or abrasive products. Clean the exterior with a damp cloth.

What safety precautions should I take?

The appliance must be plugged into a grounded outlet. Do not use an extension cord. Never immerse the appliance in water. Do not touch the evaporator during operation (risk of frostbite). Supervise children. Unplug the appliance before cleaning or when not in use for a long time.

How long does it take to get ice cubes?

The production cycle lasts approximately 7 to 15 minutes, depending on ambient temperature and water temperature. The colder the water, the faster the production. Use water at room temperature or below.

How to drain residual water?

Unplug the appliance and move it about 60 mm from the edge of the table. Open the drain plug located at the bottom of the water tank to drain excess water. Close the plug tightly after draining. This operation is recommended during cleaning or before prolonged storage.

What to do in case of malfunction?

First consult the 'Troubleshooting' section of the manual. Common problems (lights on, ice cubes stuck) have simple solutions. If the problem persists, contact Trebs customer service at [phone] or by email at [e-mail]. Do not attempt to repair the appliance yourself.

USER MANUAL Comfortice 99363 TREBS

Black and white photo of a modern ice cream maker with open lid and perforated base (no visible text or symbols)

Manual ice cube maker

Handle Top lid Viewing window Front cover Evaporator Ice tray Ice shovel Water reservoir Back housing Front housing Infrared light-receiving diode Control panel Infrared light-emitting diode Filter Drain plug "I MAX" water level Ice basket Ice spoon

EN	NL
Infrared light-receiving diode	Infraroodlicht-ontvangende diode
Handle	Handvat
Top lid	Deksel
Viewing window	Kijkvenster
Front cover	Voorafdekking
Back housing	Achter behuizing
Front housing	Voorbehuizing
Control panel	Bedieningspaneel
Infrared light-emitting diode	Infraroodlicht-uitstralende diode
Filter	Filter
Drain plug	Aftapplug
"MAX" water level	"MAX" waterpeil
Evaporator	Verdamper
Ice tray	IJslade
Ice shovel	IJsschepje
Water reservoir	Waterreservoir
Ice basket	IJsmand
Ice spoon	IJslepel

Bedieningspaneel

ADD WATER ICEFULL

ICE

Drain plug

Aftapplug
(Fig.4)

Drain plug

(Fig.5)

PROBLEEMOPLOSSING

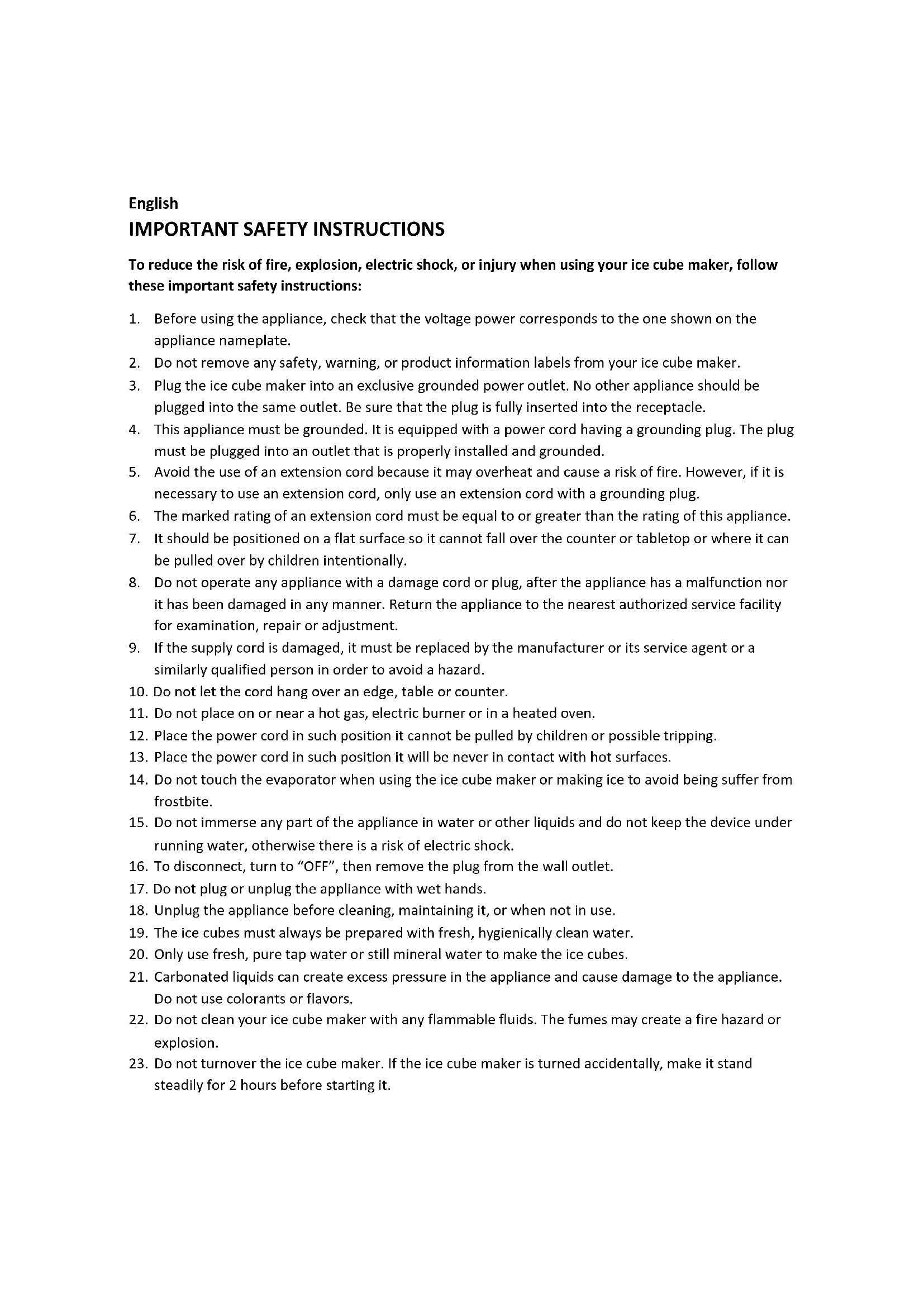

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, explosion, electric shock, or injury when using your ice cube maker, follow these important safety instructions:

1. Before using the appliance, check that the voltage power corresponds to the one shown on the appliance nameplate.
2. Do not remove any safety, warning, or product information labels from your ice cube maker.
3. Plug the ice cube maker into an exclusive grounded power outlet. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.
4. This appliance must be grounded. It is equipped with a power cord having a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
5. Avoid the use of an extension cord because it may overheat and cause a risk of fire. However, if it is necessary to use an extension cord, only use an extension cord with a grounding plug.
6. The marked rating of an extension cord must be equal to or greater than the rating of this appliance.
7. It should be positioned on a flat surface so it cannot fall over the counter or tabletop or where it can be pulled over by children intentionally.
8. Do not operate any appliance with a damage cord or plug, after the appliance has a malfunction nor it has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
9. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
10. Do not let the cord hang over an edge, table or counter.
11. Do not place on or near a hot gas, electric burner or in a heated oven.
12. Place the power cord in such position it cannot be pulled by children or possible tripping.
13. Place the power cord in such position it will be never in contact with hot surfaces.
14. Do not touch the evaporator when using the ice cube maker or making ice to avoid being suffer from frostbite.
15. Do not immerse any part of the appliance in water or other liquids and do not keep the device under running water, otherwise there is a risk of electric shock.
16. To disconnect, turn to "OFF", then remove the plug from the wall outlet.
17. Do not plug or unplug the appliance with wet hands.
18. Unplug the appliance before cleaning, maintaining it, or when not in use.
19. The ice cubes must always be prepared with fresh, hygienically clean water.
20. Only use fresh, pure tap water or still mineral water to make the ice cubes.
21. Carbonated liquids can create excess pressure in the appliance and cause damage to the appliance. Do not use colorants or flavors.
22. Do not clean your ice cube maker with any flammable fluids. The fumes may create a fire hazard or explosion.

23. Do not turnover the ice cube maker. If the ice cube maker is turned accidentally, make it stand steadily for 2 hours before starting it.

24. If the ice cube maker is brought in from outside in wintertime, do not use for a few hours. Allowing the appliance to warm up to the room temperature before operating is necessary.

25. Never put flammable, explosive or corrosive things into the ice cube maker.
26. Never use the ice cube maker when there is a flammable gas leakage.
27. Never store or use gas or other flammable things near the ice cube maker to avoid any fire.
28. Unplug the ice cube maker before moving it to avoid damaging the refrigerating system.
29. Do not attempt to disassemble, repair, modify, or replace any part of your appliance.
30. This appliance is not intended for used by persons (including children <8 year) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
31. Children should be supervised to ensure that they do not play with the appliance.
32. Close supervision is necessary when any appliance is used by or near children.
33. Do not leave the appliance unattended while in use.
34. Do not use outdoor.
35. Do not use the appliance for other than intended use as mentioned in this manual.
36. Please dispose the ice cube maker according to local regulators as it uses flammable blowing gas and refrigerant.

SAVE THESE INSTRUCTIONS

THE USE OF THE ICE CUBE MAKER

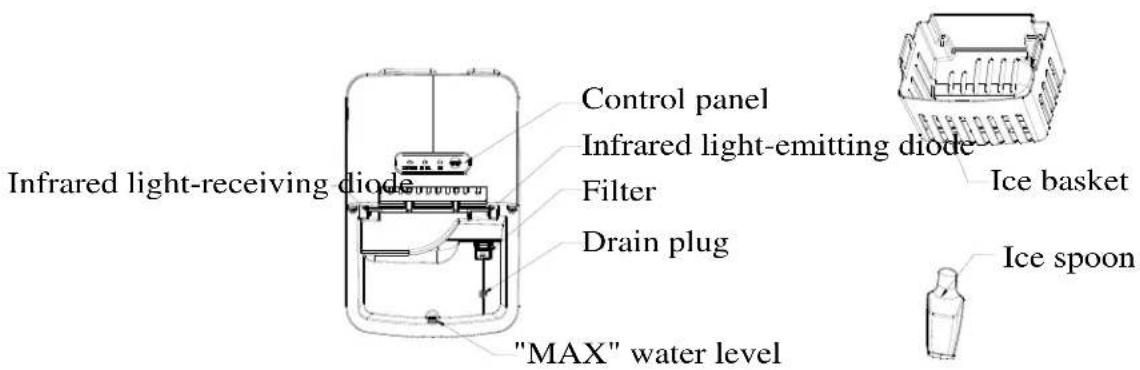

The parts

Handle Top lid Viewing window Front cover Evaporator Ice tray Ice shovel Water reserve Back housing Front housing

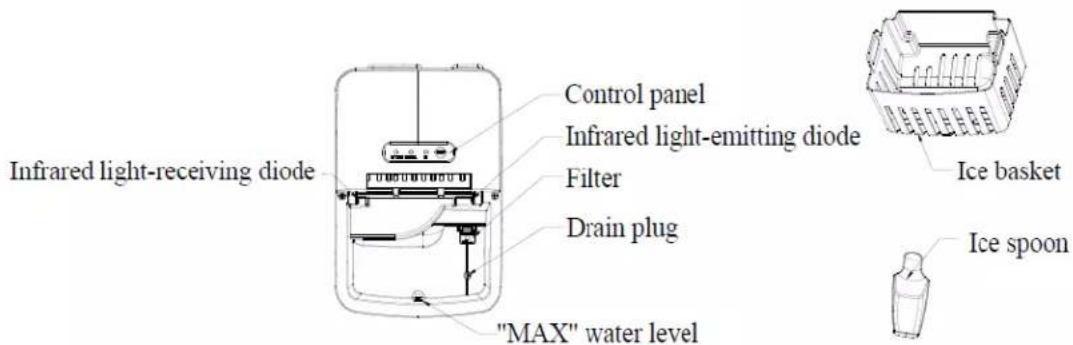

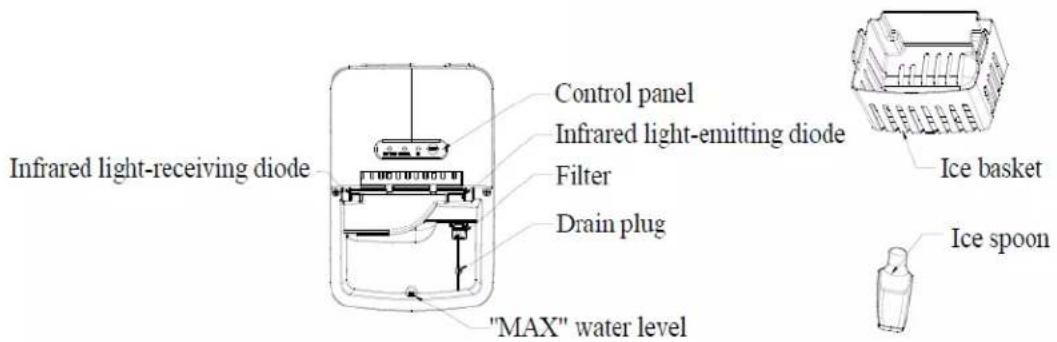

Infrared light-receiving diode Control panel Infrared light-emitting diode Filter Drain plug "MAX" water level Ice basket Ice spoon

The control panel

ADD WATER ICEFULL

ICE

Key (with indicator)	Function
ON/OFF	Start or stop the appliance
ICE	Standby mode: “ICE” indicator blinks;Working condition: “ICE” indicator lights solidly.
ICE FULL	“ICE FULL” indicator lights up when the ice basket is full.
ADD WATER	“ADD WATER” indicator lights up when the water reservoir is lack of water.

Before first use

1. Unpack the appliance, then check and make sure that all the accessories including ice basket and ice scoop etc. are complete. Please contact with the client service department if some accessories are missed.

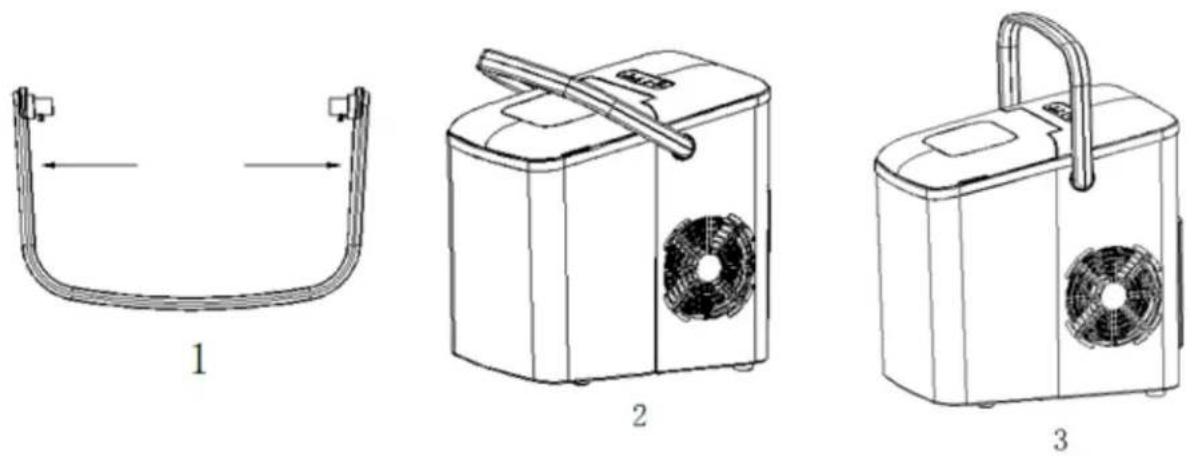

2. Please follow the operation as below to install the handle well in position.

3. Grasp both sides of the handle shown in arrows with hands and pull them outwards (see Fig.1).
   ○ Make the handle align with the holes at the housing and release the hands, then the handle is inserted into the holes of the housing (see Fig.2).
   ○ Pull and make the handle be upright, then pull both sides of the handle outwards by following the operation of Step 1). Check and make sure that the handle shall be positioned well at the holes of housing.

4. Grasp the center of handle and lift it upwards, check and make sure that there shall be no abnormal condition can be found.

1. Please ensure the ice cube maker is placed on a stable table or platform to avoid malfunction.
2. The incline angle of the ice cube maker cabinet should not exceed 45^ during transportation or use. Do not turn the ice cube maker upside down otherwise it could cause the compressor or refrigerating system to operate incorrectly. Please allow time for the fluids in the compressor to settle after the ice cube maker is moved or transported. Before using the ice cube maker for the first time, please wait for 2 hours after the unit has been moved and positioned in the proper place.
3. The ice cube maker must be placed on a dry and flat surface with sufficient ventilation, far from heat sources such as ovens, heaters and corrosive gases. Leave about 15cm space on all sides of the ice cube maker for proper ventilation.
4. Do not fill the water reservoir with hot water. This may damage the ice cube maker. It is best to fill the water reservoir with water of room temperature or lower.
5. Do not use the appliance at a very cold environment (lower than 5°C).
6. Clean the appliance by following the operation of "CLEANING AND MAINTENANCE" before operate.

USING YOUR ICE CUBE MAKER

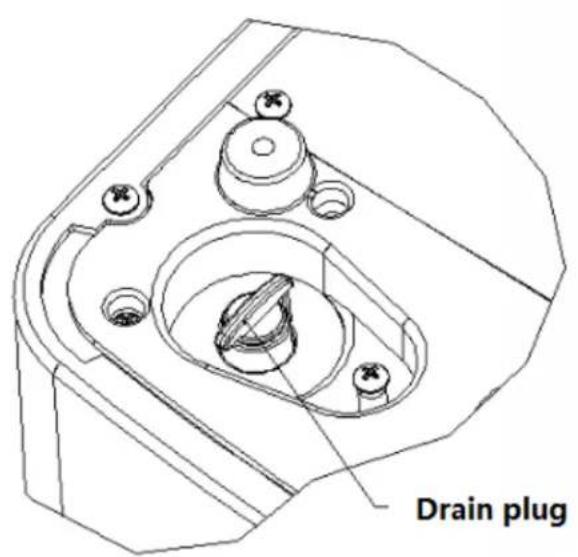

1. Ensure that the drain plug at the bottom of the water reservoir is closed well.
2. Plug the ice cube maker into the wall outlet, the "ICE" indicator blinks.

NOTE: please make the ice cube maker be rested for 30 minutes before plugged if it has been moved.

1. Open the top lid and remove the ice basket.
2. Fill the water reservoir with drinking water.

NOTE: do not fill above the MAX water level mark.

1. Replace the ice basket and close the top lid.
2. Press the "ON/OFF" key, and the "ICE"-indicator lights solidly.
3. The ice-making cycle will last approximately 7-15 minutes, depending on the ambient temperature and water temperature.
4. The ice-making cycle starts with water being pumped into the ice tray situated below the evaporator. Over the next 7-15 minutes ice forms on the evaporator. Once this has completed, the ice tray will tilt

backwards and the remaining water in the ice tray is drained back into the water reservoir. The ice cubes are then dropped from the evaporator and pushed forward into the ice basket by the ice shovel. The ice tray will automatically move back into position under the evaporator and start the next cycle.

1. The "ICE FULL" indicator will light up when the ice basket is full and then the ice cube maker will stop the ice-making cycle automatically. Gently remove the ice from the ice basket with the ice scoop. About 5 seconds later, the ice cube maker will restart its ice making function automatically.
2. The “ADD WATER” indicator will light up when the water reservoir is lack of water and the ice-making cycle will stop automatically. At that time, remove the ice basket and add water to the water reservoir, and then press the “ON/OFF” key again to restart the ice-making cycle. The appliance will start working automatically after some time if the operator forgets to restart the appliance after refill.
3. When you have got your desired amount of ice, stop the ice making cycle by pressing the "ON/OFF" key and unplug the unit from the wall outlet.
4. Open the top lid and transfer the ice to a freezer.
5. Allow the ice cube maker to reach room temperature.
6. We suggest replacing the water every week. Please empty the water reservoir if the ice cube maker is not used for a long time.

CLEANING AND MAINTENANCE

To keep your ice fresh and your ice cube maker looking great, we recommend cleaning your ice cube maker once per week.

1. Stop the ice-making cycle by pressing the "ON/OFF" key, unplug the ice cube maker from the wall outlet and allow it to warm up to the room temperature.

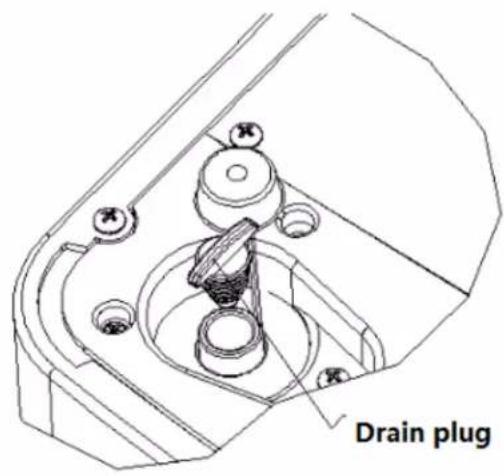

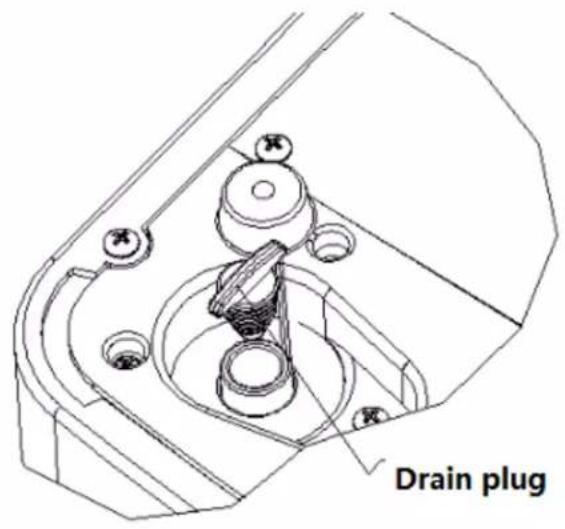

2. If residual water is found in the ice tray, gently push the ice tray back so all water drains into the water reservoir.

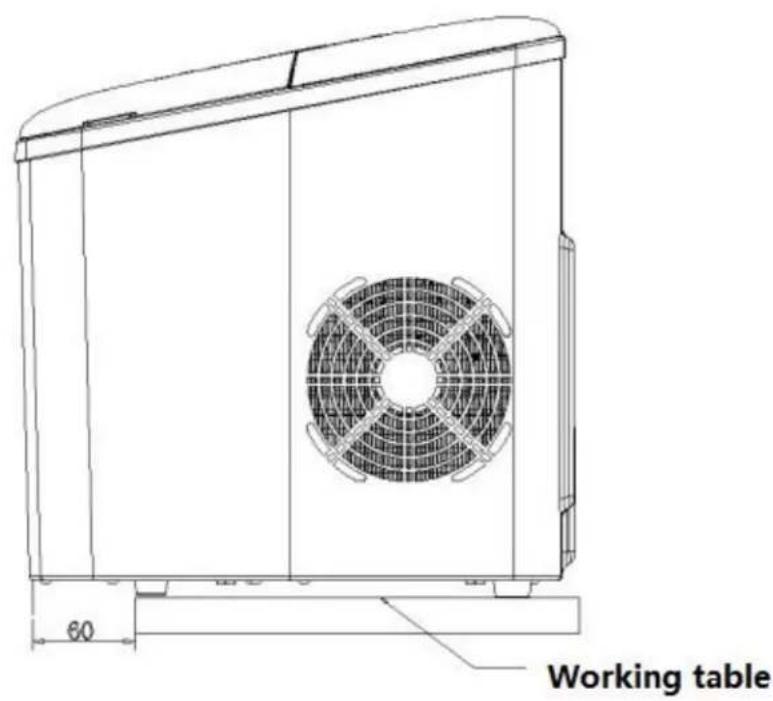

3. Move the appliance forward to a place 60mm away from the working table and open the drain plug to drain out excess water (see Fig.3, Fig.4 and Fig.5).
4. Remove the ice basket.
5. Clean the ice cube maker interior with a soft cloth soaked with warm water and vinegar, then rinse with clean water and then drain all the water.
6. Replace the drain plug well in position. Wash the ice basket and ice scoop in warm soapy water. Rinse and dry.
7. Clean the exterior of the ice cube maker with a soft damp cloth. Use a mild dishwashing soap, if necessary.

NOTE:

1) Do not use organic solvent, boiled water, detergent, strong acid and strong alkali etc. for cleaning.
2) Do not clean the evaporator.
8. Please empty the water reservoir and dry it for storage if the ice cube maker is not used for a long time.

60 Working table

(Fig.3)

Drain plug

(Fig.4)

Drain plug

(Fig.5)

TROUBLESHOOTING

Problem	Possible causes	Solution
“ADD WATER” indicator turns on	1. Low water level or lack of water.2. The water screen at the bottom of the water reservoir is blocked.3. Pump malfunction.	1. Stop making ice, refill water and then press the “ON/OFF” key to restart the ice-making cycle.2. Need cleaning3. Send it to the authorized department for repair.
“ICE FULL” indicator lights up	1. The ice basket is full and the infrared light is blocked by the ice.2. The Infrared light-emitting diode & light-receiving diode does not work.	1. Remove the ice from the ice basket.2. Wipe up the foreign objects on the infrared light-emitting diode & light-receiving diode and restart the ice cube maker.2. Call Customer Service if the infrared light-emitting diode & light-receiving diode still cannot work after wiping up the foreign objects on them and restarting the ice cube maker.
“ADD WATER” and “ICE FULL” indicators turn on simultaneously	1. The ice tray is not in the right position.2. The “ICE FULL” condition cannot be detected as the infrared light module is interfered by the sunlight.	1. Unplug the appliance and check if the ice tray is blocked by something.2. Unplug the appliance and move it to a place which is not exposed to the sunlight, then plug the appliance and activate it again.
The ice collects together	Making ice takes too much time.	Stop making ice and restart the ice-making cycle after the ice melts.
	The water in the water reservoir is of too low temperature.	Fill the water reservoir with water ranges between 8°C and 25°C.
The ice-making cycle seems normal but no ice is produced	The ambient temperature or water temperature is too high.	Start the ice-making cycle at an environment with an ambient temperature less than 32°C and fill the water reservoir with some cold water.
	Refrigerating system leaks	Call customer service
Poor ice-making result	1.Poor heat dissipation.2.The water temperature is too high.3.The ambient temperature is too high.	1. Leave a 6-inch clearance on all sides of the ice cube maker for proper ventilation.2. Fill the water reservoir with water ranges between 8°C and 28°C.3. Operate the ice cube maker at an environment with an ambient temperature between 10°C and 32°C.

DISPOSAL OF OLD DEVICE

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to

human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

• Utilize the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
• Ensure that your old device is stored safely away from children until it is taken away.

GUARENTEE

• We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.
• Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.
• The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
  • This device is designed for use in domestic situations and has the appropriate performance levels.
• Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
• In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

TECHNICAL DATA

Device	Ice cube maker
Model	99363
Mains data	220-240 V, 50 Hz
Power consumption	105 w
Capacity reservoir	1.8 liter
External measurements (H x W x D):	Length: 33,5 cm, width: 25,7 cm, height: 32,5 cm
Net weight	7,5 kg

CE REGULATIONS

Hereby, Trebs B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

SERVICE

If, after reading these user instructions, you still have questions about the product, please contact the Trebs Customer Service:

Email: [e-mail]

Internet: www.trebsshop.com/
