Technical Features	Compatible with road bikes, mountain bikes, and electric bikes, load capacity up to 60 kg.
Mounting Type	FixMatic, quick attachment system on the tow hitch.
Dimensions	Compact dimensions for easy storage.
Weight	Lightweight for easy handling.
Usage	Easy to install and remove, suitable for family or friends trips.
Maintenance	Regularly check the fastenings and the condition of the supports.
Safety	Equipped with rear lights and reflectors for better visibility.
General Information	2-year warranty, compliant with European safety standards.

Frequently Asked Questions - Diamant SG3 FixMatic Pro-User

How do I install the Pro-User Diamant SG3 FixMatic on my vehicle?

To install the Pro-User Diamant SG3 FixMatic, start by attaching the mounting brackets to your vehicle's tailgate. Make sure the fastenings are tight and the bike rack is stable before hanging your bike on it.

What is the maximum weight supported by the Pro-User Diamant SG3 FixMatic bike rack?

The Pro-User Diamant SG3 FixMatic can support a maximum weight of 60 kg. Be sure not to exceed this limit to ensure the safety of your bikes.

Is the Pro-User Diamant SG3 FixMatic compatible with all types of bikes?

The Pro-User Diamant SG3 FixMatic bike rack is compatible with most bikes, including road and mountain bikes. However, it is recommended to check the dimensions and shape of your bike frame to ensure a proper fit.

How do I secure my bikes on the Pro-User Diamant SG3 FixMatic?

To secure your bikes, use the straps provided with the bike rack. Make sure the bikes are firmly fastened and do not move during transport.

What should I do if the Pro-User Diamant SG3 FixMatic does not fit my vehicle's tailgate?

If the bike rack does not fit, check that the fastenings are properly adjusted. If the problem persists, consult the user manual or contact customer service for advice specific to your vehicle model.

Can I use the Pro-User Diamant SG3 FixMatic with a trailer?

The Pro-User Diamant SG3 FixMatic is not designed to be used with a trailer. It is recommended to use it only on compatible vehicles according to the manufacturer's instructions.

How do I maintain my Pro-User Diamant SG3 FixMatic bike rack?

To maintain your bike rack, clean it regularly with water and mild soap to remove dirt. Check the fastenings and locking mechanisms to ensure they function properly.

Is the Pro-User Diamant SG3 FixMatic foldable for easy storage?

Yes, the Pro-User Diamant SG3 FixMatic is designed to be foldable, which makes it easier to store when not in use. Follow the instructions in the manual to fold it correctly.

USER MANUAL Diamant SG3 FixMatic Pro-User

Bicycle carrier DIAMANT SG2 / SG3 FixMatic

Manual de instrucciones DIAMANT SG2 / SG3 FixMatic

Nosic jízdničkol DIAMANT SG2/SG3 FixMatic

FIX4BIKE® ONLY

NL Gebruiksaanwijzing. 2
D Bedienungsanleitung. 21
F Manuel de I'opérateur. 41
GB Operating instructions. 61
ES Manual de instrucciones. 81
CZ Navod k obsluze. 101

DIAMANT FixMaticSG2

Artikelnr. 91875

DIAMANT SG3 Fixmatic

Artikelnr. 91876

Inhoud

Consumentenhelpdesk&support

Telefoon:[phone]

(maandagt/mvrjdgag8:30-12:30eur)

E-mail:[e-mail]

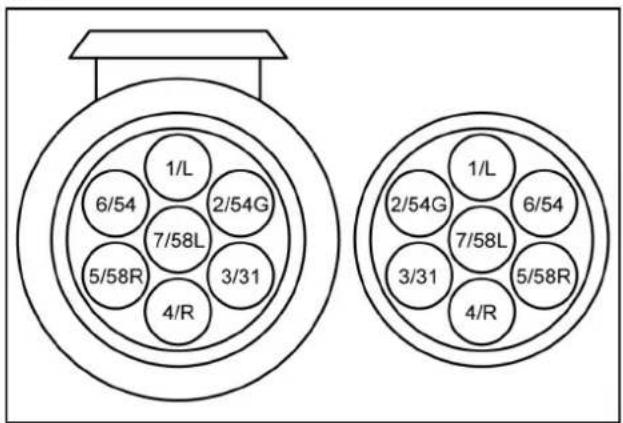

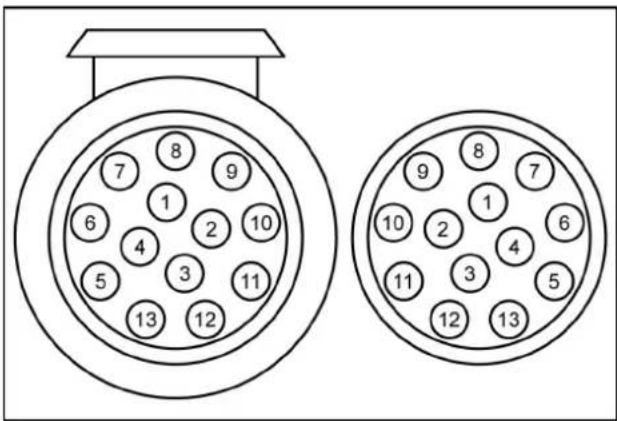

7/13poligestekker

ExamplespourDIAMANTSG3

Charge utile max. attelage de remorque	Poids propre du porte-vélo	Charge utile max. du porte-vélo
50 kg	21 kg	29 kg
60 kg	21 kg	39 kg
75 kg	21 kg	54 kg
90 kg	21 kg	max. 60 kg !

Conditionsd'accouple

AVERTISSEMENT!

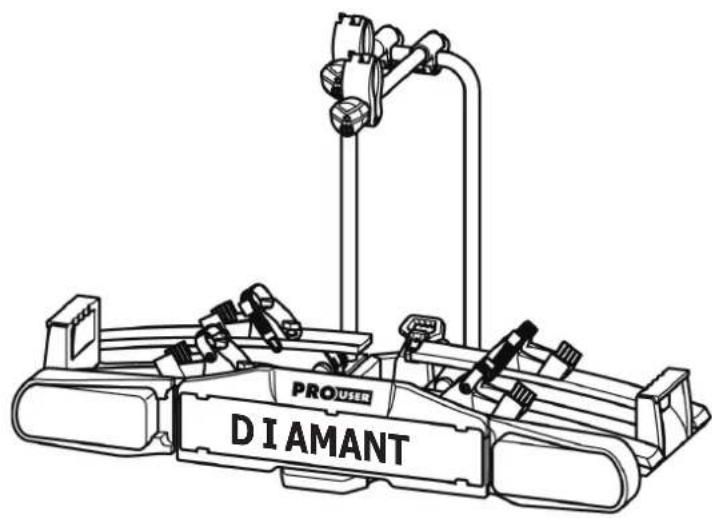

Bicycle carrier DIAMANT SG2 / SG3

Operating instructions

FIX4BIKE® ONLY

DIAMANT SG2 FixMatic

Item no. 91875

DIAMANT SG3 Fixmatic

Item no. 91876

Contents

Information on these operating instructions 63

Foreword 63

Obligations regarding these fitting instructions 63

Proper use. 63

Safety instructions - Explanation of the categories 63

Scope of delivery 64

Technical data 64

Coupling requirements 64

Safety instructions 64

Before first use 66

Fitting the registration plate to the bicycle 66

Fitting and use 27

Fitting the bicycle carrier to the trailer coupling. 67

Mountingbicycles. 70

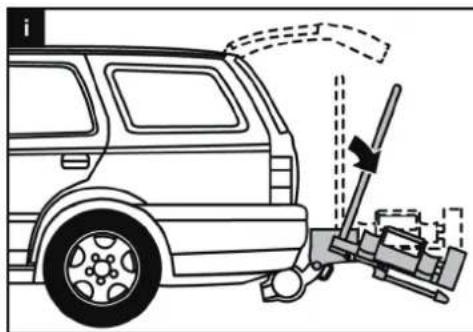

Tiltingthebicyclec arrier, access to the luggage space 73

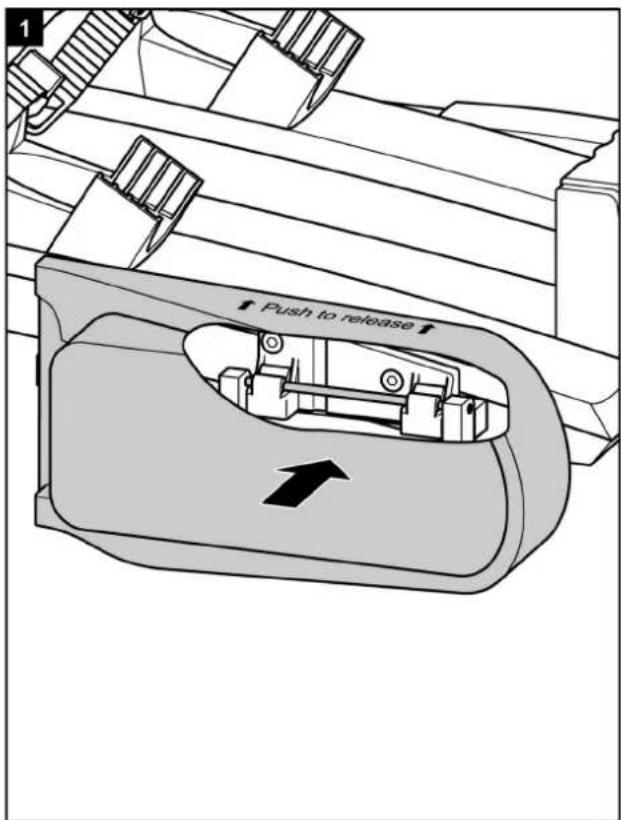

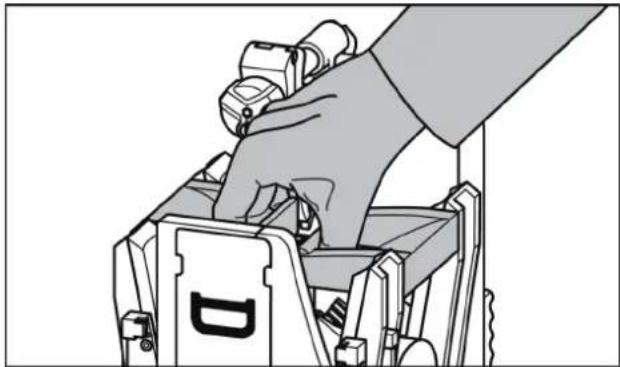

Dismantling the bicycle carrier 74

Carrying the bicycle carrier without the transport bag. 75

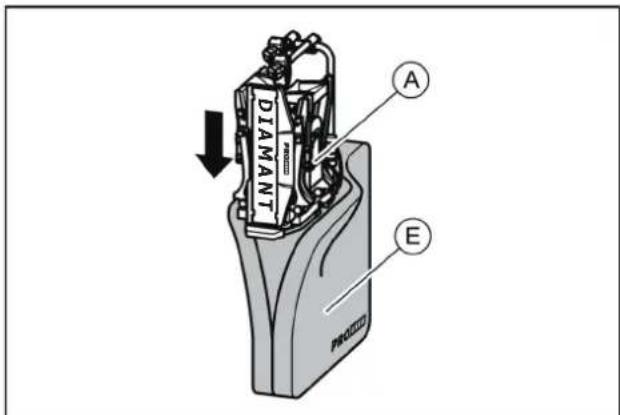

Stowing the bicycle carrier in the transport bag. 75

Cleaning and care. 75

Maintenance. 76

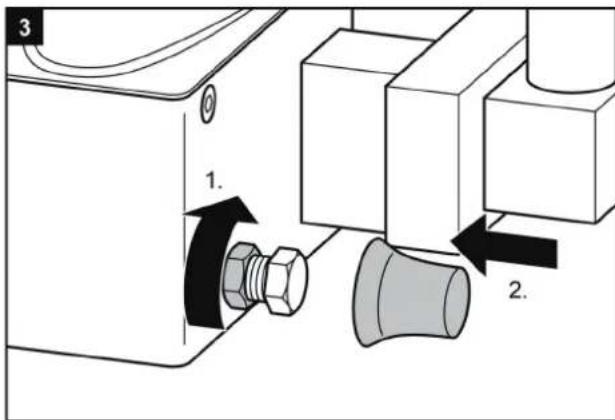

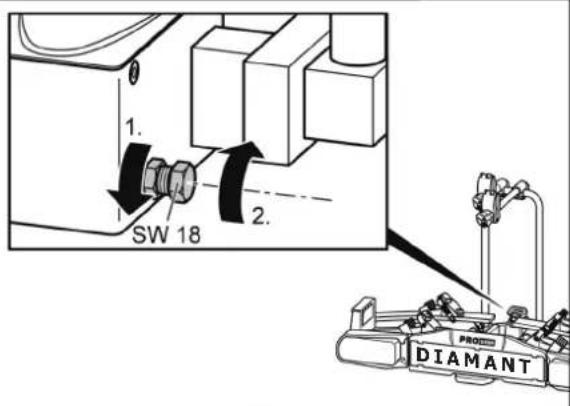

Adjustment of the quick-fastener 76

Disposal. 76

Contact. 76

Appendix 77

Plug assignment. 77

Sparepartsoverv iew - Exploded drawing. 78

Sparepartsoverv iew-Table. 79

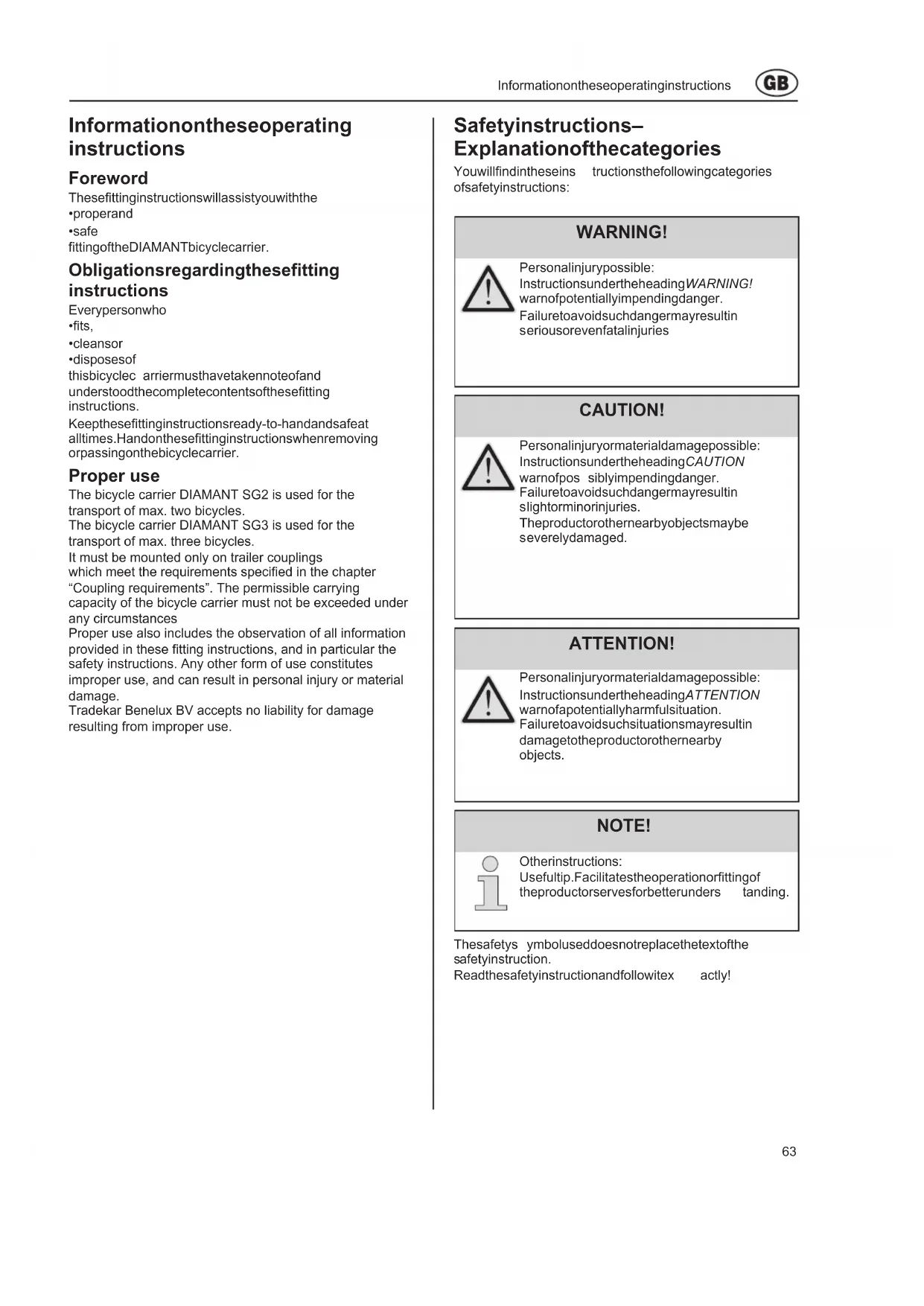

Informationontheseoperating instructions

Foreword

Thesefittinginstructionswillassistyouwiththe

*properand

·safe

fittingoftheDIAMANTbicyclecarrier.

Obligationsregardingthesefitting instructions

Everyypersonwho

-fits,

cleansor

-disposesof

thisbicyclearriermusthavetakennoteofand understoodthecompletecomponentsofthesefitting instructions.

Keepthesefittinginstructionsready-to-handandsafeat alltimes.Handonthesefittinginstructionswhenremoving orpassingonthebicyclecarrier.

Proper use

The bicycle carrier DIAMANT SG2 is used for the transport of max. two bicycles.

The bicycle carrier DIAMANT SG3 is used for the transport of max. three bicycles.

It must be mounted only on trailer couplings which meet the requirements specified in the chapter

"Coupling requirements". The permissible carrying capacity of the bicycle carrier must not be exceeded under any circumstances

Proper use also includes the observation of all information provided in these fitting instructions, and in particular the safety instructions. Any other form of use constitutes improper use, and can result in personal injury or material damage.

Tradekar Benelux BV accepts no liability for damage resulting from improper use.

Safetyinstructions- Explanationofthecategories

Youwillfindintheseins tructionsthefollowingcategories ofsafetyinstructions:

WARNING!

Personalinjurypossible: InstructionsundertheheadingWARNING! warnofpotentiallyimpendingdanger.

Failurotoavoidsuchdangermayresultin seriousorevenfatalinjuries

CAUTION!

Personalinjuryormaterialdamagepossible: InstructionsundertheheadingCAUTION

warnofpos siblyimpendingdanger. Failuretoavoidsuchdangermayresultin slightorminorinjuries.

Theproductorthernearbyobjectsmayse severelydamaged.

ATTENTION!

Personalinjuryormaterialdamagepossible: InstructionsundertheheadingATTENTION warnofapotentiallyharmfulsituation.

Failuretoavoidsuchsituationsmayresult in damagetheproductorothernearby objects.

NOTE!

Otherinstructions: Usefultip.Facilitatestheoperationorfittingof theproductorservesforbetterunders tanding.

Thesafetys ymboluseddoesnotreplacetethextofthefSafetyinstruction.

Readthesafetyinstructionandfollowitex actually!

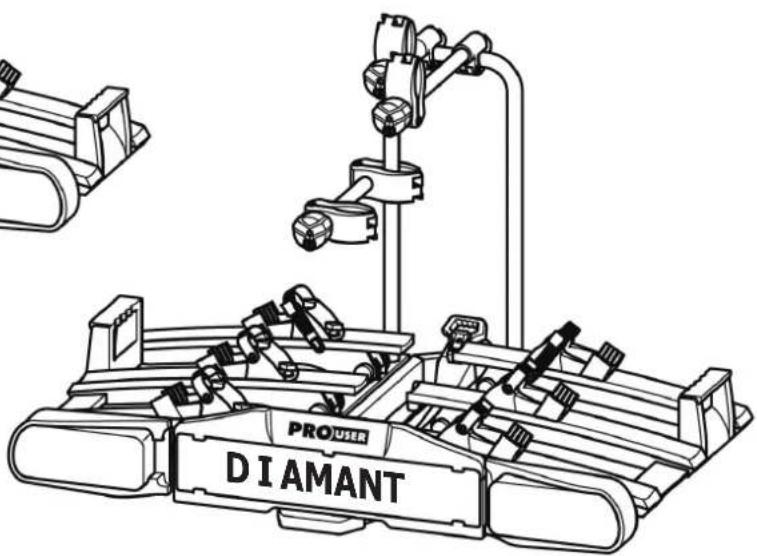

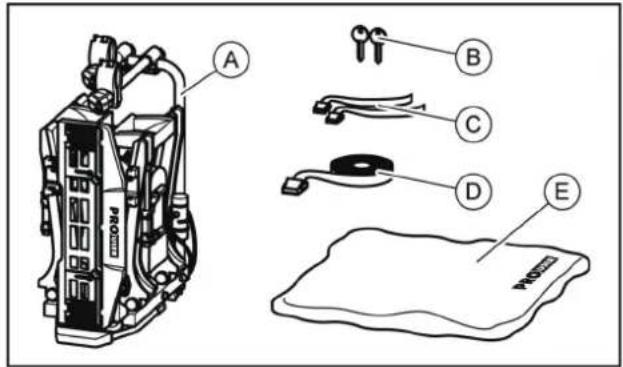

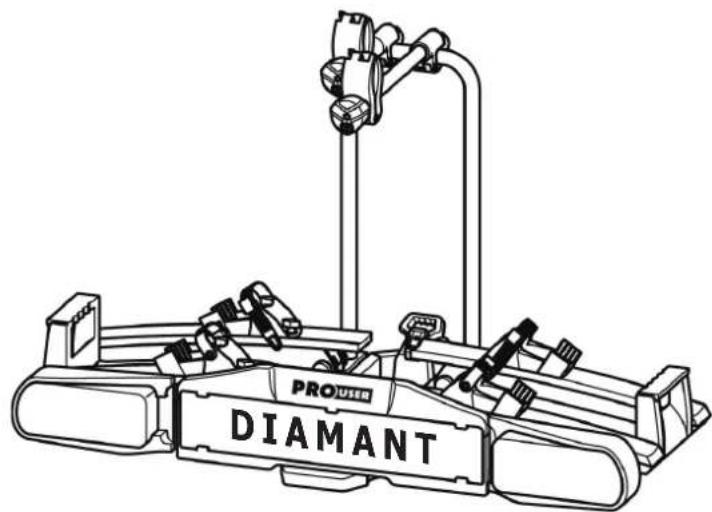

A=Bicyclecarrier
B=2keys
C=2safetystrapsforfrontwheels,DIAMANTSG2
(3safetysprapsforfrontwheels,DIAMANTSG3)

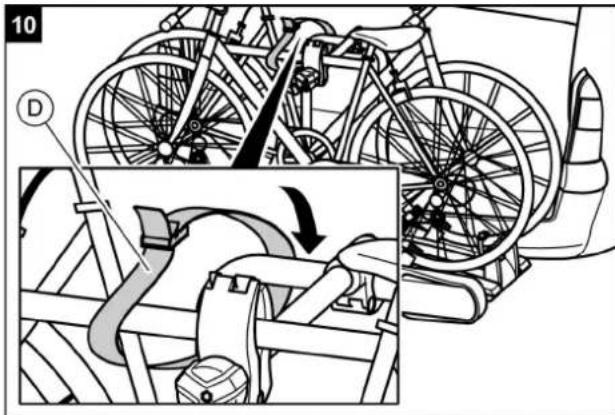

D=1Safety strapforbicycle frame
E=Transportbag

Technicaldata

	DIAMANT SG2	DIAMANT SG3
Item no.:	91734	91735
Material:	Steel Aluminium	Steel Aluminium
Weight:	17 kg	21 kg
Carrying capacity, max.:	60 kg	60 kg

Themax.carryingcapacityofthebicyclecarrierandthe permissiblebearingloadofthetrailercouplingmustnotbe exceeded.
Thebicyclecarrierrandloadmustnotexceedthe permissibleoverallweight,orthoermissiblexaleloadof thevehicle.

ExamplesforDIAMANTSG2

Max. bearing load Trailer coupling	Weight Bicycle carrier	Max. carrying capacity on bicycle carrier
50 kg	17 kg	33 kg
60 kg	17 kg	43 kg
75 kg	17 kg	58 kg
90 kg	17 kg	max. 60 kg !

ExamplesforDIAMANTSG3

Max. bearing load Trailer coupling	Weight Bicycle carrier	Max. carrying capacity on bicycle carrier
50 kg	21 kg	29 kg
60 kg	21 kg	39 kg
75 kg	21 kg	54 kg
90 kg	21 kg	max. 60 kg !

CouplingrequirementsScopeofdelivery

WARNING!

Personalinjuryispossibledetobreakageof thetrailercoupling.
Thecouplingcouldbreakifthecyclecarrier isfittedtoacouplingmadeoftosofta material.

• Fitthebicyclecarrieronlytoacoupling madeofsteelSt52,greycastironGG52or higherquality.

• Neverfitthebicyclecarriertoacoupling madeofaluminium,otherlightmetalsor plastic.

Fitthebicyclecarrieryotlytrotailercouplingswiththefollowingproperties:

Material: min.steelSt52orgreycastironGG52

D-value: >7,6kN

Notetheinstructionsofthecouplingmanufacture.

FIX4BIKE® ONLY

Safetyinstructions

ollowthefittinginstructionscarefully.Failuretofollowthe instructionscanleadtopersonalinjuriesandmaterial damage.

Ifyouarenotsureaboutcorrectfitting,askyourdealer themanufacturerforfurtherinformation.

Neitherthemanufacturernordealerareliablefordamageswhichareduetoimproperuseorfitting.

Checkthebicyclecarrierandtheloadregularly:you are requiredtodosoandmaybeheldiableincaseof damage.

NOTE

Europeanoperatingapprovalhasbeen obtainedforthisbicyclecarrier.This issuppliedwiththecarrier,andmustbecarriedwhenusingthecarrier.

NOTE

Thelegalregulationsandprovisionsonthe transportof goodsonthebackofyourvehicle applywhendrivingwithamountedbicycle carried.

WARNING!

Personal injury or materialdamageduetoh changed vehicle drivingcharacteristics. Drivingwiththe bicyclecarrierfittedwillaffect the driving characteristicsofourvehicle.

• Adjust yourspeedtothenewdriving characteristics.
• Neverexceedaspeedof130km/h.
  -Avoidsuddenandjerkysteering movements.
• Rememberthatyourvehicleislongerthan usual.

WARNING!

Personalinjuryormaterialdamagedueto overloading. Exceedingthemax.carryingcapacityofthe bicyclecarrierorthepersmissiblebearingload ofthetrailercouplingorthepersmissible overallweightcanleadtoseriousaccidents.

• Observetheinformationonthemax. carryingcapacity,permissibebearingload andpermissibleoverallweightofyour vehicle.Neverexceedthesespecifications.

WARNING!

Personalinjuryormaterialdamageduetoloss ofthebicycles.

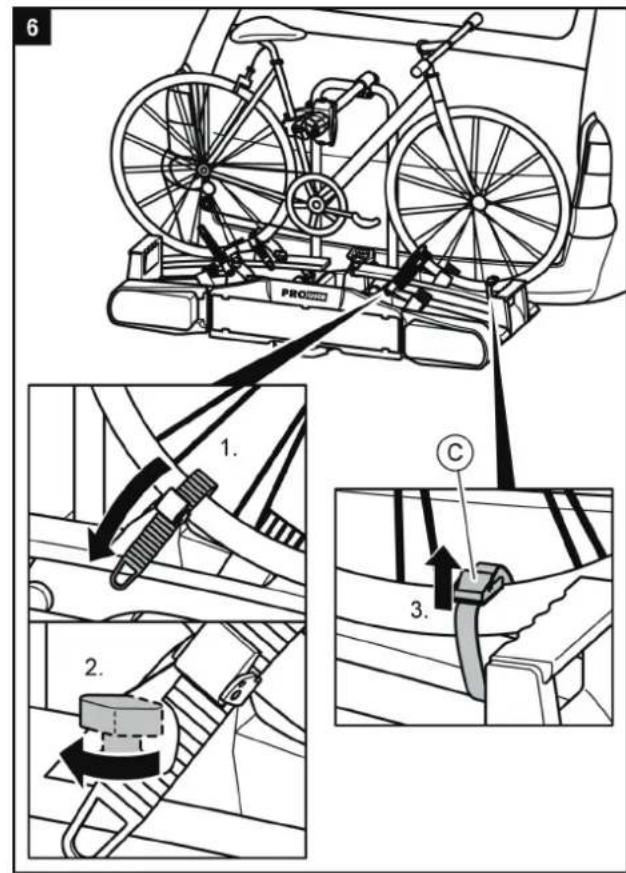

Carryingbicycleswithoutusingthesafety strapscanleadtoaccidents.

• Beforethestartofeveryjourney,checkthe correctandfirmattachmentofthestrap aroundthebikesandtheU-shapedbracket ofthecarrier(seeStep10).
• Beforethestartofeveryjourney,checkthe correctandfirmattachmentofbothstraps aroundthefrontwheel,andthestrap aroundtherearwheelofthebicycle.
  -Tightenthestrapsifnecessary.
  -Beforethestartofeveryjourney,checkthat thestrapsarenotwornordamaged.
  Womordamaged strapsmustbereplaced withundamaged strapsbeforethestartof thejourney.Thestrapsusedmustbe approvedbyTradekarBeneluxBV.

WARNING!

Personalinjuryormaterialdamagedueto incompletelyfittedbicyclecarrier. Drivingwithafoldedbicyclecarriercanleadto accidents.

Themovingpartsoftbicyclecarrierconstitute asourceofdangerifnotproperlyfitted.
-Removethebicyclecarrierifitisnot needed.
- Neverdrivewithafoldedbicyclecarrier.

WARNING!

Personalinjuryormaterialdamageduetoprojectingparts.

Partsprojectingbeyondtheedgeofthe vehicleorbicyclecarriercancausepersonal injuryormaterialdamagewhendriving.

• Fitonlysushpartswhichdonotproject beyondtheedgeofthevehicleorbicycle carrier.

WARNING!

Personalinjuryormaterialdamagedueto tarpaulins.
Tarpaulinsincreaseatheairresistance. They can become loose and fly about leading to serious accidents.
- Neverusetarpaulinsorcovers.

WARNING!

Personal injury or material damage due to loss of the bicycles.

After the attachment, the carrier first settles properly into the coupling after driving several kilometres.

• Check the attachment of the carrier for secure attachment after driving several kilometres.
  Redo the attachment if it is loose.

WARNING!

Personal injury or material damage due to the breaking off of the bicycle carrier.

Driving with a mounted bicycle carrier over difficult terrain can lead to the carrier breaking off.

• Do not use the bicycle carrier when driving over difficult terrain.

Only suitable for use on the hitch of a passenger car

ATTENTION!

Material damage due to opening tailgate.

The tailgate could impact against the bicycle carrier and be damaged.

• Switch off electric tailgates and operate them manually.

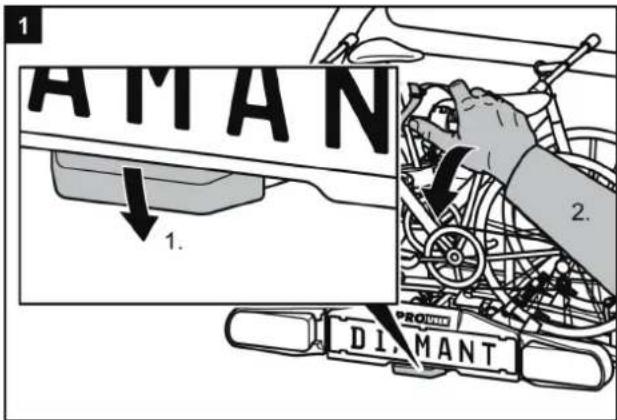

• Fold down the bicycle carrier before opening the tailgate.

ATTENTION!

Material damage due to hot exhaust gases.

Damage can be caused to the bicycle carrier or the bicycles if the exhaust pipe is too close.

• Fit an exhaust deflector if necessary.

Beforefirstuse

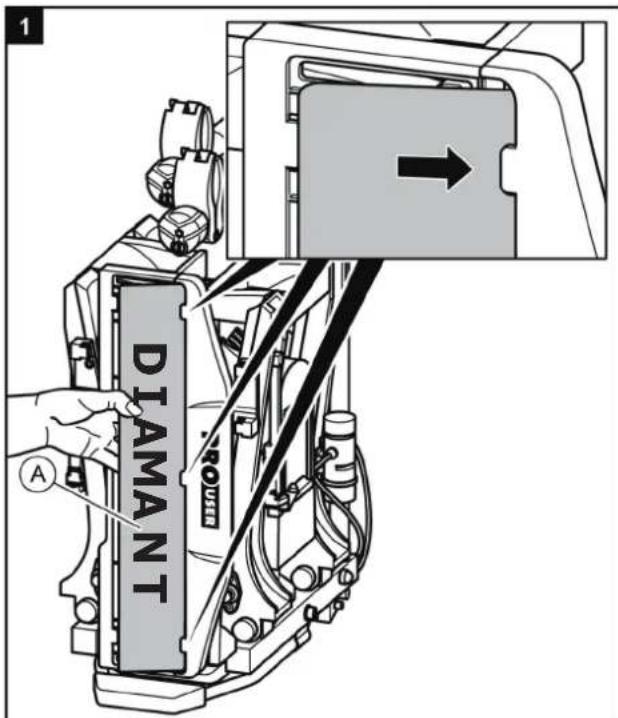

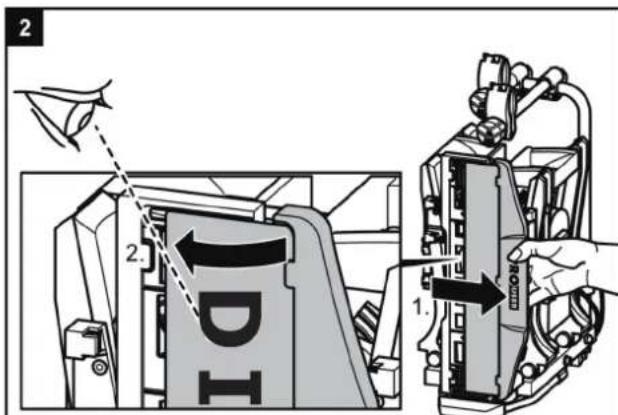

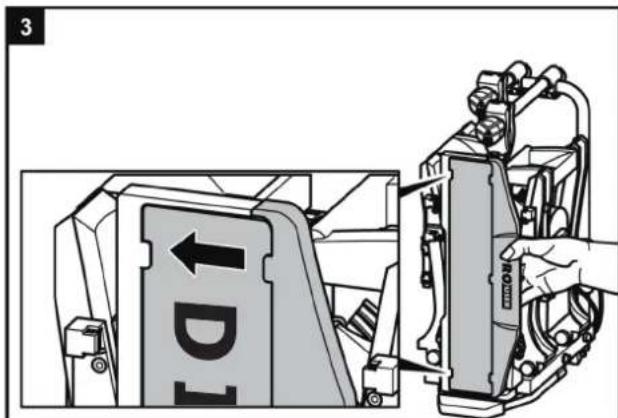

Fittingtheregistrationplatetothe bicyclecarrier

Fittinganduse

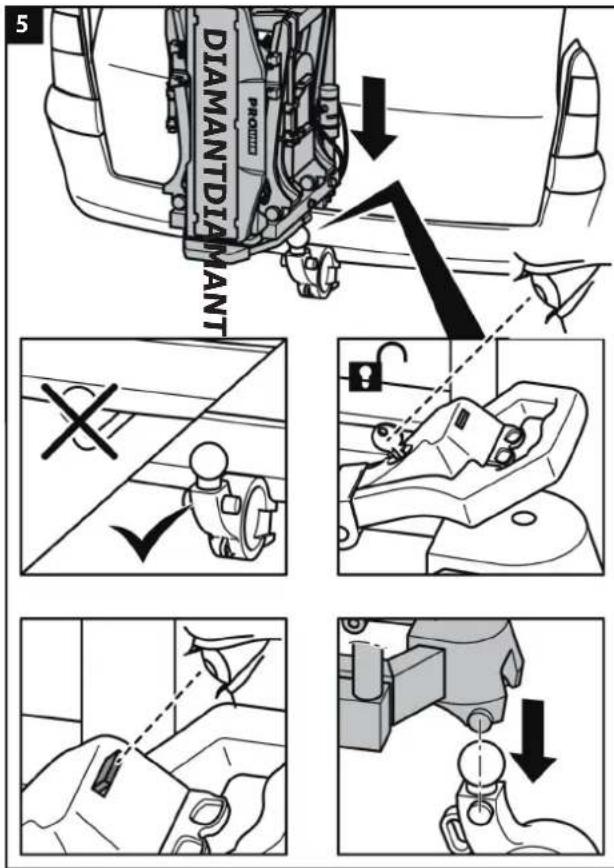

Fittingthebicyclecarriertothetrailer coupling

Parkyourvehicleonalevelsurface.
Applythehandbrake.

WARNING!

Personalinjuryormaterialdamageduetodamagedbicyclecarrier.

Damageofthecarrier,e.g.bybentparts, cracksorscratchespreventthesafe operationofthecarrier.

• Donotfitthebicyclecarrierifitsdamaged inanyway.
  Proceedasdescribedinthechapter "Maintenance".

WARNING!

Personalinjuryormaterialdamageduetoloss ofthebicyclecarrierduringthejourney.
Afaultyordefectiveconnectionbetweenthe bicyclecarrierandtrailercouplingcanleadto thedetachmentofthebicyclecarrier.

• Replacetherailercouplingif itisdamaged.

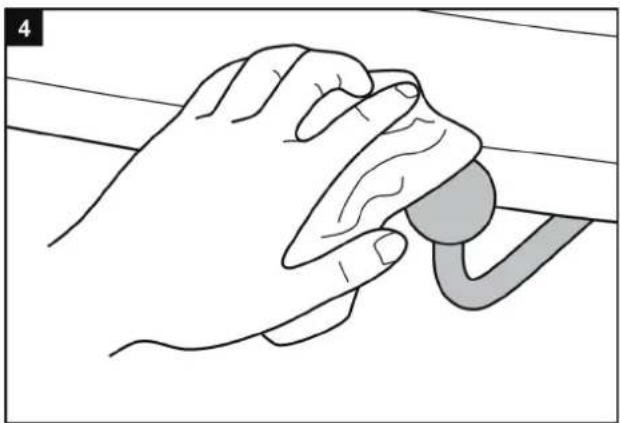

• Cleanthetraillercouplingofdirt,dustand grease.

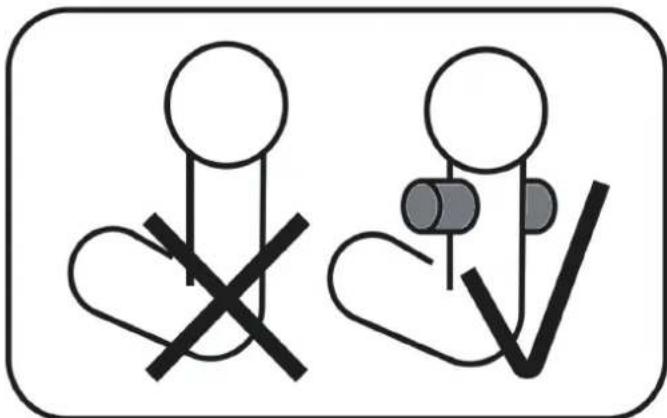

NOTE

Thereisoftenalayerofpaintonthecoupling ball.

Forthebestpossibleattachmentofthecycle carrier, this paint coatings should be carefully removed. Notetheinstructionsofthecoupling manufacturer.

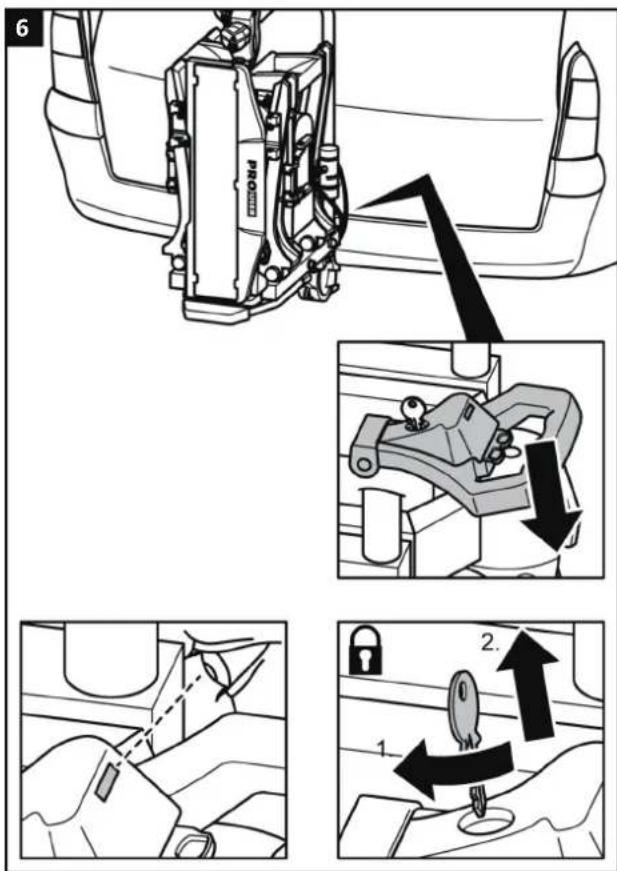

WARNING!

Personalinjuryormaterialdamagedueto unsecurebicyclecarrier. Iftheleverisnotsecuredbylocking,the bicyclecarriercouldbecomedetachedfrom thevehicleduringthejourney

Lockthebicyclecarrier.
- Checkthatyouhavelockedtheleverand removedthekey.

Lockingthebicyclecarriersalsopreventsits possiblelossbytheft.

WARNING!

Personalinjuryormaterialdamageduetoloss ofthebicyclecarrieduringthejourney. Alooseconnectionbetweenthebicyclecarrier andtralercouplingcanleadtodetachmentof thebicyclecarrier.

• Checkthebicyclecarrierforsecure attachment.
• Repeatsteps4to8intheeventofaloose connection.lfthisbringsaboutno improvement, the quick-fastenermayneed tobeadjusted, see chapter "Maintenance".

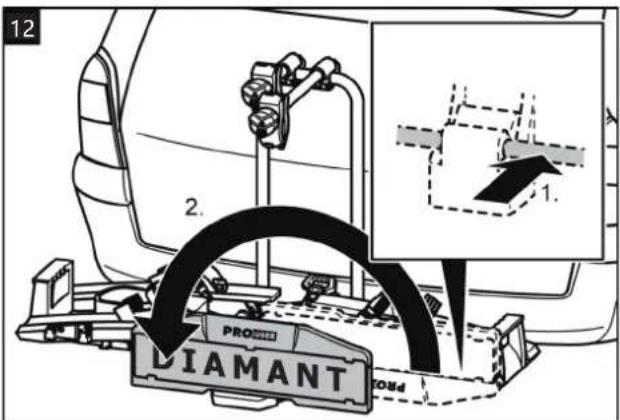

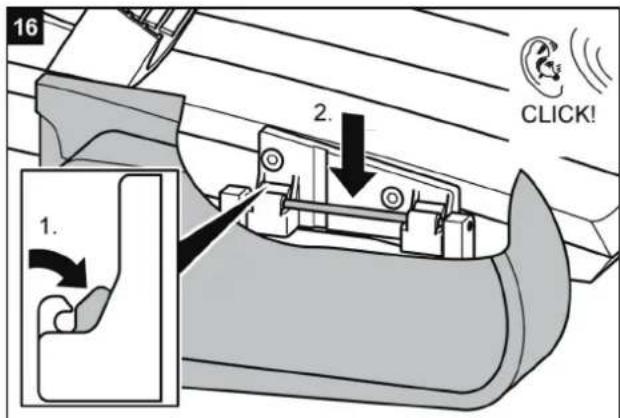

WARNING!

Personalinjuryormaterialdamagedueto unsecureregistrationplateholder. Iftheregistrationplateholderisnotsecured bythelockingbolt,itcouldbecemedetached duringthejourney.

1.Withdrawthelockingbolt.
2.Folddowntheregistrationplateholderuntil itisheardtoengage.
3.Releasethellockingbolttandallowitto engageintheholeintheregistrationplate holder.

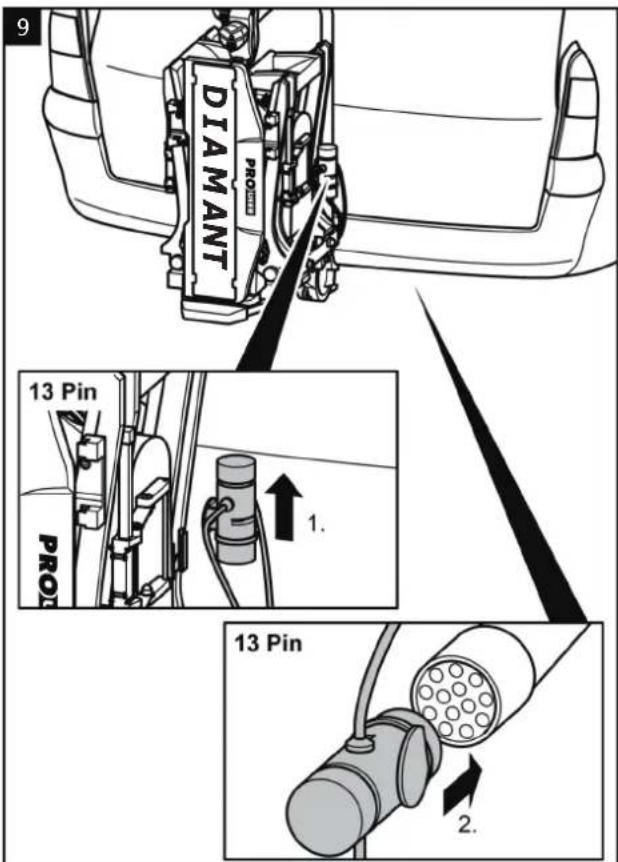

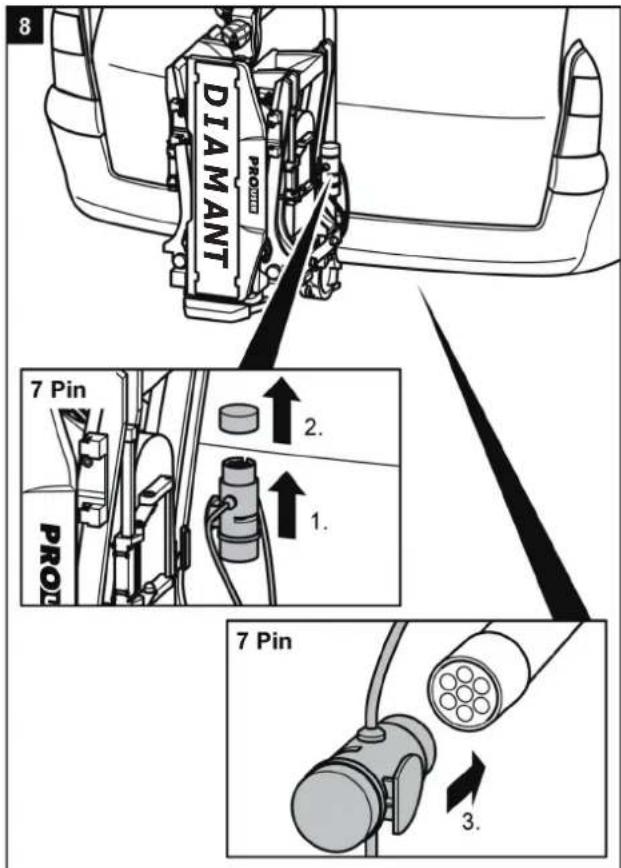

WARNING!

Personalinjuryduetonotbeingseenbyother road-users.

Drivingwithadefectivelightingsystemcan leadtoaccidents.

• Check the correct operation of the lighting system before the start of every journey.
• Replaceanydefectivebulbs.
• Checktheconnectionbetweentheplug andcoupling.

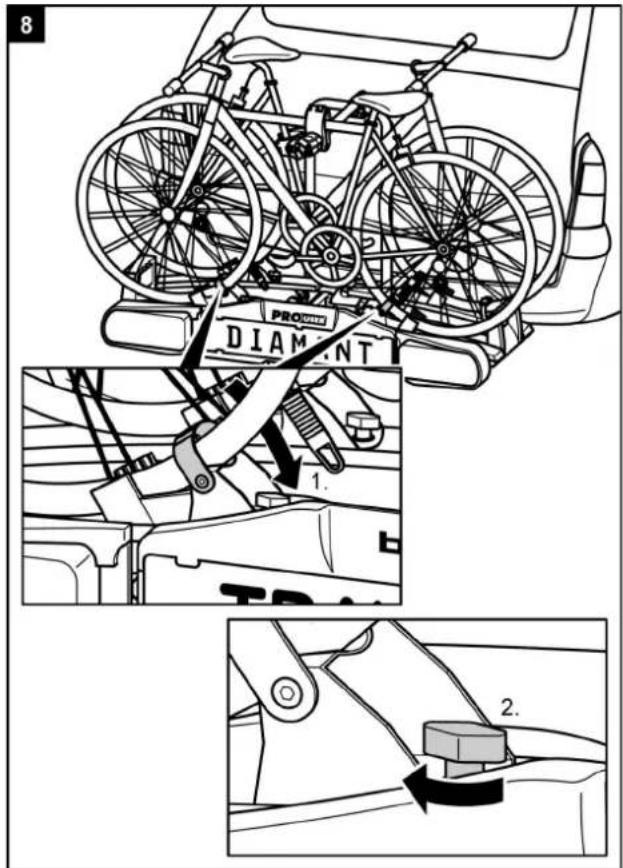

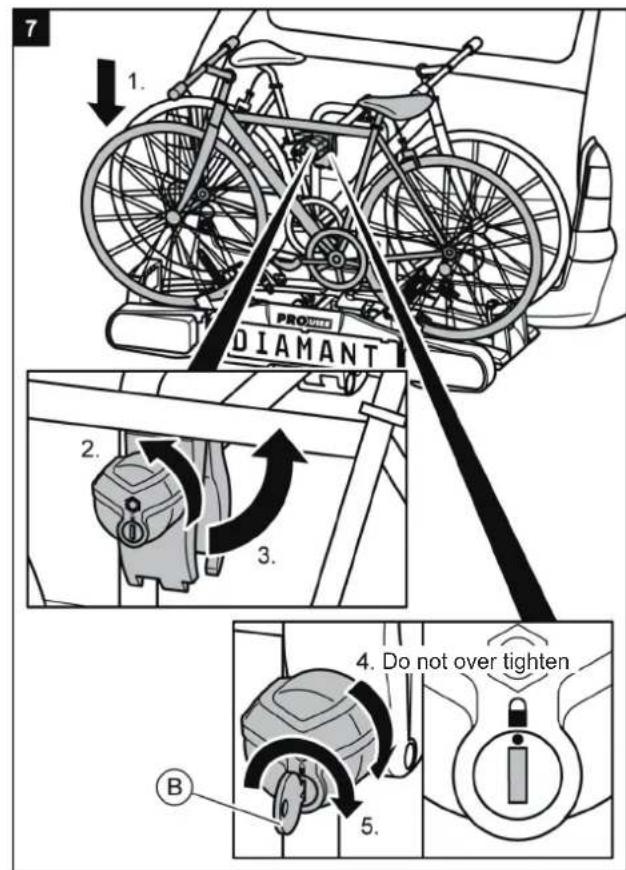

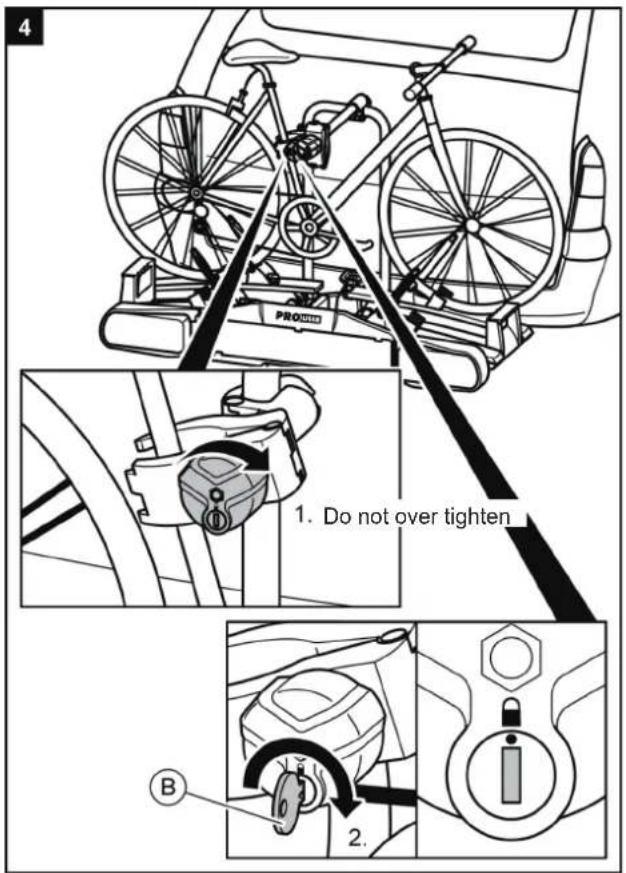

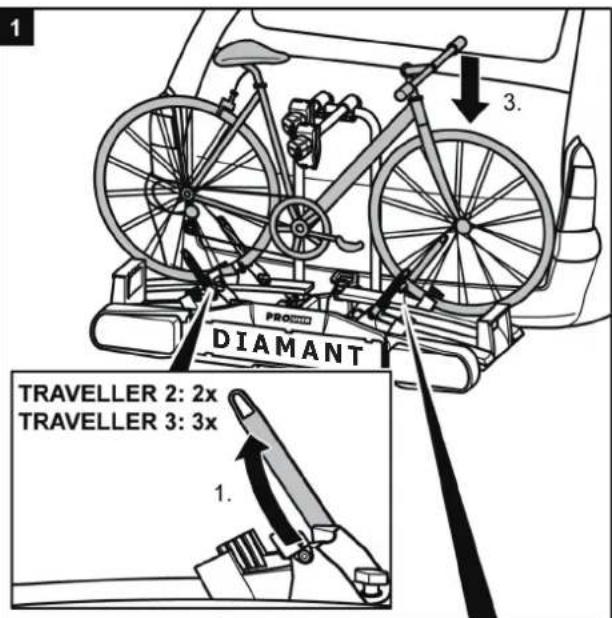

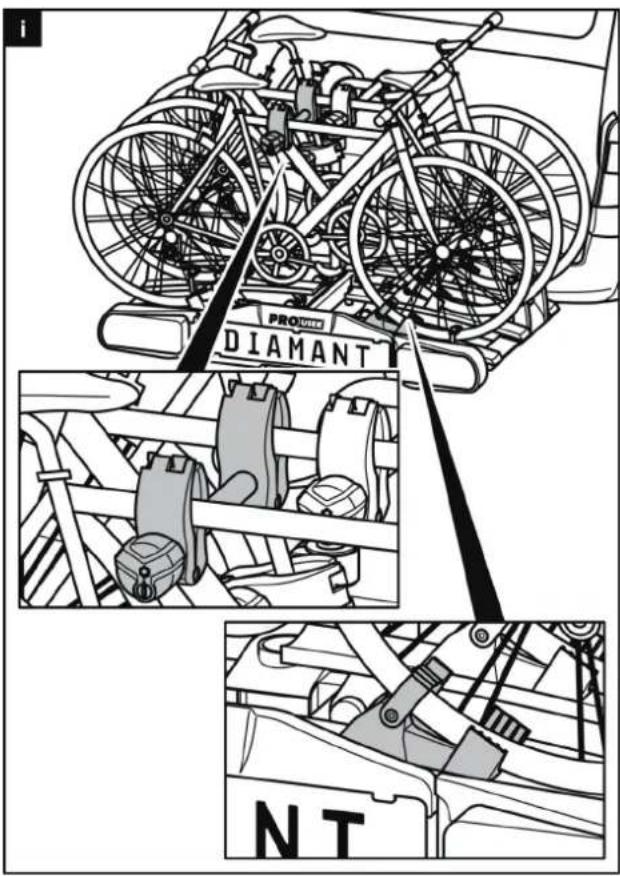

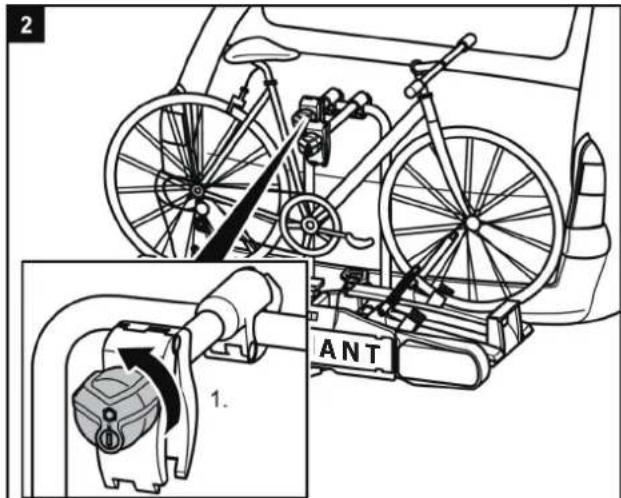

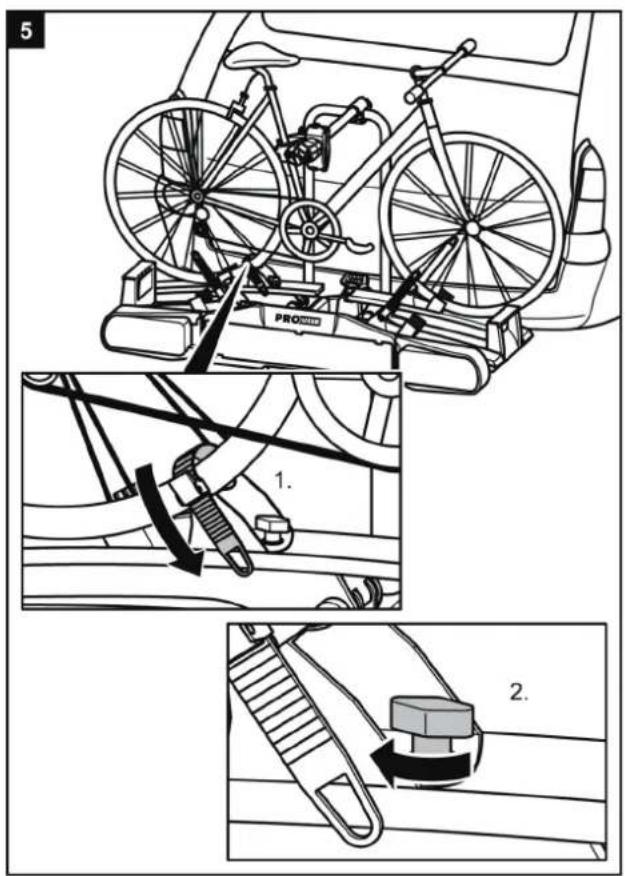

Mountingbicycles

ATTENTION!

Personalinjuryormaterialldamagepossible duetolooseparts. Improperlytightenedpartsonthebicyclescan becomelooseduringthejourney.

• Removeallpartsnotfirmlyattachedtothe bicycle, such as bicycle pumps, panniers, navigation devices or batteries.

NOTE

Inordertoimprovethedingcharacteristics ofyourvehicle,mounttheheavierbicyclefirst. Ifcarryingonlyonebicycle,thisshould bemountedintherailclosesttotherearofthehyveiicle.

1

WARNING!

Personalinjuryormaterialdamageduetoloss ofthebicycles.
Carryingbicycleswithoutusingthesafety strapscanleadtoaccidents.

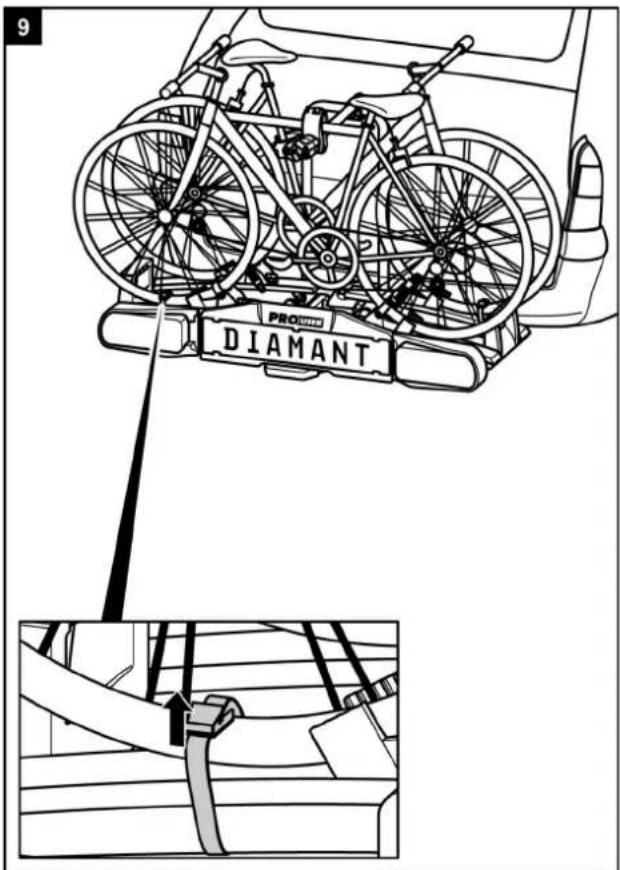

- Beforethestartofeveryjourney,checkthe correctandfirmattachmentofthestrap aroundthebikesandtheU-shapedbracket ofthecarrier(seeStep10).
- Beforethestartofeveryjourney, check the correct and firm attachment of both straps around the front wheel, and the strap around therear wheel of the bicycle.
Tightenthestrapsifnecessary.
-Beforethestartofeveryjourney,checkthat thestrapsarenotwornordamaged.
Wornordamaged straps mustbereplaced withundamaged strapsbeforethestartof thejourney.Thestrapsusedmustbe approvedbyTradekarBeneluxBV.

WARNING!

Personalinjuryormaterialdamageduetoloss ofabicycleduringthejourney.

Alooseconnectionbetweenthecyclecarrier andbicyclecanleadtodetachmenttothe connectionandlossofthecycle.

• Check the bicycles for secure and complete attachment.
  -Repeatsteps1 to 10ofthischapterin the eventofalooseconnection.

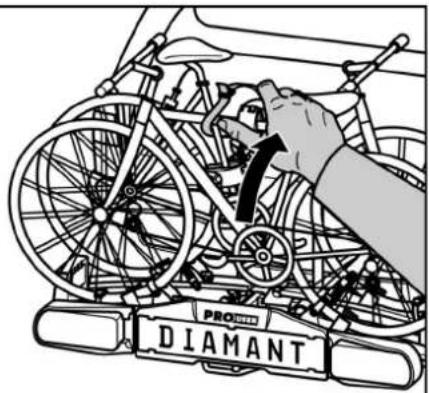

DIAMANTSG3: Assemblyoffathirdbicycle

NOTE

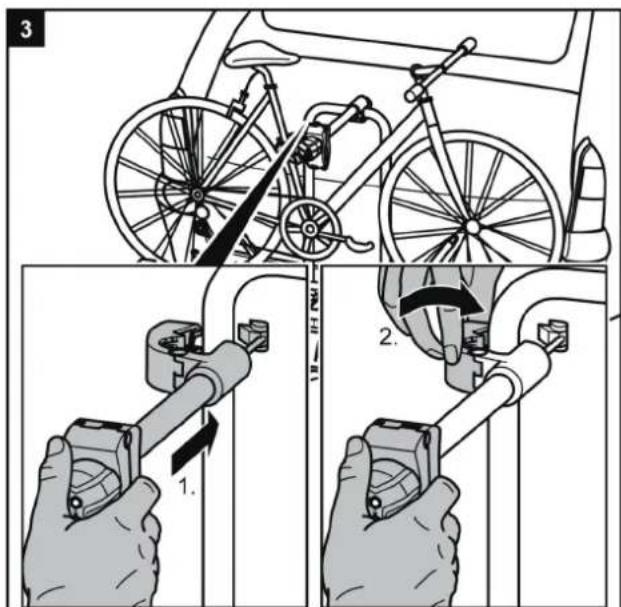

Theassemblyoffathirdbicycleisdoneusing thefreewheelstoppersonthetyresaswith theattachmentofthefirstandsecond bicycles. The third bicycleisadditionally connectedtotheentrebcycleframedewiththe shortlockbracket.

WARNING!

Personalinjuryormaterialdamageduetoloss ofthebicyclecarrieduringthejourney. Carryingbicycleswithoutusingthesafety strapscanleadtoaccidents.

Alooseconnectionbetweenthecyclecarrier andbicyclecanleadtodetachmenttothe connectionandlossofthe bicycle.

• Carefullyobserveall warningsonpage70.

Tiltingthebicyclecarrier,accessothe luggagespace

ATTENTION!

Materialdamageduetoopeningtailgate.

Thetailgatecouldimpactagaintsthebicycle carrierandbedamaged.

• Switchoffelectrictailinggatesandoperate themmanually.
• Folddownthebicyclecarrierbefore openingthetailgate.

CAUTION!

Personalinjuryormaterialdamageduetosuddenfoldingdownofthecarrier.

Bodypartsorobjectsunderorinfraontofthecarrierwhenitisfoldeddownmaybetrapped.

• Makesurehatthereisnothingunderthe carrier.
• Keepallbodyparts, and particularly your head, clear, and maintain as suitable safety distance.
  HoldthecarrierbytheU-bracketwhen foldingitdown.Withyourfootloosenthe lockingdevice(1.)andthentilthecarrier downwardwithyourhand (2.)

CAUTION!

Personalinjuryormaterialdamagepossible whenfoldingupthecarrier.

Bodypartsorobjectsbetweenthecarrierand thevehiclewhenitisfoldedupmaybe trapped.

• Makesurethatthereisnothingbetween thecarrierandthevehicle.
  -Removeanyobjectsbetweenthecarrier andthevehicle.

2
CLICK!

WARNING!

Personalinjuryormaterialdamagepossible duetolossofthecyclecarrieduringthe journey.

Abicyclecarrierwhichisnotfoldedupcans resultindetachmentofthecarrierorthe coupling.

-Foldthecarrierupbeforethestartofthe journey.
- Checkthatthebicyclecarrieriscorrectly engagedandtherotaryknobissetto "locked".Lockthecarrierifnecessaryas describedaboveandsettherotaryknobto "locked".

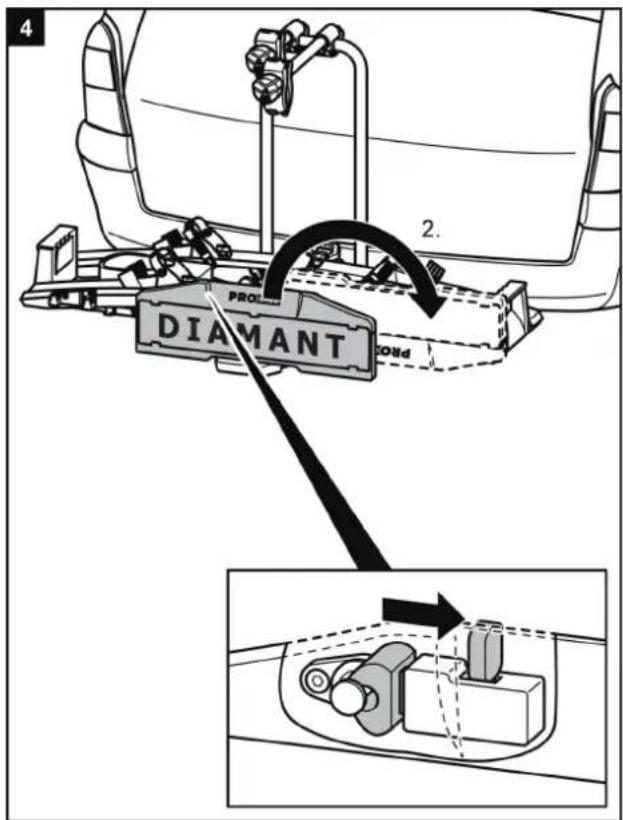

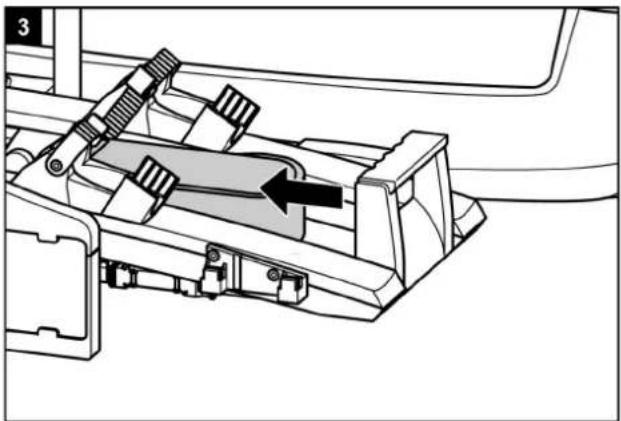

Dismantlingthebicyclecarrier

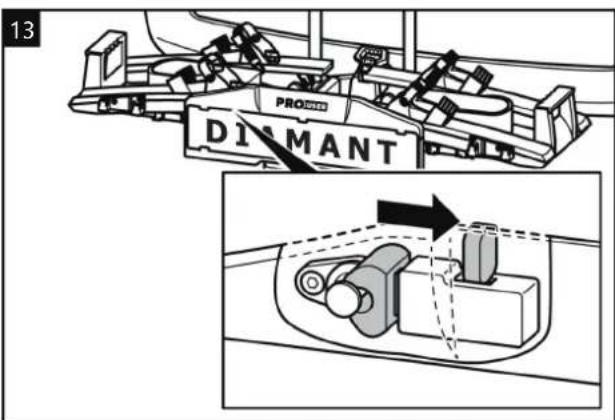

Firstreleasethelockingboltbehindtheregistrationplate holder.

Todismantlethecyclecarrier,proceedinthereverse ordertofitting

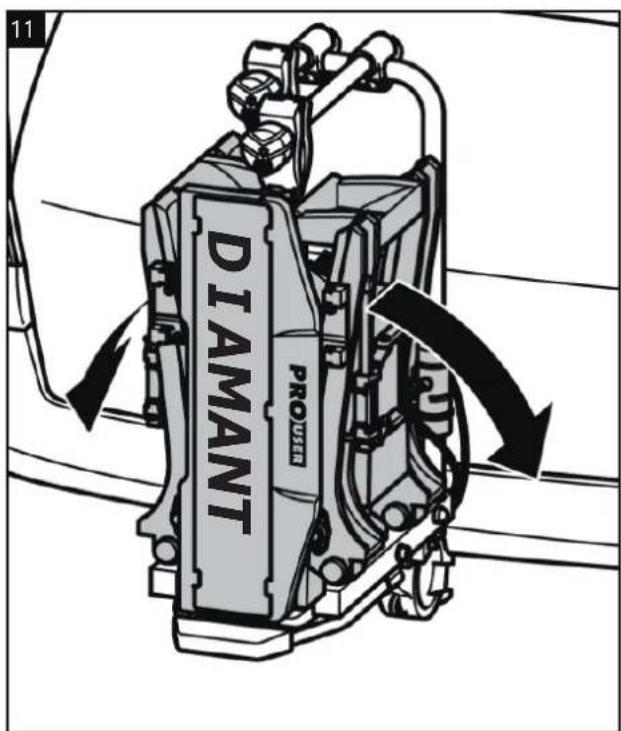

Carryingthebicyclecarrier

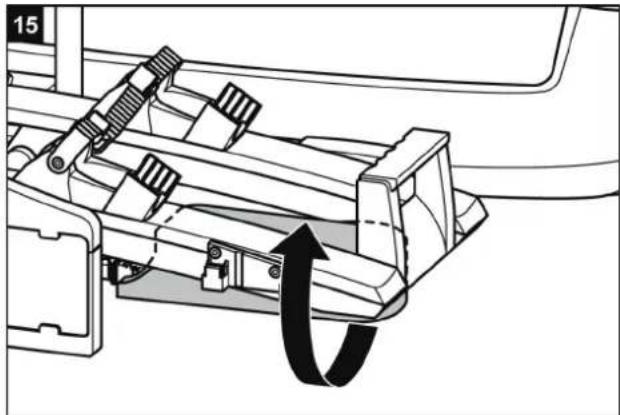

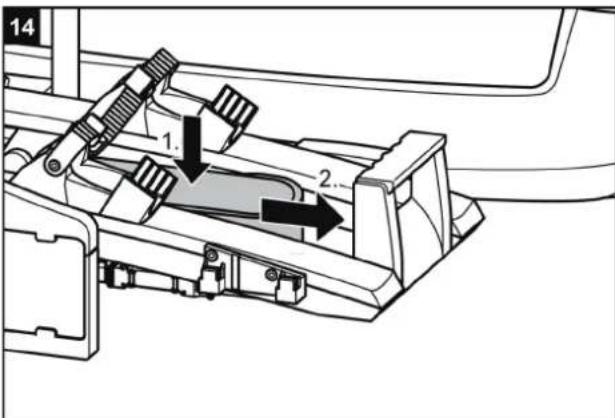

Stowingthebicyclecarrierinthe transportbag

Cleaningandcare

Thebicyclecarrierrcanbecleanedwithamildcleaning agent,withwarmwaterand/orasoftcloth.

Firstremoveanycoarsedirtanddust.Donotuseany solventsimilarcleaningagents,sincthesecan damagethebicyclecarrier.

Leavethebicyclecarriertodryonitsown.Donotuseany electricaldriersorotherheatingequipmenttospeededup thedryingprocess.

Cleanthebicyclecarrierregulartowhenusedincoastal areasorinwinterconditionsinorde rtowashoffanysalt andprolongtheservicelifeofthebicyclecarrier.

Storethebicyclecarrierinadryandprotectedareawhen notusedforextendedperiods(e.g.overwinter)inorderto prolongtheservice life of thebicyclecarrier.

Maintenance

Check the bicycle carrier for wear before the start of every journey. Defective metal parts and straps in particular must be replaced.

Please refer to our customer service for the replacement of parts.

Any modification of original parts and materials or the construction of bicycle carrier can adversely affect its safety and serviceability.

The steel parts of the bicycle carrier are protected in the works against corrosion by a powder-paint coating. If this paint coating is damaged, please have the damage rectified professionally as soon as possible.

Under normal conditions and use, the bicycle carrier only requires cleaning, and is otherwise maintenance-free.

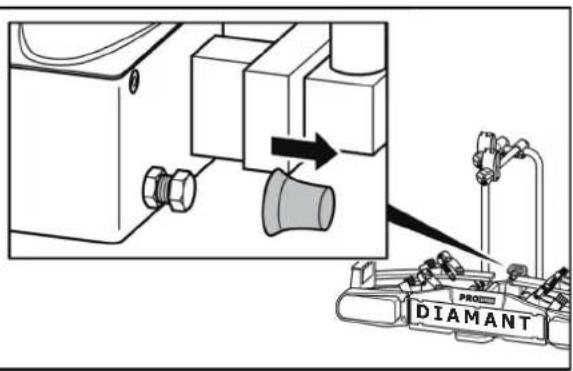

Adjustmentofthequick-fastener

Carry out this maintenance operation only if the bicycle carrier cannot be fitted firmly to the trailer coupling, as described in the chapter "Fitting".

• Remove the bicycle carrier from the trailer coupling, as described under "Dismantling".
• Remove the dust protection cap.
• Loosen the locking nut slightly, as shown in the illustration.
• Screw in the setting screw one quarter of a turn.
• Tighten the locking nut.
• Check whether the carrier is now firmly seated on the trailer coupling, as described under "Fitting". If not, repeat the above steps.

1

2

Disposal

Local regulations must be observed for the disposal of the product.

The packaging should also be sorted by type and disposed of in the relevant collection containers.

Further information is available from your communal disposal point.

Contact

Tradekar Benelux BV

Ohmweg 1

4104 BM CULEMBORG

Netherlands

Telephone: [phone]

Telefax: [phone]

E-mail: [e-mail]

Consumer helpdesk & support

Telephone: [phone]

(Monday till Friday 8:30-12:30)

E-mail: [e-mail]

7/13pinconnector

Thisbikecarrierisequippedwithalightingsystem.This systemcanbeconnectedtothetowbarpowersocketof yourcar.Seeingthattherearedifferentkindsof sockets thatrequireddifferentkindsofplugs,thiscarriercomeswith theusual7-pinplugandthe13-pinplug(Jaegers).Asa result,thecarriercanbeusedwithanytowbar! Bothplugsareinonehousing.Pleasecovertheplugyou don'tusewiththesuppliedcover. Thisinformationisonlyfortheretrofittingbyaspecialised dealer.Aretrofittingbynontrainedpersonsisnot permitted.

7Pin

1/L	Blinker left	yellow
2/54G	Rear fog light	blue
3/31	Earth	white
4/R	Blinker right	green
5/58R	Taillight right	brown
6/54	Brake light	red
7/58L	Taillight left	black

13Pin

1	Blinker left	yellow
2	Rear fog light	blue
3	Earth	white
4	Blinker right	green
5	Taillight right	brown
6	Brake light	red
7	Taillight left	black
8	Reserving light	grey
9	Not assigned
10	Not assigned
11	Not assigned
12	Earth
13	Not assigned

Pos.	Quantity	Designation
1	1	Replacement glass left
2	1	Lamp guard left
3	4	Washer M5
4	4	Capped nut M5
5	2	Lamp countersink
6	1	Replacement glass right
7	4	"Screw M5 x 20 mm"
8	4	Cover cap handle bracket
9	1	Lamp locking mechanism left
10	2	Carrier handle cover
11	4	Wheel rail
12	1	Lamp locking mechanism right
13	4	Wheel blocker with tension belt
14	4	Wing nut M6
15	4	"Setting screw M6 x 20mm"
16	4	"End cap aluminium rail interior"
17	1	Lock bracket long
18	1	Lock bracket short
19	1	Carrier table bracket and U-bracket
20	2	Locking pin M10
21	2	Washer M10
22	2	Bearing pad
23	1	Base frame with quick release
24	2	"Self-locking nut M10"
25	4	"Stopper 60mm x 25mm"
26	3	Foot plastic
27	3	Screw foot M6 x 40mm
28	2	"Allen wrench M8 x 45mm"
29	4	"Stopper for no. 19, 35mm x 35mm"
30	2	Washer M8
31	2	"Self-locking nut M8"
32	8	Cover cap hinge

Pos.	Quantity	Designation
33	4	"Self-locking nut M10"
34	4	Washer M10
35	4	Inner pane M10
36	2	"Allen wrench M10 x 80mm"
37	4	"Allen wrench M10 x 80mm"
38	2	"Spring for locking no. 39"
39	1	Fold up locking mechanism
40	1	"Kick plate for locking mechanism"
41	1	"Carrier table left complete"
42	2	Registration plate lock
43	1	Registration plate bracket
44	1	Bolts
45	1	"Registration plate bracket- locking mechanism"
46	1	Holder locking mechanism
47	1	"Carrier table right complete"
48	1	Lamp guard right
49	1	Lamp complete right

Portabicletas DIAMANT SG2 / SG3 FixMatic

Tradekar 91875-91876/22A

Tradekar Benelux BV

Ohmweg 1

[phone]

4104 BM CULEMBORG

[e-mail]

The Netherlands

www.pro-user.eu
