USER MANUAL Amber III Pro-User

UK: Assembly instruction and safety regulations

• Introduction 32
• Important information 33
• Mounting the bike carrier 34
• Mounting of the bike carrier onto the hitch ball 37
• Tilting mechanism 39
  The license plate holder & lighting 40
• Mounting of the bikes on the bike carrier 41
  Safety regulations 42
• Maintenance & guarantee 43
  Part list & exploded view 44

Table des matieres

[e-mail]

IN ELKAAR ZETTEN VAN DE FIETSENDRAGER

[e-mail]

MONTAGE DES FAHRRADTRAGERS

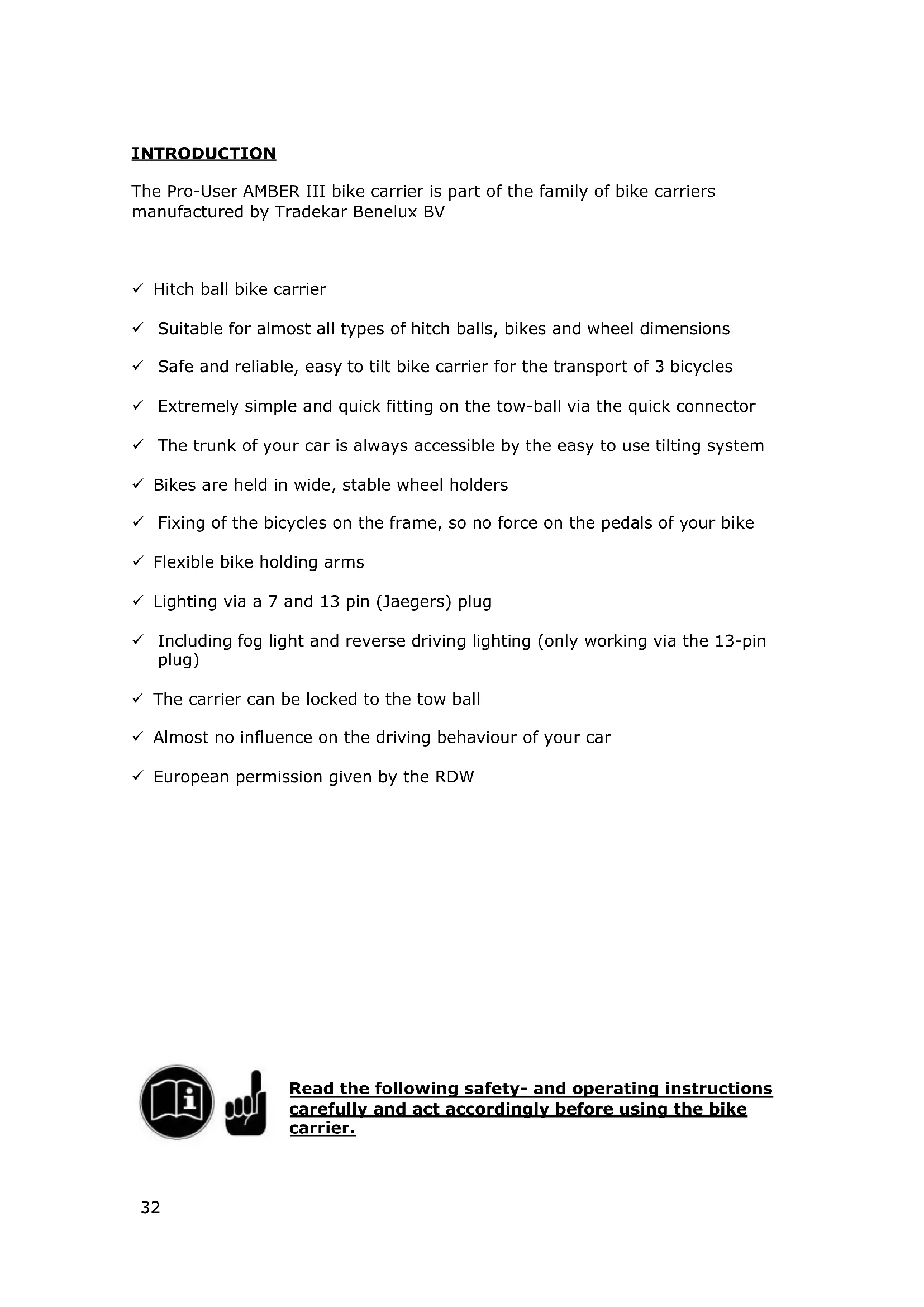

The Pro-User AMBER III bike carrier is part of the family of bike carriers manufactured by Tradekar Benelux BV

Hitch ball bike carrier
Suitable for almost all types of hitch balls, bikes and wheel dimensions
Safe and reliable, easy to tilt bike carrier for the transport of 3 bicycles
Extremely simple and quick fitting on the tow-ball via the quick connector
✓ The trunk of your car is always accessible by the easy to use tilting system
Bikes are held in wide, stable wheel holders
Fixing of the bicycles on the frame, so no force on the pedals of your bike
Flexible bike holding arms
Lighting via a 7 and 13 pin (Jaegers) plug
Including fog light and reverse driving lighting (only working via the 13-pin plug)
✓ The carrier can be locked to the tow ball
Almost no influence on the driving behaviour of your car
European permission given by the RDW

IMPORTANT INFORMATION

Read these instructions carefully before using the product for the first time.

Do not use this product until the manual and safety regulations are read and are entirely clear.

The assembly and installation of the bike carrier can only be done according this instruction manual.

The steps that are mentioned and the safety regulations for assembly, handling and use of the bike carrier need to be followed! The slightest non conformity can lead to incorrect assembly or wrong use.

The carrier is suitable for the transport of three bikes at most. Please check the maximum permissible ball load. You can find it on the identification plate of the hitch ball of your car (for most cars this is 75kg ). The total weight of the carrier with the bikes cannot exceed the maximum permissible ball load of the hitch ball.

The maximum permissible load for the carrier itself may be 60kg.

The net weight of the carrier is 16kg.

Not suitable for the use on an aluminium hitch ball.

Keep these instructions in your car.

CONSUMER HELPDESK & SUPPORT

[phone] (Monday till Friday 8:30-12:30)

[e-mail]

MOUNTING THE BIKE CARRIER

The bike carrier comes unassembled. Remove all parts from packaging and arrange them in a well-organized way. The instructions will clearly describe and show the parts that you need for each step and how to assemble the bike carrier.

Step 1

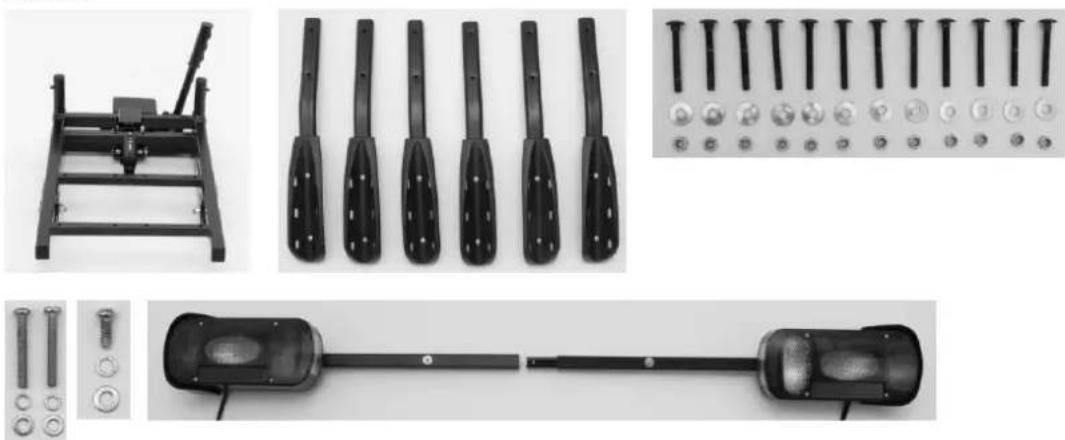

Parts:

Mounting:

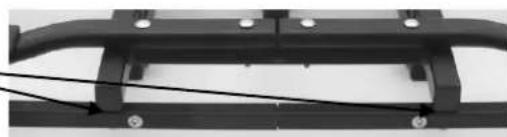

Put the six wheel holders on the base frame of the bike carrier with the holes right above the holes in the base frame. Then attach the wheel holders with the twelve bolts M6x50, washers M6 and M6 nuts.

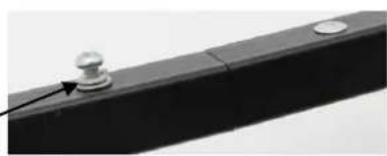

Mount the two lamp holders together. This is done by means of a small piece of iron connection that is already pre-mounted on one side. Slide the rails "together" and fix it by the supplied screw (M5x12) and washers.

Mount the lamp holder rail at the bottom of the base frame with the two M5x35 bolts and washers.

Make sure that the rear fog lamp is mounted on the left side of the bike carrier!

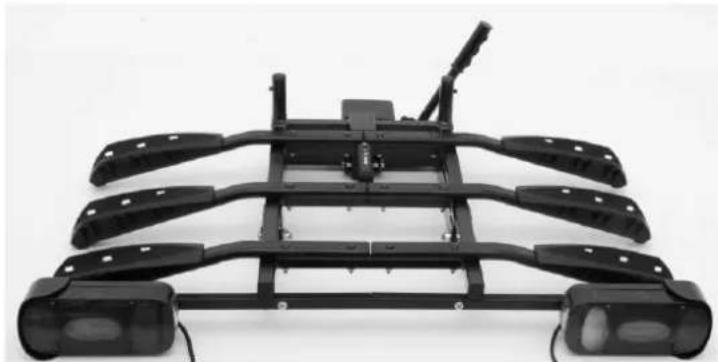

End result:

Step 2

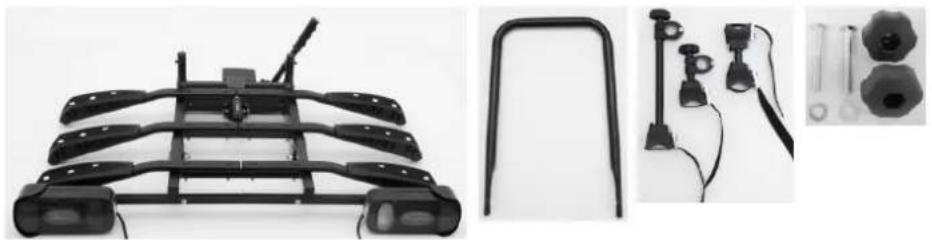

Parts

Mounting:

Slide the U-frame against the outside of the U-frame holders of the base frame. Secure this U-frame with the supplied carriage bolts (M8x60), washers and plastic rotary knobs.

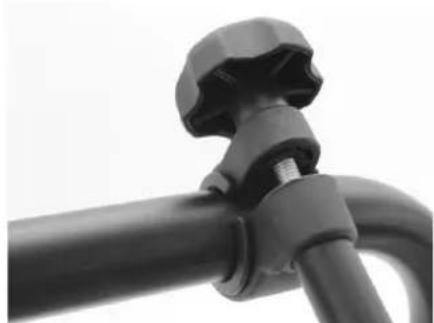

Make sure the plastic rotary knobs are on the inside (see picture).

Please note: firmly tighten both rotary knobs so that the U-frame will come on its place well.

Unscrew the plastic rotary knob of each frame holder, so the clamps can be folded open. First attach the rubber ring around the U-frame and put the clamp around it. Subsequently, re-attach the holder and screw the plastic rotary knob until you can just turn the frame holders (the frames of the bikes have to be attached to it, so they have to be movable). The sides with the straps are intended to fasten the bike.

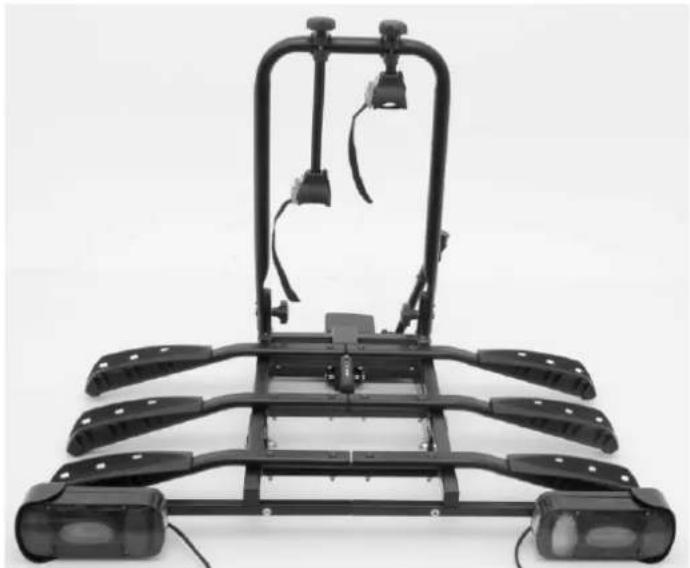

End result:

Step 3

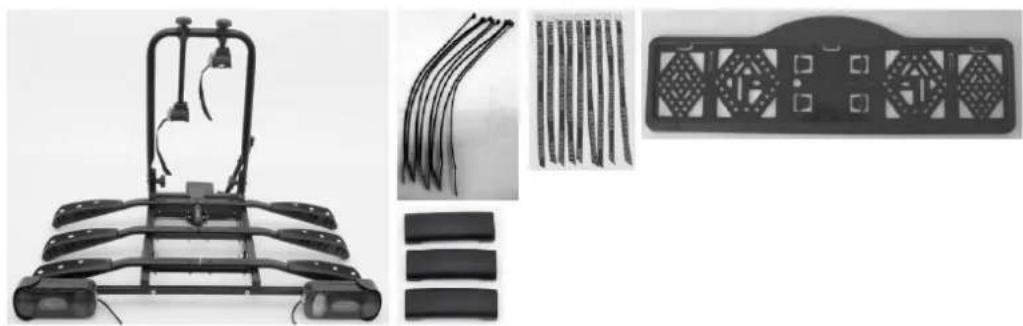

Parts:

Mounting:

Loosen and remove the little screws intended for the mounting of the number plate holder from the light holder rail and fasten the number plate holder to the rail. The number plate holder has to be level with the lighting.

With the cable ties supplied with the carrier, the light cable can be fastened neatly at the bottom of the carrier. Make sure the cable will not interfere with the tilting mechanism.

Slide the nine short, black straps through the little slots in the wheel holder, starting inside-out, going around the wheel holder and then outside-in (see picture).

Finally clip the three plastic covers over the middle of the three wheel holders.

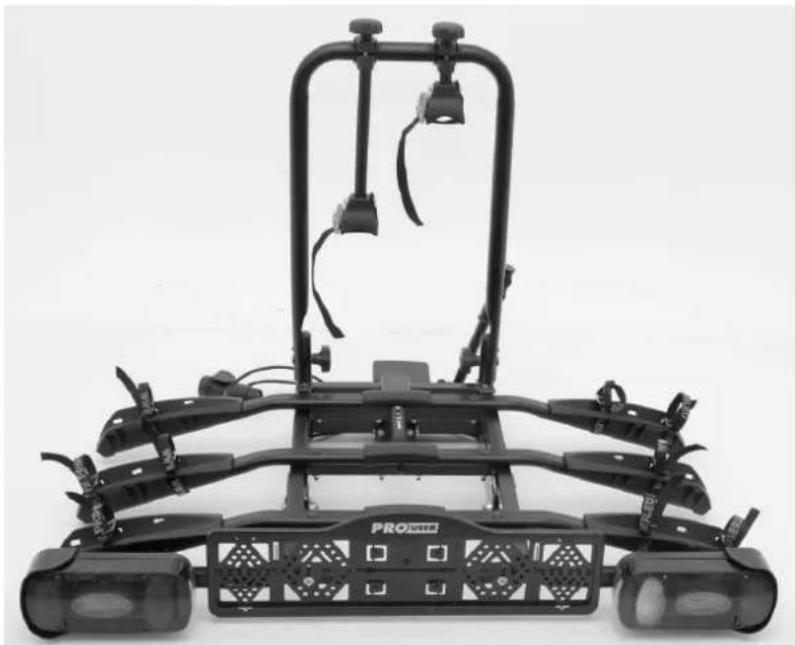

End result:

MOUNTING OF THE BIKE CARRIER ONTO THE HITCH BALL

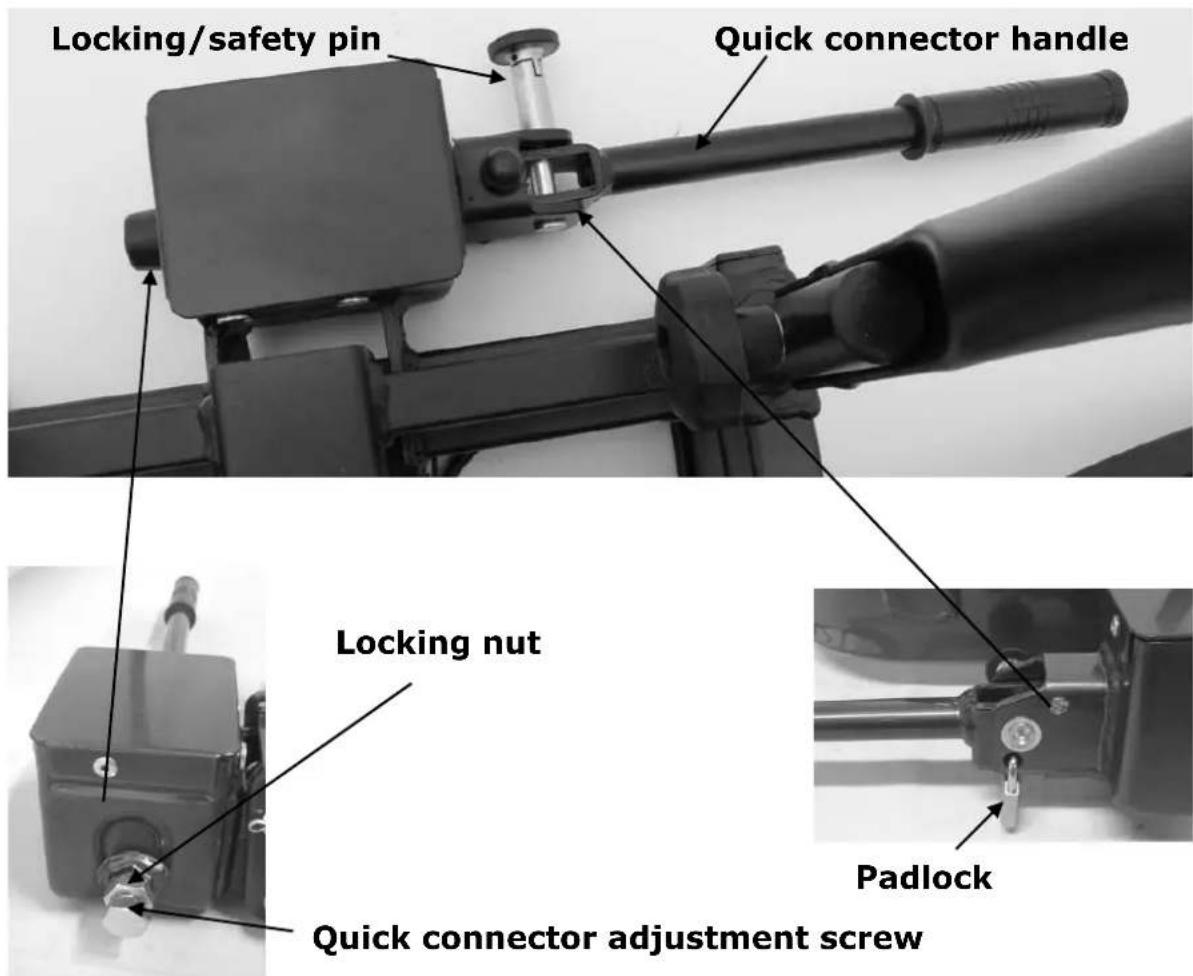

The first step is to become familiar with the quick connector.

The quick connector consists of a case mounted to the bike carrier and a lever. Using the lever, you can close and open the quick connector.

When mounting the bike carrier to the car, it is best that the car is parked straight, the engine is turned off and the parking brake is activated. Make sure that the tow ball is undamaged, clean and not greasy!

Release the locking/safety pin by pulling it out and rotating it by a quarter turn. Release the quick connector by moving the handle in the vertical position.

Position the bike carrier on the tow bal from the top. Press the handle of the quick connector downwards (approx. 35-40kg) until it stops (handle will stay stable in the horizontal position). Turn the locking/safety pin until it is secured (and the handle can no longer be pulled up).

Now test if the carrier is attached steady enough on the tow ball (and not easy to twist). If not, you have to adjust the quick connector. If it is not tight enough, take the carrier off again and screw in the adjustment screw of the quick coupler

a little bit further. Loosen locking nut first, screw in adjustment screw and tighten locking nut again.

Check again if the carrier is properly secured to the tow ball (and cannot rotate easily). Repeat this until the carrier is properly secured.

Caution: Always make sure that the locking nut of the adjustment bolt is tightened again!

When the bike carrier is not easy to turn anymore, the quick connector can be locked. Lock the quick connector with the locking/safety pin and the padlock and take the key out. Keep it carefully on a safe place. The bike carrier is now also protected against theft.

Adjustment screw

Locking nut

Always check if the quick connector is well secured with the locking/safety pin and the padlock!

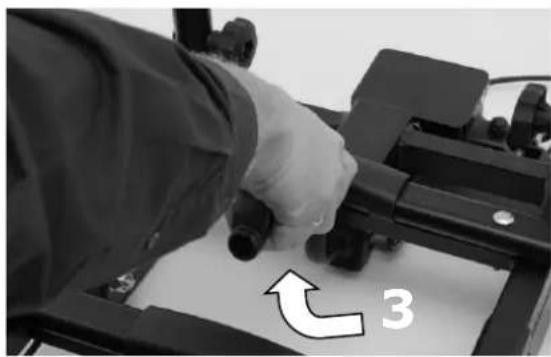

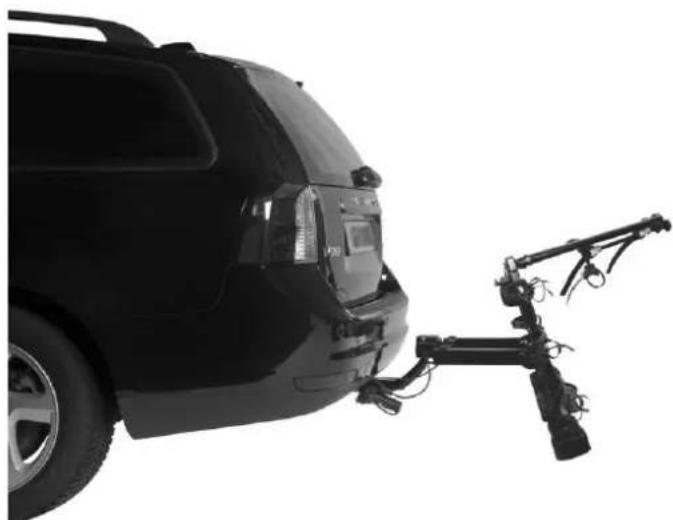

TILTING MECHANISM

For easy access to your boot, even if the bikes are mounted on the carrier, you may use the tilting mechanism.

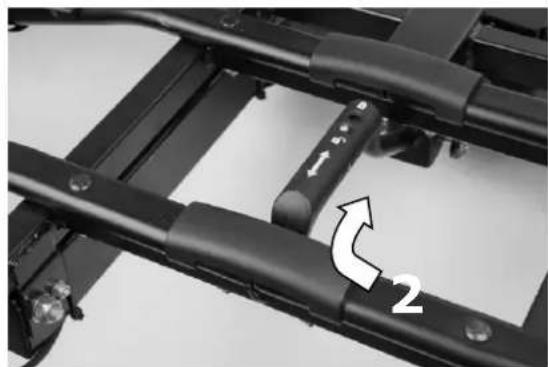

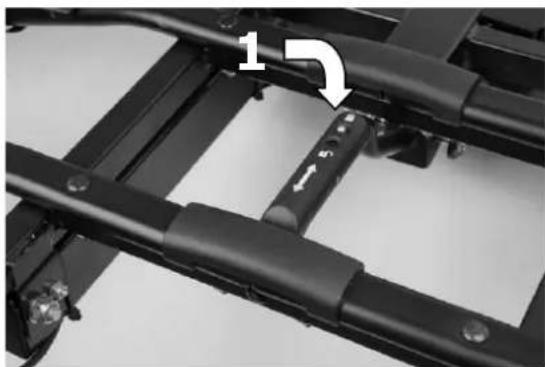

First unlock the lock of the tilting-mechanism handle: Press your finger into the rear button (1), then slide the handle (2) horizontally backwards (away from you).

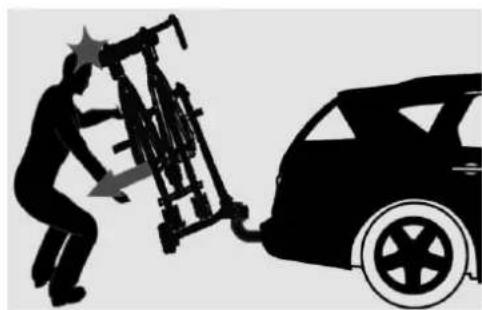

With one hand, keep a firm grip on the U-frame so that the carrier cannot fall down in an uncontrolled movement. With the other hand, pull the handle of the tilting mechanism up to unlock it (3). It is now possible to tilt the carrier.

By pushing the entire carrier up, the tilting mechanism is locked again (you hear a click). Make sure to always secure the handle again by sliding this to the locking position.

The bike carrier may never be used if the tilting mechanism is not well secured.

THE LICENSE PLATE HOLDER

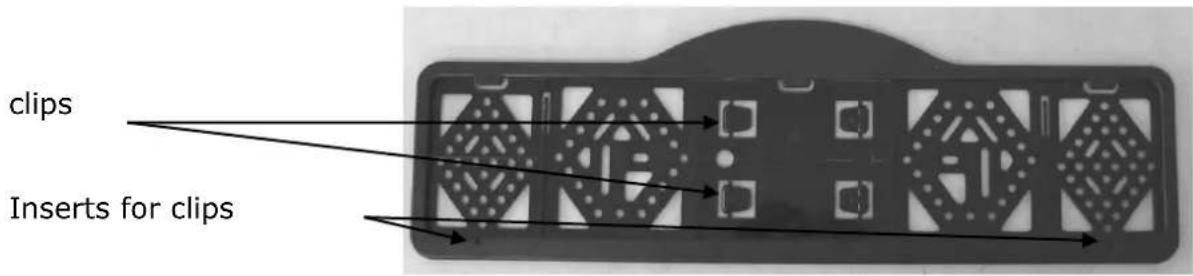

The clips (2) to mount the license plate can be pressed out and are in the license plate holder (see picture).

LIGHTING

This bike carrier is equipped with a lighting system. This system can be connected to the hitch ball power socket of your car. Seeing that there are different kinds of sockets that require different

kinds of plugs, this carrier comes with the usual 7-pin plug and the 13-pin plug (Jaegers). As a result, the carrier can be used with any hitch ball!

Both plugs are in one housing. Please cover the plug you don't use with the supplied cover.

Universal system 7 pin	1/L 2/54G 3/31 4/R 5/58R 6/54 7/58L	Indicator left Rear fog light Ground Indicator right Rear light right Stop lights Rear light left The reversing light is not working via the 7-pin plug!	yellow blue white green brown red black
Jaegers system 13 pin (DIN 72.570)	1 2 3 4 5 6 7 8 9 10 11 12 13	Indicator left Rear fog light Ground Indicator right Rear light right Stop lights Rear light left Reversing light Not used Not used Not used Ground Not used

MOUNTING OF THE BIKES ON THE BIKE CARRIER

Remove all parts from the bikes that could easily be lost (E-bike batteries, bike pumps, speedometers, baskets, panniers, bicycle seats etc.) during transport. These parts may become loose by

the increased air resistance and vibration and put other road users at risk.

The first (and heaviest, max 20kg) bike has to be placed in the rear wheel holder (the one which is the nearest to the car) and secured with the short frame holder on the U-tube.

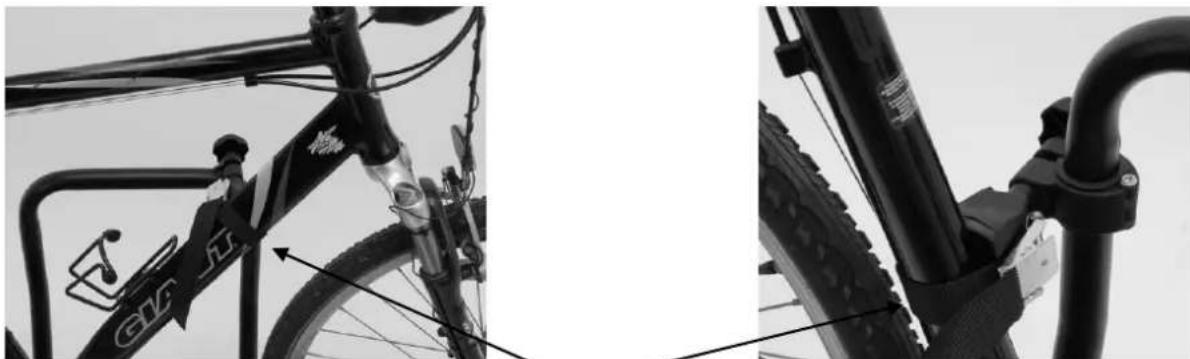

The frame holders are flexible to place on the U-tube, and are also flexible to place on your bike. Try the first time which position in your situation works best (and most stable affirmative is). It is important to place the frame holder as high as possible, giving maximum stability.

Use the straps to secure the bikes. With these straps, any bike can be secured easily without placing a load on the bike crank.

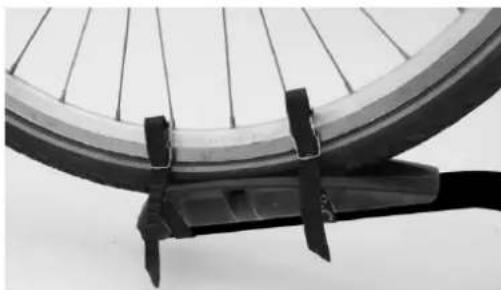

Secure the wheels using the supplied short straps. One strap for the fixation of the rear wheel and two straps for the front wheel (see picture).

Place every next bike in opposite directions into the other wheel holders and proceed as described above for the first bike. Attach the third bike with the extra frame holder (see picture) to the frame of the second bike.

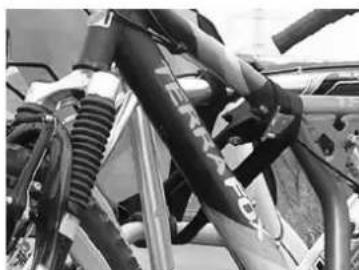

Now secure the bikes using the long safety belt.

Run the safety belt through the bike frame and around the U frame and tighten firmly.

SAFETY REGULATIONS

Keep the tow ball clean and free of grease.

Each time after having mounted the carrier on the tow ball, it will "settle" during the first kilometres that you drive. Therefore, check if the carrier is still firmly secured after the first few kilometres and if necessary, tighten the locking bolt.

Check the bike carrier before use if there is any damage. Damaged or worn parts need to be replaced immediately. Only use original replacement parts.

Do not make any modifications on the bike carrier (mechanical or electronic) This can be very dangerous. Warranty claims will not be accepted and we cannot guarantee the correct functionality of the bike carrier, if you done modifications. We are not responsible for damage caused as a result of incorrect assembly, installation or modification.

Check the correct operation of the lighting at regularly.

Always make sure that the bikes are firmly fixed by using the frame holders and wheel safety belts.

Always use the extra safety belt, for extra protection of your bikes. Run the safety belt trough the U-frame and the frames of the bikes, and pull this firmly.

Make sure that no parts of the bike can get lost during driving (E-bike batteries, pump, basket, child seat, saddlebag, bicycle bag, etc.). Always remove these before driving!

Check regularly if all the belts, knobs and fixations are firmly secured and if necessary secure them again.

Always make sure that the tilting mechanism is locked.

Always make sure that the quick connector is closed and locked.

Do not cover the bikes with a cover while driving.

Driving with a bike carrier affects the performance of your car. Adjust your speed accordingly (max. 130km/h). Try to avoid sudden braking and steering movements.

Please remember when driving in reverse that the car is longer than usual!

In addition, pay attention to the regulatory requirements applicable to the transport of goods at the back of your vehicle.

When you have a vehicle with electronic parking sensors, an error message can come when the bike carrier is mounted. Switch off the parking system during the use of the bike carrier.

If the car is equipped with an automatic opening of the trunk, this must be switched off or only opened manually, if the bike carrier is mounted.

Take the bike carrier of the tow ball before using the carwash.

The bike carrier is not suitable for "off road" use.

Take the bike carrier of the tow ball if not used.

In case of defects or problems please contact your Pro-User supplier.

MAINTENANCE

Always store the bike carrier clean and dry after use. If necessary spray with the water hose to remove mud and other filthy stuff.

Keep the tow ball of the car clean and free of grease.

Keep the quick connector of the bike carrier clean and free of grease.

Check the bike carrier regular if there is any damage. Damaged or worn parts need to be replaced immediately. Use only original replacement parts.

The nuts and bolts of the bike carrier need to be checked regular, if necessary tighten them again.

If there is a damage on the powder coating of the bike carrier this needs to be treated with paint immediately.

Rotating and moving parts need to be oiled regularly.

GUARANTEE

This product is covered by a 2 year guarantee. Please note that our guarantee covers reasonable use of the bike carrier, it does NOT cover any damage caused by misuse. This also applies to a malfunction or failure of the bike carrier that has been caused by poor or incorrect installation. To ensure the validity of the guarantee please carry out maintenance in accordance with the maintenance section. We reserve the right to make a call out and/or repair charge for any work required to be undertaken to rectify faults that are outside of the company's control i.e. incorrect or poor fitting, misuse, accidental damage, etc.

PARTS LIST

Pos nr.	Description	QTY	Remark
1	Main frame with quick connector	1
2	Self-locking nut	12	M6
3	Washer	12	M6
4	Carriage bolt	12	M6x50
5	End-cap	6
6	Plastic cover	3
7	U-tube	1
8	Long frame holder	1
9	Short frame holder	1
10	Strap	9
11	Wheel holder	6
12	Wheel holder tube	6
13	Carriage bolt	2	M8x60
14	Washer	4	M8
15	Plastic knob	2	M8
16	End-cap	2
17	Main frame	1
18	Self-locking nut	2	M10
19	Washer	2	M10
20	Socket head screw	2	M10x52
21	Self-locking nut	4	M5
22	Spring washer	4	M5
23	Washer	4	M5
24	Plastic washer	4
25	End-cap	2
26	Washer	2	M5
27	Spring washer	2	M5
28	Cross head bolt	2	M5x35
29	Screw	1
30	Washer	1	M5
31	Plastic protectioncover	2
32	Lamp left	1
33	Lamp holder tube left	1
34	Screw	2
35	License plate holder	1
36	Washer	2	M5
37	Lamp holder tube right	1
38	Lamp right	1
39	Pin	1	Ø10x78
40	Self-locking nut	2	M6
41	End-cap	2
42	Washer	4	M6
43	Socket head screw	2	M6x45
44	Cotter pin	1
45	Washer	1	M10
46	Plastic handle	1
47	Pin	2	Ø5x20
48	Leaf spring with button	1
49	Foldingmechanism handle	1
50	Self-locking nut	1	M8
51	Spring	1
52	Washer	2	M8
53	Socket head screw	1	M8x60
54	Short frame holder "frame-frame"	1

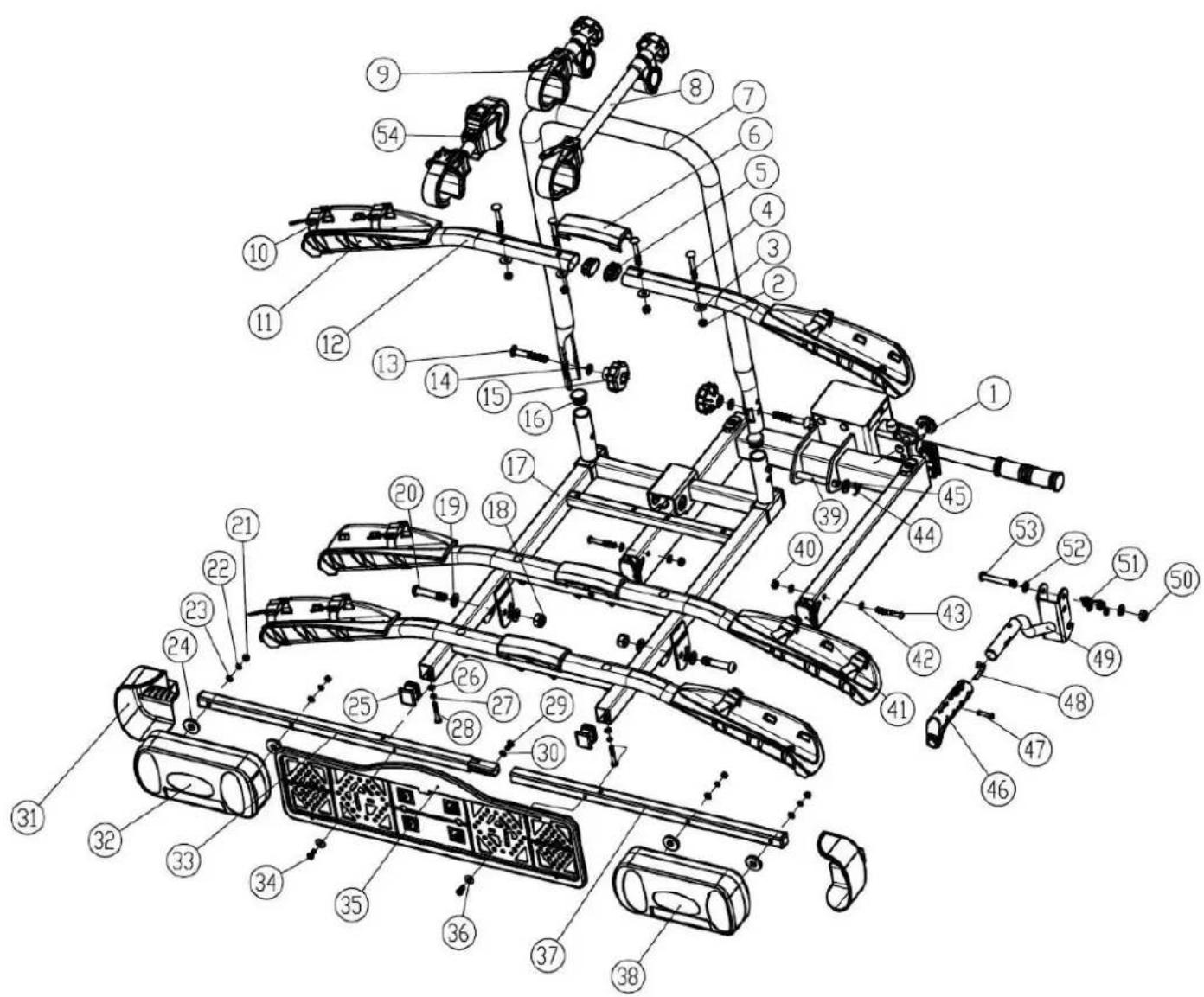

EXPLODED VIEW
