USER MANUAL ST36DE STANLEY

© 2020, Obelis S.A Registered Address:

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

Obelis S.A.

Registered Address:

Bd.Général Wahis,53

1030 Brussels, Belgium

STANLEY

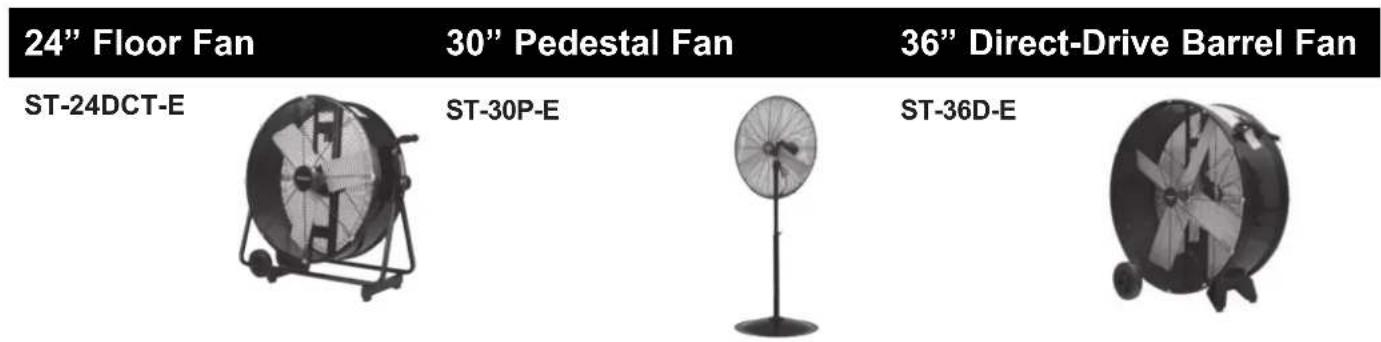

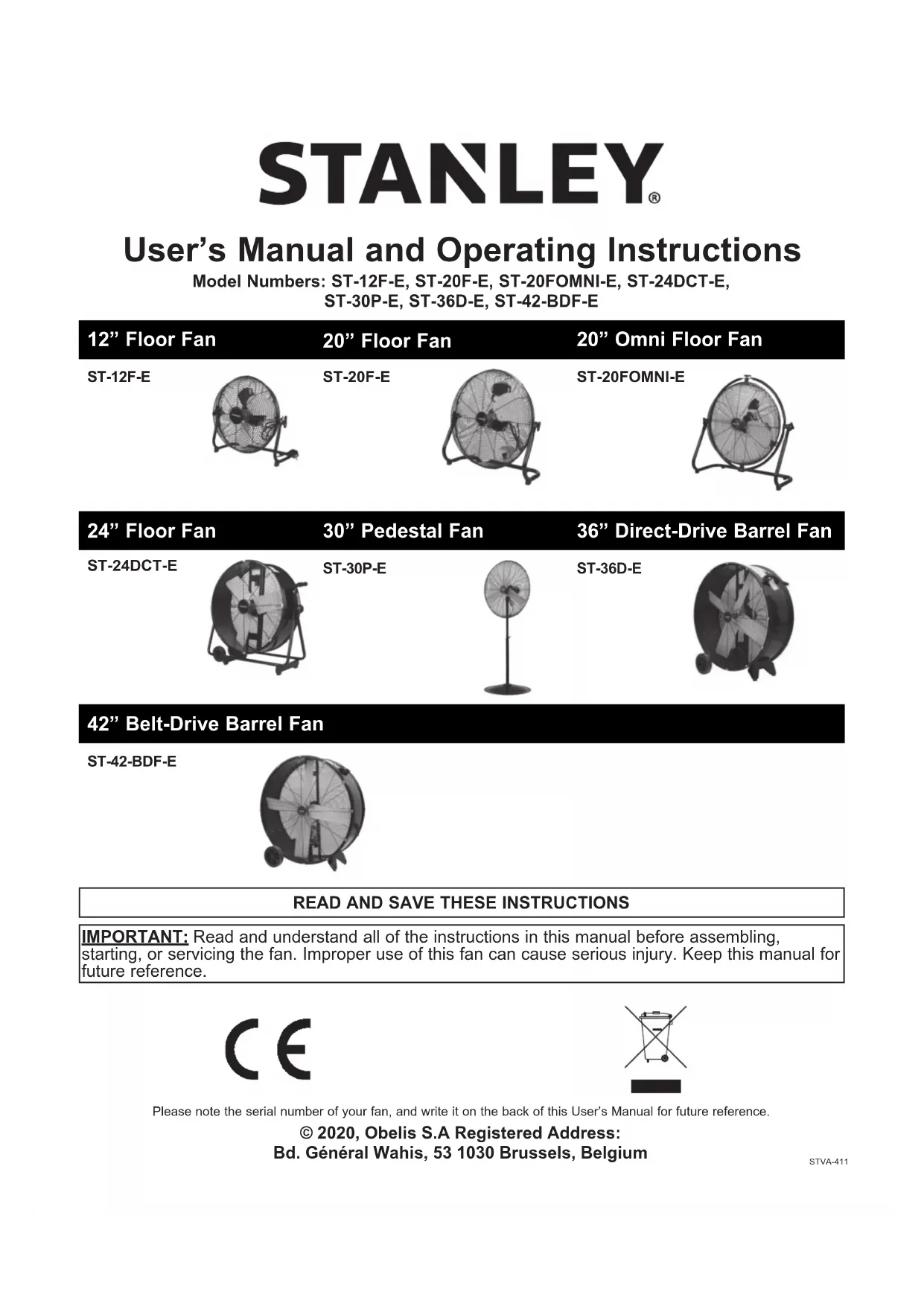

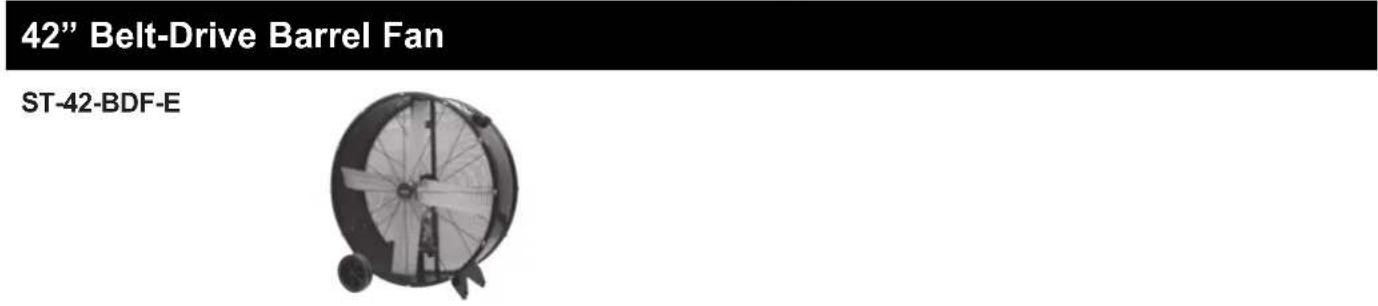

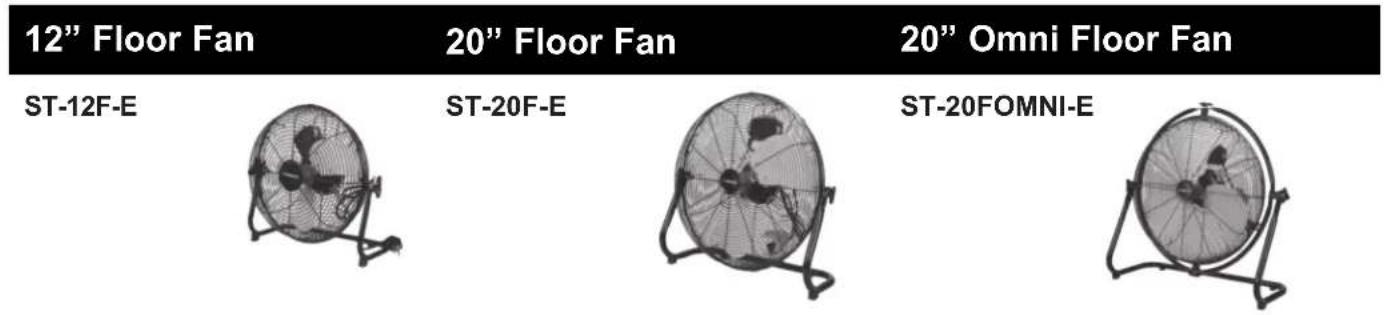

User's Manual and Operating Instructions

Model Numbers: ST-12F-E, ST-20F-E, ST-20FOMNI-E, ST-24DCT-E,

ST-30P-E, ST-36D-E, ST-42-BDF-E

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT: Read and understand all of the instructions in this manual before assembling, starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for future reference.

C E

Please note the serial number of your fan, and write it on the back of this User's Manual for future reference.

© 2020, Obelis S.A Registered Address:

For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive

Materials And Vapors. Never use the fan in spaces which contain products such as gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles, or any unknown chemicals.

WARNING

Do not operate any fan with a damaged cord or plug.

Discard fan or return to an authorized service facility for examination and/or repair.

Do not run under carpeting.

Do not cover with throw rugs, runners, or similar coverings.

Do not route cord under furniture or appliances.

Arrange cord away from traffic area where it will not be tripped over.

To reduce the risk of electric shock, do not expose to water/rain or use in damp locations.

CAUTION

To reduce risk of fire and to properly exhaust air, be sure to duct air outside.

Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

WARNING

THIS IS A FAN - NOT A TOY! TO REDUCE THE RISK OF PERSONAL INJURY

WHERE SMALL CHILDREN CAN REACH IT.

WARNING

To guard against electric shock while operating, do not allow fan to come in contact

WARNING

Diet of fire, lightning, and lightning

nance. Unplug or disconnect the fan from the power supply before servicing.

WARNING

CAUTION Automatically Operated Device - To Reduce The Risk Of Injury

Disconnect From Power Source Before Servicing

WARNING

To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid

State Speed Control Device.

WARNING

To Reduce The Risk Of Electric Shock And Injury To Persons, Do Not Use In a

Window.

Safety Information

WARNING

To Reduce The Risk Of Electric Shock, Do Not Expose To Water Or Rain or use in damp locations.

WARNING

Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not run cord under carcover cord with throw rugs, runner, or similar coverings. Do not route cord under funce. Arrange cord away from traffic areas and where it will not be tripped over.

WARNING

Installation work and electrical wiring must be done by qualified person (s) in accordance with all applicable codes and regulations.

WARNING

When servicing or replacing a component requires the removal or disconnection of a safety device, the safety device is to be reinstalled or remounted as previously operating this fan.

WARNING

Use this fan only in the manner intended by the manufacturer.

Before operating always check fan for loose or damaged parts. Inspect power cord for any damage. Never use fan if any parts are damaged or missing. Never use fan without safety guards attached.
- Operate only on 220-240 volt, 50Hz (cycle) current with a minimum of a 15 amp circuit.
- When used with an extension cord, use only cord of proper size (Amp rating), UL listed, and with receptacle to accept three prong grounded plug furnished on the fan's power cord. Always keep power cord and extension cords away from heat, oil, and sharp edges. Inspect cords periodically and replace if damaged.

Installation and Assembly

ST-12F-E / ST-20F-E / ST-20FOMNI-E / ST-24DCT-E

1. Place the fan on level ground in a safe, desired position then connect to an approved power source.

ST-36D-E/ST-42-BDF-E

1. Slide wheel axle through wheel support frame.
2. Slide one (1) wheel onto either side of axle.
3. Secure wheel with one (1) cotter pin.
4. Place the fan on level ground in a safe, desired position then connect to an approved power source.

30" PEDESTAL FAN: ST-30P-E

Installation and Assembly

Tools Needed:

Pliers

Phillips head screwdriver

10mm spanner or adjustable wrench

Hex Wrench

Parts Included In Box:

(1) Base
(1) Front Guard
(1) Rear Guard
(1) Motor Assembly
(1) Fan Blade Assembly
(1) Locking Collar
(1) Upper Support Pole
(1) Lower Support Pole
(1) Nut (M12) and Washer
(1) Pivot Bolt (M12*40)
(9) Flange Screws
(1) Support Spring

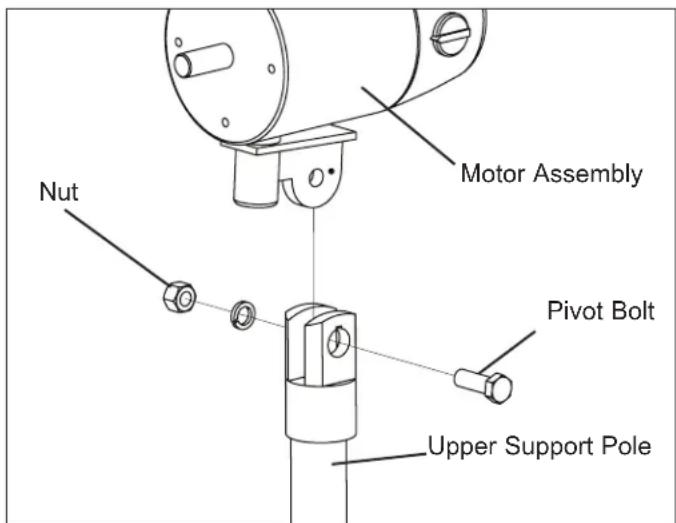

Figure 1: Attaching Motor to Motor Support Assembly

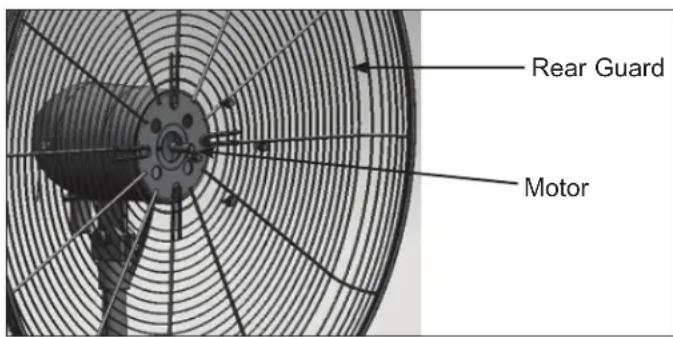

Figure 2: Attaching Rear Guard to Motor

1. Place the Base on level ground
2. Place the Support Spring and Spring Seat inside the bottom of the Support Pole, and mount the Support Pole to the Base. Make sure the holes line up.
3. Secure tightly with (5) Flange Screws using the wrench/Phillips head screwdriver.
4. Put down the base cover.
5. Loosen the locking collar screw using the adjustable handle. Extract the Upper Support Pole slowly to adjust the height of the fan. Retighten with the adjustable handle.
6. Loosen the set screw on the motor support. Mount the Motor Assembly to the connector on the Upper Support Pole. Make sure the holes line up.
7. Secure Motor Assembly with Pivot Bolt (M12^*40) Nut (M12), and Washer (see Fig. 1). Tighten the bolt firmly using the wrench. Tighten the set screw.
8. Slide the Rear Guard on to Motor Assembly and secure it with (4) Flange Screws (see Fig. 2). Tighten the screws firmly using the wrench/Phillips head screwdriver.
9. Loosen the screw on the back of the Fan Blade Assembly using the Allen wrench (hex wrench). Slide the Fan Blade Assembly onto the motor shaft. Retighten the screw on the Fan Blade Assembly.
10. Attach the Front Guard to the Back Guard and secure with the fasteners on the front guard.

CAUTION

Do NOT slide fan blade screw beyond the groove on the shaft!

This will cause the fan blade to not spin properly and can cause damage to your fan! Be sure that fan shaft is flush with front of fan blade assembly.

NOTE: This model CANNOT be wall mounted

Information requirements for electric fans

Model identifier(s): ST-12F-E

Description	Symbol	Value	Unit
Maximum fan flow rate F 33.49 m			3/min
Fan Power Input P 44.3 W
Service Value	SV	0.76	(m3/min)/W
Standby power consumption	PSB	0.00	W
Seasonal electricity consumption	Q	14.2	kWh/a
Fan sound power level L	WA 57.2 dB(A)
Maximum air velocity	c	3.08	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Model identifier(s): ST-20T-E, ST-20F-E, ST-20FOMNI-E, PT-20F-EU, PT-20FOMNI-EU, PT-20T-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 49.74 m			3/min
Fan Power Input	P	109.8	W
Service Value	SV	0.45	(m3/min)/W
Standby power consumption	PSB	0.00 W
Seasonal electricity consumption	Q	35.1	kWh/a
Fan sound power level L	WA 67.8 dB(A)
Maximum air velocity	c	2.36	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Information requirements for electric fans

Model identifier(s): ST-24DCT-E, ST-24W-E, PT-24DCT-EU, PT-24W-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 176.4 m			3/min
Fan Power Input P 108.1 W
Service Value	SV	1.63	(m3/min)/W
Standby power consumption P	SB 0.00 W
Seasonal electricity consumption	Q	34.6	kWh/a
Fan sound power level L	WA	82	dB(A)
Maximum air velocity	c	1.88	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Model identifier(s): ST-30BCT-E, ST-30D-E, ST-30P-E, ST-30W-E, PT-30BCT-EU, PT-30D-EU, PT-30P-EU, PT-30W-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 143.7 m			3/min
Fan Power Input P 118.3 W
Service Value	SV	1.21	(m3/min)/W
Standby power consumption P	SB 0.00 W
Seasonal electricity consumption	Q	37.9	kWh/a
Fan sound power level L	WA	83.4 dB(A)
Maximum air velocity	c	1.49	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufactureror its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

SERVICE

Belgique et Luxembourg	E. Walschaertstraat 142800 MechelenBelgium	[e-mail]-NL= [phone]BE-FR = [phone]BE Fax: [phone]	United Kingdom 210 Bath Road; Slough, Berks SL1 3YD	www.stanleytools.co.ukTel: [phone]Fax: [phone]
			Hungary Rotel Kft.	www.stanleyworks.hu [e-mail] Tel: [phone] Fax: [phone]
Belgien & Luxembourg	222620 Albertslund	[e-mail]: 70224910	Czech Republic	BAND SERVIS CZ s.r.o.K Pasekam 4440760 01 Zlin, Czech Republic
			Slovakia	BAND SERVIS s.r.o.Paulinska 22917 01 Trnava, Slovakia
			Poland Erpatech	www.stanleyworks.plTel: [phone]Fax: [phone]
Deutschland Richard Klinger Str. 1165510 Idstein	[e-mail]: 06126-21-1Fax: [phone]	[e-mail]: 06126-21-1Fax: [phone]	Slovenia	G-M&M d.o.o.Brvice 111290 Grosplje Slovenija
			F: [phone]	F: [phone]
Estonia Parque de Negocios "Mas Blau"Edificio Muntadas, c/Bergadà, 1, Of. A608820 El Prat de Llobregat (Barcelona)	[e-mail]: 934 797 400Fax: [phone]	www.stanleyworks.ch	Bulgaria	TASHEV-GALVING LTD68 KLMIENT OHRIDSKI BLVD.1756 Sofia, Bulgaria
			Cyprus IOANNOU J.	4A Ath.Diakou street1046- Nicosia-Cyprus
SchweizSuisseSwizzera	In der Luberzen 428902 Urdorf	[e-mail]: 044 - 755 60 70Fax: 044 - 730 70 67	Bosnia-Herzegovina	G-M&M d.o.o.Brvice 111290 Grosplje Slovenia
			Estonia AS Tallmac	Mustame tee 44,EE-10621 Tallinn
Ireland 210 Bath Road; Slough, Berks SL1 3YD UK www.stanleytools.co.uk	[e-mail]: 45 25 08 00	[e-mail]: 45 25 08 00	Latvia LIC GOTUS SIA	www.liqotus.lvT: [phone]LT - 1021 Riga
Italia Energypark-Building 03 sud, Via Energy Park6 20871 Vimercate (MB)	www.stanley.itTel: 039-9590-200Fax: [phone]	[e-mail]: 01 - 66116 - 0Fax: 01 - 66116 - 14	Lithuania	UAB ELREMTA OUNeries kr. 16ELT - 48402 Kaunas
Netherlands Stanley Black & Decker Netherlands B.V.Postbus 836120 AD Born	[e-mail]: [phone]NL Fax: [phone]	[e-mail]: 214 66 75 00Fax: [phone]	Malta	Energypark-Building 03 sud, Via Energy Park6 20871 Vimercate (MB)
			Romania	Stanley Black & DeckerPhoenicia Business CenterStrada Turturelorl, nr 11A, Etaj 6, Modul 15,Sector 3 Bucuresti
Norge Postboks 4613, Nydalonen0405 Oslo	[e-mail]: 45 25 08 00	[e-mail]: 45 25 08 00	Serbia G-M&M d.o.o.	[e-mail]: [phone]Fax: [phone]
Österreich Oberlaerstrasse 248A-1230 Wien	[e-mail]: 01 - 66116 - 0Fax: 01 - 66116 - 14	[e-mail]: 01 - 66116 - 0Fax: 01 - 66116 - 14	Lithuania	UAB ELREMTA OUNeries kr. 16ELT - 48402 Kaunas
Portugal Quinta da Fonte - Edificio Q55 D. DinizRua dos Malhôes, 2 e 2A - Piso 2 Esqueredo2770 - 071 Paço de Arcos	[e-mail]: 214 66 75 00Fax: [phone]	[e-mail]: 214 66 75 00Fax: [phone]	Romania	Stanton & DeckerPhoenicia Business CenterStrada Turturelorl, nr 11A, Etaj 6, Modul 15,Sector 3 Bucuresti
Suomi PL 4700521 Helsinki	[e-mail]: 010 400 4333	www.stanleyworks.fiKundeservice.seFax: 31 68 60 08	Serbia G-M&M d.o.o.	[e-mail]: [phone]Fax: [phone]
Sverige Box 94431 22 Mölndal	www.stanleyworks.sekundeservice.seFax: 31 68 60 08	www.stanleyworks.sekundeservice.seFax: 31 68 60 08	Bvace 111290 GrospljeSlovenija	www.g-mm.si [e-mail]: [phone]Fax: [phone]
