Product Type	Portable LED follow spotlight
Brand	Chauvet
Model	LED Followspot 75ST
Category	Lamp
Power Supply	120 VAC or 230 VAC, 50/60 Hz (switchable)
Fuse	Replace with fuse of same type and rating
Light Source	LED
Dimmer	Smooth, 0–100%
Strobe	Electronic, fast (slow to fast via DMX)
DMX	Yes, 3 channels (dimmer, color, strobe)
Operating Modes	Manual, DMX, Master/Slave
Gobo Holder	Yes (internal)
Gel Holder	Yes
Iris	Adjustable
Focusing Lens	Adjustable
Yoke	Yes, with adjustment knob
Safety Cable	Recommended for overhead mounting
Protection Rating	IP20 (indoor use only)
Max Ambient Temperature	40 °C (104 °F)
Maintenance	Disconnect before cleaning; replace fuse if necessary
Repairability	No user-serviceable parts; do not open
Included Accessories	Tripod, power cord, warranty card, reference manual

Frequently Asked Questions - LED Followspot 75ST Chauvet

How to connect the LED Followspot 75ST?

Connect the device to a protected and grounded circuit. Ensure the outlet voltage matches the range indicated on the label (120 VAC or 230 VAC). Do not use a dimmer or rheostat.

Can I use this projector outdoors?

No, the LED Followspot 75ST is designed for indoor use only (IP20). Do not expose it to rain or moisture to avoid fire or electric shock.

How to replace the fuse?

First unplug the device. Using a flat-head screwdriver, pry out the fuse holder. Remove the old fuse and replace it with a fuse of the same type and rating. Reinsert the fuse holder and plug back in.

How to clean the device?

Always unplug the device before cleaning. Use a soft, dry cloth. Do not block the ventilation slots and avoid abrasive products.

What are the available DMX modes?

The projector uses a 3-channel DMX mode: channel 1 (dimmer 0-100%), channel 2 (color: white, dark blue, yellow, purple, green, red, light blue, orange), channel 3 (strobe: open, slow to fast strobe, open).

How to adjust the iris?

Use the iris adjustment knob located on the control panel. This controls the size of the light beam.

Can I use an external dimmer with this projector?

No, never connect this device to a dimmer or rheostat. Plug it only into a protected and grounded circuit.

How to mount the device overhead?

Use the yoke and an appropriate safety cable (e.g., Chauvet CH-05). Ensure the support can bear the weight and the device is securely attached. Mount in a well-ventilated area, at least 50 cm from adjacent surfaces.

What to do in case of malfunction?

Immediately stop the device and unplug it. Do not attempt to open it. Contact your dealer or Chauvet support. Refer to the provided warranty.

What accessories are included with the LED Followspot 75ST?

The package contains: the projector, a tripod, a power cord, a warranty card, and a reference manual.

USER MANUAL LED Followspot 75ST Chauvet

Line drawing of a tripod-mounted scientific instrument with mounted components (no text or symbols)

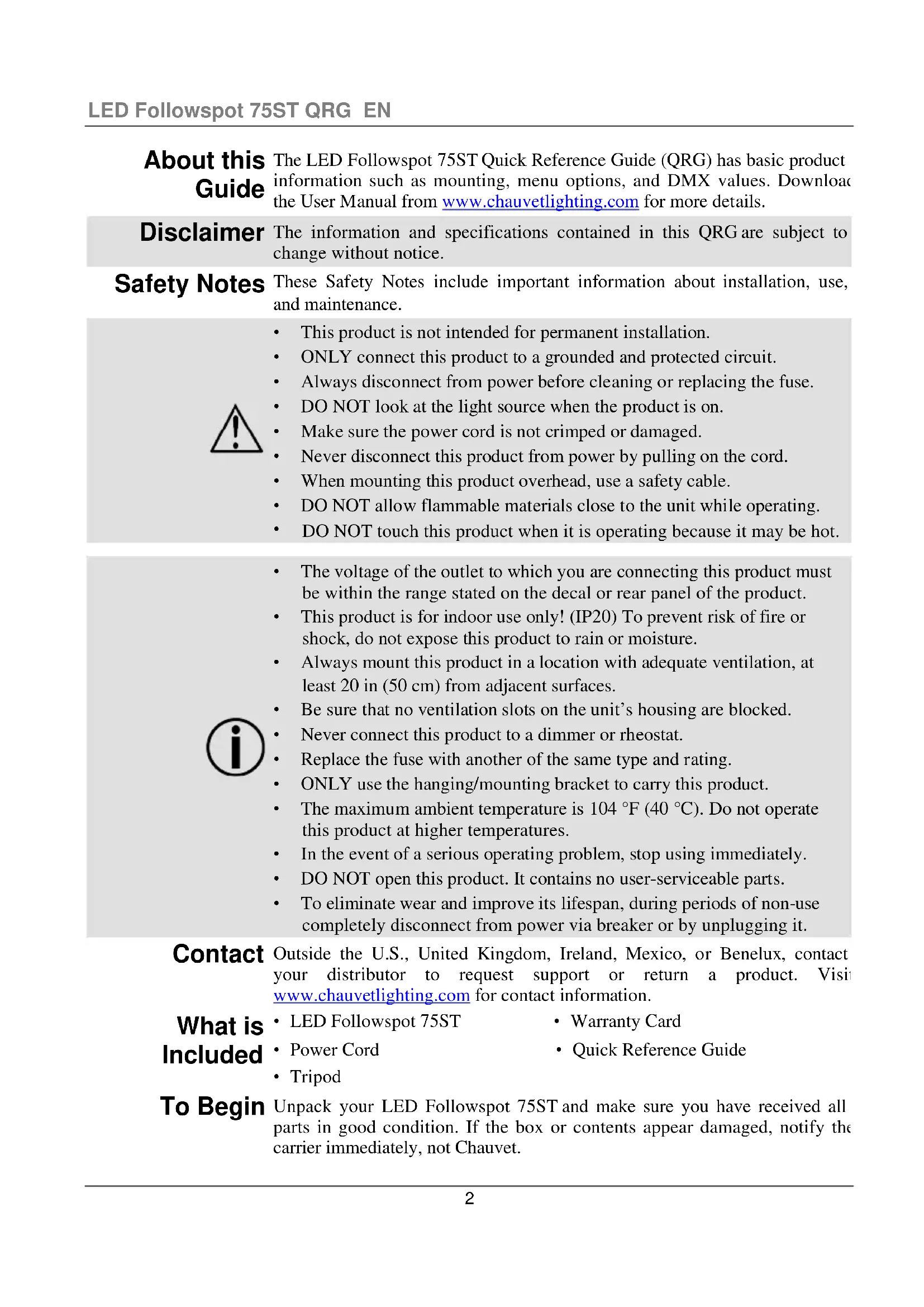

About this Guide

The LED Followspot 75ST Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetlighting.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• Always disconnect from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
- When mounting this product overhead, use a safety cable.
• DO NOT allow flammable materials close to the unit while operating.
• DO NOT touch this product when it is operating because it may be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
  • Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
  • Never connect this product to a dimmer or rheostat.
• Replace the fuse with another of the same type and rating.
  • ONLY use the hanging/mounting bracket to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
  • In the event of a serious operating problem, stop using immediately.
  • DO NOT open this product. It contains no user-serviceable parts.
• To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetlighting.com for contact information.

What is Included

• LED Followspot 75ST
- Warranty Card
- Power Cord
- Quick Reference Guide
- Tripod

To Begin

Unpack your LED Followspot 75ST and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Description

The LED Followspot 75ST is a portable, LED-powered fixture that offers DMX or manual controls to suit a variety of needs. Super smooth LED dimming and an extremely fast electronic strobe makes it a fantastic beam for any performance. Project crisp patterns onto any surface using the single gobo slot.

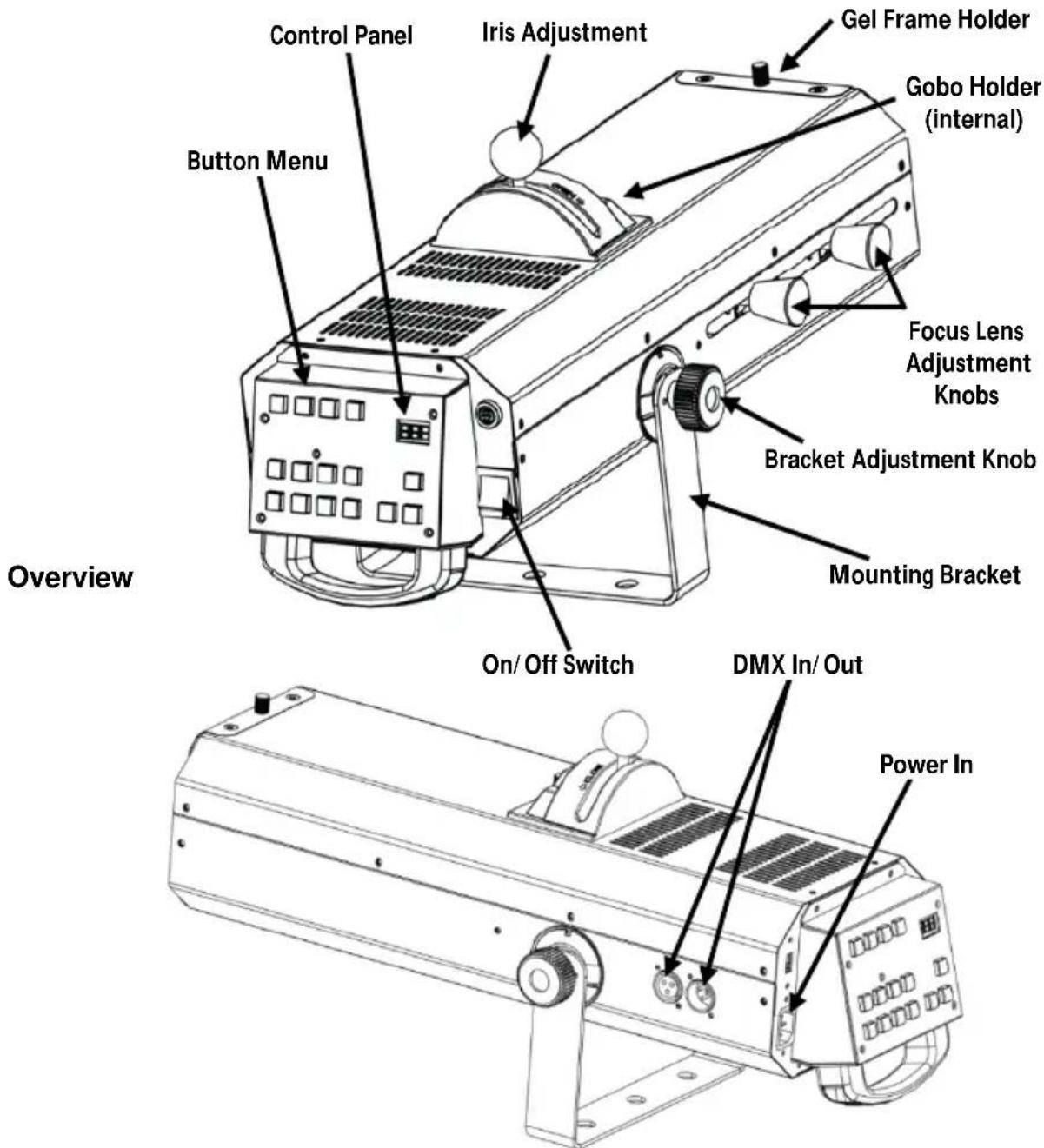

Control Panel Iris Adjustment Gel Frame Holder Button Menu Gobo Holder (internal) Focus Lens Adjustment Knobs Bracket Adjustment Knob Mounting Bracket On/ Off Switch DMX In/ Out Power In Overview

AC Power

This product has a switchable power supply that can work with an input voltage of 120 VAC or 230 VAC, 50/60 Hz.

Fuse Replacement

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

1. Disconnect the product from power.
2. Using a flat-head screwdriver, loosen the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Mounting Before mounting this product, read the Safety Notes and refer to the user manual.

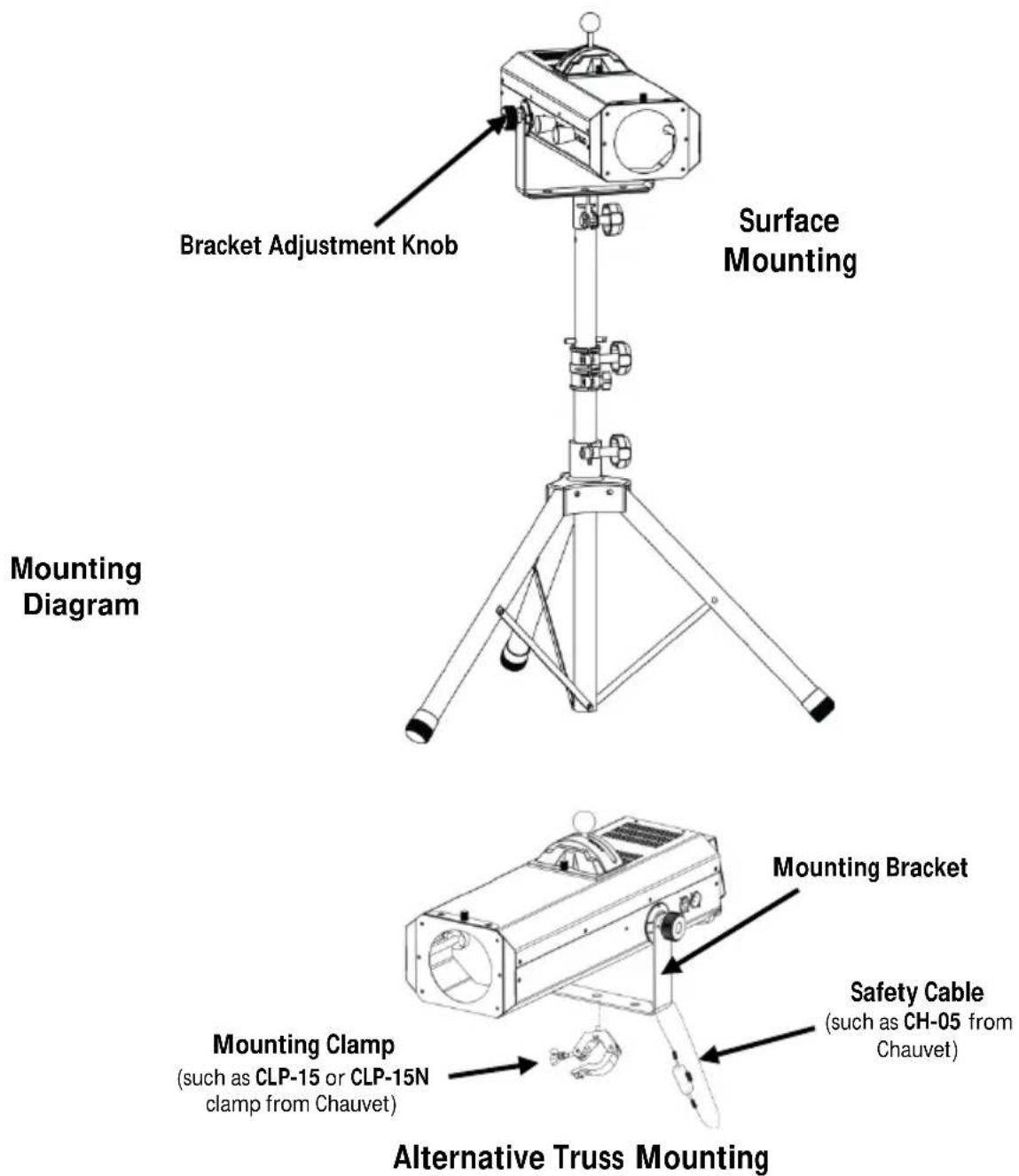

Bracket Adjustment Knob Surface Mounting Mounting Diagram Mounting Bracket Mounting Clamp (such as CLP-15 or CLP-15N clamp from Chauvet) Safety Cable (such as CH-05 from Chauvet) Alternative Truss Mounting

The alternative truss mounting is recommended for static installation only. While using the truss mounting, be sure to continuously check and secure the rigging points, especially if repositioning the LED Followspot 75ST.

Programming For details on how to program this product, please refer to the product's User Manual.

Control Panel Description	Button Function
		Turns power on and off
		Opens dimmer to a maximum of 100% (hold to raise percentage)
		Closes dimmer to a minimum of 0 (hold to lower percentage)
		Turns LED on (default setting)
		Turns LED off
		Projects orange color
		Projects cyan color
		Projects red color
		Projects green color
		Projects magenta color
		Projects yellow color
		Projects blue color
		Projects white light
		Selects manual or DMX mode
		In DMX mode, moves channel number up
		In DMX mode, moves channel number down

Menu Options

Main Level	Programming Levels		Description
Manual Mode	NAn		Selects Manual mode
DMX Address	001	001–512	Sets the DMX starting address

DMX Linking

The LED Followspot 75ST can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.

Starting To ensure full access to all channels in each DMX mode, the highest Address recommended DMX address is 510.

Master/Slave The LED Followspot 75ST uses the DMX data connection for its Connection Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.

DMX Values

3-CH Channel	Function	Value	Percent/Setting
1	Dimmer	000 Ü 255	0–100%
2 Color		000 Ü 031	White
		032 Ü 063	Dark blue
		064 Ü 095	Yellow
		096 Ü 127	Purple
		128 Ü 159	Green
		160 Ü 191	Red
		192 Ü 223	Light blue
		224 Ü 255	Orange
3 Strobe		000 Ü 003	No function
		004 Ü 007	Open
		008 Ü 215	Strobe, slow to fast
		216 Ü 255	Open
